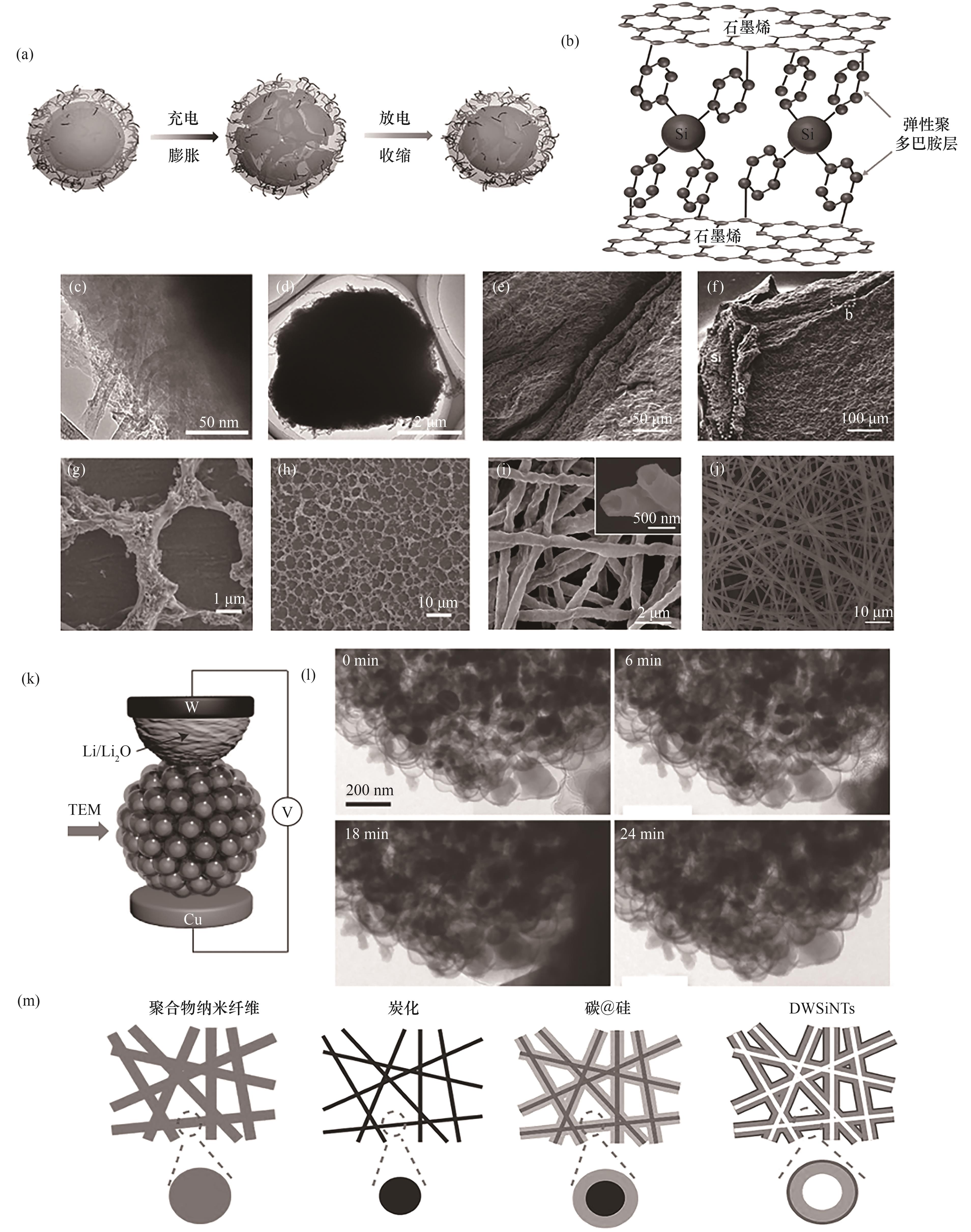

| 图3 (a)弹性包覆示意图；(b)“三明治”结构示意图；(c)、(d)不同精度下弹性包覆SEM图；(e)、(f)三明治结构SEM图；(g)、(h)“呼吸图”法为硅搭建“房子”；(i)循环2000次后DWSiNTs表面均匀覆盖SEI膜；(j)DWSiNTs SEM图；(k)、(l)原位TEM装置示意图以及拍摄TEM图像；(m)DWSiNTs合成示意图[ |
| Fig.3 (a) Elastic coating diagram; (b) Schematic diagram of the “sandwich” structure; (c)，(d) SEM images of elastic coating with different accuracy; (e)，(f) SEM images of sandwich structure; (g)，(h) “Breathing map” method was used to build a “house” for silicon； (i) DWSiNTs surface was uniformly covered with SEI film after 2000 cycles; (j)DWSiNTs SEM images; (k)，(l) Schematic diagram of the in-situ TEM device and TEM images； (m) Schematic diagram of DWSiNTs synthesis[ |
|
|
