碱性离子膜内强化离子传递策略及研究进展

doi:10.11949/0438-1157.20240445

摘要/Abstract

摘要：

碱性离子膜（阴离子交换膜）作为电解水制氢、二氧化碳还原等电化学过程的关键材料，在传递离子、分隔阴阳两极和阻隔气体渗透方面，具有重要应用价值。现有碱性离子膜起源于电渗析过程，其离子传导率偏低，无法满足电化学过程对高电流密度、高稳定性需求。针对电解水制氢过程对高通量、低电阻、低能耗的需求，本文从膜内离子传递过程出发，结合氢氧根传递特点，分析满足综合性能需求的碱性离子膜结构特征，重点阐述膜内强化离子传递策略。归纳分析最新研究成果，分类讨论交联、定向排列、微相分离以及构筑微孔等具体策略，指明高性能碱性离子膜研究路径，促进以电解水制氢为代表的电化学反应器技术发展。

关键词: 碱性离子膜, 自由体积理论, 离子传递, 离子传导率, 电解水

Abstract:

As key materials in electrochemical processes such as water electrolysis and CO₂ electroreduction, anion exchange membranes have important application value in ions transport, separating anode and cathode, and blocking gas penetration. Originating from electrodialysis process, most commercial anion exchange membranes have low conductivity, which can't meet the demand of high current density and high stability in electrochemical process. For demands of high flux, low resistance and low energy consumption in water electrolysis, this work investigates ions transport in membranes, combined with features of hydroxide ions, analyzes the structural characteristics of anion exchange membranes that meet the comprehensive performance requirements, and focuses on the strategies of enhanced ion transport. The latest research are summarized, and specific strategies such as cross-linking, directional alignment, microphase separations and micropore construction are discussed, indicating the direction of high-performance anion exchange membranes, and promoting the development of electrochemical progresses such as water electrolysis.

Key words: anion exchange membrane, free volume theory, ion transport, ion conductivity, water electrolysis

中图分类号:

TQ021.4

庞茂斌, 徐子昂, 甄翊含, 许琴, 林董澄, 刘京, 王保国. 碱性离子膜内强化离子传递策略及研究进展[J]. 化工学报, DOI: 10.11949/0438-1157.20240445.

Maobin PANG, Zi'ang XU, Yihan ZHEN, Qin XU, Dongcheng LIN, Jing LIU, Baoguo WANG. Recent progress of strategies for enhanced ion transport in anion exchange membranes[J]. CIESC Journal, DOI: 10.11949/0438-1157.20240445.

图/表 15

图1 阴离子交换膜内氢氧根的输运机制[29]

Fig.1 Transport mechanisms proposed for hydroxide ions in anion-exchange membranes[29]

图2 氢氧根传递机制研究进展[32-35]注:(a)氢氧根Grotthuss机制;(b)AEM内氢氧根传递;(c)水通道"瓶颈"处氢氧根传递(d)QENS测试结果;(e~g)膜内氢氧根传递行为解耦

Fig.2 Progress of hydroxide ion transfer mechanism[32-35](a) Grotthuss mechanism of hydroxide; (b) Hydroxide transfers in AEM; (c) Hydroxide transfers at "bottleneck" of water channel; (d)QENS test results; (e~g) Decoupling of hydroxyl transfer behavior in membranes

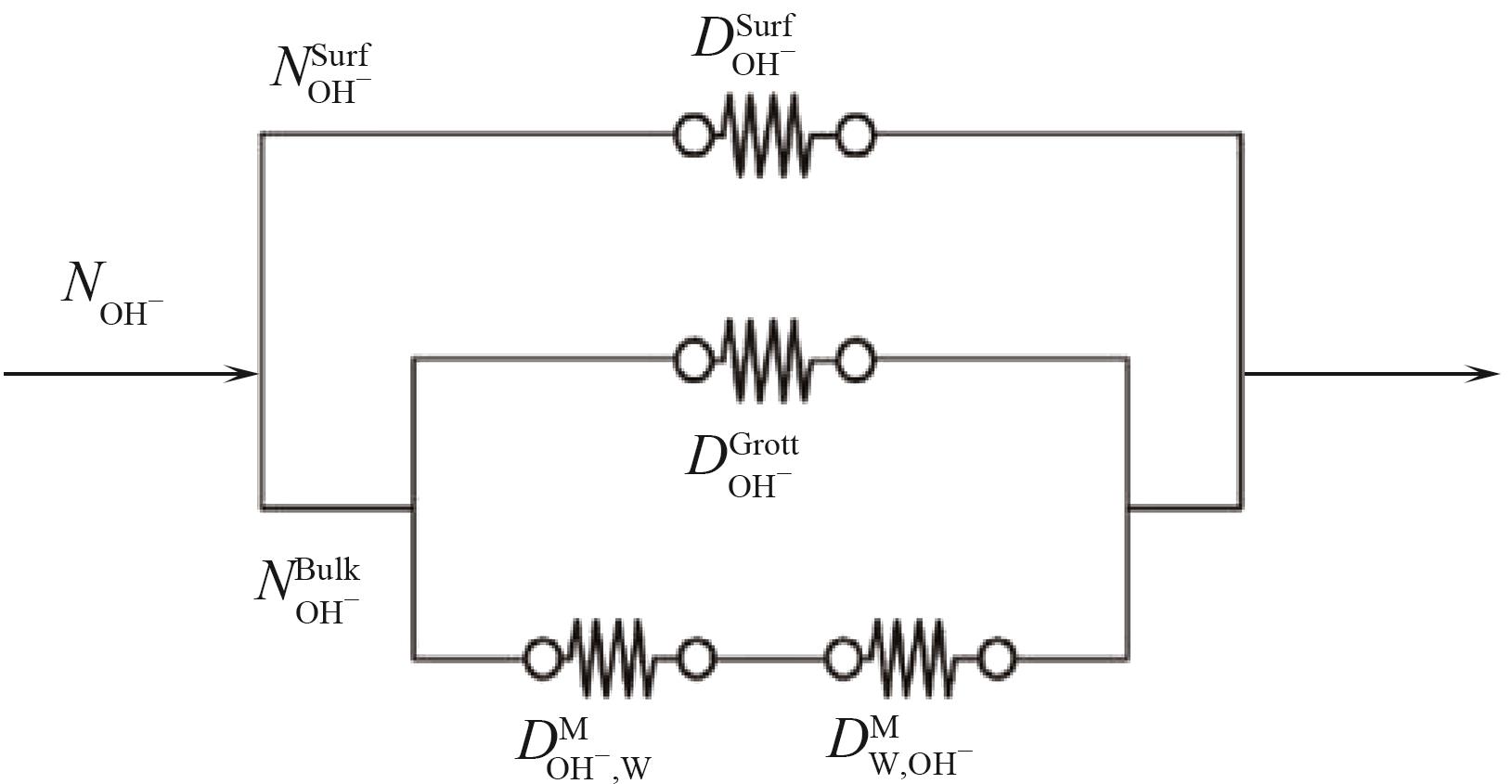

图3 膜内氢氧根传递机制电路类比[29]

Fig.3 Electric circuit analogy of the transport mechanisms for hydroxide ions in anion exchange membranes[29]

图4 交联策略常见结构示意图[45,54-55]注:(a) PBP-ASU-PPO结构; (b) PPO-EO/BEO/TEO结构; (c)PEP80结构及合成路径

Fig.4 Schematic illustration of common structures of cross-linking strategies[45,54-55](a) PBP-ASU-PPO structure; (b) PO-EO/BEO/TEO structure; (c)PEP80 structure and synthesis pathway

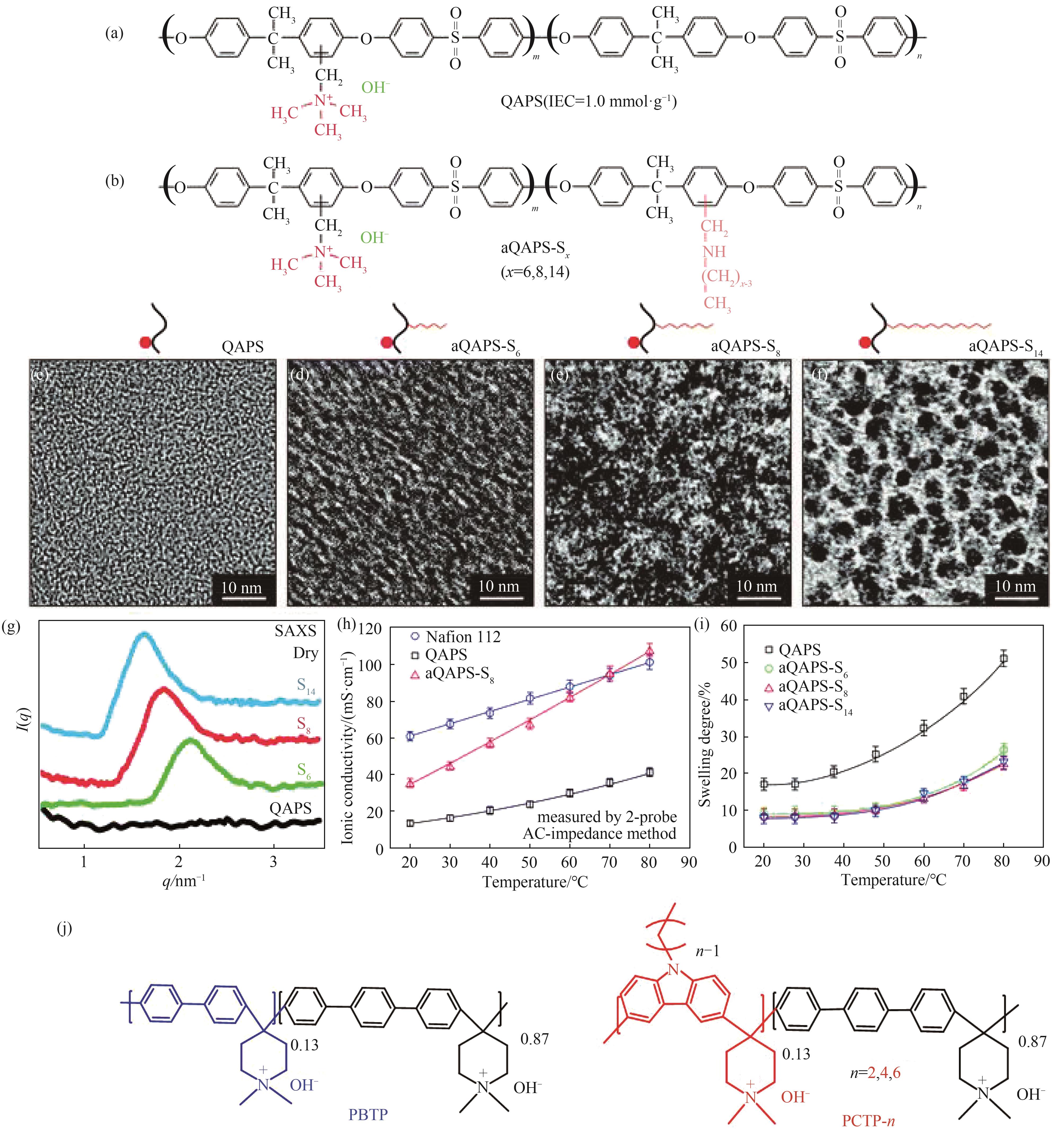

图5 QAPS结构微相分离策略示意图[59-60]注:(a~b) aQAPS-Sx结构; (c~f) TEM图像;(g)SAXS图像;(h) 离子传导率与温度关系;(i) 溶胀率与温度关系;(j) PBTP及PBnPip结构

Fig.5 Schematic illustration of microphase separation for QAPS structure[59-60](a~b) Structure of aQAPS-Sx; (c~f) TEM images; (g) SAXS image; (h) Relation between Ionic conductivity and temperature; (i) Relation between Swelling degree and temperature; (j) Structure of PBTP and PCTP-n

图6 PBnPip结构微相分离策略示意图[46]注:(a~d) TEM图像;(a'~d') AFM图像;(e)溶胀率与温度关系;(f)离子传导率与温度关系;(g)分子结构

Fig.5 Schematic illustration of microphase separation for PBnPip structure[46](a~d) TEM images; (a '~d') AFM image; (e) Relationship between swelling rate and temperature;(f) Relation between conductivity and temperature; (g) Molecular structure

图7 多重交联结构PXm-Tn用于高效传递氢氧根[62]注:(a)分子结构及合成路径; (b)有序/无序通道下氢氧根传递能垒对比

Fig.6 Multiple cross-linked PXm-Tn for OH- transportation highway[62](a) Molecular structure and synthetic pathways; (b) Hydroxyl transfer barrier comparison in ordered/disordered channels

图8 磁场定向构筑稳定二茂铁基离子交换膜[63]注:(a)分子结构;(b)筑膜液及膜材料图像;(c)磁场对膜材料TEM图像的影响;(d)筑膜条件对膜材料离子传导率的影响

Fig.7 Magnetic-field-oriented mixed-valence-stabilized ferrocenium AEM[63](a) Molecular structure; (b) Images of film building fluid and membranes; (c) Influence of magnetic field on TEM images;(d) The influence of different conditions on the conductivity of membranes

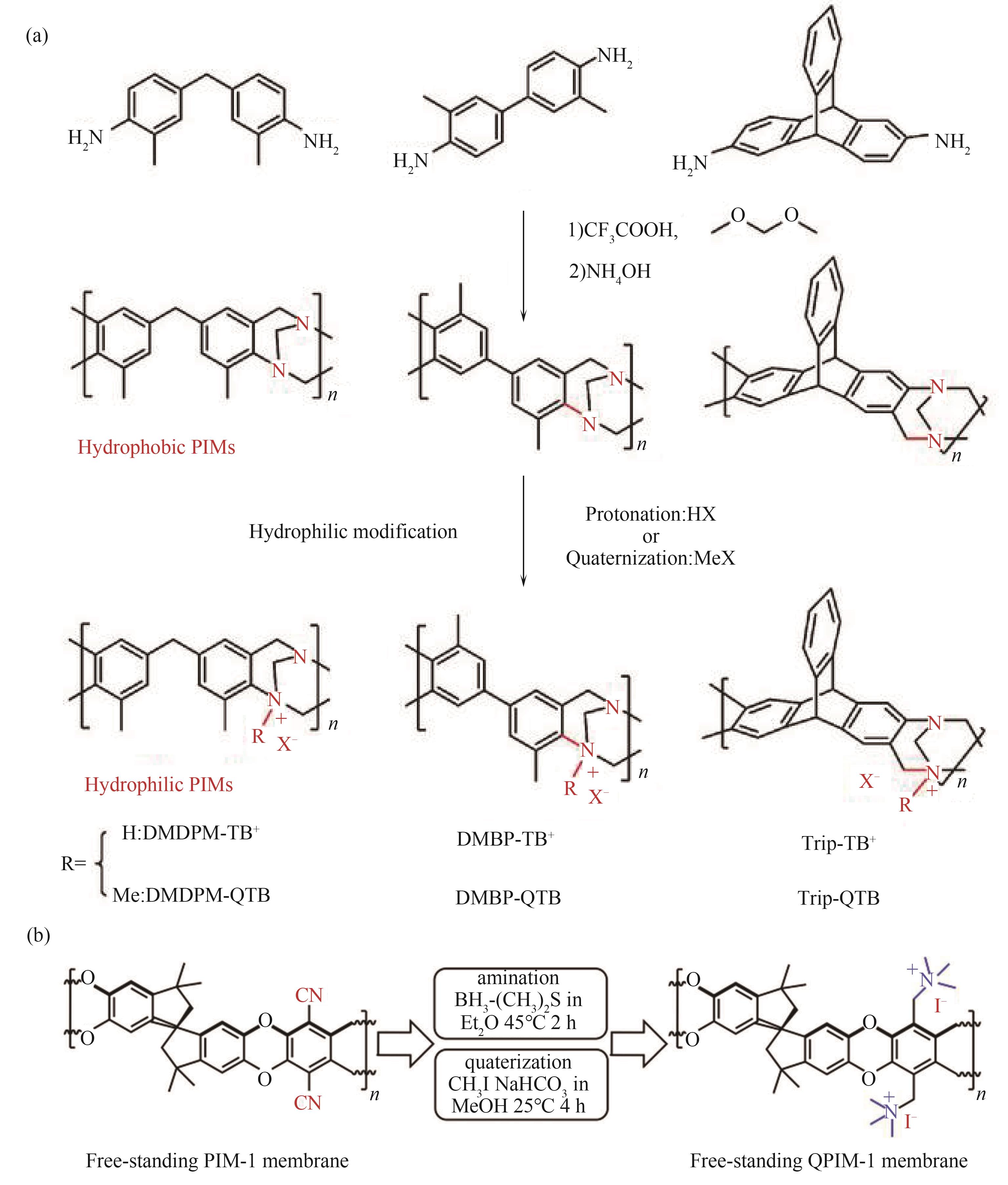

图9 PIM类碱性离子膜合成路径[64]注:(a)Troger's Base类AEM合成路线;(b) 基于PIM-1结构的AEM改性路线

Fig.9 Synthetic route of AEM from positively charged PIMs[64](a)Troger's Base AEM synthesis route; (b) AEM modification route based on PIM-1 structure

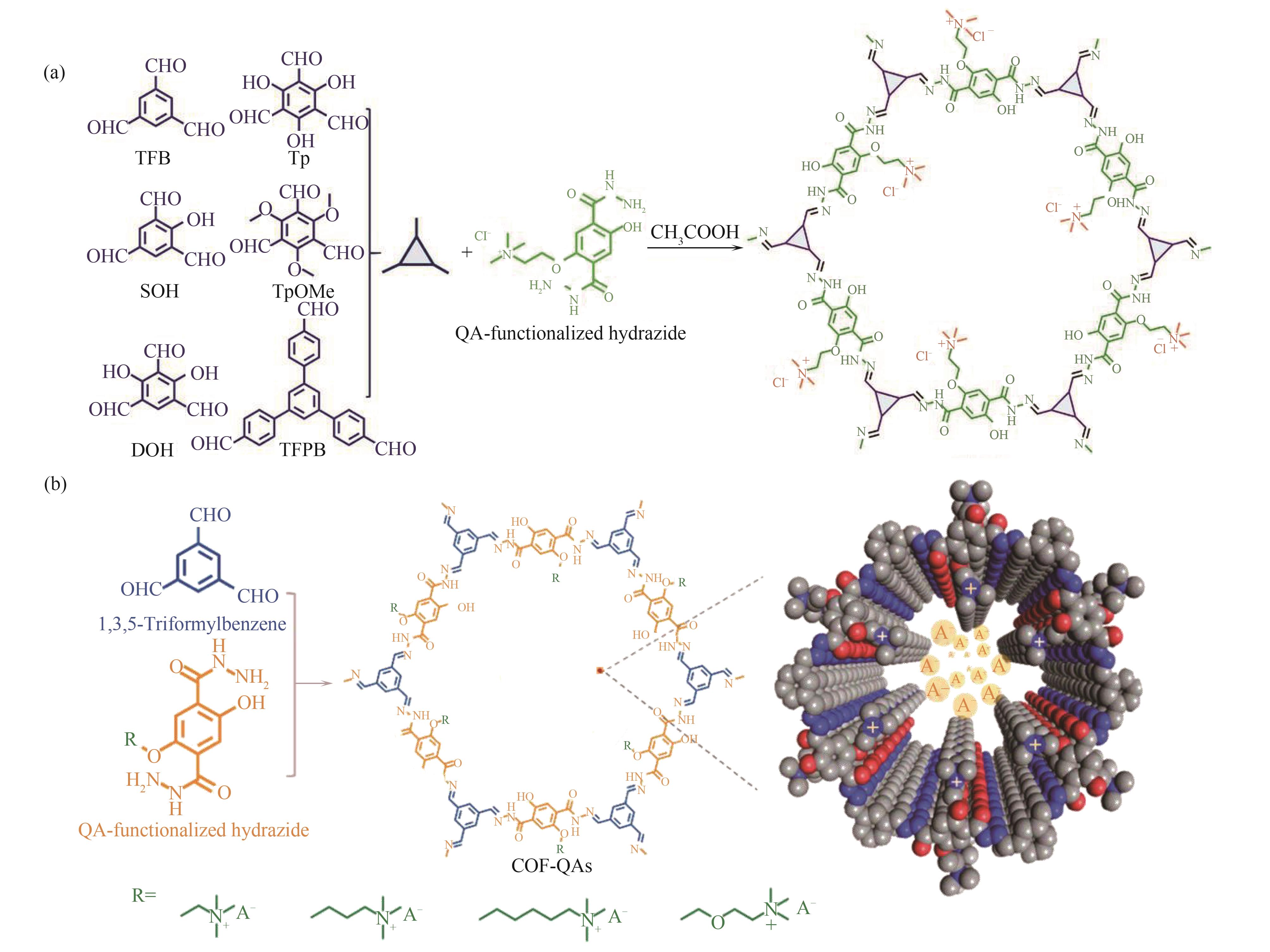

图10 COFs材料合成路径[78-79]注:(a) 醛单体调节COF-QAs结构;(b) 侧链长度调节COF-QAs结构

Fig.10 Synthetic route of COFs[78-79](a) Structures of COF-QAs regulated by aldehyde monomers; (b) COF-QAs structure regulated by length side chains

图11 COFs结构强化离子传递策略[80]

Fig.11 Schematic illustration of enhanced ion transport of COFs[80]

图12 Cu2+交联壳聚糖AEM强化离子传递[81]

Fig.12 Cu2+ crosslinked chitosan AEM enhances ion transport[81]

图13 “可移动快车”策略路径[64]

Fig.13 Synthesis route of Mobile Ion Shuttles strategy[64]

表1 不同离子传递强化策略的代表AEMs

Table 1 Representative AEMs of reinforcement strategies for promoting ion transfer

传递强化策略	AEMs名称	IEC/ (mmol·g^-1)	水含量（%，80℃）	溶胀率（%，80℃）	OH型离子传导率/ （mS·cm^-1，80℃）	机械强度/ MPa	文献
高IEC情况交联抑制溶胀	10% PBP-ASU-PPO	2.61	140	25	128	32	^[41]
	PEP80-20PS	4.05	256	50.2	354	1.1	^[54]
	x-BEO-PPO	2.23	101.8	18.18	132	27	^[55]
微相分离构建局部传递通道	PCTP-2	2.83	54.2	19.8	135	42	^[60]
	aQAPS-S₈	1		21	105	12.1	^[59]
	PB2Pip-5C8F	2.53	101.4（30℃）	48.3	168.5	37	^[46]
定向排列提升通道利用率	PX75-T50	0.91	7.9	2.6	111.6	172	^[62]
定向排列提升通道利用率	MM-LPF-OH	1.654	37	7（TP） 28（IP）	160（95℃，TP） 18（95℃，IP）	22	^[63]
微孔构筑刚性传递通道	BPPO-MPC₆₀	0.62	3.65	2＜	182		^[66]
	DMBP-QTB	0.82	36（30℃）	5＜	164.4		^[68]
	COF-QA-2	2.38	81	20	212	50	^[79]
	COF-SDQA	2.70	77.7	11.71	329.4	27	^[80]
其他策略	Chitosan-Cu	1.6	56		67（rt）	112	^[81]
其他策略	AAEM_3d-e·2OH-	0.68	18.4（60℃）	7.5（60℃）	189		^[82]

表2 主要离子传递强化策略对比

Table 2 Comparison of reinforcement strategies for promoting ion transfer

传递强化策略	优点	缺点
交联	提升IEC及抑制溶胀率	交联程度有限（5%＜） IEC利用程度下降成本提升（工序增加）
微相分离	局部传递通道阻力降低	微相分离程度难以控制材料均一性问题亲水区域局部溶胀较高
定向排列	传递通道利用效率提升	适用范围较小（结构特殊性）成本提升（工序繁琐）
微孔构筑	水环境浓度提升刚性通道传递阻力下降	结构适配性不足（稳定性、功能基团种类）机械强度（高分子链非紧密堆积）
微孔构筑	水环境浓度提升刚性通道传递阻力下降	IEC过低限制离子传导率进一步提升
