不同制液工艺对锰矿锰浸出回收及钙镁铁迁移影响

doi:10.11949/0438-1157.20240428

摘要/Abstract

摘要：

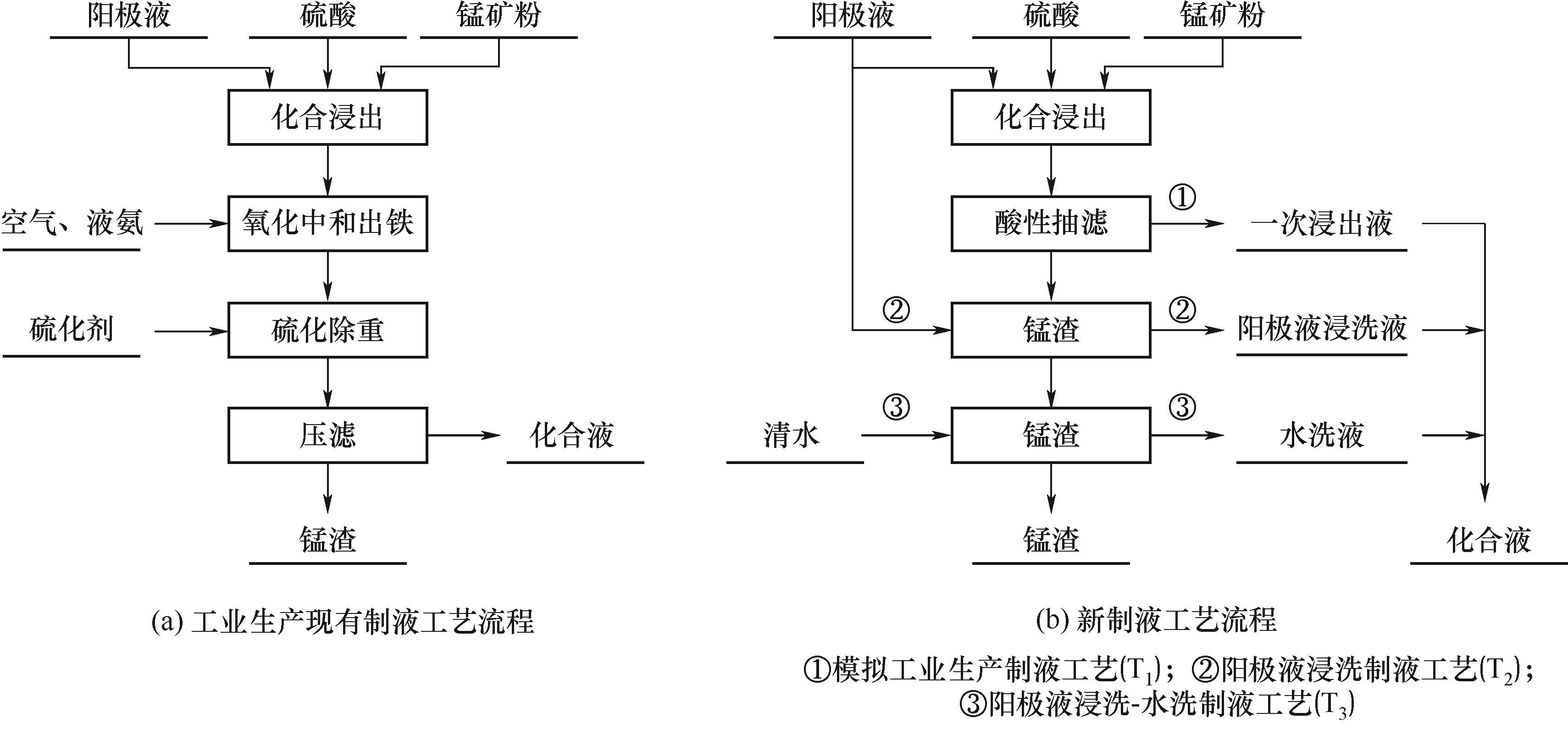

针对当前电解金属锰制液工艺锰浸出和回收率低的问题，以制液工艺为研究对象，开展现有工业生产制液工艺（T₁）、阳极液浸洗（T₂）、阳极液浸洗-水洗（T₃）制液工艺模拟实验，研究不同制液工艺对锰矿中锰的浸出和回收以及钙镁铁迁移的影响。结果显示，锰浸出率T₃（92.76%±0.40%）≈T₂（92.14%±0.62%）＞T₁（89.59%±2.43%），锰回收率T₃（91.18%±0.47%）＞T₂（87.02%±0.74%）＞T₁（73.97%±2.37%），表明在现有制液工艺基础上增加阳极液浸洗工序可以有效提高锰矿中锰的浸出率和回收率，增加水洗工序可以进一步提高浸出锰的回收率；在现有制液工艺基础上阳极液浸洗工序不会提高锰矿中钙、镁向液相的迁移比例，但会提高铁的迁移比例，增加水洗工序不会提高锰矿中钙、铁向液相的迁移比例，但会提高镁的迁移比例。

关键词: 阳极液浸洗, 阳极液浸洗-水洗, 锰浸出率, 锰回收率, 钙镁铁迁移

Abstract:

Aiming at the problem of low manganese leaching and recovery in the current electrolytic manganese metal liquid-making process, this paper takes the liquid-making process as the research object, carries out the simulation experiments of the existing industrial production liquid-making process (T₁), anode liquid leaching (T₂), anode liquid leaching-washing (T₃) liquid-making process, and researches the influence of different liquid-making processes on the leaching and recovery of manganese in manganese ores, as well as on the migration of calcium, magnesium and iron. The results showed that the manganese leaching rate was T₃ (92.76%±0.40%)≈T₂ (92.14%±0.62%) > T1 were carried out to study the effects of different liquid preparation processes on the leaching rate and recovery rate of manganese and the migration of calcium, magnesium and iron in manganese (89.59%±2.43%), and the manganese recovery rate was T₃ (91.18%±0.47%) > T₂ (87.02%±0.74%) > T₁ (73.97%±2.37%), indicating that the leaching rate and recovery rate of manganese in manganese ore can be effectively improved by anodic leaching, and the recovery rate of manganese leaching can be effectively improved by washing process. On the basis of the existing liquid production process, the anodic leaching process will not increase the migration proportion of calcium and magnesium in manganese ore to the liquid phase, but will increase the migration proportion of iron, and the addition of the washing process will not increase the migration proportion of calcium and iron in manganese ore to the liquid phase, but will increase the migration proportion of magnesium.

Key words: anodic immersion, anodic immersion-water washing, manganese leaching rate, manganese recovery rate, migration of calcium, magnesium and iron

中图分类号:

TF 792

赵博超, 聂一凡, 王雪婷, 田向勤, 田祎, 潘涔轩. 不同制液工艺对锰矿锰浸出回收及钙镁铁迁移影响[J]. 化工学报, 2024, 75(S1): 292-299.

Bochao ZHAO, Yifan NIE, Xueting WANG, Xiangqin TIAN, Yi TIAN, Cenxuan PAN. Effects of different liquid production processes on manganese leaching and recovery and migration of calcium, magnesium and iron in manganese ore[J]. CIESC Journal, 2024, 75(S1): 292-299.

图/表 9

参考文献 30

1	He D J, Shu J C, Wang R, et al. A critical review on approaches for electrolytic manganese residue treatment and disposal technology: reduction, pretreatment, and reuse[J]. Journal of Hazardous Materials, 2021, 418: 126235.
2	谭柱中. 锰冶金学[M]. 长沙: 中南大学出版社, 2004: 322-323.
	Tan Z Z. Metallurgy of Manganese[M]. Changsha: Central South University Press, 2004: 322-323.
3	白月娇, 林晔, 孟棒棒, 等. 电解锰渣煅烧时Mn、N元素形态分布与微观结构变化[J]. 环境工程学报, 2023, 17(11): 3660-3669.
	Bai Y J, Lin Y, Meng B B, et al. Morphological distribution of Mn and N elements and changes in microstructure in electrolytic manganese residue during the calcination[J]. Chinese Journal of Environmental Engineering, 2023, 17(11): 3660-3669.
4	聂霄悍, 雷学文, 刘磊, 等. 堆存陈化中电解锰渣重金属形态及环境风险演化[J]. 中国环境科学, 2024, 44(1): 242-250.
	Nie X H, Lei X W, Liu L, et al. In-situ stacking and aging of electrolytic manganese residue: speciation of heavy metals and environmental risk evolution[J]. China Environmental Science, 2024, 44(1): 242-250.
5	陈奇志, 周毅林, 刘作华, 等. 变频刚柔搅拌反应器强化锰矿浸出及除铁过程[J]. 化工进展, 2021, 40(6): 3083-3090.
	Chen Q Z, Zhou Y L, Liu Z H, et al. Manganese ore leaching and iron removal intensified by variable frequency rigid-flexible stirred reactor[J]. Chemical Industry and Engineering Progress, 2021, 40(6): 3083-3090.
6	谢昭明, 陈庚, 刘仁龙, 等. 刚柔组合桨强化软锰矿浸出过程的反应动力学特性[J]. 化工学报, 2021, 72(5): 2586-2595.
	Xie Z M, Chen G, Liu R L, et al. Reaction kinetics characteristics of pyrolusite leaching process enhanced by rigid-flexible combined impeller[J]. CIESC Journal, 2021, 72(5): 2586-2595.
7	Lin S D, Li K Q, Yang Y, et al. Microwave-assisted method investigation for the selective and enhanced leaching of manganese from low-grade pyrolusite using pyrite as the reducing agent[J]. Chemical Engineering and Processing - Process Intensification, 2021, 159: 108209.
8	Lin S D, Gao L, Yang Y, et al. Efficiency and sustainable leaching process of manganese from pyrolusite-pyrite mixture in sulfuric acid systems enhanced by microwave heating[J]. Hydrometallurgy, 2020, 198: 105519.
9	Tian Y, Shu J C, Chen M J, et al. Manganese and ammonia nitrogen recovery from electrolytic manganese residue by electric field enhanced leaching[J]. Journal of Cleaner Production, 2019, 236: 117708.
10	Luo Z G, Shu J C, Chen M J, et al. Enhanced leaching of manganese from low-grade pyrolusite using ball milling and electric field[J]. Ecotoxicology and Environmental Safety, 2021, 211: 111893.
11	He H P, Cao J L, Duan N. Analytical and mineralogical study of a Ghana manganese ore: quantification of Mn speciation and effect of mechanical activation[J]. Chemosphere, 2016, 162: 8-15.
12	Wang K, Zhang Q W, He X M, et al. A cleaner and efficient extraction of Mn from low-grade Mn carbonate ores by ball milling-enhanced Fe₂(SO₄)₃ leaching: acid consumption reduction[J]. Cleaner Engineering and Technology, 2021, 4: 100220.
13	Shu J C, Lin F, Chen M J, et al. An innovative method to enhance manganese and ammonia nitrogen leaching from electrolytic manganese residue by surfactant and anode iron plate[J]. Hydrometallurgy, 2020, 193: 105311.
14	Zhou X Y, Ma Y Y, Liu X J, et al. Synergistic leaching mechanism of chloride ions for extracting manganese completely from manganese carbonate ores[J]. Journal of Environmental Chemical Engineering, 2021, 9(1): 104918.
15	谢子楠, 吴思展, 吴运东, 等. 添加剂对菱锰矿中各离子的浸出影响情况分析[J]. 无机盐工业, 2018, 50(11): 16-19.
	Xie Z N, Wu S Z, Wu Y D, et al. Impact analysis of additives on ions leaching in rhodochrosite[J]. Inorganic Chemicals Industry, 2018, 50(11): 16-19.
16	田鸿, 马梦雨, 叶恒朋, 等. 用两性表面活性剂辅助浸出低品位锰矿石中的锰[J]. 湿法冶金, 2021, 40(4): 272-277.
	Tian H, Ma M Y, Ye H P, et al. Leaching of manganese from low-grade manganese ore using sulfuric acid with synthesized atmospheric surfactant[J]. Hydrometallurgy of China, 2021, 40(4): 272-277.
17	赵博超, 王雪婷, 朱克松, 等. 洗涤方式对电解锰渣中锰回收效率及无害化处理的影响[J]. 环境工程学报, 2017, 11(11): 6103-6108.
	Zhao B C, Wang X T, Zhu K S, et al. Effects of washing methods on recovery efficiency of manganese from manganese residue and harmless treatment[J]. Chinese Journal of Environmental Engineering, 2017, 11(11): 6103-6108.
18	刘谊兵, 赵钺, 杨高天, 等. 新型过滤洗涤一体技术在电解锰废渣脱水洗涤中的应用研究[J]. 矿冶工程, 2019, 39(4): 72-74, 78.
	Liu Y B, Zhao Y, Yang G T, et al. Application of a new technique integrating filtration and washing into dehydration-washing of electrolytic manganese residue[J]. Mining and Metallurgical Engineering, 2019, 39(4): 72-74, 78.
19	杨远平, 龙小东, 何柳群. 电解金属锰渣CCD逆流洗涤工艺可行性分析[J]. 矿产综合利用, 2020(4): 163-166.
	Yang Y P, Long X D, He L Q. Study on CCD countercurrent washing process of electrolytic manganese slag and its feasibility analysis[J]. Multipurpose Utilization of Mineral Resources, 2020(4): 163-166.
20	武岩岩, 张超, 王帅, 等. 电解锰阳极液中镁的去除试验研究[J]. 湿法冶金, 2020, 39(2): 143-150.
	Wu Y Y, Zhang C, Wang S, et al. Removal of magnesium from electrolytic manganese anode solution[J]. Hydrometallurgy of China, 2020, 39(2): 143-150.
21	李重洋, 谭杰, 周浩, 等. 电解锰阳极液锰镁组元选择性分离实验研究[J]. 矿冶工程, 2022, 42(5): 111-114.
	Li C Y, Tan J, Zhou H, et al. Experimental research on selective precipitation of manganese and magnesium in electrolytic manganese anode solution[J]. Mining and Metallurgical Engineering, 2022, 42(5): 111-114.
22	钱振, 谭杰, 李重洋, 等. 电解锰阳极液浸出菱锰矿的热力学和动力学研究[J]. 矿冶工程, 2022, 42(1): 77-80.
	Qian Z, Tan J, Li C Y, et al. Thermodynamics and kinetics of leaching rhodochrosite from electrolytic manganese anode solution[J]. Mining and Metallurgical Engineering, 2022, 42(1): 77-80.
23	秦吉涛. Mg²⁺在锰电解体系中的分布及其行为研究[D]. 贵阳: 贵州大学, 2019.
	Qin J T. Research on distribution and behavior of Mg²⁺ in manganese electrolysis system[D]. Guiyang: Guizhou University, 2019.
24	陈南雄, 廖赞伟. 电解液成分对电解金属锰生产过程的影响[J]. 中国锰业, 2008, 26(4): 5-8.
	Chen N X, Liao Z W. The influence of the electrolytic composition on EMM[J]. China's Manganese Industry, 2008, 26(4): 5-8.
25	刘洪刚, 朱国才. 氟化锰沉淀脱除还原氧化锰矿浸出液中钙镁[J]. 矿冶, 2007, 16(4): 25-28, 65.
	Liu H G, Zhu G C. Removal of Ca(Ⅱ), Mg(Ⅱ) from leaching solution of low-grade manganese ore by precipitation with fluoride[J]. Mining and Metallurgy, 2007, 16(4): 25-28, 65.
26	裴正清, 王家伟, 王海峰, 等. 氟化锰脱除硫酸锰溶液中钙镁的工艺条件及其动力学研究[J]. 矿冶工程, 2024, 44(1): 111-115.
	Pei Z Q, Wang J W, Wang H F, et al. Process conditions and kinetics of removing calcium and magnesium from manganese sulfate solution by manganese fluoride[J]. Mining and Metallurgical Engineering, 2024, 44(1): 111-115.
27	李云, 李玉虎, 徐志峰, 等. 加料方式对氟化沉淀法脱除硫酸锰溶液中钙镁杂质的影响[J]. 中南大学学报(自然科学版), 2021, 52(9): 3103-3110.
	Li Y, Li Y H, Xu Z F, et al. Effect of feeding methods on removal of calcium and magnesium from manganese sulfate solution by fluorination precipitation method[J]. Journal of Central South University (Science and Technology), 2021, 52(9): 3103-3110.
28	Guimarães A S, Mansur M B. Solvent extraction of calcium and magnesium from concentrate nickel sulfate solutions using D2HEPA and Cyanex 272 extractants[J]. Hydrometallurgy, 2017, 173: 91-97.
29	薛余化, 李佳, 郭莉, 等. 二氧化碳回收电解锰废水中镁的研究[J]. 有色金属(冶炼部分), 2018(12): 47-52.
	Xue Y H, Li J, Guo L, et al. Study on recovery of ammonium and magnesium from electrolytic manganese wastewater with carbon dioxide[J]. Nonferrous Metals (Extractive Metallurgy), 2018(12): 47-52.
30	陈晓亮, 王海峰, 王家伟. 碳化反沉淀法去除硫酸锰浸出液中钙、镁的研究[J]. 矿冶工程, 2020, 40(2): 82-85, 93.
	Chen X L, Wang H F, Wang J W. Removal of calcium and magnesium from manganese sulfate leaching solution via a reverse precipitation by carbonation[J]. Mining and Metallurgical Engineering, 2020, 40(2): 82-85, 93.

制液工艺类型		总锰含量/%（质量）	水溶锰含量/%（质量）
现有工艺	工业生产	6.52±0.14	1.90±0.04
现有工艺	实验模拟工业生产（T₁）	4.09±0.38	2.66±0.26
阳极液浸洗（T₂）		2.53±0.04	1.38±0.06
阳极液浸洗-水洗（T₃）		2.28±0.10	0.41±0.01

制液工艺类型		总锰含量/%（质量）	水溶锰含量/%（质量）
现有工艺	工业生产	6.52±0.14	1.90±0.04
现有工艺	实验模拟工业生产（T₁）	4.09±0.38	2.66±0.26
阳极液浸洗（T₂）		2.53±0.04	1.38±0.06
阳极液浸洗-水洗（T₃）		2.28±0.10	0.41±0.01

制液工艺类型		总锰浸出率/%（质量）	总锰回收率/%（质量）	浸出锰回收率/%（质量）
现有工艺	工业生产	81.23±1.33	71.01±0.71	87.42±0.56
现有工艺	实验模拟工业生产（T₁）	89.59±2.43	73.97±2.37	83.93±1.18
阳极液浸洗（T₂）		92.14±0.62	87.02±0.74	94.44±0.30
阳极液浸洗-水洗（T₃）		92.76±0.40	91.18±0.47	98.30±0.64

制液工艺类型		总锰浸出率/%（质量）	总锰回收率/%（质量）	浸出锰回收率/%（质量）
现有工艺	工业生产	81.23±1.33	71.01±0.71	87.42±0.56
现有工艺	实验模拟工业生产（T₁）	89.59±2.43	73.97±2.37	83.93±1.18
阳极液浸洗（T₂）		92.14±0.62	87.02±0.74	94.44±0.30
阳极液浸洗-水洗（T₃）		92.76±0.40	91.18±0.47	98.30±0.64

制液工艺类型		钙的迁移比例/%			（平均值±标准差）/%	方差分析结果
制液工艺类型		1	2	3	（平均值±标准差）/%	F	P-value	F_crit
现有工艺	工业生产	0.64	-0.69	-0.48	-0.18±0.72	3.62	0.06	4.07
现有工艺	实验模拟工业生产（T₁）	-3.27	-6.23	-6.54	-5.34±1.81
阳极液浸洗（T₂）		-5.88	1.60	-4.00	-2.76±3.89
阳极液浸洗-水洗（T₃）		1.43	-0.11	-1.41	-0.03±1.42
