基于ESO的动作依赖启发式动态规划控制及其在四级连续搅拌釜系统应用

doi:10.11949/0438-1157.20251185

摘要/Abstract

摘要：

本文针对化工过程中四级连续搅拌反应釜（CSTR）系统，提出了一种融合扩张状态观测器（ESO）与执行依赖启发式动态规划（ADHDP）的智能控制策略，旨在解决该系统面临强耦合和未知动态等情况下的温度控制问题。所提策略首先使用ESO实时估计和补偿子系统的“总扰动”，同时完成对子系统之间的解耦，随后针对被补偿的系统设计一种ADHDP算法，以获得最优虚拟控制律。本文所提方法做到了分布式抗扰和集中式控制，这不仅处理了系统强耦合问题，同时ESO的存在也减轻了ADHDP算法的抗扰压力。为验证所提方法的优越性，本文设计了三种对比算法，包括PID控制算法、自抗扰控制（ADRC）算法和ADHDP算法，结果表明本文所提算法在响应时间和稳态误差等方面均优于其他三种算法。

关键词: 自适应动态规划, ESO, 四级CSTR, 神经网络, 过程控制, 动态建模

Abstract:

An intelligent control strategy for a four-stage continuous stirred tank reactor (CSTR) system in chemical processes is proposed, which integrates an extended state observer (ESO) with action-dependent heuristic dynamic programming (ADHDP). The aim is to address the challenge of temperature control in the presence of strong coupling and unknown dynamics. First, the ESO is used to estimate and compensate the "total disturbance" of each subsystem in real time while achieving decoupling among the subsystems. Then, for the disturbance-compensated system, an ADHDP algorithm is designed to obtain the optimal virtual control law. The proposed method achieves decentralized disturbance rejection and centralized control, which not only addresses the system's strong coupling issues but also reduces the burden on the ADHDP algorithm thanks to the presence of the ESO. To verify the superiority of the proposed method, three comparative algorithms were designed in this study, including a PID control algorithm, an active disturbance rejection control (ADRC) algorithm, and an ADHDP algorithm. The results show that the algorithm proposed in this paper outperforms the other three algorithms in terms of response time, steady-state error, and other performance metrics.

Key words: ADP, ESO, four-stage CSTR process, neural networks, process control, dynamic modeling

中图分类号:

TP 273

陈郇, 李大字. 基于ESO的动作依赖启发式动态规划控制及其在四级连续搅拌釜系统应用[J]. 化工学报, DOI: 10.11949/0438-1157.20251185.

Xun CHEN, Dazi LI. ESO-based action dependent heuristic dynamic programming control and its' application on a four-stage CSTR process[J]. CIESC Journal, DOI: 10.11949/0438-1157.20251185.

图/表 10

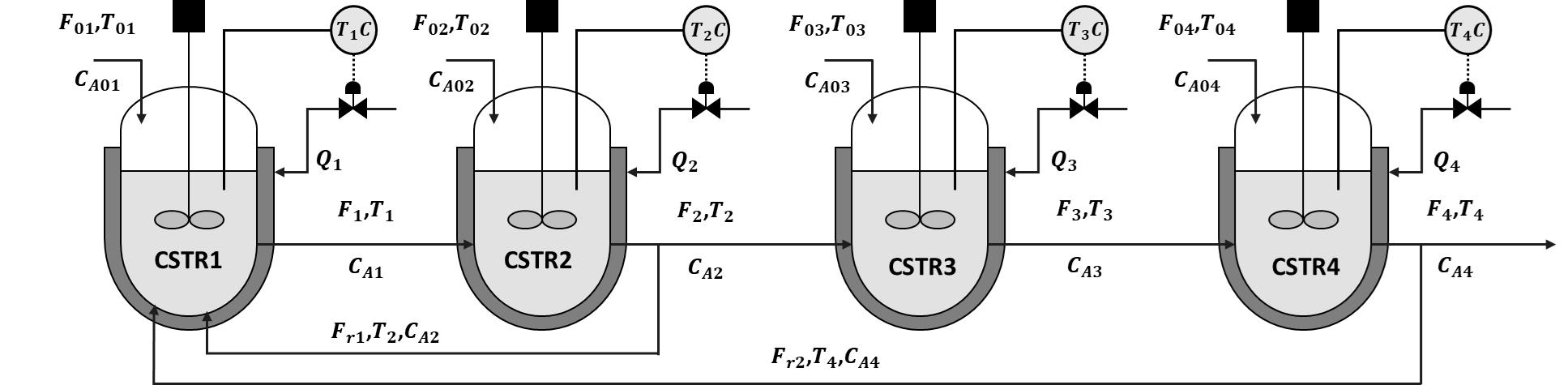

图1 四级CSTR工艺流程图

Fig.1 A schematic of the four-stage CSTR process

表1 四级CSTR系统参数

Table 1 Parameters of the four-stage CSTR process

参数	单位		参数	单位	数值
$C A 01$	kmol/m³	4.0	$T 01$	K	300
$C A 02$	kmol/m³	2.0	$T 02$	K	300
$C A 03$	kmol/m³	3.0	$T 03$	K	300
$C A 04$	kmol/m³	3.5	$T 04$	K	300
$V 1$	m³	1	$Δ H 1$	kJ/mol	-5.0×10⁴
$V 2$	m³	3	$Δ H 2$	kJ/mol	-5.2×10⁴
$V 3$	m³	4	$Δ H 3$	kJ/mol	-5.0×10⁴
$V 4$	m³	6	$k 1$	h^-1	3.0×10⁶
$F 1$	m³/h	35	$k 2$	h^-1	3.0×10⁵
$F 2$	m³/h	45	$k 3$	h^-1	3.0×10⁵
$F 3$	m³/h	33	$c p$	kJ/(kg∙K)	0.231
$E 1$	kJ/kmol	5.0×10⁴	$ρ$	kg/m³	1000
$E 2$	kJ/kmol	7.5×10⁴	$F 01$	m³/h	5
$E 3$	kJ/kmol	7.53×10⁴	$F 02$	m³/h	10
$F r 1$	m³/h	20	$F 03$	m³/h	8
$F r 2$	m³/h	10	$F 04$	m³/h	12
$R$	kJ/(mol∙K)	8.314

表1 四级CSTR系统参数

Table 1 Parameters of the four-stage CSTR process

参数	单位		参数	单位	数值
$C A 01$	kmol/m³	4.0	$T 01$	K	300
$C A 02$	kmol/m³	2.0	$T 02$	K	300
$C A 03$	kmol/m³	3.0	$T 03$	K	300
$C A 04$	kmol/m³	3.5	$T 04$	K	300
$V 1$	m³	1	$Δ H 1$	kJ/mol	-5.0×10⁴
$V 2$	m³	3	$Δ H 2$	kJ/mol	-5.2×10⁴
$V 3$	m³	4	$Δ H 3$	kJ/mol	-5.0×10⁴
$V 4$	m³	6	$k 1$	h^-1	3.0×10⁶
$F 1$	m³/h	35	$k 2$	h^-1	3.0×10⁵
$F 2$	m³/h	45	$k 3$	h^-1	3.0×10⁵
$F 3$	m³/h	33	$c p$	kJ/(kg∙K)	0.231
$E 1$	kJ/kmol	5.0×10⁴	$ρ$	kg/m³	1000
$E 2$	kJ/kmol	7.5×10⁴	$F 01$	m³/h	5
$E 3$	kJ/kmol	7.53×10⁴	$F 02$	m³/h	10
$F r 1$	m³/h	20	$F 03$	m³/h	8
$F r 2$	m³/h	10	$F 04$	m³/h	12
$R$	kJ/(mol∙K)	8.314

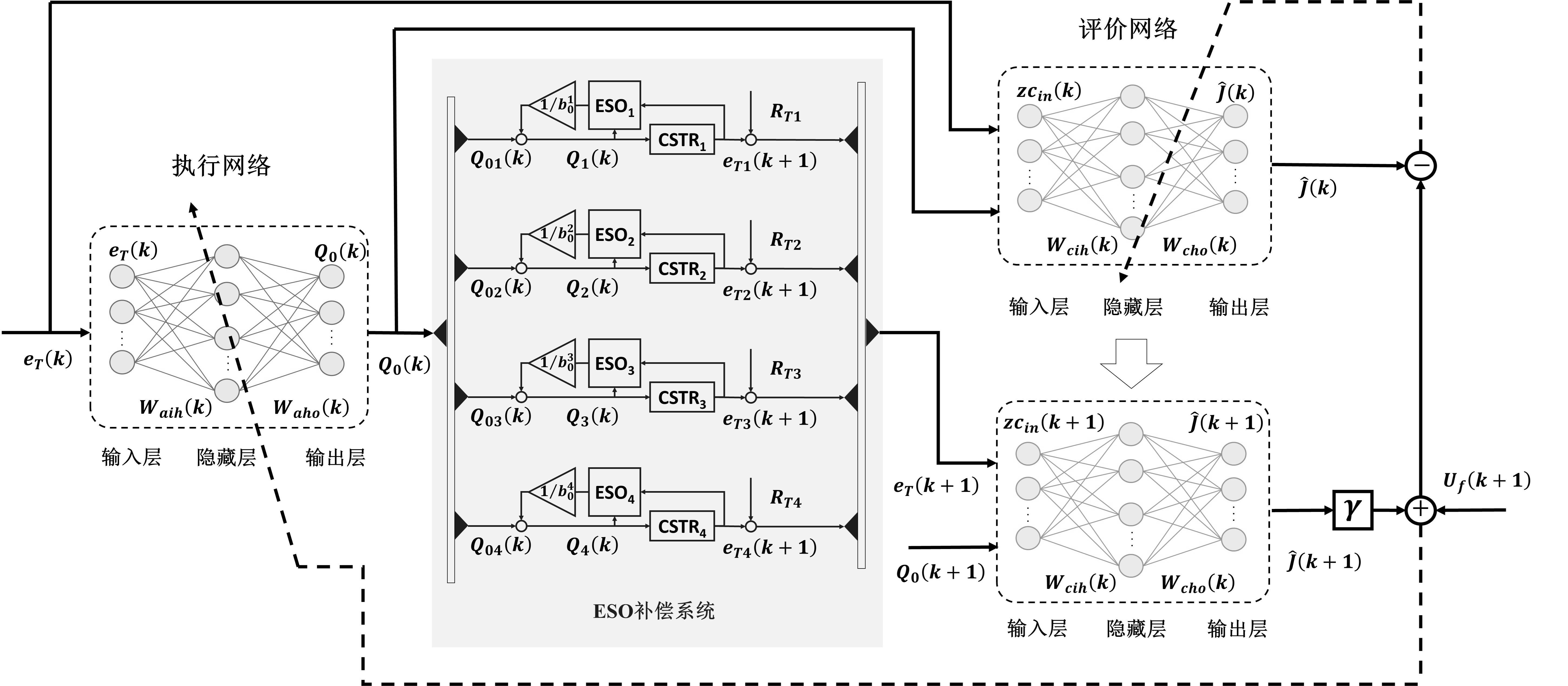

图2 ESO-ADHDP结构框图

Fig.2 ESO-ADHDP structure diagram

表2 四级CSTR系统ESO-ADHDP算法流程

Table 2 Four-stage CSTR ESO-ADHDP Algorithm Process

四级CSTR系统ESO-ADHDP算法流程
随机初始化评价网络权重矩阵 $W c h o$ 和 $W c i h$ ，随机初始化执行网络权重矩阵 $W a h o$ 和 $W a i h$ ；
初始化系统状态 $X 0$ ，提取温度初始化状态向量 $T 0$ ；
初始化四个子系统的ESO状态 $x ̂ i 1$ 和 $x ̂ i 2$ ， $i = 1,2, 3,4$ ；
for $k = 1 → t s p a n / T s$ ；
计算四个子系统CSTR_i的温度 $T i$ 与设定值 $R T i$ 的误差，得到温度误差向量 $e T k$ ；
通过执行网络计算 $Q 0 k$ ： $Q 0 k ← a c t o r N N e T k, W a i h k, W a h o k$ ；
计算 $Q k$ ，其中 $Q i k ← Q 0 i k - x ̂ i 2 k / b ̂ 0 i$ ；
使用 $Q k$ 与四级CSTR系统交互获得下一个时刻状态： $X k + 1 ← C S T R p l a n t X k, Q k$ ；
通过公式(20)计算ESO下一时刻估计状态的采样值 $x ̂ i 1 k + 1$ 和 $x ̂ i 2 k + 1$ ， $i = 1,2, 3,4$ ；
提取温度状态向量 $T k + 1$ ，温度误差向量 $e T k + 1$ ；
通过执行网络计算 $Q 0 k + 1$ ： $Q 0 k + 1 ← a c t o r N N e T k + 1, W a i h k, W a h o k$ ；
计算相邻两个时刻的 $J ̂$ : $J ̂ k ← c r i t i c N N Q 0 k, e T k, W c i h k, W c h o k$ ; $J ̂ k + 1 ← c r i t i c N N Q 0 k + 1, e T k + 1, W c i h k, W c h o k$ ;
计算TD误差： $U f k + 1 ← e T T k Q e T k + Q 0 T k R Q 0 k$ ; $δ k ← J ̂ k - U f k + 1 - γ J ̂ k + 1$ ;
根据公式(28)和(31)更新评价网络权重矩阵： $W c h o k + 1 ← W c h o k + Δ W c h o k;$ $W c i h k + 1 ← W c i h k + Δ W c i h k;$
根据公式(37)和(40)更新执行网络权重矩阵： $W a h o k + 1 ← W a h o k + Δ W a h o k;$ $W a i h k + 1 ← W a i h k + Δ W a i h k;$
end for

表2 四级CSTR系统ESO-ADHDP算法流程

Table 2 Four-stage CSTR ESO-ADHDP Algorithm Process

四级CSTR系统ESO-ADHDP算法流程
随机初始化评价网络权重矩阵 $W c h o$ 和 $W c i h$ ，随机初始化执行网络权重矩阵 $W a h o$ 和 $W a i h$ ；
初始化系统状态 $X 0$ ，提取温度初始化状态向量 $T 0$ ；
初始化四个子系统的ESO状态 $x ̂ i 1$ 和 $x ̂ i 2$ ， $i = 1,2, 3,4$ ；
for $k = 1 → t s p a n / T s$ ；
计算四个子系统CSTR_i的温度 $T i$ 与设定值 $R T i$ 的误差，得到温度误差向量 $e T k$ ；
通过执行网络计算 $Q 0 k$ ： $Q 0 k ← a c t o r N N e T k, W a i h k, W a h o k$ ；
计算 $Q k$ ，其中 $Q i k ← Q 0 i k - x ̂ i 2 k / b ̂ 0 i$ ；
使用 $Q k$ 与四级CSTR系统交互获得下一个时刻状态： $X k + 1 ← C S T R p l a n t X k, Q k$ ；
通过公式(20)计算ESO下一时刻估计状态的采样值 $x ̂ i 1 k + 1$ 和 $x ̂ i 2 k + 1$ ， $i = 1,2, 3,4$ ；
提取温度状态向量 $T k + 1$ ，温度误差向量 $e T k + 1$ ；
通过执行网络计算 $Q 0 k + 1$ ： $Q 0 k + 1 ← a c t o r N N e T k + 1, W a i h k, W a h o k$ ；
计算相邻两个时刻的 $J ̂$ : $J ̂ k ← c r i t i c N N Q 0 k, e T k, W c i h k, W c h o k$ ; $J ̂ k + 1 ← c r i t i c N N Q 0 k + 1, e T k + 1, W c i h k, W c h o k$ ;
计算TD误差： $U f k + 1 ← e T T k Q e T k + Q 0 T k R Q 0 k$ ; $δ k ← J ̂ k - U f k + 1 - γ J ̂ k + 1$ ;
根据公式(28)和(31)更新评价网络权重矩阵： $W c h o k + 1 ← W c h o k + Δ W c h o k;$ $W c i h k + 1 ← W c i h k + Δ W c i h k;$
根据公式(37)和(40)更新执行网络权重矩阵： $W a h o k + 1 ← W a h o k + Δ W a h o k;$ $W a i h k + 1 ← W a i h k + Δ W a i h k;$
end for

表3 不同控制策略参数

Table 3 Parameters of the four controllers

控制策略	参数	值		控制策略	参数
PID	$k p 1$	1500	ADRC	$k p 1$	1000
	$k p 2$	2000		$k p 2$	1000
	$k p 3$	2400		$k p 3$	1000
	$k p 4$	2800		$k p 4$	1000
	$k i 1$	10		$ω o 1$	100
	$k i 2$	10		$ω o 2$	100
	$k i 3$	10		$ω o 3$	100
	$k i 4$	10		$ω o 4$	100
ESO-ADHDP	$l c$	0.01	ADHDP	$l c$	0.01
	$l a$	0.01		$l a$	0.01
	$γ$	0.9		$γ$	0.9
	$ω o 1$	100		$Q$	$e y e 4$
	$ω o 2$	100		$R$	$10 - 8 × e y e 4$
	$ω o 3$	100
	$ω o 4$	100
	$Q$	$e y e 4$
	$R$	$10 - 8 × e y e 4$

表3 不同控制策略参数

Table 3 Parameters of the four controllers

控制策略	参数	值		控制策略	参数
PID	$k p 1$	1500	ADRC	$k p 1$	1000
	$k p 2$	2000		$k p 2$	1000
	$k p 3$	2400		$k p 3$	1000
	$k p 4$	2800		$k p 4$	1000
	$k i 1$	10		$ω o 1$	100
	$k i 2$	10		$ω o 2$	100
	$k i 3$	10		$ω o 3$	100
	$k i 4$	10		$ω o 4$	100
ESO-ADHDP	$l c$	0.01	ADHDP	$l c$	0.01
	$l a$	0.01		$l a$	0.01
	$γ$	0.9		$γ$	0.9
	$ω o 1$	100		$Q$	$e y e 4$
	$ω o 2$	100		$R$	$10 - 8 × e y e 4$
	$ω o 3$	100
	$ω o 4$	100
	$Q$	$e y e 4$
	$R$	$10 - 8 × e y e 4$

图3 四级CSTR出料温度曲线

Fig.3 Temperature curve of the four-stage CSTR

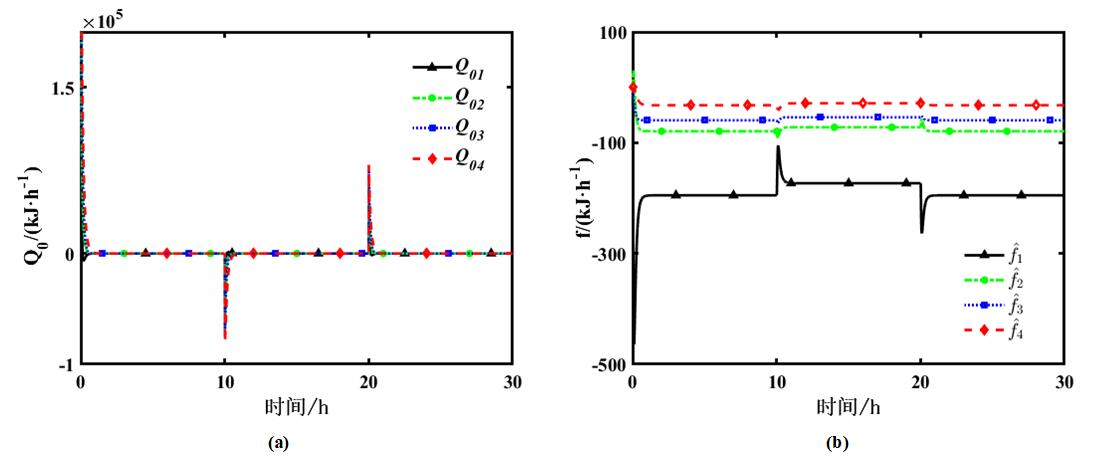

图4 虚拟控制量Q0和总扰动估计值f^曲线

Fig.4 Curve of virtual control signal Q0 and total disturbance estimation f^

图5 ESO-ADHDP策略的TD误差收敛曲线

Fig.5 TD Error Convergence curve of the ESO-ADHDP strategy

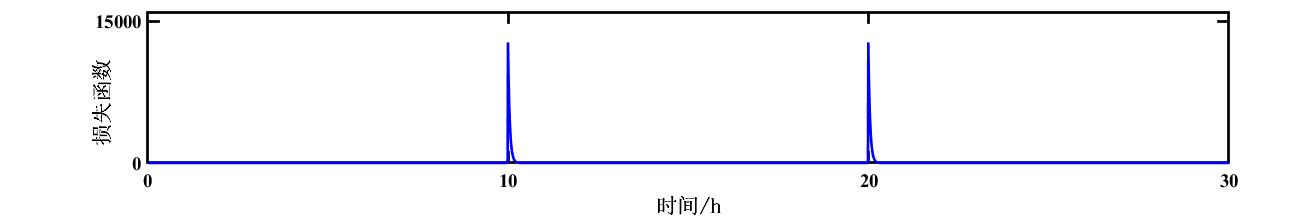

图6 ESO-ADHDP控制策略的损失函数收敛曲线

Fig.6 Convergence curve of the loss function for the ESO-ADHDP control strategy

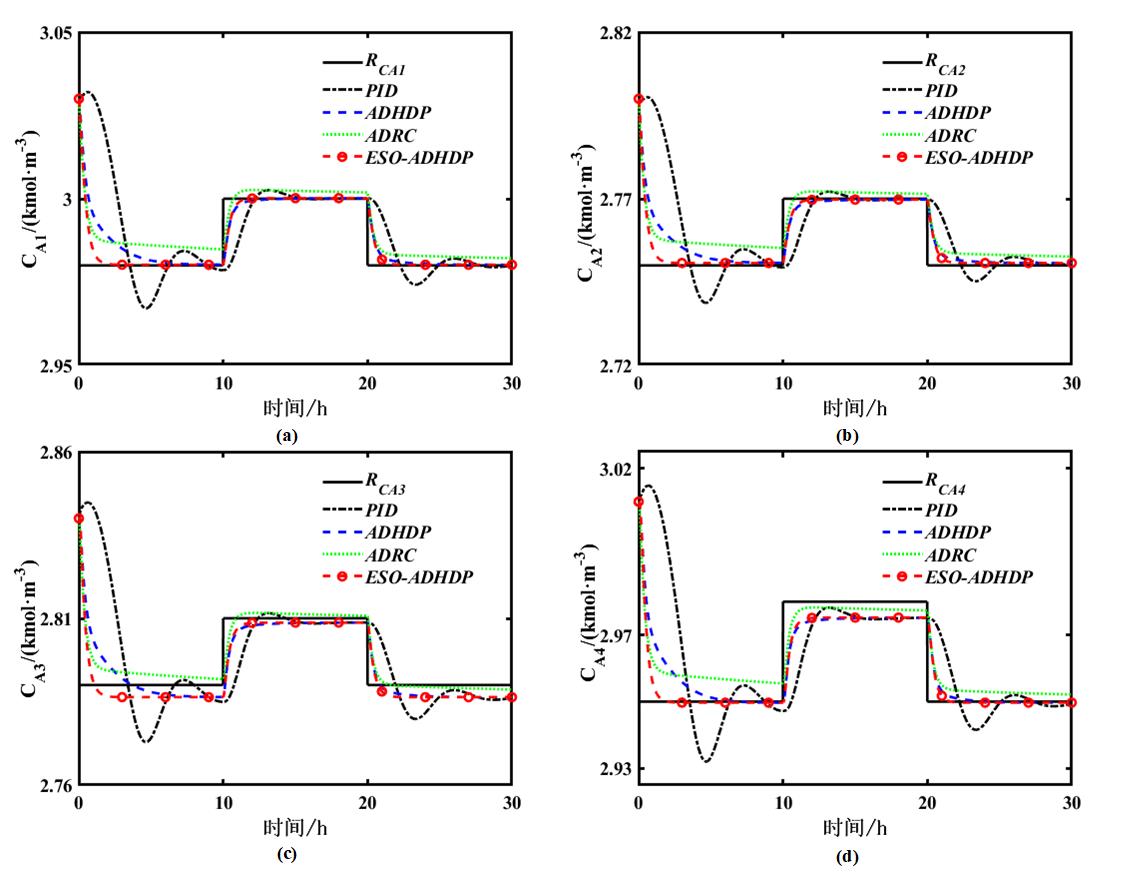

图7 不同CSTR出料浓度曲线

Fig.7 Concentration curve of the four CSTRs
