Abstract

Abstract:

Glutathione (GSH) is the most abundant non-protein thiol within cells. It has strong electron donating ability and participates in redox reactions in organisms, which endows it with multiple physiological functions and it is widely used in food, pharmaceutical and cosmetics industries. Glutathione bifunctional synthase is the key enzyme for catalyzing the production of GSH and improvement of its catalytic efficiency is of significance to GSH biosynthesis. In this study, the glutathione bifunctional synthasefrom Streptococcus thermophilus (St-GshF) was chosen for study object. A high-throughput screening method based on the fluorescence colorimetric effect generated by the reaction between GSH and ortho benzaldehyde was established. Using semi-rational design, St-GshF was engineered and the mutant St-GshF (S27Q/G510P) was obtained. Its activity was 1.75 times higher than the wild type. The polyphosphate kinase was coupled to construct the efficient glutathione biosynthesis system and after optimization of the reaction conditions, 17.36 g/L glutathione was obtained with a yield of 94.22%, laying an important foundation for the large-scale production of glutathione.

Key words: glutathione bifunctional synthetase, glutathione, molecular modification, dual enzyme coupling

摘要：

谷胱甘肽（GSH）是细胞内丰富的非蛋白质硫醇，其巯基作为活性基团，参与生物体内氧化还原反应，具有多种生理功能，在食品、医药及化妆品等行业得到广泛应用。谷胱甘肽双功能合成酶是合成GSH的关键酶，其催化效率的提升对GSH高效合成具有重要意义。本研究以Streptococcus thermophilus来源谷胱甘肽双功能合成酶（St-GshF）为研究对象，构建了一种基于谷胱甘肽和邻苯二甲醛反应产生荧光显色效应的高通量筛选方法，通过半理性设计对St-GshF进行分子改造，筛选获得有益突变体St-GshF（S27Q/G510P），其酶活为野生型的1.75倍。在此基础上，偶联多聚磷酸激酶，构建高效ATP循环系统并进行反应体系优化，最终谷胱甘肽的产量为17.36 g/L，产率达94.22%，为谷胱甘肽的规模化生产奠定了重要基础。

关键词: 谷胱甘肽双功能合成酶, 谷胱甘肽, 分子改造, 双酶偶联

CLC Number:

Q 814

Shiping SONG, Xiaoling TANG, Renchao ZHENG. Molecular modification of glutathione bifunctional synthase and its application[J]. CIESC Journal, 2024, 75(S1): 251-258.

宋世萍, 汤晓玲, 郑仁朝. 谷胱甘肽双功能合成酶分子改造及应用[J]. 化工学报, 2024, 75(S1): 251-258.

Figures/Tables 13

Table 1 Primers for saturation mutation

位点	引物序列
S27MNN	5´-ACGCAGMNNTTCACGTTCGATACCGAAGTTAGC-3´
S27NNK	5´-CGTGAANNKCTGCGTGTTGACCGTCAGGGTCAG-3´
P99MNN	5´-AGACAGMNNCCACAGAACTTCGTCGGTAGCGAT-3´
P99NNK	5´-CTGTGGNNKCTGTCTATGCCGCCGCGTCTGAAA-3´
L136MNN	5´-AGCCTGMNNTTTGGTACCGTATTTTTCAGCCAG-3´
L136NNK	5´-ACCAAANNKCAGGCTATCTCTGGTATCCACTAC-3´
T505MNN	5´-CAGAGAMNNGAATTCGTCACCAGACGGAACCG-3´
T505NNK	5´-GAATTCNNKTCTCTGGAAGAAGGTCTGGCTTAC-3´
G510MNN	5´-GAAGAAMNNCTGGCTTACTACCCGCTGATCAAA-3´
G510NNK	5´-AGCCAGNNKTTCTTCCAGAGAGGTGAATTCGTC-3´

Fig.1 Excitation wavelength scanning spectra of o-phthalaldehyde (OPA) and glutathione (GSH)

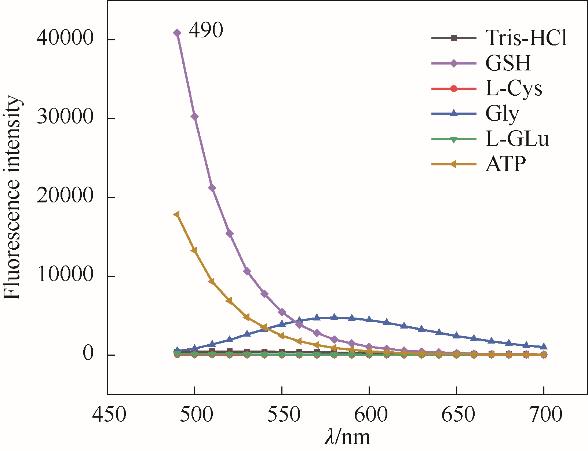

Fig.2 Emission wavelength scanning spectra of OPA and the main components in the reaction system

Fig.3 Effect of OPA concentration on fluorescence response values

Fig.4 Standard curve of fluorescence response values for different concentrations of GSH to react with OPA

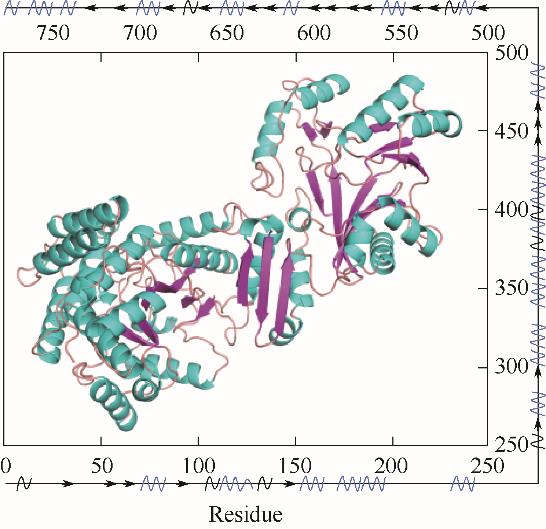

Fig.5 Structural basis of St-GshF(arrow: β-sheet; black line: η-helix; blue line: α-helix)

Table 2 The relative enzymatic activity of St-GshF and its variants

突变体	酶活/(U/g wcw)	相对酶活/%
St-GshF	45.0	100
St-GshF(S27Q)	72.0	160.0
St-GShF(G510P)	76.2	169.3
St-GshF(S27Q/G510P)	78.75	175.1

Fig.6 The effect of temperature on catalytic efficiency of St-GshF (S27Q/G510P)

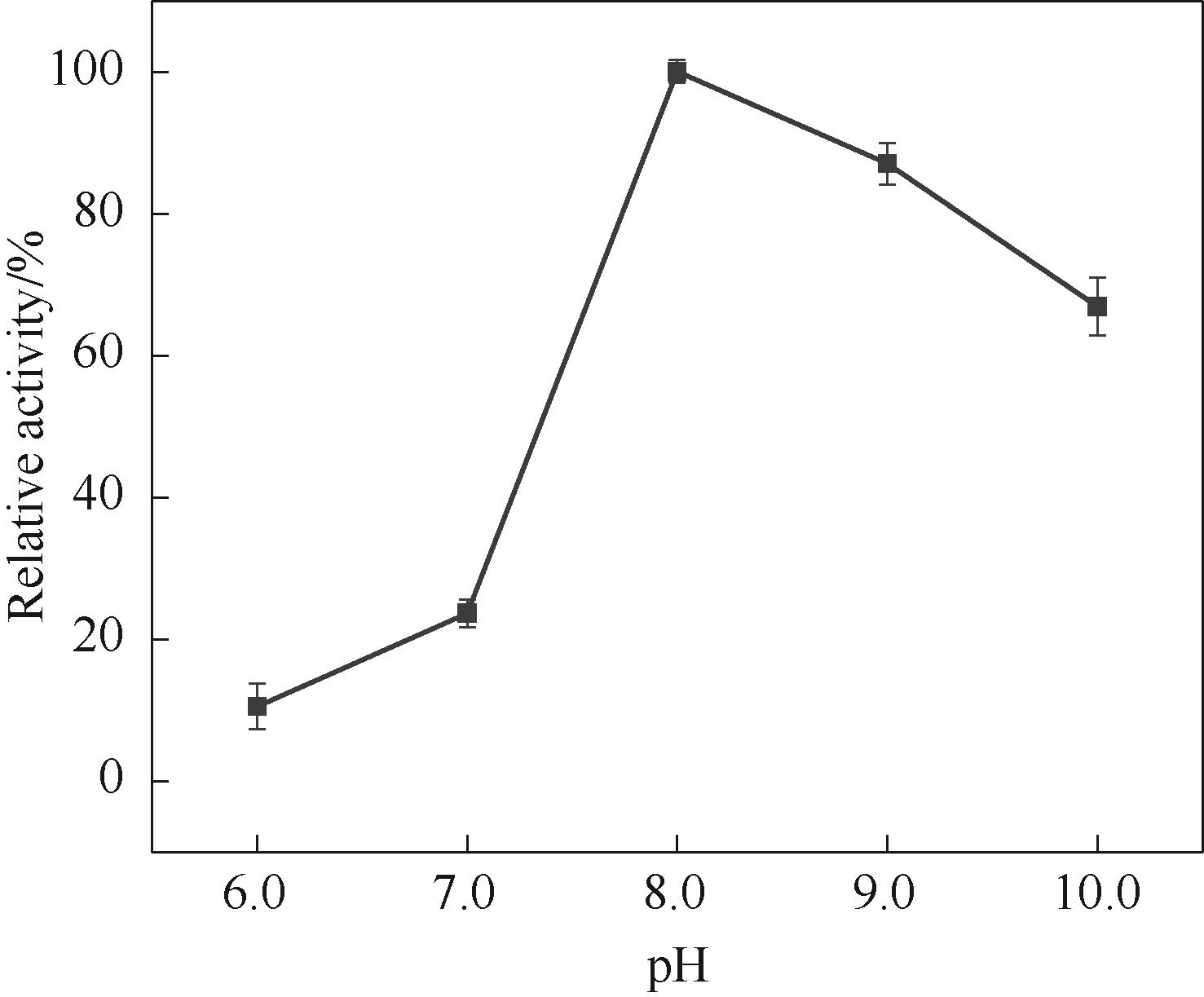

Fig.7 The effect of pH on catalytic efficiency of St- GshF (S27Q/G510P)

Fig.8 The effect of mental ions on the catalytic efficiency of St-GshF (S27Q/G510P)

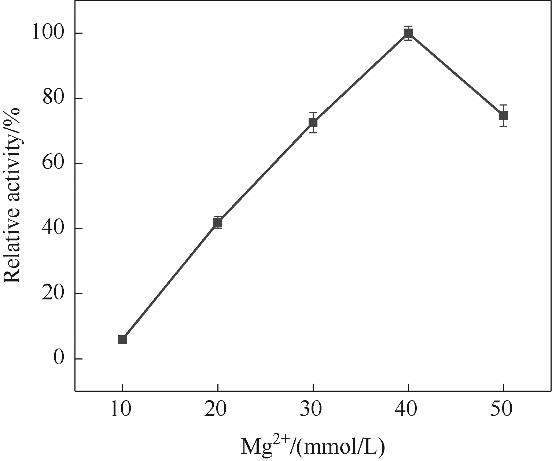

Fig.9 The effect of Mg2+ concentration on the catalytic efficiency of St-GshF (S27Q/G510P)

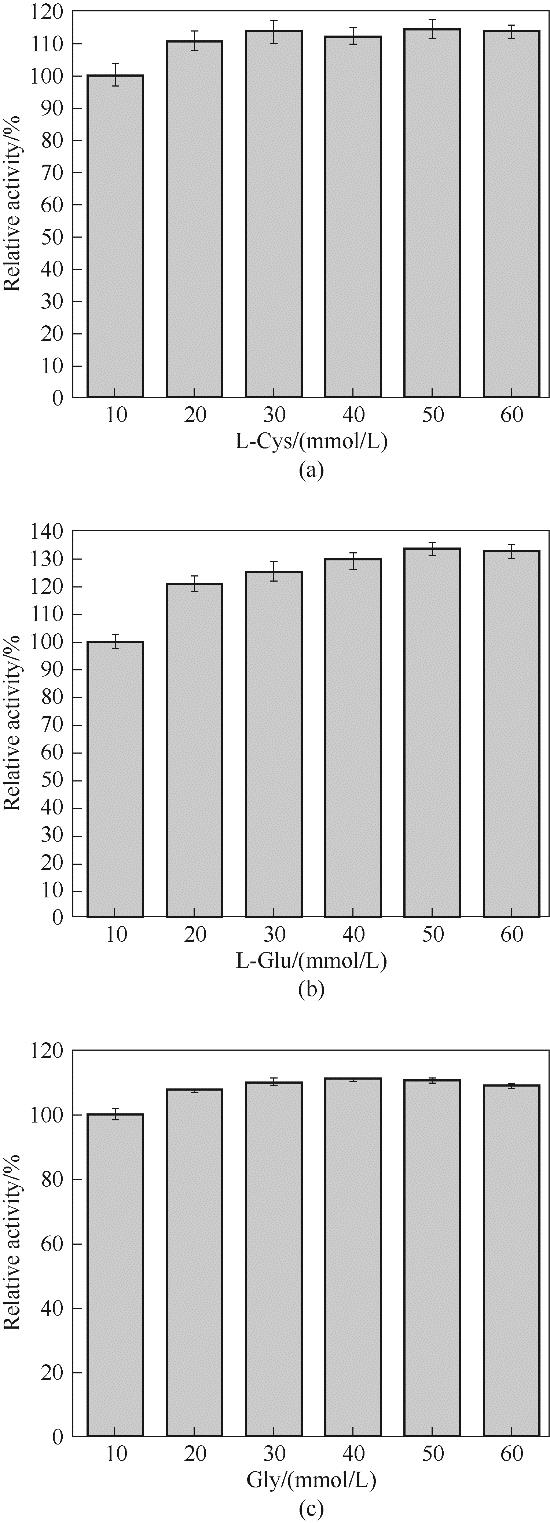

Fig.10 The effect of substrate concentrations (L-Cys, L-Glu, Gly) on the catalytic efficiency of St-GshF (S27Q/G510P)

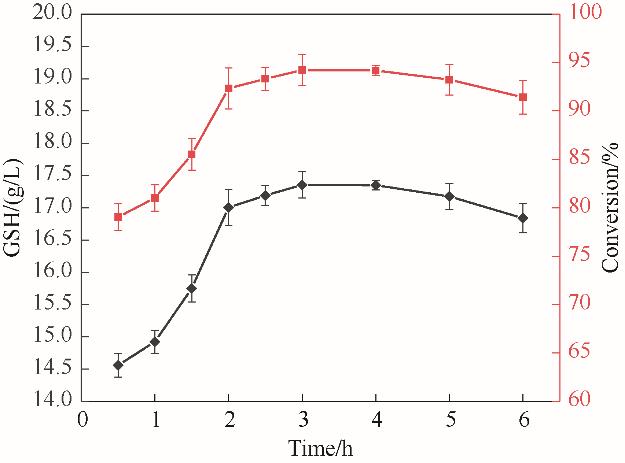

Fig.11 The catalytic synthesis process of GSH by the coupling system of glutathione bifunctional synthase and polyphosphate kinase

References 30

1	Lushchak V I. Glutathione homeostasis and functions: potential targets for medical interventions[J]. Journal of Amino Acids, 2012, 2012: 736837.
2	Kretzschmar M. Regulation of hepatic glutathione metabolism and its role in hepatotoxicity[J]. Experimental and Toxicologic Pathology, 1996, 48(5): 439-446.
3	Ishkaeva RA, Nizamov IS, Blokhin DS, et al. Dithiophosphate-induced redox conversions of reduced and oxidized glutathione[J]. Molecules, 2021, 26(10): 2973.
4	Jeong E M, Yoon J H, Lim J, et al. Real-time monitoring of glutathione in living cells reveals that high glutathione levels are required to maintain stem cell function[J]. Stem Cell Reports, 2018, 10(2): 600-614.
5	Raj Rai S, Bhattacharyya C, Sarkar A, et al. Glutathione: role in oxidative/nitrosative stress, antioxidant defense, and treatments[J]. ChemistrySelect, 2021, 6(18): 4566-4590.
6	Bachhawat A K, Yadav S. The glutathione cycle: glutathione metabolism beyond the γ‐glutamyl cycle[J]. IUBMB Life, 2018, 70(7): 585-592.
7	Witoo D, Teerapon D, Piyameth D. The clinical effect of glutathione on skin color and other related skin conditions: a systematic review[J]. Journal of Cosmetic Dermatology, 2019, 18(3): 728-737.
8	Zhang P P, Li S S, Guo Z F, et al. Nitric oxide regulates glutathione synthesis and cold tolerance in forage legumes[J]. Environmental and Experimental Botany, 2019, 167: 103851.
9	Morellato A E, Umansky C, Pontel L B. The toxic side of one-carbon metabolism and epigenetics[J]. Redox Biology, 2021, 40: 101850.
10	Wang H L, Zhang J, Li Y P, et al. Potential use of glutathione as a treatment for P a r k i n s o n ' s disease[J]. Experimental and Therapeutic Medicine, 2021, 21(2): 125.
11	Gogoi K, Manna P, Dey T, et al. Circulatory heavy metals (cadmium, lead, mercury, and chromium) inversely correlate with plasma GST activity and GSH level in COPD patients and impair NOX₄/Nrf₂/GCLC/GST signaling pathway in cultured monocytes[J]. Toxicology in Vitro, 2019, 54: 269-279.
12	徐菁苒, 毛健, 刘双平, 等. 高产GSH果酒酵母的筛选及对苹果酒褐变的抑制[J]. 食品与生物技术学报, 2018, 37(5): 455-462.
	Xu J R, Mao J, Liu S P, et al. Study on the screening of high GSH -yielding wine yeast and its effect on wine browning[J]. Journal of Food Science and Biotechnology, 2018, 37(5): 455-462.
13	任赐, 张方方, 李莹, 等. 富含谷胱甘肽酵母制品在葡萄酒酿造中的应用进展[J]. 食品与发酵工业, 2023: 1-9.
	Ren C, Zhang F F, Li Y, et al. Advances in the application of glutathione-enriched inactive dry yeast derivatives during winemaking[J]. Food and Fermentation Industries, 2023: 1-9.
14	Gotti R, Andrisano V, Cavrini V, et al. Determination of glutathione in pharmaceuticals and cosmetics by HPLC with UV and fluorescence detection[J]. Chromatographia, 1994, 39(1): 23-28.
15	Cui X W, Wan J X, Zhang X, et al. Efficient glutathione production in metabolically engineered Escherichia coli strains using constitutive promoters[J]. Journal of Biotechnology, 2019, 289: 39-45.
16	Huang C S, Chang L S, Anderson M E, et al. Catalytic and regulatory properties of the heavy subunit of rat kidney gamma-glutamylcysteine synthetase[J]. Journal of Biological Chemistry, 1993, 268(26): 19675-19680.
17	Huang C, Yin Z. Highly efficient synthesis of glutathione via a genetic engineering enzymatic method coupled with yeast ATP generation[J]. Catalysts, 2019, 10(1): 33.
18	Deponte M. Glutathione catalysis and the reaction mechanisms of glutathione-dependent enzymes[J]. Biochimica et Biophysica Acta (BBA) - General Subjects, 2013, 1830(5): 3217-3266.
19	Richman PG, Meister A. Regulation of gamma-glutamyl-cysteine synthetase by nonallosteric feedback inhibition by glutathione[J]. Journal of Biological Chemistry, 1975, 250(4):1422-1426.
20	Griffith O W, Mulcahy R T. The Enzymes of Glutathione Synthesis: γ-Glutamylcysteine Synthetase[M]. Advances in Enzymology and Related Areas of Molecular Biology, 1999: 209-267.
21	Janowiak B E, Griffith O W. Glutathione synthesis in Streptococcus agalactiae: one protein accounts for γ-glutamylcysteine synthetase and glutathione synthetase activities[J]. Journal of Biological Chemistry, 2005, 280(12): 11829-11839.
22	Yang J, Li W, Wang D, et al. Characterization of bifunctional L-glutathione synthetases from Actinobacillus pleuropneumoniae and Actinobacillus succinogenes for efficient glutathione biosynthesis[J]. Applied microbiology and biotechnology, 2016, 100(14):6279-6289.
23	Andexer J N, Richter M. Emerging enzymes for ATP regeneration in biocatalytic processes[J]. Chembiochem: a European Journal of Chemical Biology, 2015, 16(3): 380-386.
24	Wang D Z, Wang C, Wu H, et al. Glutathione production by recombinant Escherichia coli expressing bifunctional glutathione synthetase[J]. Journal of Microbiology and Biotechnology, 2016, 43(1): 45-53.
25	Huang X, Li Y M, Du C, et al. Expression of polyphosphate kinase from Sphingobacterium siyangensis and its application in ATP regeneration system[J]. Chinese Journal of Biotechnology, 2022, 38(12): 4669-4680.
26	Cao H, Li C, Zhao J, et al. Enzymatic production of glutathione coupling with an ATP regeneration system based on polyphosphate kinase[J]. Applied Biochemistry and Biotechnology, 2018, 185(2): 385-395.
27	Coates T L, Young N, Jarrett A J, et al. Current computational methods for enzyme design[J]. Modern Physics Letters B, 2021, 35(9): 2150155.
28	Eberhardt J, Santos-Martins D, Tillack AF, et al. AutoDock Vina 1.2.0: new docking methods, expanded force field, and python bindings[J]. Journal of Chemical Information and Modeling, 2021, 61(8): 3891-3898.
29	Chen R F, Scott C, Trepman E. Fluorescence properties of o-phthaldialdehyde derivatives of amino acids[J]. Biochimica et Biophysica Acta (BBA) - Protein Structure, 1979, 576(2): 440-455.
30	Bae W, Yoon T Y, Jeong C. Direct evaluation of self-quenching behavior of fluorophores at high concentrations using an evanescent field[J]. PLoS One, 2021, 16(2): e0247326.
