Modeling of wastewater reverse osmosis process based on Alopex evolutionary algorithm and ensemble learning multi-model back propagation neural network

doi:10.11949/0438-1157.20241085

Abstract

Abstract:

This paper proposes an AdaBoost strategy based on training quality and a multimodal neural network machine learning method based on Alopex evolutionary algorithm for the dynamic process of ultrafiltration performance in sewage reverse osmosis water pretreatment. Firstly, this paper constructs a class of generalized Bayesian inference probability indicators suitable for arbitrary distributions to classify multimodal states such as filtration and backwashing in ultrafiltration reverse osmosis wastewater treatment processes. Then, a neural network algorithm based on Alopex evolutionary algorithm and distribution-based AdaBoost ensemble strategy is used to model each modal process separately. Finally, the constructed generalized Bayesian inference-based probability indicators for each modality are used to integrate multiple models of the multimodal process. In order to verify the effectiveness of the method proposed in this paper, the method was applied to a two-year dataset collected from a community in the United States. The proposed method has good predictive performance for membrane resistance and backwash efficiency, and can effectively predict expected water quality changes.

Key words: ultrafiltration RO feed pre-treatment, backwash efficiency, hydraulic membrane resistance, back propagation neural network

摘要：

面向污水反渗透给水预处理中超滤性能动态过程，提出一种基于训练质量的AdaBoost策略和基于Alopex进化算法的多模态神经网络机器学习方法。首先，构建了一类适用于任意分布的广义贝叶斯推断概率指标对超滤反渗透污水处理过程中过滤和反洗等多模态状态进行分类，然后使用基于Alopex进化算法和基于分布的AdaBoost集成策略的神经网络算法针对每一个模态过程分别建模，最后利用构建的每个模态的基于广义贝叶斯推理的概率指标，将多模态的多个模型集成。为了验证所提方法的有效性，将该方法应用到美国某社区采集的两年数据集中，结果表明该方法对膜阻力和反洗效率具有很好的预测性能，能够很好地预测预期水质变化性能。

关键词: 超滤反渗透过程, 反冲洗效率, 水力膜阻力, 反向传播神经网络

CLC Number:

O 242

Yang ZHOU, Dan LIANG, Kai WANG, Yilan ZHANG, Li JIA. Modeling of wastewater reverse osmosis process based on Alopex evolutionary algorithm and ensemble learning multi-model back propagation neural network[J]. CIESC Journal, 2025, 76(4): 1661-1670.

周洋, 梁聃, 汪恺, 张艺蓝, 贾立. 基于Alopex进化算法和集成学习的多模态神经网络的污水反渗透过程建模[J]. 化工学报, 2025, 76(4): 1661-1670.

Figures/Tables 9

Fig.1 Simplified diagram of UF-RO seawater desalination system

Fig.2 Diagram of operation cycle (filtration/backwash)

Fig.3 Development flowchart of the proposed model

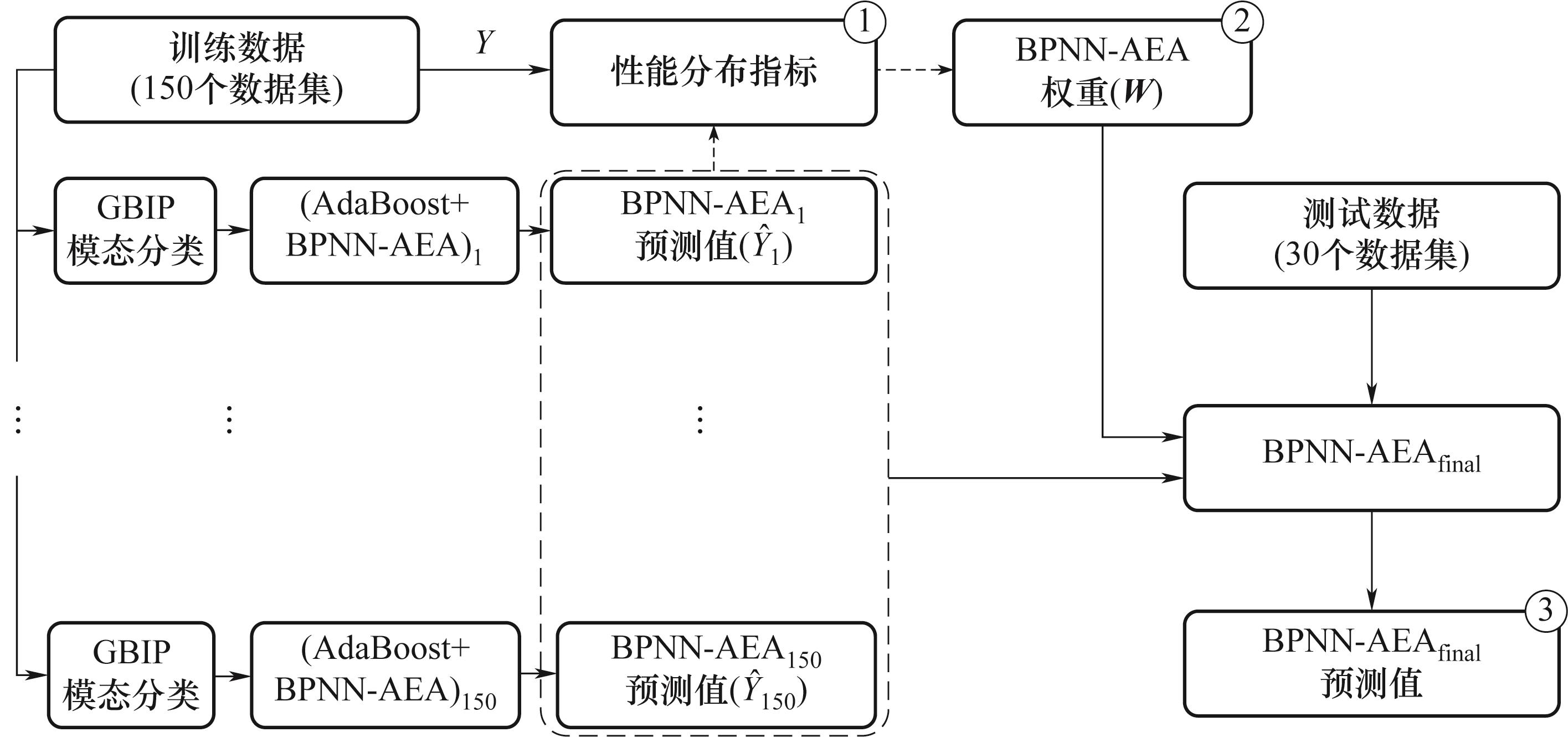

Fig.4 Flowchart of proposed method

Fig.5 Number of datasets for the first seven attributes

Table 1 Comparison of performance indicators for selecting attribute sets， backwashing efficiency， filtering， and resistance prediction after backwashing for 30 test datasets

方法	预测性能指标	常规操作条件				暴风雨期间
方法	预测性能指标	过滤膜阻力	反洗膜阻力	反洗效率	<R_PB>/<R_PB>₀	过滤膜阻力	反洗膜阻力	反洗效率	<R_PB>/<R_PB>₀
本文方法	R²	0.962	0.948	0.942	0.947	0.945	0.934	0.924	0.9251
本文方法	RMSE	0.027	0.031	0.013	0.013	0.039	0.053	0.012	0.016
本文方法-non	R²	0.911	0.896	0.891	0.898	0.893	0.882	0.853	0.858
本文方法-non	RMSE	0.037	0.041	0.023	0.026	0.047	0.066	0.024	0.026
随机森林	R²	0.859	0.849	0.839	0.844	0.846	0.831	0.814	0.818
随机森林	RMSE	0.067	0.071	0.053	0.052	0.078	0.091	0.053	0.059
LSTM	R²	0.881	0.866	0.863	0.869	0.864	0.852	0.840	0.841
LSTM	RMSE	0.052	0.056	0.038	0.037	0.063	0.077	0.038	0.042

Fig.6 Taking the first 10 cycles of the 142 cycles in the test dataset, the proposed integrated BPNN-AEA model compares the predicted and observed values (above the horizontal dashed line represents the filtering mode, and below the horizontal dashed line represents the backwashing process)

Fig.7 Taking the constant coagulant dosage (2.7 mg/L Fe3+) test dataset as an example, verify the prediction accuracy of the proposed model (the range of ultrafiltration feed turbidity and chlorophyll-a content is 0.6—4.4 NTU and 58—244 µg/L, respectively)

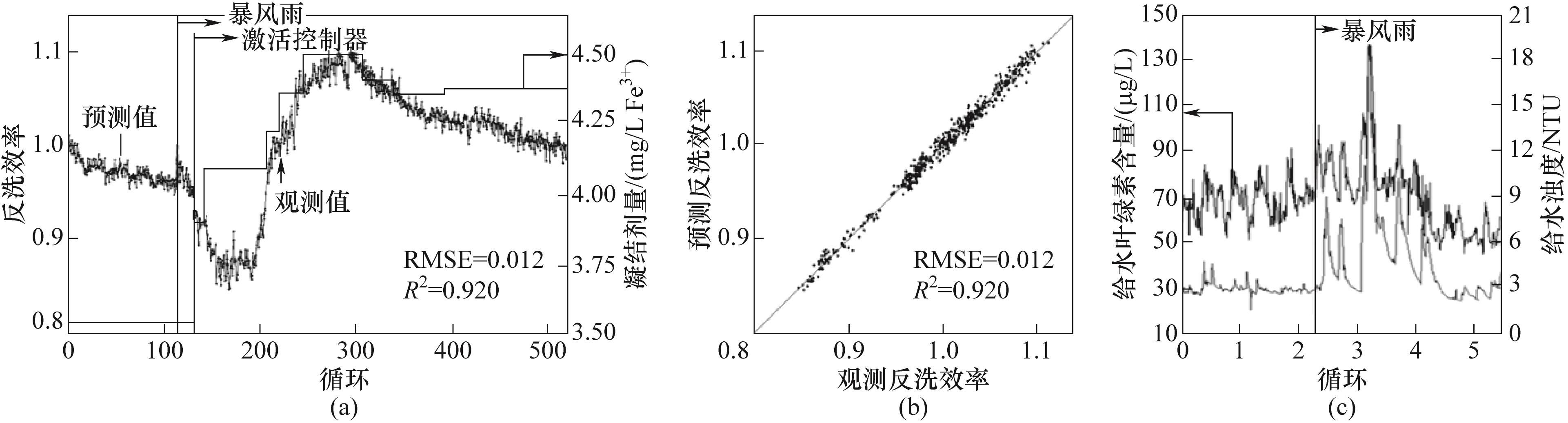

Fig.8 Taking the test dataset (512 cycles, 8 d of operation time) with stormy weather as an example, the prediction accuracy of the model's backwash efficiency is proposed (the range of ultrafiltration feed turbidity and chlorophyll-a content is 1.5—19 NTU and 43—142 µg/L, respectively)
