TTPA-LSTM soft sensor modeling for multi-sampling rate data

doi:10.11949/0438-1157.20241121

Abstract

Abstract:

In practical industrial production, the time lags and sampling rate differences among process variables can deteriorate the modeling quality, rendering many soft sensing models inapplicable. Therefore, a soft sensing modeling approach based on time-aware temporal pattern attention (TTPA) mechanism and long short-term memory network is proposed. In this study, we first reconstruct the data corresponding to high and low sampling rates into short-term and long-term information, respectively. A time-aware module is utilized to decompose the input information while considering the characteristics of time intervals. To address the issue of low proportion of quality-related information, a non-increasing heuristic decay function is designed to weight the short-term information. By combining these weighted components, we derive an integrated feature set that encapsulates both short-term and long-term information, thereby mitigating the impact of data loss resulting from multiple sampling rates. Secondly, a feature optimization module is introduced to achieve two-dimensional filtering of features, and the time lag information in the multivariate time series is analyzed across time steps to obtain more effective quality-related features. Finally, a soft sensing model based on TTPA-based long short-term memory network is established. The effectiveness and superiority of the proposed model were verified through the application simulation of IndPensim process and debutanizer process.

Key words: multi-sampling rate, time-aware temporal pattern attention, long short-term memory network, soft-sensor, neural networks, process control, dynamic modeling

摘要：

实际工业生产中，过程变量间存在的时滞和采样率差异会降低建模质量，使得许多软测量模型无法适用。因此，提出一种基于时间感知模式注意力（time-aware temporal pattern attention，TTPA）机制和长短时记忆网络的软测量建模方法。首先，将高、低采样率对应的数据分别重构为短期和长期信息，采用时间感知模块将输入信息分解并考虑时间间隔特性，针对质量相关信息占比低的问题，设计非递增启发式衰减函数对短期信息进行加权，组合后获得长短期信息集成特征，降低因多采样率产生的数据缺失影响。其次，引入特征优化模块实现特征二维滤波，跨时间步解析多元时间序列中的时滞信息，获取更有效的质量相关特征。最后，搭建了基于TTPA的长短期记忆网络软测量模型。通过工业青霉素发酵过程和脱丁烷塔过程的应用仿真，验证了所提模型的有效性和优越性。

关键词: 多采样率, 时间感知模式注意力, 长短时记忆网络, 软测量, 神经网络, 过程控制, 动态建模

CLC Number:

TP 273

Fazheng WANG, Lin SUI, Weili XIONG. TTPA-LSTM soft sensor modeling for multi-sampling rate data[J]. CIESC Journal, 2025, 76(4): 1635-1646.

王法正, 隋璘, 熊伟丽. 面向多采样率数据的TTPA-LSTM软测量建模[J]. 化工学报, 2025, 76(4): 1635-1646.

Figures/Tables 18

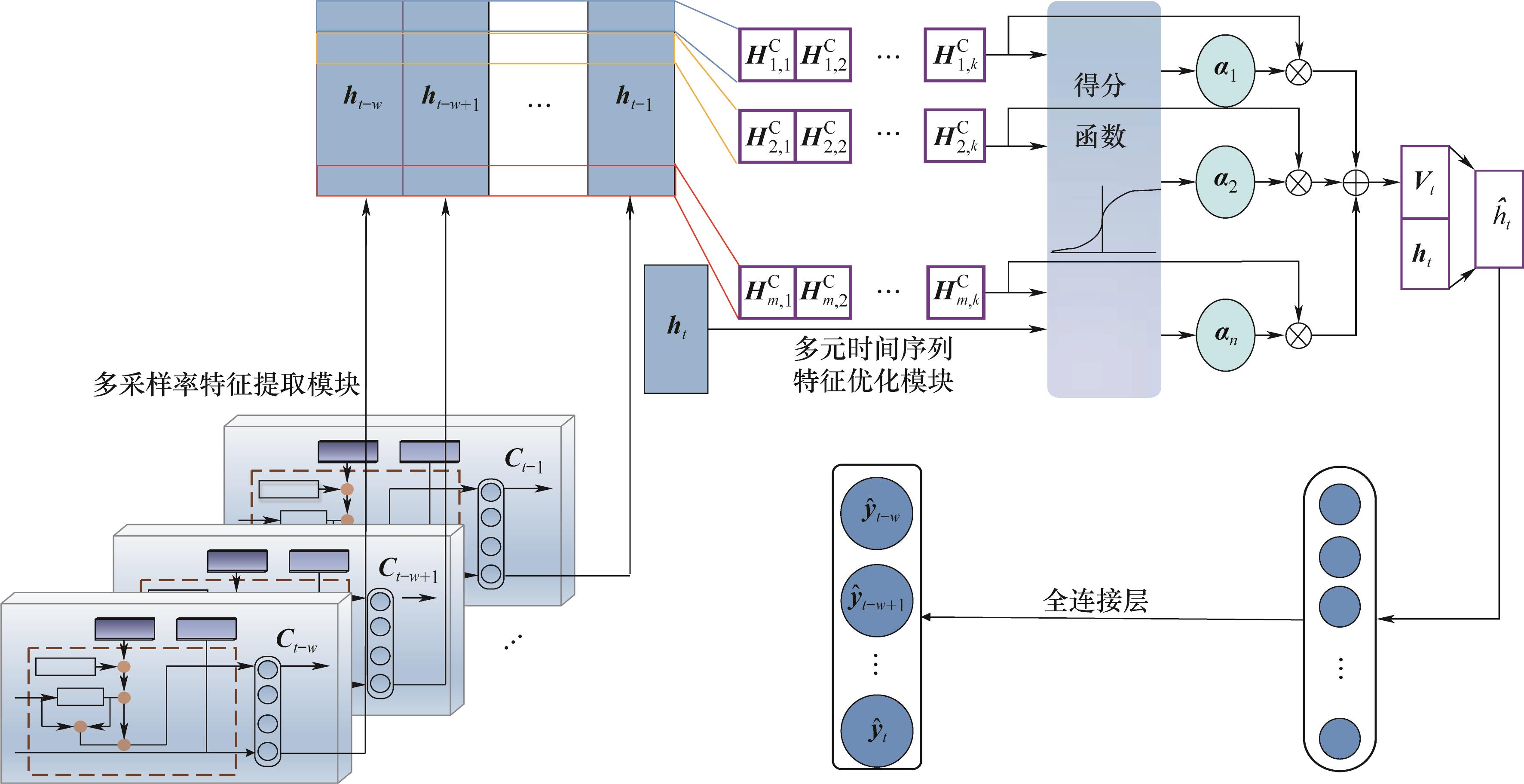

Fig.1 Structure of TTPA-LSTM soft sensor model

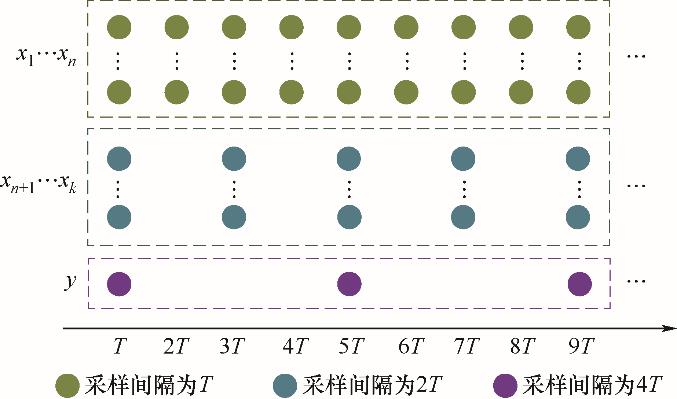

Fig.2 Illustrations of the multirate sampled data in industrial processes

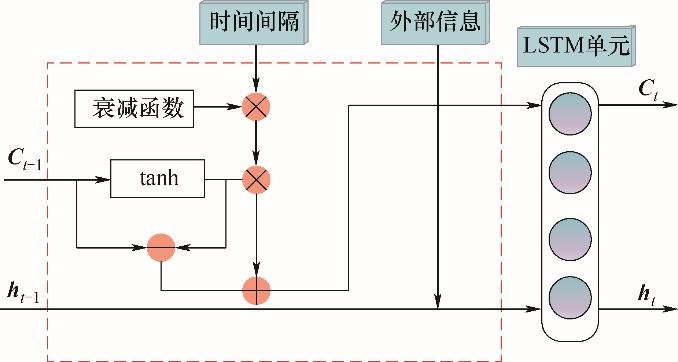

Fig.3 Multirate sampling feature processing flow

Table 1 Variable description of IndPensim

符号	变量名称	采样间隔/min
R_W	加热/冷却水流速	12
V_V	容器体积	12
V_W	容器质量	12
$E_{C O_{2}}$	废气二氧化碳浓度	24
$E_{O_{2}}$	废气氧浓度	24
$R_{C O_{2}}$	碳吸收速率	12
$R_{O_{2}}$	氧吸收速率	12
P	青霉素浓度	60

Table 1 Variable description of IndPensim

符号	变量名称	采样间隔/min
R_W	加热/冷却水流速	12
V_V	容器体积	12
V_W	容器质量	12
$E_{C O_{2}}$	废气二氧化碳浓度	24
$E_{O_{2}}$	废气氧浓度	24
$R_{C O_{2}}$	碳吸收速率	12
$R_{O_{2}}$	氧吸收速率	12
P	青霉素浓度	60

Table 2 The prediction evaluation metrics for penicillin concentration of various models

所用模型	RMSE	MAE	MAPE	R²
MLP	5.55531	4.48582	4.03364	0.69172
RNN	4.54358	3.77206	5.97488	0.79377
NI^[16]	3.52126	2.63703	1.24222	0.87614
MSDF^[17]	3.32183	2.54239	1.53001	0.88978
SFA-MLP^[19]	2.81958	2.05189	1.21357	0.92058
SA-TLSTM	2.57029	1.87089	0.84318	0.93401
TTPA-LSTM	1.22438	0.92089	0.34144	0.98503

Fig.4 Comparison of penicillin concentration results among various models

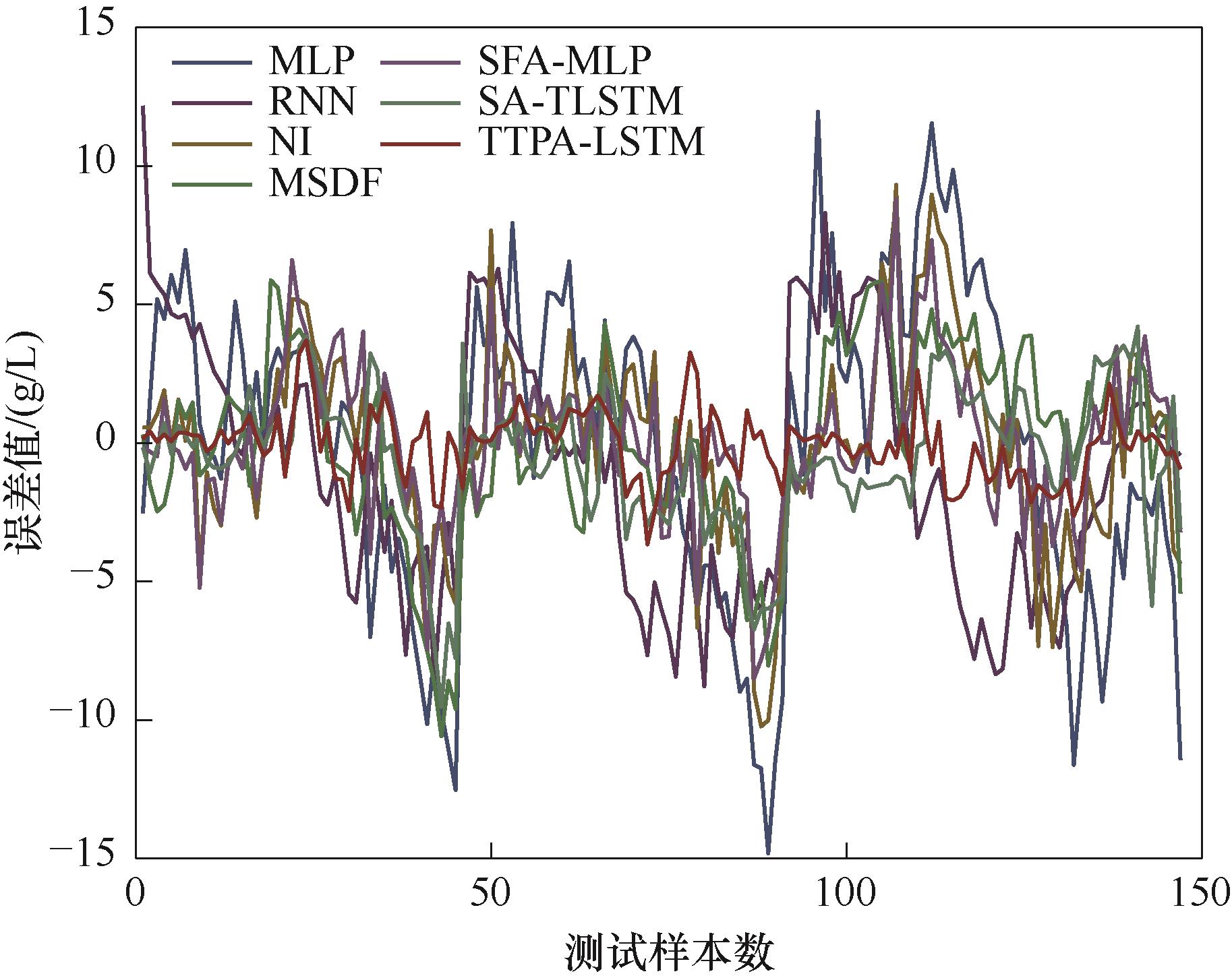

Fig.5 Penicillin concentration prediction error among various models

Table 3 The prediction evaluation metrics for penicillin concentration of ablation experiments

模型	RMSE	MAE	MAPE	R²
LSTM	3.80403	3.07299	1.71857	0.85545
TLSTM	2.86516	2.46471	2.02471	0.91799
TPA-LSTM	2.74571	2.02671	0.68686	0.92469
TTPA-LSTM	1.22438	0.92089	0.34144	0.98503

Fig.6 Comparison of penicillin concentration results of ablation experiments

Table 4 The prediction evaluation metrics for penicillin concentration of K-fold cross-validation

子集序号	RMSE	MAE	MAPE	R²
1	1.38802	1.07046	0.82576	0.98066
2	1.26901	0.99769	0.85675	0.98213
3	1.36301	1.04380	0.43557	0.98136
4	1.43175	1.07177	0.55785	0.97943
5	1.22438	0.92089	0.34144	0.98503

Fig.7 Process flow of debutanizer

Table 5 Variable description of debutanizer

符号	变量名称	采样间隔/min
x₁	塔顶端温度	10
x₂	塔顶端压力	10
x₃	塔顶端回流量	20
x₄	塔顶端出料量	20
x₅	塔板6温度	10
x₆	塔底温度1	10
x₇	塔底温度2	10
y	塔底丁烷含量	40

Table 6 Prediction and evaluation indicators of multirate sampling models in the debutanizer dataset

模型	RMSE	MAE	MAPE	R²
NI^[16]	0.04298	0.03221	0.12219	0.93912
MSDF^[17]	0.03623	0.02836	0.11641	0.95685
SFA-MLP^[19]	0.03494	0.02507	0.09652	0.95978
TTPA-LSTM	0.02424	0.01822	0.08607	0.98089

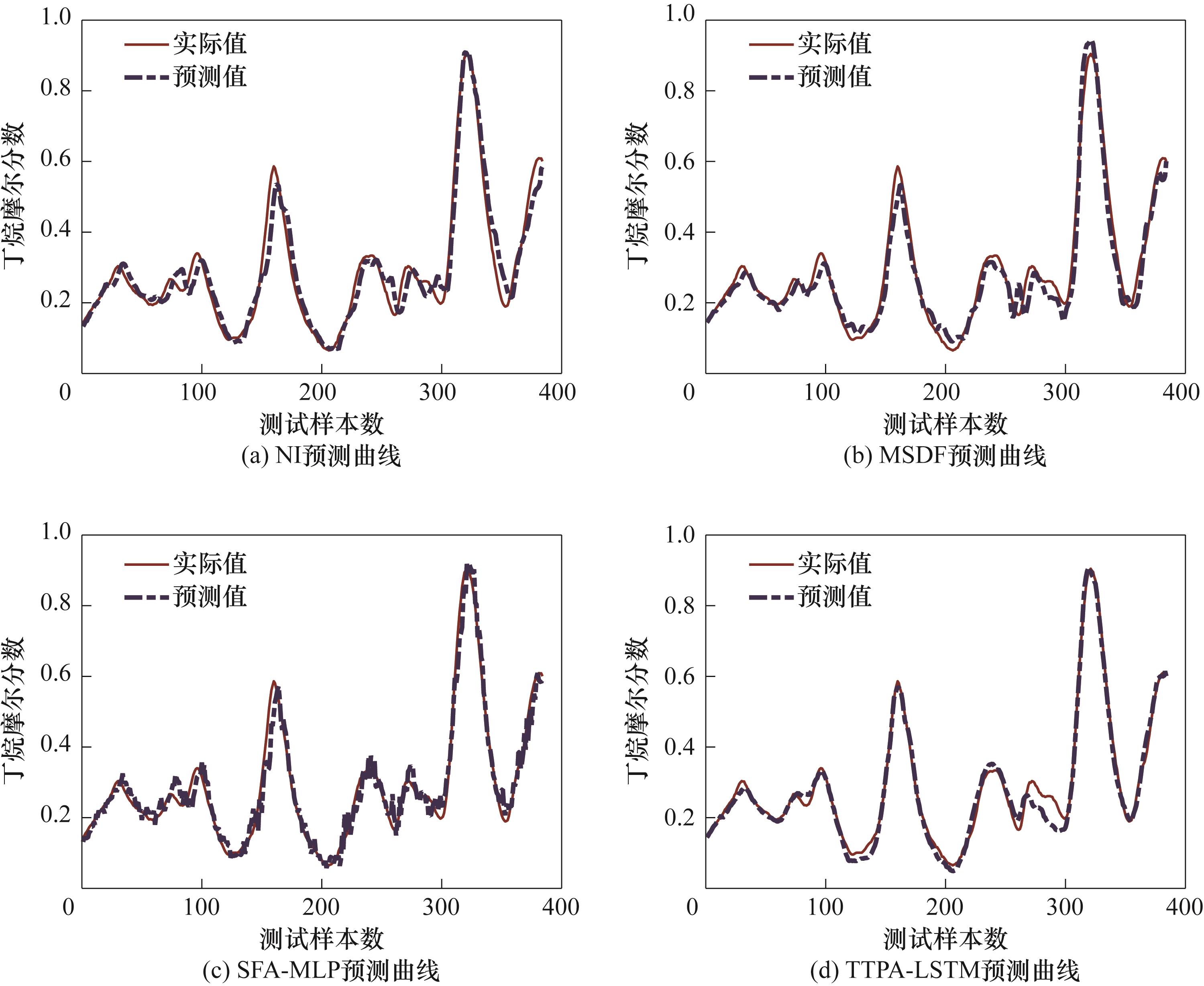

Fig.8 Histogram of prediction error for butane concentration at the bottom of a multirate sampling model tower

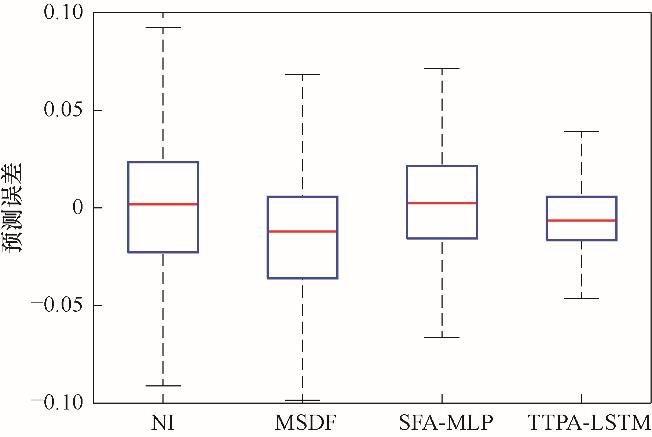

Fig.9 Box plots of prediction errors for butane concentration using various multirate sampling models

Fig.10 Comparison of numerical simulation results for multirate models

Table 7 Predictive evaluation indicators for ablation experiments on the debutanizer dataset

模型	RMSE	MAE	MAPE	R²
LSTM	0.04665	0.03765	0.14688	0.92874
TLSTM	0.03296	0.02649	0.10634	0.96469
TPA-LSTM	0.03698	0.02693	0.09838	0.95512
TTPA-LSTM	0.02424	0.01822	0.08607	0.98089

Fig.11 RMSE prediction of butane concentration using TTPA-LSTM model under various parameters
