基于Micro-CT和深度学习的盐溶液冰离心分离微观结构研究

doi:10.11949/0438-1157.20251264

摘要/Abstract

摘要：

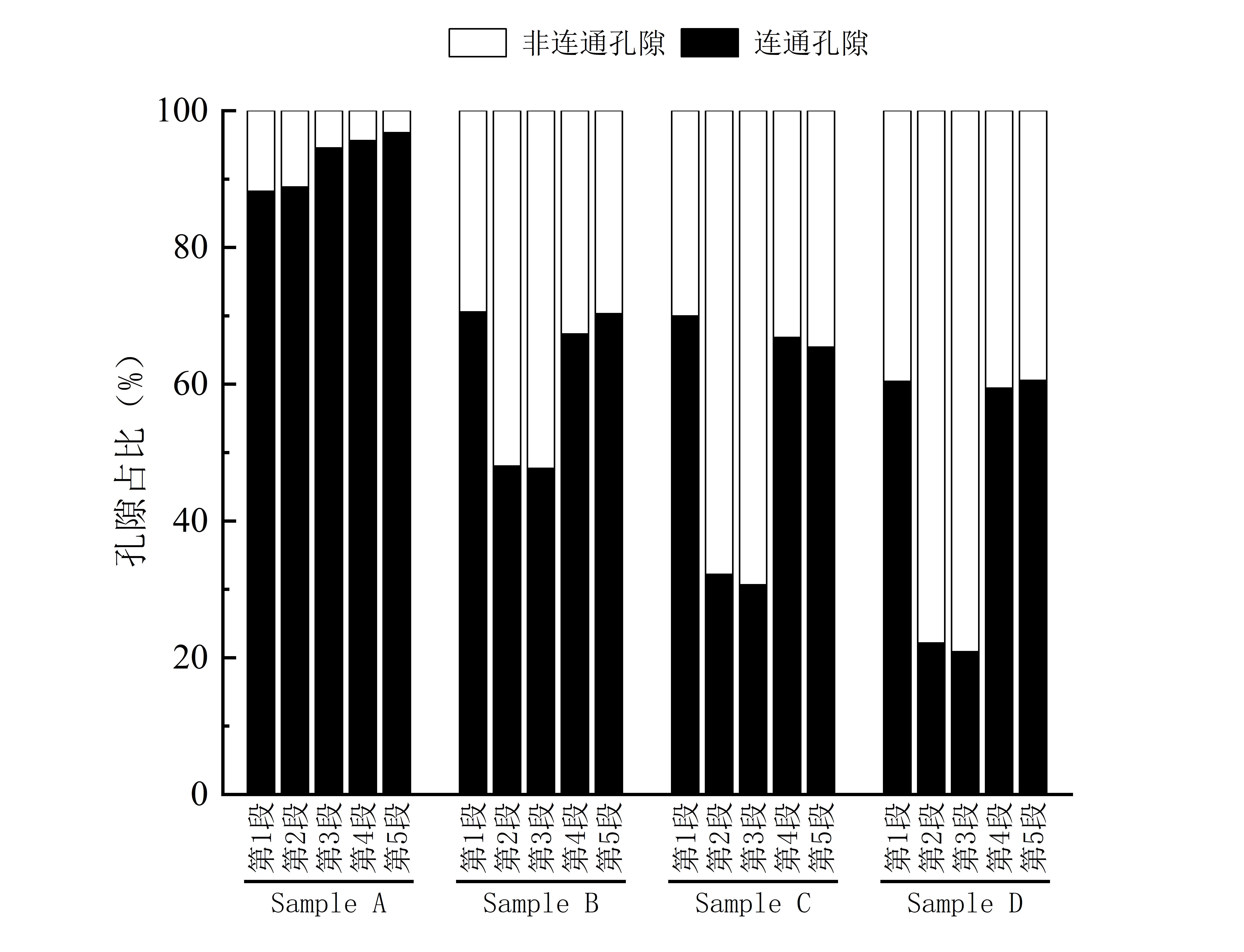

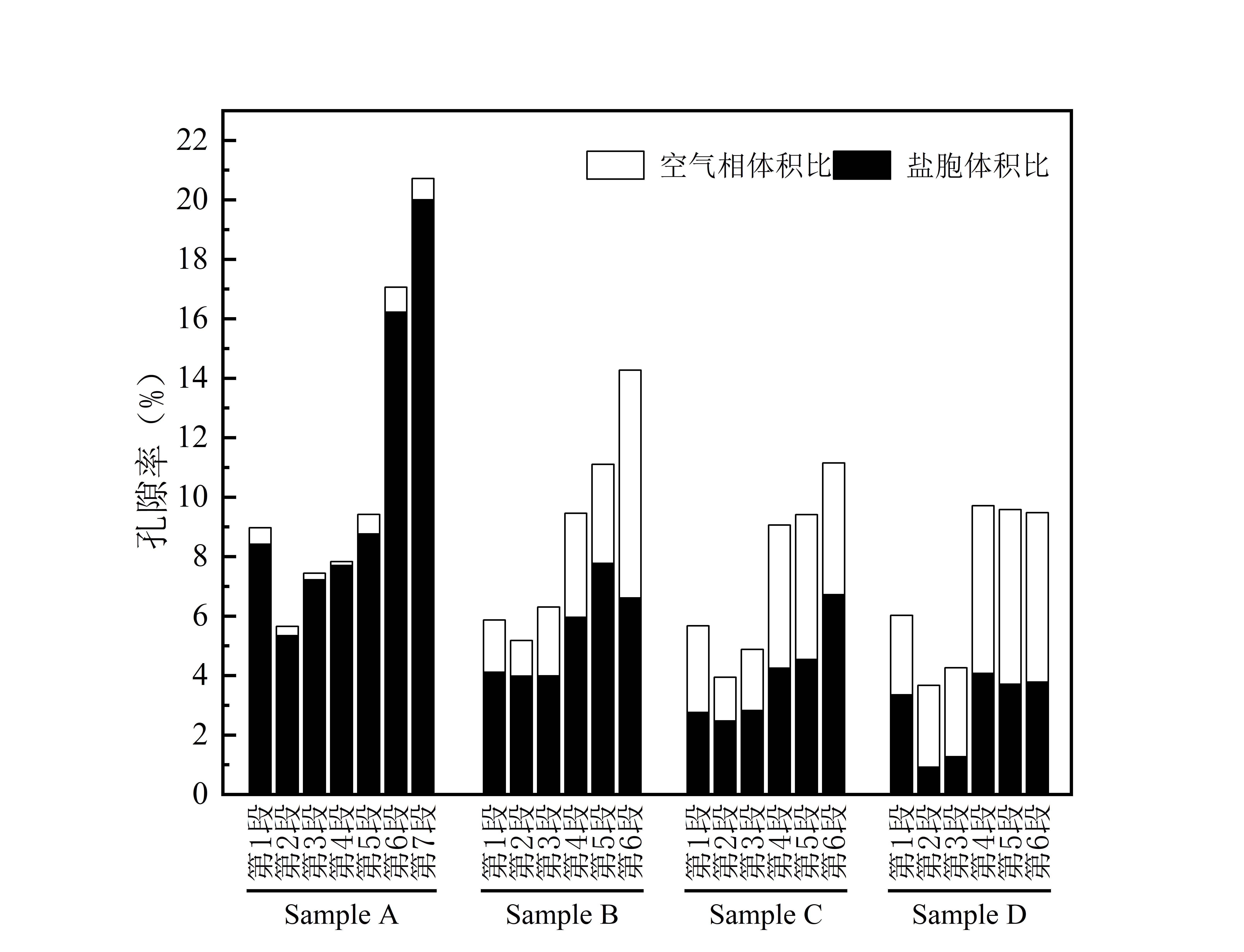

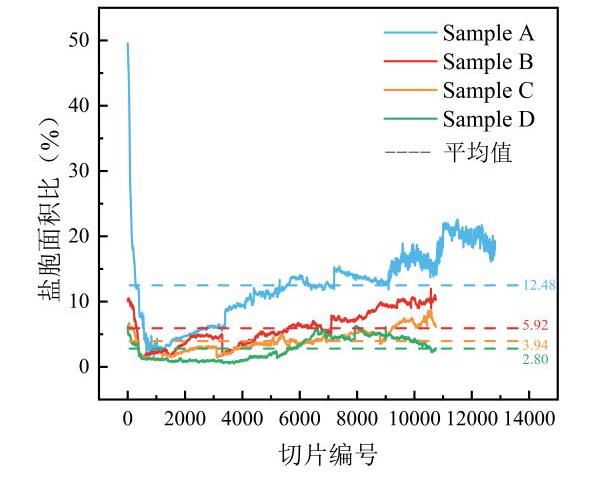

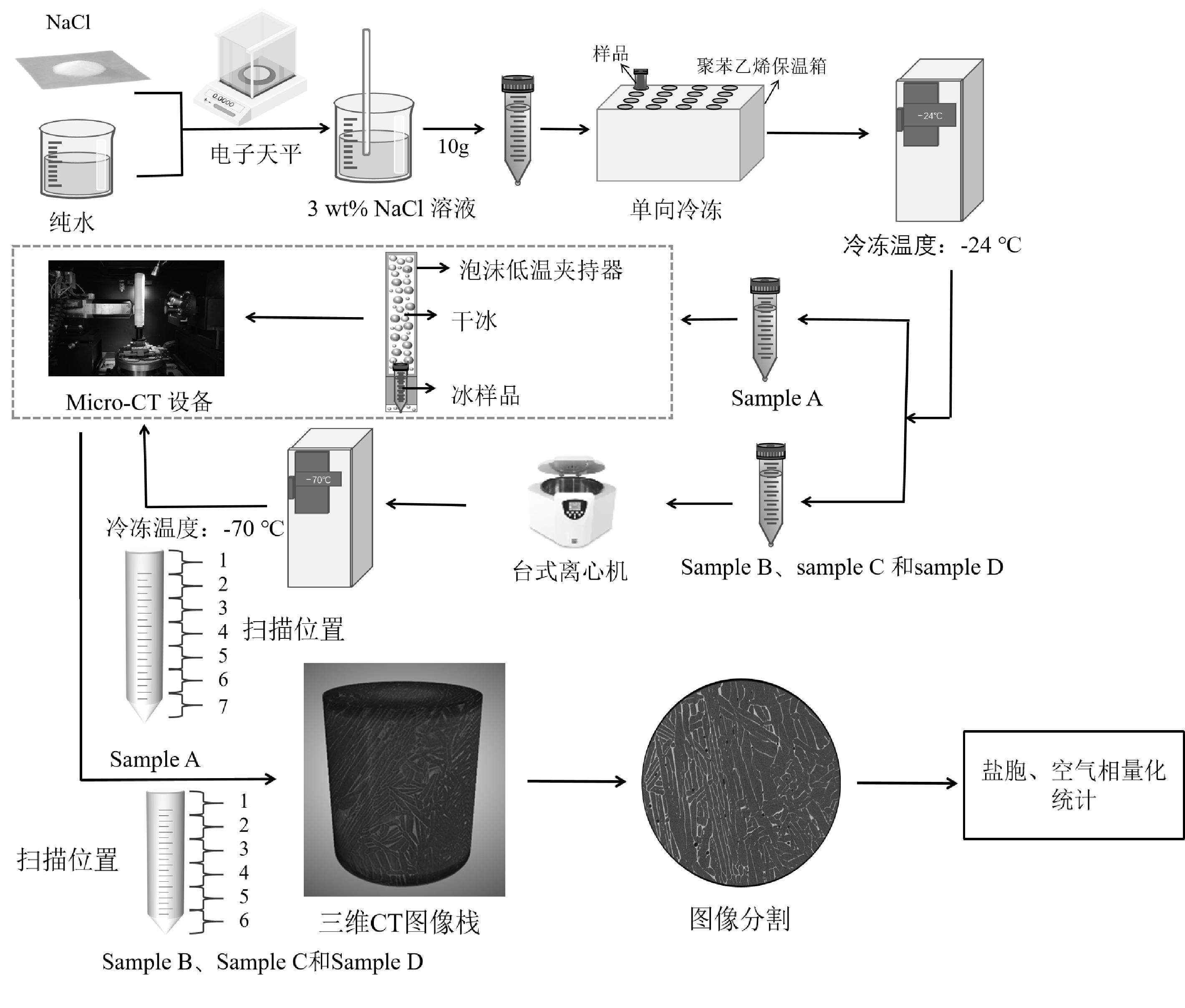

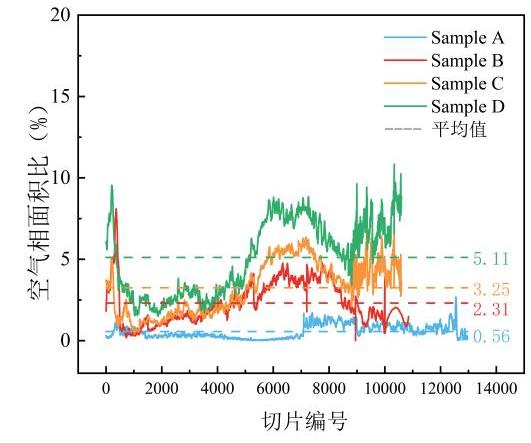

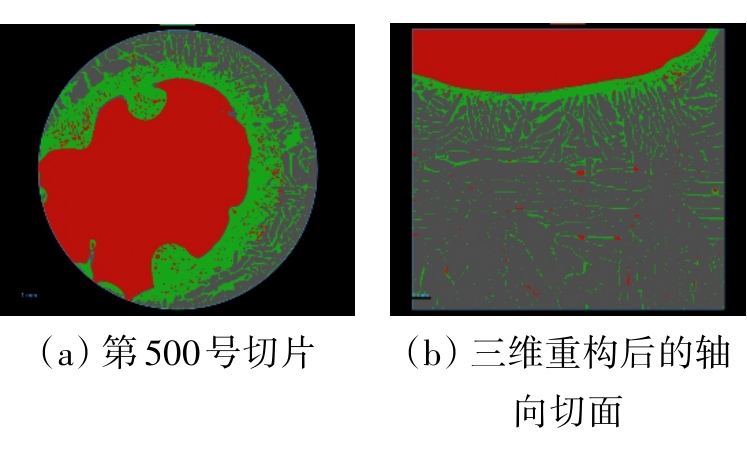

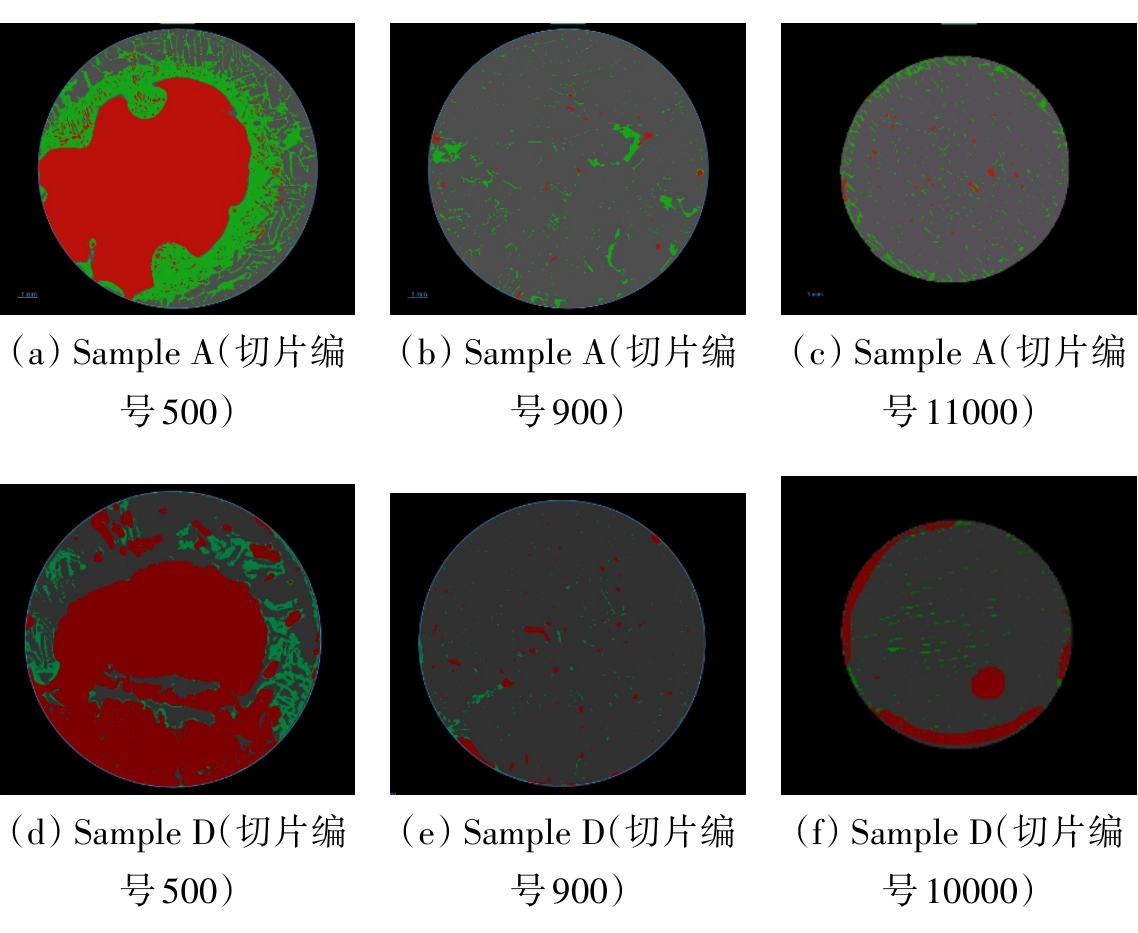

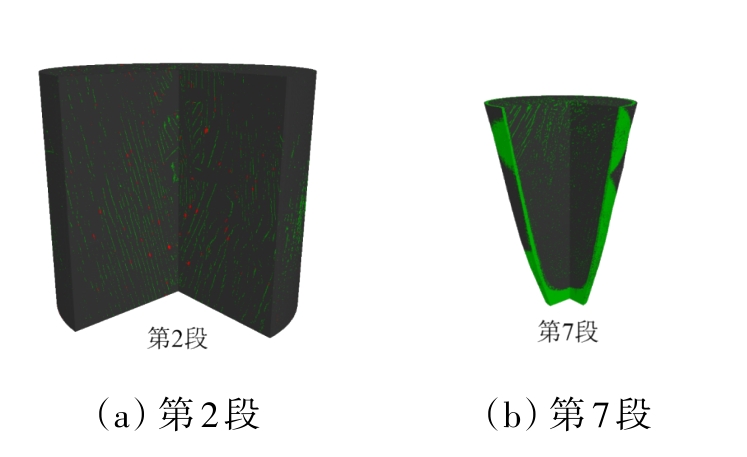

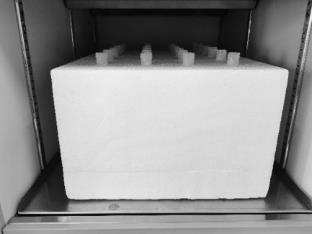

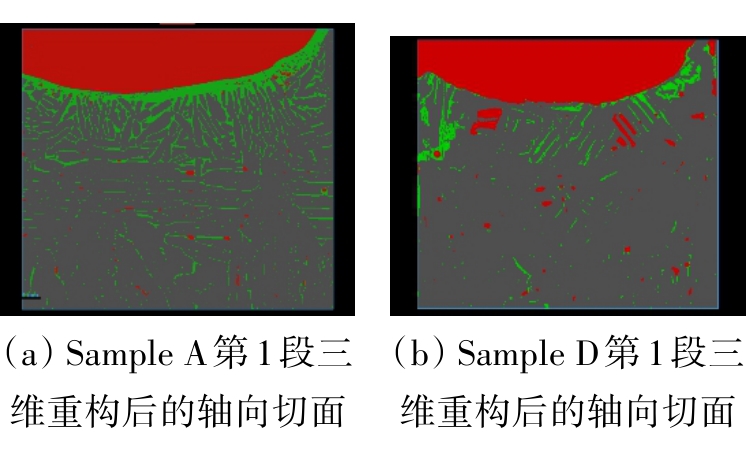

冷冻离心法是一种基于冷冻过程的复合脱盐方法。分布在冰内部的盐胞会影响盐溶液冰的盐度，降低脱盐效果。本文在实验室可控条件下单向冷冻质量浓度为3 wt%的NaCl溶液，冷冻温度设置为–24 °C；采用高分辨率X射线计算机断层扫描（micro-computed tomography， Micro-CT）技术扫描了不同离心参数处理前后的NaCl溶液冰，获得了冰样的CT图像；使用深度学习（deep learning， DL）技术分析了CT图像中盐胞和空气相面积比例等微观参数的变化，并将其与离心前后溶液冰的盐度进行了对比分析。还研究了离心前后冰样内部孔隙和连通性的变化。本研究证明了将Micro-CT技术与DL相结合，能够对离心处理前后盐溶液冰样品内部结构进行可视化观测和定量表征，有助于从微观角度深入理解冷冻离心脱盐过程。

关键词: NaCl溶液冰, 深度学习, 盐胞, 冷冻离心脱盐, 微型计算机断层成像

Abstract:

Freezing and centrifugal desalination is a freezing-based method used to separate salt from water or obtain a concentrated solution. The distribution of salt inclusions inside the ice is a key factor influencing desalination efficiency. Under controlled laboratory conditions, the 3 wt% NaCl solution samples were frozen unidirectional at -24 °C, followed by micro-computed tomography (Micro-CT) scanning both before and after centrifugal treatment. Each sample was processed with a distinct centrifugation time or rotational speed. Deep learning (DL) technique was employed to segment the obtained Micro-CT images and to quantitively analyze the microstructure of the NaCl solution ice samples. The area ratios of both salt inclusions and air phase were compared with the measured salinities of the samples. Changes in the internal porosity and connectivity of ice samples before and after centrifugation were also investigated. It was demonstrated that the combination of Micro-CT and DL technics is an effective way to visualize and quantitatively characterize the microstructure of salt solution ice samples. This method is helpful to understand freezing and centrifugal desalination process from the microscopic view.

Key words: NaCl solution ice, Deep learning, Salt inclusions, Freezing-centrifugal desalination, Micro-computed tomography

中图分类号:

X703.1

张灿, 杨晖, 崔哲, 王溪. 基于Micro-CT和深度学习的盐溶液冰离心分离微观结构研究[J]. 化工学报, DOI: 10.11949/0438-1157.20251264.

Can ZHANG, Hui YANG, Zhe CUI, Xi WANG. Study on microstructure of NaCl solution ice centrifugal separation based on Micro-CT and deep learning[J]. CIESC Journal, DOI: 10.11949/0438-1157.20251264.

图/表 16

参考文献 31

[1]	李海波, 弋晓康, 杨乔楠, 等. 苦咸水淡化处理研究进展[J]. 水处理技术, 2024, 50(10): 24-30.
	Li H B, Yi X K, Yang Q N, et al. Research progress in desalination of brackish water[J]. Technology of Water Treatment, 2024, 50(10): 24-30.
[2]	江克忠, 王玉川, 胡钰, 等. 冷冻法海水淡化技术进展[J]. 工业水处理, 2015, 35(5): 15-18.
	Jiang K Z, Wang Y C, Hu Y, et al. Progress in freezing method applied to desalination technology[J]. Industrial Water Treatment, 2015, 35(5): 15-18.
[3]	Williams P M, Ahmad M, Connolly B S, et al. Technology for freeze concentration in the desalination industry[J]. Desalination, 2015, 356: 314-327.
[4]	师茹, 杨晖, 郑颖, 等. 基于冷冻过程的脱盐研究进展[J]. 水处理技术, 2023, 49(12): 35-40, 50.
	Shi R, Yang H, Zheng Y, et al. Research review on freezing-based desalination[J]. Technology of Water Treatment, 2023, 49(12): 35-40, 50.
[5]	Liu X Y, Yuan H, Zhao Y, et al. Unveiling the dynamics of ice crystal growth and evolution in solidifying seawater[J]. Desalination, 2025, 614: 119207.
[6]	马佳. 海冰淡化方法研究[D]. 天津: 天津大学, 2006.
	Ma J. Study on desalination methods of sea ice[D]. Tianjin: Tianjin University, 2006.
[7]	李凭力, 马佳, 解利昕, 等. 冷冻法海水淡化技术新进展[J]. 化工进展, 2005, 24(7): 749-753.
	Li P L, Ma J, Xie L X, et al. Recent progress of seawater desalination by freezing[J]. Chemical Industry and Engineering Progress, 2005, 24(7): 749-753.
[8]	Tang W, Shi P J, Wang J G, et al. Sea ice centrifugal desalination based on microwave heating[J]. Desalination, 2019, 449: 1-5.
[9]	Liu X, Lan W C, Ye K, et al. Numerical simulation and experimental analysis of ice crystal growth and freezing-centrifugal desalination for seawater with different compositions[J]. Separation and Purification Technology, 2022, 298: 121656.
[10]	Lan W C, Liu X, Xie M N, et al. Experimental analysis of freezing desalination using gravity and centrifugal methods with economic evaluation of coupled freezing desalination and ice storage system[J]. Energy Conversion and Management, 2024, 315: 118743.
[11]	Yang H, Jiang Y F, Wang R, et al. Effects of the soaking-related parameters in a combined freezing-based seawater desalination process[J]. Environmental Science and Pollution Research, 2022, 29(34): 52162-52174.
[12]	Yang H, Jiang Y F, Fu M X, et al. Application of low temperature soaking liquid in combined freezing-based desalination processes in summer[J]. Journal of Water Reuse and Desalination, 2021, 11(3): 425-438.
[13]	Tang W, Tao J, Wang J G, et al. Sea ice desalination under gravity using microwave heating[J]. Desalination, 2018, 430: 159-164.
[14]	Yang H, Fu M X, Zhan Z L, et al. Study on combined freezing-based desalination processes with microwave treatment[J]. Desalination, 2020, 475: 114201.
[15]	Yang H, Zhan Z L, Yao Y X, et al. Influence of gravity-induced brine drainage on seawater ice desalination[J]. Desalination, 2017, 407: 33-40.
[16]	Gu W, Lin Y B, Xu Y J, et al. Sea ice desalination under the force of gravity in low temperature environments[J]. Desalination, 2012, 295: 11-15.
[17]	Yang Y H, Wang H R, Huang W X, et al. A gravity-induced desalination technology effectively improving the freshwater production efficiency of freeze desalination[J]. Journal of Cleaner Production, 2024, 449: 141586.
[18]	张灿, 杨晖, 师茹, 等. 海冰微观结构观测方法研究综述[J]. 实验技术与管理, 2025, 42(5): 28-35.
	Zhang C, Yang H, Shi R, et al. Review of research methods for observing sea-ice microstructure[J]. Experimental Technology and Management, 2025, 42(5): 28-35.
[19]	Langway C C. Ice fabrics and the universal stage[R]. US Army Corps of Engineers: Snow Ice and Permafrost Research Establishment, 1958.
[20]	Light B, Brandt R E, Warren S G. Hydrohalite in cold sea ice: Laboratory observations of single crystals, surface accumulations, and migration rates under a temperature gradient, with application to "Snowball Earth"[J]. Journal of Geophysical Research: Oceans, 2009, 114(C7): 2008JC005211.
[21]	Reimnitz E, Dethleff D, Nürnberg D. Contrasts in Arctic shelf sea-ice regimes and some implications: Beaufort Sea versus Laptev Sea[J]. Marine Geology, 1994, 119(3/4): 215-225.
[22]	Obbard R W, Troderman G, Baker I. Imaging brine and air inclusions in sea ice using micro-X-ray computed tomography[J]. Journal of Glaciology, 2009, 55(194): 1113-1115.
[23]	Desmond D S, Crabeck O, Lemes M, et al. Investigation into the geometry and distribution of oil inclusions in sea ice using non-destructive X-ray microtomography and its implications for remote sensing and mitigation potential[J]. Marine Pollution Bulletin, 2021, 173: 112996.
[24]	Crabeck O, Galley R, Delille B, et al. Imaging air volume fraction in sea ice using non-destructive X-ray tomography[J]. The Cryosphere, 2016, 10(3): 1125-1145.
[25]	Salomon M L, Maus S, Petrich C. Microstructure evolution of young sea ice from a Svalbard fjord using micro-CT analysis[J]. Journal of Glaciology, 2022, 68(269): 571-590.
[26]	Yang H, Shi R, Zheng Y, et al. Study on freezing separation process through observing microstructure of NaCl solution ice[J]. Separation and Purification Technology, 2025, 355: 129674.
[27]	李颖, 李秀宇, 卢兆林, 等. 基于深度学习的煤粉颗粒CT图像分割方法[J]. 计算机工程与设计, 2022, 43(8): 2252-2259.
	Li Y, Li X Y, Lu Z L, et al. Coal particle CT image segmentation method based on deep learning[J]. Computer Engineering and Design, 2022, 43(8): 2252-2259.
[28]	郑颖. 基于渐进冷冻脱盐过程的盐溶液冰微观结构研究[D]. 北京:北京建筑大学,2023.
	Zheng Y. Study on the micro structure of salt solution ice based on progressive freezing desalination process [D]. Beijing: Beijing University of Civil Engineering and Architecture, 2023.
[29]	师茹. NaCl溶液冰微观结构与盐度分布关系研究[D]. 北京: 北京建筑大学, 2024.
	Shi R. Study on the relationship between microstructure and salinity distribution in NaCl solution ice[D]. Beijing: Beijing University of Civil Engineering and Architecture, 2024.
[30]	田春元. 冷冻方式及重力作用对NaCl溶液冰微观结构的影响研究[D]. 北京: 北京建筑大学, 2024.
	Tian C Y. Research on the influence of freezing method and gravity on the microstructure of NaCl solution ice[D]. Beijing: Beijing University of Civil Engineering and Architecture, 2024.
[31]	赵建鹏, 崔利凯, 陈惠, 等. 基于CT扫描数字岩心的岩石微观结构定量表征方法[J]. 现代地质, 2020, 34(6): 1205-1213.
	Zhao J P, Cui L K, Chen H, et al. Quantitative characterization of rock microstructure of digital core based on CT scanning[J]. Geoscience, 2020, 34(6): 1205-1213.

冰样品编号	离心时间（min）	离心转速（r/min）	扫描段数/段
Sample A	0	0	7
Sample B	1	800	6
Sample C	1	1000	6
Sample D	3	800	6

冰样品编号	离心时间（min）	离心转速（r/min）	扫描段数/段
Sample A	0	0	7
Sample B	1	800	6
Sample C	1	1000	6
Sample D	3	800	6

算法	类别	准确度	Dice系数	敏感度	特异度
5层U-Net	整体	0.9995	0.9993	0.9993	0.9997
	盐胞	0.9993	0.9959	0.9918	1.0000
	空气相	1.0000	1.0000	1.0000	1.0000
	冰	0.9993	0.9996	1.0000	0.9924

算法	类别	准确度	Dice系数	敏感度	特异度
5层U-Net	整体	0.9995	0.9993	0.9993	0.9997
	盐胞	0.9993	0.9959	0.9918	1.0000
	空气相	1.0000	1.0000	1.0000	1.0000
	冰	0.9993	0.9996	1.0000	0.9924

冰样品编号	盐溶液质量（g）	盐溶液盐度（%）	排出液体质量（g）	排出液体盐度（%）	剩余融化液质量（g）	剩余融化液盐度（%）
Sample B	10.01	3	0.471	22.82	9.415	1.95
Sample C	10.02	3	0.650	21.28	9.338	1.73
Sample D	10.04	3	0.714	22.5	9.256	1.48
