退役光伏组件TPT背板热氧化降解特性研究

doi:10.11949/0438-1157.20251307

摘要/Abstract

摘要：

针对退役晶硅光伏组件中的TPT背板在空气氛围下开展热重-红外光谱分析与反应力场分子动力学（ReaxFF-MD）模拟计算，系统探讨了TPT背板的热解反应行为、动力学特征与热解机理。热重实验表明，TPT背板在空气中的热氧化降解为双阶段反应，呈现出较氮气更低的热解起始温度（280 ℃）和更高的热解终止温度（585 ℃）。动力学分析显示两个阶段的平均活化能分别为185和128 kJ/mol。ReaxFF-MD模拟揭示，空气氛围下，氧气主要通过强化碳骨架断裂和氢脱除过程加速聚合物降解，而对脱氟过程的影响较小。TPT的热解由烷氧（C-O）键断裂引发，氧气通过生成过氧自由基参与反应链延伸，促进了含氧小分子如CO₂、甲醇、甲醛、乙醛等的生成。此外，对苯二甲酸等产物数量亦有增加。研究结果为理解氧气参与下TPT背板的热解过程提供了理论支持。

关键词: 退役晶硅光伏组件, TPT背板, 热解, 动力学, 分子模拟, ReaxFF-MD

Abstract:

The thermal degradation behavior of the TPT backsheet from end‑of‑life crystalline silicon photovoltaic (EoL c-Si PV) modules was systematically investigated under an air atmosphere by means of thermogravimetry‑infrared (TG‑IR) analysis and reactive force field molecular dynamics (ReaxFF‑MD) simulations. The thermogravimetric experiment results show that the oxidative degradation of TPT in air proceeds in two distinct stages, exhibiting a lower onset temperature (280 °C) and a higher termination temperature (585 °C) compared with nitrogen conditions. Kinetic analysis yields average activation energies of 185  kJ/mol for the first stage and 128 kJ/mol for the second stage. The ReaxFF‑MD simulations reveal that under air, oxygen predominantly accelerates polymer degradation by reinforcing carbon‑backbone scission and hydrogen removal processes, while exerting a comparatively minor influence on defluorination. The pyrolysis of TPT is initiated by cleavage of alkoxy (C-O) bonds. Subsequently, oxygen participates in chain‑propagation via peroxy radicals, thereby promoting the formation of oxygenated small molecules such as CO₂, methanol, formaldehyde and acetaldehyde. Moreover, an increased yield of terephthalic acid and related aromatic products is observed. These results provide a theoretical basis for understanding the oxidative pyrolysis process of TPT backsheets in oxygen‑rich atmospheres.

Key words: EoL c-Si PV modules, TPT backsheet, pyrolysis, kinetics, molecular simulation, ReaxFF-MD

中图分类号:

X705

王上铭, 李小峰, 方秋宇, 王强, 张国平, 陈渝楠, 陈斌. 退役光伏组件TPT背板热氧化降解特性研究[J]. 化工学报, DOI: 10.11949/0438-1157.20251307.

Shangming WANG, Xiaofeng LI, Qiuyu FANG, Qiang WANG, Guoping ZHANG, Yunan CHEN, Bin CHEN. Thermo-oxidative degradation characteristics of TPT backsheet from end-of-life photovoltaic modules[J]. CIESC Journal, DOI: 10.11949/0438-1157.20251307.

图/表 10

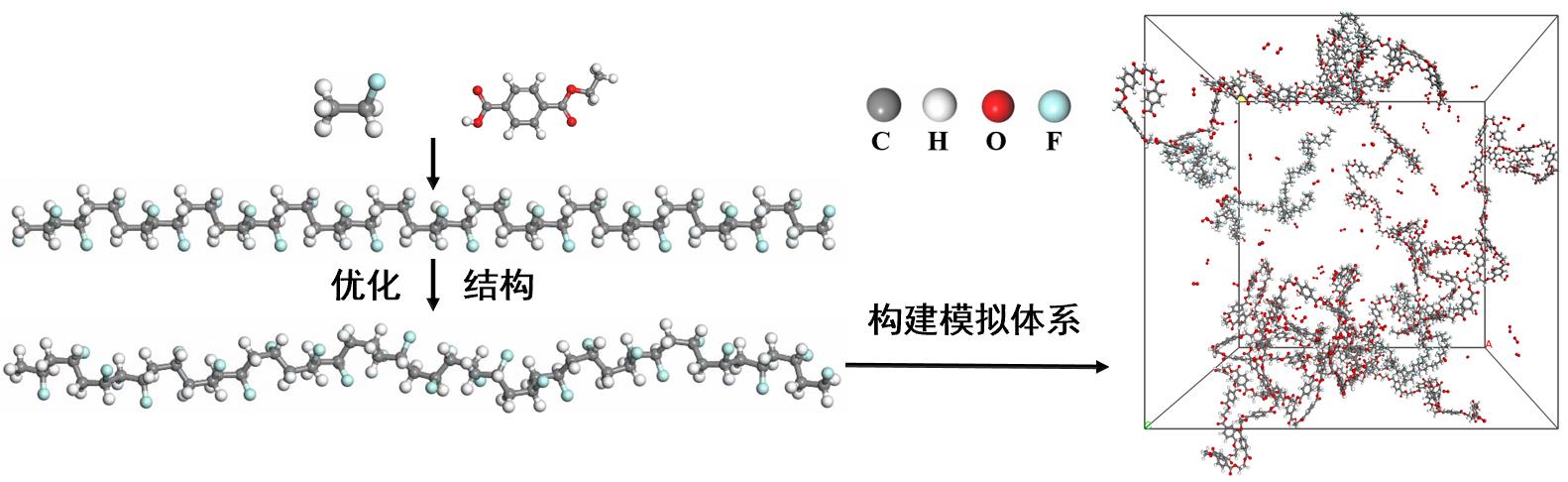

图1 TPT的MD计算模型

Fig. 1 The MD calculation model of TPT

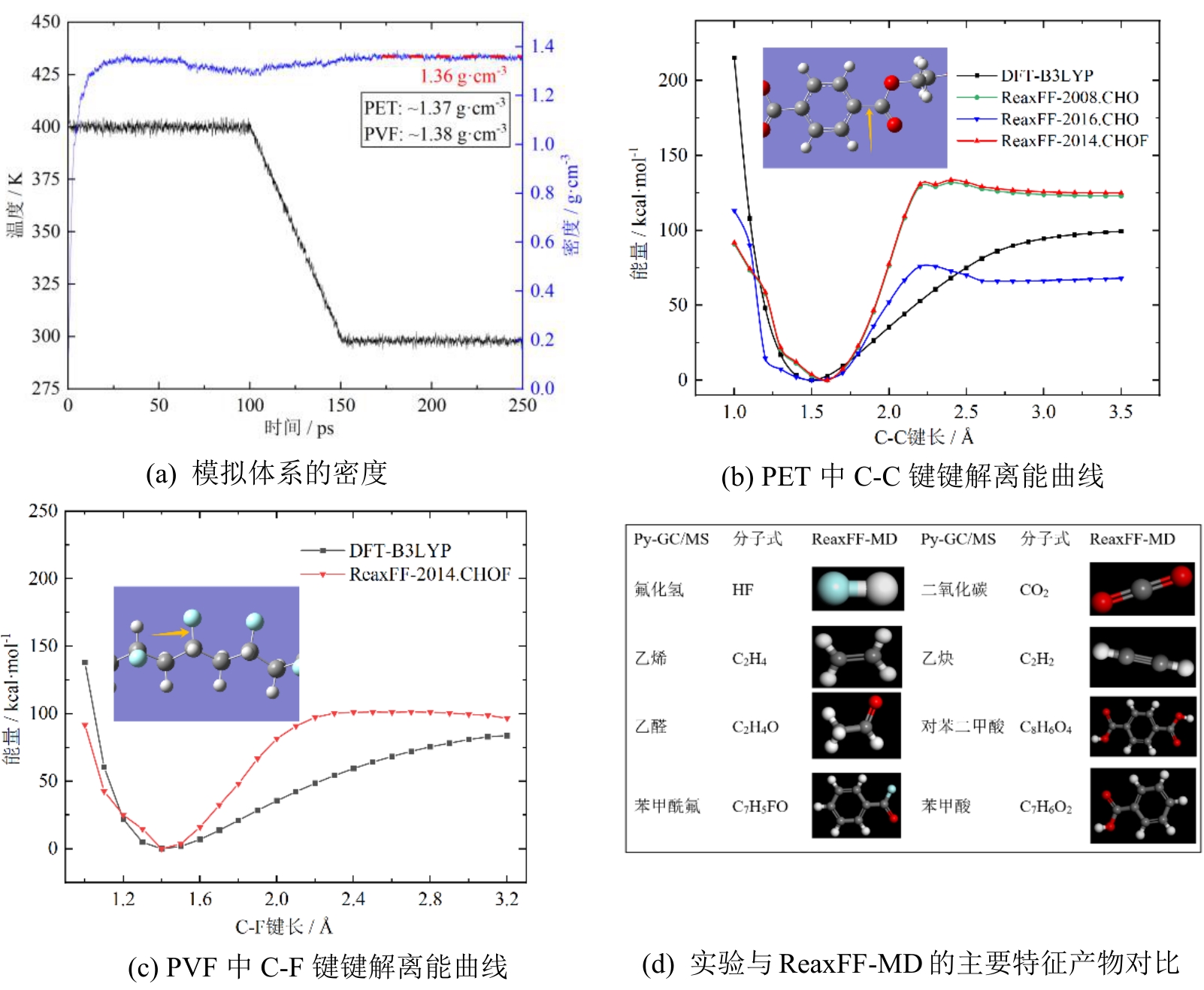

图2 力场对于TPT体系的适用与准确性验证

Fig. 2 Validation of the applicability and accuracy of the force field for TPT system

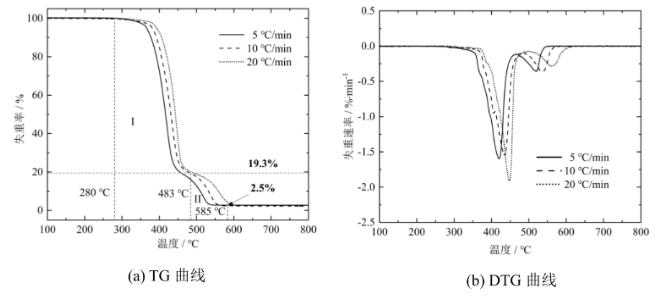

图3 TPT在空气氛围下的热重特性

Fig. 3 Thermogravimetric characteristics of TPT in air atmosphere

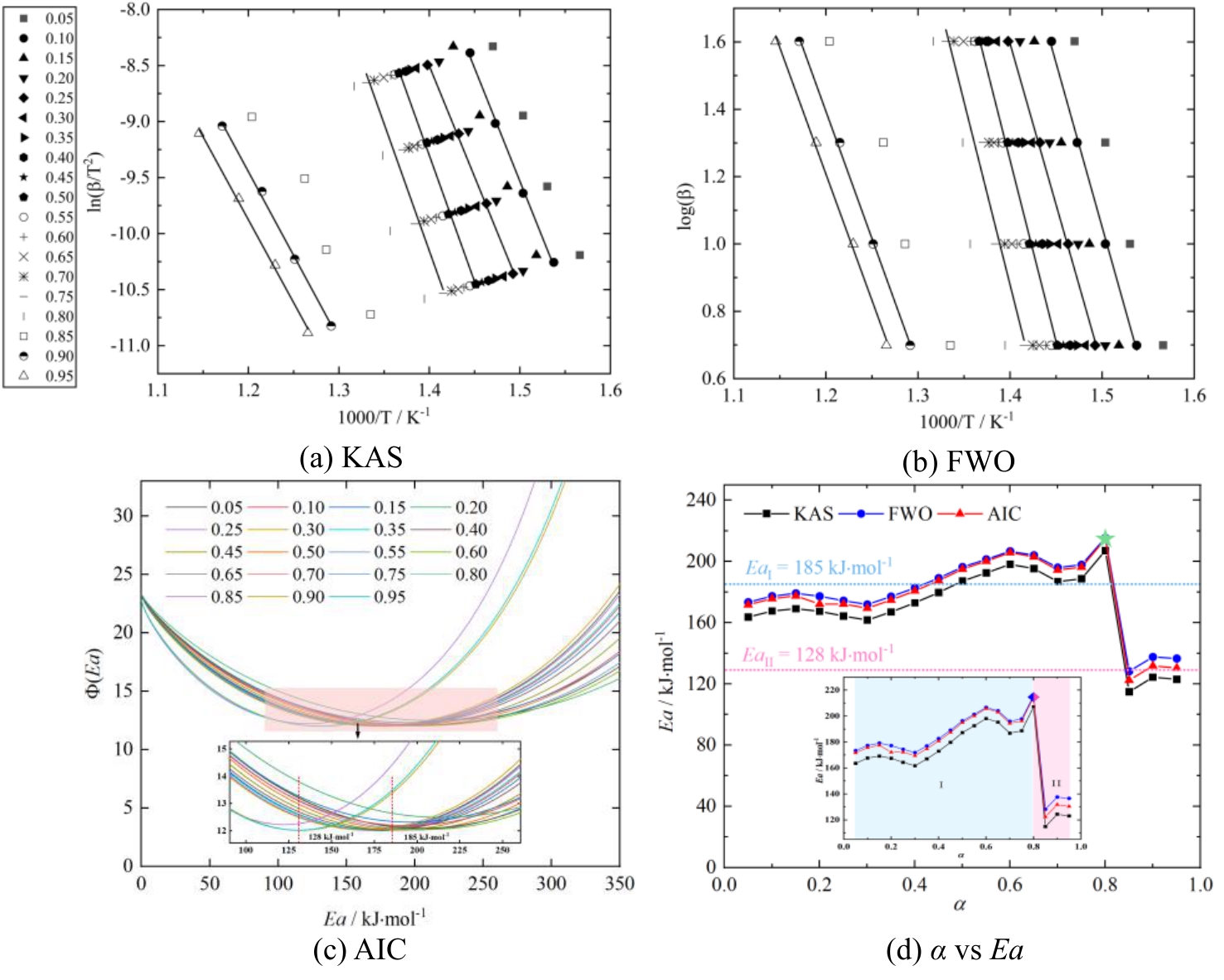

图4 空气氛围下不同方法所得的TPT背板Ea值

Fig. 4 The Ea values of TPT backsheet obtained by different methods in air atmosphere

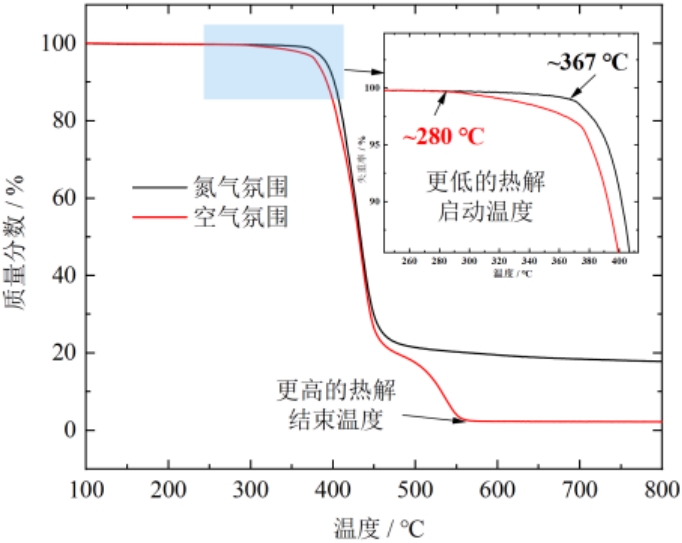

图5 不同氛围下TPT的热解行为对比

Fig. 5 Comparison of the pyrolysis behavior of TPT under different atmospheres

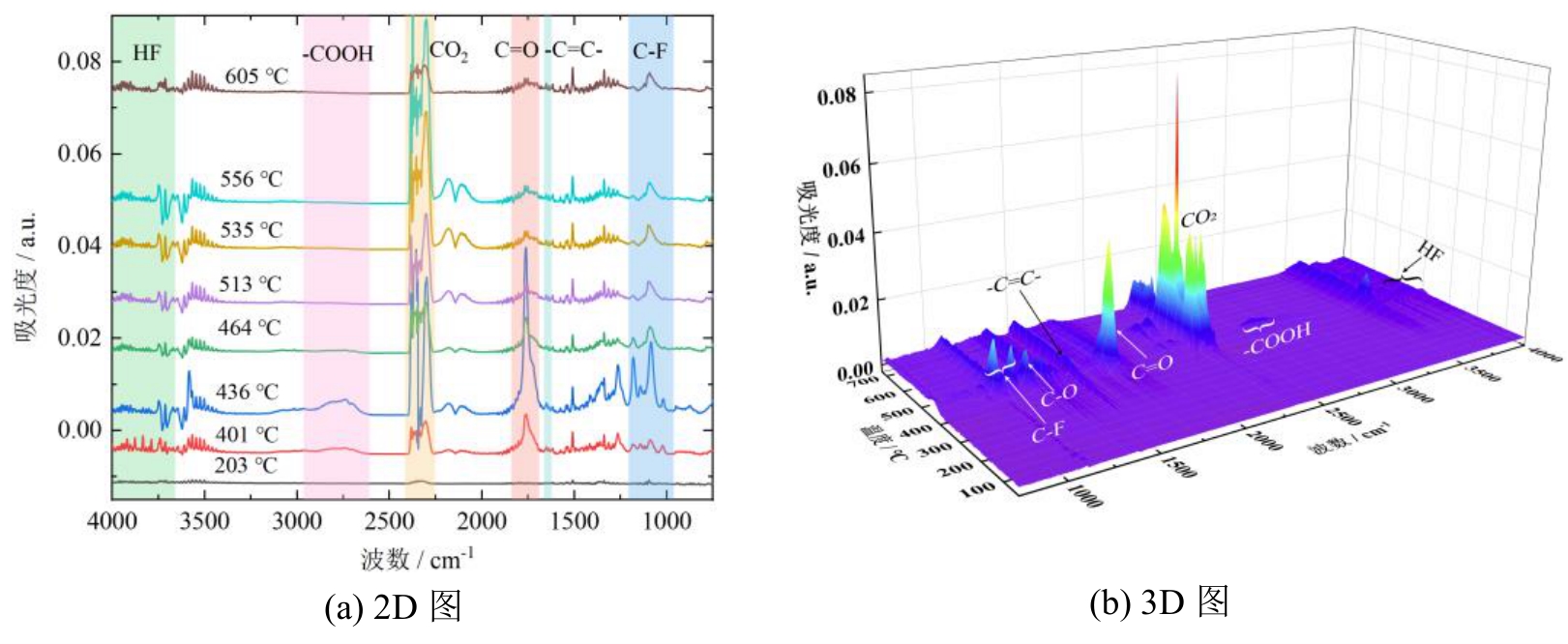

图6 TPT在空气氛围下的TG-IR谱图

Fig. 6 The TG-IR spectrum of TPT under air atmosphere

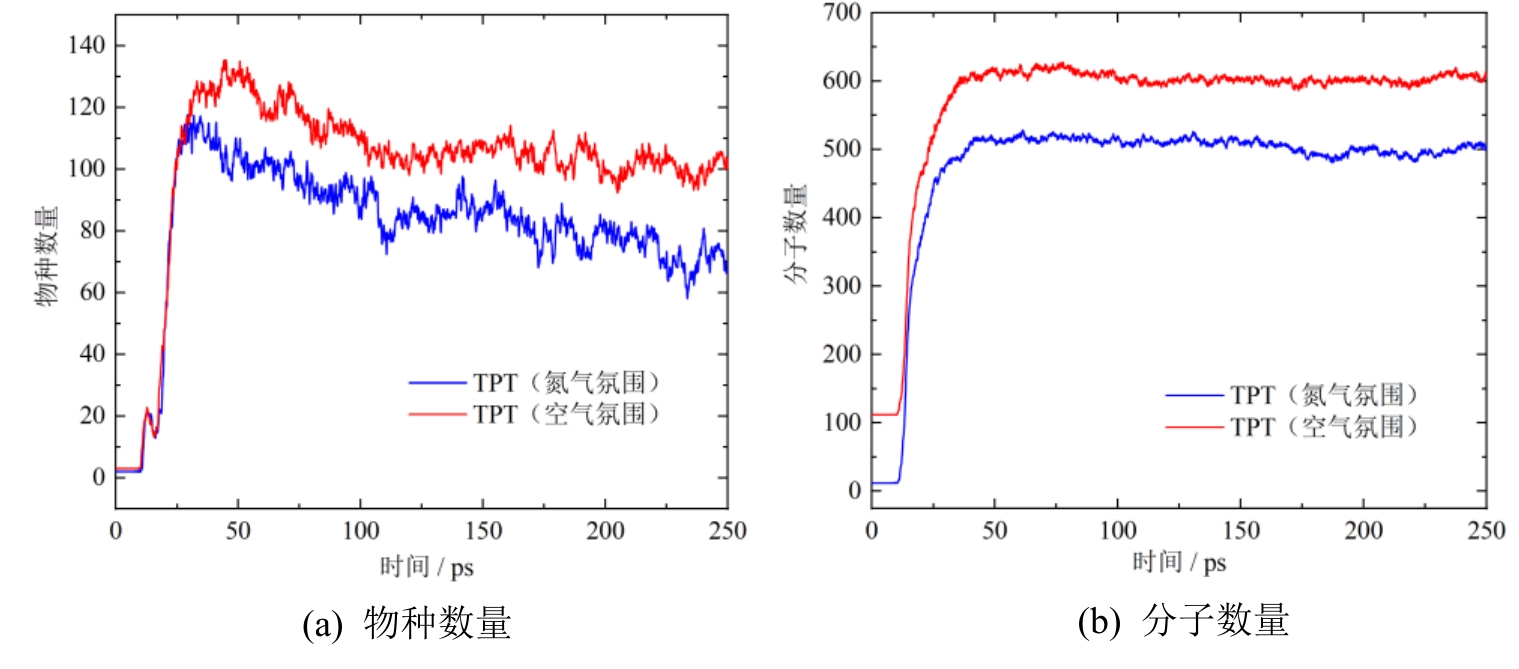

图7 不同氛围下TPT模拟体系物种数量与分子数量变化

Fig. 7 The changes in the number of species and molecules in the TPT simulation system under different atmospheres

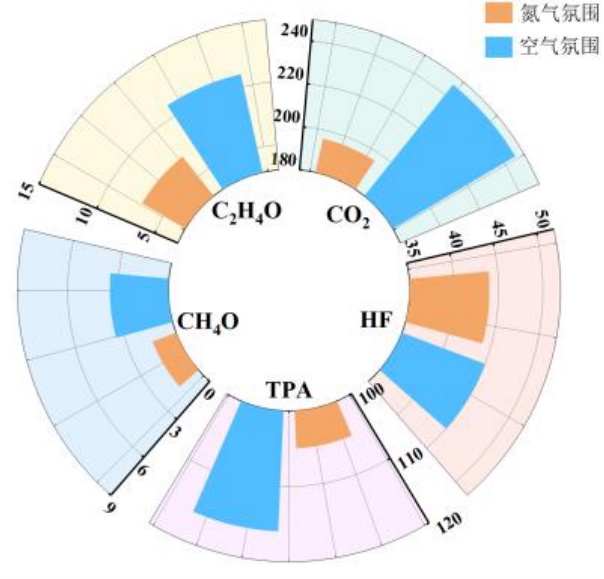

图8 TPT在氮气和空气氛围中的产物分布

Fig. 8 The product distribution of TPT under nitrogen and air atmospheres

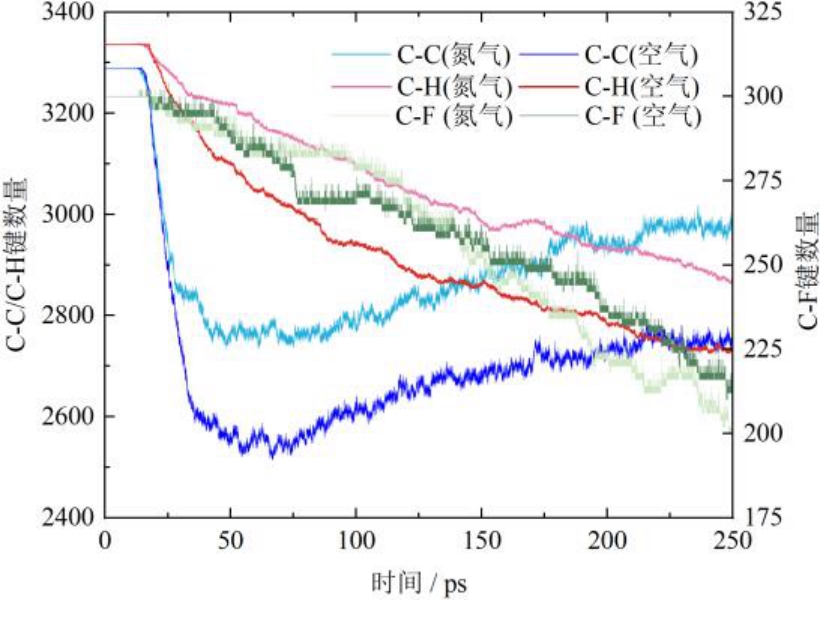

图9 TPT在不同氛围中主要化学键的时序变化

Fig. 9 The temporal changes of the main chemical bonds in TPT under different atmospheres

图10 TPT在空气氛围中的热解机理

Fig. 10 The thermal decomposition mechanism of TPT under air atmosphere

参考文献 33

[1]	Walzberg J, Carpenter A, Heath G A. Role of the social factors in success of solar photovoltaic reuse and recycle programmes[J]. Nature Energy, 2021, 6(9): 913-924.
[2]	Ozturk S. Photovoltaic waste assessment and recovery potential: a case study in Chile[J]. Sustainability, 2025, 17(19): 8746.
[3]	Trivedi H K, Meshram A, Gupta R. Recycling of photovoltaic modules for recovery and repurposing of materials[J]. Journal of Environmental Chemical Engineering, 2023, 11(2): 109501.
[4]	Das H J, Sarmah N. Photovoltaic module Recycling: a review on material recovery methods and waste management approach[J]. Solar Energy, 2025, 299: 113708.
[5]	Calero M, Ramírez-Cantero J, Pérez-Huertas S, et al. Recycling end-of-life solar panels: a comparative study of thermal and solvent delamination techniques[J]. Solar Energy Materials and Solar Cells, 2026, 295: 113990.
[6]	Zubas A R, Pitak I, Denafas G, et al. An application of solvent and thermal treatment to recover materials from photovoltaic module encapsulated with polyolefin elastomer[J]. Waste Management & Research, 2025, 43(8): 1260-1267.
[7]	Vaishak S, Bhale P V. Investigation on the effect of different backsheet materials on performance characteristics of a photovoltaic/thermal (PV/T) system[J]. Renewable Energy, 2021, 168: 160-169.
[8]	Zhang L G, Xu Z M. Separating and recycling plastic, glass, and gallium from waste solar cell modules by nitrogen pyrolysis and vacuum decomposition[J]. Environmental Science & Technology, 2016, 50(17): 9242-9250.
[9]	Chen X, Liu J Y, Lin Z T, et al. Reutilizing waste photovoltaic plastics by pyrolysis: Dynamics, thermodynamics, mechanisms, products, and optimization[J]. Fuel, 2025, 384: 134005.
[10]	Li F, Tao J Y, Kumar A, et al. Pyrolysis characteristics and kinetics of waste photovoltaic module: a TG-MS-FTIR study[J]. Journal of Cleaner Production, 2024, 444: 141267.
[11]	Wang J, Feng Y, Huang Q, et al. Unraveling the pyrolysis behavior and co-pyrolysis characteristics of EVA and backsheet in spent crystalline silicon photovoltaic modules[J]. Chemical Engineering Journal, 2025, 506: 160164.
[12]	徐创, 李宾, 袁晓, 等. 废旧晶体硅光伏组件的回收利用[J]. 环境工程学报, 2019(6): 1417-1424.
	Xu C, Li B, Yuan X, et al. Recycling of waste crystalline silicon photovoltaic modules[J]. Chinese Journal of Environmental Engineering, 2019(6): 1417-1424.
[13]	Dobra T, Vollprecht D, Pomberger R. Thermal delamination of end-of-life crystalline silicon photovoltaic modules[J]. Waste Management & Research, 2022, 40(1): 96-103.
[14]	Fu W, Bai X W, Tursun Y, et al. Oxidative pyrolysis of plywood waste: Effect of oxygen concentration and other parameters on product yield and composition[J]. Journal of Analytical and Applied Pyrolysis, 2023, 173: 106068.
[15]	Cui B L, Liu Y X, Che X X, et al. Multi-fragment molecular model construction and isothermal pyrolysis mechanism study on tar-rich coal by experiments and ReaxFF simulations[J]. Molecular Simulation, 2025, 51(14): 909-927.
[16]	van Duin A C T, Dasgupta S, Lorant F, et al. ReaxFF: a reactive force field for hydrocarbons[J]. The Journal of Physical Chemistry A, 2001, 105(41): 9396-9409.
[17]	Senftle T P, Hong S, Islam M M, et al. The ReaxFF reactive force-field: development, applications and future directions[J]. NPJ Computational Materials, 2016, 2: 15011.
[18]	Wang S M, Chen Y N, Zhang G P, et al. Comprehensive study on the pyrolysis characteristics of end-of-life photovoltaic module backsheet: Kinetic analysis, ReaxFF MD simulation and DFT calculation[J]. Journal of Analytical and Applied Pyrolysis, 2026, 193: 107353.
[19]	Yao Z T, Tong J Y, Gonçalves R F B, et al. Recycling of end-of-life solar panels: Focusing on the pyrolysis conversion of back sheet from a micro perspective[J]. Journal of Cleaner Production, 2025, 490: 144796.
[20]	Chen J W, Wang Q T, Wei H D, et al. Molecular dynamic study on mechanisms of polyvinylidene fluoride decomposition by using supercritical water[J]. Chemical Engineering Journal, 2022, 431: 133958.
[21]	Cao H Q, Jiang L, Duan Q L, et al. An experimental and theoretical study of optimized selection and model reconstruction for ammonium nitrate pyrolysis[J]. Journal of Hazardous Materials, 2019, 364: 539-547.
[22]	Vyazovkin S, Wight C A. Model-free and model-fitting approaches to kinetic analysis of isothermal and nonisothermal data[J]. Thermochimica Acta, 1999, 340/341: 53-68.
[23]	Liu S H, Wei L H, Zhou Q, et al. Simulation strategies for ReaxFF molecular dynamics in coal pyrolysis applications: a review[J]. Journal of Analytical and Applied Pyrolysis, 2023, 170: 105882.
[24]	Wang J J, Li G X, Zhang Z, et al. Detailed insights of polydimethylsiloxane (PDMS) degradation mechanism via ReaxFF MD and experiments[J]. Chemical Engineering Journal, 2024, 488: 150728.
[25]	Arvelos S, Abrahão O, Eponina Hori C. ReaxFF molecular dynamics study on the pyrolysis process of cyclohexanone[J]. Journal of Analytical and Applied Pyrolysis, 2019, 141: 104620.
[26]	Hong D K, Guo X. A reactive molecular dynamics study of CH₄ combustion in O2/CO₂/H₂O environments[J]. Fuel Processing Technology, 2017, 167: 416-424.
[27]	Wood M A, van Duin A C T, Strachan A. Coupled thermal and electromagnetic induced decomposition in the molecular explosive αHMX; a reactive molecular dynamics study[J]. The Journal of Physical Chemistry A, 2014, 118(5): 885-895.
[28]	Straka P, Bičáková O, Šupová M. Slow pyrolysis of waste polyethylene terephthalate yielding paraldehyde, ethylene glycol, benzoic acid and clean fuel[J]. Polymer Degradation and Stability, 2022, 198: 109900.
[29]	Deng N, Zhang Y F, Wang Y. Thermogravimetric analysis and kinetic study on pyrolysis of representative medical waste composition[J]. Waste Management, 2008, 28(9): 1572-1580.
[30]	Ma C, Sánchez-Rodríguez D, Kamo T. A comprehensive study on the oxidative pyrolysis of epoxy resin from fiber/epoxy composites: Product characteristics and kinetics[J]. Journal of Hazardous Materials, 2021, 412: 125329.
[31]	Shah H H, Amin M, Iqbal A, et al. A review on gasification and pyrolysis of waste plastics[J]. Frontiers in Chemistry, 2022, 10: 960894.
[32]	Orozco S, Lopez G, Suarez M A, et al. Oxidative fast pyrolysis of high-density polyethylene on a spent fluid catalytic cracking catalyst in a fountain confined conical spouted bed reactor[J]. ACS Sustainable Chemistry & Engineering, 2022, 10(48): 15791-15801.
[33]	Marshall J E, Zhenova A, Roberts S, et al. On the solubility and stability of polyvinylidene fluoride[J]. Polymers, 2021, 13(9): 1354.
