固体蓄冷填充床性能提升及保冷特性研究

doi:10.11949/0438-1157.20251171

摘要/Abstract

摘要：

为提升液态空气储能（LAES）系统中基于固体蓄冷材料的填充床性能，缓解其在释冷过程中因出口温度显著升高所造成的系统效率下降及运行不稳定性问题，提出一种优化的蓄冷填充床运行流程，并研究了保温材料热阻对斜温层分布与漏冷负荷的影响。模拟结果表明：引入预冷流程可有效抑制释冷阶段的温升，当预冷比为4时，出口温度上升幅度被控制在15 K以内，填充床的㶲效率提升至88.04%；同时，保温材料热阻在约15 （m²·K）/W时表现出良好的工程经济性。在此基础上，搭建了蓄冷填充床实验平台，验证了优化流程的有效性，并将其集成于50 kW级LAES系统中进行全流程实验。实验结果表明，集成优化蓄冷系统后，LAES系统的蓄冷效率达到94.45%，系统往返效率提高至55.53%。

关键词: LAES, 传热, 填充床, 优化, 实验验证

Abstract:

An optimized operational strategy is proposed for the packed-bed cold storage unit in Liquid Air Energy Storage (LAES) systems to address performance limitations such as significant outlet temperature rise during cold release and suboptimal system efficiency. Through the introduction of a pre-cooling stage and systematic evaluation of insulation thermal resistance effects on thermocline behavior and cooling loss, the study establishes that a pre-cooling ratio of 4 effectively suppresses discharge temperature fluctuation, limiting the outlet temperature increase to within 15 K and raising the exergy efficiency to 88.04%. Furthermore, a thermal resistance around 15 m²·K/W is identified as providing a balanced trade-off between performance and cost in engineering applications. Experimental validation is conducted using a custom-built packed-bed cold storage platform integrated into a 50 kW LAES system. Test results demonstrate a cold storage efficiency of 94.45% and a system round-trip efficiency of 55.53%, confirming the practical applicability and performance enhancement achieved through the proposed optimization approach. This work provides both experimental evidence and technical insights supporting the implementation of solid packed-bed cold storage in real-world LAES applications.

Key words: LAES, heat transfer, packed bed, optimization, experimental validation

中图分类号:

TE09

王辰辰, 张金亚, 孙娜. 固体蓄冷填充床性能提升及保冷特性研究[J]. 化工学报, DOI: 10.11949/0438-1157.20251171.

Chenchen WANG, Jinya ZHANG, Na SUN. Study on performance enhancement and cold retention characteristics of solid packed bed cold energy storage[J]. CIESC Journal, DOI: 10.11949/0438-1157.20251171.

图/表 18

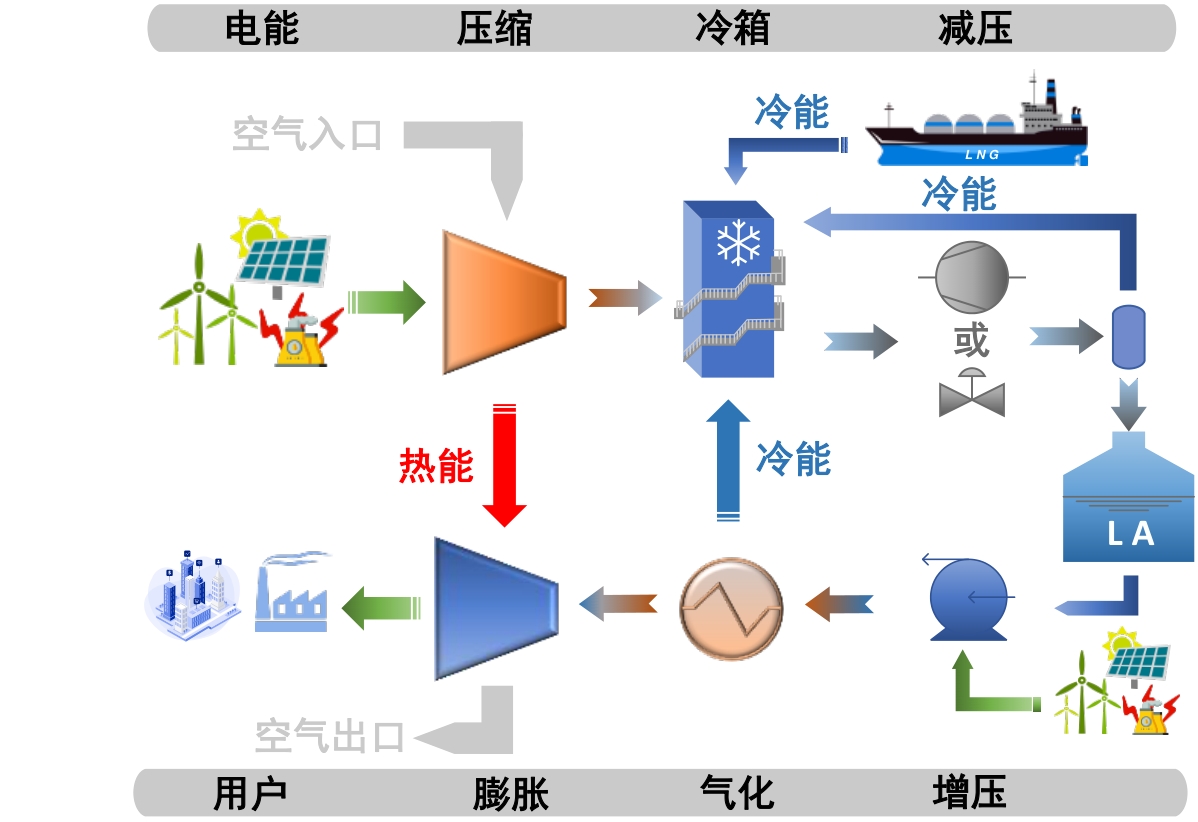

图1 冷能耦合LAES技术原理图

Fig. 1 Schematic diagram of cold energy coupled LAES

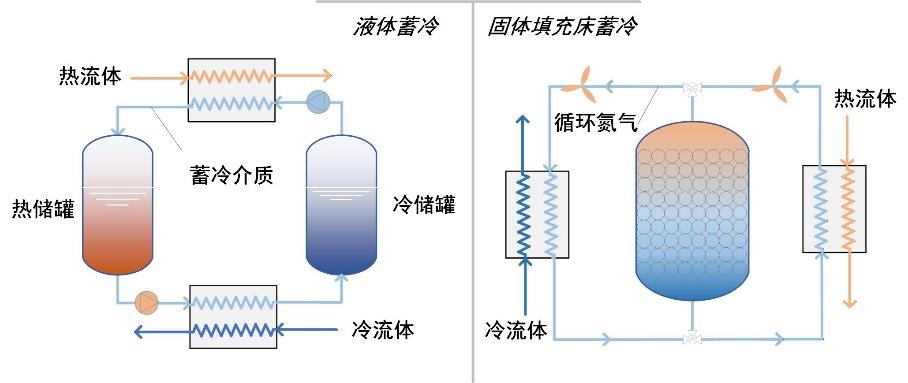

图2 蓄冷技术原理图

Fig. 2 Schematic Diagram of Cold Storage Technology

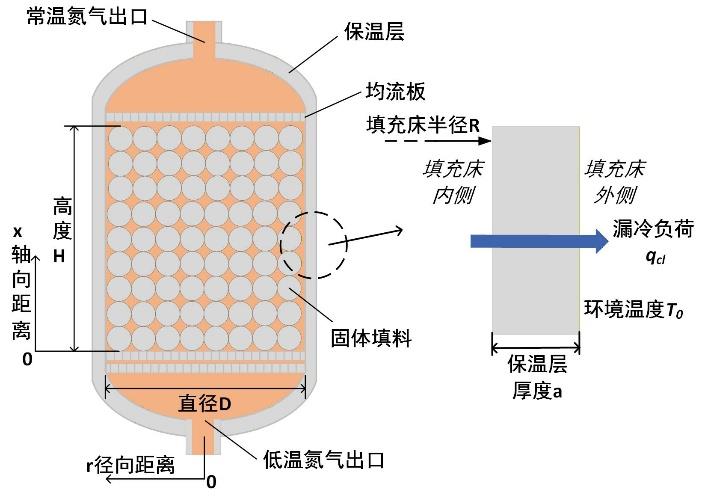

图3 固体蓄冷填充床结构示意图

Fig. 3 Schematic diagram of solid cold storage packed bed structure

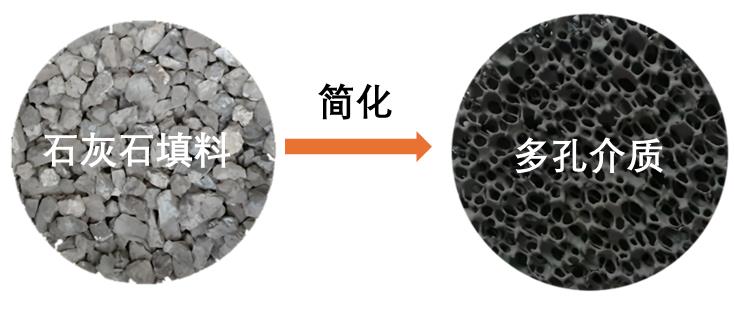

图4 模型简化

Fig. 4 Model simplification

表1 求解器设置

Table 1 Solver Settings

设置参数	值	设置参数	值
入口边界/(kg/h)	510	填料体积热容/[kJ/m³·K]	1885
出口边界/kPa	101.3	填料导热率/[W/(m·K)]	3.17
环境温度/K	300	外侧对流换热系数/[W/m²·K]	15
时间步长/s	0.1	填充床直径/m	1.8
填充床填料高度/m	5	静置/充冷/释冷时间/h	4
预冷时间/h	4~24	填料密度/(kg/m³)	2700

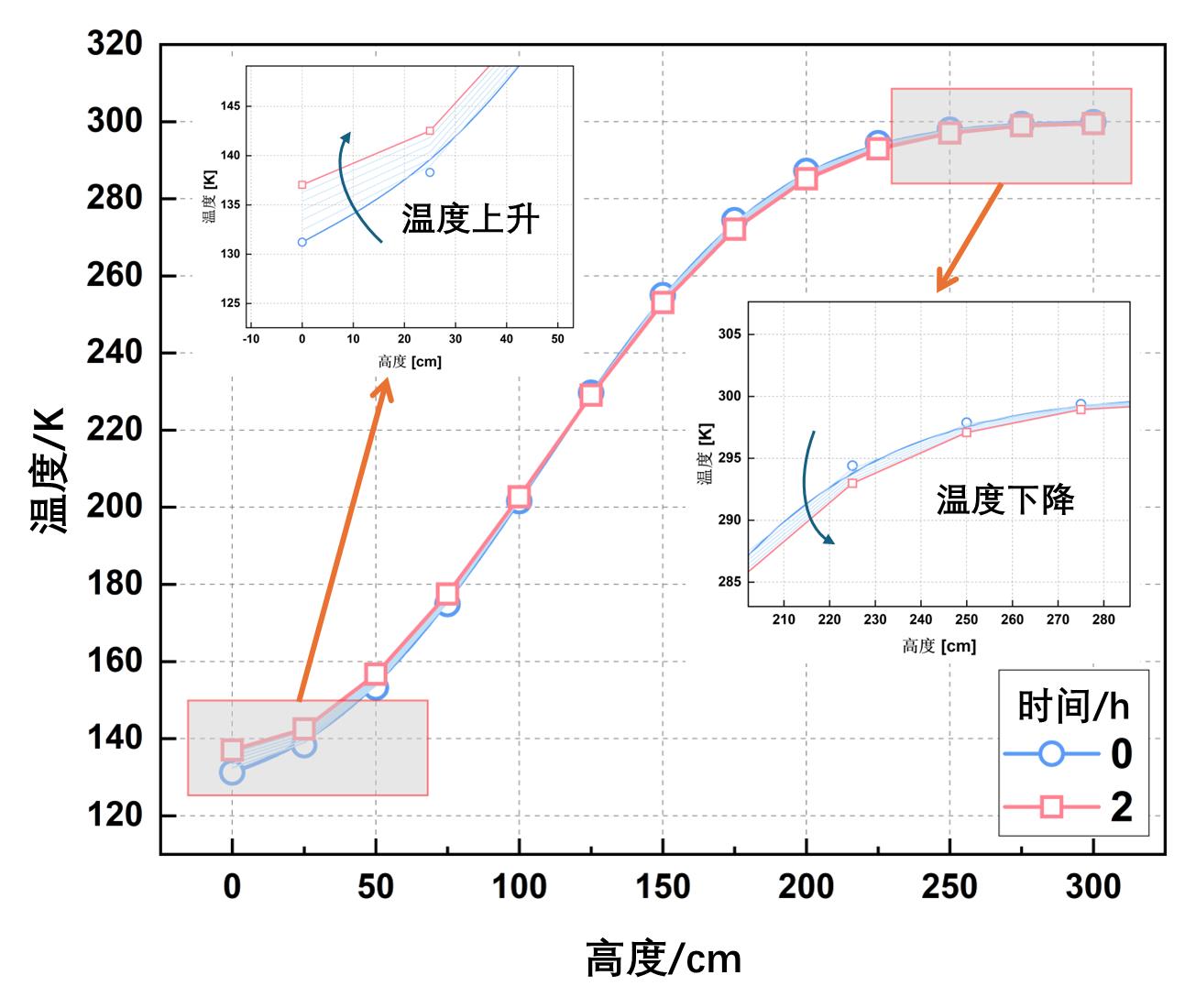

图5 静置时间内部温度变化

Fig. 5 Changes in internal temperature during the standing period

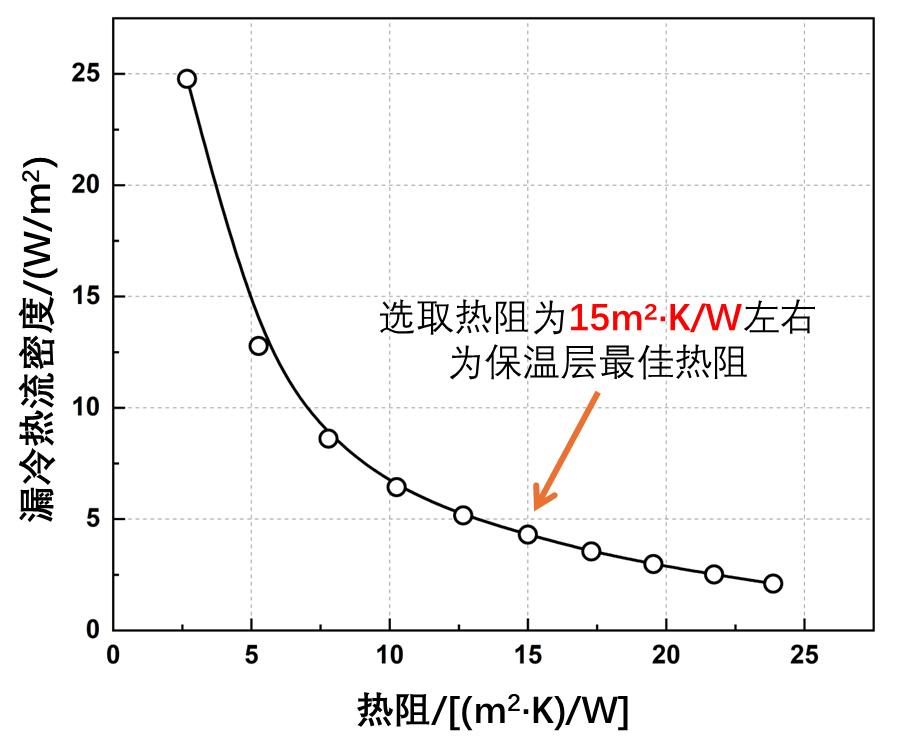

图6 保温层热阻对填充床漏冷负荷影响

Fig. 6 Impact of thermal resistance of insulation layer on cold loss load of packed bed

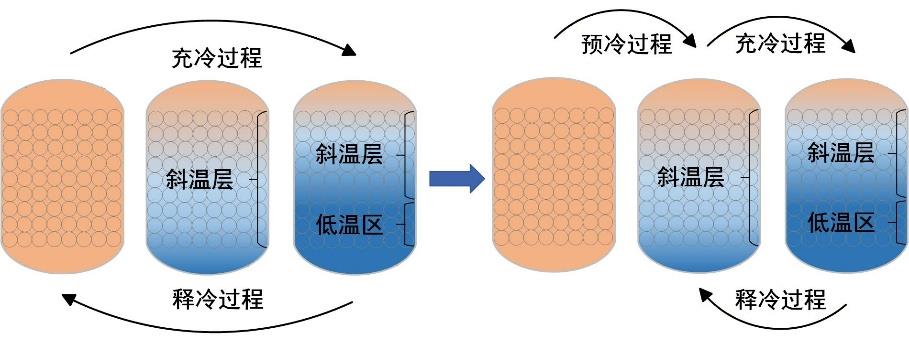

图7 填充床循环过程温度示意图

Fig. 7 Schematic Diagram of Cycle Process Temperature

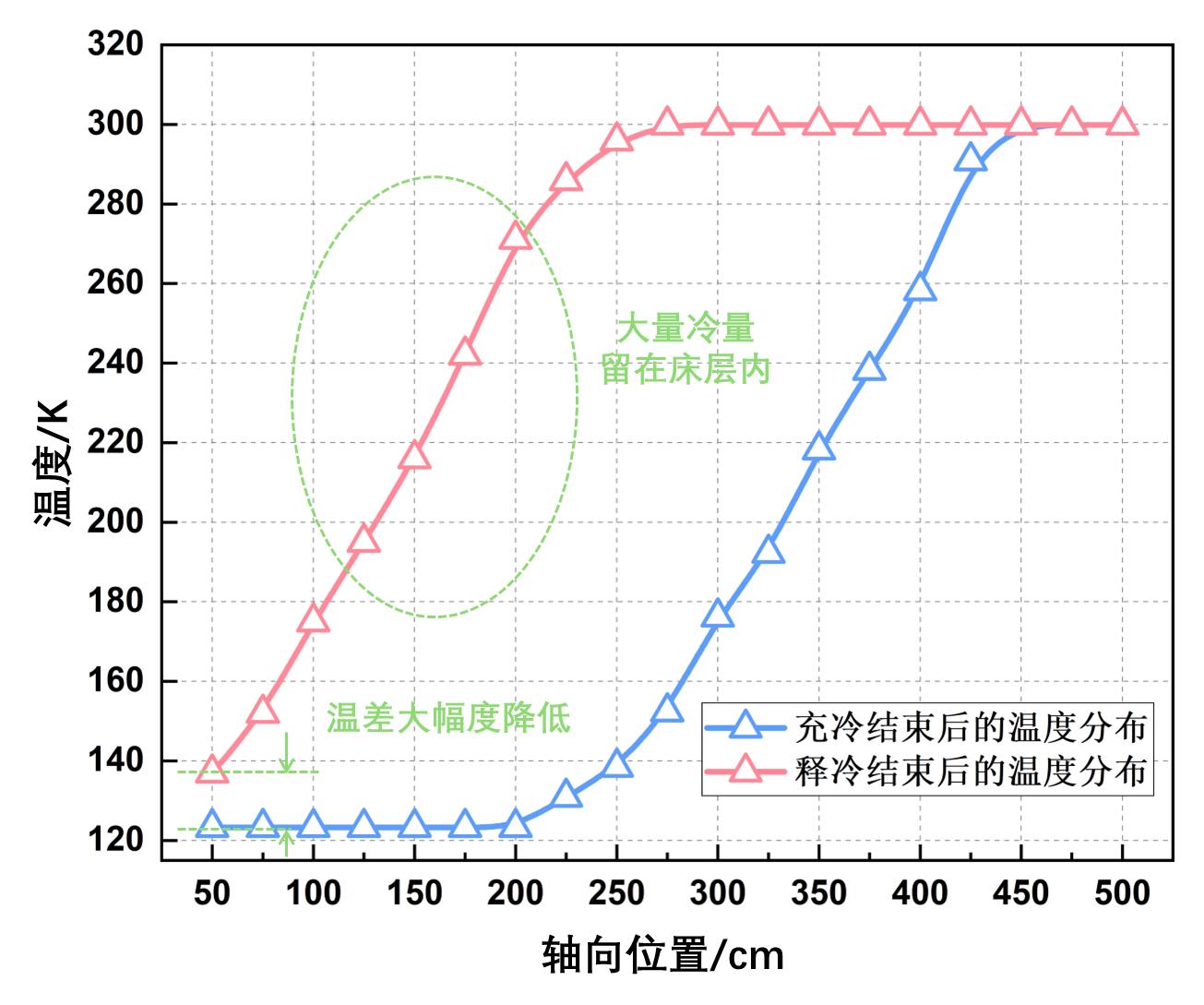

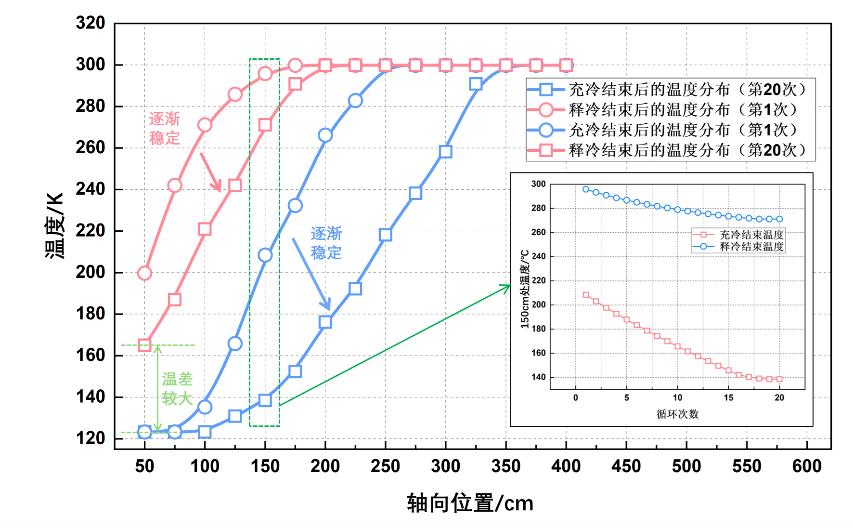

图8 填充床内温度分布（未增加预冷流程）

Fig. 8 Temperature distribution (without pre-cooling process)

图9 填充床内温度分布（增加预冷流程）

Fig. 9 Temperature distribution (with precooling process)

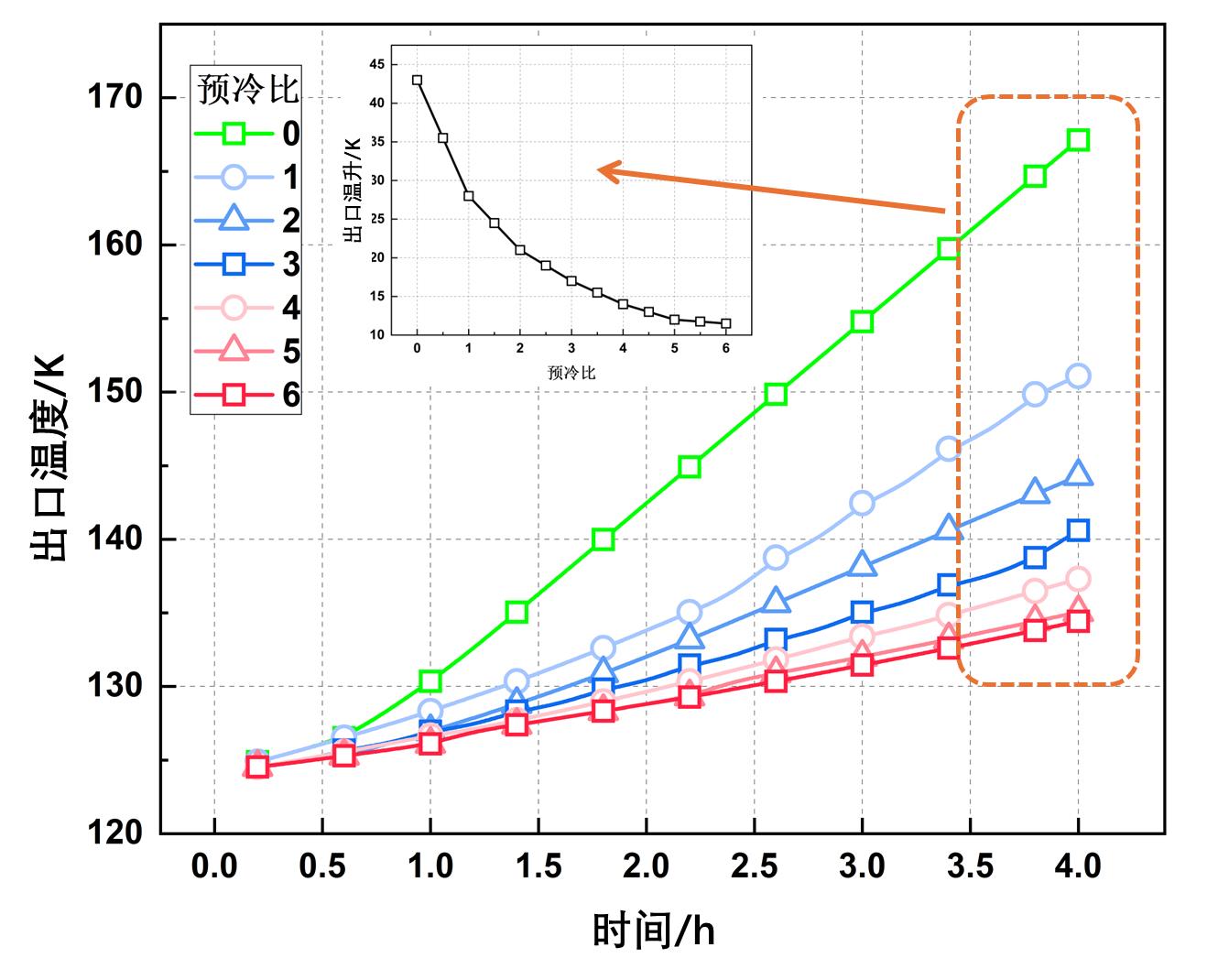

图10 释冷氮气温度变化

Fig. 10 Temperature variations of released cold energy nitrogen

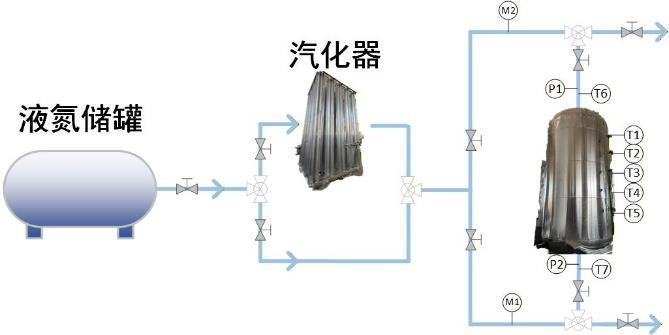

图11 性能测试实验流程

Fig. 11 Performance Testing Experimental Process

表2 填充床相关信息

Table 2 Information related to the solid packed bed

参数		值
罐体高度/m		4.5
罐体直径/m		1.8
填料重量/kg		~13000
填料高度/m		~2.5
平均孔隙率		~0.34
保温层厚度/m	二烯烃（内层）	0.3
保温层厚度/m	橡塑（外层）	0.2

图12 填充床预冷过程温度变化

Fig. 12 Temperature changes during the pre-cooling process

图13 填充床充冷过程温度变化

Fig. 13 Temperature changes during the cold process

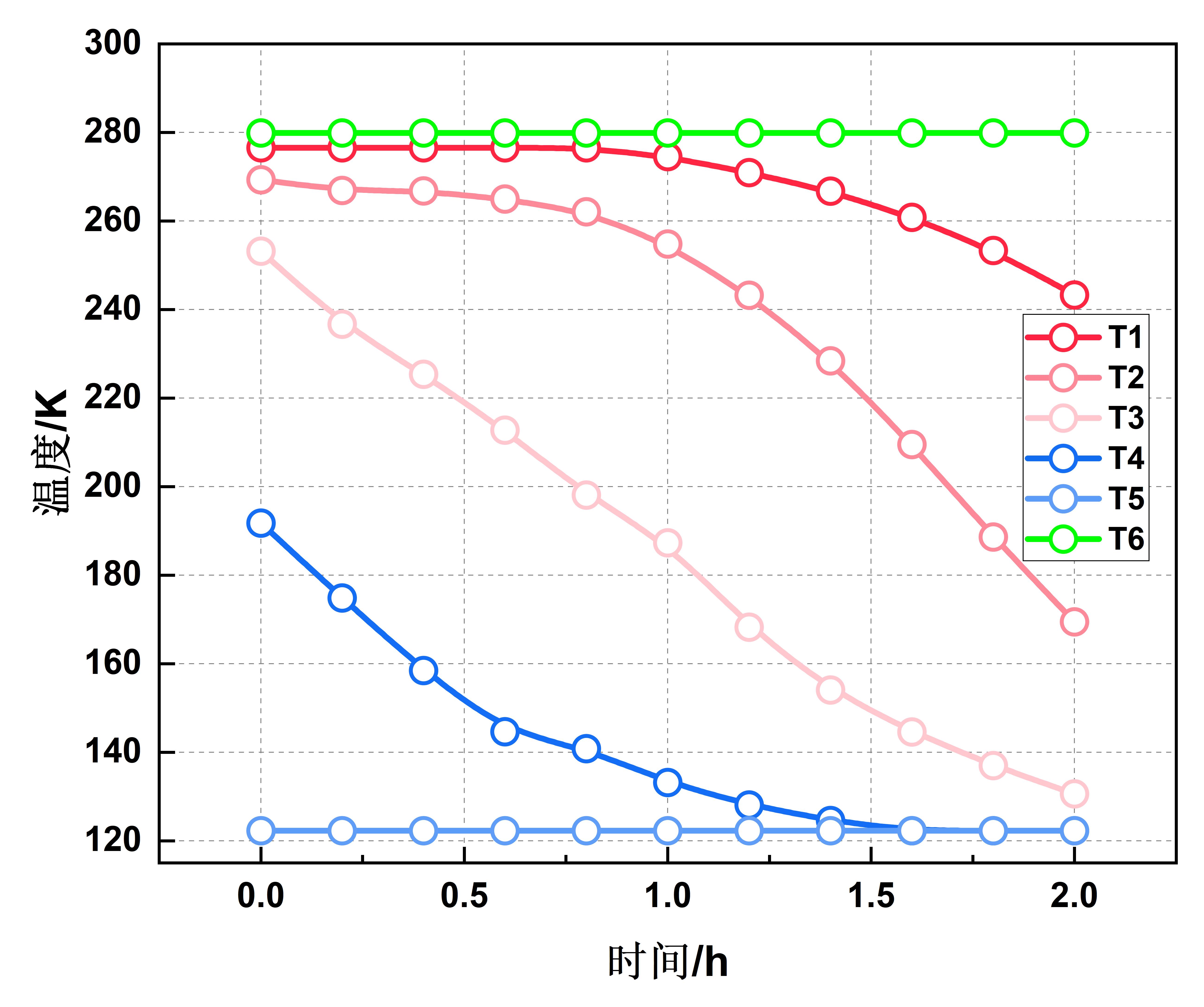

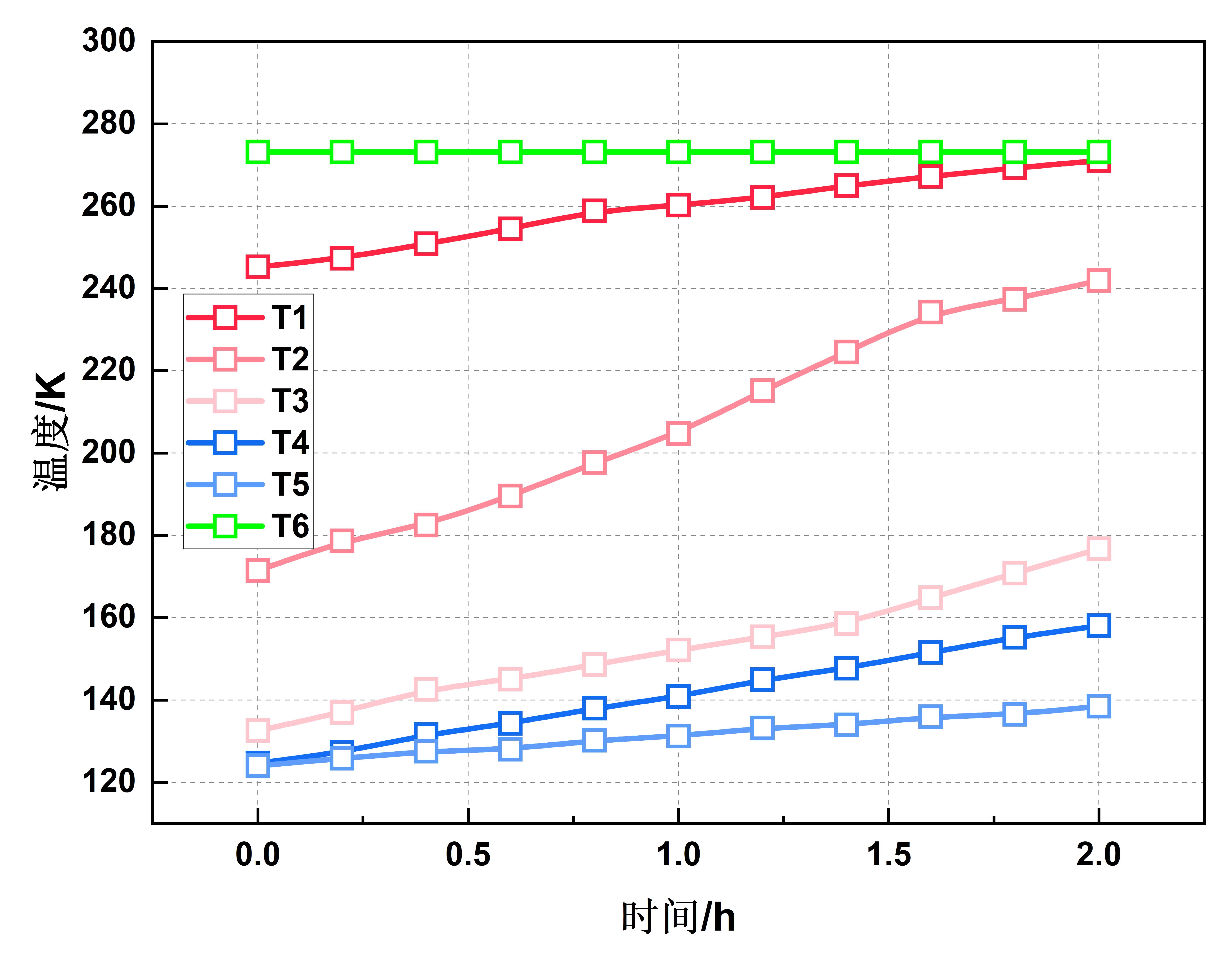

图14 填充床释冷过程温度变化

Fig. 14 Temperature changes during the cold Release process

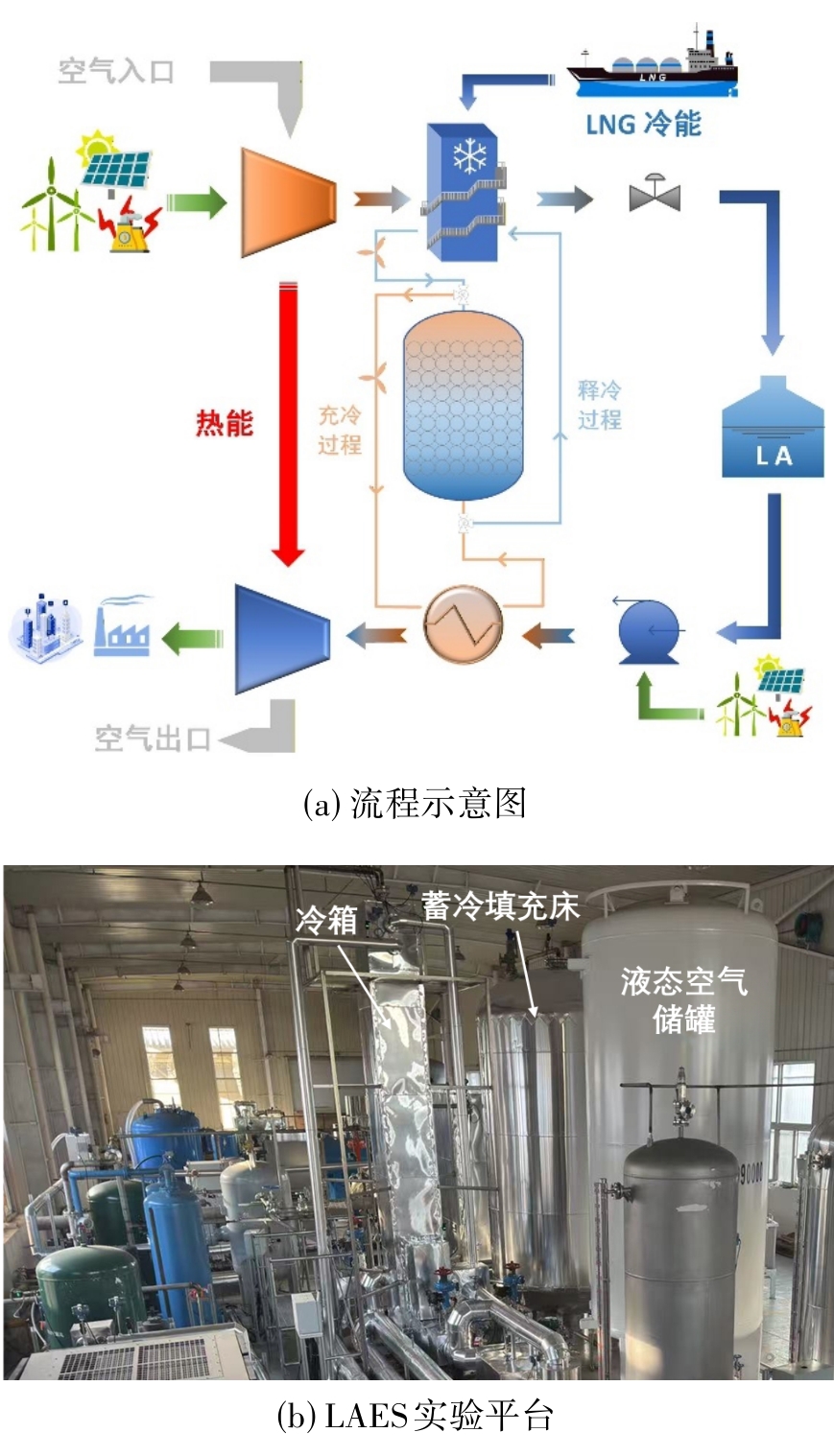

图15 含填充床的冷能耦合LAES系统流程

Fig. 15 Process of a cold energy-coupled LAES with packed bed

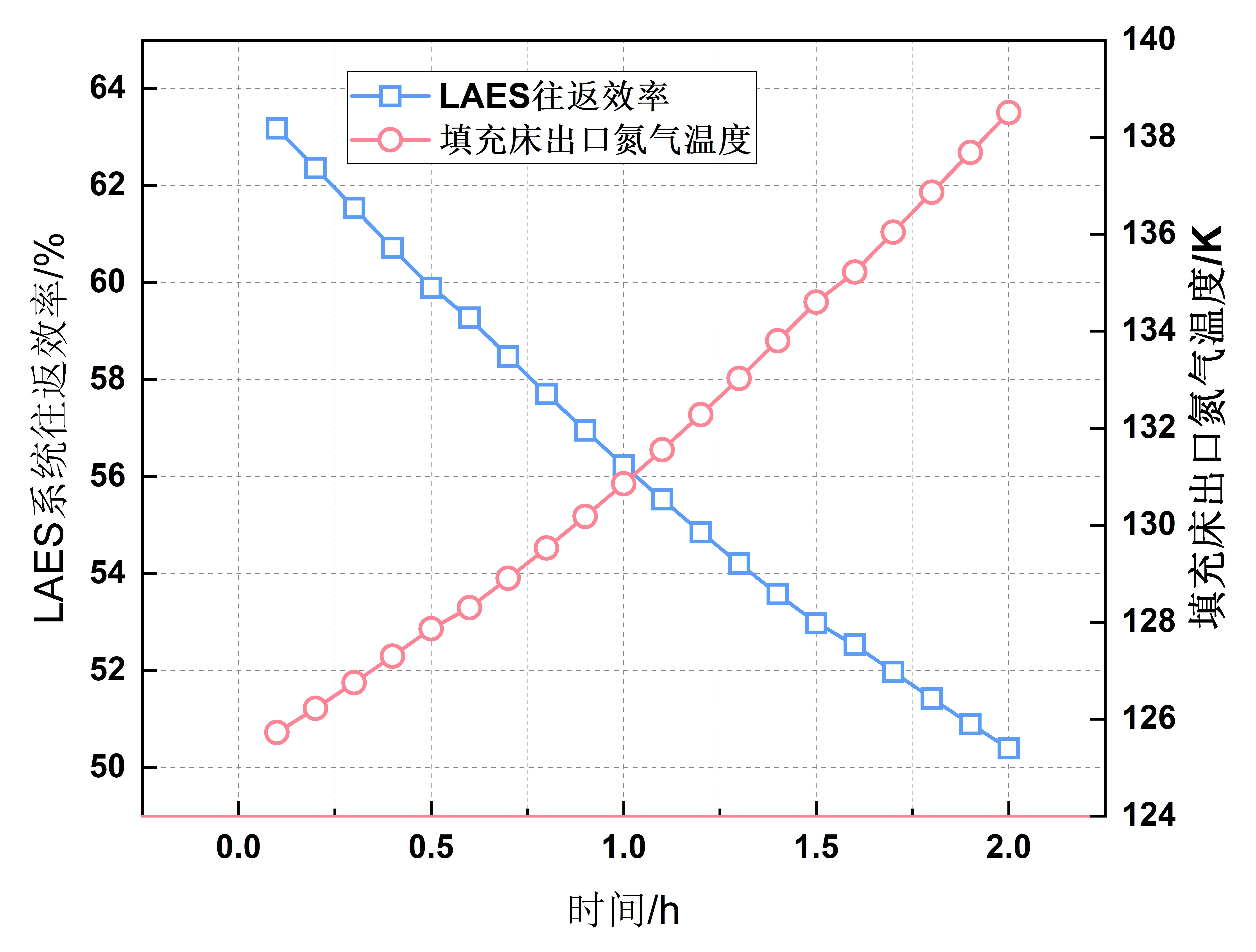

图16 填充床在LAES系统中的应用数据

Fig. 16 Application data of packed beds in LAES systems
