基于机器学习的改型歧管式微通道热沉流动传热特性多目标优化

doi:10.11949/0438-1157.20251212

摘要/Abstract

摘要：

针对超高热通量电子设备的散热需求，开展数值模拟研究了一种改型微通道热沉的流动与传热特性，分析了通道高度和宽度对其综合性能的影响。建立了遗传算法优化的最小二乘支持向量回归预测模型，采用多目标粒子群算法对热沉的几何构型进行优化，并借助灰色关联分析-多准则妥协解排序法与熵权TOPSIS方法筛选出全局最优设计。研究结果表明：相较于本文设定的原始歧管式微通道热沉基准模型（几何参数：h_m1=25 μm、h_m2=25 μm、w_m1=200 μm、w_m2=200 μm），优化方案通过增强二次涡流效应有效降低了峰值温度，使得Nusselt数（Nu）提升20.2%，压降（Δp）下降10.2%。本文所提出的优化策略为高热通量管理提供了新思路，在保证性能显著提升的同时，较大幅度降低了传统参数化方法所需的计算成本，可为新型高效微通道热沉的研发提供理论指导。

关键词: 微通道, 传热, 流动, 深度学习, 优化

Abstract:

To address the heat dissipation requirements of ultra-high heat flux electronic devices, a numerical study was conducted to investigate the flow and heat transfer characteristics of a modified microchannel heat sink, and the influence of channel height and width on its comprehensive performance was analyzed. A prediction model based on the Genetic Algorithm-optimized Least Squares Support Vector Machine was established, the Multi-Objective Particle Swarm Optimization algorithm was employed to optimize the geometric configuration of the heat sink, and the Grey Relational Analysis-VlseKriterijumska Optimizacija Kompromisno Resenje (GRA-VIKOR) and entropy-weighted Technique for Order of Preference by Similarity to Ideal Solution (TOPSIS) methods were utilized to screen out the globally optimal design. The results show that: compared with the original MMCHS benchmark model established in this study (geometric parameters: h_m1=25 μm, h_m2=25 μm, w_m1=200 μm, w_m2=200 μm), the optimized scheme effectively reduces the peak temperature by enhancing the secondary vortex effect, resulting in a 20.2% increase in the Nusselt number (Nu) and a 10.2% decrease in the pressure drop (Δp). The optimization strategy proposed in this study provides new insights for high-heat-flux thermal management; while ensuring a significant improvement in performance, it greatly reduces the computational cost required by traditional parametric methods and can offer theoretical guidance for the development of novel and high-efficiency microchannel heat sinks.

Key words: microchannels, heat transfer, flow, deep learning, optimization

中图分类号:

TK124

汤松臻, 张飞杨, 晏稷, 张牧樵, 郭明. 基于机器学习的改型歧管式微通道热沉流动传热特性多目标优化[J]. 化工学报, DOI: 10.11949/0438-1157.20251212.

Songzhen TANG, Feiyang ZHANG, Ji YAN, Muqiao ZHANG, Ming GUO. Multi objective optimization of flow and heat transfer characteristics of modified manifold microchannel heat sink based on machine learning[J]. CIESC Journal, DOI: 10.11949/0438-1157.20251212.

图/表 15

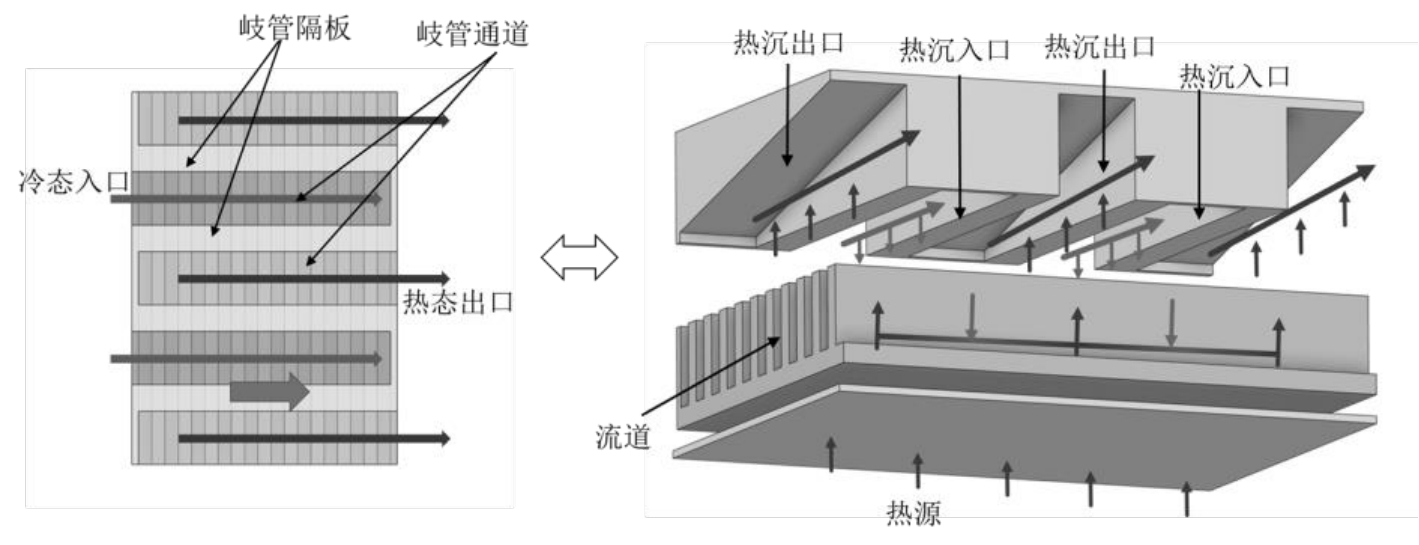

图1 改型MMCHS的结构示意图

Fig. 1 Schematic diagram of the modified MMCHS external structure

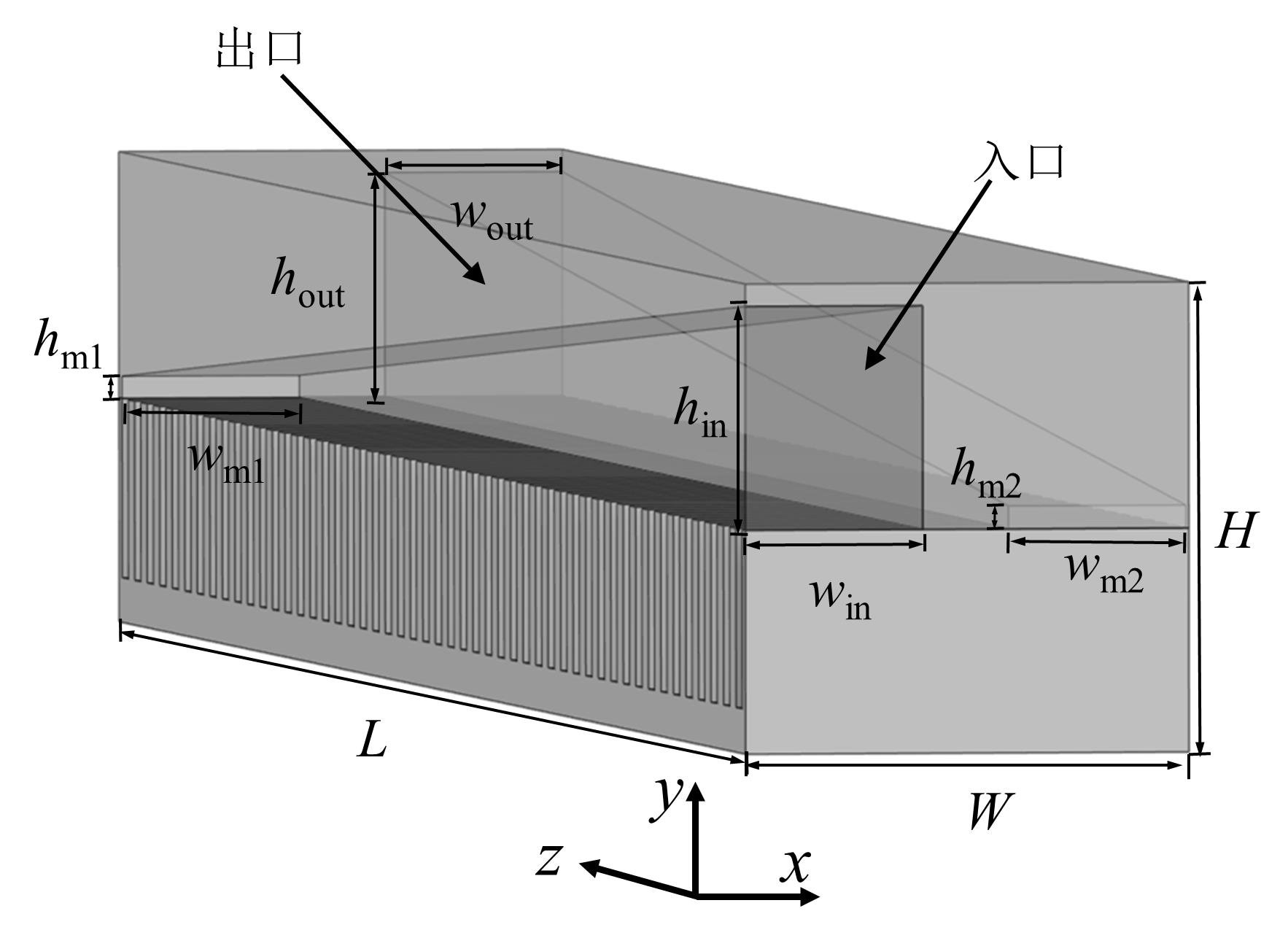

图2 本研究MMCHS结构抽取的流体域

Fig. 2 The fluid domain extracted from the MMCHS structure in this study

表1 模型MMCHS参数总结

Table 1 Summary of model MMCHS geometric parameters

名称	数值（μm）	名称	数值（μm）
L	5000	H	525
W	500	h_in	250
w_in	200	h_out	250
w_out	200	h_m1	25
w_m1	200	h_m2	25
w_m2	200	-	-

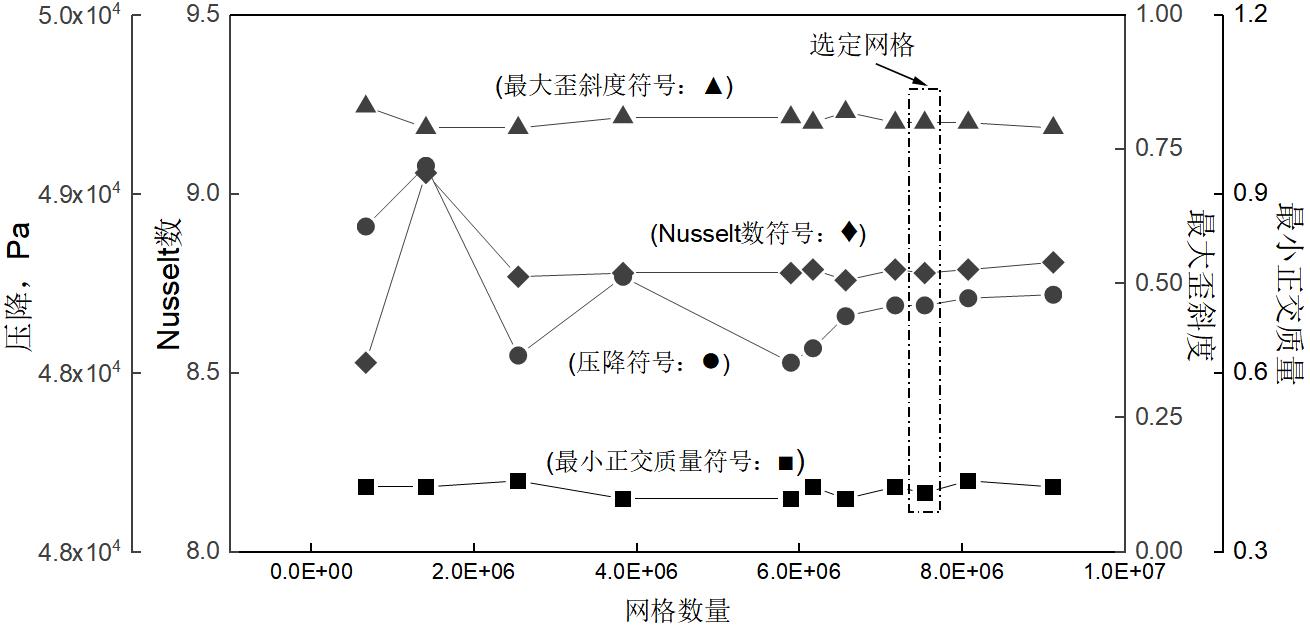

图3 MMCHS网格无关性分析

Fig. 3 MMCHS grid independence test

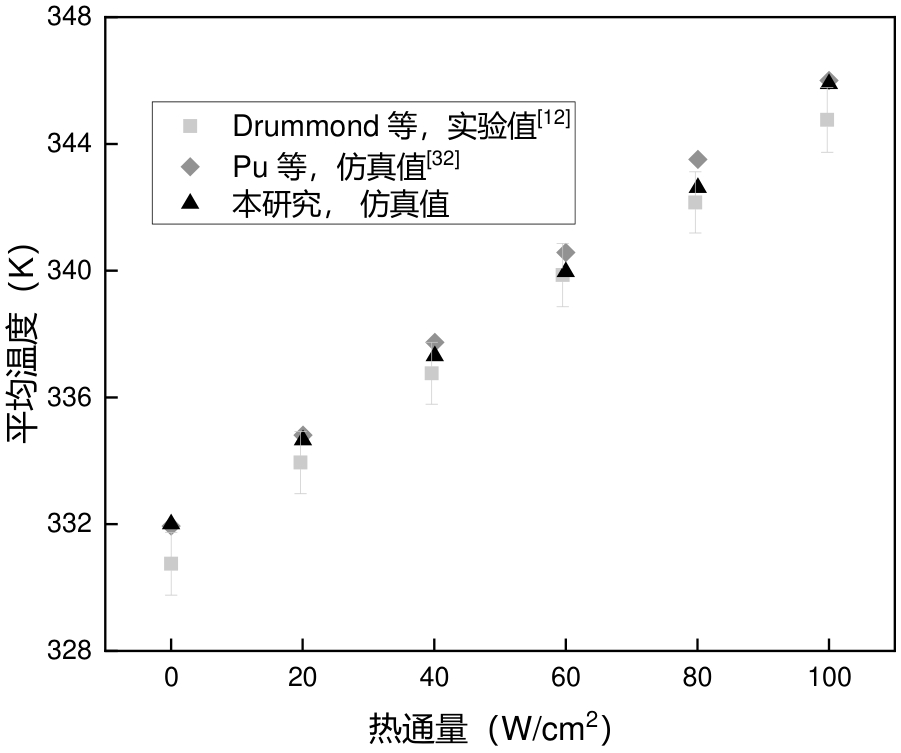

图4 微通道内平均温度的实验验证[23, 33]。

Fig. 4 Experimental verification of average temperature within microchannels.

图5 微通道内温度差值的文献验证[12, 32]。

Fig. 5 Literature verification of temperature difference within microchannels.

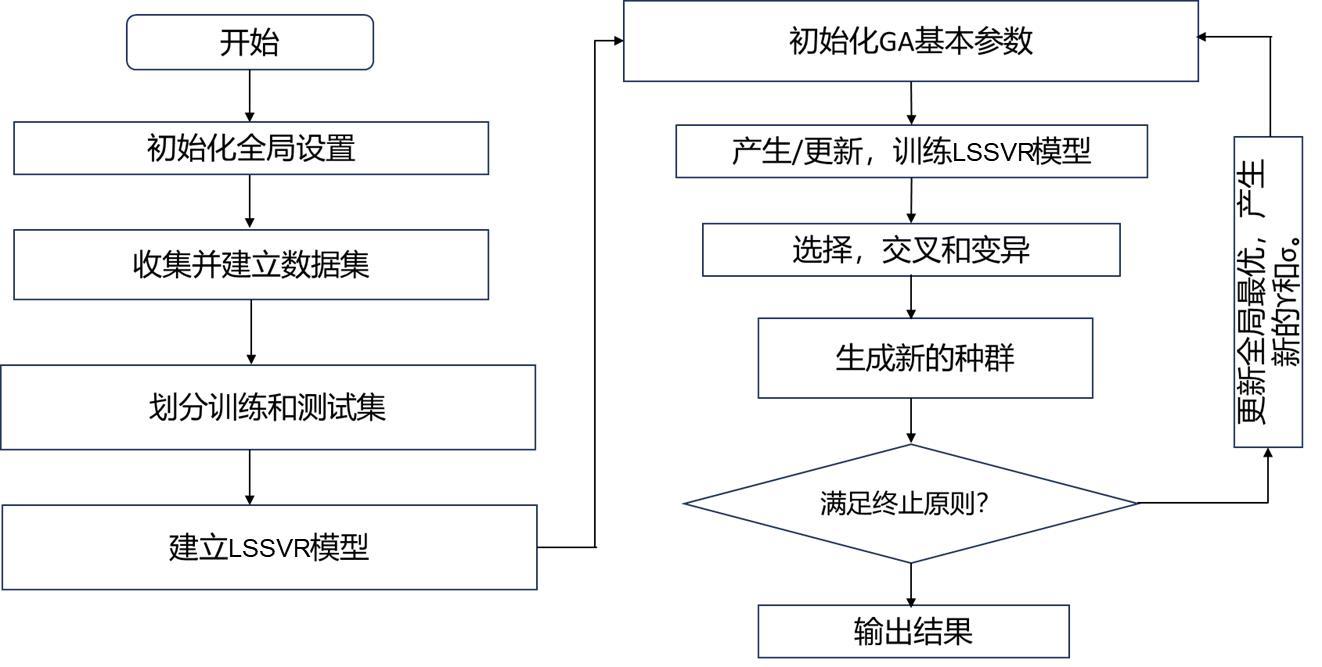

图6 GA优化LSSVR模型流程图

Fig. 6 Flowchart of GA optimized LSSVR model

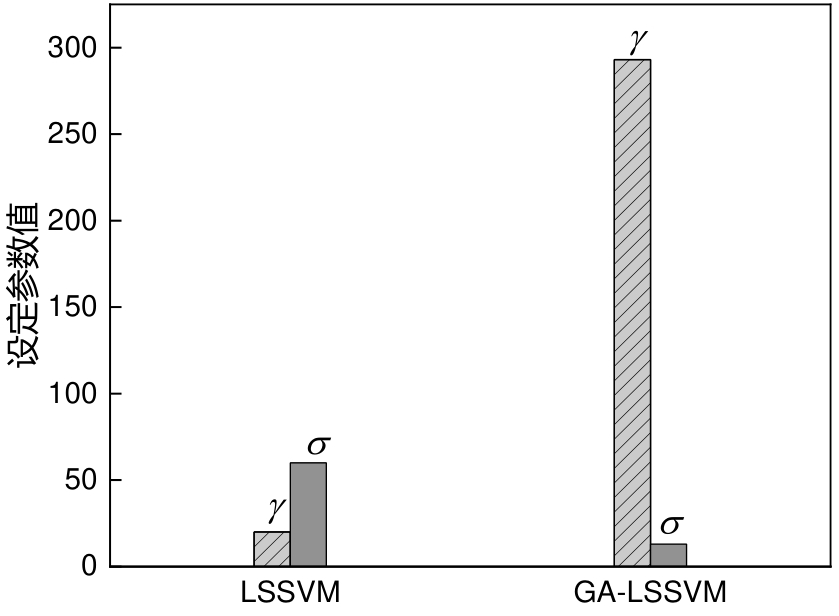

图7 数据驱动LSSVR模型超参数优化结果

Fig. 7 Hyperparameter optimization results for data-driven LSSVR model

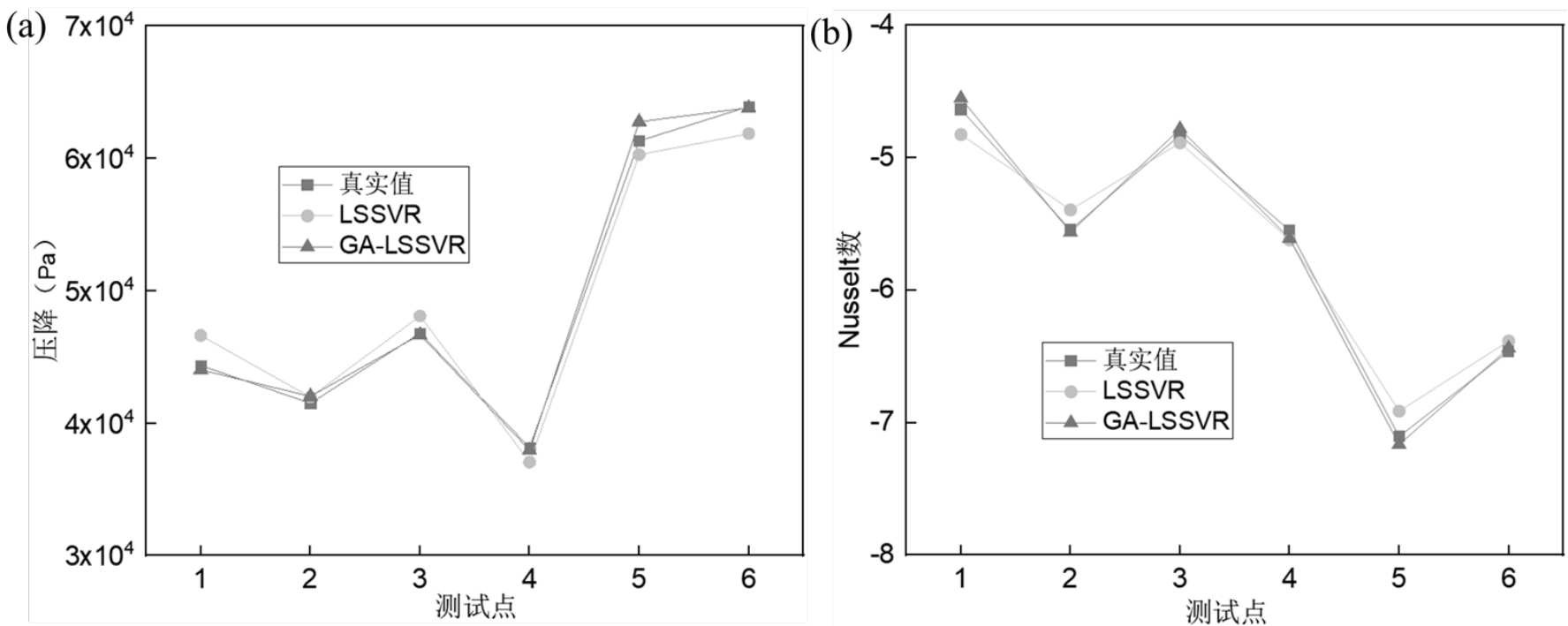

图8 LSSVR和GA-LSSVR模型测试集预测精度比较

Fig. 8 Comparison of prediction accuracy between LSSVR and GA-LSSVR models based on test data

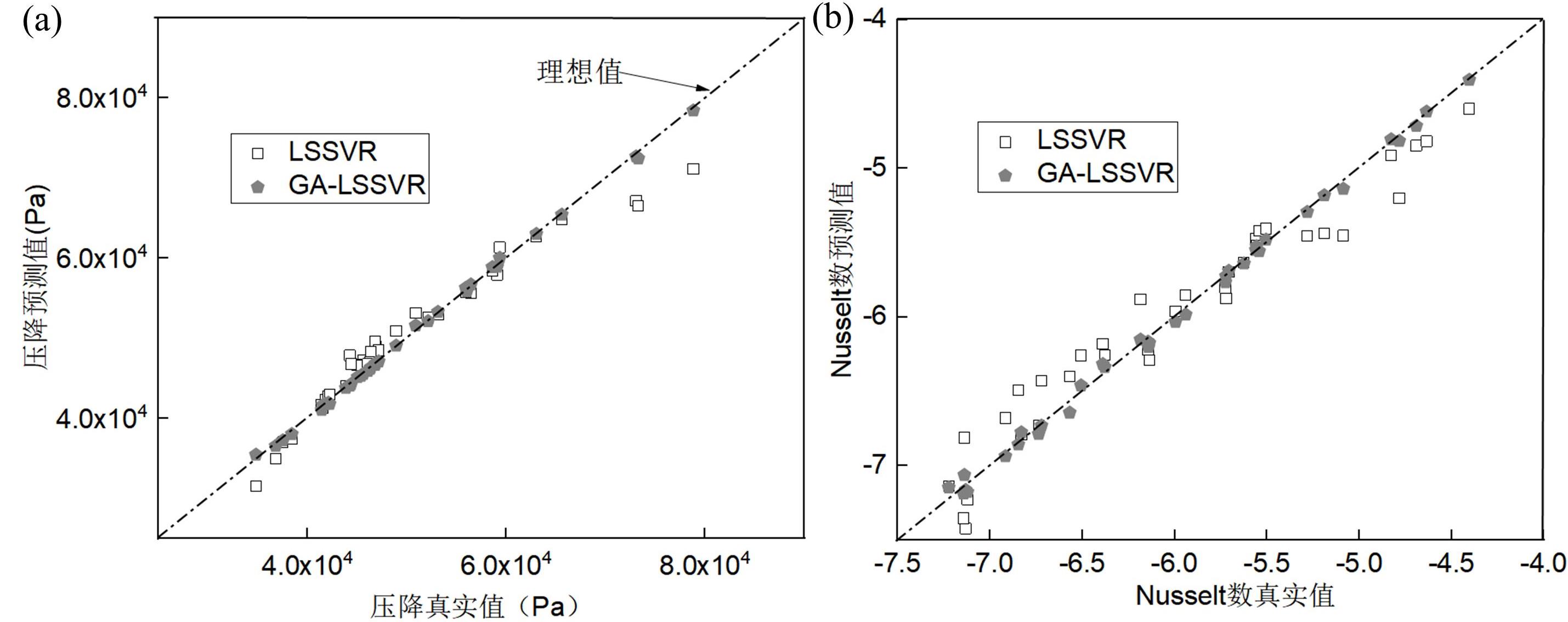

图9 LSSVR和GA-LSSVR模型训练集预测值与真实值比对

Fig. 9 Comparison between the real value and predicted value of the training set of LSSVR and GA-LSSVR models

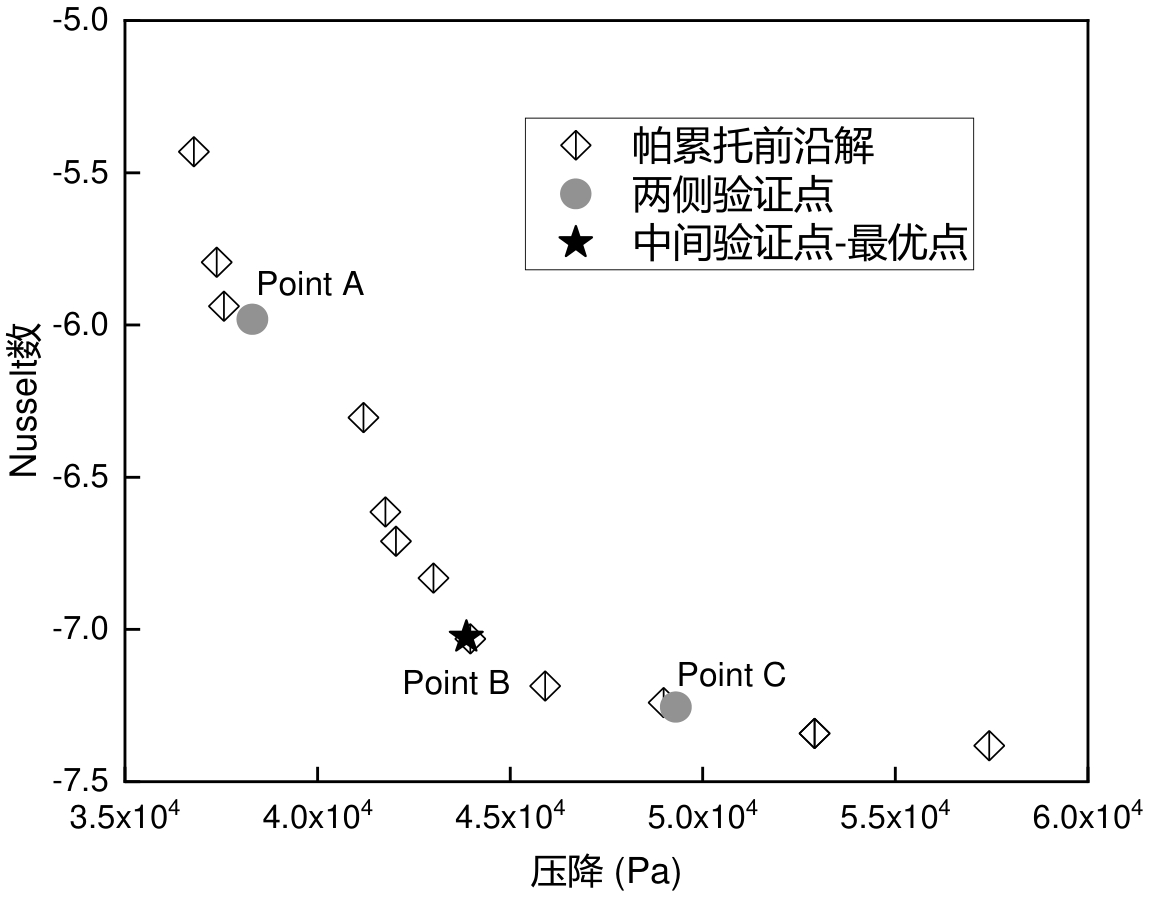

图10 MOPSO算法求解所得帕累托前沿解

Fig. 10 The MOPSO algorithm solves for the Pareto front solution

表2 选取的验证点比对情况总结

Table 2 Summary of selected validation points

模型参数		原模型	A点	B点	C点
h_m1 (μm)		25	78.57	29.75	20
h_m2 (μm)		25	95.49	99.59	95.46
w_m1 (μm)		200	122.66	75.94	40.33
w_m2 (μm)		200	219.63	219.88	207.86
Δp	预测值	-	38310	43866	49304
Δp	真实值	48373	38289	43903	49144
误差（％）		-	0.05	0.08	0.33
Nu	预测值	-	5.981	7.025	7.255
Nu	真实值	5.841	5.961	7.018	7.181
误差（％）		-	0.34	0.1	1.03

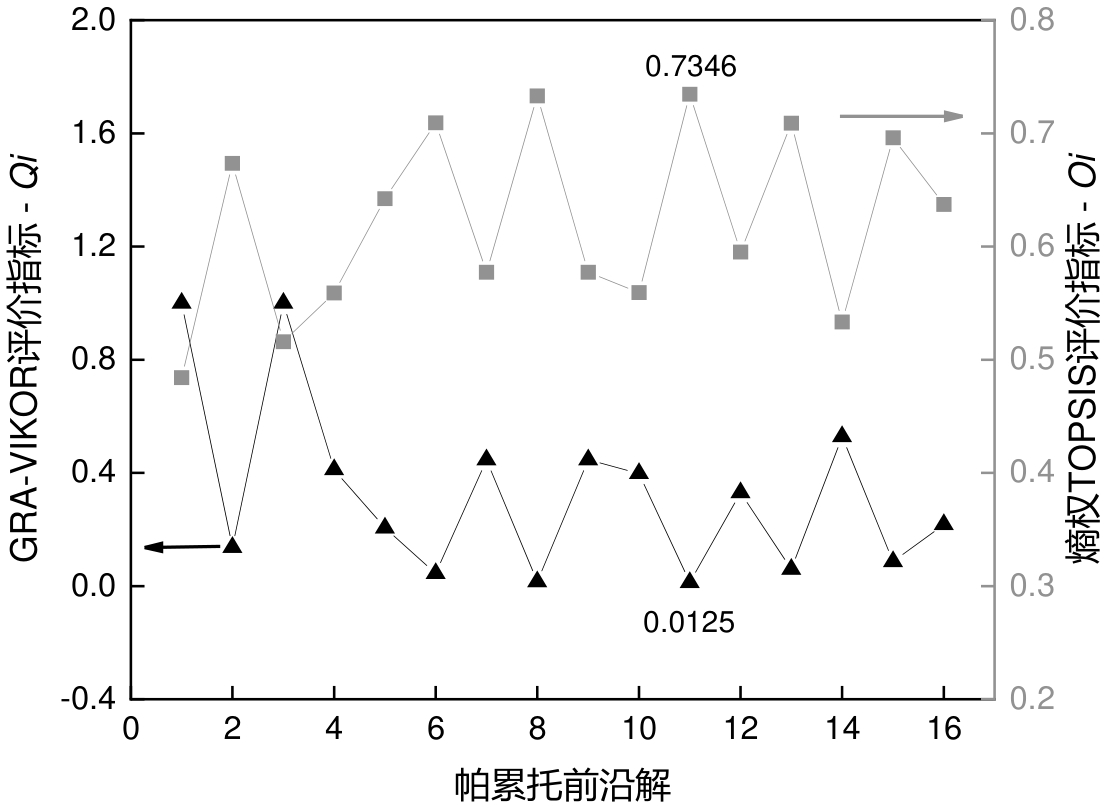

图11 熵权TOPSIS和GRA-VIKOR的多准则决策用于帕累托前沿解

Fig. 11 Multi-criteria decision making of Entropy Weighted TOPSIS and GRA-VIKOR for Pareto front solution points

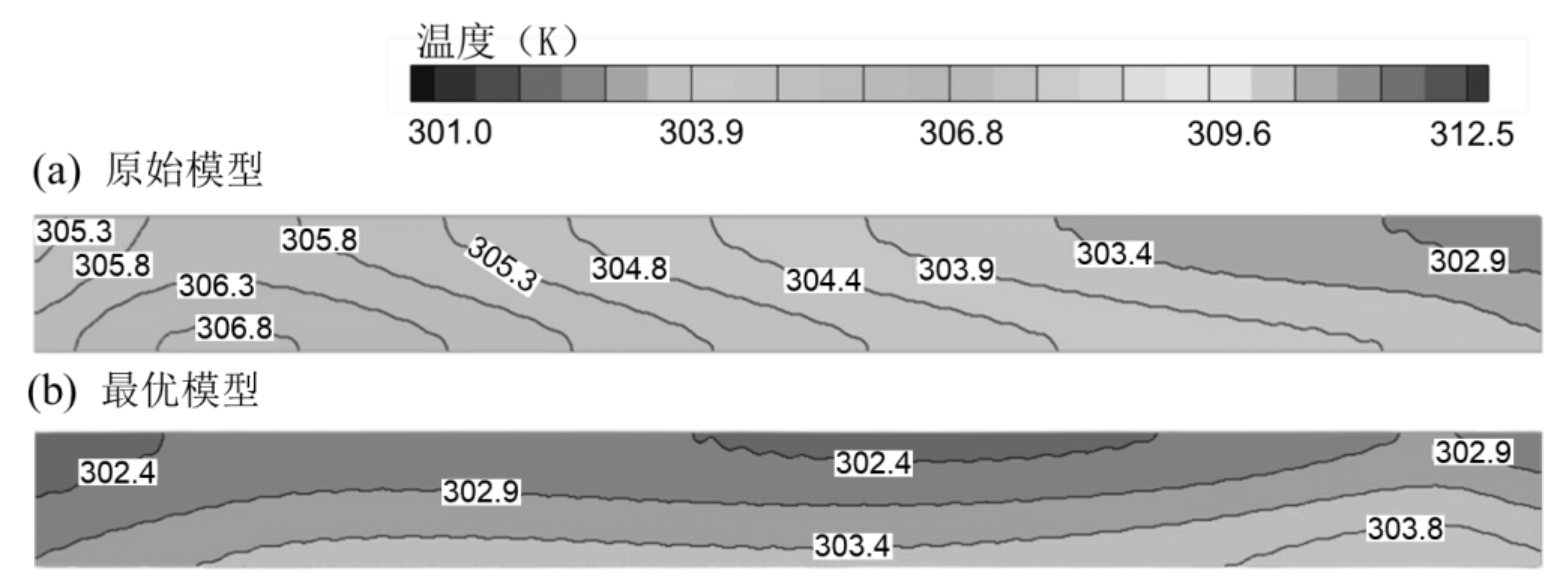

图12 MMCHS底部温度分布

Fig. 12 Temperature distribution at the bottom of MMCHS

图13 不同微通道纵切面速度分布

Fig. 13 Velocity distribution of microchannel in various cut planes
