低温工质对R1336mzz（Z）/TEGDME的饱和蒸气压、密度、黏度、比热容及比焓

doi:10.11949/0438-1157.20240595

摘要/Abstract

摘要：

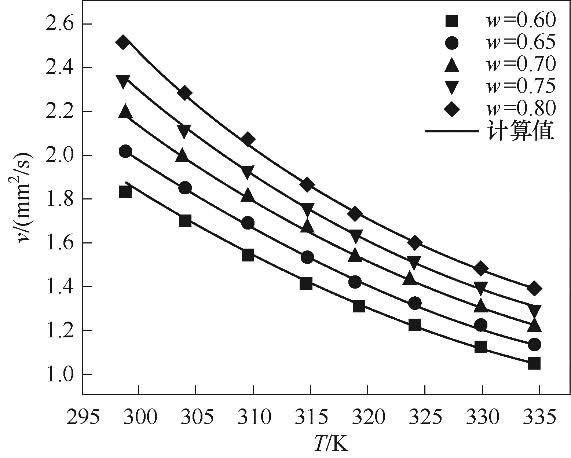

随着氢燃料电池产业加速发展，其低温余热（约70℃）利用成为了急需解决的问题，而传统的LiBr/H₂O工质对的发生温度过高无法利用较低品位的热能以及低温下易结晶，因此提出了新型低温工质对R1336mzz（Z）/TEGDME，并进行了饱和蒸气压、密度、黏度、比热容的测量，通过NRTL模型计算了其混合焓和比焓。使用最小二乘法对以上数据均进行了回归，实验值与拟合值的相关系数的平方均大于0.999，吻合较好，可使用拟合公式进行新型低温工质对的余热制冷热力循环的设计计算。相较LiBr/H₂O工质对，低温工质对R1336mzz（Z）/TEGDME的发生温度降低了约12℃，黏度降低了约30%，可以利用低温燃料电池余热制冷，具有很强的实际应用意义。

关键词: 低温工质对, 吸收式热泵, 饱和蒸气压, 热物性

Abstract:

With the acceleration of research in hydrogen fuel cell industry, the utilization of waste heat (about 70℃) has become an urgent problem to be solved. However, the generation temperature of traditional LiBr/H₂O working pair is too high to utilize low-grade heat energy and has the problems of crystallization. Therefore, a new organic working pair R1336mzz(Z)/TEGDME is proposed. The saturated vapor pressure, density, viscosity and specific heat capacity were measured. The mixing enthalpy and specific enthalpy were calculated by NRTL model. The least square method is used to regression the above data, and the square of the correlation coefficient between the experimental value and the fitting value is greater than 0.999, which is in good agreement. The fitting formula can be used to design and calculate the waste heat refrigeration thermal cycle of the new low temperature working pair. Compared with the LiBr/H₂O working pair, the generation temperature of R1336mzz(Z)/TEGDME working pair is reduced by 12℃ and the viscosity by about 30%, which has strong practical application significance.

Key words: low temperature working pair, absorption heat pump, saturated vapor pressure, thermophysical property

中图分类号:

TK 01⁺9

杨宇帆, 罗春欢, 赵佳辉, 何沐然, 郎林, 李泽祥, 周春廷. 低温工质对R1336mzz（Z）/TEGDME的饱和蒸气压、密度、黏度、比热容及比焓[J]. 化工学报, DOI: 10.11949/0438-1157.20240595.

Yufan YANG, Chunhuan LUO, Jiahui ZHAO, Muran HE, lin LANG, Zexiang LI, Chunting ZHOU. Saturated vapor pressure, density, viscosity, specific heat capacity and specific enthalpy of R1336mzz(Z)/TEGDME working pair[J]. CIESC Journal, DOI: 10.11949/0438-1157.20240595.

图/表 19

参考文献 34

1	Chandan A, Hattenberger M, El-kharouf A, et al. High temperature (HT) polymer electrolyte membrane fuel cells (PEMFC)–A review[J]. Journal of Power Sources, 2013, 231: 264-278.
2	Urzúa R, Siqueiros J, Morales L, et al. On-line corrosion monitoring of 70 Cu₃₀ Ni alloy in a LiBr solution under absorption heat pump flow conditions[J]. Portugaliae Electrochimica Acta, 2009, 27(2): 127-142.
3	Liao X H, Radermacher R. Absorption chiller crystallization control strategies for integrated cooling heating and power systems[J]. International Journal of Refrigeration, 2007, 30(5): 904-911.
4	Luo C H, Su Q Q, Mi W L. Thermophysical properties and application of LiNO₃–H₂O working fluid[J]. International Journal of Refrigeration, 2013, 36(6): 1689-1700.
5	Sun J, Fu L, Zhang S G. Performance calculation of single effect absorption heat pump using LiBr + LiNO₃ + H₂O as working fluid[J]. Applied Thermal Engineering, 2010, 30(17/18): 2680-2684.
6	Jiang X Z, Xiong W J, Li Y, et al. Vapor pressure measurement of two quaternary systems LiBr + LiNO₃ + LiCl + H₂O and LiBr + LiCl + 1, 3-propanediol + H₂O[J]. Journal of Chemical & Engineering Data, 2014, 59(4): 1320-1325.
7	Chaudhari S K, Salavera D, Densities Coronas A., viscosities, capacities heat, and vapor–liquid equilibria of ammonia+ sodium thiocyanate solutions at several temperatures [J]. Journal of Chemical & Engineering Data, 2011, 56(6): 2861-2869.
8	Libotean S, Salavera D, Valles M, et al. Vapor–liquid equilibrium of ammonia+ lithium nitrate+ water and ammonia+ lithium nitrate solutions from (293.15 to 353.15) K[J]. Journal of Chemical & Engineering Data, 2007, 52(3): 1050-1055.
9	Yadav A, Guha A, Pandey A, et al. Densities and dynamic viscosities of ionic liquids having 1-butyl-3-methylimidazolium cation with different anions and bis(trifluoromethylsulfonyl)imide anion with different cations in the temperature range (283.15 to 363.15)K[J]. The Journal of Chemical Thermodynamics, 2018, 116: 67-75.
10	Luo C H, Li Y Q, Li N, et al. Thermophysical properties of lithium nitrate + 1-ethyl-3-methylimidazolium diethylphosphate + water system[J]. The Journal of Chemical Thermodynamics, 2018, 126: 160-170.
11	孙立, 郭开华, 皇甫立霞. 离子液体[BMIM][BF_ 4]水溶液比热容及热工特性分析[J]. 低温物理学报, 2011, 33(5): 381-385.
	Sun L, Guo K H, Huangfu L X. Specific heat capacity and thermal characteristics analysis of ionic liquid [BMIM][BF_ 4] aqueous solution[J]. Chinese Journal of Low Temperature Physics, 2011, 33(5): 381-385.
12	Kim S, Kohl P A. Analysis of [hmim][PF6] and [hmim][Tf 2N] ionic liquids as absorbents for an absorption refrigeration system[J]. International Journal of Refrigeration, 2014, 48: 105-113.
13	Papadopoulos A I, Kyriakides A S, Seferlis P, et al. Absorption refrigeration processes with organic working fluid mixtures-a review[J]. Renewable and Sustainable Energy Reviews, 2019, 109: 239-270.
14	Xu S M, Liu Y L, Zhang L S. Performance research of self regenerated absorption heat transformer cycle using TFE-NMP as working fluids[J]. International Journal of Refrigeration, 2001, 24(6): 510-518.
15	Medrano M, Bourouis M, Coronas A. Double-lift absorption refrigeration cycles driven by low–temperature heat sources using organic fluid mixtures as working pairs[J]. Applied Energy, 2001, 68(2): 173-185.
16	Herraiz J, Boer D, Coronas A. Absorption heat pump cycles with trifluoroethanol-polyethyleneglycol dimethylethers: properties and performances[C]. Ab-Sorption 96. Towards Sustainable Technologies, Montreal (Canada), 1996: 19-25.
17	Yokozeki A. Theoretical performances of various refrigerant–absorbent pairs in a vapor-absorption refrigeration cycle by the use of equations of state[J]. Applied Energy, 2005, 80(4): 383-399.
18	Ando E, Takeshita I. Residential gas-fired absorption heat pump based on R22-DEGDME pair. Part 1 thermodynamic properties of the R22-DEGDME pair[J]. International Journal of Refrigeration, 1984, 7(3): 181-185.
19	Takeshita I, Hozumi S. A direct solar-heated R22-DMF absorption refrigerator[J]. Sun II, 1979, 1: 744-748.
20	豆文博, 张钰婧, 王晓坡. R1336mzz(Z)及其与多元醇酯类润滑油混合物表面张力实验测量[J]. 西安交通大学学报, 2023, 57(8): 86-91.
	Dou W B, Zhang Y J, Wang X P. Experimental measurement of surface tension of R1336mzz(Z) and its mixture with polyolester lubricant[J]. Journal of Xi'an Jiaotong University, 2023, 57(8): 86-91.
21	Mateu-Royo C, Arpagaus C, Mota-Babiloni A, et al. Advanced high temperature heat pump configurations using low GWP refrigerants for industrial waste heat recovery: a comprehensive study[J]. Energy Conversion and Management, 2021, 229: 113752.
22	Molés F, Navarro-Esbrí J, Peris B, et al. Low GWP alternatives to HFC-245fa in Organic Rankine Cycles for low temperature heat recovery: HCFO-1233zd-E and HFO-1336mzz-Z[J]. Applied Thermal Engineering, 2014, 71(1): 204-212.
23	Jiang Y T, Zhang X D, Zhang Z G, et al. Performance evaluation and working fluid screening of direct vapor generation for solar ORC using low-global warming potential (GWP) working fluids[J]. Energies, 2024, 17(13): 3133.
24	Malavika S, Chiranjeevi C, Raja Sekhar Y, et al. Performance optimization of a heat pump for high temperature application[J]. Materials Today: Proceedings, 2021, 46: 5278-5285.
25	暴阳正, 李历浪, 钟勇斌, 等. 新型吸收式制冷体系工质对溶液研究进展[J]. 化学工业与工程, 2024, 41(2): 65-76.
	Bao Y Z, Li L L, Zhong Y B, et al. Research progress on the new working fluid pairs of absorption refrigeration systems[J]. Chemical Industry and Engineering, 2024, 41(2): 65-76.
26	陈东, 谢继红. 热泵热水装置[M]. 北京: 化学工业出版社, 2009.
	Chen D, Xie J H. Heat Pump Water Heater[M]. Beijing: Chemical Industry Press, 2009
27	Li S H, Xu L, Liu H T, et al. Vapor pressure measurements and correlation for cis-1, 1, 1, 4, 4, 4-hexafluoro-2-butene (HFO-1336mzz (Z))[J]. Journal of Chemical & Engineering Data, 2020, 65(9): 4223-4229.
28	Lee R J, DiGuilio R M, Jeter S M, et al. Properties of lithium bromide-water solutions at high temperatures and concentrations II: Density and viscosity[J]. ASHRAE Trans, 1990, 96: 709-714.
29	Renon H, Prausnitz J M. Local compositions in thermodynamic excess functions for liquid mixtures[J]. AIChE Journal, 1968, 14(1): 135-144.
30	周宇文, 王寿川, 郑传经, 等. 超额吉布斯自由能对吸收式制冷系统性能的影响[J]. 制冷技术, 2021, 41(1): 29-34.
	Zhou Y W, Wang S C, Zheng C J, et al. Influence of excess Gibbs free energy on the performance of absorption refrigeration system[J]. Chinese Journal of Refrigeration Technology, 2021, 41(1): 29-34.
31	Wang L. Principle and application of small-sized absorption refrigerator[J]. China Building Industry Press, Beijing, 2011: 21-110.
32	Luo C H, Chen K, Li Y Q, et al. Crystallization temperature, vapor pressure, density, viscosity, and specific heat capacity of the LiNO₃/[BMIM]Cl/H₂O ternary system[J]. Journal of Chemical & Engineering Data, 2017, 62(10): 3043-3052.
33	罗春欢, 王亚楠, 韩旭, 等. LiBr-[BMIM]Cl/H₂O新型三元工质对的密度、黏度、比热容及比焓[J]. 工程科学学报, 2019, 41(6): 731-740.
	Luo C H, Wang Y N, Han X, et al. Density,viscosity,specific heat capacity,and specific enthalpy of a novel ternary working pair: LiBr-[BMIM]Cl/H₂O[J]. Chinese Journal of Engineering, 2019, 41(6): 731-740.
34	Wimby J M, Berntsson T S. Viscosity and density of aqueous solutions of lithium bromide, lithium chloride, zinc bromide, calcium chloride and lithium nitrate. 1. Single salt solutions[J]. Journal of Chemical & Engineering Data, 1994, 39(1): 68-72.

试剂	纯度	生产厂家
R1336mzz(Z)	≥99%	上海锐一
TEGDME	≥99%	阿拉丁

试剂	纯度	生产厂家
R1336mzz(Z)	≥99%	上海锐一
TEGDME	≥99%	阿拉丁

i	A_i	B_i	C_i	R²
0	-3.637166	-19.79008	258.9322594
1	52.185793	-1709.068	151.1888188
2	-119.9719	1192.7583	213.5228981	0.99999
3	127.00578	-712.2842	213.9228973
4	-49.20176	6.0767626	385.3963235

i	A_i	B_i	C_i	R²
0	-3.637166	-19.79008	258.9322594
1	52.185793	-1709.068	151.1888188
2	-119.9719	1192.7583	213.5228981	0.99999
3	127.00578	-712.2842	213.9228973
4	-49.20176	6.0767626	385.3963235

T/K		T/K	ρ/( g/cm³)	T/K	ρ/( g/cm³)	T/K	ρ/( g/cm³)	T/K
w=60%		w=65%		w=75%		w=75%		w=80%
299.25	1.1362	298.75	1.121	298.75	1.1064	298.65	1.093	298.65	1.0794
304.25	1.1306	303.95	1.116	303.85	1.1012	304.05	1.088	303.95	1.0752
309.25	1.125	309.15	1.1104	308.95	1.0956	308.85	1.0836	309.45	1.0698
314.95	1.1186	314.15	1.1044	313.75	1.091	314.35	1.078	314.65	1.0648
318.75	1.1142	318.95	1.099	319.05	1.085	319.05	1.0726	318.95	1.0598
323.45	1.109	324.35	1.0926	323.65	1.0806	324.65	1.0672	323.95	1.0544
329.95	1.1004	329.75	1.0862	329.95	1.0738	329.15	1.062	329.75	1.0484
334.75	1.0946	334.35	1.0806	334.95	1.068	334.75	1.0564	334.45	1.0436
