双面组合槽型干气密封性能分析与结构优化

doi:10.11949/0438-1157.20251209

摘要/Abstract

摘要：

动环单面开设动压槽是干气密封领域长期沿用的行业惯例与主流技术逻辑，然而该传统结构在密封稳定性、泄漏控制及承载能力的协同提升方面存在固有局限。本文创新性地提出一种双面组合槽型干气密封，通过动环与静环两侧端面槽型的协同设计突破传统单面开槽性能瓶颈，实现密封综合性能的跃升。采用计算流体力学方法全面构建各类双面组合槽型方案并进行流场数值模型，运用正交试验优化槽深、槽宽与螺旋角等关键参数。结果表明：与单面开槽相比双面槽型可使气膜承载能力提升7.28%~23.01%，泄漏率降低22.11%~73.68%，且在变工况下表现出更高的稳定性；综合主轴转向、螺旋线旋向与槽型集聚效应的匹配关系，最优方案为动环外径侧槽与静环外径侧槽的复合布置形式。此外，研究还明确了双面槽型间的动压耦合机制，发现内外槽区压力梯度差导致的动压耦合形成“二次增压效应”是性能提升的关键。研究成果不仅丰富了干气密封的结构设计理论，更为高参数工况下干气密封的工程应用提供重要的技术支撑与理论依据。

关键词: 干气密封, 双面开槽, 数值模拟, 机械性能, 优化设计

Abstract:

The single-sided arrangement of dynamic pressure grooves on the dynamic ring has long been the standard design paradigm in dry gas seals, yet this traditional configuration faces inherent limitations in simultaneously enhancing sealing stability, leakage control, and load-carrying capacity. To address these issues, this study proposes a novel double-sided combined-groove dry gas seal, in which coordinated groove layouts on both the dynamic and static rings overcome the performance ceiling of single-sided grooving. A series of double-sided groove configurations were established using CFD, and key geometric parameters-including groove depth, groove width, and helix angle-were optimized through orthogonal experiments. The results demonstrate that the double-sided design improves gas-film load capacity by 7.28%-23.01%, reduces leakage by 22.11%-73.68%, and maintains superior stability under variable operating conditions. Considering the interplay among shaft rotation direction, helix direction, and groove-induced aggregation, the configuration with outer-diameter grooves on both the dynamic and static rings is identified as optimal. Moreover, the study clarifies the dynamic-pressure coupling mechanism between inner and outer groove regions and reveals a "secondary pressurization effect" as a key factor behind the performance enhancement. These findings enrich the design theory of dry gas seal structures and provide solid technical support for high-parameter engineering applications.

Key words: Dry gas seal, Double sided grooving, Numerical simulation, Mechanical properties, Optimal design

中图分类号:

TB42

王衍, 王昱彤, 陈妙妙, 何一鸣, 刘威, 丁德骏, 马晨波, 张车宁. 双面组合槽型干气密封性能分析与结构优化[J]. 化工学报, DOI: 10.11949/0438-1157.20251209.

Yan WANG, Yutong WANG, Mioamiao CHEN, Yiming HE, Wei LIU, Dejun DING, Chenbo MA, Chening ZHANG. Performance analysis and structural optimization of double-sided spiral groove-type dry gas seal[J]. CIESC Journal, DOI: 10.11949/0438-1157.20251209.

图/表 20

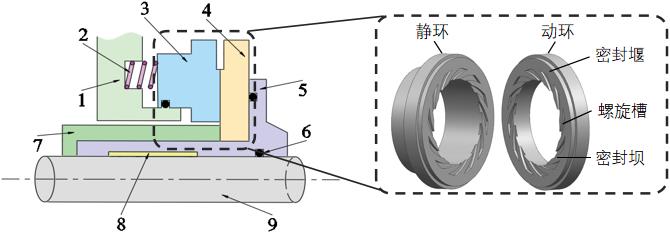

图1 DS-DGS结构示意图注:1-弹簧座 2-弹簧 3-静环 4-动环 5-轴套 6-O型圈 7-锁紧套 8-键 9-转轴

Fig.1 Schematic diagram of DS-DGS structure

图2 单一密封环开槽方式

Fig.2 The dynamic and environmental slotting method that conforms to the agglomeration effect

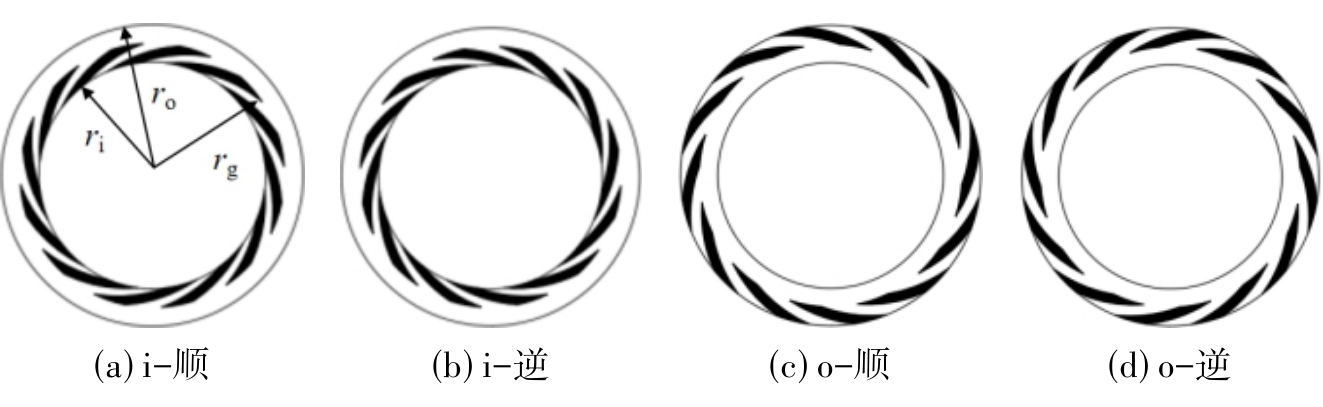

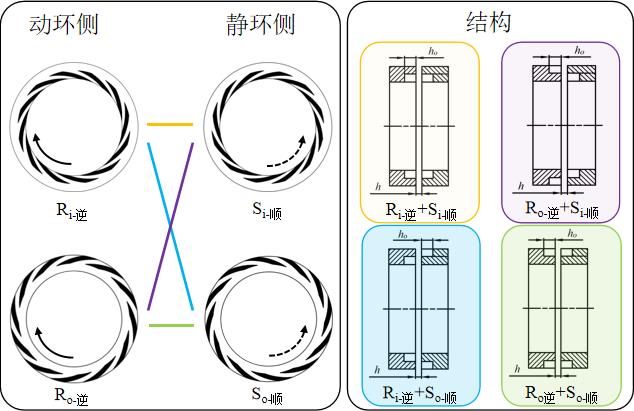

图3 动、静环双面开槽有效组合方式

Fig.3 Effective combination method of double-sided grooves on the dynamic and static rings

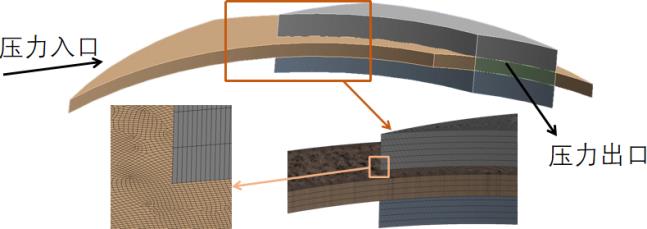

图4 网格划分

Fig.4 Mesh generation

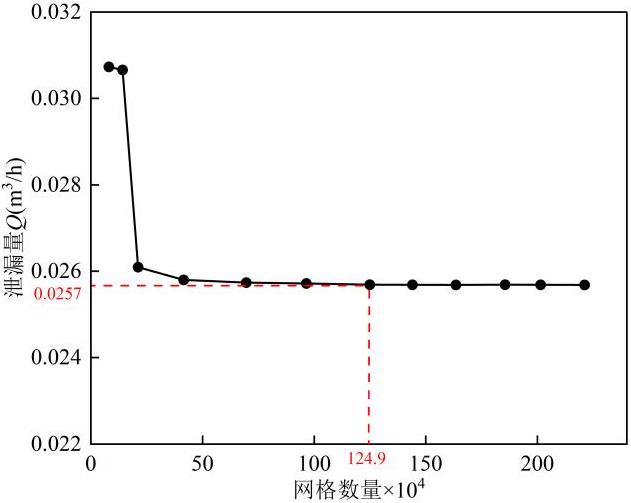

图5 网格数量对泄漏量的影响

Fig.5 The influence of grid quantity on leakage volume

表1 仿真数据对比表

Table 1 Simulation data comparison table

槽深 h_g/μm	开启力 F/ kN			误差值
槽深 h_g/μm	文献26	文献27	计算值	误差1	误差2
2.03	35.67	35.17	33.46	6.20%	4.86%
3.05	31.62	31.50	29.30	7.34%	6.98%
5.08	29.35	29.37	27.96	4.74%	4.80%

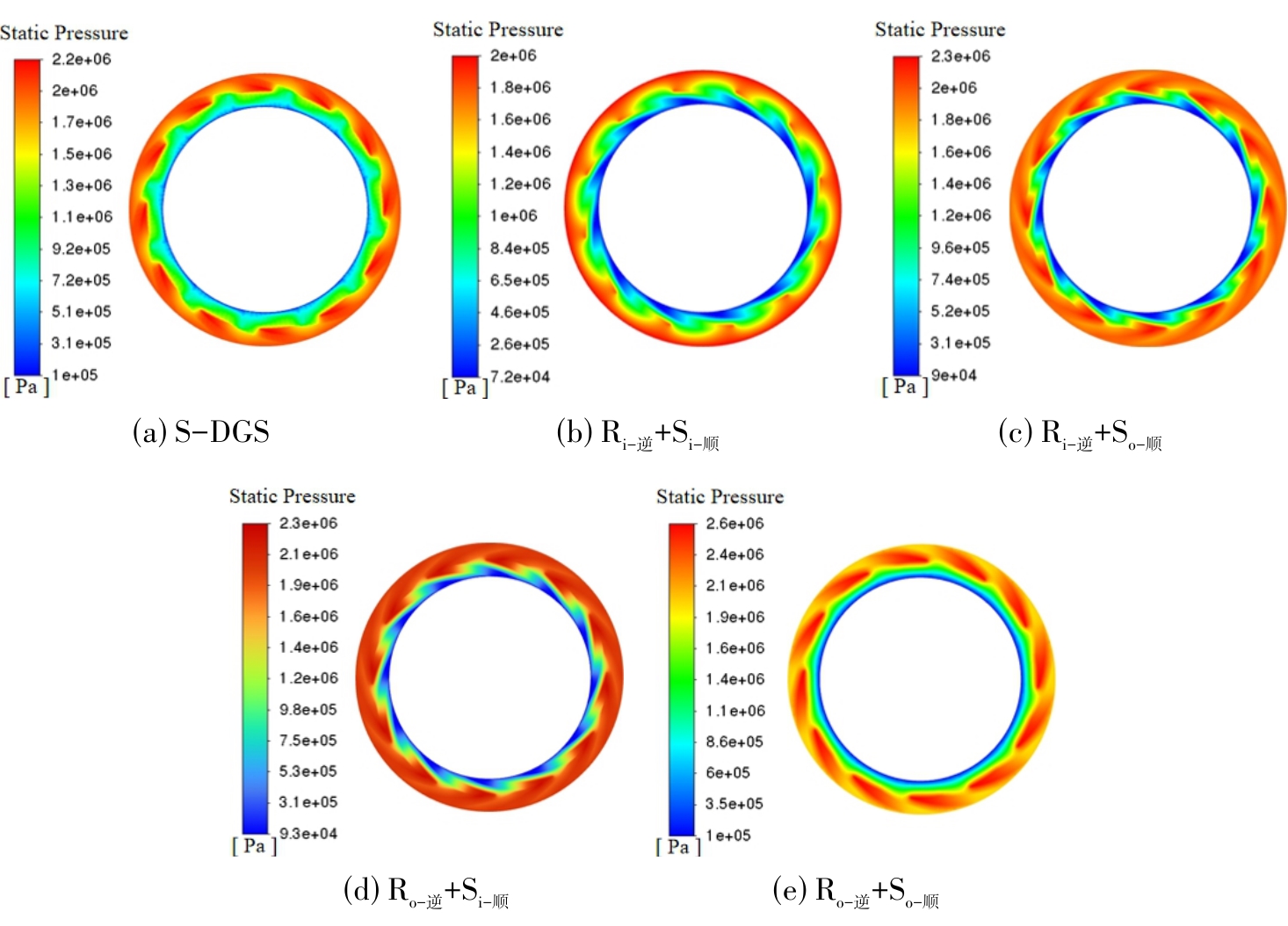

图6 S-DGS与四类DS-DGS压力云图对比（∆P=2 MPa N=20000 rpm）

Fig.6 Comparison of S-DGS with four types of DS-DGS pressure charts

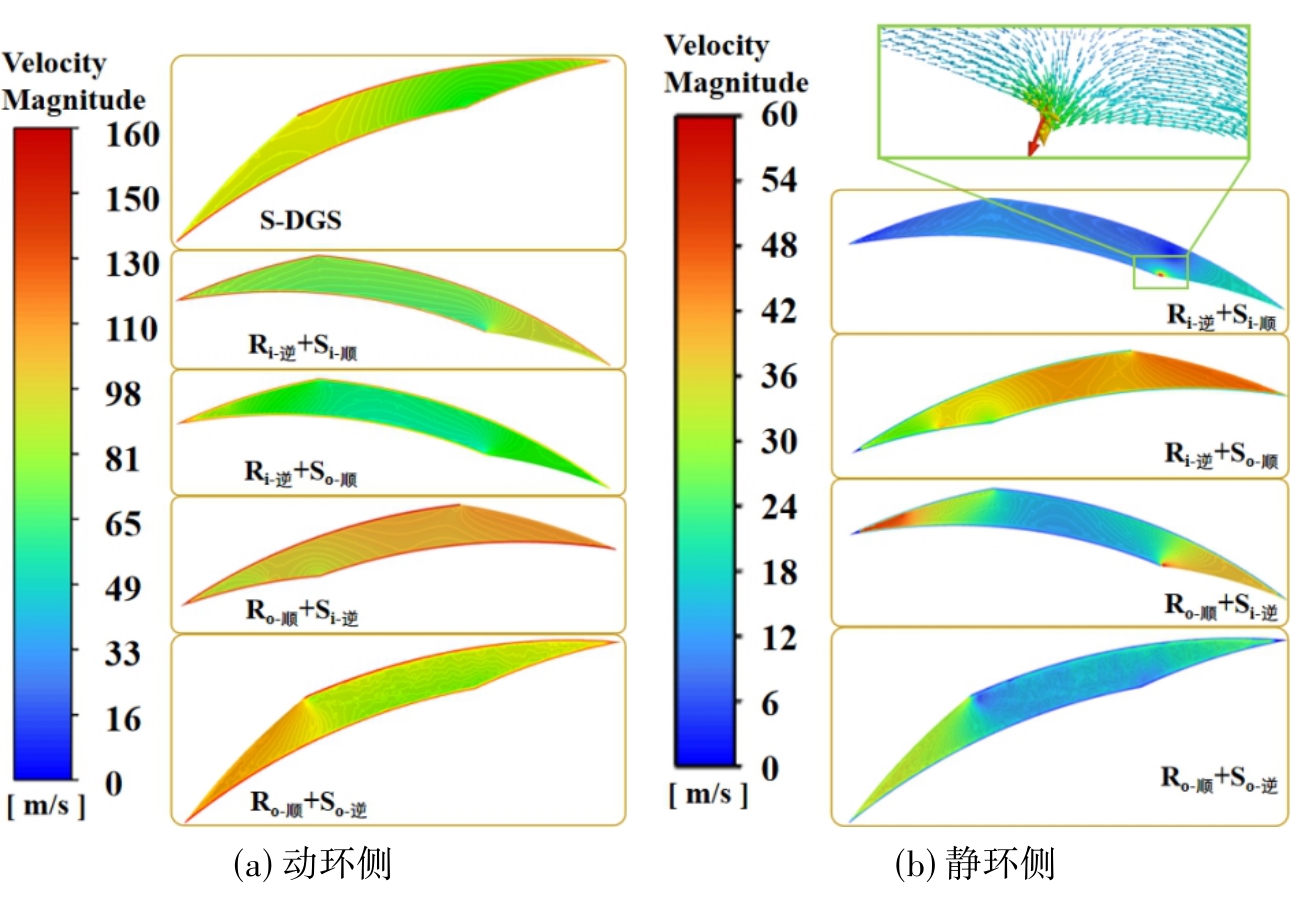

图7 S-DGS与四类DS-DGS速度云图对比（∆P=2 MPa N=20000 rpm）

Fig.7 Comparison of S-DGS with four types of DS-DGS velocity cloud charts

表2 密封性能对比

Table 2 Sealing performance comparison

槽型	F/ kN	提高率	Q/ (m³/h)	抑制率
S-DGS	11.95	-	0.095	-
R_i-逆+S_i-顺	9.72	-18.67%	0.025	73.68%
R_i-逆+S_o-顺	12.82	7.28%	0.072	24.21%
R_o-逆+S_i-顺	12.82	7.28%	0.074	22.11%
R_o-逆+S_o-顺	14.67	23.01%	0.061	35.79%

表3 计算中的相关参数

Table 3 The relevant parameters in the calculation

Parameters
静环外半径r_o/mm	77.78
静环内半径r_i/mm	58.42
槽坝比β	0.5
槽宽比δ	1
槽深h_g/μm	1-9 (5)
膜厚h/μm	1-7 (3)
介质	空气
压差∆P/MPa	0.1-4 (2)
出口压力P/MPa	0.1013
转速N/rpm	3000-40000 (20000)
槽数N_g	12
螺旋角α/°	15 (5-25)

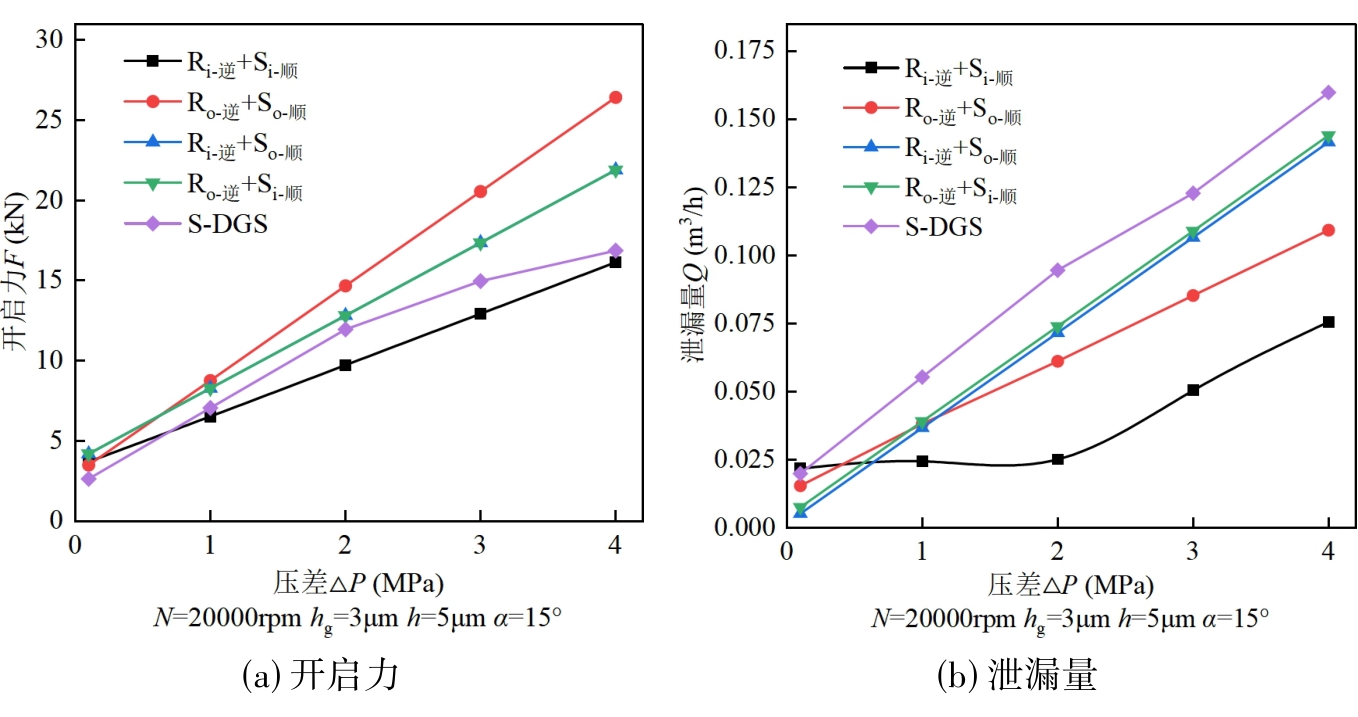

图9 压差对密封性能的影响

Fig.9 The influence of inlet pressure on sealing performance

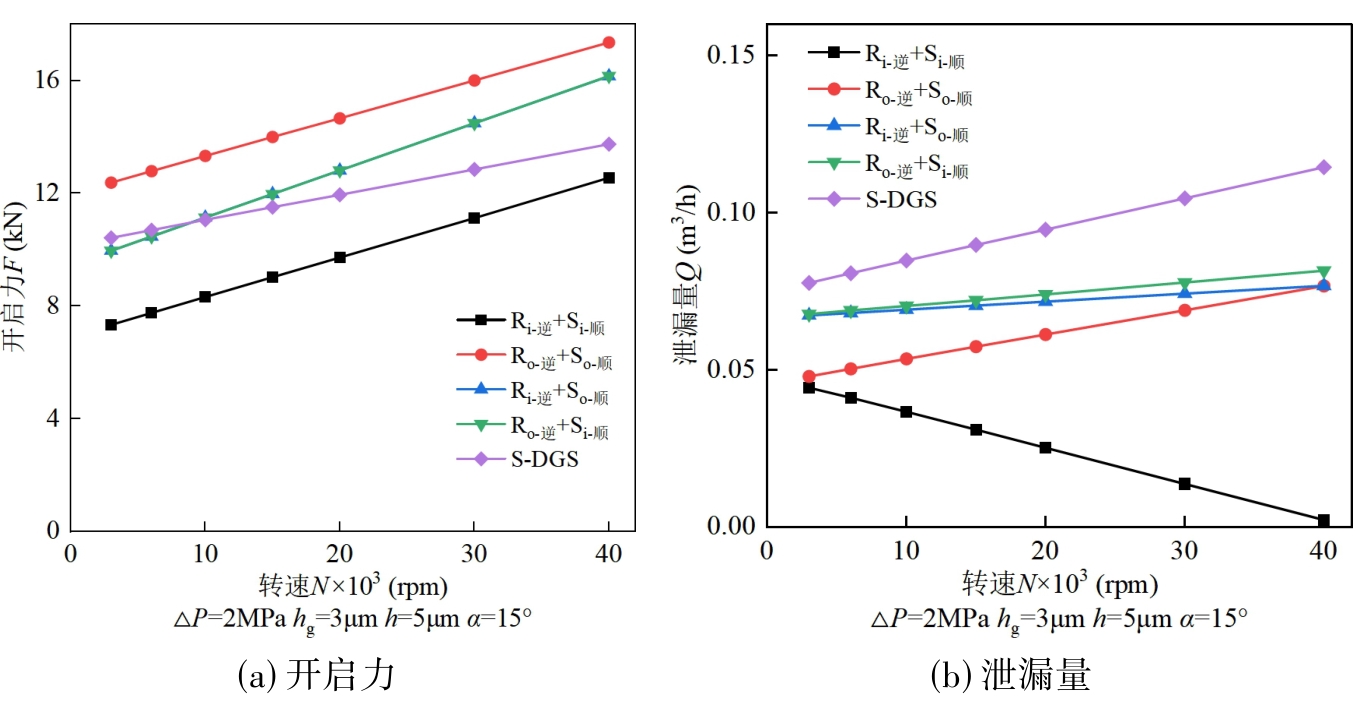

图10 转速对密封性能的影响

Fig.10 The influence of rotational speed on sealing performance

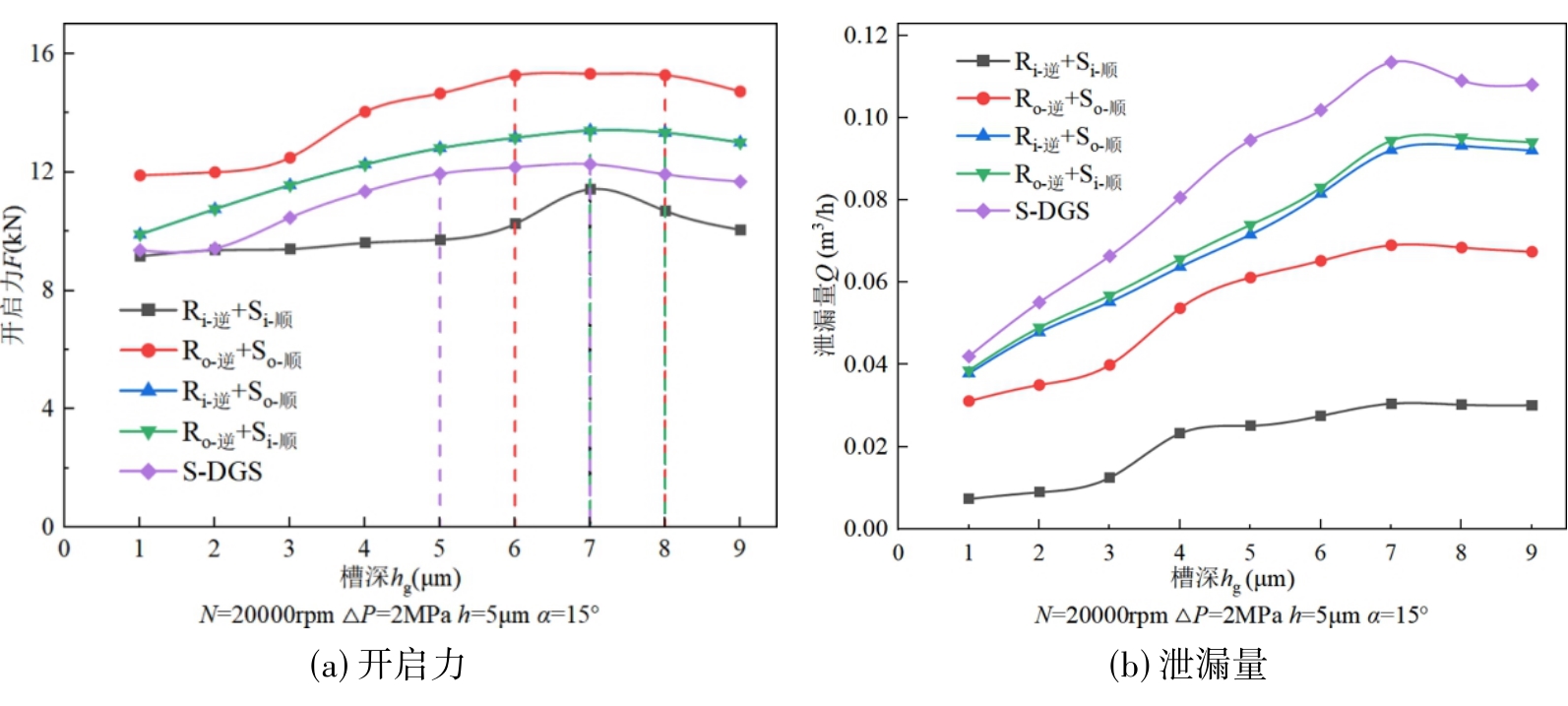

图11 槽深对密封性能的影响

Fig.11 The influence of slot depth on sealing performance

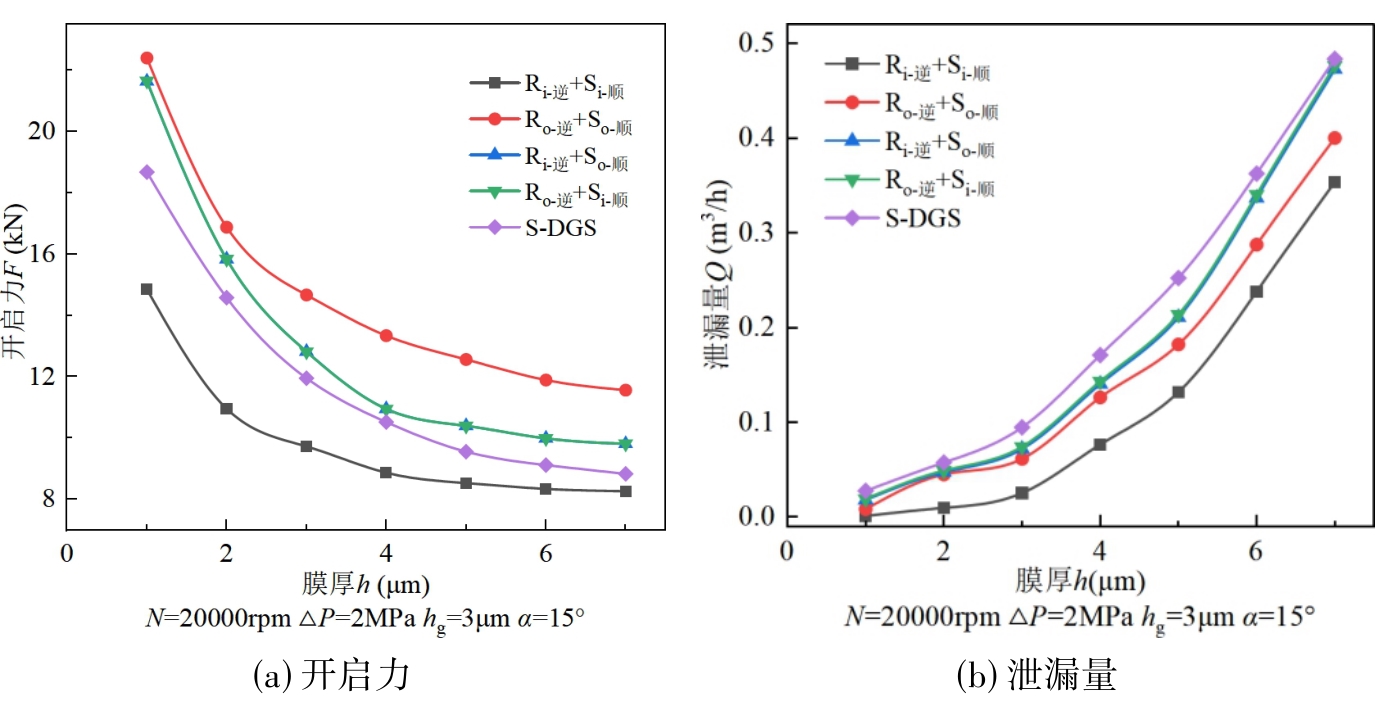

图12 膜厚对密封性能的影响

Fig 12 The influence of film thickness on sealing performance

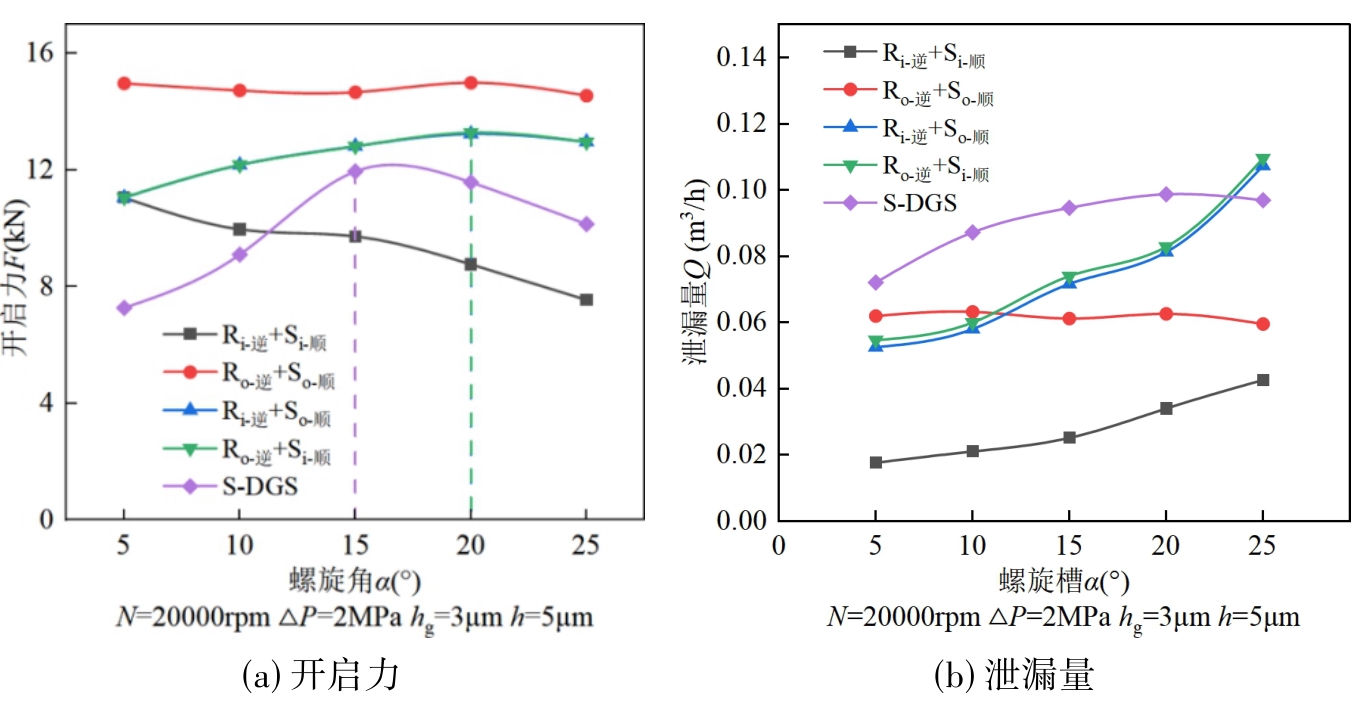

图13 螺旋角对密封性能的影响

Fig.13 The influence of helix angle on sealing performance

表4 正交试验因素水平表

Table 4 Orthogonal experiment factor level table

因素	A	B	C	D	E
参数	∆P /MPa	N×10³ /rpm	h_g /μm	h /μm	α /°
水平1	0.1	3	1	1	5
水平2	1	10	2	2	10
水平3	2	20	3	3	15
水平4	3	30	5	5	20
水平5	4	40	7	7	25

表5 正交试验方案及结果

Table 5 Orthogonal experiment design and results

试验序列	试验方案					计算结果
试验序列	∆P /MPa	N×10³ /rpm	h_g /μm	h /μm	α /(°)	F /kN	Q (m³/h)
1	0.1	3	1	1	5	1.304	0.009
2	0.1	10	2	2	10	1.479	0.008
3	0.1	20	3	3	15	4.186	0.043
4	0.1	30	5	5	20	2.560	0.039
5	0.1	40	7	7	25	2.097	0.067
6	1	3	2	3	20	5.727	0.030
7	1	10	3	5	25	6.303	0.072
8	1	20	5	7	5	4.357	0.562
9	1	30	7	1	10	16.433	0.051
10	1	40	1	2	15	8.400	0.022
11	2	3	3	7	10	10.599	0.314
12	2	10	5	1	15	15.915	0.022
13	2	20	7	2	20	15.807	0.427
14	2	30	1	3	25	13.297	0.221
15	2	40	2	5	5	8.435	0.480
16	3	3	5	2	25	22.294	0.032
17	3	10	7	3	5	11.461	0.289
18	3	20	1	5	10	12.714	0.586
19	3	30	2	7	15	15.757	0.480
20	3	40	3	1	20	39.735	0.032
21	4	3	7	5	15	23.621	0.289
22	4	10	1	7	20	19.869	0.586
23	4	20	2	1	25	22.022	0.082
24	4	30	3	2	5	27.076	0.328
25	4	40	5	3	10	46.138	0.112

表6 开启力极差分析结果

Table 6 Analysis results of extremely poor opening force

参数	压差A	转速B	槽深C	膜厚D	螺旋角E
k₁	1.906	12.709	11.117	19.082	10.474
k₂	6.564	11.005	10.684	15.011	17.478
k₃	12.811	11.817	17.580	16.162	13.576
k₄	20.392	15.025	18.283	10.727	16.740
k₅	27.745	20.961	13.884	10.536	13.203
R	25.839	9.956	7.599	8.546	7.004

表7 泄漏量极差分析结果

Table 7 Analysis results of extremely poor leakage rate

参数	压差A	转速B	槽深C	膜厚D	螺旋角E
k₁	0.033	0.135	0.176	0.040	0.341
k₂	0.147	0.195	0.197	0.081	0.344
k₃	0.293	0.185	0.153	0.331	0.171
k₄	0.284	0.193	0.154	0.410	0.147
k₅	0.279	0.338	0.186	0.418	0.072
R	0.260	0.203	0.044	0.378	0.272

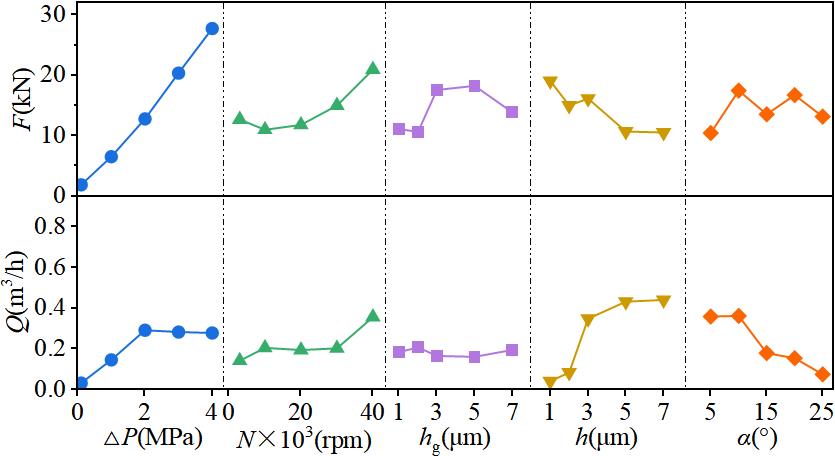

图14 正交试验各类影响因子对密封性能的极差分析结果

Fig.14 The influence of the impact factor on the sealing performance of the opening force
