Intelligent optimization and deformation analysis of novel flexible dam foil face gas seal

doi:10.11949/0438-1157.20240748

Abstract

Abstract:

A novel foil face gas seal structure with flexible seal dam is proposed. Based on the theories of gas lubrication and elastic mechanics, a theoretical model of aeroelastic coupling lubrication for the new flexible seal dam gas film seal is established. The pressure and deformation distribution of the gas film on the sealing end-face are analyzed to explore the sealing operation mechanism. The influence of working conditions and end-face structural parameters on the sealing performance is studied. The Latin hypercube sampling method is used to randomly sample key influencing factors, and an optimization model based on the MLP neural network and genetic algorithm is constructed to obtain the parameter optimization range that satisfies the objective function. The results show that the new flexible seal dam gas film seal can further improve adaptive operation capability through the deformation coordination of the sealing dam. The gap between the fan-shaped flat foil of the flexible sealing dam will increase the leakage of the seal, but the fluid dynamic pressure effect formed by the gap is conducive to the opening of the end surface. The MLP neural network-genetic algorithm optimization model can accurately predict sealing performance and effectively improve optimization accuracy and efficiency under multi-parameter and multi-objective conditions.

Key words: flexible seal dam, compliant foil face gas seal, deformation coordination, mechanical properties, optimal design, numerical analysis

摘要：

提出了一种具有柔性密封坝的新型箔片端面气膜密封结构，基于气体润滑和弹性力学相关理论建立新型柔性坝箔片端面气膜密封气弹耦合润滑理论模型，分析密封端面气膜压力和变形分布规律，探究密封运行机理，研究工况参数、端面结构参数对密封性能的影响，采用拉丁超立方抽样法对关键影响因子随机取样，构建MLP神经网络-遗传算法优化模型，获得了满足目标函数的参数优化范围。结果表明：新型柔性坝箔片端面气膜密封可通过密封坝的变形协调作用进一步提高自适应运行能力；柔性密封坝各扇形平箔片之间间隙会使密封泄漏有一定增大，但因间隙形成的流体动压效应有利于密封端面开启；MLP神经网络-遗传算法优化模型可以准确预测密封性能并有效提高多参数多目标条件下的优化精度和效率。

关键词: 柔性密封坝, 箔片端面气膜密封, 变形协调, 力学性能, 优化设计, 数值分析

CLC Number:

TB 42

Yushi LI, Yuan CHEN, Yuntang LI, Xudong PENG, Bingqing WANG, Xiaolu LI. Intelligent optimization and deformation analysis of novel flexible dam foil face gas seal[J]. CIESC Journal, 2025, 76(1): 324-334.

李雨诗, 陈源, 李运堂, 彭旭东, 王冰清, 李孝禄. 新型柔性坝箔片端面气膜密封变形协调分析及性能智能优化[J]. 化工学报, 2025, 76(1): 324-334.

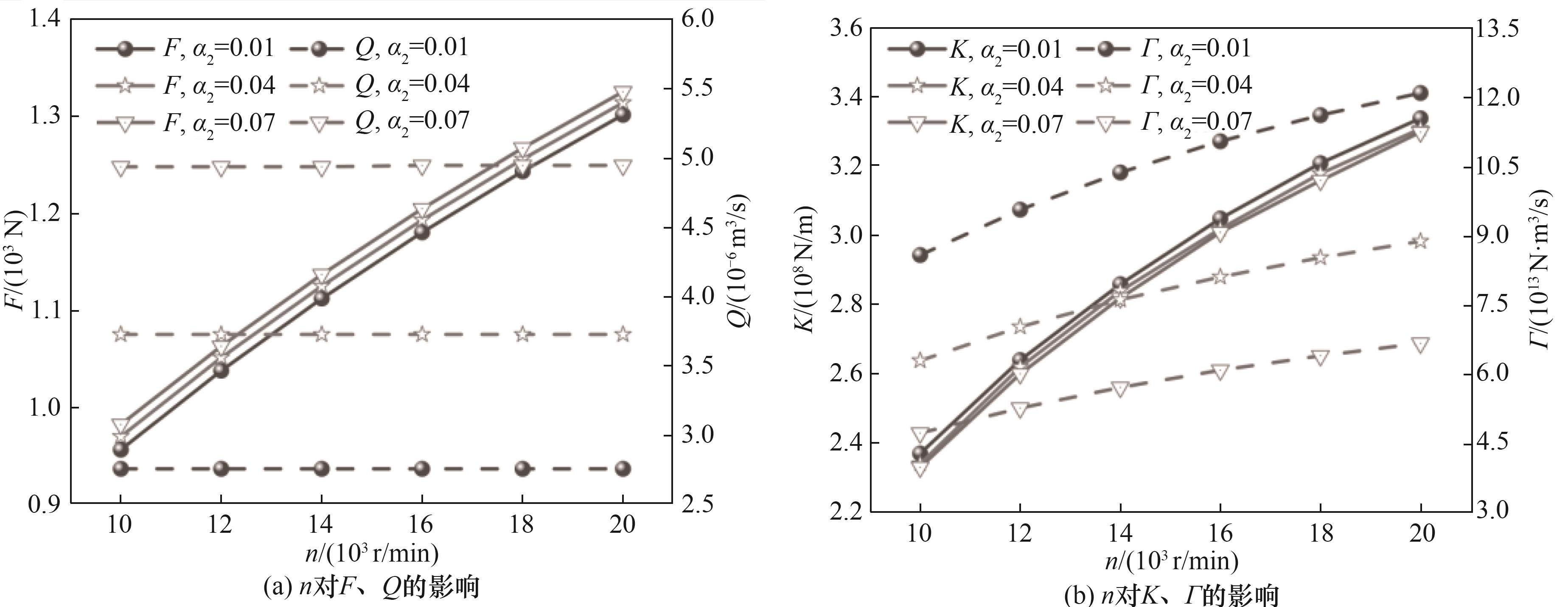

Figures/Tables 13

References 30

1	Gabriel R P. Fundamentals of spiral groove noncontacting face seals[J]. Lubrication Engineering, 1994, 50(3): 215-224.
2	Gruenewald M, Wagner W. Recent progress in compressor sealing[J]. Sealing Technology, 2005 (8): 6-8.
3	彭旭东, 黄莉, 白少先, 等. 雁型槽干式气体端面密封性能的数值分析[J]. 化工学报, 2010, 61(12): 3193-3199.
	Peng X D, Huang L, Bai S X, et al. Numerical analysis of sealing performance of dry gas seal with goose-grooves[J]. CIESC Journal, 2010, 61(12): 3193-3199.
4	蒋小文, 顾伯勤. 螺旋槽干气密封端面间气膜特性[J]. 化工学报, 2005, 56(8): 1419-1425.
	Jiang X W, Gu B Q. Characteristic of gas film between spiral groove dry gas seal faces[J]. Journal of Chemical Industry and Engineering(China), 2005, 56(8): 1419-1425.
5	陈源, 江锦波, 彭旭东, 等. 干气密封力学系统动态性能及其影响因素间的交互作用分析[J]. 摩擦学学报, 2019, 39(3): 269-278.
	Chen Y, Jiang J B, Peng X D, et al. Dynamic performance of dry gas seals and analysis of interactions among its influencing factors[J]. Tribology, 2019, 39(3): 269-278.
6	于辰, 江锦波, 赵文静, 等. 基于微段组合的干气密封端面型槽结构模型及其参数影响[J]. 化工学报, 2021, 72(10): 5294-5309.
	Yu C, Jiang J B, Zhao W J, et al. Geometrical model of surface groove based on micro-segment combination for dry gas seal and its parameter influence[J]. CIESC Journal, 2021, 72(10): 5294-5309.
7	王衍, 孙见君, 陶凯, 等. T型槽干气密封数值分析及槽型优化[J]. 摩擦学学报, 2014, 34(4): 420-427.
	Wang Y, Sun J J, Tao K, et al. Numerical analysis of T-groove dry gas seal and groove optimization[J]. Tribology, 2014, 34(4): 420-427.
8	陈文奇, 李志强, 吴云柯, 等. 双螺旋角槽干气密封的槽型优化设计[J]. 润滑与密封, 2018, 43(7): 23-30.
	Chen W Q, Li Z Q, Wu Y K, et al. Optimization design of groove of double spiral angle groove dry gas seal[J]. Lubrication Engineering, 2018, 43(7): 23-30.
9	彭旭东, 江锦波, 白少先, 等. 中低压干气密封螺旋槽结构参数优化[J]. 化工学报, 2014, 65(11): 4536-4542.
	Peng X D, Jiang J B, Bai S X, et al. Structural parameter optimization of spiral groove dry gas seal under low or medium pressure[J]. CIESC Journal, 2014, 65(11): 4536-4542.
10	徐奇超, 江锦波, 彭旭东, 等. 基于遗传算法的干气密封双向槽统一模型与参数优化[J]. 化工学报, 2019, 70(3): 995-1005.
	Xu Q C, Jiang J B, Peng X D, et al. Unified model and geometrical optimization of bi-directional groove of dry gas seal based on genetic algorithm[J]. CIESC Journal, 2019, 70(3): 995-1005.
11	Chen Y, Zhuo Z Y, Li Y T, et al. Prediction of spiral groove dry gas seal performance and intelligent optimization of structural parameters[J]. Tribology International, 2024, 193: 109439.
12	Ruan B. A semi-analytical solution to the dynamic tracking of non-contacting gas face seals[J]. Journal of Tribology, 2002, 124(1): 196-202.
13	Ding X X, Chen D L, Zhang W Z, et al. Experiment of frictional vibration performance of the micro-texture of DLC thin film with dry gas seal rings[J]. Tribology International, 2020, 147: 106267.
14	陈志, 李建明, 谭清德, 等. 28AT型干气密封的故障原因分析及系统技术改进[J]. 流体机械, 2007, 35(1): 41-45.
	Chen Z, Li J M, Tan Q D, et al. Analysis on the failure reasons of 28AT dry-gas seal and improvement of seal system[J]. Fluid Machinery, 2007, 35(1): 41-45.
15	Heshmat H. Compliant foil seal: US6505837[P]. 2003-01-14.
16	Agrawal G L, Patel K H, Munson J H. Hydrodynamic foil face seal: US7261300[P]. 2007-08-28.
17	Munson J, Grant D, Agrawal G. Foil face seal development[C]//37th Joint Propulsion Conference and Exhibit. AIAA, 2001: AIAA2001-3483.
18	Munson J, Grant D, Agrawal G. Foil film riding face seal proof-of-concept testing[C]//38th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. AIAA, 2002: AIAA2002-3791.
19	Heshmat H, Walton J. Innovative high-temperature compliant surface foil face seal development[C]//44th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit. AIAA, 2008: AIAA2008-4505.
20	Heshmat H, Ren Z H, Hunsberger A, et al. The emergence of compliant foil bearing and seal technologies in support of 21st century compressors and turbine engines[C]//ASME 2010 International Mechanical Engineering Congress and Exposition. Vancouver, British Columbia, Canada, 2012: 95-103.
21	王庆港, 陈源, 彭旭东, 等. 三自由度微扰下箔片端面气膜密封动态特性分析[J]. 中国机械工程, 2022, 33(15): 1828-1840.
	Wang Q G, Chen Y, Peng X D, et al. Analysis on dynamic characteristics of compliant foil face gas seals with three degrees of freedom perturbation[J]. China Mechanical Engineering, 2022, 33(15): 1828-1840.
22	徐洁, 俞树荣, 严如奇, 等. 柔性端面气膜密封流场分析及密封特性研究[J]. 中国机械工程, 2022, 33(6): 656-663.
	Xu J, Yu S R, Yan R Q, et al. Flow field analysis and sealing characteristics research of flexible end face gas film seals[J]. China Mechanical Engineering, 2022, 33(6): 656-663.
23	徐洁, 俞树荣, 丁雪兴, 等. 基于波箔片变形的浮动式箔片气膜密封性能分析[J]. 化工学报, 2022, 73(5): 2083-2093.
	Xu J, Yu S R, Ding X X, et al. Analysis of floating foil gas seal performance based on bump foil deformation[J]. CIESC Journal, 2022, 73(5): 2083-2093.
24	陈源, 熊聪, 彭旭东, 等. 不同箔坝位置关系下浮动坝箔片端面气膜密封性能研究[J]. 摩擦学学报, 2023, 43(5): 481-491.
	Chen Y, Xiong C, Peng X D, et al. Performance of floating seal dam compliant foil face gas seal under different foil-dam positions[J]. Tribology, 2023, 43(5): 481-491.
25	Wang X L, Liu M H, Kao-Walter S, et al. Numerical evaluation of rotordynamic coefficients for compliant foil gas seal[J]. Applied Sciences, 2020, 10(11): 3828.
26	Chen Y, Chen K, Peng X D, et al. Research on the operation mechanism and performance of bump-type compliant foil face gas seal[J]. Journal of the Brazilian Society of Mechanical Sciences and Engineering, 2022, 44(8): 325.
27	Chen Y, Chen K, Peng X D, et al. Transient elasto-aerodynamically coupling behavior and performance analysis of bump-type compliant foil face gas seal at ultra-high speeds[J]. Journal of the Brazilian Society of Mechanical Sciences and Engineering, 2023, 45(7): 369.
28	Chen Y, Wang Q G, Peng X D, et al. Flow field and sealing performance analysis of compliant foil face gas seal[J]. Advances in Mechanical Engineering, 2022, 14(6): 1-16.
29	Chen Y, Wang Q G, Li Y T, et al. Study on sealing characteristics of compliant foil face gas seal under typical hypervelocity gas effects[J]. Lubricants, 2023, 11(2): 46.
30	Ruan B. Finite element analysis of the spiral groove gas face seal at the slow speed and the low pressure conditions—slip flow consideration[J]. Tribology Transactions, 2000, 43(3): 411-418.

参数	数值	参数	数值
密封端面内径r_i/mm	58.42	平箔面初始膜厚h_a/µm	3
密封端面外径r_o/mm	77.78	楔形高度h_d/µm	15
箔坝比γ	1	密封区箔片间隙深度h_t/µm	5
密封环内径侧大气压力p_i/MPa	0.1	动压区箔片数N₁	8
密封环外径侧介质压力p_o/MPa	0.3	密封区箔片数N₂	8
转速n/(r/min)	14000	动压区箔片端面柔度系数α₁	0.1
波箔片泊松比v_b	0.3	密封区箔片端面柔度系数α₂	0.01
波箔片波纹间距s/mm	0.42	波箔片弹性模量E_b/GPa	214
波箔片厚度t_b/mm	0.15	波箔片波纹半宽l/mm	1.778
气体黏度μ/(mPa·s)	0.0185	动压区间隙占比c₁	0.05
节距比b	0.25	密封区间隙占比c₂	0.05

参数	数值	参数	数值
密封端面内径r_i/mm	58.42	平箔面初始膜厚h_a/µm	3
密封端面外径r_o/mm	77.78	楔形高度h_d/µm	15
箔坝比γ	1	密封区箔片间隙深度h_t/µm	5
密封环内径侧大气压力p_i/MPa	0.1	动压区箔片数N₁	8
密封环外径侧介质压力p_o/MPa	0.3	密封区箔片数N₂	8
转速n/(r/min)	14000	动压区箔片端面柔度系数α₁	0.1
波箔片泊松比v_b	0.3	密封区箔片端面柔度系数α₂	0.01
波箔片波纹间距s/mm	0.42	波箔片弹性模量E_b/GPa	214
波箔片厚度t_b/mm	0.15	波箔片波纹半宽l/mm	1.778
气体黏度μ/(mPa·s)	0.0185	动压区间隙占比c₁	0.05
节距比b	0.25	密封区间隙占比c₂	0.05

结构参数	最小值	最大值
动压区柔度系数α₁	0.1	0.3
密封区柔度系数α₂	0.01	0.1
箔坝比γ	1	3

结构参数	最小值	最大值
动压区柔度系数α₁	0.1	0.3
密封区柔度系数α₂	0.01	0.1
箔坝比γ	1	3

优化方案	权重	动压区柔度系数α₁	密封区柔度系数α₂	箔坝比γ
方案一	w₁=w₂=w₃=w₄=1	0.1045	0.0303	1.6157
方案二	w₁=3，w₂=w₃=w₄=0	0.1021	0.0756	2.6772
方案三	w₂=3，w₁=w₃=w₄=0	0.1018	0.0201	2.8231
方案四	w₃=3，w₁=w₂=w₄=0	0.1853	0.0112	1.0736
方案五	w₄=3，w₁=w₂=w₃=0	0.1032	0.0184	1.0244
