Performance simulation model and validation of printed circuit natural gas cooler

doi:10.11949/0438-1157.20241370

Abstract

Abstract:

Based on the printed circuit heat exchanger (PCHE), a three-dimensional distributed parameter model was developed, utilizing a three-dimensional array to delineate the heat exchanger core and segment the control units. A method employing a vector matrix for flow path description was introduced. Correlations for heat transfer and pressure drop, pertinent to both the natural gas and water sides of PCHEs, were gathered and summarized from publicly accessible literature, subsequently applied to the simulation model. The governing equations for the model were formulated, alongside a swift iterative algorithm for solving the energy equation, leveraging the bisection method. A performance simulation of an aftercooler for a natural gas compressor on an offshore platform was conducted, yielding parameters such as heat load and flow path pressure drop within the heat exchanger. The model's accuracy was validated by comparing its results with on-site production data. The findings indicate that the simulation model calculates heat transfer with an average error of less than 5% and predicts an average pressure drop error of less than 10% on the natural gas side.

Key words: printed circuit heat exchanger, distributed parameter model, algorithm, computer simulation, experimental validation

摘要：

针对印刷电路板式换热器建立了三维分布参数模型，采用三维数组来描绘换热器芯体并划分控制单元，同时提出了一种基于向量矩阵的流路描述手段。将文献中提出的适用于印刷电路板式换热器天然气侧与水侧的换热及压降关联式应用于仿真模型中。建立了模型的控制方程，并开发了一种基于二分法的能量方程快速迭代算法。利用该算法，完成了某海上平台天然气压缩机后冷却器的性能仿真，成功获取了换热器的换热负荷、流路压降等关键参数。通过与现场生产数据的对比，验证了模型的计算精度。结果显示，基于该仿真模型计算的换热器平均换热误差低于5%，天然气侧的平均压降误差也小于10%。

关键词: 印刷电路板式换热器, 分布参数模型, 算法, 计算机模拟, 实验验证

CLC Number:

TK 172

Xiaoguang MI, Guogang SUN, Hao CHENG, Xiaohui ZHANG. Performance simulation model and validation of printed circuit natural gas cooler[J]. CIESC Journal, 2025, 76(S1): 426-434.

密晓光, 孙国刚, 程昊, 张晓慧. 印刷电路板式天然气冷却器性能仿真模型和验证[J]. 化工学报, 2025, 76(S1): 426-434.

Figures/Tables 11

Fig.1 Schematic diagram of PCHE

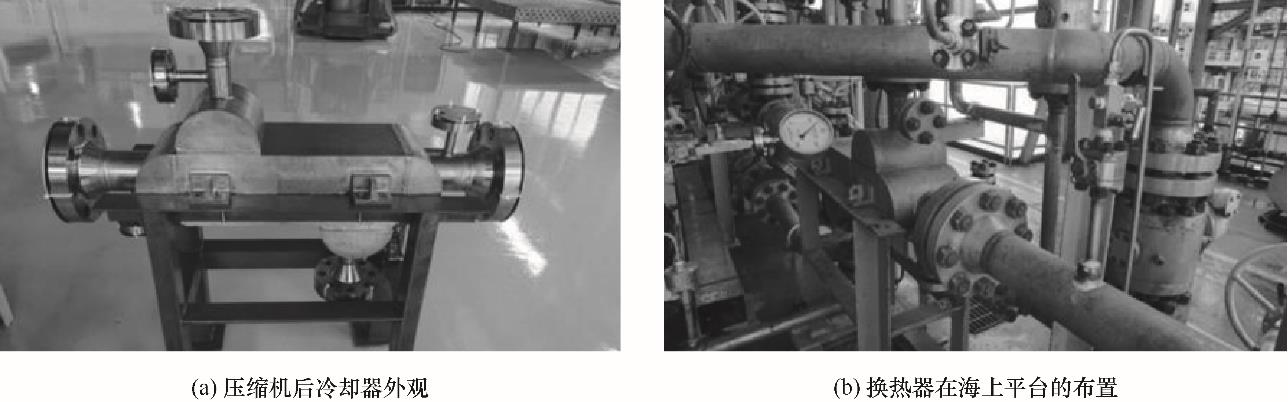

Fig.2 PCHE for an offshore platform

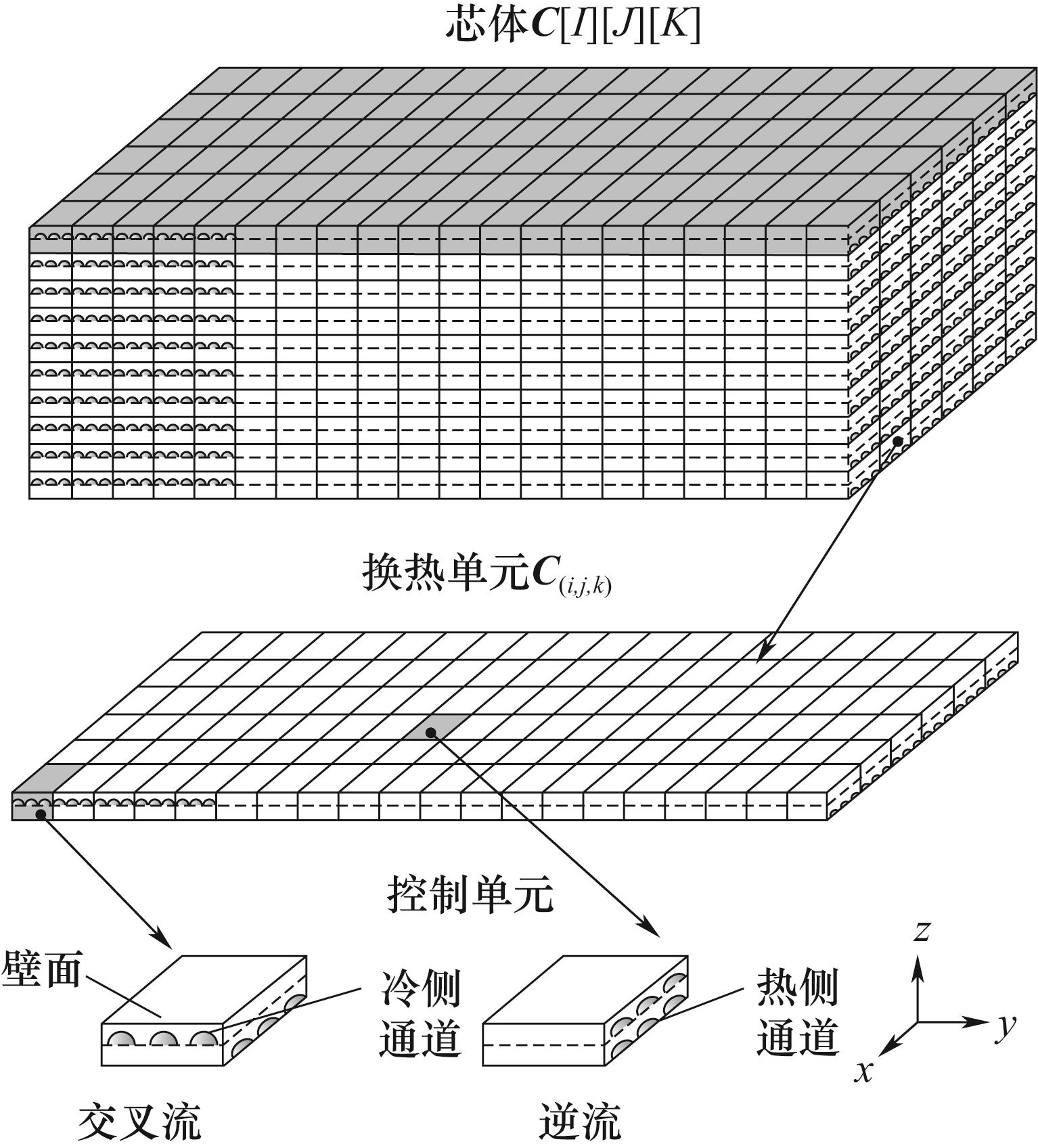

Fig.3 Control volume division of PCHE core structure

Table 1 Correlation equation for fluid flow and heat transfer

工质	关联式形式	适用范围	文献
天然气工质	$N u = (f / 8) (R e - 1000) P r 1 + 12.7 (f / 8) 1 / 2 (P r 2 / 3 - 1)$	2300＜Re＜5×10⁶ 0.5＜Pr＜2000	[29]
天然气工质	$f = 14 (0.79 l n R e - 1.64) - 2$	Re＞2300	[30]
海水工质	$N u = 4.089 + 0.00497 R e 0.95 P r 0.55$	0＜Re＜3000 0.66＜Pr＜1.41	[31]
海水工质	$f = 16 R e$	Re≤2300	[30]

Table 1 Correlation equation for fluid flow and heat transfer

工质	关联式形式	适用范围	文献
天然气工质	$N u = (f / 8) (R e - 1000) P r 1 + 12.7 (f / 8) 1 / 2 (P r 2 / 3 - 1)$	2300＜Re＜5×10⁶ 0.5＜Pr＜2000	[29]
天然气工质	$f = 14 (0.79 l n R e - 1.64) - 2$	Re＞2300	[30]
海水工质	$N u = 4.089 + 0.00497 R e 0.95 P r 0.55$	0＜Re＜3000 0.66＜Pr＜1.41	[31]
海水工质	$f = 16 R e$	Re≤2300	[30]

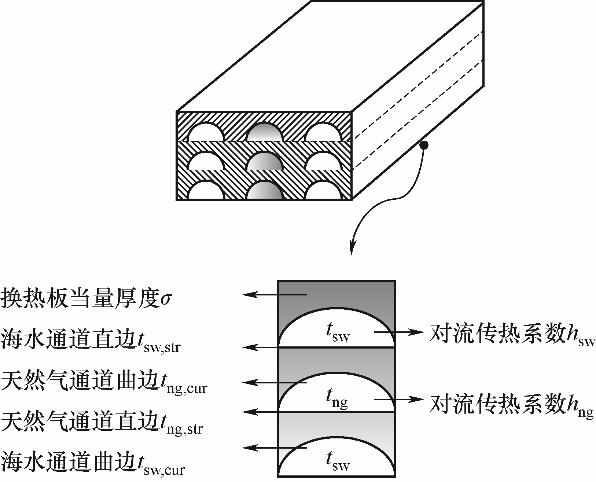

Fig.4 Calculation model of total heat transfer coefficient

Fig.5 Alternating algorithm flow chart of PCHE

Fig.6 Heat transfer calculation algorithm flow chart of control volume

Table 2 Structural parameters of natural gas cooler

项目	天然气侧	海水侧
板片规格	600 mm×180 mm×0.6 mm	600 mm×180 mm×0.6 mm
换热通道宽度	0.9 mm	0.9 mm
换热通道深度	0.8 mm	0.4 mm
换热通道间距	1.5 mm	1.5 mm
换热单元数	121个	121个
芯体换热面积	22.8 m²	19.3 m²

Table 3 Onsite data recording

工况编号	V_h,in/(Nm³/h)	V_c,in/(m³/h)	t_h,in/℃	t_h,out/℃	t_c,in/℃	t_c,out/℃	p_h,in/kPaG	∆p_h/kPa	p_c,in/kPaG	Q/kW
1	3677.0	2.5	54.2	21.00	18.7	41.1	4378.00	10.25	578.00	66.57
2	576.0	3.9	54.6	20.60	18.6	41.4	4396.00	15.00	579.00	106.83
3	6986.5	5.0	54.4	20.50	18.4	39.8	4399.00	17.83	557.00	129.10
4	8724.8	7.1	54.4	19.80	18.7	38.0	4418.00	22.00	575.00	164.60
5	10817.0	8.7	54.7	20.22	18.7	38.2	44.00	26.66	570.00	20.28
6	12579.0	9.8	54.9	20.40	18.6	38.8	4445.00	30.50	578.00	236.48

Table 4 Performance simulation results of PCHE

工况编号	V_h,in/(Nm³/h)	V_c,in/(m³/h)	t_h,in/℃	t_h,out/℃	t_c,in/℃	t_c,out/℃	p_h,in/kPaG	∆p_h/kPa	p_c,in/kPaG	∆p_c/kPa	Q/kW
1	3677.0	2.5	54.2	19.85	18.7	41.91	4378.00	11.23	578.00	3.44	68.99
2	576.0	3.9	54.6	20.09	18.6	41.79	4396.00	14.38	579.00	5.41	108.65
3	6986.5	5.0	54.4	19.83	18.4	40.28	4399.00	16.68	557.00	7.09	131.95
4	8724.8	7.1	54.4	19.94	18.7	37.97	4418.00	20.45	575.00	10.22	164.35
5	10817.0	8.7	54.7	20.21	18.7	38.27	44.00	25.86	570.00	1.43	20.93
6	12579.0	9.8	54.9	20.45	18.6	38.84	4445.00	31.11	578.00	1.85	236.12

Fig.7 Comparison between simulation results and production data

References 31

1	李迎凯. 基于热流固耦合的微型换热器设计方法研究[D]. 南昌: 南昌大学, 2015.
	Li Y K. The research on the design method of micro heat exchanger based on thermal fluid-structure interaction[D]. Nanchang: Nanchang University, 2015.
2	尤学刚, 刘新宇, 曾冬, 等. 国产印刷电路板式换热器的首次工业应用研究[J]. 石油机械, 2022, 50(2): 46-52.
	You X G, Liu X Y, Zeng D, et al. First industrial application research on domestic printed circuit heat exchanger[J]. China Petroleum Machinery, 2022, 50(2): 46-52.
3	Tsuzuki N, Kato Y, Ishiduka T. High performance printed circuit heat exchanger[J]. Applied Thermal Engineering, 2007, 27(10): 1702-1707.
4	Xu X Y, Wang Q W, Li L, et al. Thermal-hydraulic performance of different discontinuous fins used in a printed circuit heat exchanger for supercritical CO₂ [J]. Numerical Heat Transfer Part A - Applications, 2015, 68(10): 1067-1086.
5	Bartel N, Chen M, Utgikar V P, et al. Comparative analysis of compact heat exchangers for application as the intermediate heat exchanger for advanced nuclear reactors[J]. Annals of Nuclear Energy, 2015, 81: 143-149.
6	Khan H H, Aneesh A M, Sharma A, et al. Thermal-hydraulic characteristics and performance of 3D wavy channel based printed circuit heat exchanger[J]. Applied Thermal Engineering, 2015, 87: 519-528.
7	Ma T, Li L, Xu X Y, et al. Study on local thermal-hydraulic performance and optimization of zigzag-type printed circuit heat exchanger at high temperature[J]. Energy Conversion and Management, 2015, 104: 55-66.
8	Meshram A, Jaiswal A K, Khivsara S D, et al. Modeling and analysis of a printed circuit heat exchanger for supercritical CO₂ power cycle applications[J]. Applied Thermal Engineering, 2016, 109: 861-870.
9	Kim S G, Lee Y, Ahn Y, et al. CFD aided approach to design printed circuit heat exchangers for supercritical CO₂ Brayton cycle application[J]. Annals of Nuclear Energy, 2016, 92: 175-185.
10	Jeon S, Baik Y J, Byon C, et al. Thermal performance of heterogeneous PCHE for supercritical CO₂ energy cycle[J]. International Journal of Heat and Mass Transfer, 2016, 102: 867-876.
11	谢瑶, 李剑锐,胡海涛. 印刷电路板式换热器内超临界甲烷流动换热特性模拟[J]. 化工学报, 2021, 72(S1): 203-209.
	Xie Y, Li J R, Hu H T. Simulation of supercritical methane flow and heat transfer characteristics in printed circuit heat exchanger[J]. CIESC Journal, 2021, 72(S1): 203-209.
12	袭著望. 微通道内氢气流动与换热特性数值研究[D]. 吉林: 东北电力大学, 2023.
	Xi Z W. Numerical study of hydrogen flow and heat transfer characteristics in microchannels[D]. Jilin: Northeast Electric Power University, 2023.
13	余智强, 吴建泽, 任亚涛, 等. 印刷板式微通道换热器流动与传热特性的理论模型[J]. 化工学报, 2022, 73(12): 5324-534.
	Yu Z Q, Wu J Z, Ren Y T, et al. Calculation model of flow and heat transfer characteristics of printed microchannel heat exchanger[J]. CIESC Journal, 2022, 73(12): 5324-534.
14	纪宇轩. 超临界二氧化碳布雷顿循环印刷电路板式换热器特性的模拟与试验研究[D]. 杭州: 浙江大学, 2022.
	Ji Y X. Numerical and experimental research on characteristics of printed circuit board heat exchanger in supercritical carbon dioxide Brayton cycle[D]. Hangzhou: Zhejiang University, 2022.
15	李倩, 张蓉民, 林子杰, 等. 基于机器学习的印刷电路板式换热器流动换热预测与仿真[J]. 化工学报, 2024, 75(8): 2852-2864.
	Li Q, Zhang R M, Lin Z J, et al. Prediction and simulation of flow and heat transfer for printed circuit plate heat exchanger based on machine learning[J]. CIESC Journal, 2024, 75(8): 2852-2864.
16	Renaud L P, David S, Stephen O. Impact of mechanical design issues on printed circuit heat exchangers[C]//Proceedings of SCO2 Power Cycle Symposium 2011. Colorado: University of Colorado at Boulder, 2011.
17	David S, Renaud L P, Stephen J D. Design considerations for compact heat exchangers[C]//Proceedings of ICAPP 2008. Anaheim, CA USA, 2008.
18	许旭东, 赵丹, 丁国良, 等. 冰箱用微通道冷凝器分相集总参数模型[J]. 化工学报, 2016, 67(S2): 217-222.
	Xu X D, Zhao D, Ding G L, et al. Lumped parameter model for microchannel condenser of refrigerator[J]. CIESC Journal, 2016, 67(S2): 217-222.
19	Oscarsson S P, Krakow K I, Lin S. Evaporator models for operation with dry, wet, and frosted finned surfaces: Part 1-heat transfer and fluid flow theory[J]. ASHRAE Trans, 1990, 96(1): 373-39.
20	Green R H, Roberts L. The effect of air-coil design on the performance of heat pumps and air conditioners[R]. American Society of Heating, Refrigerating and Air-Conditioning Engineers, Inc., Atlanta, GA (United States), 1996.
21	Jolly P G, Tso C P, Wong Y W, et al. Simulation and measurement on the full-load performance of a refrigeration system in a shipping container[J]. International Journal of Refrigeration, 2000, 23(2): 112-126.
22	Ren T, Ding G L, Wang T T, et al. A general three-dimensional simulation approach for micro-channel heat exchanger based on graph theory[J]. Applied Thermal Engineering, 201, 59(1/2): 660-674.
23	郭梦茹, 蔡姗姗, 陈焕新, 等. 翅片管式冷凝器性能分析及多目标优化[J]. 制冷与空调, 2018, 18(4): 93-98.
	Guo M R, Cai S S, Chen H X, et al. Performance analysis and multi-objective optimization of finned-tube condenser[J]. Refrigeration and Air-Conditioning, 2018, 18(4): 93-98.
24	王兆奇, 李孟山, 胡海涛, 等. 双排对折型微通道换热器仿真模型开发[J]. 化工学报, 2021, 72(S1): 113-119.
	Wang Z Q, Li M S, Hu H T, et al. Development of simulation model for double row folded microchannel heat exchanger[J]. CIESC Journal, 2021, 72(S1): 113-119.
25	孙浩然, 段钟弟, 丁国良. 采用适用于小管径空调器关联式的换热器仿真软件开发[C]//上海市制冷学会2013年学术年会. 上海, 201.
	Sun H R, Duan Z D, Ding G L. Development of a simulation tool with correlations suitable for small diameter tube heat exchanger[C]//2013 Academic Annual Conference of Shanghai Refrigeration Society. Shanghai, 201.
26	刘焘. 套管换热器与翅片管换热器的动态分布参数仿真[D]. 上海: 上海交通大学, 2008.
	Liu T. Dynamic and distributed model of double-tube heat exchanger and fin-and-tube heat exchanger[D]. Shanghai: Shanghai Jiao Tong University, 2008.
27	陈红. 制冷系统换热器建模与仿真方法研究[D]. 重庆: 重庆大学, 2006.
	Chen H. Study on the methods of modeling and simulation for heat exchanger in refrigeration system[D]. Chongqing: Chongqing University, 2006.
28	王婷婷. 陆基和海况下LNG绕管式换热器的热力性能仿真与实验验证[D]. 上海: 上海交通大学, 2017.
	Wang T T. Thermodynamic simulation and experimental validation of spiral-wound LNG heat exchangers applied in land-based and offshore LNG plants[D]. Shanghai: Shanghai Jiao Tong University, 2017.
29	Ruan B H, Lin W S, Li W Z, et al. Numerical simulation on heat transfer and flow of supercritical methane in printed circuit heat exchangers[J]. Cryogenics, 2022, 126: 103541.
30	Chen M H, Sun X D, Christensen R N, et al. Pressure drop and heat transfer characteristics of a high-temperature printed circuit heat exchanger[J]. Applied Thermal Engineering, 2016, 108: 1409-1417.
31	Kim I H, No H C. Thermal-hydraulic physical models for a printed circuit heat exchanger covering He, He-CO₂ mixture, and water fluids using experimental data and CFD[J]. Experimental Thermal and Fluid Science, 2013, 48: 213-221.
