Optimization of LBM multiphase flow models based on machine learning and particle swarm algorithm

doi:10.11949/0438-1157.20240813

Abstract

Abstract:

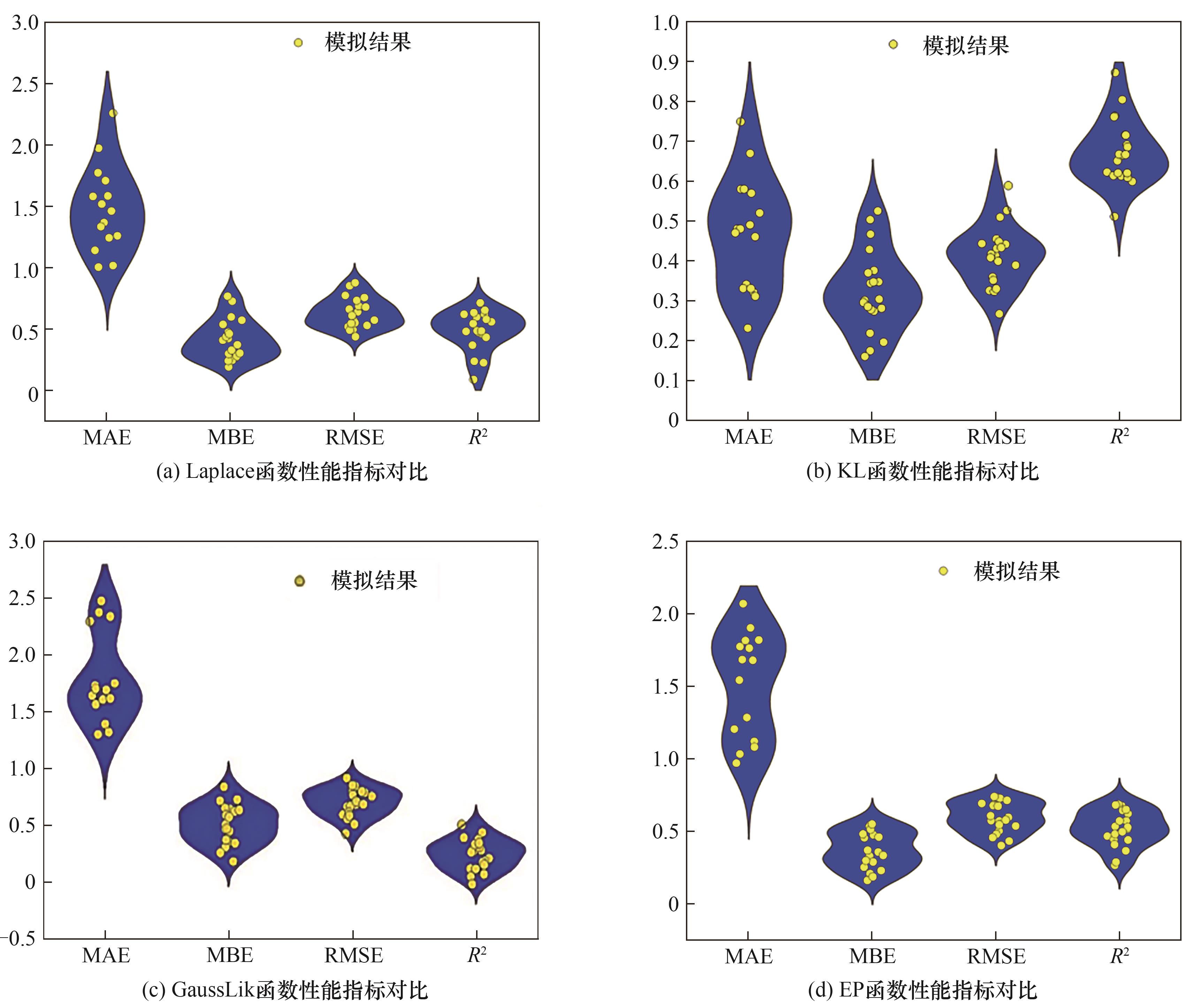

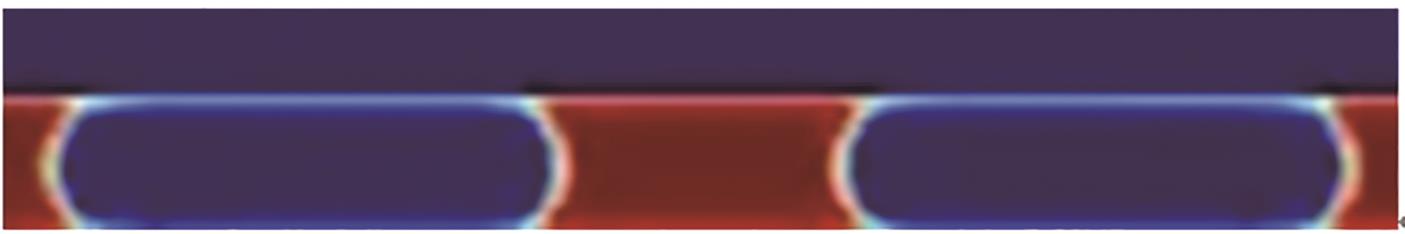

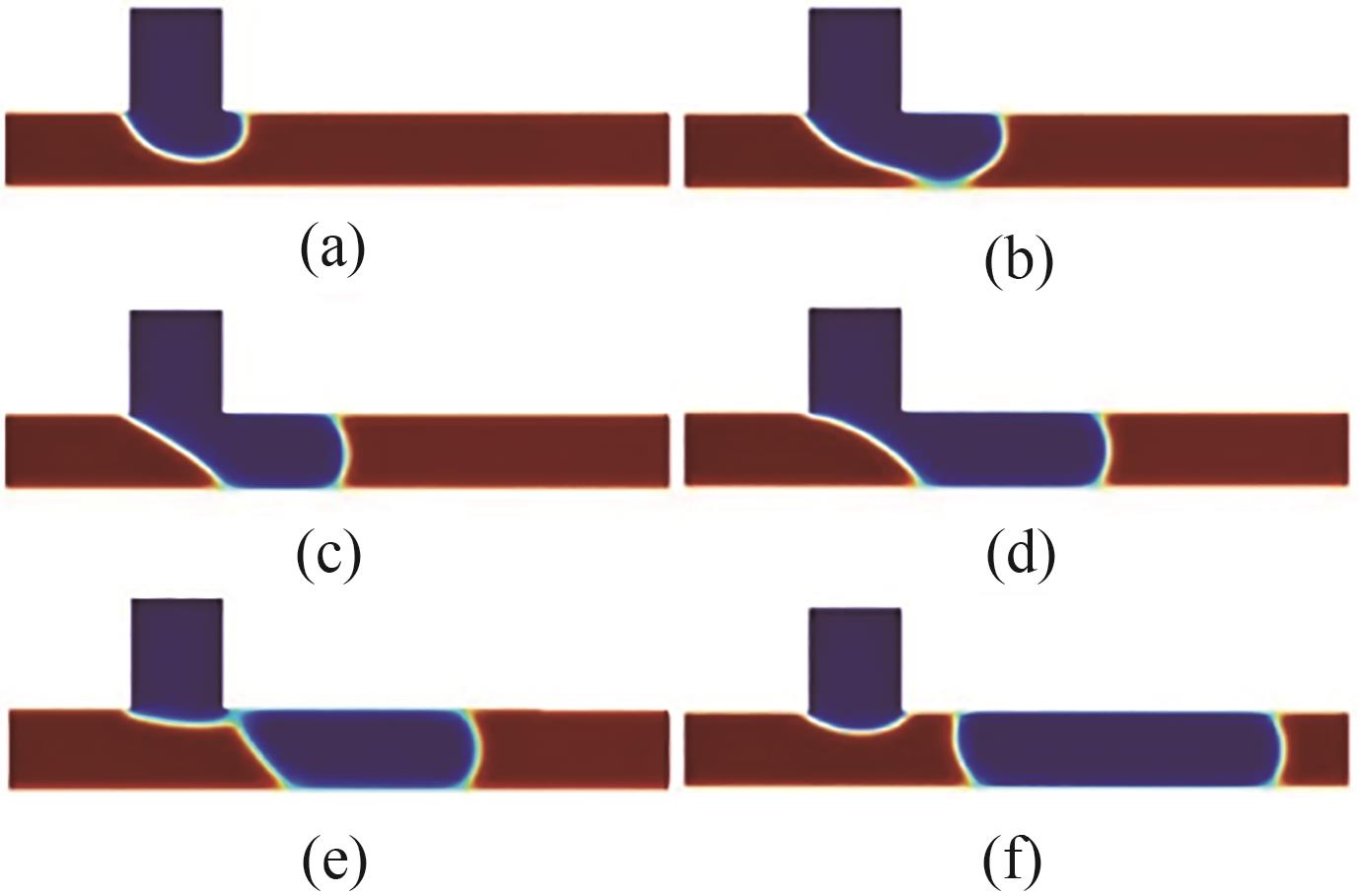

When using the lattice Boltzmann method (LBM) to simulate the slug flow with low capillary number, the bubble development process is complex and the model control parameters are difficult to select. When the selected parameters are inappropriate, erroneous non-physical phenomena will occur, thereby reducing the calculation accuracy. The LBM multiphase flow process model is established through machine learning, and the particle swarm algorithm is used to optimize the hyperparameters of the machine learning model, and further optimize the control parameters in the LBM modeling process. In this paper, a coupled multiphase flow numerical simulation model of LBM-machine learning-particle swarm algorithm is established. Based on this model, the influence of the flow parameters of the elastic flow in the T-shaped microchannel on the stability of the bubble evolution process is investigated. The simulation results show that the proposed LBM multiphase flow model can predict the bubble elongation rate under complex conditions, based on which the optimal gas-liquid two-phase inlet flow rate relationship is found through elongation rate analysis, which effectively solves the problem of elastic flow instability under low capillary number, and significantly improves the simulation calculation accuracy and computational efficiency.

Key words: lattice Boltzmann method, microchannel slug flow, machine learning, particle swarm optimization algorithm, model optimization

摘要：

在利用格子Boltzmann方法（LBM）模拟低毛细数的弹状流流动时，由于气泡发展过程复杂，模型控制参数选择难度大，当所选参数不当时，会产生错误的非物理现象，从而降低计算精度。通过机器学习建立LBM多相流过程模型，采用粒子群算法优化机器学习模型的超参数，进一步优化LBM建模过程中的控制参数，建立了LBM-机器学习-粒子群算法耦合多相流数值模拟模型。基于该模型研究了T型微通道内弹状流流动参数对气泡演化过程稳定性的影响。模拟结果表明，所建LBM多相流模型能预测复杂条件下气泡伸长率，在此基础上通过伸长率分析找到了最优气液两相进口流速关系，有效解决了低毛细数下弹状流流动不稳定性问题，显著提高了模拟计算精度与计算效率。

关键词: 格子Boltzmann法, 微通道弹状流, 机器学习, 粒子群算法, 模型优化

CLC Number:

TQ 052

Yaqi HOU, Wei ZHANG, Hong ZHANG, Feiyu GAO, Jiahua HU. Optimization of LBM multiphase flow models based on machine learning and particle swarm algorithm[J]. CIESC Journal, 2025, 76(3): 1120-1132.

侯亚祺, 张玮, 张鸿, 高飞雨, 胡嘉华. 基于机器学习与粒子群算法的LBM多相流模型优化[J]. 化工学报, 2025, 76(3): 1120-1132.

Figures/Tables 24

References 32
