Experimental study on thermal storage performance of paraffin/TPMS porous AlSi10Mg alloy composite materials

doi:10.11949/0438-1157.20250206

Abstract

Abstract:

The triply periodic minimal surface (TPMS) structure provides a new solution for the design of phase change thermal storage system due to its unique geometric morphology, adjustable pore structure and excellent thermal performance. In this paper, four typical TPMS structures, including Gyroid-Sheet, Gyroid-Network, Diamond-Sheet, and Diamond-Network, were fabricated using selective laser melting technology, and were composited with paraffin. Based on a visualized experiment under a side-heating boundary condition, the influence of porosity, unit cell structure and types on the effective thermal conductivity, specific surface area, and thermal storage performance of the paraffin/TPMS porous AlSi10Mg alloy composite phase change materials (PCMs) were investigated. The solid-liquid interface evolution and temperature distribution during the melting process were determined, and the thermal energy storage enhancement mechanism of TPMS structures was revealed. The results indicate that TPMS-structured composite PCMs exhibit significant advantages in enhancing thermal storage performance, characterized by high effective thermal conductivity and large specific surface area. The thermal storage rate was improved by more than 60% compared to pure paraffin. Among the four TPMS structures, the Diamond-Sheet structure demonstrated the fastest thermal energy storage rate and the best temperature uniformity, when the porosity ranged from 70% to 85%. The purpose of this study is to provide guidance for the structural design of porous metal composite phase change materials with TPMS structures and to offer experimental data support for their applications.

Key words: selective laser melting, TPMS structure, composites, phase change, heat transfer

摘要：

三周期极小曲面（triply periodic minimal surface，TPMS）结构因其独特的几何形貌、可调控的孔隙结构和优异的热性能，为相变蓄热系统设计提供了新的解决方案。通过激光选区熔化技术制备了四种典型的TPMS结构多孔AlSi10Mg合金，包括Gyroid-Sheet、Gyroid-Network、Diamond-Sheet和Diamond-Network结构，并与石蜡进行复合。采用侧面加热边界条件，基于可视化实验研究，探讨了孔隙率、胞元结构和类型对石蜡/TPMS结构多孔AlSi10Mg合金复合相变材料等效热导率、比表面积及蓄热性能的影响规律，探明了熔化过程中固液相界面的演变规律和温度分布特征，揭示了TPMS结构的强化蓄热机理。结果表明，TPMS结构复合相变材料在提高蓄热性能方面表现出显著优势，具有等效热导率高、比表面积大的特性，其蓄热速率较纯石蜡提高了60%以上。当孔隙率为70%~85%时，四种TPMS结构中，Diamond-Sheet结构的蓄热速率最快，温度均匀性最好。本研究旨在为TPMS结构多孔金属复合相变材料的结构设计提供指导，并为其应用提供实验数据支持。

关键词: 激光选区熔化, TPMS结构, 复合材料, 相变, 传热

CLC Number:

TK 02

Fuhan WANG, Huiru WANG, Chengzhuo ZHAO, Zhenyu LIU, Weijun LIU, Hongyou BIAN. Experimental study on thermal storage performance of paraffin/TPMS porous AlSi10Mg alloy composite materials[J]. CIESC Journal, 2025, 76(10): 5414-5425.

王芾涵, 王慧儒, 赵成卓, 刘振宇, 刘伟军, 卞宏友. 石蜡/TPMS结构多孔AlSi10Mg合金复合相变材料蓄热性能实验研究[J]. 化工学报, 2025, 76(10): 5414-5425.

Figures/Tables 14

Fig.1 The designed models of the TPMS structures

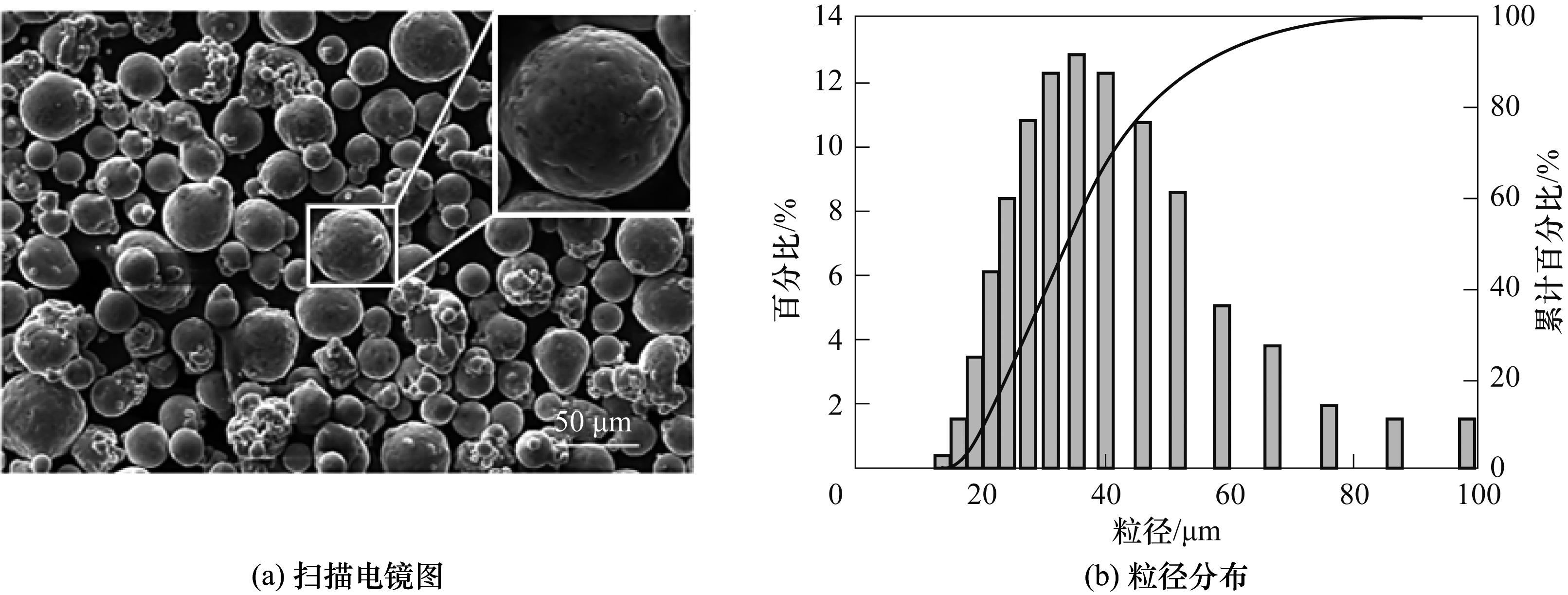

Fig.2 SEM image and particle size distribution of AlSi10Mg alloy powder

Table 1 Chemical composition of AlSi10Mg alloy powder

Element	Content/%(mass)
Si	9.64
Mg	0.38
Ti	<0.01
Ni	<0.01
Mn	<0.01
Cu	<0.01
Fe	<0.01
Zn	<0.01
Pb	<0.01
Sn	<0.01
O	0.036
Al	balance

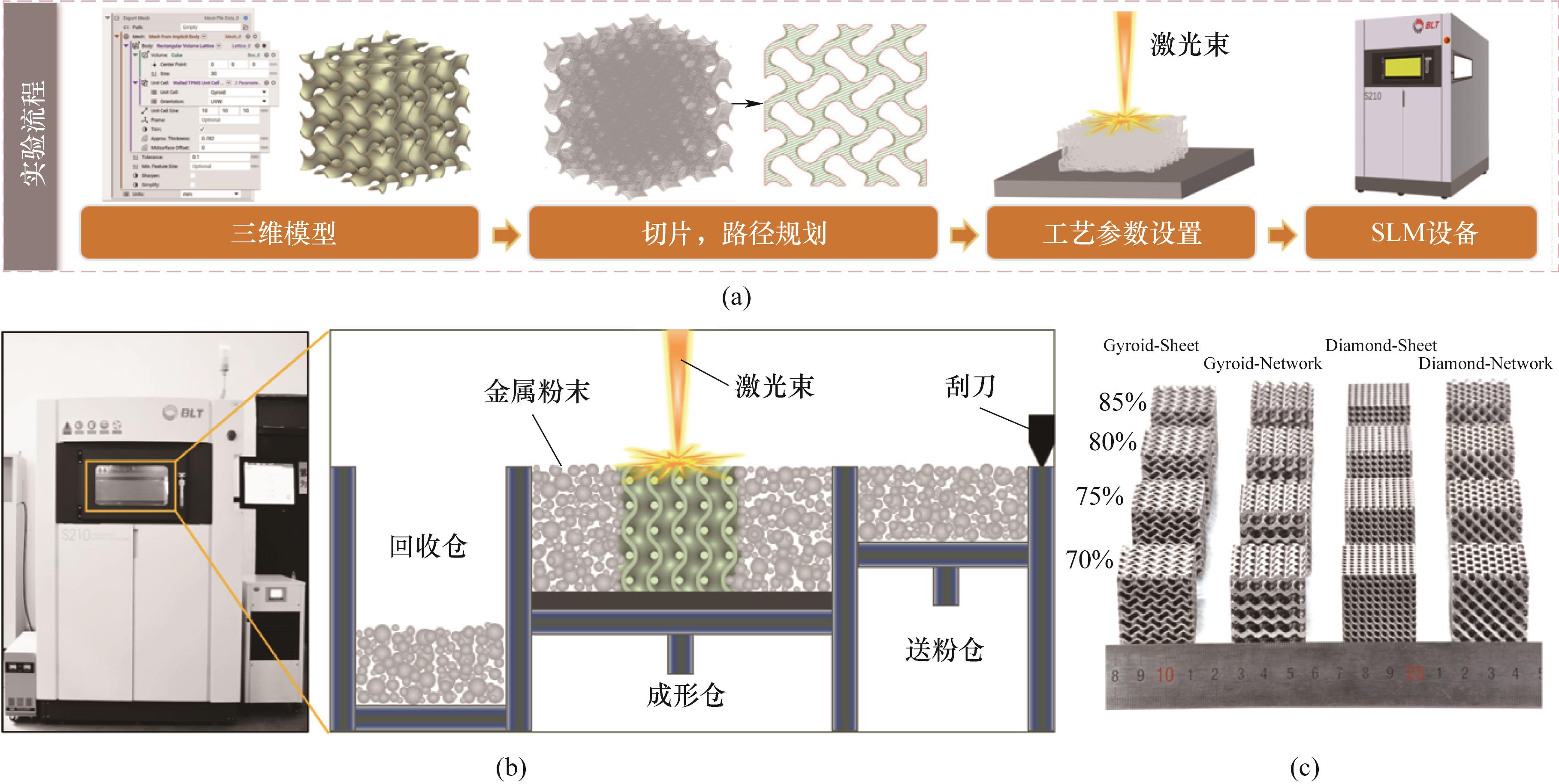

Fig.3 SLM-fabricated TPMS structure: (a) experimental flowchart; (b) schematic diagram of SLM process; (c) photograph of the samples

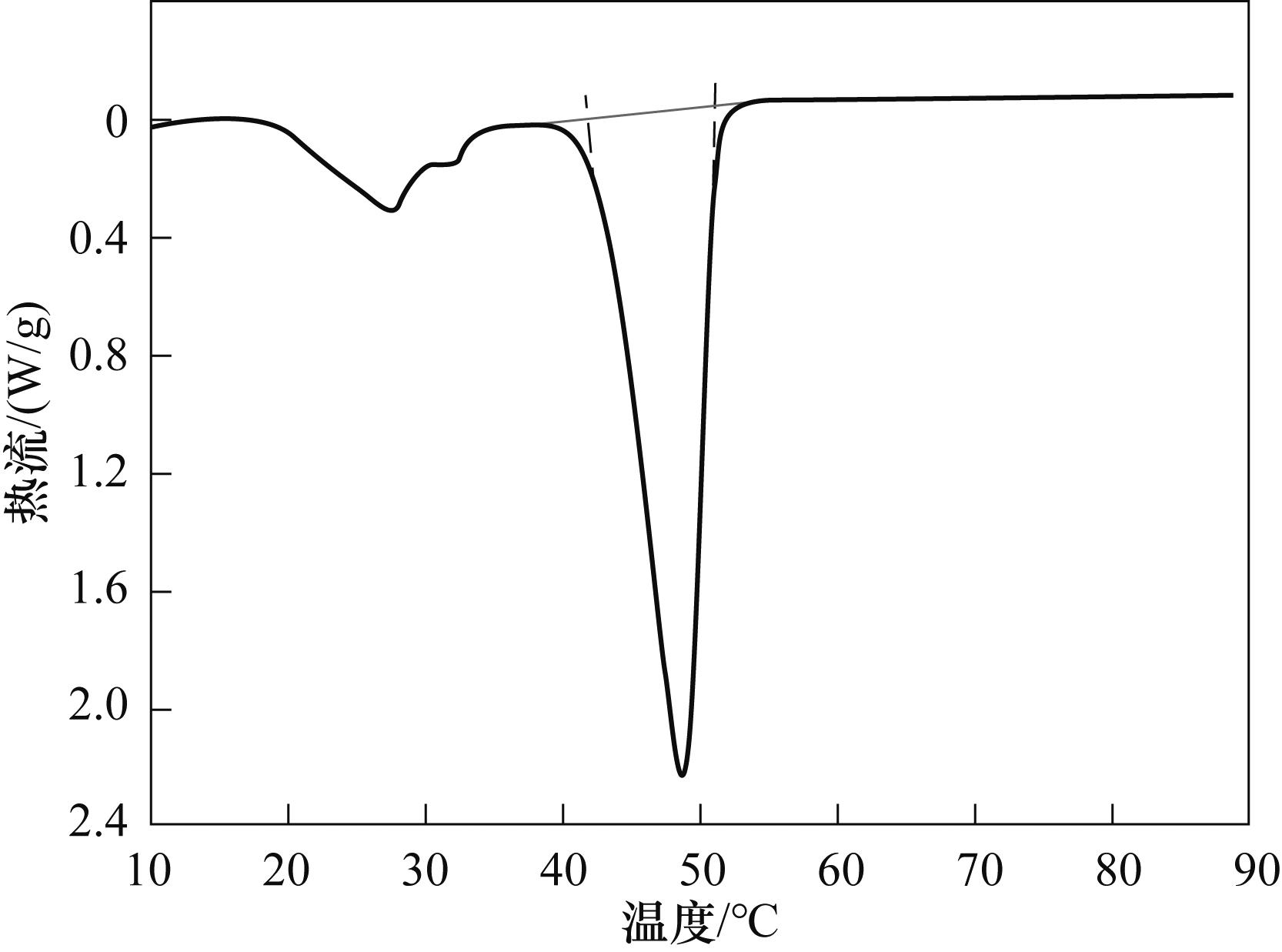

Fig.4 DSC curves of paraffin RT50

Fig.5 Schematic diagram of the preparation process and photograph of the samples of paraffin/TPMS composite PCM

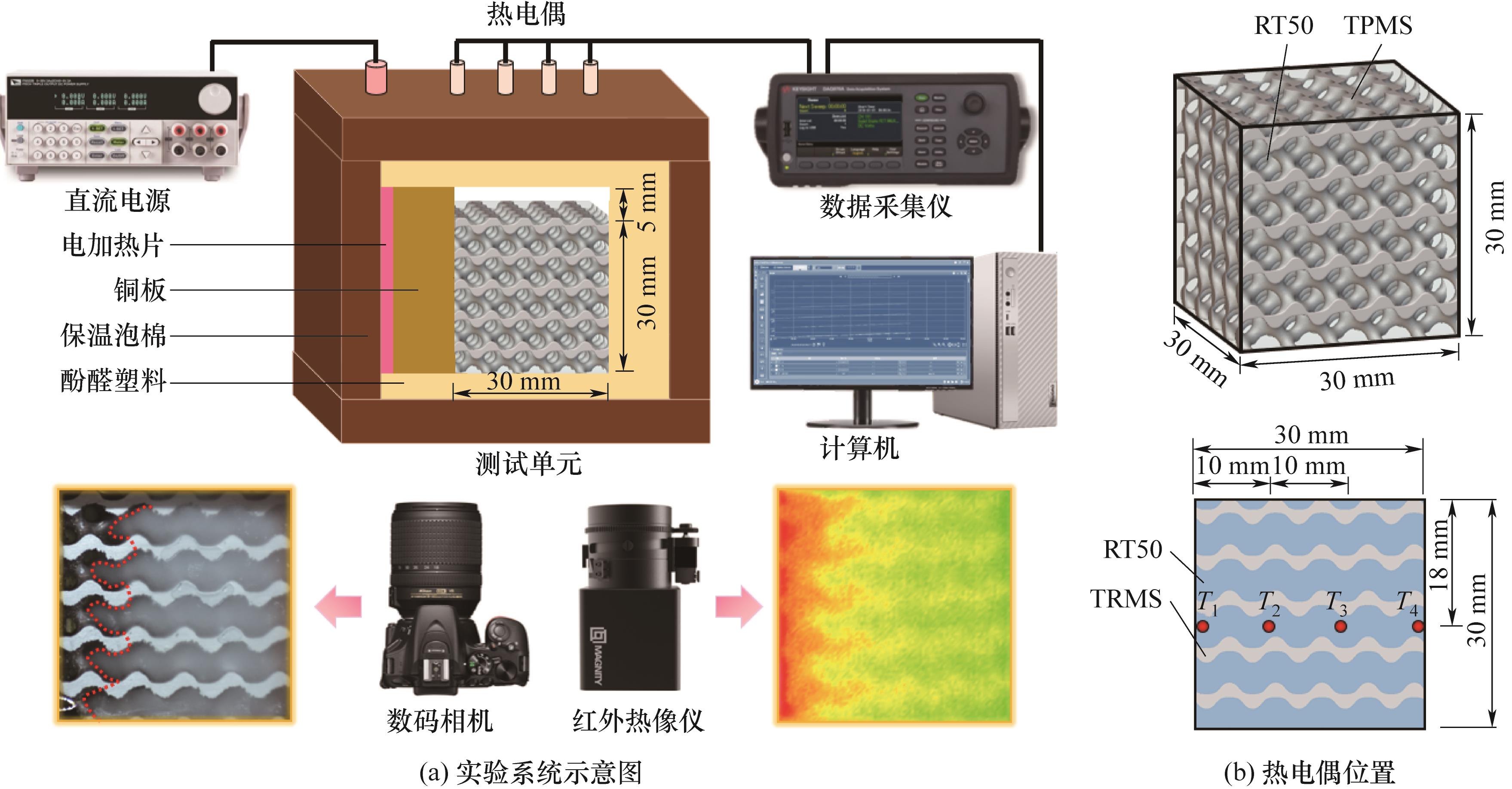

Fig.6 Visualized experimental system of solid-liquid phase change heat storage

Fig.7 Effective thermal conductivity and specific surface area of different TPMS structures

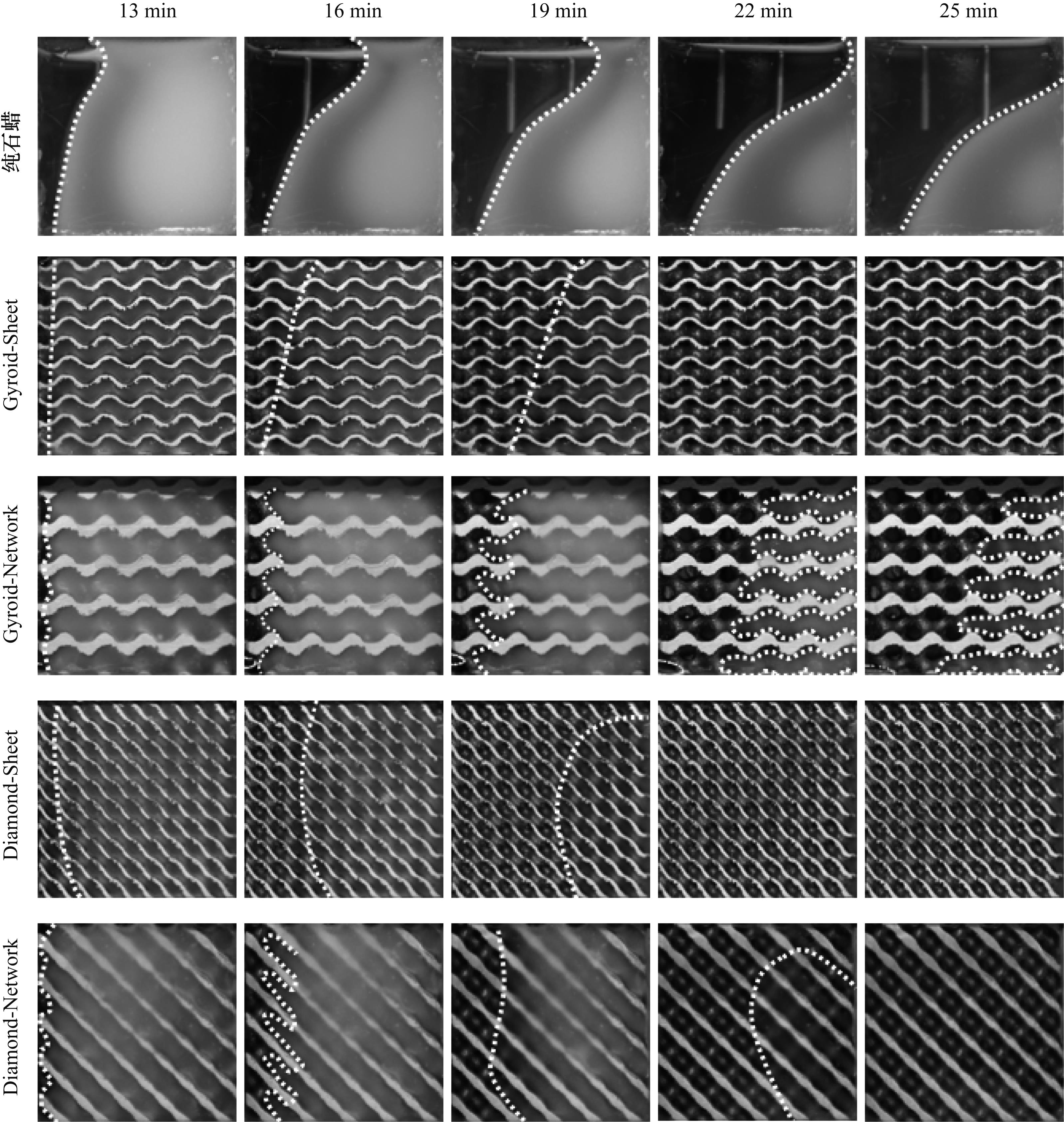

Fig.8 Evolution of solid-liquid interfaces for pure paraffin and paraffin/TPMS composite PCMs

Fig.9 Comparison of temperature measured between infrared camera and thermocouples

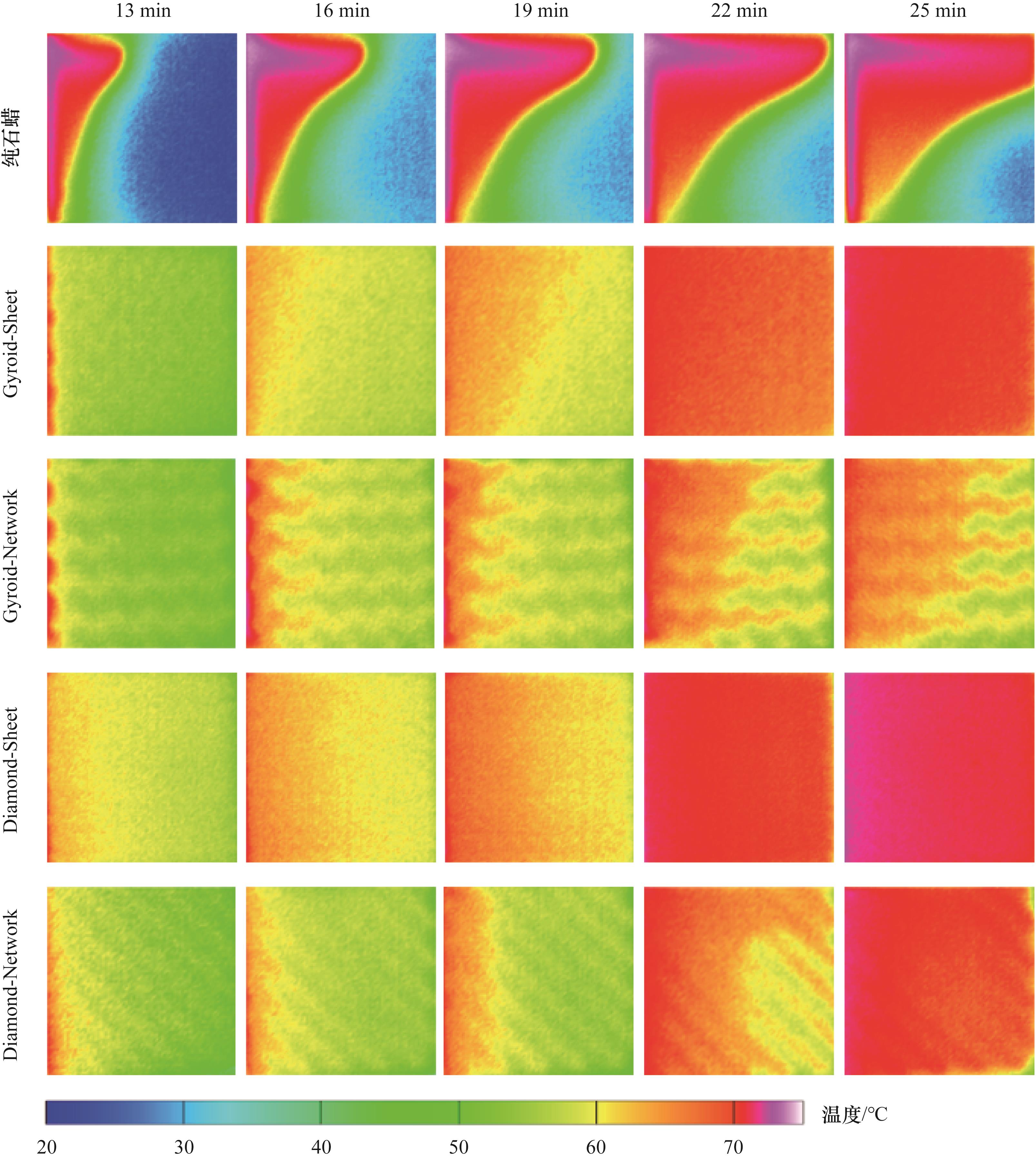

Fig.10 Evolution of temperature distribution for pure paraffin and paraffin/TPMS composite PCMs

Fig.11 Variation of liquid fraction for pure paraffin and paraffin/TPMS composite PCMs

Fig.12 Comparison of melting time among different paraffin/TPMS composite PCMs

Fig.13 Heat storage performance for pure paraffin and paraffin/TPMS composite PCMs
