Experimental study on influence of inner tube movement on charging-discharging performance in horizontal shell-and-tube phase change thermal energy storage exchanger

doi:10.11949/0438-1157.20250551

Abstract

Abstract:

To systematically enhance the charging and discharging performance of a shell-and-tube phase change thermal energy storage exchangers, this study utilized a horizontal shell-and-tube experimental platform with a movable inner tube, combined with a high-precision image acquisition system and a quantitative solid-liquid interface characterization method. We investigated the effects of different inner-tube vertical translation speeds (0.01 mm·s^-1, 0.05 mm·s^-1, and 0.1 mm·s^-1) and translation distances (5 mm, 10 mm, and 20 mm) on charging and discharging characteristics. The results demonstrate that inner-tube motion can effectively intensify the heat-transfer process of the phase-change material, with charging/discharging performance improving as the translation speed and distance increase. Compared to the static state, the optimized inner tube movement strategy reduces the heat storage and release times by 5221 s and 1978 s, respectively, and the average temperature change rate increases to 1.82 times and 1.07 times that of the static state, respectively. These findings provide guidance for the optimal design of movable-tube phase change thermal energy storage devices and lay the groundwork for active heat-transfer enhancement technologies.

Key words: shell-and-tube phase change thermal energy storage exchanger, inner tube movement, charging and discharging performance, experimental validation, phase change, heat transfer

摘要：

为改善管壳式相变储热器的储放热性能，基于内管可移动卧式管壳相变储放热实验平台，结合高精图数采集系统与固液相界面定量表征方法，研究了换热内管在既定竖直运动方向下不同移动速率（0.01、0.05和0.1 mm·s^-1）与移动距离（5、10和20 mm）对储放热特性的影响规律。结果表明，内管运动可有效强化相变材料的传热过程，储放热性能随内管移动速率和距离的增加而增强。与静止状态相比，优化的内管运动策略下储放热时间分别减少5221和1978 s，平均温度变化率分别提高至静止时的1.82倍和1.07倍。研究结论可为内管移动式相变储热装置的优化设计提供指导，并为主动强化传热技术的研究奠定基础。

关键词: 管壳式相变储热器, 内管移动, 储放热性能, 实验验证, 相变, 传热

CLC Number:

TK 124

Shengjie WANG, Shaobin ZHOU, Ming GAO, Zhixing WU, Wenqiang GUO, Wei ZHANG, Jun JIANG, Jie RAN, Xiao WANG. Experimental study on influence of inner tube movement on charging-discharging performance in horizontal shell-and-tube phase change thermal energy storage exchanger[J]. CIESC Journal, 2025, 76(10): 5402-5413.

王胜杰, 周少斌, 高明, 武治星, 郭文强, 张伟, 姜君, 冉劼, 王晓. 内管移动对卧式管壳相变储热器储放热性能影响的实验研究[J]. 化工学报, 2025, 76(10): 5402-5413.

Figures/Tables 15

Fig.1 Shell-and-tube phase change thermal energy storage exchanger with mobile inner tube experimental test platform series figure

Table 1 Physical property parameter of RT25 PCM

物性参数	数值
熔化温度/K	298.15
潜热/(J·g^-1)	228
密度/(g·cm^-3)	液相：0.76；固相：0.78
热导率/(W·m^-1·K^-1)	0.2
黏度/(kg·m^-1·s^-1)	0.0017
热膨胀系数	0.001
比热容/(J·g^-1·K^-1)	液相：2.4；固相：1.8

Fig.2 Image processing procedure (the charging process)

Table 2 Inner tube motion parameter setting

参数	数值
内管移动速率/（mm·s^-1）	0.01、0.05、0.1
内管移动距离/mm	5、10、20
内管移动方向	-y

Fig.3 Schematic diagram of the experimental procedure

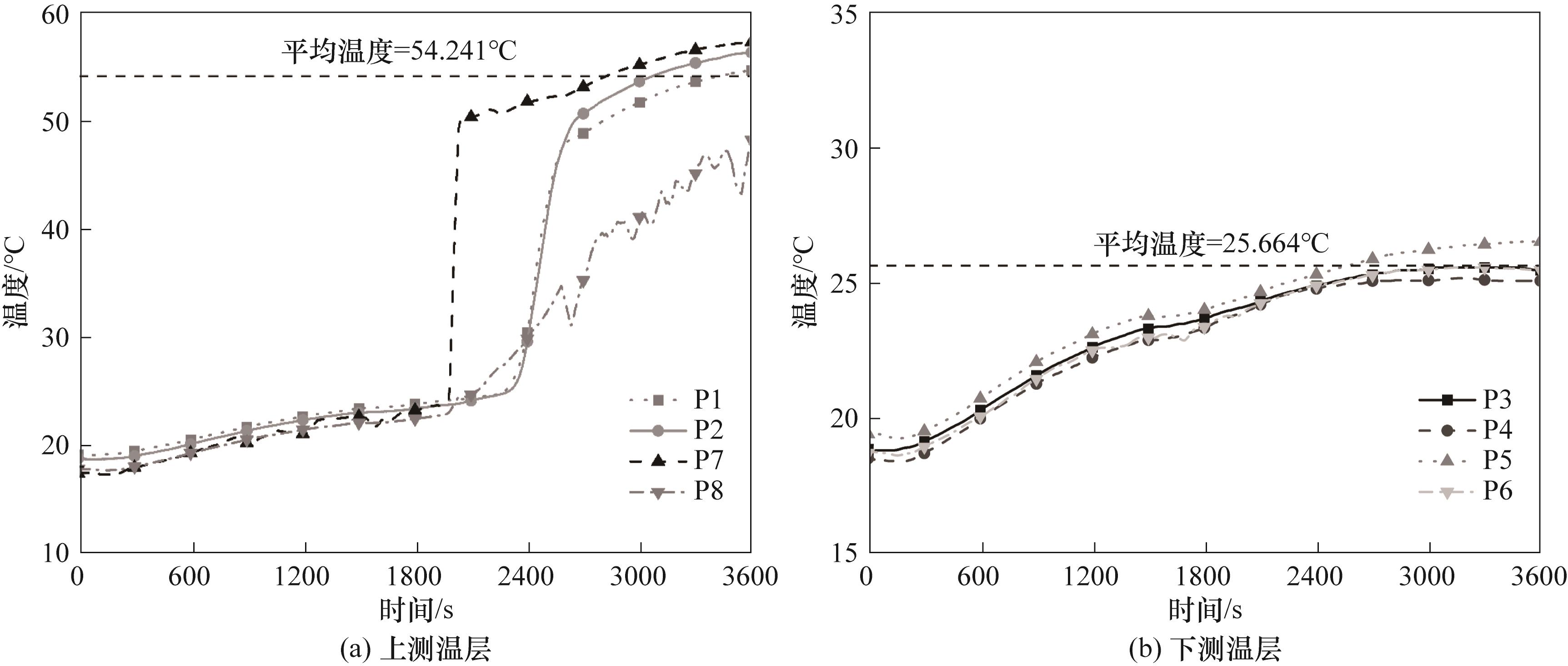

Fig.4 Temperature curves for the charging process under stationary conditions

Fig.5 Liquid phase change for the charging process under stationary conditions

Fig.6 Temperature curves under stationary conditions during the discharging process

Fig.7 Solid phase change for the discharging process under stationary conditions

Fig.8 Solid-liquid phase fraction variation curve for different speed conditions

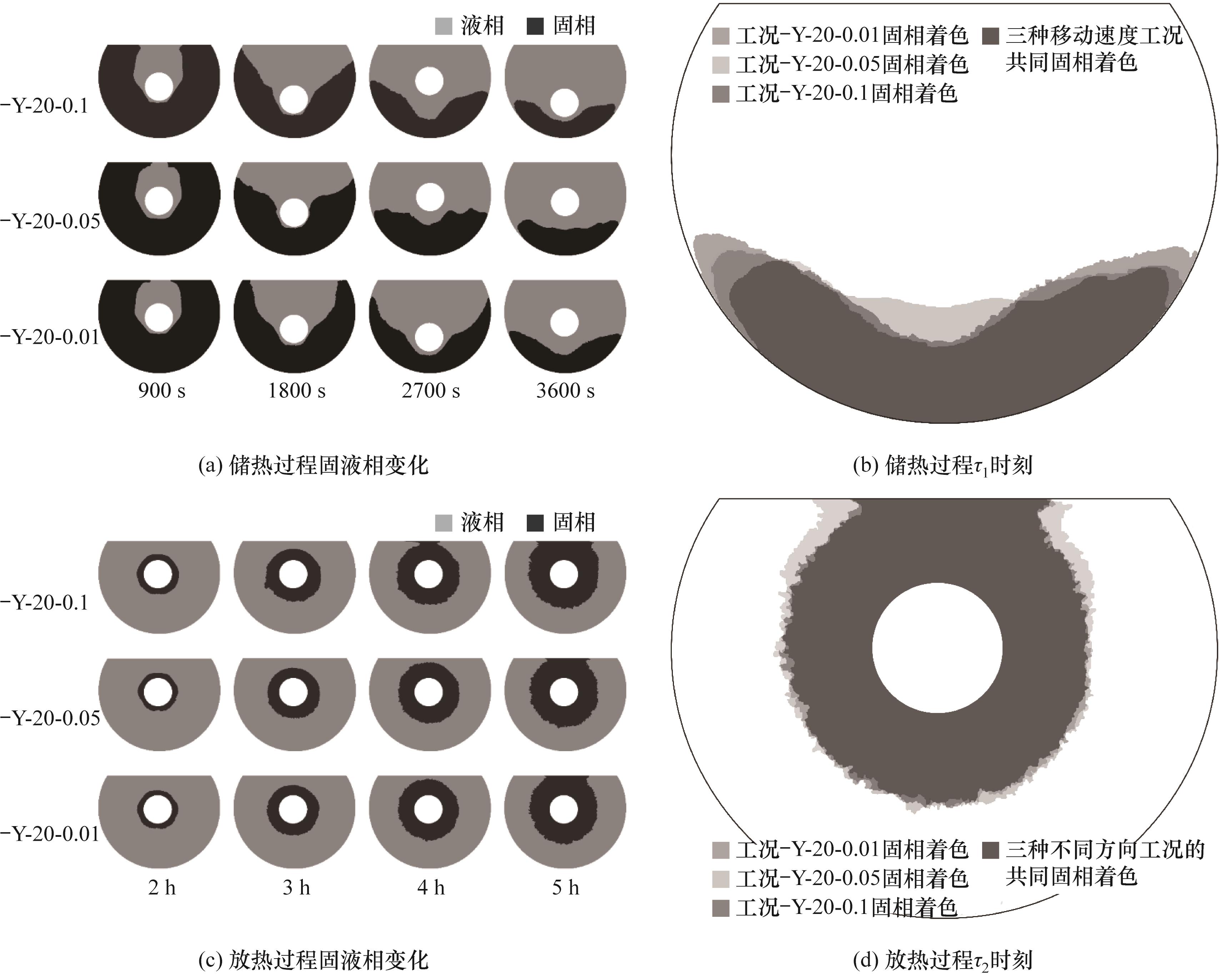

Fig. 9 Single solid-phase superposition projections for different speed conditions

Fig.10 Solid-liquid phase fraction variation curve for different distance conditions

Fig.11 Single solid-phase superposition projections for different distance conditions

Table 3 Performance evaluation parameter of inner tube stationary condition

性能指标	数值
β_m/%	54.84
β_s/%	32.63
P_m/W	128.05
P_s/W	32.90
V_T/(℃·min^-1)	0.229
$V T'$ /(℃·min^-1)	0.397
Δτ_0-2/s	11702
Δτ_30%/s	13665

Table 3 Performance evaluation parameter of inner tube stationary condition

性能指标	数值
β_m/%	54.84
β_s/%	32.63
P_m/W	128.05
P_s/W	32.90
V_T/(℃·min^-1)	0.229
$V T'$ /(℃·min^-1)	0.397
Δτ_0-2/s	11702
Δτ_30%/s	13665

Fig.12 Effect of different inner tube movement parameters on charging and discharging performance
