Integration of wavelet scattering transform and artificial neural networks for online monitoring of antibody aggregates by Raman spectrum

doi:10.11949/0438-1157.20250612

Abstract

Abstract:

Online monitoring the product quality attributes is critical in biopharmaceutical manufacturing. Although Raman spectrum has emerged as a promising online monitoring tool, the inherent complexity of its spectral signals poses significant challenges for the prediction of the product quality attributes. This study developed a novel modeling method that integrates wavelet scattering transform and artificial neural network (ST-ANN) to dynamically monitor the concentration of antibody monomer and aggregate for flow-through chromatography. Compared with conventional approaches, such as partial least squares regression, K-nearest neighbors, artificial neural networks, and convolutional neural networks, the ST-ANN model showed an improved predictive performance with the determination coefficients of 0.982 for both monomer and aggregate in test sets. The ST-ANN model had an improved predictive capacity, which is promising as new modeling method for online monitoring with Raman spectrum in biopharmaceutical downstream bioprocesses.

Key words: Raman spectrum, online monitoring, artificial neural networks, wavelet scattering transform, monoclonal antibody, antibody aggregate

摘要：

在生物制药过程中，实时监测产品质量属性至关重要，拉曼光谱作为一种在线监测技术，面临复杂信号带来的建模挑战。本文提出了一种结合小波散射变换和人工神经网络（ST-ANN）的建模方法，用于在线监测流穿模式层析过程中的抗体单体与聚集体浓度变化。结果表明，相较于传统的偏最小二乘回归、K-最近邻、人工神经网络和卷积神经网络模型，ST-ANN对验证集的预测误差显著降低，单体和聚集体的测试集决定系数R²均达到0.982。ST-ANN展现出更强的泛化能力，为拉曼光谱应用于生物制药下游分离过程在线监测提供了新的建模方法。

关键词: 拉曼光谱, 在线监测, 人工神经网络, 小波散射变换, 单克隆抗体, 抗体聚集体

CLC Number:

TQ 028.8

Akang TONG, Liangzhi QIAO, Dong GAO, Haibin WANG, Haibin QU, Shanjing YAO, Dongqiang LIN. Integration of wavelet scattering transform and artificial neural networks for online monitoring of antibody aggregates by Raman spectrum[J]. CIESC Journal, DOI: 10.11949/0438-1157.20250612.

童阿康, 乔亮智, 高栋, 王海彬, 瞿海斌, 姚善泾, 林东强. 结合小波散射变换和人工神经网络的拉曼光谱在线监测抗体聚集体[J]. 化工学报, DOI: 10.11949/0438-1157.20250612.

Figures/Tables 9

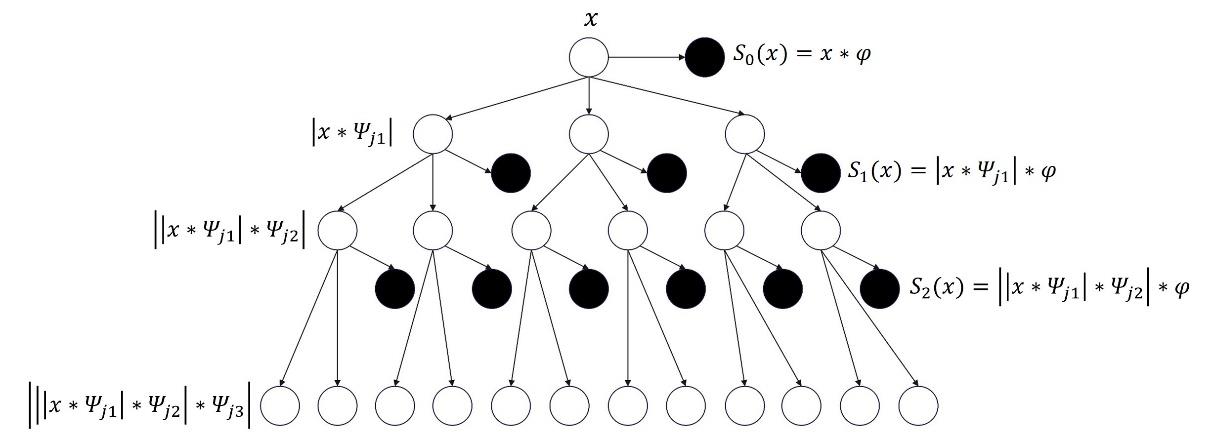

Fig.1 Scheme of wavelet scattering transform

Table 1 Concentrations of mAb monomers and aggregates in the chromatographic experiments

实验序号	单抗总浓度 (g/L)	聚集体含量 (%)
1	12.48	7.20
2	11.19	7.40
3	10.41	8.45
4	10.13	8.87
5	8.18	10.56

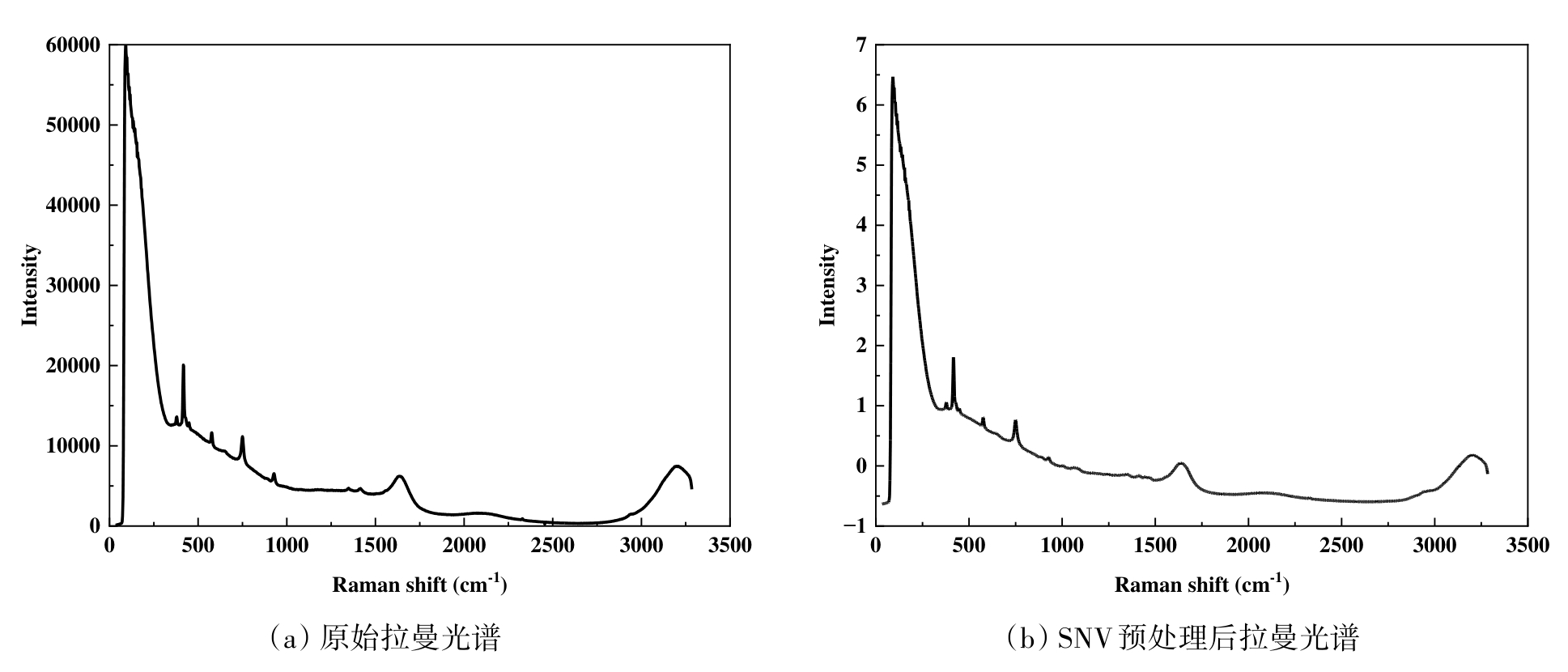

Fig. 2 Comparison of Raman spectral data before and after preprocessing

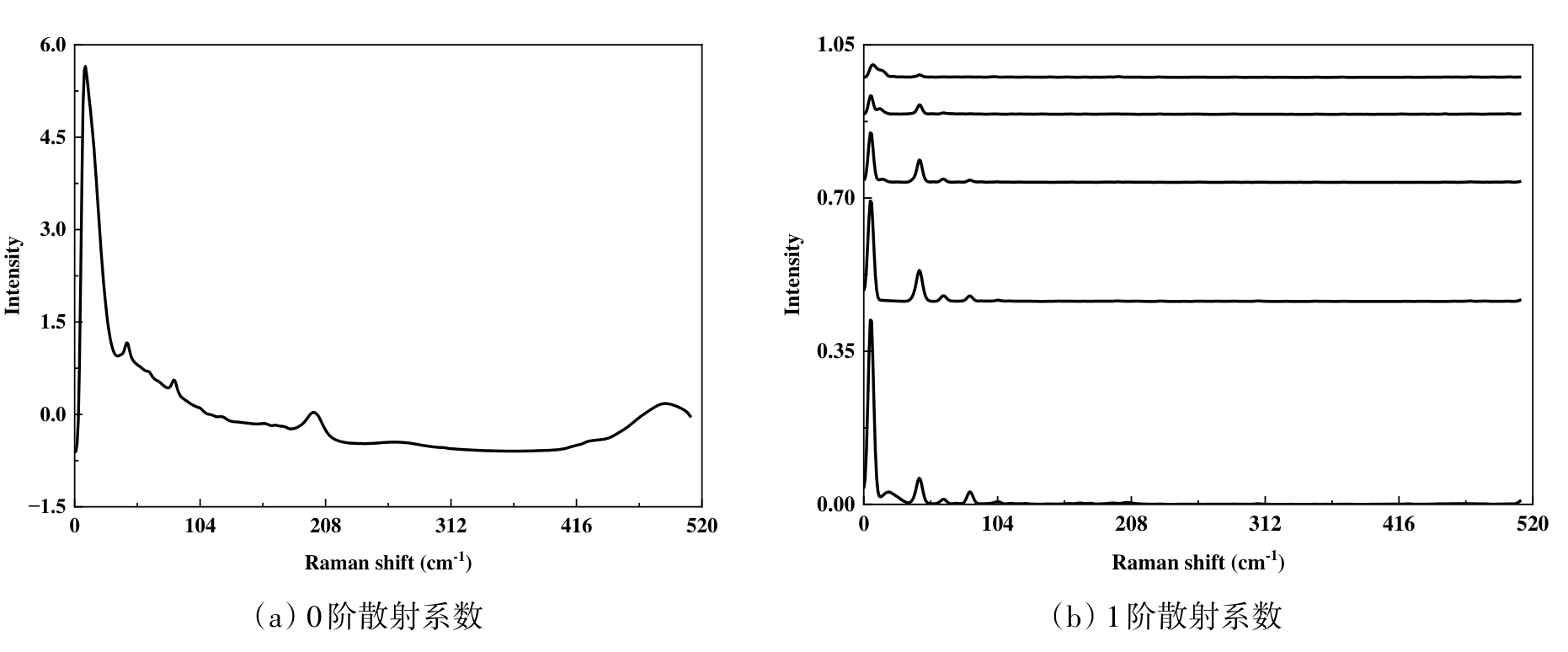

Fig. 3 Comparison of wavelet scattering transform for Raman spectrum

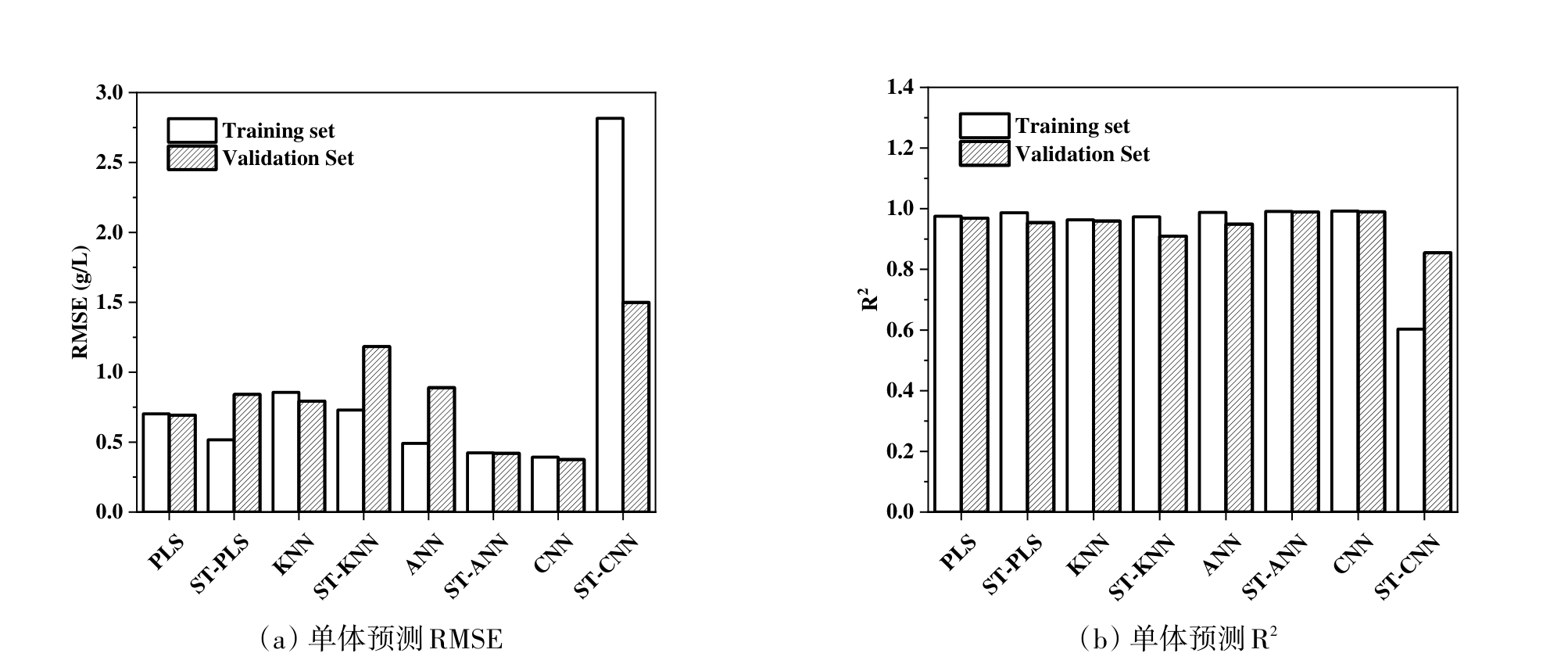

Fig. 4 Modeling performance of training and validation sets for mAb monomers with different models

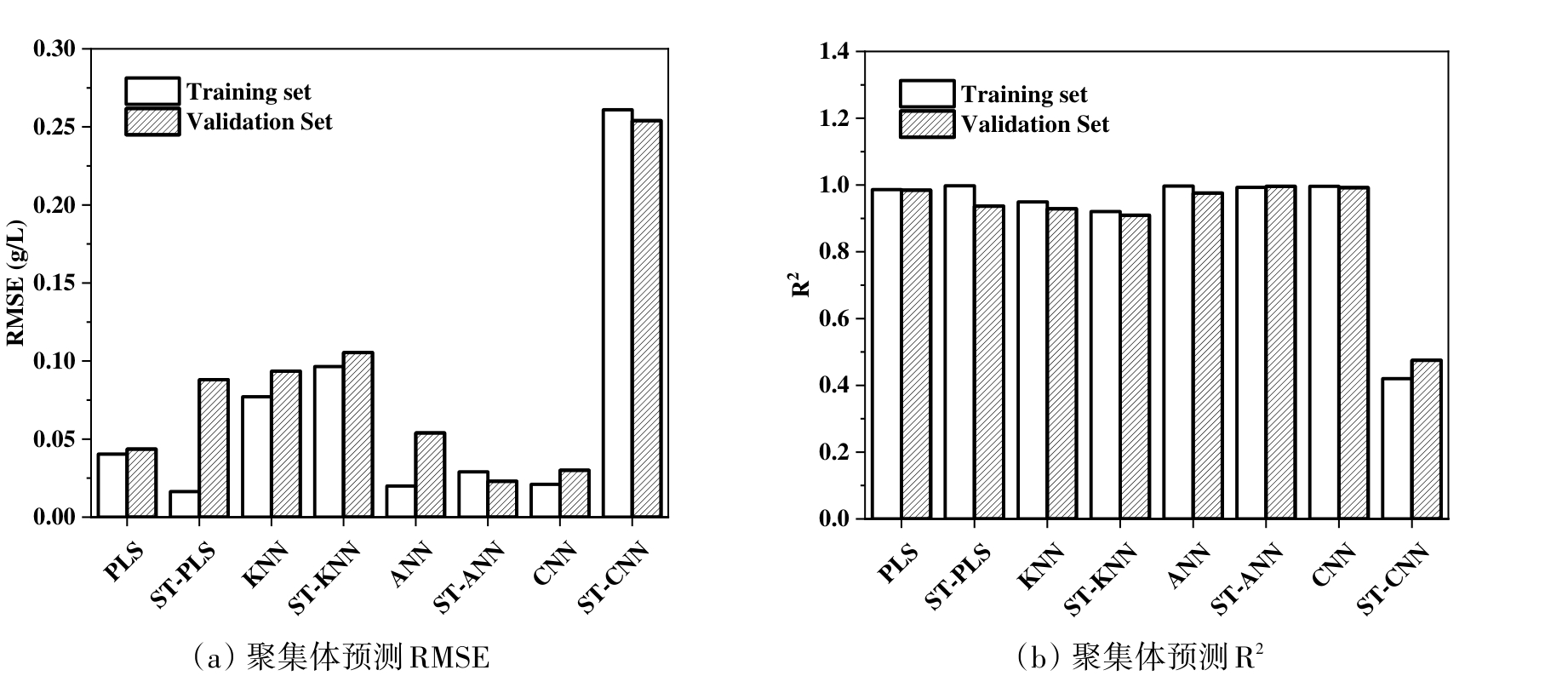

Fig. 5 Modeling performance of training and validation sets for mAb aggregates with different models

Table 2 Comparison of real-time Raman spectrum monitoring in mAb chromatographic purification process

模型	研究对象	光谱采集时间 s	MAE g/L	文献
KNN	单体聚集体	22.5	1.08 1.05	[9]
CNN	聚集体	38	0.76	[10]
2D-KNN	单体聚集体	30	3.40 0.10	[31]
ST-ANN	单体聚集体	12	0.34 0.03	本研究

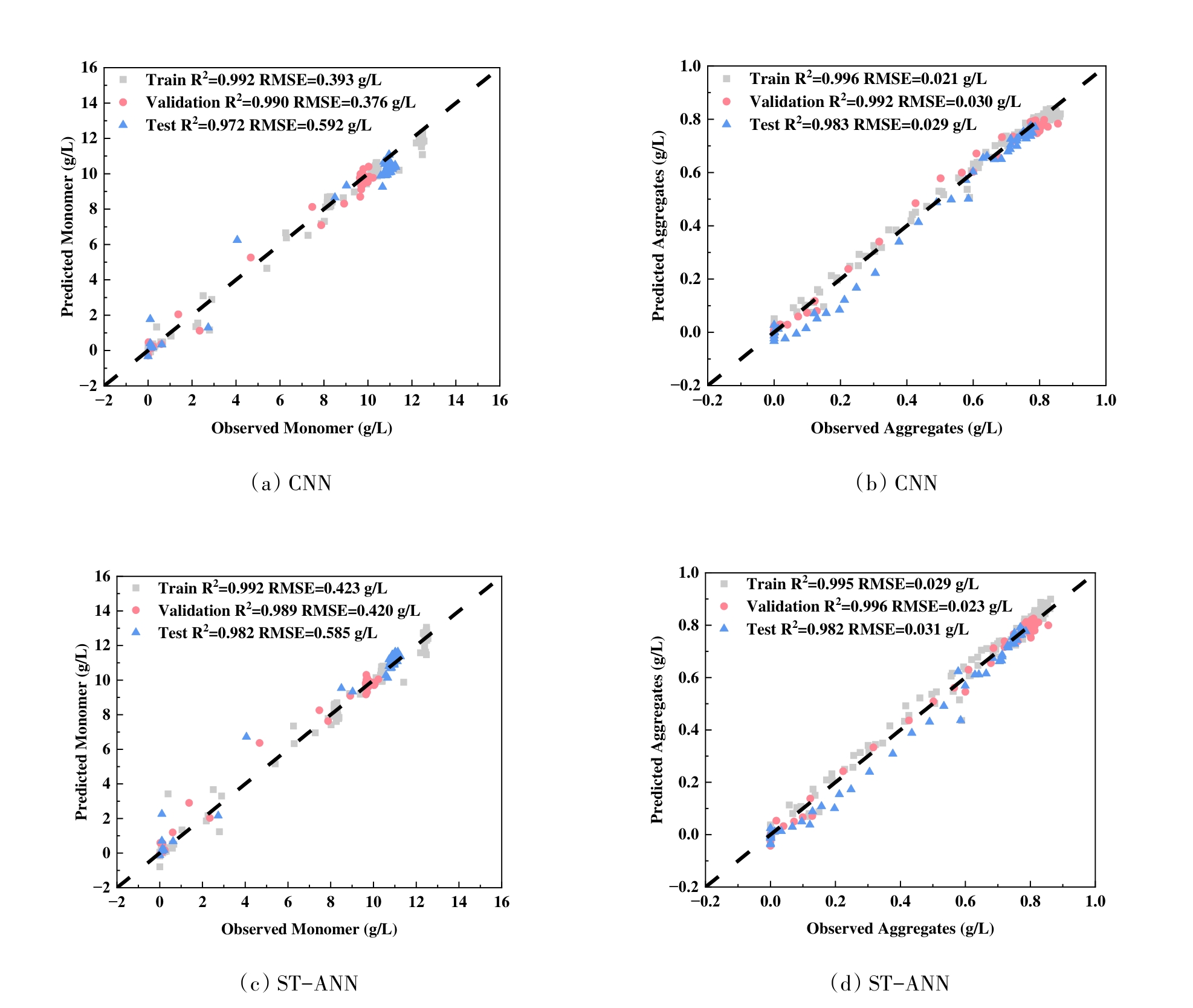

Fig.6 Prediction performance of CNN and ST-ANN models for mAb monomer and aggregate concentrations

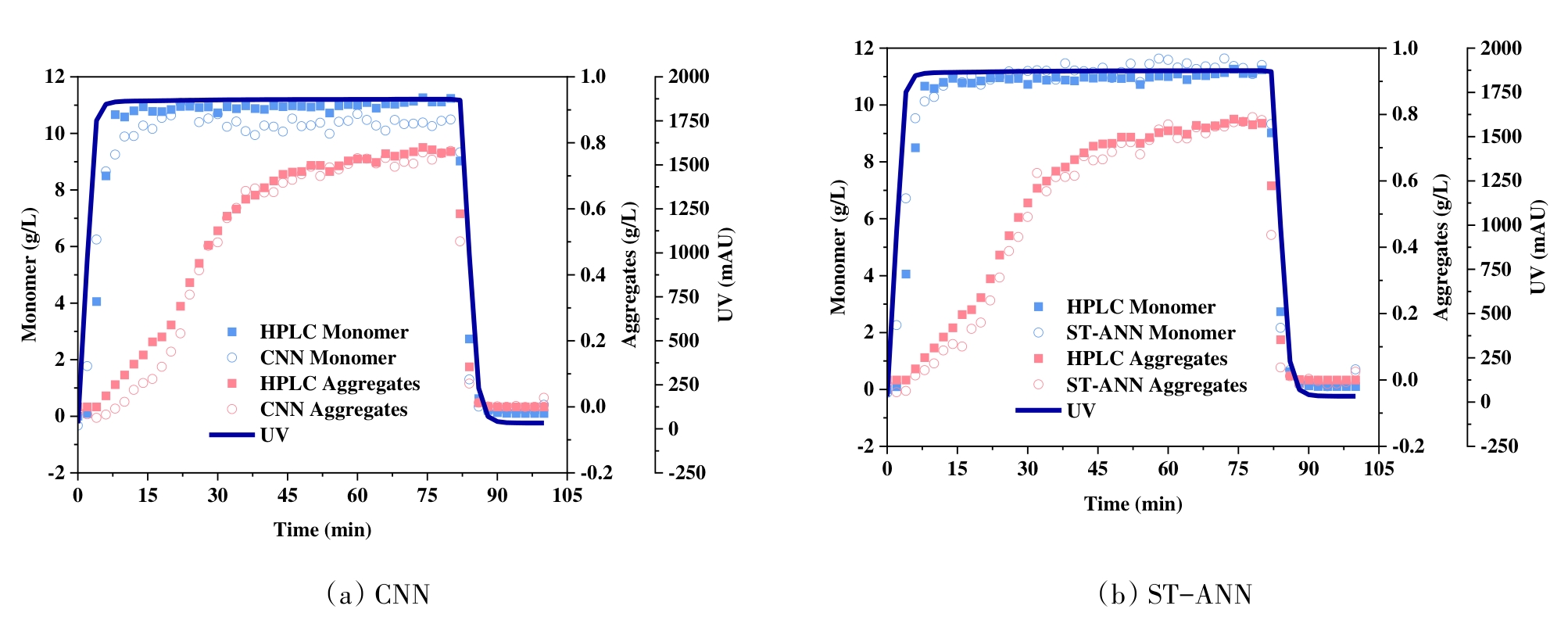

Fig.7 Comparison of the predicted breakthrough curves with CNN and ST-ANN models to the experimental data
