Multi-objective optimization and performance analysis of structural parameters of open stern shaft lip seal

doi:10.11949/0438-1157.20240579

Abstract

Abstract:

The open-type stern shaft seal achieves long service life and efficient operation due to its excellent opening performance, but it is very easy to cause serious lip wear due to unreasonable lip structure. Taking the open stern shaft lip seal as the research object, a lip seal numerical analysis model is established to analyse the sealing performance of the open stern shaft lip seal, and multi-objective optimization analysis of lip structure using response surface methodology for lip sealing experiments. The results of the study show that the lip excess has the greatest impact on lip seal opening performance and life, followed by spring radial force, anterior labial angle and labial angle, and the lip opens when the blowback gas pressure is at least 1.3 times greater than the working pressure under multiple force loads. Lip opening performance and lip life are affected by rotational speed, and lip opening performance is positively correlated with lip life. For the open stern shaft lip seal, the lip structure parameters are reasonably designed. By dynamically adjusting the back-blowing gas pressure, the lip wear can be effectively reduced and the sealing performance can be greatly improved, and the dependence of the lip opening on the rotation speed can be reduced. The optimized parameter combinations are: lip overfill 1.5 mm, spring radial force 70 N, anterior labial angle 45°, labial angle 40°, and through the reasonable optimization of structural design, the comprehensive lip wear reduction performance is significantly improved, and the lip life is increased by 173%.

Key words: open stern shaft lip seal, numerical analysis, response surface methodology, optimised design, lip life, blowback gas, experimental verification

摘要：

开启式船舶艉轴密封因其优异的开启性能使得艉轴密封实现了长寿命高效运转，但因唇体结构设计不合理导致唇口磨损严重。以开启式艉轴唇形密封圈为研究对象，建立唇形密封数值分析模型，分析开启式艉轴唇形密封的密封性能，采用响应面法对唇体结构进行多目标优化分析，进行唇形密封试验。研究结果表明：唇口过盈量对唇形密封开启性能和寿命影响最大，其次是弹簧径向力、前唇角和后唇角；在多种力载荷作用下，反吹气体压力至少大于工作压力的1.3倍时，唇口开启。对开启式艉轴唇形密封合理设计唇口结构参数，通过实现动态调节反吹气体压力，可有效减少唇口磨损并极大改善密封性能，并降低唇口开启对转速的依赖。优化参数组合为：唇口过盈量1.5 mm、弹簧径向力70 N、前唇角45°、后唇角40°，通过合理地优化结构设计，综合唇口减磨性能提升明显，且唇口寿命提升173％。

关键词: 开启式艉轴唇形密封, 数值分析, 响应面法, 优化设计, 唇口寿命, 反吹气体, 试验验证

CLC Number:

TH 117

Zhichao GONG, Shuangxi LI, Fangjun LI, Zesheng HUANG, Keying XIAO. Multi-objective optimization and performance analysis of structural parameters of open stern shaft lip seal[J]. CIESC Journal, 2024, 75(12): 4689-4701.

弓志超, 李双喜, 李方俊, 黄泽盛, 肖可应. 开启式艉轴唇形密封结构参数多目标优化及性能分析[J]. 化工学报, 2024, 75(12): 4689-4701.

Figures/Tables 18

References 33

1	Sun J S, Kim Y G, Kim U K. Study on shaft alignment of propulsion shafting system depending on single reaction force supporting position of aft stern tube bearing[J]. Journal of Marine Science and Technology, 2021, 26(4): 1340-1357.
2	杨元龙. 船舶蒸汽蓄热器放汽管路热冲击特性预测[J]. 化工学报, 2015, 66(11): 4431-4437.
	Yang Y L. Prediction and investigation on thermal shock characteristics of discharging pipe for ship steam accumulator[J]. CIESC Journal, 2015, 66(11): 4431-4437.
3	闻雪友, 任兰学, 祁龙, 等. 舰船燃气轮机发展现状、方向及关键技术[J]. 推进技术, 2020, 41(11): 2401-2407.
	Wen X Y, Ren L X, Qi L, et al. Development and key technologies in marine gas turbine[J]. Journal of Propulsion Technology, 2020, 41(11): 2401-2407.
4	Huang Q W, Wang Y Y, Liu H G. Vibration reduction and energy harvesting of the marine stern shaft-bearing systems with triboelectric generator[J]. Ocean Engineering, 2024, 305: 117954.
5	马润梅, 赵祥, 李双喜, 等. 颗粒介质用机械密封热力耦合变形及摩擦磨损研究[J]. 化工学报, 2021, 72(11): 5726-5737.
	Ma R M, Zhao X, Li S X, et al. Research on thermal mechanical coupling deformation and friction and wear of mechanical seal for granular medium[J]. CIESC Journal, 2021, 72(11): 5726-5737.
6	Zhang P G, Feng F, Feng X, et al. Sealing performance in a spiral groove mechanical seal lubricated by magnetic fluid[J]. Industrial Lubrication and Tribology, 2023, 75(5): 619-627.
7	Ran Y, He Q, Huang W F, et al. Analysis of the coupling mechanism of the dynamic response and mechanical-thermal deformation in mechanical seals[J]. Tribology International, 2024, 192: 109257.
8	郭飞, 贾晓红, 黄乐, 等. 旋转轴唇形密封混合润滑理论模型和试验验证[J]. 机械工程学报, 2014, 50(3): 137-144.
	Guo F, Jia X H, Huang L, et al. A mixed lubrication theoretical model and experimental verification of rotary lip seals[J]. Journal of Mechanical Engineering, 2014, 50(3): 137-144.
9	Hadinata P C, Stephens L S. Soft elastohydrodynamic analysis of radial lip seals with deterministic microasperities on the shaft[J]. Journal of Tribology, 2007, 129(4): 851-859.
10	张树强, 陶正, 陈杰, 等. 旋转式唇形密封圈开启特性研究[J]. 火箭推进, 2016, 42(5): 52-57.
	Zhang S Q, Tao Z, Chen J, et al. Research on opening characteristics of rotary lip seals[J]. Journal of Rocket Propulsion, 2016, 42(5): 52-57.
11	李双喜, 许灿, 刘兴华, 等. 旋转式唇型圈停车密封开启全过程密封特性研究[J]. 润滑与密封, 2022, 47(1): 37-43.
	Li S X, Xu C, Liu X H, et al. Research on sealing characteristics of rotary lip type parking seal in the whole opening process[J]. Lubrication Engineering, 2022, 47(1): 37-43.
12	项冲, 龙伟漾, 郭飞, 等. 盾构主驱动密封性能流固耦合仿真[J]. 清华大学学报(自然科学版), 2023, 63(1): 71-77.
	Xiang C, Long W Y, Guo F, et al. Fluid-structure interaction simulation of sealing shield main drive seal properties[J]. Journal of Tsinghua University (Science and Technology), 2023, 63(1): 71-77.
13	江华生, 孟祥铠, 沈明学, 等. 唇形密封轴表面方向性微孔的润滑特性[J]. 化工学报, 2015, 66(2): 199-207.
	Jiang H S, Meng X K, Shen M X, et al. Hydrodynamic lubrication performance of lip seal with inclined micropores manufactured on rotary shaft surface[J]. CIESC Journal, 2015, 66(2): 199-207.
14	Maoui A, Hajjam M, Bonneau D. Effect of 3D lip deformations on elastohydrodynamic lip seals behaviour[J]. Tribology International, 2008, 41(9/10): 901-907.
15	Liu D, Wang S P, Shi J. Mixed elastohydrodynamic lubrication model of rotary lip seal with non-Gaussian surfaces: experimentation verification and numerical analysis on effects of sealed pressure[J]. Science Progress, 2021, 104(2): 368504211017010.
16	Morad O, Saikko V, Viitala R. Performance characterization of marine lip seals: contact temperature and frictional torque[J]. Wear, 2023, 523: 204763.
17	Mazza L, Goti E. Failure and damage of reciprocating lip seals for pneumatic cylinders in dry conditions[J]. Lubricants, 2024, 12(4): 119.
18	叶福相, 姚军, 刘玉发, 等. 多因素影响下的X80管道钢两相流冲蚀腐蚀特性[J]. 化工进展, 2021, 40(12): 6450-6459.
	Ye F X, Yao J, Liu Y F, et al. Erosion corrosion characteristics of X80 pipeline steel in two-phase flow under the influence of multiple factors[J]. Chemical Industry and Engineering Progress, 2021, 40(12): 6450-6459.
19	Ma Y, Yuan Z Y, Ni Y, et al. Performance prediction and multi-objective optimization of metal seals in roller cone bits[J]. Journal of Petroleum Science and Engineering, 2022, 208: 109316.
20	陈尧兴, 李志刚, 晏鑫, 等. 迷宫齿弯曲磨损时密封泄漏特性和转子动力特性系数研究[J]. 西安交通大学学报, 2018, 52(6): 157-164.
	Chen Y X, Li Z G, Yan X, et al. Investigations on the leakage characteristics and rotordynamic coefficients of labyrinth seal with tooth bending damage[J]. Journal of Xi'an Jiaotong University, 2018, 52(6): 157-164.
21	傅向荣, 陈璞, 孙树立, 等. 弹性力学有限元分析中的平衡与协调理论[J]. 工程力学, 2023, 40(2): 8-16.
	Fu X R, Chen P, Sun S L, et al. Research on equilibrium and conforming theory of the finite element method in elasticity[J]. Engineering Mechanics, 2023, 40(2): 8-16.
22	魏冰阳, 李家琦, 王文胜. 基于差齿面拓扑的轮齿承载拟赫兹接触分析[J]. 中国机械工程, 2021, 32(18): 2174-2180.
	Wei B Y, Li J Q, Wang W S. Quasi-hertz loaded tooth contact analysis of gears based on ease-off surface topology[J]. China Mechanical Engineering, 2021, 32(18): 2174-2180.
23	Gao Q F, Wu X X, Li Z S. Failure analysis of rolling bearings based on explicit dynamic method and theories of hertzian contact[J]. Journal of Failure Analysis and Prevention, 2019, 19(6): 1645-1654.
24	Varenberg M. Adjusting for running-in: extension of the archard wear equation[J]. Tribology Letters, 2022, 70(2): 59.
25	Tabrizi A T, Aghajani H, Saghafian H, et al. Correction of Archard equation for wear behavior of modified pure titanium[J]. Tribology International, 2021, 155: 106772.
26	张志敏, 丁雪兴, 张兰霞, 等. 浮环密封端面分形磨损预估模型及数值分析[J]. 化工学报, 2022, 73(12): 5526-5536.
	Zhang Z M, Ding X X, Zhang L X, et al. Fractal wear prediction model and numerical analysis of floating ring seal face[J]. CIESC Journal, 2022, 73(12): 5526-5536.
27	邢雷, 李金煜, 赵立新, 等. 基于响应面法的井下旋流分离器结构优化[J]. 中国机械工程, 2021, 32(15): 1818-1826.
	Xing L, Li J Y, Zhao L X, et al. Structural optimization of downhole hydrocyclones based on response surface methodology[J]. China Mechanical Engineering, 2021, 32(15): 1818-1826.
28	Yang L F, Li Z Y, Yu B, et al. Full-space response surface method for analysis of structural reliability[J]. International Journal of Structural Stability and Dynamics, 2020, 20(8): 2050096.
29	王义江, 孙莉, 刘梦涵, 等. 基于响应面法的矿用翅片管空冷器参数优化[J]. 化工学报, 2024, 75(1): 279-291.
	Wang Y J, Sun L, Liu M H, et al. Optimization on parameter of plate-fin-and-tube air cooler in mines based on response surface method[J]. CIESC Journal, 2024, 75(1): 279-291.
30	刘蕴, 刘全兴, 殷鸣, 等. 基于半互功率谱密度及响应面法的干气密封系统工作模态分析[J]. 振动与冲击, 2019, 38(19): 208-217.
	Liu Y, Liu Q X, Yin M, et al. Operational modal analysis of dry gas sealing system based on semi-cross power spectral density and response surface method[J]. Journal of Vibration and Shock, 2019, 38(19): 208-217.
31	樊文欣, 郭佩剑, 原霞, 等. 载荷和转速对铜合金材料摩擦磨损性能的影响[J]. 摩擦学学报, 2021, 41(6): 821-832.
	Fan W X, Guo P J, Yuan X, et al. Effects of load and speed on the friction and wear properties of copper alloys[J]. Tribology, 2021, 41(6): 821-832.
32	潘承怡, 童圆栖, 曹冠群, 等. 微结构表面展开轮摩擦磨损特性与仿真研究[J]. 中国机械工程, 2021, 32(22): 2689-2696.
	Pan C Y, Tong Y X, Cao G Q, et al. Research on friction and wear characteristics and simulation of microstructures surface unfolding wheels[J]. China Mechanical Engineering, 2021, 32(22): 2689-2696.
33	马润梅, 赵祥, 李双喜, 等. 动压式环瓣浮环密封特性及摩擦磨损研究[J]. 推进技术, 2022, 43(8): 313-322.
	Ma R M, Zhao X, Li S X, et al. Seal characteristics and friction and wear of dynamic pressure split floating ring[J]. Journal of Propulsion Technology, 2022, 43(8): 313-322.

参数	数值
唇口腰厚 t/mm	2.32
前唇角 α/(°)	35~55
后唇角 β/(°)	20~40
单边过盈量δ/mm	0.2~2.0
固定端转角γ/(°)	15
唇尖内径D_C1/mm	297.0
装配轴直径 D_C/mm	300.0
吊带弹簧径向尺寸D_C2/mm	315.0

参数	数值
唇口腰厚 t/mm	2.32
前唇角 α/(°)	35~55
后唇角 β/(°)	20~40
单边过盈量δ/mm	0.2~2.0
固定端转角γ/(°)	15
唇尖内径D_C1/mm	297.0
装配轴直径 D_C/mm	300.0
吊带弹簧径向尺寸D_C2/mm	315.0

设计变量	上限	下限
α/(°)	50	45
β/(°)	40	30
δ/mm	0.5	1.5
F_S/N	80	60
P_hs/MPa	0.15	0
n/(r/min)	800	0

设计变量	上限	下限
α/(°)	50	45
β/(°)	40	30
δ/mm	0.5	1.5
F_S/N	80	60
P_hs/MPa	0.15	0
n/(r/min)	800	0

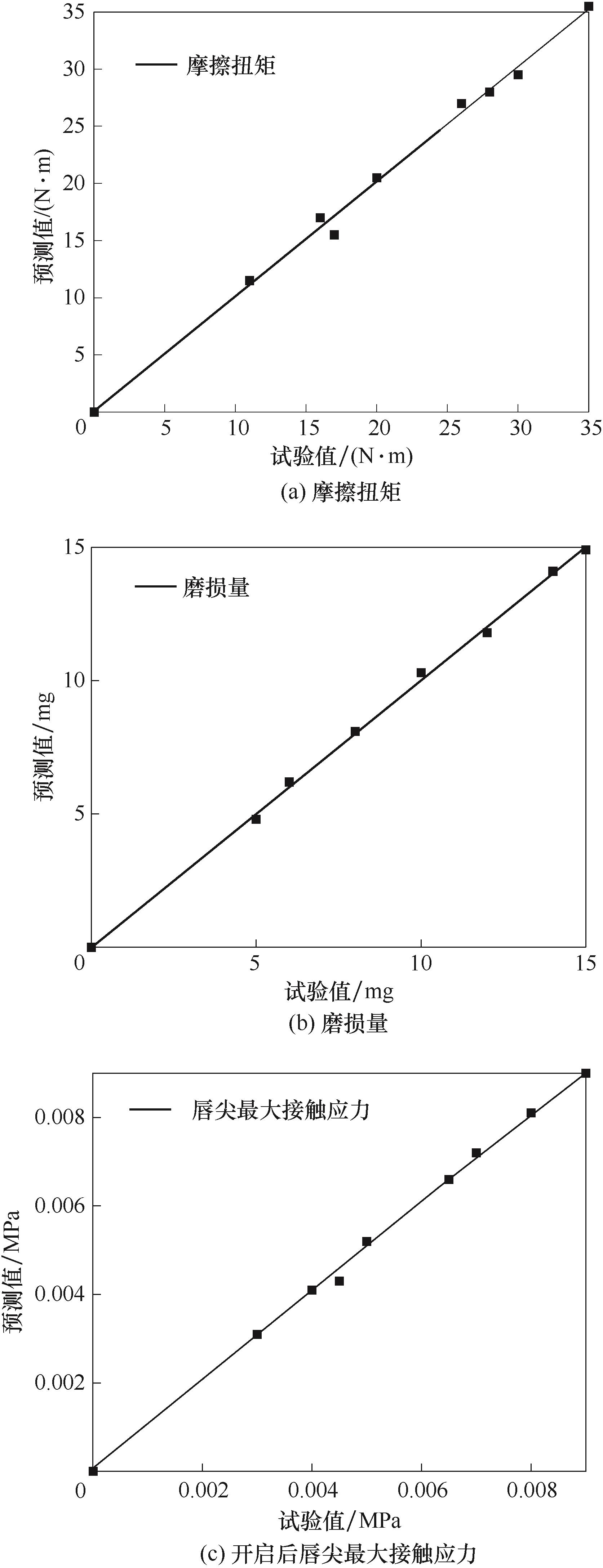

No.	α/(°)	β/(°)	δ/mm	F_S/N	P_hs/MPa	n/ (r/min)	W_r/ (N·m)	ω_m /mg	σ_H /MPa
1	48	37	1.2	70	0.14	100	15	7.4	0.049
2	50	39	0.8	64	0.04	400	12	5.2	0.008
3	46	40	0.5	68	0.08	150	10.3	4.3	0.006
4	45	32	1.3	72	0.06	300	13	5.9	0.009
5	47	30	1.5	76	0.12	200	16	7.8	0.013
6	49	33	0.9	80	0.09	450	12	5.4	0.009
7	45	40	1.5	70	0.10	500	19	9.1	0.020
8	46	31	1.0	74	0.13	600	13	5.5	0.036
9	48	38	0.7	66	0.15	750	13	5.8	0.052
10	46	35	0.6	65	0.05	500	10	4.2	0.006
11	50	40	1.1	61	0.12	550	16	8.2	0.017
12	45	30	1.4	71	0.07	800	16	8.6	0.018
13	45	36	1.5	77	0.14	650	21	9.5	0.050
14	48	40	0.5	69	0.11	500	12	5.6	0.009
15	49	34	0.8	79	0.15	700	19	9.3	0.055
