Preparation of acid-rich 13X molecular sieve and its ultra-deep adsorption removal of mercaptan in biodiesel

doi:10.11949/0438-1157.20241238

Abstract

Abstract:

In view of the difficulty in removing trace sulfides from biodiesel, the acid-rich Ce-13X molecular sieve was constructed by ion exchange method and used in the adsorption desulfurization system of biodiesel. The phase composition, structure and morphology, acid strength, element valence and acidity were analyzed by a series of characterizations. The results showed that the introduction of Ce increased the concentration of strong B acid sites and weak L acid sites in 13X zeolite. Under the optimal experimental conditions (temperature of 40℃, agent-oil ratio of 1∶80), after 30 min, the sulfur content in biodiesel dropped from 8 μg·g^-1 to below the target concentration of 2 μg·g^-1. The adsorption kinetics showed that the adsorption process conformed to the quasi-second-order kinetic model and the whole adsorption process was mainly controlled by liquid film diffusion and intraparticle diffusion. The adsorption thermodynamics showed that the adsorption of mercaptan by Ce-13X was a spontaneous exothermic process. This study not only proposed a construction method of acid-rich 13X molecular sieve, but also constructed an efficient adsorption desulfurization system to achieve ultra-deep removal of trace sulfides in biodiesel.

Key words: adsorption, desulfurization, ion exchange, mercaptan, biodiesel

摘要：

针对生物柴油中微量硫化物难脱除的问题，采用离子交换法构筑了富酸位Ce-13X分子筛，将其用于生物柴油吸附脱硫体系。通过一系列表征对其物相组成、结构形貌、酸强度、元素价态和酸性等性质进行分析。结果表明，Ce的引入增加了13X分子筛的强B酸位点以及弱L酸位点浓度。在最优实验条件温度40℃，剂油比为1∶80下，经过30 min，生物柴油中的硫含量从8 μg·g^-1降至目标浓度2 μg·g^-1以下。吸附动力学表明该吸附过程符合准二级动力学模型且整个吸附过程主要由液膜扩散和颗粒内扩散控制，吸附热力学表明Ce-13X对硫醇的吸附为自发放热过程。该研究不仅提出了一种富酸位13X分子筛的构筑方法，而且能够构筑高效吸附脱硫体系，实现生物柴油中微量硫化物超深度脱除。

关键词: 吸附, 脱硫, 离子交换, 硫醇, 生物柴油

CLC Number:

TE 624

Zhichao XU, Zhendong YU, Haofeng WU, Peiwen WU, Hongxiang WU, Yanhong CHAO, Wenshuai ZHU, Zhichang LIU, Chunming XU. Preparation of acid-rich 13X molecular sieve and its ultra-deep adsorption removal of mercaptan in biodiesel[J]. CIESC Journal, 2025, 76(5): 2198-2208.

徐智超, 俞镇东, 吴昊峰, 吴沛文, 武洪翔, 巢艳红, 朱文帅, 刘植昌, 徐春明. 富酸位13X分子筛的制备及其超深度吸附脱除生物柴油中硫醇[J]. 化工学报, 2025, 76(5): 2198-2208.

Figures/Tables 21

Fig.1 Sulfide composition analysis of biodiesel

Fig.2 XRD spectra of 13X and Ce-13X

Fig.3 SEM images of 13X (a) and Ce-13X (b)

Fig.4 FTIR spectra of 13X and Ce-13X

Fig.5 N2 adsorption-desorption isotherms (a) and pore size distribution (b) of 13X and Ce-13X

Table 1 Pore structure parameters and elemental analysis of adsorbents

n(SiO₂)/

n(Al₂O₃)

Fig.6 XPS full spectra (a) and Ce 3d spectra (b) of Ce-13X

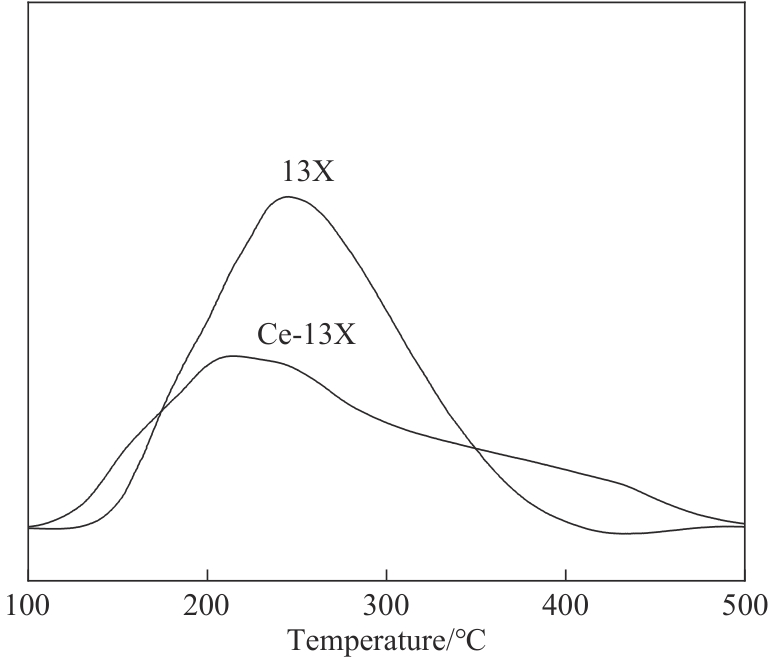

Fig.7 NH3-TPD spectra of 13X and Ce-13X

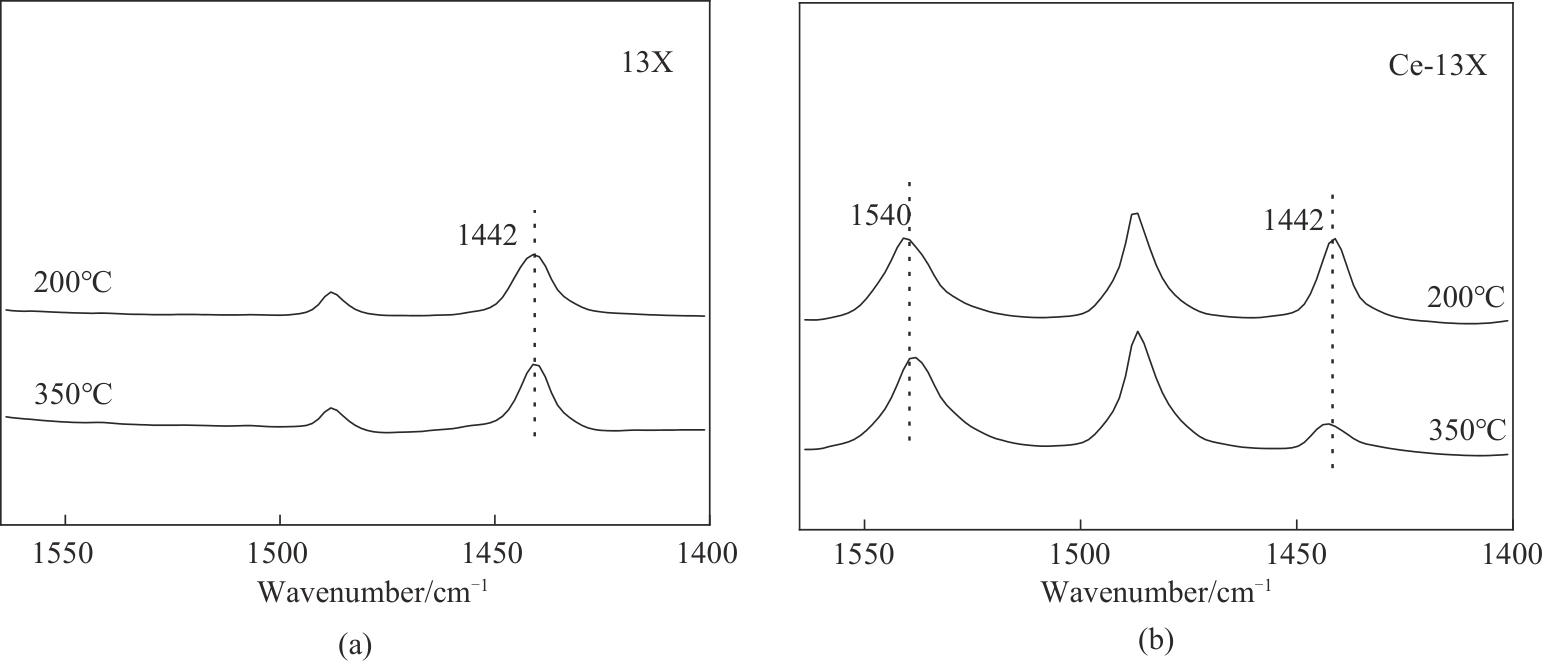

Fig.8 Py-IR spectra of 13X(a) and Ce-13X(b)

Table 2 Distribution of Brønsted and Lewis acidity in the adsorbents

吸附剂	脱附温度/℃	酸量/(μmol·g^-1)
吸附剂	脱附温度/℃	B酸	L酸
13X	200	—	196.4
13X	350	—	153.1
Ce-13X	200	318.5	151.2
Ce-13X	350	324.1	54.5

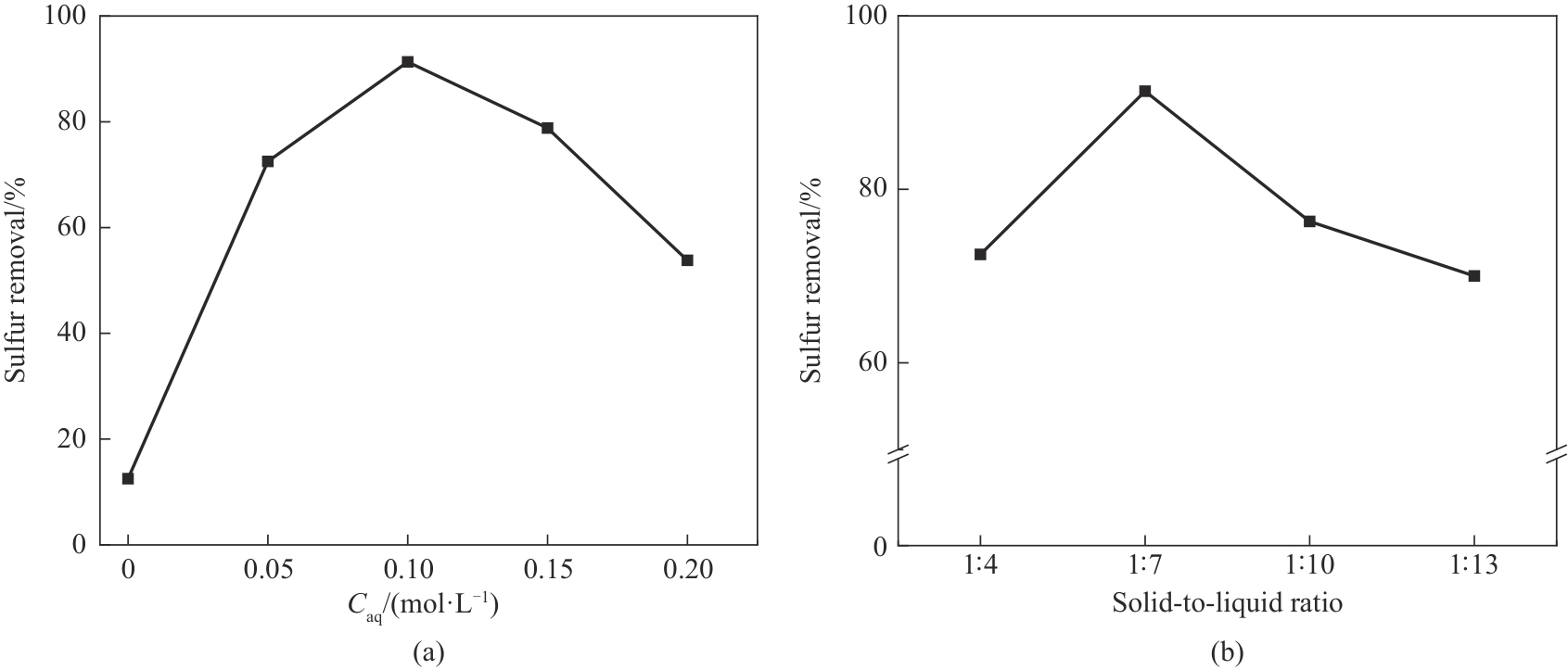

Fig.9 Effects of ion exchange solution concentration (a) and solid-liquid ratio (b) on adsorption desulfurization performance

Fig.10 Effect of temperature on equilibrium concentration (a) and adsorption rate (b)

Fig.11 Effect of adsorbent to oil ratio on adsorption performance

Fig.12 Pseudo-first-order kinetics (a) and pseudo-second-order kinetics (b) of Ce-13X adsorption desulfurization

Table 3 Fitting parameters of Ce-13X adsorption kinetics

温度/℃	q_e,exp/(mg·g^-1)	准一级动力学			准二级动力学
温度/℃	q_e,exp/(mg·g^-1)	k₁/min^-1	q_e1,cal/(mg·g^-1)	R²	k₂/(g·mg^-1·min^-1)	q_e2,cal/(mg·g^-1)	R²
30	0.69	0.0213	0.49	0.9483	0.0657	0.76	0.9980
40	0.70	0.0324	0.19	0.9780	0.3961	0.71	0.9999

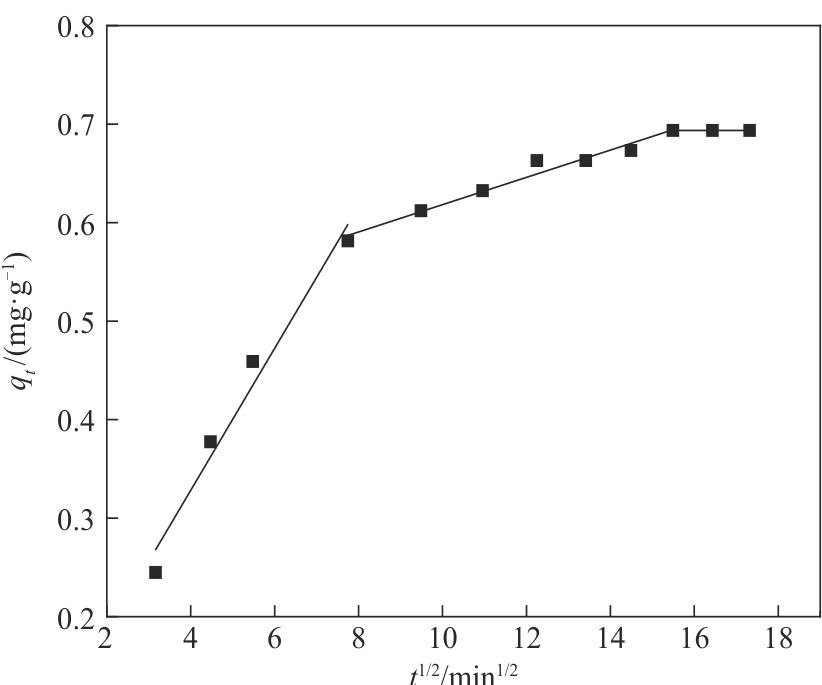

Fig.13 Intraparticle diffusion model of Ce-13X

Table 4 Fitting parameters of the intraparticle diffusion model

阶段	k/(mg·g^-1·min^-0.5)	C/(mg·g^-1)	R²
第一阶段	0.0721	0.0399	0.9592
第二阶段	0.0139	0.4794	0.9633
第三阶段	—	0.6936	—

Fig.14 Langmuir adsorption isotherms (a) and Freundlich adsorption isotherms (b) of Ce-13X

Table 5 Langmuir and Freundlich adsorption isotherm parameters of Ce-13X

吸附剂	q_m/(mg·g^-1)	Langmuir吸附等温线		Freundlich吸附等温线
吸附剂	q_m/(mg·g^-1)	K_L/(L·mg^-1)	R²	K_F/(mg·g^-1)(L·mg^-1)^1/ⁿ	1/n	R²
Ce-13X	7.73	0.0026	0.9669	0.1057	0.5995	0.9904

Fig.15 Linear fitting of lnK-1/T

Table 6 Adsorption thermodynamic parameters of Ce-13X at different temperatures

ΔG/(kJ·mol^-1)				ΔH/(kJ·mol^-1)	ΔS/(J·mol^-1·K^-1)	R²
303.15 K	313.15 K	323.15 K	333.15 K	ΔH/(kJ·mol^-1)	ΔS/(J·mol^-1·K^-1)	R²
-9.9114	-9.0445	-7.8336	-7.3374	-36.9286	-89.2170	0.9859
