液冷数据中心余热驱动的压缩-吸收式制冷系统特性研究

doi:10.11949/0438-1157.20241378

摘要/Abstract

摘要：

余热回收是优化数据中心能耗结构与节能降碳的重要解决方案。构建了液冷数据中心余热驱动的压缩-吸收式制冷系统模型，探究了供给侧热源温度、冷却水温度等参数对系统制冷性能的影响，研究不同冷却条件下提供性能补偿的压缩比-冷却水温度协调方式，结合北京地区的全年气候特征分析了典型服务器在不同散热功率的余热驱动制冷性能。研究得出供给侧热源温度升高使得性能提升，压缩比从1.2增至1.8时冷却水温度范围拓宽6.5~8.7℃；在过渡季或冬季，良好的自然冷源条件可以实现高效的自然冷却或单效吸收式制冷；气温处于平均值的阶段，仅消耗少量压缩电功即可实现高效制冷，而在极端炎热气候下，需要消耗相当于余热量15%~20%的压缩电功以维持高效制冷。

关键词: 数据中心, 液冷系统, 余热回收, 吸收式制冷, 性能补偿

Abstract:

Waste heat recovery is an essential solution to optimize the energy consumption structure of data center as well as save energy and reduce carbon emissions. This paper constructed a model of compression-absorption refrigeration system driven by waste heat in liquid-cooled data center, and investigated the influence of supply-side heat source temperatures, cooling water temperature and other parameters on the refrigeration performance. The coordination method of compression ratio and cooling water temperature was researched to compensate for system performance under variable cooling conditions. Combined with the year-round climate analysis in Beijing, the analysis of the refrigeration characteristics driven by waste heat source of a typical server with different heat dissipation powers was carried out, and it was concluded the performance was improved by the increasing temperature of the supply-side heat sources. The operating range of cooling water temperature was widened by 6.5℃ to 8.7℃ as the compression ratio increased from 1.2 to 1.8. In transition seasons and winter, plentiful natural cooling sources can maintain the operation of single-effect absorption refrigeration system with considerable performance, and provide effective natural cooling for servers. During the period of the environmental temperature on average, only a handful of compression power was spent in achieving efficient refrigeration. When operating in the extremely hot climate, the compression power equivalent to 15% to 20% of the waste heat was consumed to maintain efficient refrigeration. The system achieves waste heat recovery with high efficiency in most of the time of the year from the theoretical analysis. In future research, the development of new types of working pairs, the optimization of energy consumption under extreme climatic conditions, and the design and maintenance of system devices are technical difficulties that need to be broken through.

Key words: data center, liquid-cooled system, waste heat recovery, absorption refrigeration, performance compensation

中图分类号:

TK 11⁺5

黄琮琪, 邵双全. 液冷数据中心余热驱动的压缩-吸收式制冷系统特性研究[J]. 化工学报, 2025, 76(S1): 326-335.

Congqi HUANG, Shuangquan SHAO. Research on characteristics of compression-absorption refrigeration system driven by waste heat in liquid-cooled data center[J]. CIESC Journal, 2025, 76(S1): 326-335.

图/表 14

图1 压缩-吸收式制冷系统流程

Fig.1 Compression-absorption refrigeration system

图2 压缩-吸收式制冷系统压力-温度-浓度关系

Fig.2 Relationship of P-t-x in compression-absorption refrigeration system

表1 系统部件的能量守恒关系式

Table 1 Energy conservation of system components

部件	能量守恒关系式
蒸发器	$Q ˙ e v a = m ˙ 1 h 1 - m ˙ 13 h 13 = m ˙ F 1 (h F 1 - h F 2)$
吸收器	$Q ˙ a b s = m ˙ 3 h 3 + m ˙ 9 h 9 - m ˙ 4 h 4 = m ˙ a b s, C 1 (h a b s, C 2 - h a b s, C 1)$
溶液换热器	$m ˙ 5 h 5 + m ˙ 7 h 7 - m ˙ 6 h 6 - m ˙ 8 h 8 = 0$ ; $η e x c = (t 7 - t 8) / (t 7 - t 5)$
发生器	$Q ˙ g e n = m ˙ 10 h 10 + m ˙ 7 h 7 - m ˙ 6 h 6 = m ˙ H 1 (h H 1 - h H 2)$
压缩机	$W ˙ c = m ˙ 3 h 3 - m ˙ 2 h 2 = m ˙ 2 (h 3, i - h 2) / η i$ ; $W ˙ e = W ˙ c / η e$
冷凝器	$Q ˙ c o n = m ˙ 10 h 10 - m ˙ 11 h 11 = m ˙ c o n, C 1 (h c o n, C 2 - h c o n, C 1)$
回热器	$m ˙ 11 h 11 + m ˙ 1 h 1 - m ˙ 12 h 12 - m ˙ 2 h 2 = 0$
溶液泵	$W ˙ p u m p = m ˙ 5 h 5 - m ˙ 4 h 4 = m ˙ 5 (P 5 - P 4) ρ 5 η p u m p$
节流阀	$m ˙ 9 h 9 - m ˙ 8 h 8 = 0$ ; $m ˙ 13 h 13 - m ˙ 12 h 12 = 0$

表1 系统部件的能量守恒关系式

Table 1 Energy conservation of system components

部件	能量守恒关系式
蒸发器	$Q ˙ e v a = m ˙ 1 h 1 - m ˙ 13 h 13 = m ˙ F 1 (h F 1 - h F 2)$
吸收器	$Q ˙ a b s = m ˙ 3 h 3 + m ˙ 9 h 9 - m ˙ 4 h 4 = m ˙ a b s, C 1 (h a b s, C 2 - h a b s, C 1)$
溶液换热器	$m ˙ 5 h 5 + m ˙ 7 h 7 - m ˙ 6 h 6 - m ˙ 8 h 8 = 0$ ; $η e x c = (t 7 - t 8) / (t 7 - t 5)$
发生器	$Q ˙ g e n = m ˙ 10 h 10 + m ˙ 7 h 7 - m ˙ 6 h 6 = m ˙ H 1 (h H 1 - h H 2)$
压缩机	$W ˙ c = m ˙ 3 h 3 - m ˙ 2 h 2 = m ˙ 2 (h 3, i - h 2) / η i$ ; $W ˙ e = W ˙ c / η e$
冷凝器	$Q ˙ c o n = m ˙ 10 h 10 - m ˙ 11 h 11 = m ˙ c o n, C 1 (h c o n, C 2 - h c o n, C 1)$
回热器	$m ˙ 11 h 11 + m ˙ 1 h 1 - m ˙ 12 h 12 - m ˙ 2 h 2 = 0$
溶液泵	$W ˙ p u m p = m ˙ 5 h 5 - m ˙ 4 h 4 = m ˙ 5 (P 5 - P 4) ρ 5 η p u m p$
节流阀	$m ˙ 9 h 9 - m ˙ 8 h 8 = 0$ ; $m ˙ 13 h 13 - m ˙ 12 h 12 = 0$

图3 单效/压缩-吸收式制冷系统模型验证结果

Fig.3 Model validation of single-effect and compression-absorption refrigeration system

图4 服务器利用率-能耗模型

Fig.4 Server utilization-energy consumption model

表2 额定工况参数设定

Table 2 Parameters in rated operating condition

工质	工况参数	状态点	设计值
冷却液	输入温度/℃	t_H1	60.00
冷却液	输出温度/℃	t_H2	56.00
空调冷水	输入温度/℃	t_F1	18.00
空调冷水	输出温度/℃	t_F2	12.00
溶液	发生器温度/℃	t₇	53.00
	吸收器温度/℃	t₄	32.00
	溶液换热器效率	η_exc	0.80
制冷剂	蒸发温度/℃	t₁	10.00
	冷凝温度/℃	t₃	32.00
	压缩机压缩比	CR	1.60
	压缩机等熵效率	η_i	0.70
	压缩机电效率	η_e	0.38
冷却水	输入温度/℃	t_C1	24.00
	吸收器温差/℃	t_abs,C2 - t_C1	5.00
	冷凝器温差/℃	t_con,C2 - t_C1	5.00

图5 温度tF2与tH1对系统性能的影响

Fig.5 Influence of tF2 and tH1 on system performance

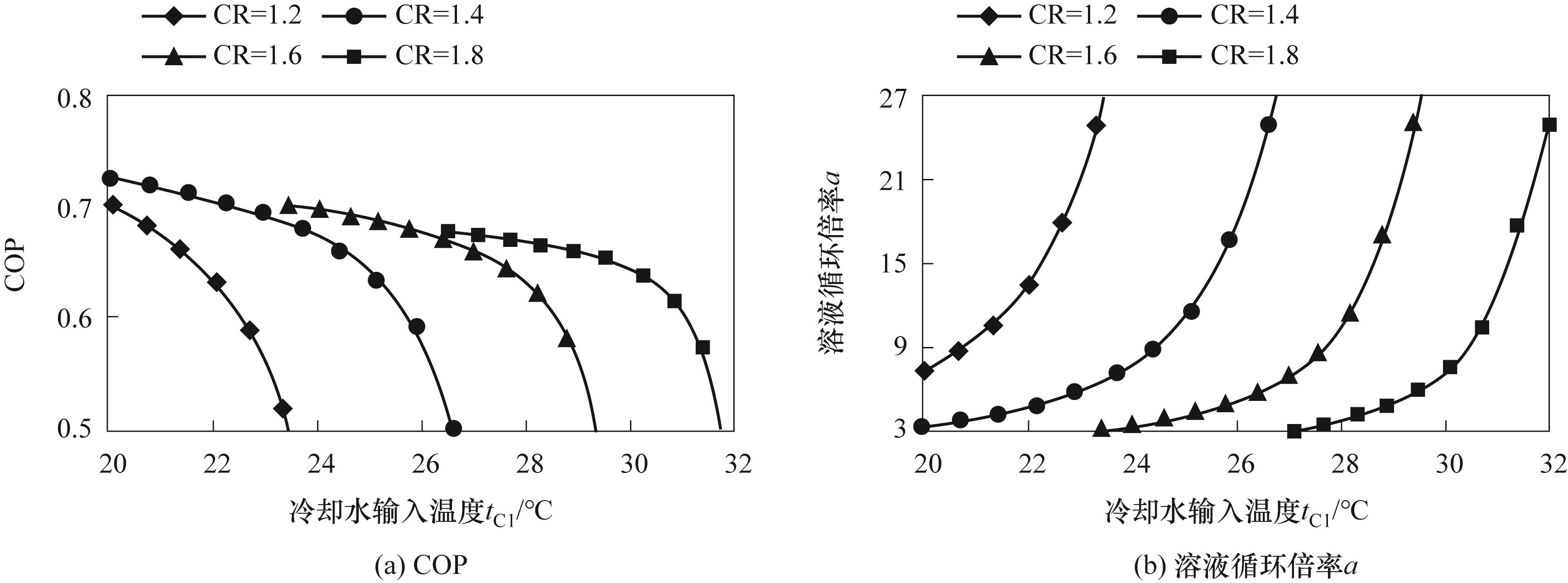

图6 温度tC1与CR对系统性能的影响

Fig.6 Influence of tC1 and CRon system performance

图7 北京地区近30年平均逐时温度与含湿量分布

Fig.7 Distribution of average hourly temperature and humidity in Beijing in the past 30 years

图8 北京地区平均逐周湿球温度与冷却水温度分布

Fig.8 Weekly distribution of wet bulb temperature and cooling water temperature in Beijing

图9 工况参数随CPU利用率的调节变化

Fig.9 Variation of operation parameters with CPU utilization

图10 服务器高功率模式下余热回收制冷运行特性

Fig.10 Operation characteristics of refrigeration with waste heat recovery of servers in high-power mode

图11 服务器低功率模式下余热回收制冷运行特性

Fig.11 Operation characteristics of refrigeration with waste heat recovery of servers in low-power mode

图12 第31周与第36周的系统运行性能

Fig.12 System performance in week No.31 and No.36

参考文献 30

1	骆清怡, 王长宏. 数据中心多尺度热管理策略综述[J]. 制冷技术, 2021, 41(3): 1-11.
	Luo Q Y, Wang C H. Review of multi-scale thermal management strategy in data center[J]. Chinese Journal of Refrigeration Technology, 2021, 41(3): 1-11.
2	Zhou F, Song Y, Ma G Y. Load characteristics analysis of the water source heat pump heating system using data center waste heat[J]. Energy Conversion and Management, 2023, 296: 117679.
3	Zhang C Q, Luo H X, Wang Z X. An economic analysis of waste heat recovery and utilization in data centers considering environmental benefits[J]. Sustainable Production and Consumption, 2022, 31: 127-138.
4	黄一晟, 陈健勇, 罗向龙, 等. 用于余热回收利用的有机朗肯循环与高温热泵对比研究[J]. 制冷技术, 2023, 43(4): 79-85.
	Huang Y S, Chen J Y, Luo X L, et al. Comparative study on organic Rankine cycle and high temperature heat pump for waste heat recovery and utilization[J]. Chinese Journal of Refrigeration Technology, 2023, 43(4): 79-85.
5	Pan Q W, Peng J J, Wang R Z. Application analysis of adsorption refrigeration system for solar and data center waste heat utilization[J]. Energy Conversion and Management, 2021, 228: 113564.
6	Ebrahimi K, Jones G F, Fleischer A S. Thermo-economic analysis of steady state waste heat recovery in data centers using absorption refrigeration[J]. Applied Energy, 2015, 139: 384-397.
7	Chen H, Peng Y H, Wang Y L. Thermodynamic analysis of hybrid cooling system integrated with waste heat reusing and peak load shifting for data center[J]. Energy Conversion and Management, 2019, 183: 427-439.
8	Wu W. Low-temperature compression-assisted absorption thermal energy storage using ionic liquids[J]. Energy and Built Environment, 2020, 1(2): 139-148.
9	Takalkar G D, Bhosale R R, Mali N A, et al. Thermodynamic analysis of EMISE-water as a working pair for absorption refrigeration system[J]. Applied Thermal Engineering, 2019, 148: 787-795.
10	Sujatha I, Venkatarathnam G. Comparison of performance of a vapor absorption refrigeration system operating with some hydrofluorocarbons and hydrofluoroolefins as refrigerants along with ionic liquid [hmim][TF 2N] as the absorbent[J]. International Journal of Refrigeration, 2018, 88: 370-382.
11	Asensio-Delgado J M, Asensio-Delgado S, Zarca G, et al. Analysis of hybrid compression absorption refrigeration using low-GWP HFC or HFO/ionic liquid working pairs[J]. International Journal of Refrigeration, 2022, 134: 232-241.
12	徐敬玉. 基于烟气处理一体化的开式吸收热泵技术及应用研究[J]. 制冷技术, 2022, 42(3): 62-67.
	Xu J Y. Research on open absorption heat pump technology and application based on collaborative treatment of flue gas[J]. Chinese Journal of Refrigeration Technology, 2022, 42(3): 62-67.
13	匡胜严, 侯俊杰, 谢吉平, 等. 太阳能溴化锂吸收式热泵应用分析[J]. 制冷技术, 2017, 37(6): 72-77.
	Kuang S Y, Hou J J, Xie J P, et al. Application analysis of solar LiBr absorption heat pump[J]. Chinese Journal of Refrigeration Technology, 2017, 37(6): 72-77.
14	Ji Q, Han Z W, Zhang X P, et al. Study on the heating performance of absorption-compression hybrid heat pump in severe cold regions[J]. Applied Thermal Engineering, 2021, 185: 116419.
15	Wang J, Wang B L, Li X T, et al. Performance analysis on compression-assisted absorption heat transformer: a new low-temperature heating system with higher heating capacity under lower ambient temperature[J]. Applied Thermal Engineering, 2018, 134: 419-427.
16	Ji Q, Yin Y G, Wang Y K, et al. Comparative analysis of compression-absorption cascade heat pump using various ionic liquid-based working pairs[J]. Energy Conversion and Management, 2022, 269: 116084.
17	Guo Y H, Shao S Q, Geng X D, et al. A data-driven evaluating method on the defrosting effect of the air source heat pump system in Beijing[J]. Applied Thermal Engineering, 2023, 235: 121377.
18	Huicochea A. A novel advanced absorption heat pump (type Ⅲ) for cooling and heating using low-grade waste heat[J]. Energy, 2023, 278: 127938.
19	Wu W, Leung M, Ding Z X, et al. Comparative analysis of conventional and low-GWP refrigerants with ionic liquid used for compression-assisted absorption cooling cycles[J]. Applied Thermal Engineering, 2020, 172: 115145.
20	Gupta R, Puri I K. Waste heat recovery in a data center with an adsorption chiller: technical and economic analysis[J]. Energy Conversion and Management, 2021, 245: 114576.
21	Kansal A, Zhao F, Liu J, et al. Virtual Machine Power Metering and Provisioning[C]//Proceedings of the 1st ACM Symposium on Cloud computing. ACM, 2010.
22	Huang P, Copertaro B, Zhang X X, et al. A review of data centers as prosumers in district energy systems: renewable energy integration and waste heat reuse for district heating[J]. Applied Energy, 2020, 258: 114109.
23	Zhang X, Cai L, Chen T, et al. Performance analysis of a novel compression-assisted absorption power and refrigeration system with selected 1,1-difluoroethane/ionic liquid[J]. Journal of Cleaner Production, 2022, 340: 130856.
24	Zhang X, Wang R Z, Xu Z Y. Air-source hybrid absorption-compression heat pumps with three-stage thermal coupling configuration for temperature lift over 150℃[J]. Energy Conversion and Management, 2022, 271: 116304.
25	Ji Q, Wang Y K, Yin Y G, et al. Cooling performance of compression-absorption cascade system with novel ternary ionic-liquid working pair[J]. Energy, 2023, 278: 128018.
26	Dai B M, Yang H N, Liu S C, et al. Hybrid solar energy and waste heat driving absorption subcooling supermarket CO₂ refrigeration system: energetic, carbon emission and economic evaluation in China[J]. Solar Energy, 2022, 247: 123-145.
27	Wahlroos M, Pärssinen M, Rinne S, et al. Future views on waste heat utilization—case of data centers in Northern Europe[J]. Renewable and Sustainable Energy Reviews, 2018, 82: 1749-1764.
28	颜晓光. 冷却塔间接供冷系统在数据中心的应用研究[J]. 制冷与空调(四川), 2022, 36(5): 693-700.
	Yan X G. Application analysis of indirect cooling system of cooling tower in data center[J]. Refrigeration & Air Conditioning, 2022, 36(5): 693-700.
29	杨毅, 任华华, 郝海仙. 数据中心冷却塔供冷应用分析[J]. 建筑热能通风空调, 2014, 33(1): 80-82.
	Yang Y, Ren H H, Hao H X. The application analysis of cooling tower free cooling for data center[J]. Building Energy & Environment, 2014, 33(1): 80-82.
30	Huang Q H, Shao S Q, Zhang H N, et al. Development and composition of a data center heat recovery system and evaluation of annual operation performance[J]. Energy, 2019, 189: 116200.
