金属诱导制备Fe₃O₄/FeNi/CNT复合材料及其吸波性能研究

梁晟源¹^,²(), 周如东¹^,²(), 李文凯¹^,², 王李军¹^,², 李士阔³()

^1.中海油常州涂料化工研究院有限公司，江苏常州 213016
^2.国家涂料工程技术研究中心，江苏常州 213016
^3.安徽大学材料科学与工程学院磁性功能材料与器件安徽省重点实验室，安徽合肥 230601

收稿日期:2025-05-07 修回日期:2025-07-02 出版日期:2025-11-25 发布日期:2025-12-19
通讯作者: 周如东,李士阔
作者简介:梁晟源（1990—），男，博士，研发工程师，liangshy10@cnooc.com.cn
基金资助:
国家涂料工程技术研究中心2024年主任基金项目(KJQZ-2024-1102);国家自然科学基金项目(52172174)

Study on electromagnetic wave absorption properties of Fe₃O₄/FeNi/CNT composites with magnetic-dielectric loss

Shengyuan LIANG¹^,²(), Rudong ZHOU¹^,²(), Wenkai LI¹^,², Lijun WANG¹^,², Shikuo LI³()

^1.CNOOC Changzhou Paint and Coating Industry Research Institute Co. , Ltd. , Changzhou 213016, Jiangsu, China
^2.National Engineering Research Center for Coatings, Changzhou 213016, Jiangsu, China
^3.Anhui Key Laboratory of Magnetic Functional Materials and Device, School of Materials Science and Engineering, Anhui University, Hefei 230601, Anhui，China

Received:2025-05-07 Revised:2025-07-02 Online:2025-11-25 Published:2025-12-19
Contact: Rudong ZHOU, Shikuo LI

摘要/Abstract

摘要：

在信息通信技术日新月异的发展背景下，电磁波辐射问题影响人们身体健康和电子设备的正常工作。为解决上述问题，开发高性能电磁波吸收材料已成为当前科技发展的重要研究方向。作为磁性吸收剂中的重要组成部分，铁氧体吸波材料因合成工艺简单和具有良好的磁损耗优势受到广泛关注。然而其相对介电常数与阻抗匹配较差，难以满足宽频吸波需求。本实验以四氧化三铁为研究对象，通过引入金属镍作为催化剂，实现碳纳米管的原位生长。制备出Fe₃O₄/FeNi/CNT复合材料，丰富损耗机制和提高电磁波吸收性能。样品在频率4.88 GHz时，最小反射损耗（RL_min）可以达到-39.2 dB。在厚度为2.00 mm的条件下，有效吸收带宽（EAB）可以达到3.5 GHz。通过雷达截面（RCS）模拟证明Fe₃O₄/FeNi/CNT复合材料具有强电磁波吸收能力，适合应用于实际。本文可为优化铁氧体的吸收带宽和阻抗匹配提供参考。

关键词: 电磁波吸收, 多尺度, 纳米材料, 阻抗匹配, 复合材料

Abstract:

With the rapid development of information and communication technology, electromagnetic radiation poses a threat to human health and the normal operation of electronic devices. To address the aforementioned issues, the development of high-performance electromagnetic wave absorbing materials has become a crucial research direction in current technological advancement. As an important part of magnetic absorbent, ferrite absorbing materials have attracted wide attention because of their simple synthesis process and good magnetic loss advantages. However, its relative dielectric constant is poorly matched with impedance, so it is difficult to meet the requirements of broadband wave absorption. In this paper, Fe₃O₄ was taken as the research object, and the in-situ growth of carbon nanotubes was realized by introducing nickel as the catalyst. Fe₃O₄/FeNi/CNT composites were successfully prepared, which enriched the loss mechanism and improved the electromagnetic wave absorption performance. At 4.88 GHz, the absorption of electromagnetic waves yielded a minimum reflection loss (RL_min) of -39.2 dB. When the thickness was 2.00 mm, the effective absorption bandwidth (EAB) was 3.5 GHz. The Fe₃O₄/FeNi/CNT composite material had been proven through radar cross-section (RCS) simulations to possess strong electromagnetic wave absorption capabilities, making it suitable for practical applications. This work provides a simple and effective method for optimizing the absorption bandwidth and impedance matching of ferrite.

Key words: electromagnetic wave absorption, multiscale, nanomaterials, impedance matching, composites

中图分类号:

TB 34

梁晟源, 周如东, 李文凯, 王李军, 李士阔. 金属诱导制备Fe₃O₄/FeNi/CNT复合材料及其吸波性能研究[J]. 化工学报, 2025, 76(11): 6099-6109.

Shengyuan LIANG, Rudong ZHOU, Wenkai LI, Lijun WANG, Shikuo LI. Study on electromagnetic wave absorption properties of Fe₃O₄/FeNi/CNT composites with magnetic-dielectric loss[J]. CIESC Journal, 2025, 76(11): 6099-6109.

图/表 10

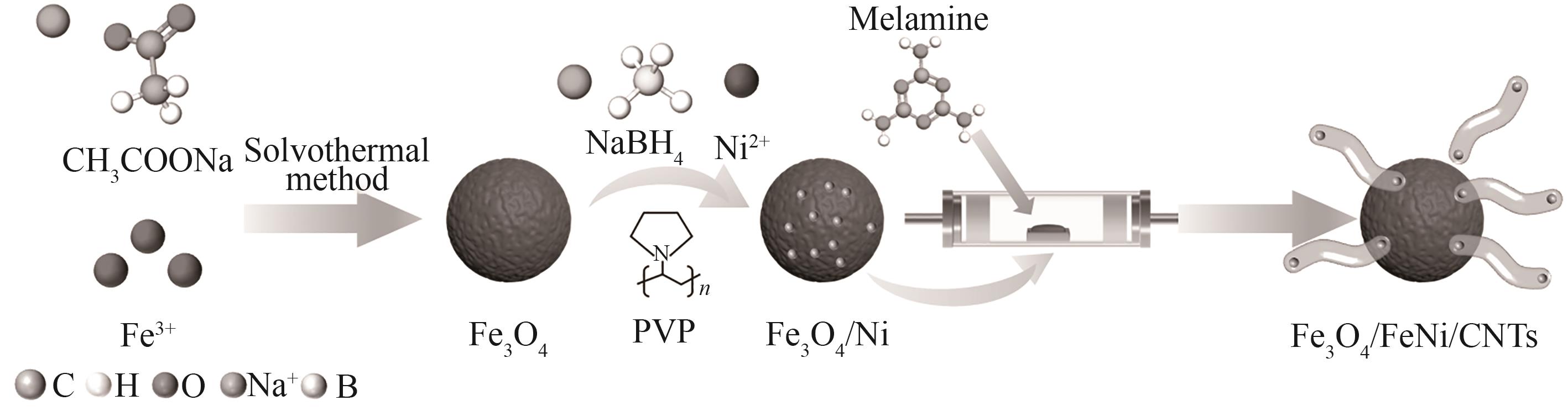

图1 吸波复合材料Fe3O4/FeNi/CNT的制备流程示意图

Fig.1 Schematic illustration of fabrication procedure of microwave absorbing composite Fe3O4/FeNi/CNT

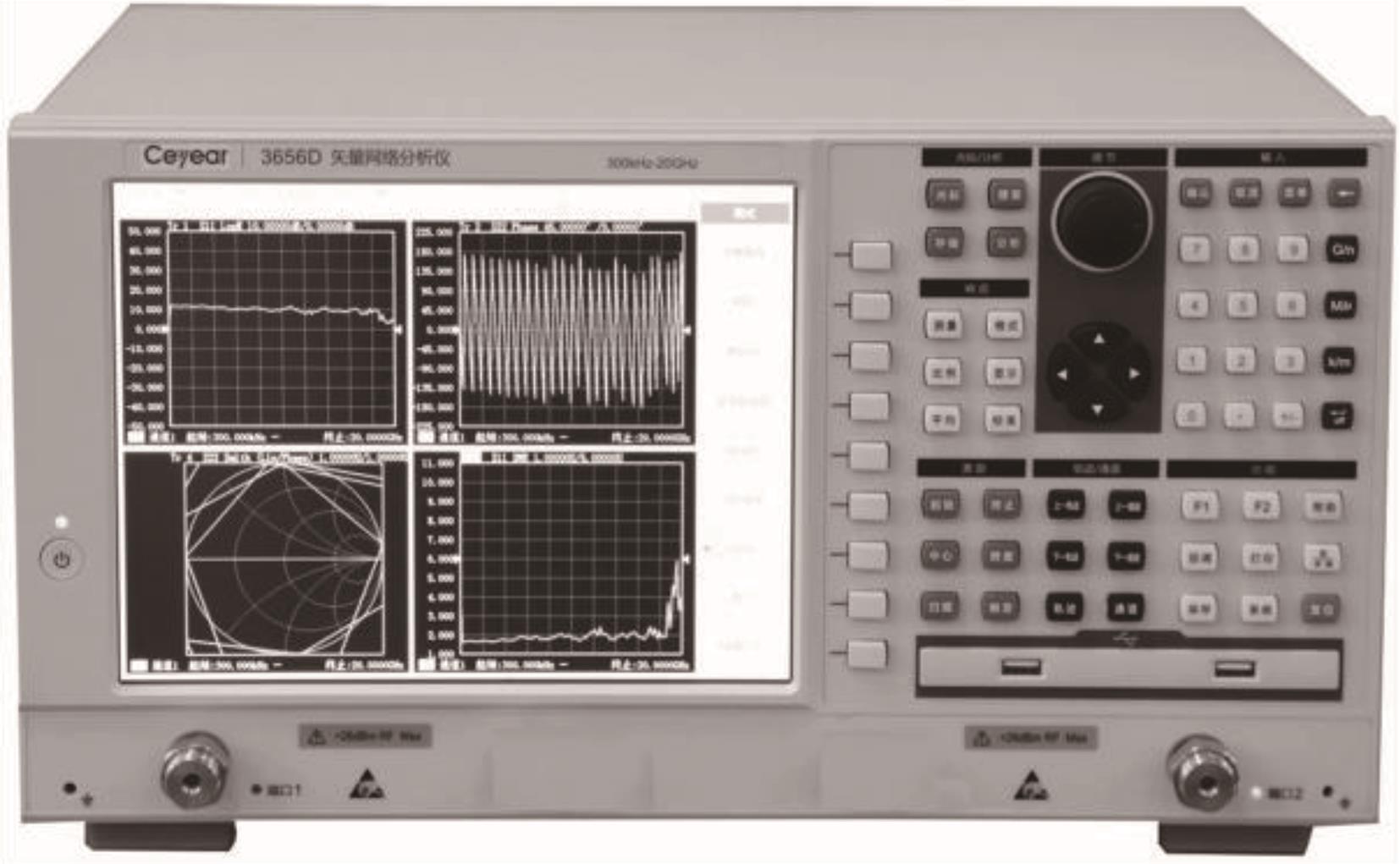

图2 电磁波吸收测试系统

Fig.2 Electromagnetic wave absorption test system

图3 Fe3O4纳米颗粒（a）和样品S2（b）的扫描电子显微镜图；样品S2的透射电子显微镜图[（c）,（d）]

Fig.3 SEM images of Fe3O4 nanoparticles (a) and sample S2 (b)； TEM images of sample S2 [(c),(d)]

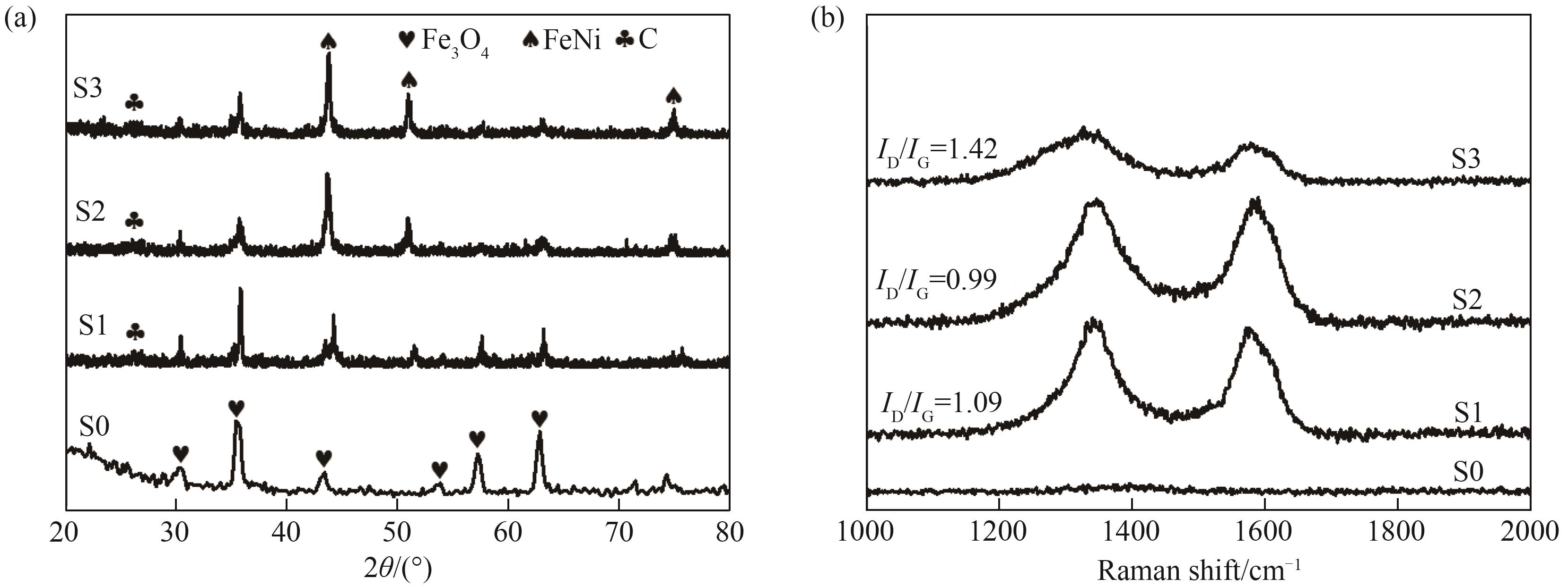

图4 样品S0，S1，S2，S3的XRD谱图（a）和Raman谱图（b）

Fig.4 XRD patterns (a) and Raman spectra (b) of S0, S1, S2, S3

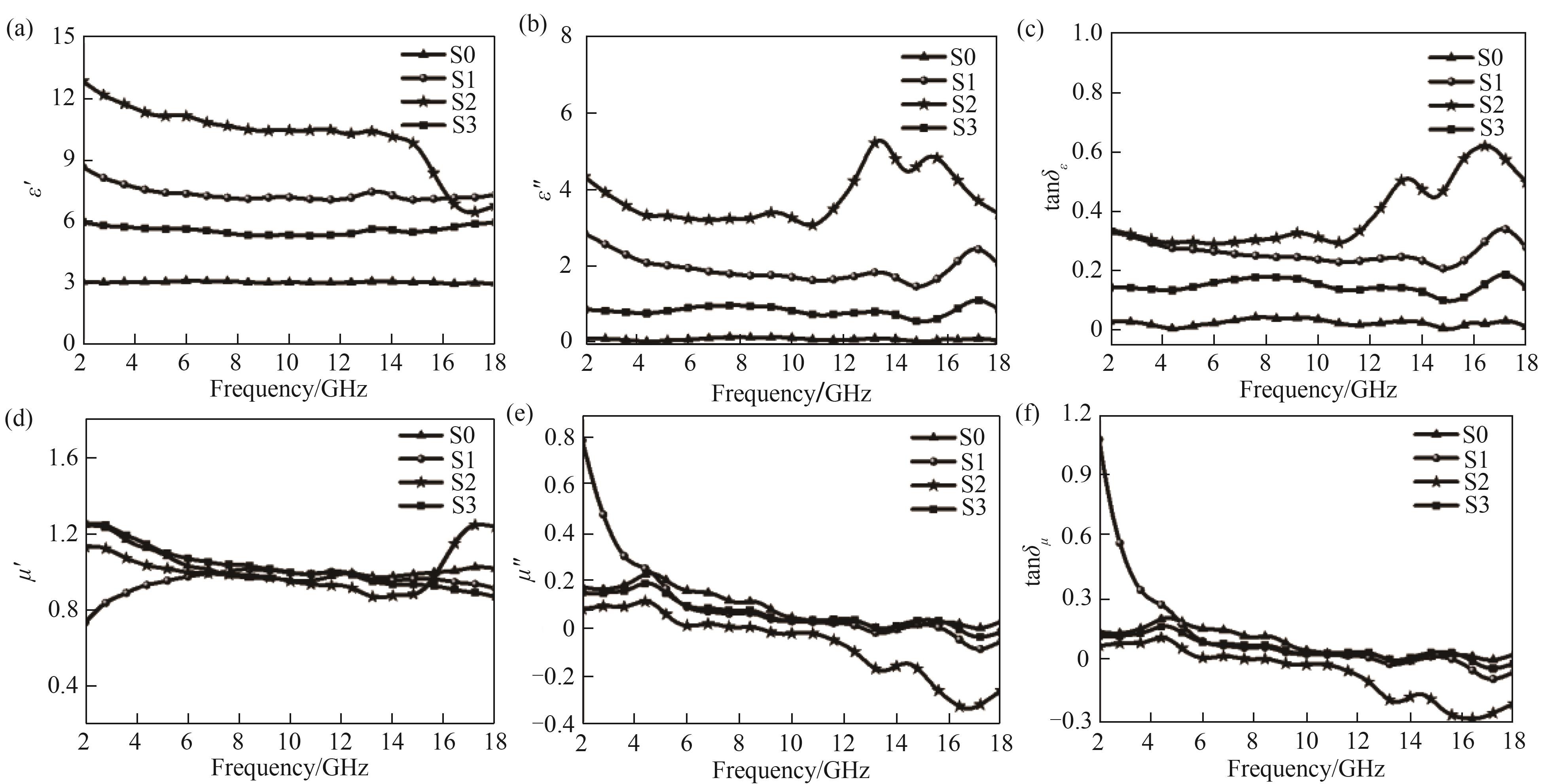

图5 样品S0，S1，S2，S3的介电常数实部ε′（a）、虚部ε″（b）、介电损耗正切tanδε （c）和磁导率实部μ′ （d）、虚部μ″ （e）、磁损耗正切tanδµ （f）

Fig.5 Complex permittivity real part ε′ (a), imaginary part ε″ (b), dielectric loss tangent tanδε (c), and complex permeability real part μ′ (d), imaginary part μ″ (e), magnetic loss tangent tanδµ (f) of S0, S1, S2, S3

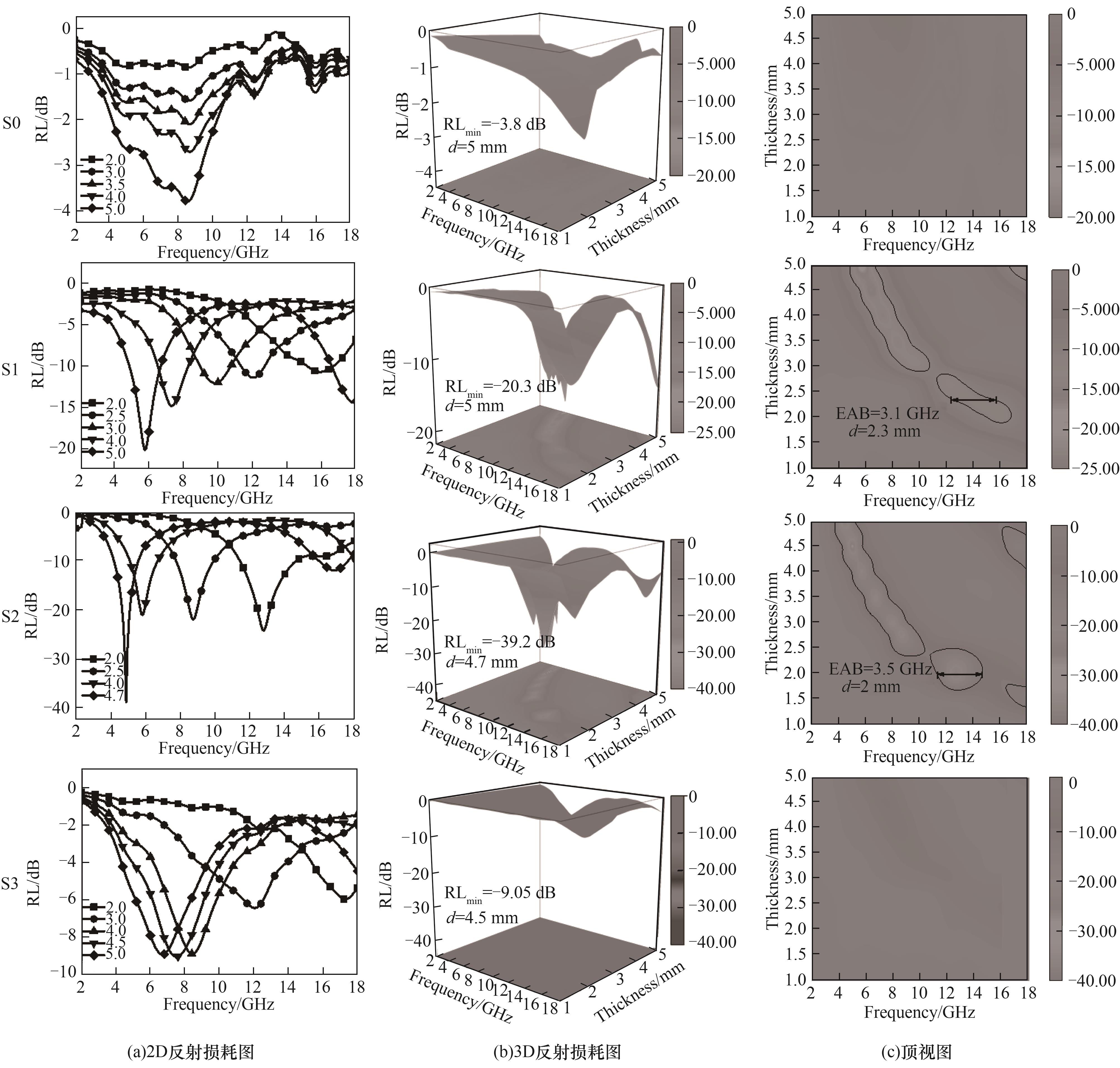

图6 S0、S1、S2、S3的2D反射损耗图、3D反射损耗图和顶视图

Fig.6 2D reflection loss diagram, 3D reflection loss diagram and top view of S0, S1, S2 and S3

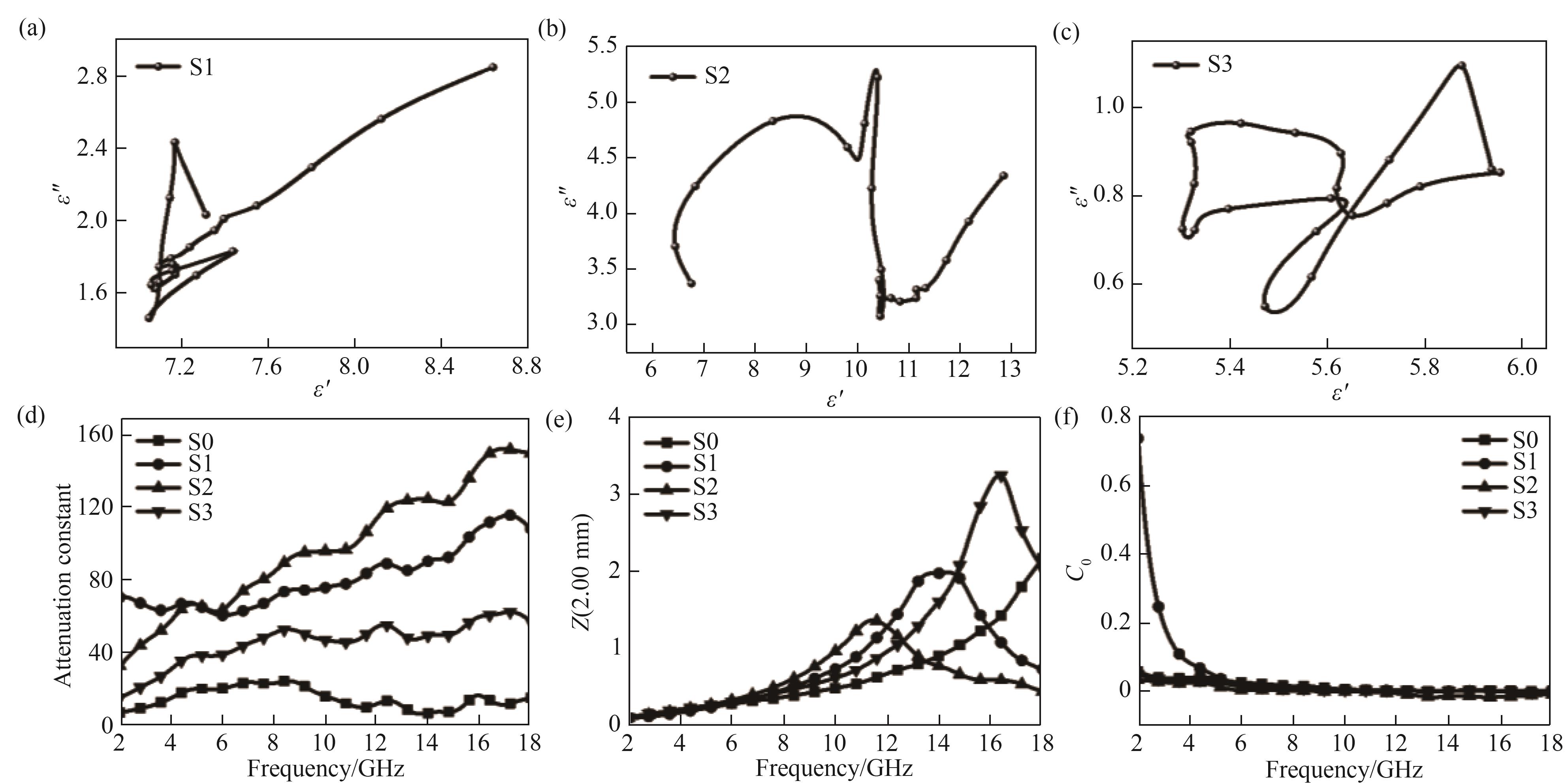

图7 样品的Cole-Cole曲线[（a）~（c）]，衰减常数（d），阻抗匹配（2.00 mm）（e）和C0曲线（f）

Fig.7 Cole-Cole curves [(a)—(c)], attenuation constant (d), impedance matching at thickness of 2.00 mm (e) and C0 curves (f) of samples

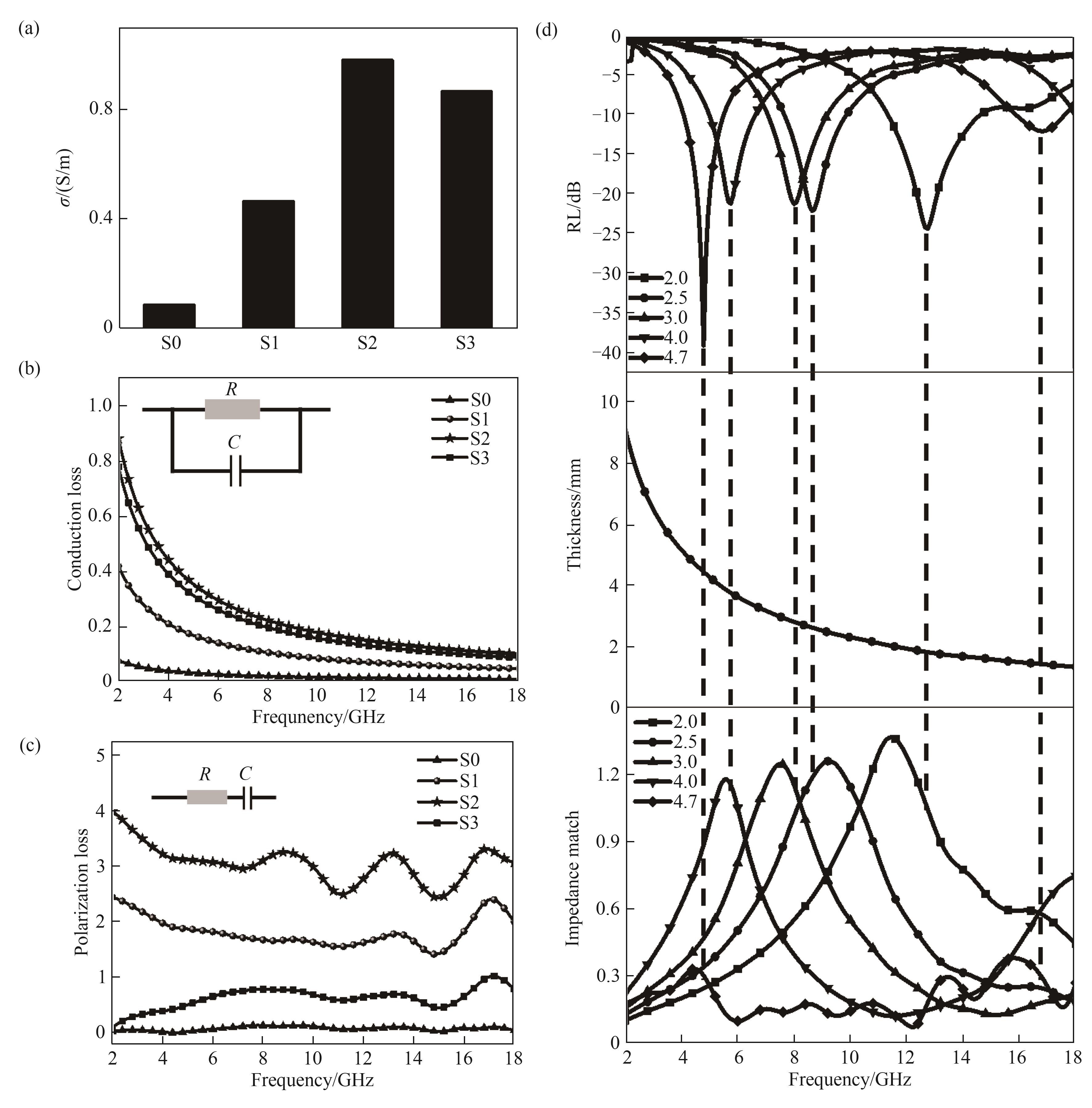

图8 S0，S1，S2，S3的电导率（a）、传导损耗（b）、极化损耗（c）和S2的反射损耗与阻抗匹配图（d）

Fig.8 Electrical conductivity (a), conduction loss (b), polarization loss (c) of S0, S1, S2, S3, and matching diagram of reflection loss and impedance of S2 (d)

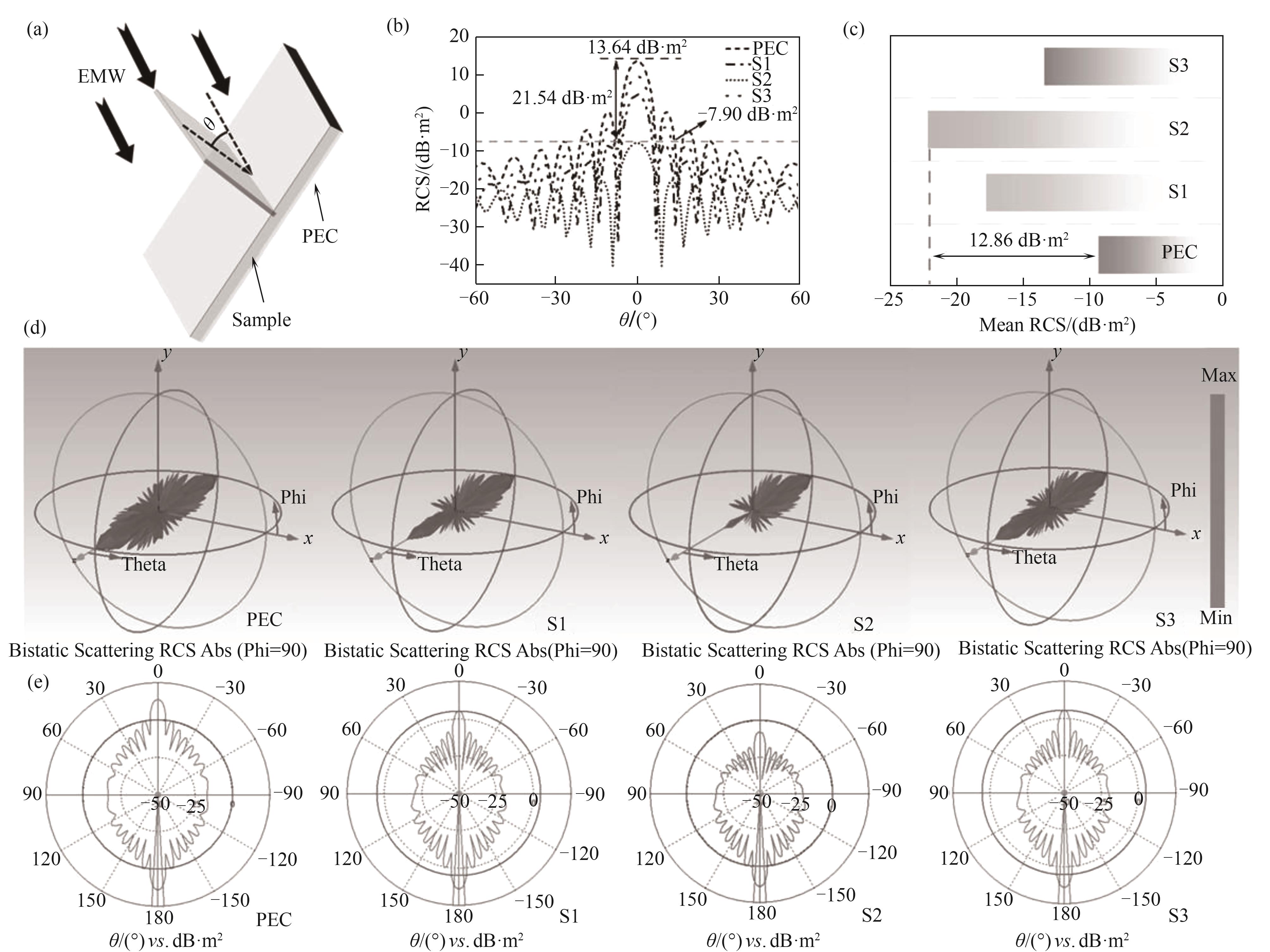

图9 （a）入射角θ在-60°~60°范围内的PEC衬底和样品S1~S3的CST模拟示意图；（b）不同角度下的RCS模拟结果；（c)~(e）平均RCS衰减值和CST模拟

Fig.9 (a) Schematic diagram of the CST simulation model for the PEC substrate and S1—S3 at incident angles θ ranging from -60° to 60°； (b) RCS simulation results at different angles； (c)—(e) Mean RCS reduction and CST simulation results

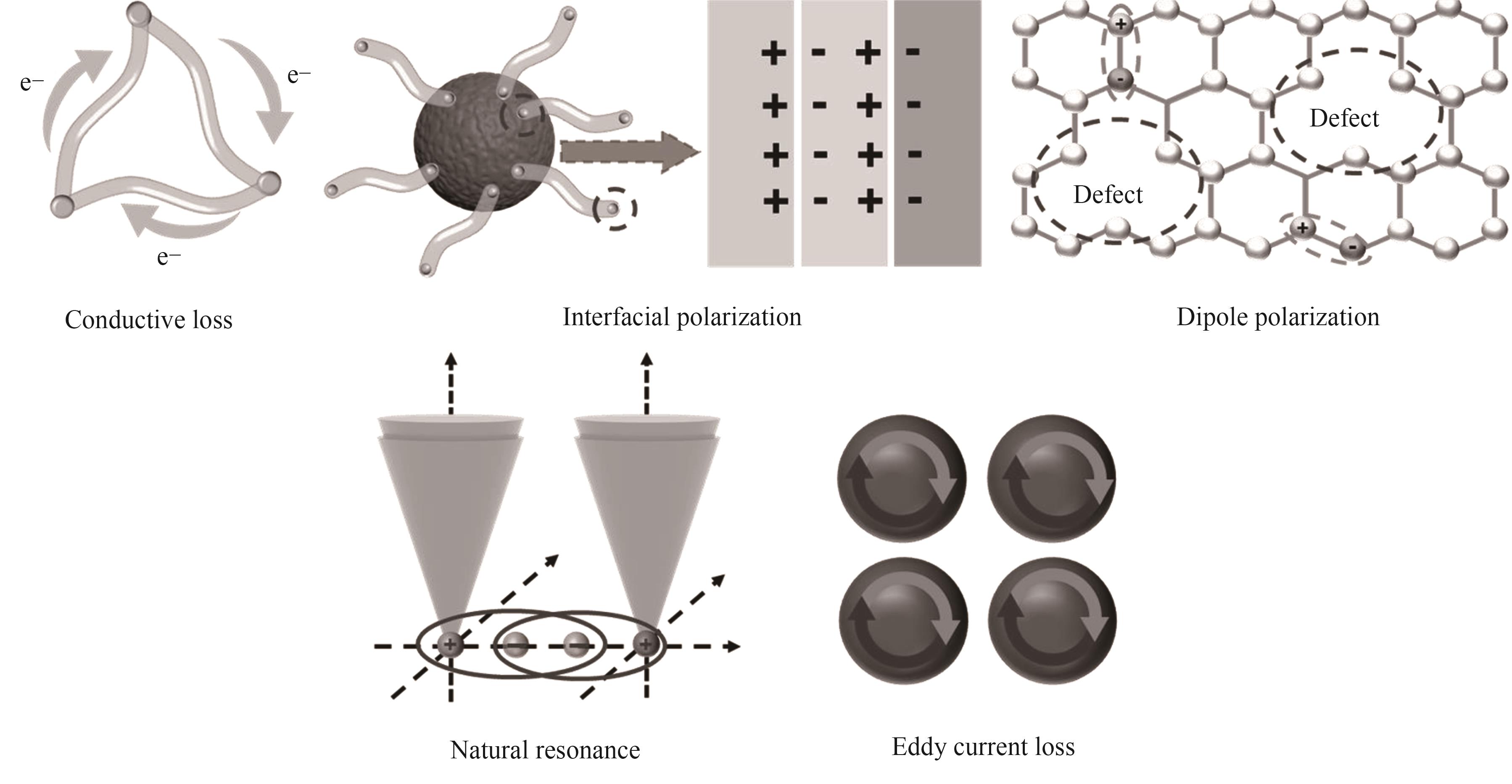

图10 Fe3O4/FeNi/CNT的微波吸收机理示意图

Fig.10 Schematic illustration of microwave absorption mechanism of Fe3O4/FeNi/CNT
