Ⅳ型储氢瓶PA6内胆材料氢渗透性能和老化机制的分子动力学模拟研究

doi:10.11949/0438-1157.20250595

摘要/Abstract

摘要：

氢渗透是Ⅳ型储氢瓶安全服役的重要挑战，往往会加重聚合物内胆的损伤以及氢气的渗漏。针对Ⅳ型储氢瓶聚合物内胆氢渗透性能优化需求，以聚酰胺6（PA6）为研究对象，通过分子模拟，系统揭示了温度、压力、热氧老化及氧化石墨烯共聚改性对PA6氢渗透机制的影响规律。结果表明：温度升高（263K-353 K）使PA6氢渗透系数增大38.44%-162.90%，这是因为温度对扩散系数的增大作用占主导；压力升高（30MPa-60 MPa）通过减小自由体积（占主导作用），增大分子无规则速度，导致扩散系数出现下降的趋势，但一定的压力后，对分子无规则速度的增大作用占主导，扩散系数出现上升的趋势。热氧老化导致PA6主链断裂及极性基团生成，导致扩散系数最高增大125.5%，渗透系数最高增大114.09%。氧化石墨烯共聚改性通过延长氢分子扩散路径与降低自由体积，使扩散系数最高降低39.43%。

关键词: Ⅳ型储氢瓶, 聚合物, 渗透, 动力学, 数值模拟

Abstract:

Hydrogen permeation is a significant challenge for the safe operation of type Ⅳ hydrogen storage bottles, often causing damage to the polymer liner and hydrogen leakage. To address the optimization requirements for the hydrogen permeation performance of the polymer liner in type Ⅳ hydrogen storage bottles, using polyamide 6 (PA6) as the research object, through molecular simulation, the influence laws of temperature, pressure, thermal oxidation aging, and graphene oxide copolymer modification on the hydrogen permeation mechanism of PA6 were systematically revealed. The results show that an increase in temperature (263K - 353K) causes the hydrogen permeation coefficient of PA6 to increase by 38.44% - 162.90%, because the effect of temperature on the increase of the diffusion coefficient is dominant; an increase in pressure (30 MPa - 60 MPa) reduces the free volume (dominant role), increases the molecular irregular velocity, and leads to a downward trend in the diffusion coefficient, but after a certain pressure, the increase in the molecular irregular velocity dominates, and the diffusion coefficient shows an upward trend. Thermal oxidation aging leads to the breakage of the PA6 main chain and the generation of polar groups, resulting in the highest increase of the diffusion coefficient by 125.5% and the highest increase of the permeation coefficient by 114.09%. Graphene oxide copolymer modification reduces the diffusion coefficient by up to 39.43% by extending the hydrogen molecule diffusion path and reducing the free volume.

Key words: Type Ⅳ hydrogen storage cylinder, polymers, permeation, kinetics, numerical simulation

中图分类号:

TK91

牛棒棒, 李岩, 董楚峰, 李翔. Ⅳ型储氢瓶PA6内胆材料氢渗透性能和老化机制的分子动力学模拟研究[J]. 化工学报, DOI: 10.11949/0438-1157.20250595.

Bangbang NIU, Yan LI, Chufeng DONG, Xiang LI. Molecular Dynamics Simulation Study on Hydrogen Permeation Performance and Aging Mechanism of PA6 Inner Liner Material for Type Ⅳ Hydrogen Storage Cylinders[J]. CIESC Journal, DOI: 10.11949/0438-1157.20250595.

图/表 31

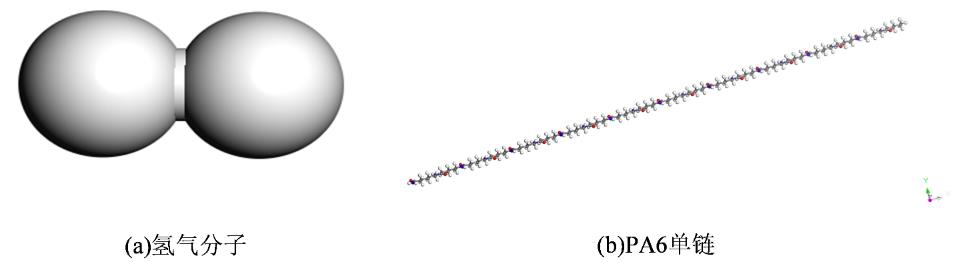

图1 分子模型

Fig.1 Molecular model

图2 晶胞模型

Fig.2 Cell models

图3 几何优化结果

Fig.3 Results of Geometric optimization

图4 降解后的产物

Fig.4 Degradation products

图5 老化后的晶胞模型

Fig.5 Aged cell model

图6 能量变化

Fig.6 Energy change

图7 共聚改性后的模型

Fig.7 Model after copolymerization modification

图8 退火时的能量变化

Fig.8 Energy changes during annealing process

图9 退火时的温度变化

Fig.9 Temperature changes during annealing process

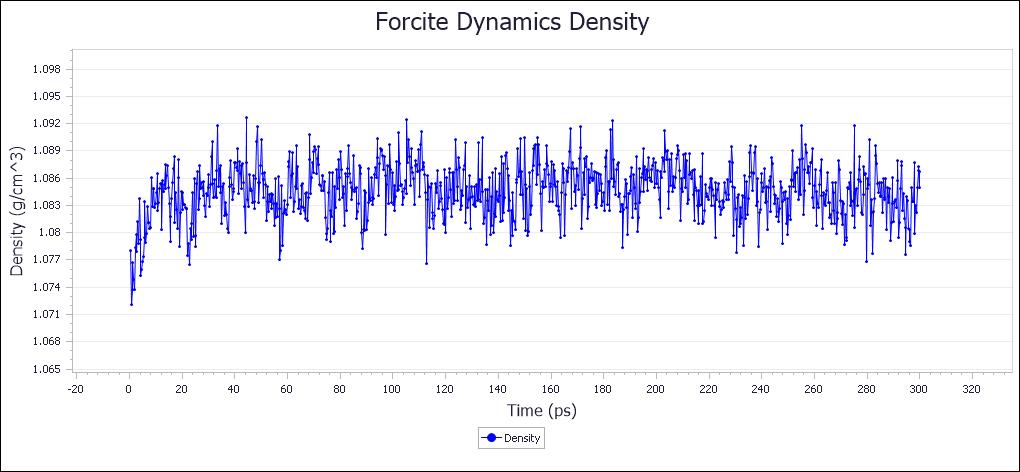

图10 晶胞模型密度变化

Fig.10 Changes of cell model

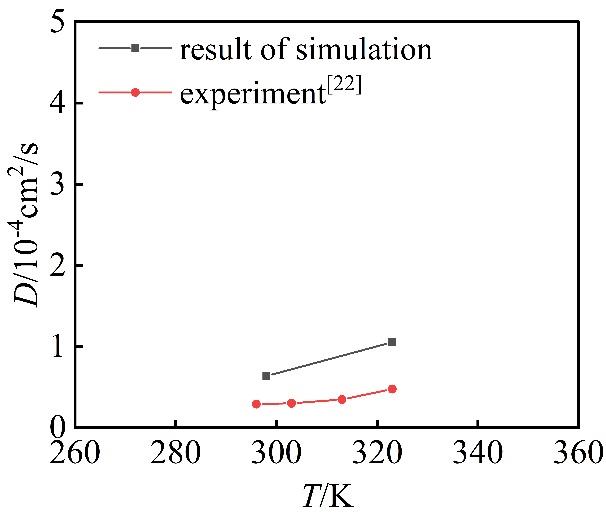

图11 扩散系数实验结果

Fig.11 Experimental results of diffusion coefficient

图12 等温吸附曲线

Fig.12 Isothermal adsorption curve

图13 溶解度系数

Fig.13 Solubility coefficient

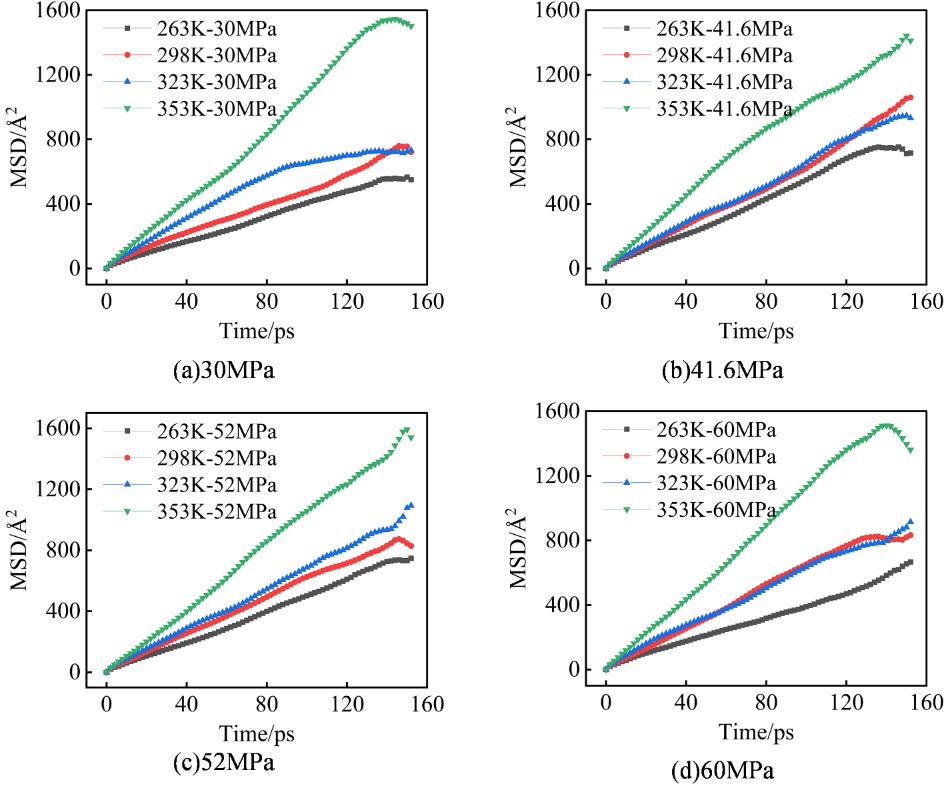

图14 不同温度下的均方位移图

Fig.14 MSD diagrams at different temperatures

图15 不同压力下的均方位移图

Fig.15 MSD diagrams under different pressures

表1 不同压力与温度下的扩散系数（10-4cm2/s）

Table1 Diffusion coefficients under different pressures and temperatures（10-4cm2/s）

T/K	p/ MPa
T/K	30	41.6	52	60
263	0.5426	0.3930	0.4251	0.4439
298	0.8751	0.8479	0.6352	0.7219
323	1.1945	1.0687	1.0520	1.0513
353	1.4750	1.2286	1.3103	1.3548

表2 不同压力与温度下的渗透系数（10-11 cm3（STP）·cm/（cm2·Pa·s））

Table2 Permeability coefficients under different pressures and temperatures（10-11 cm3（STP）·cm/（cm2·Pa·s））

T/K	p/ MPa
T/K	30	41.6	52	60
263	2.5601	1.8542	2.0057	2.0944
298	3.8253	3.7064	2.7766	3.1556
323	4.9388	4.4187	4.3496	4.3467
353	5.5824	4.8748	5.1989	5.3755

图16 老化模型等温吸附曲线

Fig.16 Isothermal adsorption curve of the aging model

图17 老化模型的溶解度系数

Fig.17 Solubility coefficient of the aging model

图18 老化模型的均方位移图

Fig.18 MSD diagrams of the aging model

表3 老化模型的扩散系数（10-4cm2/s）

Table3 Diffusion coefficient of the aging model（10-4cm2/s）

T/K	p/ MPa
T/K	30	41.6	52	60
263	0.6420	0.8862	0.8630	0.7655
298	1.0518	1.1115	1.0353	0.9881
323	1.2860	1.1827	1.1476	1.1147
353	1.8225	1.7348	1.6141	1.4575

图19 初始模型与热氧老化模型均方位移图对比

Fig.19 The comparison of the initial model and the thermal oxidation aging model in terms of the MSD

表4 老化模型与初始模型扩散系数对比

TAble.4 Comparison of diffusion coefficients between the aging model and the initial model

T/K	p/ MPa
T/K	30	41.6	52	60
263	18.32%	125.50%	103.31%	72.45%
298	20.19%	31.09%	62.99%	36.87%
323	7.66%	10.67%	9.09%	6.03%
353	23.56%	41.20%	23.19%	7.58%

表5 老化模型的渗透系数（10-11 cm3（STP）·cm/（cm2·Pa·s））

Table5 Permeability coefficient of the aging model（10-11 cm3（STP）·cm/（cm2·Pa·s））

T/K	p/ MPa
T/K	30	41.6	52	60
263	2.8759	3.9698	3.8658	3.4291
298	4.3781	4.6266	4.3094	4.1129
323	5.2361	4.8155	4.6726	4.5386
353	7.1271	6.7842	6.3121	5.6997

图20 老化模型与初始模型渗透系数对比

Fig.20 Comparison of permeability coefficients between the aging model and the initial model

表6 老化模型与初始模型渗透系数对比

Table6 Comparison of permeability coefficients between the aging model and the initial model

T/K	p/ MPa
T/K	30	41.6	52	60
263	12.34%	114.09%	92.74%	63.73%
298	14.14%	24.83%	55.20%	30.34%
323	6.02%	8.98%	7.43%	4.41%
353	21.78%	39.17%	21.41%	6.03%

图21 改性模型的均方位移图

Fig.21 MSD diagrams of the modified model

表7 改性模型的扩散系数（10-4cm2/s）

Table7 Diffusion coefficient of the modified model（10-4cm2/s）

T/K	p/ MPa
T/K	30	41.6	52	60
263	0.4928	0.3789	0.3919	0.4060
298	0.6933	0.5573	0.5607	0.6856
323	0.8337	0.6473	0.7995	0.8374
353	1.2025	1.0085	0.9359	0.9817

图22 初始模型与改性模型均方位移图对比

Fig.22 Comparison of the initial model and the modified model in terms of the MSD

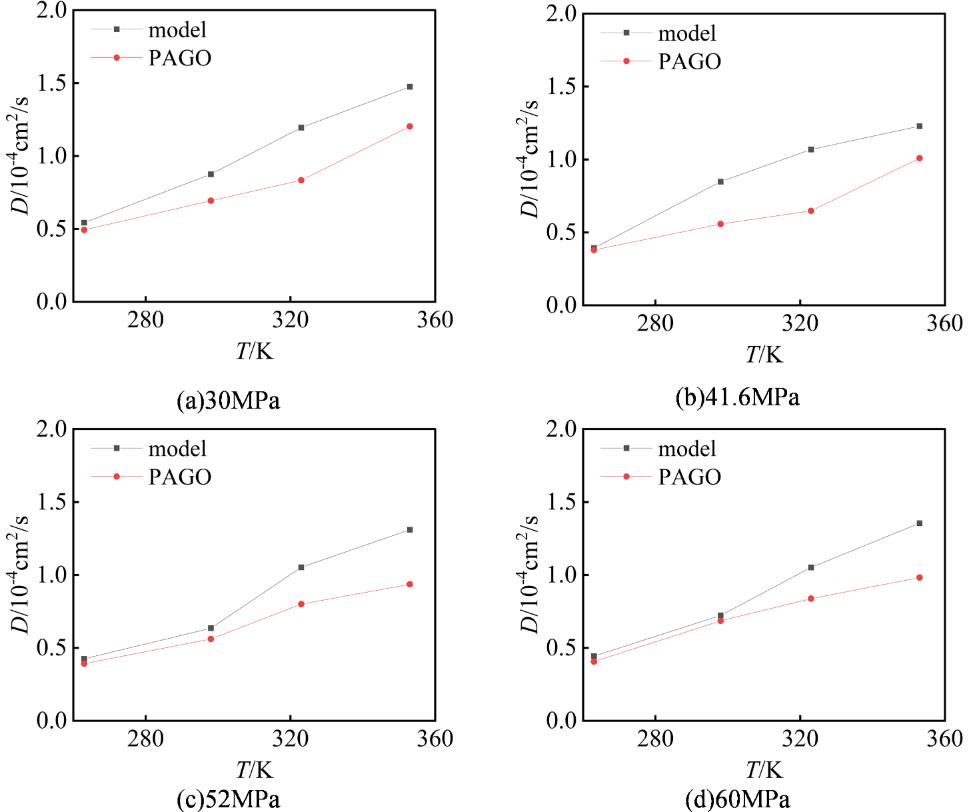

图23 改性模型与初始模型渗透系数对比

Fig.23 Comparison of permeability coefficients between the modified model and the initial model

表8 改性模型与初始模型扩散系数对比

TAble.8 Comparison of diffusion coefficients between the modified model and the initial model

T/K	p/ MPa
T/K	30	41.6	52	60
263	9.18%	3.59%	7.81%	8.54%
298	20.77%	34.27%	11.73%	5.03%
323	30.21%	39.43%	24.00%	20.35%
353	18.47%	17.91%	28.57%	27.54%
