全氟己酮物理和化学作用灭火效果研究

doi:10.11949/0438-1157.20250746

化工学报 ›› 2025, Vol. 76 ›› Issue (12): 6761-6767.DOI: 10.11949/0438-1157.20250746

• 过程安全 • 上一篇

全氟己酮物理和化学作用灭火效果研究

梁天水¹(), 赵森¹, 张文彬², 钟委¹, 高晓蕾¹(), 傅慧明³, 王家帮³

^1.郑州大学力学与安全工程学院，河南郑州 450001
^2.应急管理部天津消防研究所，天津 300382
^3.河南省锅炉压力容器检验技术科学研究院，河南郑州 450001

收稿日期:2025-09-02 修回日期:2025-09-12 出版日期:2025-12-31 发布日期:2026-01-23
通讯作者: 高晓蕾
作者简介:梁天水（1981—），男，博士，教授，liangtsh@zzu.edu.cn
基金资助:
国家自然科学基金项目(52376130);河南省自然科学基金项目(242300421226);河南省基本科研业务费项目(2023KY22);天津市应用基础研究多元投入-城市消防项目(22JCZDJC00860);国家自然科学基金面上项目(52376137)

Research on fire extinguishing effect of perfluorohexanone through physical and chemical actions

Tianshui LIANG¹(), Sen ZHAO¹, Wenbin ZHANG², Wei ZHONG¹, Xiaolei GAO¹(), Huiming FU³, Jiabang WHANG³

^1.School of Mechanics and Safety Engineering, Zhengzhou University, Zhengzhou 450001, Henan, China
^2.Tianjin Fire Research Institute, Ministry of Emergency Management, Tianjin 300382, China
^3.Henan Boiler and Pressure Vessel Inspection Technology and Science Institute, Zhengzhou 450001, Henan, China

Received:2025-09-02 Revised:2025-09-12 Online:2025-12-31 Published:2026-01-23
Contact: Xiaolei GAO

摘要/Abstract

摘要：

作为哈龙替代灭火剂，全氟己酮在火灾防治中备受关注。为定量评估其物理和化学灭火作用进而优化系统设计，通过对比PSR（完全搅拌反应器）模型结果与改进后杯式燃烧器实验数据定量评价了全氟己酮的物理和化学灭火作用。PSR模拟发现，全氟己酮在燃烧核心区的吸热量不足其潜热吸热量的20%时化学抑制占主导，处于其潜热吸热量的20%~30%时物理作用和化学作用相当，大于其潜热吸热量的30%后物理效应占主导且临界灭火浓度降低超过50%。杯型燃烧器实验对比了全氟己酮气体和粒径约为2 μm的全氟己酮液雾，结果表明全氟己酮液雾能够有效减弱其气体的助燃效应，使其对乙醇和正庚烷燃料的临界灭火浓度分别从 6.06% 降至 5.06%（降幅 16.5%）和从 4.51% 降至 3.79%（降幅 16.0%）。与PSR模拟结果对比，估算实验工况下全氟己酮在核心燃烧区的吸热量发挥了其潜热的5%，改变全氟己酮液滴粒径可以提高其物理作用。

关键词: 全氟己酮, 理化作用, 化学反应器, 灭火, 数值模拟

Abstract:

As a clean and efficient halon-alternative fire extinguishing agent, perfluorohexanone has garnered significant attention in fire prevention. To quantitatively evaluate its physicochemical fire suppression mechanisms for optimized system design, this study assessed the physical and chemical extinguishing effects by comparing perfectly stirred reactor (PSR) model results with enhanced cup-burner experimental data. PSR simulations revealed that chemical inhibition dominates when heat absorption in the combustion core zone is below 20% of its latent heat absorption capacity; physical and chemical effects become comparable between 20% and 30%; and physical effects prevail when exceeding 30% of latent heat absorption, reducing the critical extinguishing concentration by over 50%. Cup-burner tests comparing gaseous perfluorohexanone with its liquid mist (about 2 μm droplet size) demonstrated that the mist effectively mitigates the gas-phase combustion-promoting effect, lowering critical extinguishing concentrations for ethanol from 6.06% to 5.06% (16.5% reduction) and for n-heptane from 4.51% to 3.79% (16.0% reduction). Compared with the PSR simulation results, it is estimated that under experimental conditions, the heat absorption of perfluorohexanone in the core combustion zone utilized only 5% of its latent heat. Changing the perfluorohexanone droplet size can enhance its physical effect.

Key words: perfluorohexanone, physicochemical effects, chemical reactor, extinguish fire, numerical simulation

中图分类号:

TQ 028.8

梁天水, 赵森, 张文彬, 钟委, 高晓蕾, 傅慧明, 王家帮. 全氟己酮物理和化学作用灭火效果研究[J]. 化工学报, 2025, 76(12): 6761-6767.

Tianshui LIANG, Sen ZHAO, Wenbin ZHANG, Wei ZHONG, Xiaolei GAO, Huiming FU, Jiabang WHANG. Research on fire extinguishing effect of perfluorohexanone through physical and chemical actions[J]. CIESC Journal, 2025, 76(12): 6761-6767.

图/表 4

图1 实验装置示意图

Fig.1 Schematic diagram of experimental setup

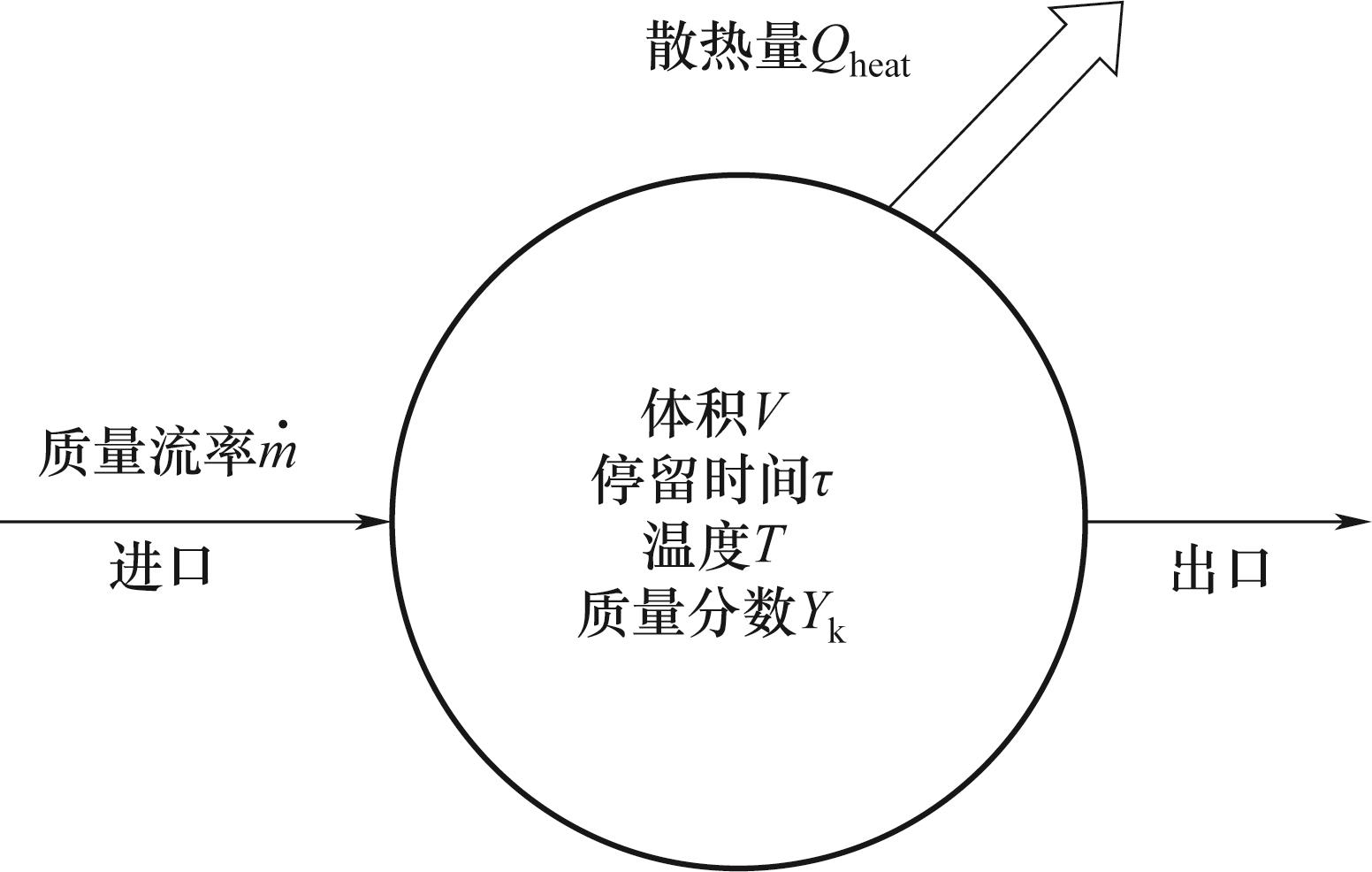

图2 PSR反应器示意图

Fig.2 Schematic diagram of PSR reactor

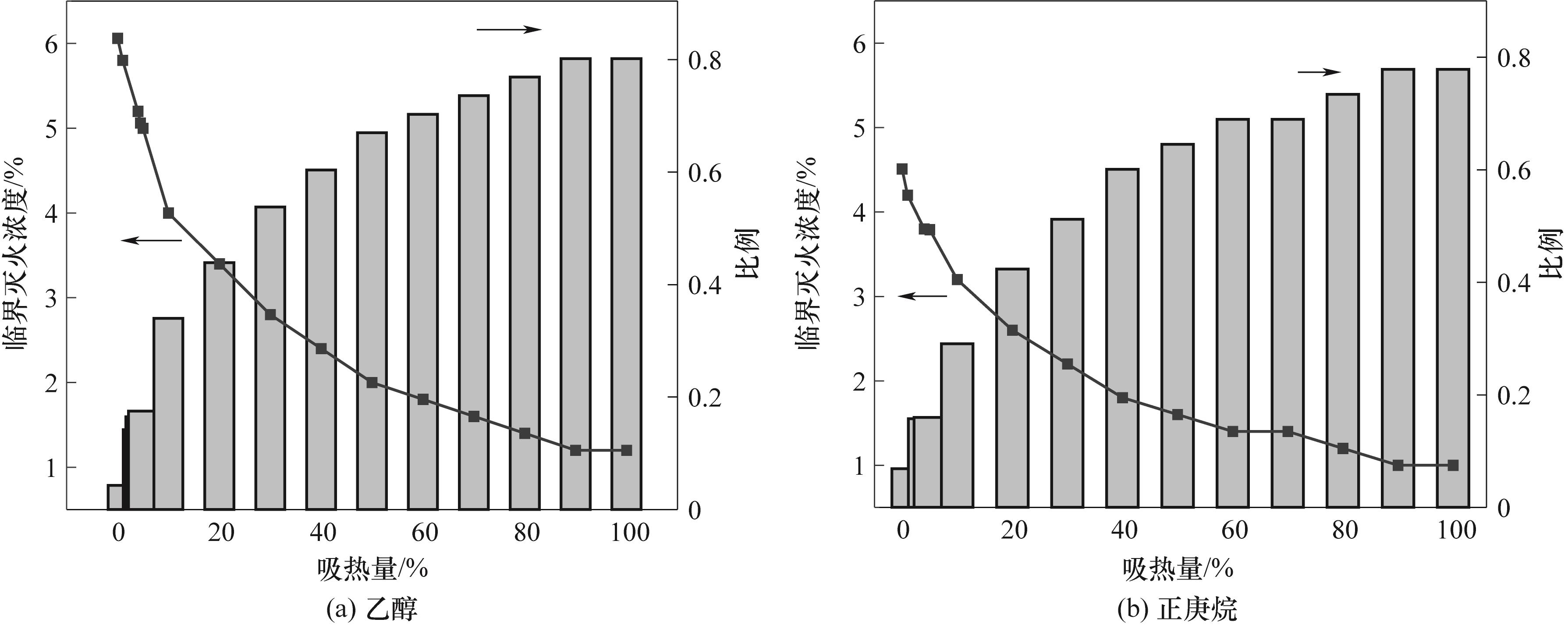

图3 不同吸热量百分比下全氟己酮的最小灭火浓度和物理作用占比

Fig.3 Minimum extinguishing concentration of perfluorohexanone and proportion of physical contribution under different heat absorption ratios

图4 全氟己酮液雾及气体作用下乙醇和正庚烷火焰高度和宽度

Fig.4 Flame height and width of ethanol and n-heptane under action of perfluorohexane liquid mist and gas

参考文献 36

[1]	Reinhardt J W. Minimum performance standard for aircraft cargo compartment halon replacement fire suppression systems (2012 update) [S]. Washington, DC: Federal Aviation Administration, 2012.
[2]	Takahashi F, Katta V R, Linteris G T, et al. Combustion inhibition and enhancement of cup-burner flames by CF₃Br, C₂HF₅, C₂HF₃Cl₂, and C₃H₂F₃Br[J]. Proceedings of the Combustion Institute, 2015, 35(3): 2741-2748.
[3]	Xing H R, Lu S, Yang H, et al. Review on research progress of C₆F₁₂O as a fire extinguishing agent[J]. Fire, 2022, 5(2): 50.
[4]	Burkholder J B, Cox R A, Ravishankara A R. Atmospheric degradation of ozone depleting, their substitutes, and related species[J]. Chemical Reviews, 2015, 115(10): 3704-3759.
[5]	Babushok V I, Linteris G T, Meier O C. Combustion properties of halogenated fire suppressants[J]. Combustion and Flame, 2012, 159(12): 3569-3575.
[6]	Pagliaro J L, Linteris G T. Hydrocarbon flame inhibition by C₆F₁₂O (Novec 1230): unstretched burning velocity measurements and predictions[J]. Fire Safety Journal, 2017, 87: 10-17.
[7]	Miziolek A W, Tsang W, Herron J T. Halon Replacements[M]. Washington, D C: American Chemical Society, 1997: 1-6.
[8]	Lott J L, Christian S D, Sliepcevich C M, et al. Synergism between chemical and physical fire-suppressant agents[J]. Fire Technology, 1996, 32(3): 260-271.
[9]	Babushok V I, Noto T, Hamins A, et al. Chemical and physical influences of halogenated fire suppressants[R]. Gaithersburg, MD: NIST, 1997.
[10]	迟丽影, 米长虹, 周滨, 等. 局部应用系统在消防设计中的应用与思考[C]//中国建筑学会建筑给水排水研究分会第四届第二次全体会员大会暨学术交流会论文集(下册). 西安, 2023: 64-69.
	Chi L Y, Mi C H, Zhou B, et al.Application and thinking of automatic sprinkler local application system in fire protection design[C]//Proceedings of the Second Conference of the Fourth General Meeting and Academic Exchange Conference of Building Water Supply and Drainage Research Branch, Architectural Society of China (Volume Ⅱ). Xi'an, 2023: 64-69.
[11]	周强. 全淹没细水雾灭火试验与数值仿真[D]. 哈尔滨: 哈尔滨工程大学, 2013.
	Zhou Q. Total flooding water mist fire suppression testand numerical simulation[D]. Harbin: Harbin Engineering University, 2013.
[12]	Sheinson R S, Penner-Hahn J E, Indritz D.The physical and chemical action of fire suppressants[J]. Fire Safety Journal, 1989, 15(6): 437-450.
[13]	Ren X Y, Jiang Y, Xu W. Numerical investigation of the chemical and physical effects of halogenated fire suppressants addition on methane-air mixtures[J]. Journal of Fire Sciences,2016, 34(5):416-430.
[14]	Noto T, Babushok V, Hamins A, et al. Inhibition effectiveness of halogenated compounds[J]. Combustion and Flame,1998, 112(1/2): 147-160.
[15]	3 Company M. 3M^TM Novec^TM 1230 Fire Protection Fluid [Z]. Saint Paul, MN: 3M Company USA, 2020.
[16]	梁天水, 刘德智, 王永锦, 等. 全氟三乙胺和全氟己酮混合气体的灭火效果研究[J]. 化工学报, 2020, 71(7): 3387-3392.
	Liang T S, Liu D Z, Wang Y J, et al. Study on fire extinguishing efficiency of the mixtures of C₆F₁₂O and (C₂F₅)₃N[J]. CIESC Journal, 2020, 71(7): 3387-3392.
[17]	陈涛,卢大勇,胡成, 等. 全氟己酮灭火剂临界灭火浓度测试研究[J]. 消防科学与技术,2015, 34(9): 1210-1214.
	Chen T, Lu D Y, Hu C, et al. Measurement of critical extinguishing concentration of dodecafluoro-2-methylpentan-3-one[J]. Fire Science and Technology, 2015, 34(9): 1210-1214.
[18]	Gaseous fire-extinguishing systems - physical properties and system design - Part 2: CF3I extinguishant: [S]. International Organization for Standardization, 2016.
[19]	Zhang Y F, Lin L, Jin X, et al. Fire-extinguishing effectiveness of 1-bromo-3,3,3-trifluoropropene/inert gaseous mixture evaluated by cup burner method[J]. Process Safety and Environmental Protection, 2007, 85(2): 147-152.
[20]	Hirst R, Booth K. Measurement of flame-extinguishing concentrations[J]. Fire Technology, 1977, 13(4): 296-315.
[21]	Liang T S, Bai X L, Zhang D F, et al.A comparative study of ultrafine water mist extinguishing hydrocarbon pool fires with or without potassium salts[J]. Thermal Science and Engineering Progress, 2023, 39: 101655.
[22]	李润婉. 钾盐抑制正庚烷火和乙醇火的有效性研究[D]. 郑州: 郑州大学, 2019.
	Li R W. Effectiveness of potassium salts in inhibiting n-heptane fire and ethanol fire[D]. Zhengzhou: Zhengzhou University, 2019.
[23]	Marinov N M. A detailed chemical kinetic model for high temperature ethanol oxidation[J]. International Journal of Chemical Kinetics,1999, 31(3): 183-220.
[24]	Seiser R, Pitsch H, Seshadri K, et al. Extinction and autoignition of n-heptane in counterflow configuration[J]. Proceedings of the Combustion Institute, 2000, 28(2): 2029-2037.
[25]	Linteris G T, Burgess D R, Takahashi F, et al. Stirred reactor calculations to understand unwanted combustion enhancement by potential halon replacements[J]. Combustion and Flame, 2012, 159(3):1016-1025.
[26]	Babushok V I, Linteris G T, Burgess D R, et al. Hydrocarbon flame inhibition by C₃H₂F₃Br(2-BTP)[J]. Combustion and Flame, 2015, 162(4): 1104-1112.
[27]	Williams B A, L'espÉrance D M, Fleming J W. Intermediate species profiles in low-pressure methane/oxygen flames inhibited by 2-H heptafluoropropane: comparison of experimental data with kinetic modeling[J]. Combustion and Flame, 2000, 120(1/2): 160-172.
[28]	羡学磊, 董海斌, 刘连喜, 等. 全氟己酮灭火剂局部应用灭火技术研究[J]. 消防科学与技术, 2021, 40(2): 255-258.
	Xian X L, Dong H B, Liu L X, et al. Study on local application fire extinguishing technology of perfluoro-2-methyl-3-pentanone[J]. Fire Science and Technology, 2021, 40(2): 255-258.
[29]	宣扬, 张磊. 充装压力对全氟己酮抑制油类火焰的影响[J]. 消防科学与技术, 2021, 40(8): 1236-1239.
	Xuan Y, Zhang L. Effects on class B fire suppression under various filling pressure of FK-5-1-12[J]. Fire Science and Technology, 2021, 40(8): 1236-1239.
[30]	张磊. 全氟己酮施放条件与抑制B类火焰效果的关系研究[D]. 南京: 南京理工大学, 2015.
	Zhang L. Study on the Relationship between Discharge Conditions and Class B Flame-extinguishing Effect of C.-Fluoroketone.[D]. Nanjing: Nanjing University of Science and Technology, 2015.
[31]	陈勇刚, 金建泉, 黄江, 等. 喷射压力对全氟己酮和细水雾雾化特性的影响研究[J]. 消防科学与技术, 2023, 42(11): 1523-1528.
	Chen Y G, Jin J Q, Huang J, et al. Study on atomization characteristics of perfluorohexanone and water mist by injection pressure[J]. Fire Science and Technology, 2023, 42(11): 1523-1528.
[32]	刘欣, 吴洪有, 高云升, 等. 基于理论计算的全氟己酮灭火系统管网流动特性分析[J]. 消防科学与技术, 2024, 43(11): 1549-1554, 1559.
	Liu X, Wu H Y, Gao Y S, et al. Analysis of flow characteristics of pipe network of perfluorophenone fire extinguishing system based on theoretical calculation[J]. Fire Science and Technology, 2024, 43(11): 1549-1554, 1559.
[33]	张华杰, 梁天水. 细水雾粒径改变对电缆火灾的影响[J]. 科学技术与工程, 2021, 21(32): 14022-14027.
	Zhang H J, Liang T S. Influence of water mist particle size changes on cable fire[J]. Science Technology and Engineering, 2021, 21(32): 14022-14027.
[34]	王之媛. 低气压下全氟己酮弥散特性研究[D]. 广汉: 中国民用航空飞行学院, 2023.
	Wang Z Y. Study on dispersion characteristies of perfluorohexanone under low pressure[D]. Guanghan: Civil Aviation Flight University of China, 2023.
[35]	Linteris G T, Babushok V I, Sunderland P B, et al. Unwanted combustion enhancement by C₆F₁₂O fire suppressant[J]. Proceedings of the Combustion Institute, 2013, 34(2): 2683-2690.
[36]	Xu W, Jiang Y, Ren X Y. Combustion promotion and extinction of premixed counterflow methane/air flames by C₆F₁₂O fire suppressant[J]. Journal of Fire Sciences, 2016, 34(4): 289-304.
