基于随机弹道沉积方法的黏附性椭球颗粒疏松堆积极限的研究

doi:10.11949/0438-1157.20250309

化工学报 ›› 2025, Vol. 76 ›› Issue (11): 5533-5543.DOI: 10.11949/0438-1157.20250309

• 专栏：能源利用过程中的多相流与传热 • 上一篇下一篇

基于随机弹道沉积方法的黏附性椭球颗粒疏松堆积极限的研究

方筑¹(), 廖亚琴²(), 张乾², 张易阳³, 李水清¹()

^1.清华大学能源与动力工程系，北京 100084
^2.东方电气集团科学技术研究院有限公司，四川成都 611731
^3.清华大学核能与新能源技术研究院，北京 100084

收稿日期:2025-03-27 修回日期:2025-05-10 出版日期:2025-11-25 发布日期:2025-12-19
通讯作者: 廖亚琴,李水清
作者简介:方筑（1994—），男，博士， fangz17@tsinghua.org.cn
基金资助:
国家自然科学基金项目(52406187);国家自然科学基金项目(52322608);东方电气中央研究院企业委托项目;清华大学水木学者计划项目(2022SM021)

Study on adhesion loose packing limit of adhesive ellipsoids based on random ballistic deposition method

Zhu FANG¹(), Yaqin LIAO²(), Qian ZHANG², Yiyang ZHANG³, Shuiqing LI¹()

^1.Department of Energy and Power Engineering, Tsinghua University, Beijing 100084, China
^2.DEC Academy of Science and Technology Co. , Ltd. , Chengdu 611731, Sichuan, China
^3.Institute of Nuclear and New Energy Technology, Tsinghua University, Beijing 100084, China

Received:2025-03-27 Revised:2025-05-10 Online:2025-11-25 Published:2025-12-19
Contact: Yaqin LIAO, Shuiqing LI

摘要/Abstract

摘要：

采用基于碰撞-黏附-冻结假设的随机弹道沉积方法，研究了椭球颗粒的几何形状（长径比变化范围为0.003~60）对黏附疏松堆积结构的影响。统计结果表明，球形颗粒的堆积密度最大，为0.1469。随着颗粒形状偏离球形，堆积密度迅速降低。当长径比小于0.1或大于10时，堆积密度与长径比之间分别近似服从1和-2的幂律关系。局部配位数与颗粒形状无关，不仅服从高斯分布，而且统计平均值均为2.001，表明对于短程接触相互作用控制的非球形颗粒堆积系统，形成力学稳定结构的最小配位数仍为2。径向分布函数表明，扁平形椭球的局部堆积结构由短轴-长轴和长轴-长轴接触主导，长条形椭球的局部堆积结构由短轴-短轴和短轴-长轴接触主导。最后，类比经典球形颗粒的填充理论，构建了堆积密度与长径比之间的预测关联式。

关键词: 计算机模拟, 粒子, 沉积物, 颗粒过程, 随机堆积, 非球形

Abstract:

The effect of the geometric shape of ellipsoids (covering a wide aspect ratio range from 0.003 to 60) on the structure of adhesive loose packings is investigated by the random ballistic deposition method with the hit-stick-freeze assumption. Statistical results show that the packing density of spherical particles is the largest, which is 0.1469. As the particle shape deviates from spherical shape, the packing density decreases rapidly. When the aspect ratio is below 0.1 and above 10, the packing density is approximately correlated with the aspect ratio in 1 and -2 power-law relations. The local coordination number is independent of the particle shape, which not only follows the Gaussian normal distribution, but also has a common average value of 2.001. This result indicates that for packing systems of non-spherical particles controlled by short-range interparticle contact interactions, 2 is the lowest coordination number for forming a mechanically stable structure. The radial distribution function shows that the local packing structure is dominated by local minor-to-major and major-to-major contact for oblate ellipsoids, and by local minor-to-minor and minor-to-major contact for prolate ellipsoids. Finally, analogous to the classical filling theory of spherical particles, a predicting correlation between the packing density and the aspect ratio is established.

Key words: computer simulation, particle, deposition, particulate processes, random packing, non-spherical

中图分类号:

TQ 021.9

方筑, 廖亚琴, 张乾, 张易阳, 李水清. 基于随机弹道沉积方法的黏附性椭球颗粒疏松堆积极限的研究[J]. 化工学报, 2025, 76(11): 5533-5543.

Zhu FANG, Yaqin LIAO, Qian ZHANG, Yiyang ZHANG, Shuiqing LI. Study on adhesion loose packing limit of adhesive ellipsoids based on random ballistic deposition method[J]. CIESC Journal, 2025, 76(11): 5533-5543.

图/表 7

图1 不同长径比的椭球颗粒

Fig.1 Ellipsoidal particles with different aspect ratios

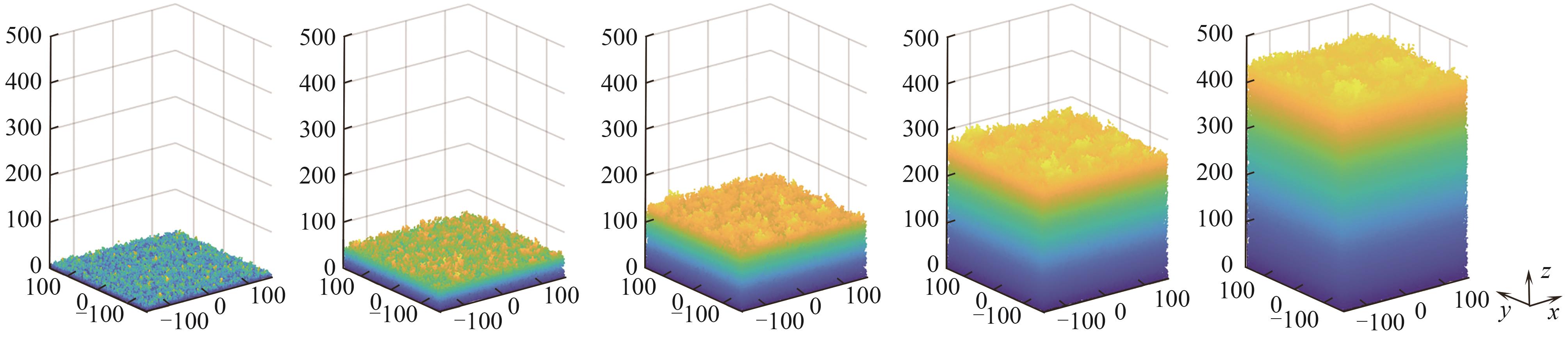

图2 球形颗粒疏松堆积结构（颗粒数目分别为3万、20万、50万、100万和160万）

Fig.2 Packing structures of spherical particles (with particle number of 30000, 200000, 500000, 1000000 and 1600000)

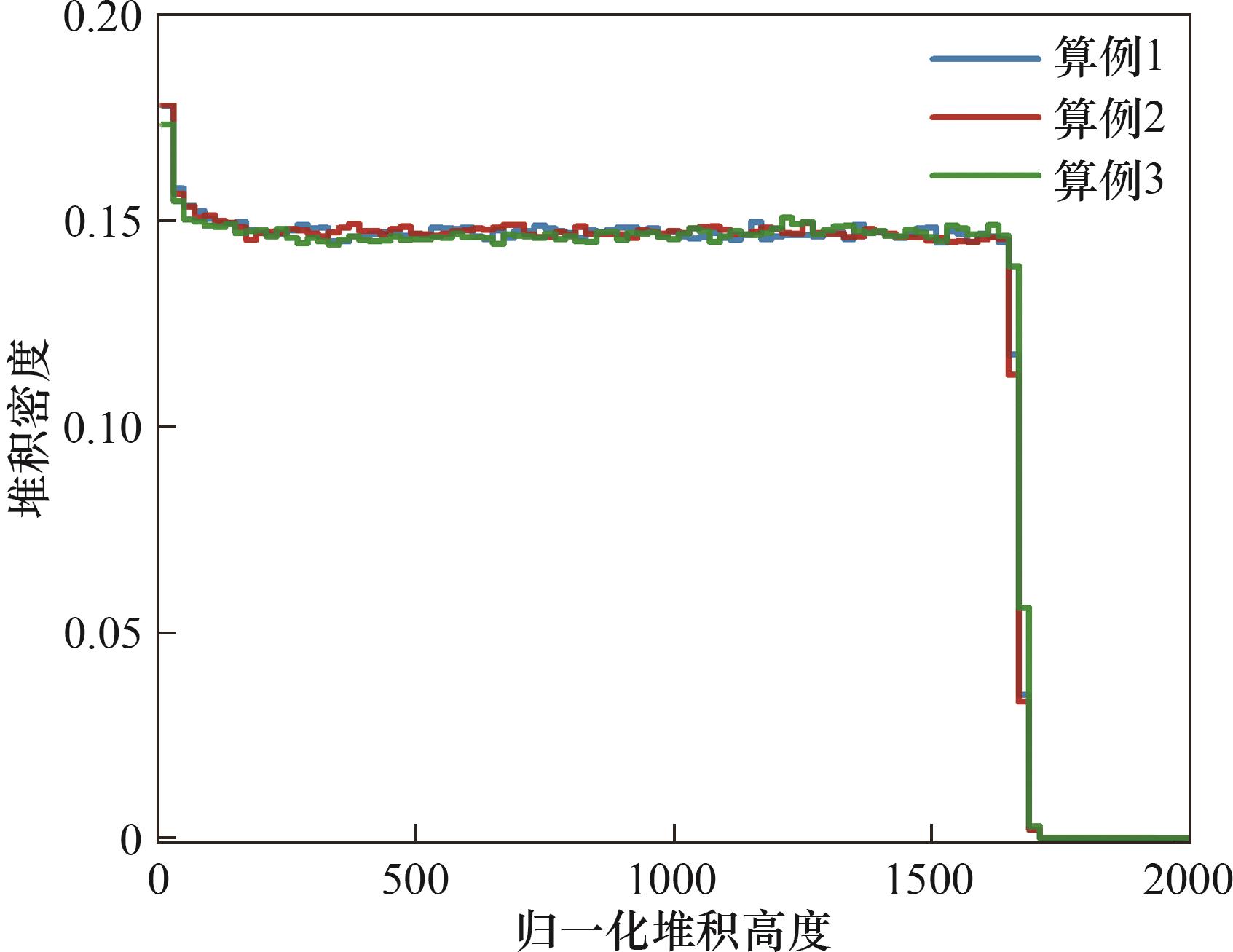

图3 球形颗粒堆积密度沿高度方向的变化

Fig.3 Packing fraction as a function of height for spherical particles

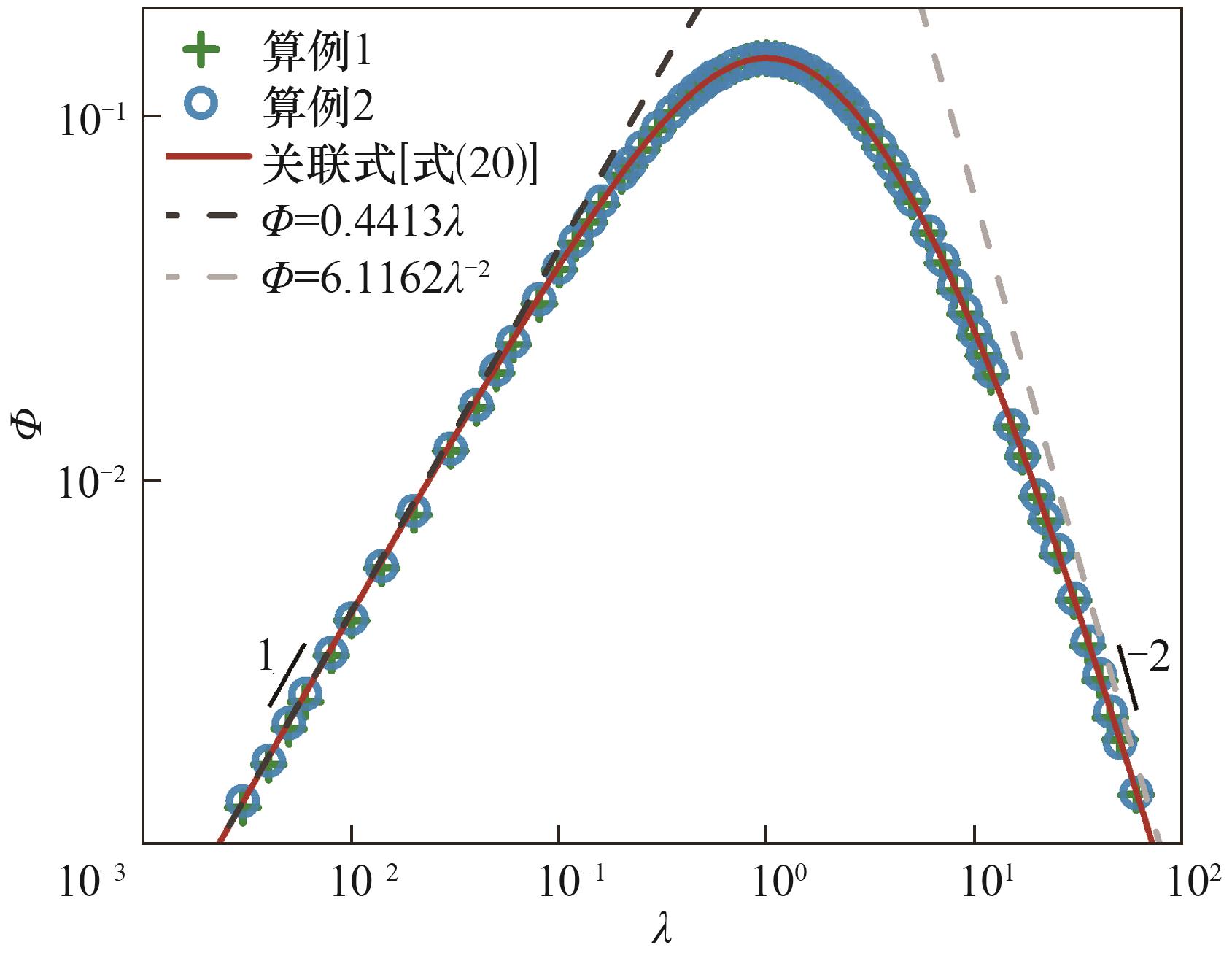

图4 堆积密度与长径比的关系

Fig.4 Relationship between packing fraction and aspect ratio

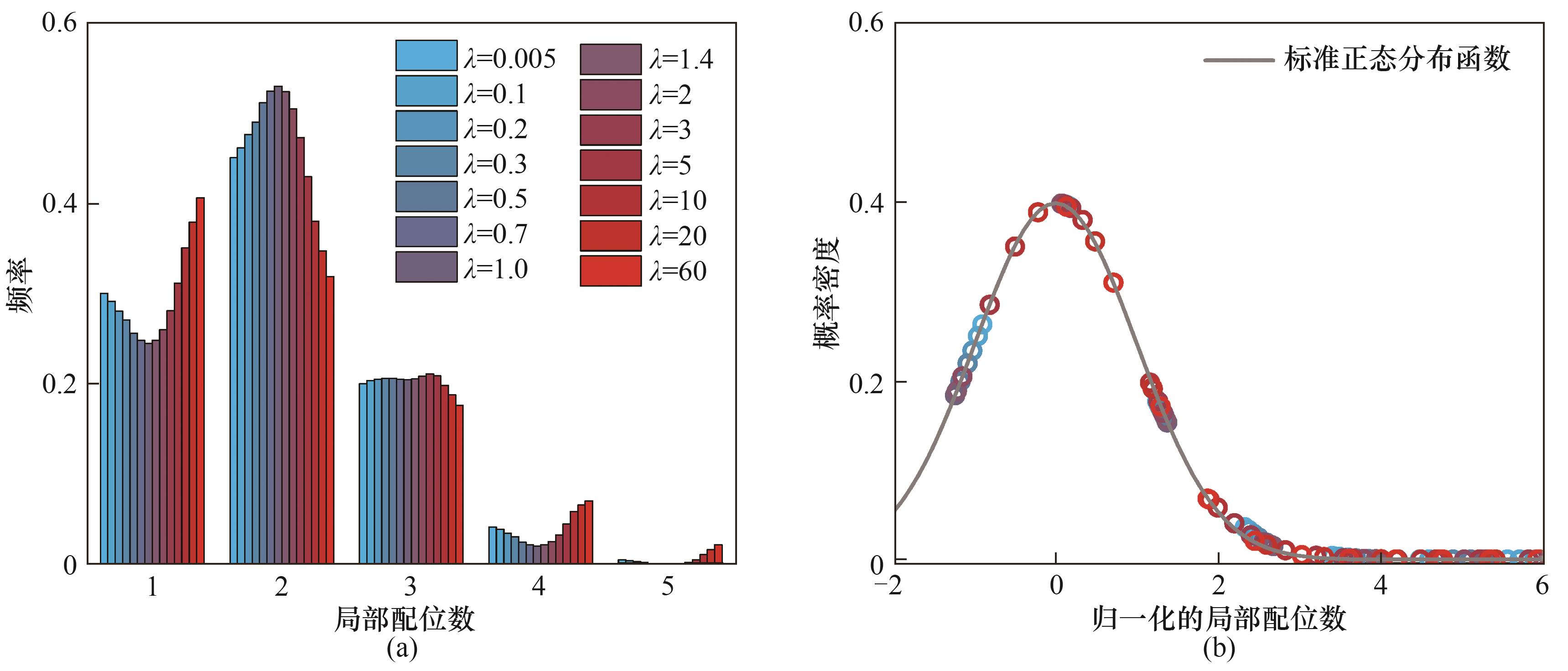

图5 局部配位数的统计分布

Fig.5 Statistical distribution of local coordination number

表1 不同长径比颗粒配位数分布函数的拟合参数

Table 1 Fitting coefficients of the distribution function of coordination number of differently shaped particles

λ	A	Z_m	σ_z	R²	RMSE
0.005	0.455	1.840	0.925	0.9991	0.0067
0.1	0.465	1.863	0.897	0.9990	0.0057
0.2	0.479	1.889	0.862	0.9992	0.0050
0.3	0.492	1.909	0.834	0.9994	0.0043
0.5	0.513	1.934	0.794	0.9998	0.0037
0.7	0.526	1.945	0.772	0.9998	0.0032
1	0.531	1.949	0.763	0.9999	0.0030
1.4	0.525	1.945	0.773	0.9998	0.0031
2	0.507	1.930	0.807	0.9997	0.0032
3	0.476	1.894	0.873	0.9997	0.0031
5	0.436	1.810	0.992	0.9997	0.0035
10	0.399	1.604	1.197	0.9997	0.0028
20	0.389	1.311	1.415	0.9998	0.0019
60	0.411	0.772	1.720	0.9999	0.0009

图6 不同形状颗粒的径向分布函数

Fig.6 Radial distribution function of differently shaped particles

参考文献 42

[1]	Calle C I, Buhler C R, Johansen M R, et al. Active dust control and mitigation technology for lunar and Martian exploration[J]. Acta Astronautica, 2011, 69(11/12): 1082-1088.
[2]	Afshar-Mohajer N, Wu C Y, Curtis J S, et al. Review of dust transport and mitigation technologies in lunar and Martian atmospheres[J]. Advances in Space Research, 2015, 56(6): 1222-1241.
[3]	Fu B, Hower J C, Zhang W C, et al. A review of rare earth elements and yttrium in coal ash: content, modes of occurrences, combustion behavior, and extraction methods[J]. Progress in Energy and Combustion Science, 2022, 88: 100954.
[4]	Torquato S, Stillinger F H. Jammed hard-particle packings: from Kepler to Bernal and beyond[J]. Reviews of Modern Physics, 2010, 82(3): 2633-2672.
[5]	Baule A, Morone F, Herrmann H J, et al. Edwards statistical mechanics for jammed granular matter[J]. Reviews of Modern Physics, 2018, 90: 015006.
[6]	Averardi A, Cola C, Zeltmann S E, et al. Effect of particle size distribution on the packing of powder beds: a critical discussion relevant to additive manufacturing[J]. Materials Today Communications, 2020, 24: 100964.
[7]	穆萌, 张海燕, 王晓, 等. 月尘被动防护技术的最新研究进展[J]. 物理学报, 2021, 70(6): 060501.
	Mu M, Zhang H Y, Wang X, et al. State-of-the-art passive protection technologies of lunar dust[J]. Acta Physica Sinica, 2021, 70(6): 060501.
[8]	Zanon P, Dunn M, Brooks G. Current Lunar dust mitigation techniques and future directions[J]. Acta Astronautica, 2023, 213: 627-644.
[9]	Tian Y, Li B, Rong Z J, et al. Martian dust storm spatial-temporal analysis of tentative landing areas for China's Tianwen-3 Mars mission[J]. Earth and Space Science, 2024, 11(6): e2024EA003634.
[10]	He F, Rong Z J, Wu Z P, et al. Martian dust storms: reviews and perspective for the Tianwen-3 Mars sample return mission[J]. Remote Sensing, 2024, 16(14): 2613.
[11]	郑建祥, 李玉凯, 孙笑楠, 等. 湍流聚团过程中非球形颗粒聚团碰撞频率分析研究[J]. 化工学报, 2019, 70(S2): 228-236.
	Zheng J X, Li Y K, Sun X N, et al. Analysis of collision frequency of non-spherical particle agglomeration during turbulent agglomeration processes[J]. CIESC Journal, 2019, 70(S2): 228-236.
[12]	东明, 张宇轩, 李素芬, 等. 烟气流速对不同极线结构下静电除尘器内微细颗粒脱除的影响[J]. 热科学与技术, 2018, 17(1): 41-48.
	Dong M, Zhang Y X, Li S F, et al. Effect of flue gas velocity on removal of fine particles in electrostatic precipitator with different wires arrangement structures[J]. Journal of Thermal Science and Technology, 2018, 17(1): 41-48.
[13]	Li G D, Li S Q, Huang Q, et al. Fine particulate formation and ash deposition during pulverized coal combustion of high-sodium lignite in a down-fired furnace[J]. Fuel, 2015, 143: 430-437.
[14]	Sun Q, Peng W, Yu S Y, et al. A review of HTGR graphite dust transport research[J]. Nuclear Engineering and Design, 2020, 360: 110477.
[15]	Wei M Z, Zhang Y Y, Luo X W, et al. Graphite dust deposition on HTGR steam generator: effects of particle-wall and particle-vortex interactions[J]. Nuclear Engineering and Design, 2018, 330: 217-224.
[16]	Fang Z, Liu X B, Zhang Y Y, et al. Transport and deposition behaviors of graphite aerosol in the steam generator building during an overpressure discharge accident of HTR-PM[J]. Nuclear Engineering and Design, 2023, 414: 112586.
[17]	Song C M, Wang P, Makse H A. A phase diagram for jammed matter[J]. Nature, 2008, 453(7195): 629-632.
[18]	Zaccone A. Explicit analytical solution for random close packing in d=2 and d=3[J]. Physical Review Letters, 2022, 128(2): 028002.
[19]	Fang Z, Zhang Y Y, Wei M Z, et al. A numerical study on adhesive collision between a micro-sized particle and a wall[J]. Powder Technology, 2020, 360: 769-779.
[20]	Li S Q, Marshall J S, Liu G Q, et al. Adhesive particulate flow: the discrete-element method and its application in energy and environmental engineering[J]. Progress in Energy and Combustion Science, 2011, 37(6): 633-668.
[21]	Chen S, Liu W W, Li S Q. A fast adhesive discrete element method for random packings of fine particles[J]. Chemical Engineering Science, 2019, 193: 336-345.
[22]	Liu W W, Li S Q, Baule A, et al. Adhesive loose packings of small dry particles[J]. Soft Matter, 2015, 11(32): 6492-6498.
[23]	Valverde J M, Quintanilla M S, Castellanos A. Jamming threshold of dry fine powders[J]. Physical Review Letters, 2004, 92(25): 258303.
[24]	Yang R Y, Zou R P, Yu A B. Computer simulation of the packing of fine particles[J]. Physical Review E, 2000, 62(3): 3900-3908.
[25]	Liu W W, Jin Y L, Chen S, et al. Equation of state for random sphere packings with arbitrary adhesion and friction[J]. Soft Matter, 2017, 13(2): 421-427.
[26]	Torquato S, Stillinger F H. Exactly solvable disordered sphere-packing model in arbitrary-dimensional Euclidean spaces[J]. Physical Review E, 2006, 73(3): 031106.
[27]	Liu W W, Li S Q, Chen S. Computer simulation of random loose packings of micro-particles in presence of adhesion and friction[J]. Powder Technology, 2016, 302: 414-422.
[28]	Blum J, Schräpler R. Structure and mechanical properties of high-porosity macroscopic agglomerates formed by random ballistic deposition[J]. Physical Review Letters, 2004, 93(11): 115503.
[29]	Fang Z, Qian X Y, Zhang Y Y, et al. A new discrete element method for small adhesive non-spherical particles[J]. Journal of Computational Physics, 2024, 513: 113193.
[30]	Baule A, Mari R, Bo L, et al. Mean-field theory of random close packings of axisymmetric particles[J]. Nature Communications, 2013, 4: 2194.
[31]	Donev A, Cisse I, Sachs D, et al. Improving the density of jammed disordered packings using ellipsoids[J]. Science, 2004, 303(5660): 990-993.
[32]	Zhou Z Y, Zou R P, Pinson D, et al. Dynamic simulation of the packing of ellipsoidal particles[J]. Industrial & Engineering Chemistry Research, 2011, 50(16): 9787-9798.
[33]	Gan J Q, Yu A B, Zhou Z Y. DEM simulation on the packing of fine ellipsoids[J]. Chemical Engineering Science, 2016, 156: 64-76.
[34]	Zhong W Q, Yu A B, Liu X J, et al. DEM/CFD-DEM modelling of non-spherical particulate systems: theoretical developments and applications[J]. Powder Technology, 2016, 302: 108-152.
[35]	Lu G, Third J R, Müller C R. Discrete element models for non-spherical particle systems: from theoretical developments to applications[J]. Chemical Engineering Science, 2015, 127: 425-465.
[36]	Zhao J D, Zhao S W, Luding S. The role of particle shape in computational modelling of granular matter[J]. Nature Reviews Physics, 2023, 5: 505-525.
[37]	Voth G A, Soldati A. Anisotropic particles in turbulence[J]. Annual Review of Fluid Mechanics, 2017, 49: 249-276.
[38]	Ruan X, Gorman M T, Li S Q, et al. Surface-resolved dynamic simulation of charged non-spherical particles[J]. Journal of Computational Physics, 2022, 466: 111381.
[39]	Chesnutt J K W, Marshall J S. Blood cell transport and aggregation using discrete ellipsoidal particles[J]. Computers & Fluids, 2009, 38(9): 1782-1794.
[40]	Alfano S, Greer M L. Determining if two solid ellipsoids intersect[J]. Journal of Guidance, Control, and Dynamics, 2003, 26(1): 106-110.
[41]	Chen S, Li S Q, Liu W W, et al. Effect of long-range repulsive Coulomb interactions on packing structure of adhesive particles[J]. Soft Matter, 2016, 12(6): 1836-1846.
[42]	Zhang T F, Chen D, Zhang Y, et al. Packing characteristics of sub-micron particles under van der Waals force and electrostatic force via discrete element method[J]. Powder Technology, 2022, 407: 117668.
