基于分离性能的顺序式模拟移动床结构调控策略

doi:10.11949/0438-1157.20241117

摘要/Abstract

摘要：

顺序式模拟移动床切换模式多变，能耗水耗低，可实现多组分、难分离体系的连续性高效分离纯化。前期研究表明，顺序式模拟移动床无法同时兼顾纯度和溶剂消耗等性能，为此计划通过结构调控与优化，提升分离性能，开发一种具有普适性的新型操作模式。首先选择低聚木糖糖浆作为目标体系，使用DOWEX MONOSPHERE^TM 99/310 K⁺树脂作为固定相，完成相应的分离实验及过程模拟，以验证模型的准确性。通过过程模拟对顺序式模拟移动床子步骤进行切换顺序调控和切换模式改型，并比较其产品纯度、收率、水耗等指标。结果表明，新型“循环-进料-洗脱”模式表现优异，可在控制水耗的同时保证较高的纯度和收率，且与传统结构“进料-循环-洗脱”相比，相同操作条件下目标产物的纯度和收率分别提升了33%、37%，水耗下降了2.79 ml/min。此外，不同改型方式也可调控分离性能，提高产品多样性，并降低生产成本。本研究为顺序式模拟移动床的工业化应用与改型研究提供了思路与参考。

关键词: 顺序式模拟移动床, 结构调控, 数学模拟, 分离, 吸附

Abstract:

The sequential simulated moving bed has a variety of switching modes, low energy and water consumption, and can achieve continuous and efficient separation and purification of multi-component and difficult-to-separate systems. Previous studies have shown that the sequential simulated moving bed cannot simultaneously take into account the performance of purity and solvent consumption, so this project mainly focuses on improving the separation performance through structural regulation and optimization, furthermore developing a new operating mode with universal applicability. Firstly, xylooligosaccharide syrup was selected as the target system, and DOWEX MONOSPHERE^TM 99/310 K⁺ resin was used as the stationary phase to complete the corresponding separation experiment and process simulation in order to verify the accuracy of the model. The switching sequence control and switching mode modification of the sequential simulated moving bed were carried out by process simulation, and then the purity, yield and water consumption of the final product were compared. The results show that the new “circulation-feed-elution” mode performs well and can control water consumption while ensuring high purity and yield. Compared with the traditional structure of “feed-cycling-elution”, the purity and yield of the target product were increased by 33% and 37% respectively under the same operating conditions, and the water consumption was reduced by 2.79 ml/min. In addition, different modification methods can also regulate the separation performance, improve the diversity of products, and reduce the production cost. This study provides ideas and references for the industrial application and modification of the sequential analog moving bed.

Key words: sequential simulated moving bed, structure regulation, mathematical modeling, separation, adsorption

中图分类号:

TQ 420.6

李艳, 雷美丽, 李鑫钢. 基于分离性能的顺序式模拟移动床结构调控策略[J]. 化工学报, 2025, 76(5): 2219-2229.

Yan LI, Meili LEI, Xingang LI. Regulation strategy of sequential simulated moving bed structure based on separation performance[J]. CIESC Journal, 2025, 76(5): 2219-2229.

图/表 22

参考文献 43

1	Broughton D B. Production-scale adsorptive separations of liquid mixtures by simulated moving-bed technology[J]. Separation Science and Technology, 1984, 19(11/12): 723-736.
2	Barker P E, Abusabah E K E. The separation of synthetic mixtures of glucose and fructose and also inverted sucrose feedstocks using countercurrent chromatographic techniques[J]. Chromatographia, 1985, 20(1): 9-12.
3	Nagamatsu S, Murazumi K, Makino S. Chiral separation of a pharmaceutical intermediate by a simulated moving bed process[J]. Journal of Chromatography A, 1999, 832(1/2): 55-65.
4	Ruthven D M, Ching C B. Counter-current and simulated counter-current adsorption separation processes[J]. Chemical Engineering Science, 1989, 44: 1011-1038.
5	Deveant R M, Jonas R, Schulte M, et al. Enantiomer separation of a novel Ca-sensitizing drug by simulated moving bed (SMB)-chromatography[J]. Journal Für Praktische Chemie, 1997, 339(1): 315-321.
6	Francotte E, Richert P, Mazzotti M, et al Simulated moving bed chromatographic resolution of a chiral antitussive[J]. Journal of Chromatography A, 1998, 796(2): 239-248.
7	Juza M, Mazzotti M, Morbidelli M. Simulated moving-bed chromatography and its application to chirotechnology[J]. Trends in Biotechnology,2000, 18(3):108-118.
8	姚传义, 郑震玮, 涂志贤, 等. 模拟移动床色谱分离吴茱萸碱和吴茱萸次碱[J]. 化工学报, 2021, 72(7): 3728-3737.
	Yao C Y, Zheng Z W, Tu Z X, et al. Separation of evodiamine and rutaecarpine with simulated moving bed chromatography [J]. CIESC Journal, 2021, 72(7): 3728-3737.
9	Li Y, Xu J, Yu W F, et al. Multi-objective optimization of sequential simulated moving bed for the purification of xylo-oligosaccharides [J]. Chemical Engineering Science, 2020, 211: 115279.
10	Tangpromphan P, Budman H, Jaree A. A simplified strategy to reduce the desorbent consumption and equipment installed in a three-zone simulated moving bed process for the separation of glucose and fructose[J]. Chemical Engineering and Processing-Process Intensification, 2018, 126: 23-37.
11	凌山, 刘聚明, 张前程, 等. 模拟移动床分离过程及其优化方法研究进展[J]. 化工进展, 2023, 42(5): 2233-2244.
	Ling S, Liu J M, Zhang Q C, et al. Research progress on simulated moving bed separation process and its optimization methods[J]. Chemical Industry and Engineering Progress, 2023, 42(5): 2233-2244.
12	Zhang X T, Liu J M, Ray A K, et al. Research progress on the typical variants of simulated moving bed: from the established processes to the advanced technologies[J]. Processes, 2023, 11(2): 508.
13	杨永辉, 刘冰, 陈雪波. 模拟移动床色谱分离技术综述[J]. 化学通报, 2015, 78(2): 132-139.
	Yang Y H, Liu B, Chen X B. Summary of simulated moving bed chromatography separation technology[J]. Chemistry, 2015, 78(2): 132-139.
14	Aniceto J P S, Silva C M. Simulated moving bed strategies and designs: from established systems to the latest developments[J]. Separation & Purification Reviews, 2015, 44(1): 41-73.
15	Zhang X T, Liu J M, Ray A K, et al. Multi-objective optimization of sequential simulated moving bed for multi-component separation based on multi-parameter modeling and its determination[J]. Chemical Engineering Science, 2024, 295: 120172.
16	龚如金, 林小建, 李平, 等. 异步控制Varicol工艺分离愈创木酚甘油醚对映体过程研究[J]. 化工学报, 2015, 66(1): 157-163.
	Gong R J, Lin X J, Li P, et al. Separation of guaifenesin enantiomers by asynchronous Varicol process[J]. CIESC Journal, 2015, 66(1): 157-163.
17	Zhang Z Y, Hidajat K, Ray A K, et al. Multiobjective optimization of SMB and varicol process for chiral separation[J]. AIChE Journal, 2002, 48(12): 2800-2816.
18	Jermann S, Mazzotti M. Three column intermittent simulated moving bed chromatography (1): Process description and comparative assessment[J]. Journal of Chromatography A, 2014, 1361: 125-138.
19	Jermann S, Katsuo S, Mazzotti M. Intermittent simulated moving bed processes for chromatographic three-fraction separation[J]. Organic Process Research & Development, 2012, 16(2): 311-322.
20	Agrawal G, Sreedhar B, Kawajiri Y. Systematic optimization and experimental validation of ternary simulated moving bed chromatography systems[J]. Journal of Chromatography A, 2014, 1356:82-95.
21	Lee J W, Wankat P C. Design of pseudo-simulated moving bed process with multi-objective optimization for the separation of a ternary mixture: linear isotherms[J]. Journal of Chromatography A, 2010, 1217(20): 3418-3426.
22	He Q L, von Lieres E, Sun Z X, et al. Model-based process design of a ternary protein separation using multi-step gradient ion-exchange SMB chromatography[J]. Computers & Chemical Engineering, 2020, 138: 106851.
23	Agrawal G, Kawajiri Y. Comparison of various ternary simulated moving bed separation schemes by multi-objective optimization[J]. Journal of Chromatography A, 2012, 1238: 105-113.
24	Mun S, Wang N H L. Optimization of productivity in solvent gradient simulated moving bed for paclitaxel purification[J]. Process Biochemistry, 2008, 43(12): 1407-1418.
25	Kim J K, Abunasser N, Wankat P C, et al. Thermally assisted simulated moving bed systems[J]. Adsorption, 2005, 11(1): 579-584.
26	Jin W H, Wankat P C. Thermal operation of four-zone simulated moving beds[J]. Industrial & Engineering Chemistry Research, 2007, 46(22): 7208-7220.
27	Migliorini C, Wendlinger M, Mazzotti M, et al. Temperature gradient operation of a simulated moving bed unit[J]. Industrial & Engineering Chemistry Research, 2001, 40(12): 2606-2617.
28	Li Y, Ding Z Y, Wang J, et al. A comparison between simulated moving bed and sequential simulated moving bed system based on multi-objective optimization[J]. Chemical Engineering Science, 2020, 219: 115562.
29	Choi J, Park H, Park C, et al. Highly efficient recovery of xylobiose from xylooligosaccharides using a simulated moving bed method[J]. Journal of Chromatography A, 2016, 1465: 143-154.
30	李良玉, 孙蕊, 李朝阳, 等. 顺序式模拟移动色谱纯化木糖醇母液[J]. 天然产物研究与开发, 2015, 27(10): 1789-1793.
	Li L Y, Sun R, Li C Y, et al. Purification of xylitol mother liquid using sequential simulated moving bed chromatography[J]. Natural Product Research and Development, 2015, 27(10): 1789-1793.
31	李洪飞, 孙大庆, 李良玉, 等. 基于顺序式模拟移动床色谱法的两种木糖母液分离工艺比较[J]. 食品与机械, 2019, 35(10): 210-213.
	Li H F, Sun D Q, Li L Y, et al. Comparing of two seperation processes for recovering xylose mother liquor with sequential simulated moving bed technology[J]. Food & Machinery, 2019, 35(10): 210-213.
32	Li Y, Yu W F, Ding Z Y, et al. Equilibrium and kinetic differences of XOS2-XOS7 in xylo-oligosaccharides and their effects on the design of simulated moving bed purification process[J]. Separation and Purification Technology, 2019, 215: 360-367.
33	Martins M, Sganzerla W G, Forster-Carneiro T, et al. Recent advances in xylo-oligosaccharides production and applications: a comprehensive review and bibliometric analysis[J]. Biocatalysis and Agricultural Biotechnology, 2023, 47: 102608.
34	Mazzotti M. Equilibrium theory based design of simulated moving bed processes for a generalized Langmuir isotherm[J]. Journal of Chromatography A, 2006, 1126(1/2): 311-322.
35	Storti G, Mazzotti M, Morbidelli M, et al. Robust design of binary countercurrent adsorption separation processes[J]. AIChE Journal, 1993, 39(3): 471-492.
36	Shekhawat L K, Rathore A S. An overview of mechanistic modeling of liquid chromatography[J]. Preparative biochemistry & Biotechnology, 2019, 49(6): 623-638.
37	Mao S M, Zhang Y, Rohani S, et al. Chromatographic resolution and isotherm determination of (R, S)-mandelic acid on Chiralcel-OD column[J]. Journal of Separation Science, 2012, 35(17): 2273-2281.
38	Xu J, Zhu L, Xu G Q, et al. Determination of competitive adsorption isotherm of enantiomers on preparative chromatographic columns using inverse method[J]. Journal of Chromatography A, 2013, 1273: 49-56.
39	Silva R J S, Rodrigues R C R, Mota J P B. Relay simulated moving bed chromatography: concept and design criteria[J]. Journal of Chromatography A, 2012, 1260: 132-142.
40	魏朋, 陈珺, 王志国, 等. 基于平衡理论的模拟移动床工艺参数鲁棒寻优[J]. 化工学报, 2022, 73(2): 792-800.
	Wei P, Chen J, Wang Z G, et al. Robust optimization of process parameters of simulated moving bed based on equilibrium theory[J]. CIESC Journal, 2022, 73(2): 792-800.
41	杨明磊,魏民,胡蓉,等.二甲苯模拟移动床分离过程建模与仿真[J].化工学报,2013, 64(12): 4335-4341.
	Yang M L, Wei M, Hu R, et al. Modeling and simulation of xylene simulated moving bed for xylene separation[J]. CIESC Journal, 2013, 64(12): 4335-4341.
42	Pedeferri M, Zenoni G, Mazzotti M, et al. Experimental analysis of a chiral separation through simulated moving bed chromatography[J]. Chemical Engineering Science, 1999, 54(17): 3735-3748.
43	Kaspereit M, Seidel-Morgenstern A, Kienle A. Design of simulated moving bed processes under reduced purity requirements[J]. Journal of Chromatography A, 2007, 1162(1): 2-13.

试剂	纯度/%	规格	生产厂家
低聚木糖（XOS）	95	—	山东龙力生物
阿拉伯糖（ARS）	95	—	山东龙力生物
木糖（Xylose）	99	—	山东龙力生物
木二糖（XOS₂）	99.7	AR	上海甄准生物
木三糖（XOS₃）	99.7	AR	上海甄准生物
木四糖（XOS₄）	99.7	AR	上海甄准生物
木五糖（XOS₅）	99.7	AR	上海甄准生物
木六糖（XOS₆）	99.7	AR	上海甄准生物
木七糖（XOS₇）	99.7	AR	上海甄准生物

试剂	纯度/%	规格	生产厂家
低聚木糖（XOS）	95	—	山东龙力生物
阿拉伯糖（ARS）	95	—	山东龙力生物
木糖（Xylose）	99	—	山东龙力生物
木二糖（XOS₂）	99.7	AR	上海甄准生物
木三糖（XOS₃）	99.7	AR	上海甄准生物
木四糖（XOS₄）	99.7	AR	上海甄准生物
木五糖（XOS₅）	99.7	AR	上海甄准生物
木六糖（XOS₆）	99.7	AR	上海甄准生物
木七糖（XOS₇）	99.7	AR	上海甄准生物

仪器	规格	生产厂家
称量天平	BSA224S-CW	德国Sartorius
恒温水浴	OLB-S6	山东欧莱伯仪器

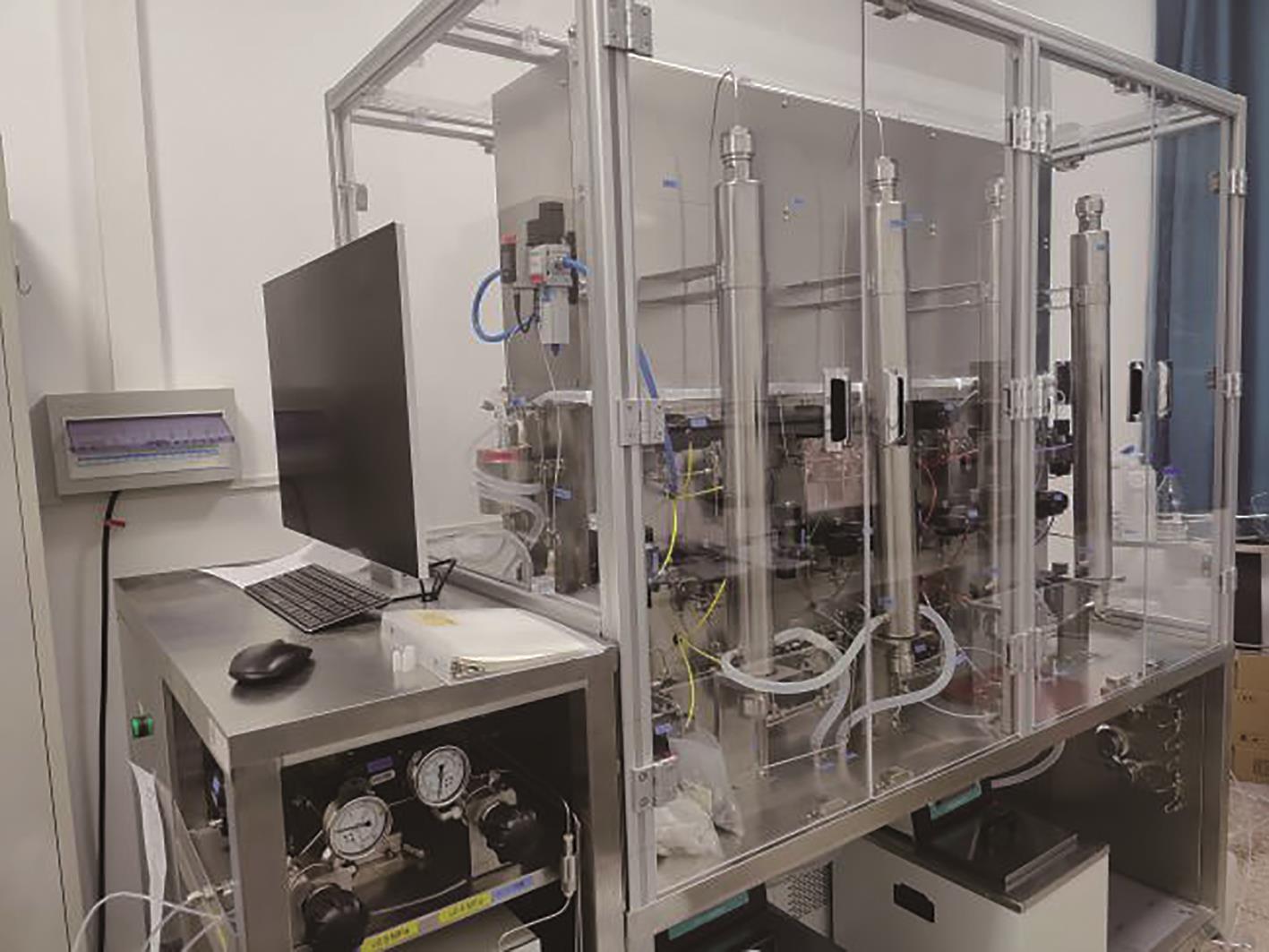

顺序式模拟移动床	SEPFOCUS	上海赛梵科
高效液相色谱仪	LC-16A	日本岛津
数控超声波清洗器	TB-5200DT	天津泰斯特典创仪器
超级数控恒温槽	SC-15	宁波新芝
双级反渗透超纯水机	Master-R	上海和泰仪器

仪器	规格	生产厂家
称量天平	BSA224S-CW	德国Sartorius
恒温水浴	OLB-S6	山东欧莱伯仪器
顺序式模拟移动床	SEPFOCUS	上海赛梵科
高效液相色谱仪	LC-16A	日本岛津
数控超声波清洗器	TB-5200DT	天津泰斯特典创仪器
超级数控恒温槽	SC-15	宁波新芝
双级反渗透超纯水机	Master-R	上海和泰仪器

参数	数值
全交换容量/(eq/L)	1.0
含水量/%	55-65
平均粒径/μm	590
均一系数	1.1
圆球率/%	95
抗压强度/(g/bead)	350
湿真密度/(g/ml)	1.08
湿视密度/(g/L)	657
