石油烃中芳烃分离技术研究进展

doi:10.11949/0438-1157.20241467

摘要/Abstract

摘要：

在“双碳”目标推动下，精细化加工和节能降耗成为新趋势，“分子炼油”技术是炼油行业绿色创新和高质量发展关键。从石油烃中高效分离芳烃，为芳烃按需加工提供优质原料，是实现“分子炼油”理念的重要技术途径。详细介绍了芳烃与非芳烃及芳烃组分间分离技术研究现状，进一步总结了芳烃分离技术选型策略，并提出了芳烃分离低碳工业化主要发展方向，从而实现芳烃高值化利用和化工行业可持续发展。

关键词: 石油烃, 芳烃, 混合物, 分离, 溶剂, 分子炼油

Abstract:

Driven by the "dual-carbon" strategic goal, oil refining industry is increasingly focusing on refined processing and energy saving. and "molecular refining" technology has emerged as a key strategy for green innovation and high-quality development of the refining industry. Efficient separation of aromatics from petroleum hydrocarbons provides high-quality feedstock for on-demand processing, which is an essential pathway to realizing "molecular refining". This study offered a comprehensive review of the current status of separation technologies for aromatic and non-aromatic hydrocarbons, as well as between different aromatic hydrocarbons. It further summarized the selection strategy of aromatics separation technology and proposed the main development direction for low-carbon industrialization of aromatics separation. These advancements are crucial for achieving the high-value utilization of aromatics and the sustainable development of the chemical industry

Key words: petroleum hydrocarbon, aromatic hydrocarbon, mixtures, separation, solvents, molecular refining

中图分类号:

TQ028

何燎, 李俊, 高梦舒, 刘东阳, 张宇豪, 赵亮, 高金森, 徐春明. 石油烃中芳烃分离技术研究进展[J]. 化工学报, DOI: 10.11949/0438-1157.20241467.

Liao HE, Jun LI, Mengshu GAO, Dongyang LIU, Yuhao ZHANG, Liang ZHAO, Jinsen GAO, Chunming XU. Research progress on aromatic hydrocarbons separation from petroleum hydrocarbons[J]. CIESC Journal, DOI: 10.11949/0438-1157.20241467.

图/表 14

图1 芳烃分离技术分类

Fig. 1 Classification of aromatic separation techniques

表1 芳烃与非芳烃体系中单一有机溶剂萃取效果

Table 1 Extraction efficiency of aromatic and non-aromatic hydrocarbons with single organic solvent

原料	溶剂	萃取温度/ºC	萃取时间/min	剂油比	芳烃纯度/%	芳烃收率/%	文献
糠醛抽出油	糠醛	70	/	3	76.8	58.6	[31]
减二线糠醛抽出油	糠醛	60	/	2	80.6	52.3	[32]
减四线糠醛抽出油	糠醛	70	/	3	76.8	55.1	[32]
重质馏分糠醛抽出油	糠醛	60-90	/	1.5-2	78.7-84.8	/	[33]
重质馏分糠醛抽出油	环丁砜	70	/	3	45.7	/	[33]
FCC柴油	环丁砜	50	5	1.5	93.71	29.29	[34]
FCC柴油	环丁砜	45	5	1.4	99.07	29.87	[35]

图2 芳烃与非芳烃体系中复配有机溶剂的芳烃去除率注:(1#—环丁砜[37];2#—环丁砜/10 wt%异丙醇[37];3#—环丁砜/10 wt%乙二醇[37];4#—环丁砜/10 wt%水[37];5#—二甲基甲酰胺[38];6#—二甲基甲酰胺/乙二醇[39];7#—N-甲基吡咯烷酮[38];8#—N-甲基吡咯烷酮/N,N-二甲基甲酰胺[38];9#—二甲基亚砜[40];10#—二甲基亚砜/10%N,N-二甲基甲酰胺[40])

Fig. 2 Removal efficiency of aromatic and non-aromatic hydrocarbons by compounded organic solvents

图3 CyreneTM生成路径

Fig. 3 CyreneTM generation path

图4 芳烃与非芳烃体系中咪唑类离子液体分离性能注:(1#—1-ethyl-3-methylimidazolium methylsulfonate[47];2#—1-ethyl-3-methylimidazolium trifluoromethanesulfonate[47];3#—1-ethyl-3-methylimidazolium 1,1,2,2-tetrafluoroethanesulfonate[47];4#—1-butyl-3-methylimidazolium dicyanamide[48];5#—1-butyl-3-methylimidazolium thiocyanate[49];6#—N-benzyl-N-methylimidazoium bis(trifluoromethylsulfonyl)mide[50];7#—[C5(MIM)2][NTf2]2[51];8#—[C6(MIM)2][NTf2]2[51];9#—1-butyl-3-methylimidazolium tetrachloroferrate[52];10#—1-benzyl-3-vinylimidazolium bis(trifluoromethylsulfonyl)imide[51];11#—1-hexyl-3-methylimidazolium hexafluorophosphate[53];)

Fig. 4 separation performance of imidazole ionic liquids with different aromatic and non-aromatic separation systems

表2 芳烃与非芳烃体系中吡啶类离子液体萃取效果

Table 2 Extraction efficiency of pyridine ionic liquids for aromatic and non-aromatic hydrocarbons

原料	离子液体	温度/ºC	芳烃分离性能		文献
原料	离子液体	温度/ºC	分配系数	选择性	文献
苯/正己烷	methylpridinium ethylsulphate	25	0.90	26.12	[54]
正丁基苯/正癸烷	1-己基-4-甲基吡啶四氟硼酸盐	40	0.45	49.36	[55]
四氢萘/正癸烷	1-己基-4-甲基吡啶四氟硼酸盐	40	0.75	90.03	[55]
萘/正癸烷	1-己基-4-甲基吡啶四氟硼酸盐	40	5.08	778.50	[55]

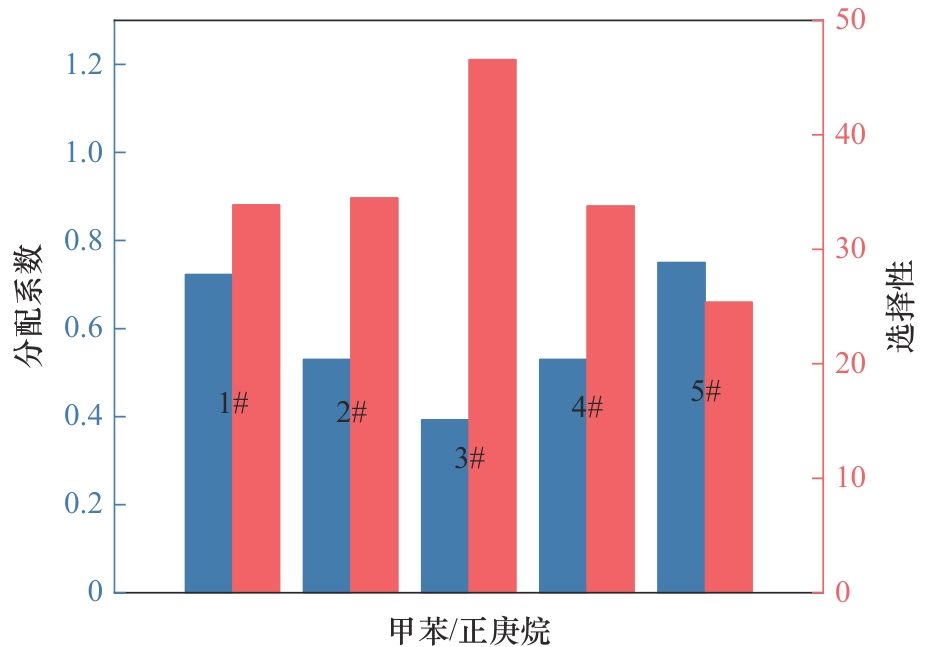

图5 甲苯/正庚烷体系中复配离子液体的分离性能注:(1#—[bpy][BF4]/[4bpy][Tf2N][56];2#—[bpy][BF4] (0.7)/[4bmpy][Tf2N] (0.3)[57];3#—[emim][TCM] (0.8)/[emim][DCA] (0.2)[58];4#—[4bmpy][Tf2N](0.3)/[emim][CHF2CF2SO3](0.7)[59];5#—[4bmpy][Tf2N](0.5)/[emim][C2H5SO4](0.5)[60])

Fig. 5 Separation performance of compounded ionic liquids in toluene/n-heptane system

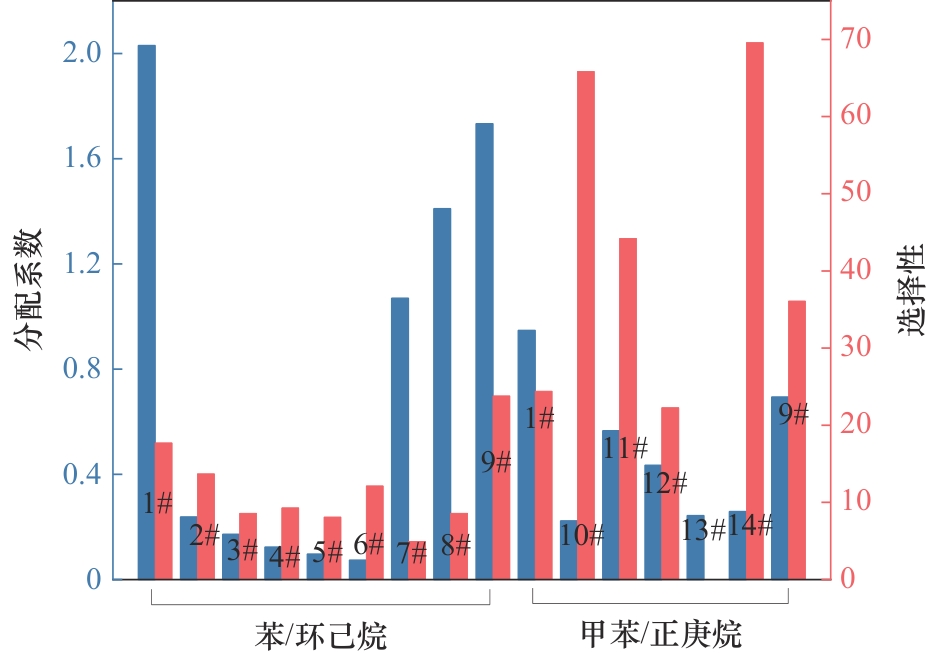

图6 芳烃与非芳烃体系中低共熔溶剂分离性能注:(1#—1-丁基-3-甲基澳化咪唑/N-甲酰吗啉[68];2#—tetrabutylammonium bromide/sulfolane[69];3#—tetrabutylammonium bromide/triethylene glycol[69];4#—methyltriphenylphosphonium bromide/Tetraethylene glycol[69];5#—methyltriphenylphosphonium bromide/1,2 propanediol[69];6#—choline chloride/triethylene glycol[69];7#—tetrahexylammonium bromide/ethylene glycol l[70];8#—tetrahexylammonium bromide/glycerol[70];9#—N-ethylpyridinium bromide/ N-formyl morpholin[71];10#—ethyltriphenylphosphonium iodide/Ethylene glycol[72];11#—ethyltriphenylphosphonium iodide/sulfolane[72];12#—tetrabutylphosphonium bromide/ethylene glycol[73];13#—tetrabutylphosphonium bromide/sulfolane[73];14#—吡啶基离子液体/乙酰丙酸[74])

Fig. 6 Separation performance of low eutectic solvents for aromatic and non-aromatic hydrocarbons

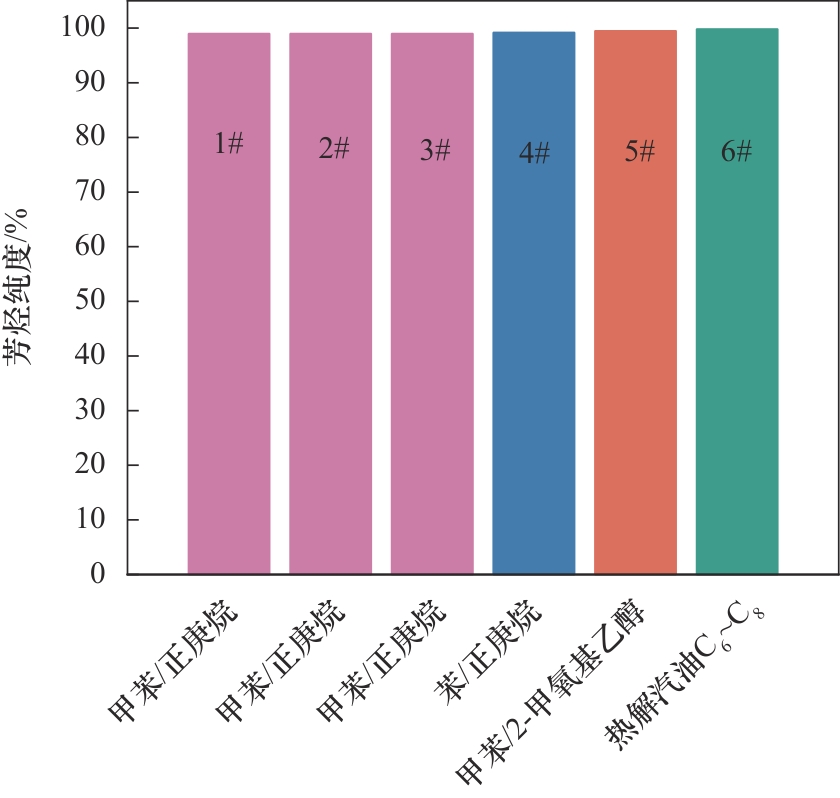

图7 芳烃与非芳烃体系中萃取精馏的分离效果注:(1#—N-甲基-吡咯烷酮[82];2#—苯酚[82];3#—环丁砜[82];4#— N-甲基吡咯烷酮[83];5#—二甲基亚砜[84];6#—85wt%环丁砜/15wt%甲基磺酰乙烷[85])

Fig. 7 Effect of extractive distillation on the separation of aromatic and non-aromatic hydrocarbons

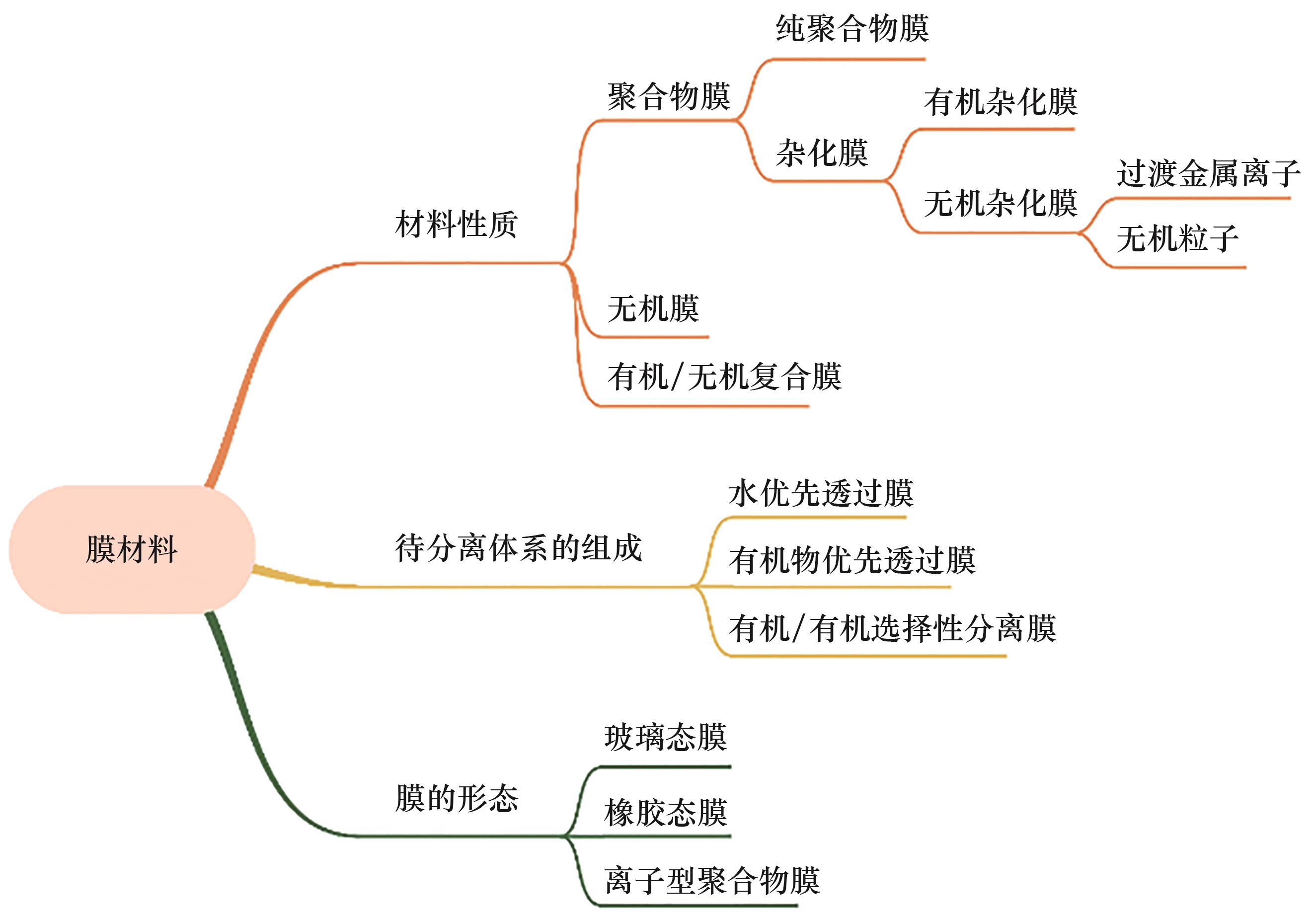

图8 膜材料分类

Fig. 8 Classification of membrane materials

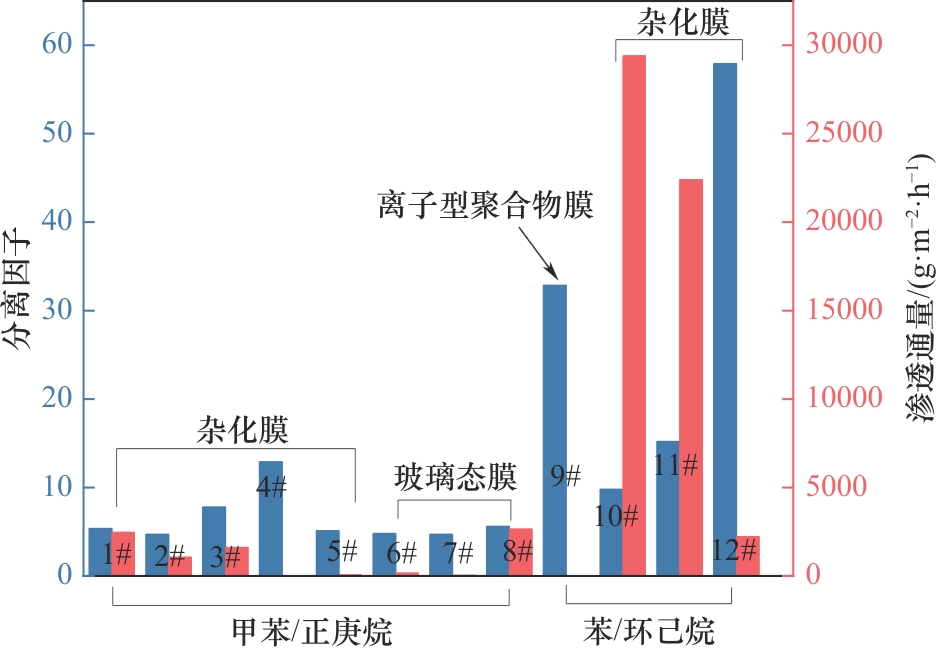

图9 芳烃与非芳烃体系中膜材料的分离性能注:(1#—非对称聚丙烯腈/苯甲酮/聚乙二醇甲醚甲基丙烯酸酯接枝复合膜[96];2#—聚丙烯腈/甲基丙烯酸甲酯-甲基丙烯酸钾盐/十二烷基二甲基苄基氯化铵膜[102];3#—聚丙烯腈/聚乙二醇甲基丙烯酸酯接枝复合膜[103];4#—不对称聚丙烯腈/聚乙烯醇-氧化石墨烯[104];5#—Boltorn W3000"孔填充"陶瓷复合膜[105];6#—聚酰亚胺膜[106];7#—芳香族聚酰亚胺和聚苯并恶唑膜[107];8#—杂萘联苯聚芳醚腈酮/聚乙二醇甲基丙烯酸酯接枝复合膜[108];9#—[3-Mebupy][BF4]聚偏二氟乙烯支撑液膜[109];10#—聚己二酸乙二醇酯/聚氨酯脲膜[98];11#—聚己二酸乙二醇酯/聚氨酯酰亚胺膜[98];12#—海藻酸钠/羧甲基纤维素钠共混膜[110])

Fig. 9 Membrane separation performance of different aromatic and non-aromatic separation systems

表3 C8、C9、C10单环芳烃分离研究

Table 3 Separation studies of C8， C9 and C10 monocyclic aromatic hydrocarbons

芳烃碳数	原料	分离技术	分离效率	文献
C₈	间/对二甲苯	常压低温结晶法	98%对二甲苯	[122]
	混合二甲苯	吸附分离	99.5%对二甲苯	[122]
	间/对二甲苯	加压结晶法	99.5%对二甲苯	[123]
	混合二甲苯	蒸馏冷冻结晶法	99.9%对二甲苯	[123]
	对二甲苯/甲苯	熔融结晶	99.52%对二甲苯	[124]
	混合二甲苯	MFI沸石膜分离	对二甲苯/邻二甲苯分离因子为600	[125]
	C₈芳烃异构体	MIL-160膜分离	对二甲苯/邻二甲苯分离因子为38.5	[126]
	C₈芳烃异构体	环糊精纳米薄膜分离	对二甲苯/邻二甲苯分离因子为6.1	[127]
	C₈芳烃异构体	分子印迹聚合物膜分离	对二甲苯/邻二甲苯分离因子为4.24	[128]
	C₈芳烃异构体	MOF-5膜分离	对二甲苯/邻二甲苯分离因子为1.95	[129]
C₉	重整C₉芳烃	偏三甲苯异构化-精馏	＞95%均三甲苯	[130]
	富集均三甲苯	烷基化-精馏	＞99%均三甲苯	[130]
	C₉芳烃	烷基化-常规精馏	＞98%均三甲苯	[131]
	C₉芳烃	萃取精馏-催促精馏	＞98 wt%均三甲苯	[132]
	重整C₉芳烃	精馏	＞99%偏三甲苯	[130]
	重整C₉芳烃	精密分馏	98.5%偏三甲苯	[133]
	C₉芳烃	双塔双效热集成精馏	98.51 wt%偏三甲苯	[134]
	重整C₉芳烃	差压热耦合精馏	99 wt%偏三甲苯	[135]
	C₉芳烃	精密精馏-深冷结晶	＞91%连三甲苯	[136]
	C₉芳烃	萃取精馏	99 wt%连三甲苯	[137]
	C₉芳烃	精密精馏-深冷结晶	＞96%茚满	[136]
	重整C₉芳烃	精密分馏	＞95%间/邻/对甲乙苯	[138]
C₁₀	C₁₀芳烃	精馏-萃取精馏	≥95 wt%间二乙苯	[139]
	C₁₀芳烃	精馏-萃取精馏	≥90 wt%对二乙苯	[139]
	C₁₀芳烃	熔融结晶	99.06 wt%均四甲苯	[140]
	均四甲苯粗产品	熔融结晶	99%均四甲苯	[141]

图10 结晶方式对2,6-二甲基萘的分离性能

Fig. 10 Separation performance of 2,6-dimethylnaphthalene by crystallization method

表4 不同芳烃分离技术对比

Table 4 Comparison of various aromatics separation technology

分离技术	分离原理	分离效率	能耗	环境影响	优点	缺点
溶剂萃取	溶剂对组分选择溶解性差异	高，尤其适用于不同极性的混合物	低	中等	操作简便，适用范围广，可选择性强	溶剂回收成本高
精馏	组分挥发度差异	中等，适用于沸点差异明显的混合物	高	中等	技术成熟，操作简单，适用范围广	设备投资大，能耗高，对热敏性物质不适用
萃取蒸馏	增加组分间相对挥发度	高，适用于沸点相近的混合物	中等	中等	投资小，能耗低	溶剂回收成本高
萃取精馏	增加组分间相对挥发度	高，适用于沸点相近的混合物和共沸物	中等	中等	操作灵活，能耗较低	溶剂回收成本高
吸附分离	吸附剂对组分的吸附能力差异	高，尤其适用于气体和液体混合物	高	中等	操作简单，适用范围广，可选择性强	吸附剂再生困难，成本高，吸附容量有限
膜分离	膜的选择渗透性	中等，尤其适用于热敏感物质	低	低	低能耗，设备简单，操作灵活	膜成本高，易污染，需定期更换
结晶分离	组分的凝固点差异	低，尤其适用于同分异构体和共沸物	低	低	工艺简单，能耗低	回收率低，连续工业化生产难
