Effect of van der Waals forces on the motion of magnetic field fluidized nanoparticles

doi:10.11949/0438-1157.20240078

Abstract

Abstract:

Based on the traditional magnetization model, the van der Waals force model is added, and the finite volume method (FVM) and discrete element method (DEM) are used for numerical simulation. The gas-solid two-phase flow analysis is performed using the Fluent-EDEM dual platform coupling to study the effect of van der Waals force on the movement of nanoparticles under different magnetic field directions and different magnetic induction intensities. The results indicate that the impact of van der Waals forces between nanoparticles on particle movement in magnetic fluidized beds cannot be overlooked, and there exists a distinct inhibitory relationship between van der Waals forces and magnetization forces at low magnetic flux density. The stratification of nanoparticles becomes more pronounced at a magnetic field angle of 0°, and the stratification effect gradually diminishes with increasing field intensity. The van der Waals force also deflects the direction of particle motion to a certain extent. The introduction of van der Waals force model further broadens the application range of magnetization model and provides data support for studying the motion of nanoparticles in magnetic field.

Key words: nanoparticles, van der Waals force, fluidization, aggregation, magnetic fluidized bed, modified magnetization model

摘要：

纳米颗粒存在较强的颗粒间作用力。在传统磁化模型基础上添加范德华力模型，采用有限体积法（FVM）与离散单元法（DEM）进行数值模拟，运用Fluent-EDEM双平台耦合进行气固两相流分析，研究不同磁场方向与不同磁感应强度下范德华力对纳米颗粒运动的影响。结果表明，纳米颗粒间的范德华力对磁场流化床中颗粒运动的影响不可忽略，其在低磁感应强度下与磁化力之间存在明显牵制关系；磁场角度为0°时纳米颗粒分层现象明显，随场强增大分层效果逐渐缓解；范德华力也会在一定程度上促使颗粒运动方向发生偏转。范德华力模型的引入进一步拓宽了磁化模型的适用范围，为研究纳米颗粒在磁场中的运动提供数据支持。

关键词: 纳米粒子, 范德华力, 流态化, 聚集, 磁场流化床, 修正磁化模型

CLC Number:

O 359

Juhui CHEN, Ran AN, Dan LI, Haoming GAO, Kun ZHANG. Effect of van der Waals forces on the motion of magnetic field fluidized nanoparticles[J]. CIESC Journal, 2024, 75(10): 3518-3527.

陈巨辉, 安然, 李丹, 高浩铭, 张坤. 范德华力对磁场流化纳米颗粒运动的影响[J]. 化工学报, 2024, 75(10): 3518-3527.

Figures/Tables 15

Fig.1 Sketch diagram of particle force

Fig.2 The mesh of model

Table 1 Grid independence test

最小网格尺寸	网格数量/个	总动能/(10^-10 J)
1R	6229	0.0642
2R	4163	0.0471
3R	2248	0.0243
4R	1920	0.0238
5R	863	0.0386
6R	664	0.0497

Table 2 Analog parameter

参数	实验值	模拟值
颗粒直径/ m	1.7×10^-8	1.7×10^-8
颗粒密度/(kg/m³)	850	850
气相密度/(kg/m³)	1.29	1.29
注入颗粒数量	—	800
纳米颗粒磁导率/(H/m)	8.3	8.3
杨氏模量/ GPa	68.95	68.95
泊松比	0.33	0.33
颗粒-颗粒摩擦因数	0.3	0.3
颗粒弹性刚度/(N/m)	800	800
颗粒-壁面摩擦因数	0.3	0.3
墙壁弹性刚度/(N/m)	800	800
阻尼系数	0.05	0.05

Table 3 Simulated working condition

β/(°)	工况
β/(°)	0.01 T	0.0125 T	0.02 T
0	C1	C5	C9
30	C2	C6	C10
60	C3	C7	C11
90	C4	C8	C12

Fig.3 Pressure drop

Fig.4 Change of normalized signal entropy

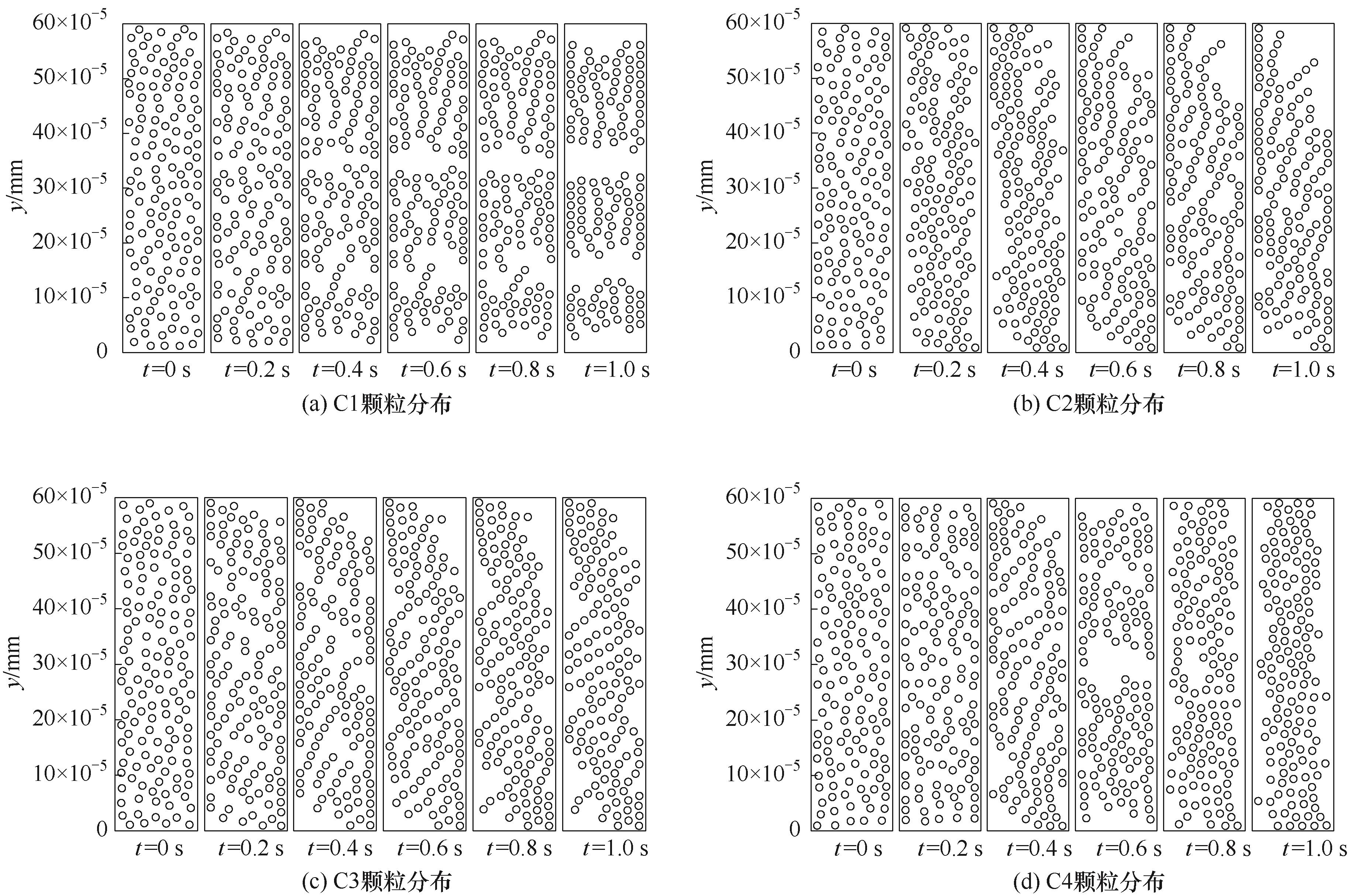

Fig.5 Particle distribution at 0.01 T

Fig.6 Particle distribution map at 1.0 s

Fig.7 Total kinetic energy of particles without van der Waals force at 0.01 T

Fig.8 Change curve of total kinetic energy after adding van der Waals force

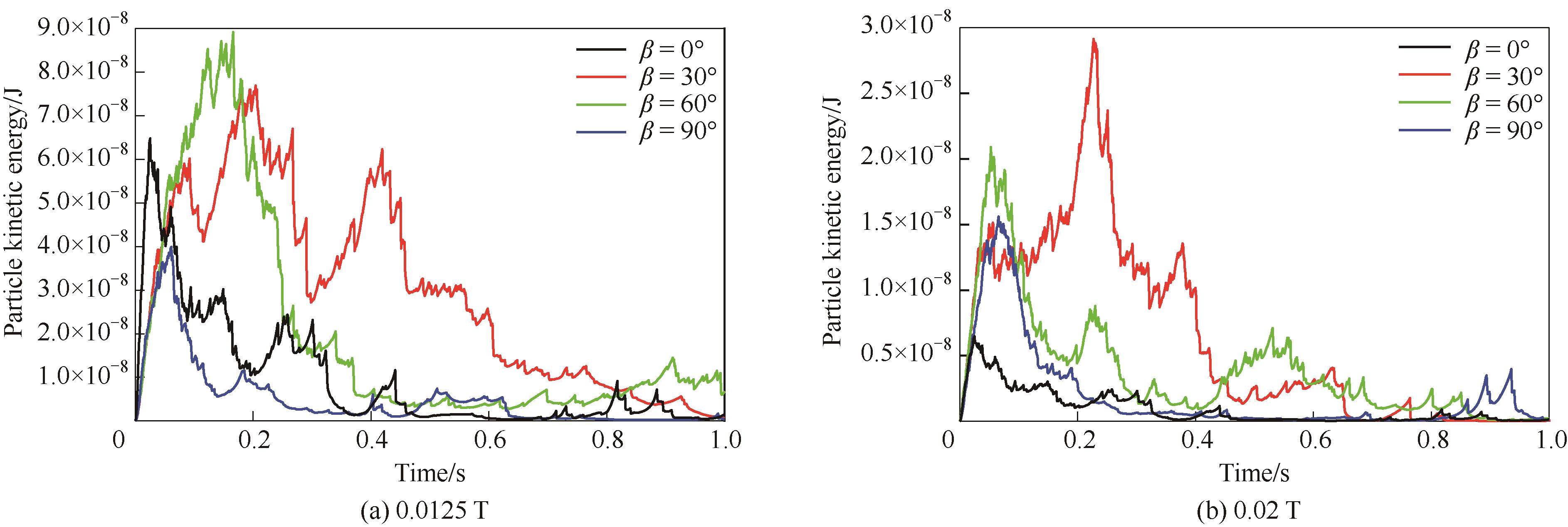

Fig.9 Total kinetic energy change curve

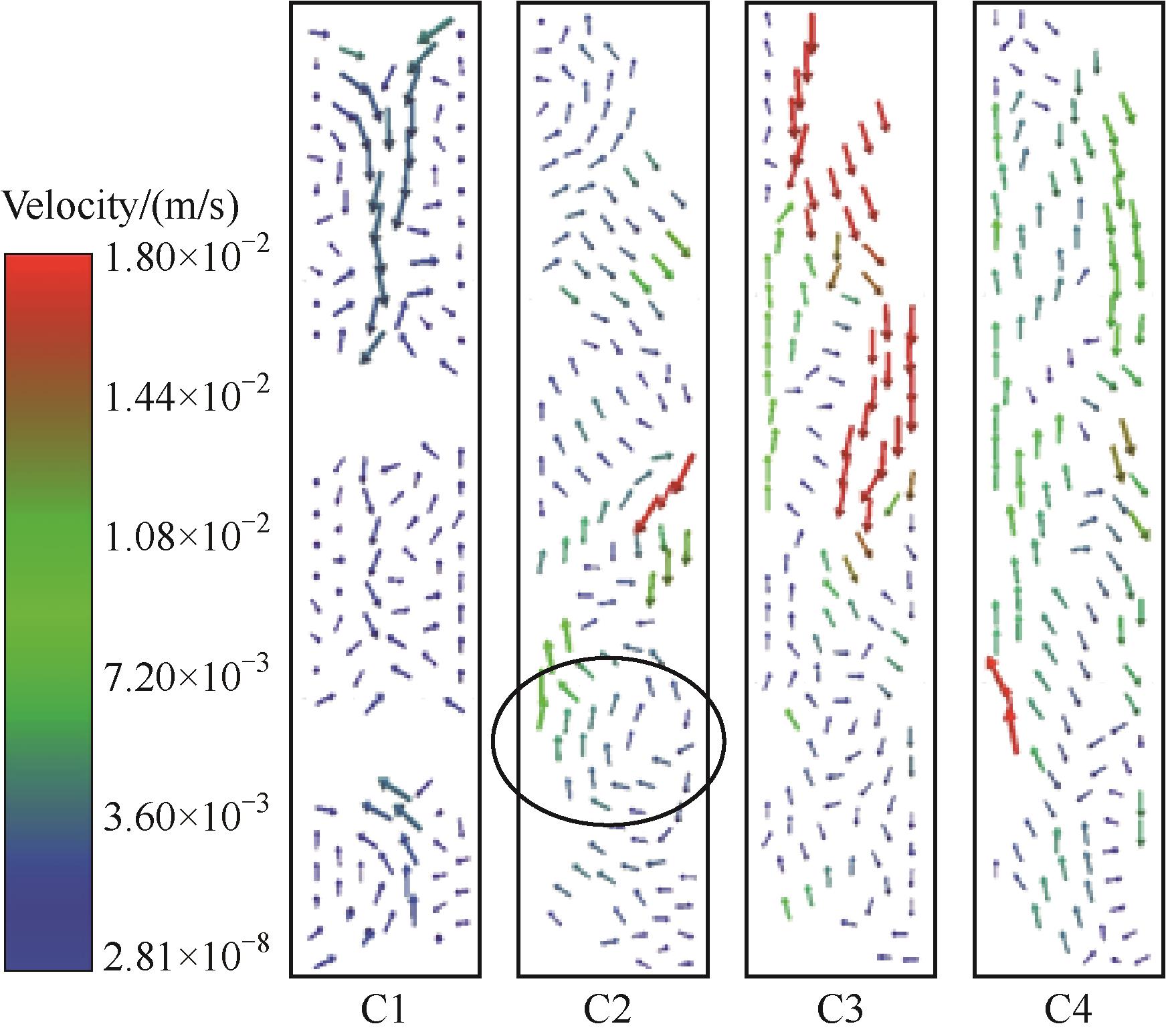

Fig.10 Particle velocity vector diagram at 1 s(0.01 T)

Fig.11 Particle velocity vector diagram at 1 s

Fig.12 Particle angular velocity change curve

References 32

1	Fan G D, Song Y Q, Xia M Q, et al. Photocatalytic inactivation of algae in a fluidized bed photoreactor with an external magnetic field[J]. Journal of Environmental Management, 2022, 307: 114552.
2	Hao W K, Zhu Q H. Operating range of magnetic stabilization flow regime for magnetized fluidized bed with Geldart-B magnetizable and nonmagnetizable particles[J]. Particuology, 2022, 60: 90-98.
3	林檬, 陈国, 赵珺. 磁辅助生物反应器研究进展[J]. 化工进展, 2014, 33(5): 1252-1258, 1320.
	Lin M, Chen G, Zhao J. Research progress of magnetically assisted bioreactor[J]. Chemical Industry and Engineering Progress, 2014, 33(5): 1252-1258, 1320.
4	Bahramian A, Olazar M. Evaluation of elastic and inelastic contact forces in the flow regimes of titania nanoparticle agglomerates in a bench-scale conical fluidized bed: a comparative study of CFD-DEM simulation and experimental data[J]. Chemical Engineering Research and Design, 2021, 176: 34-48.
5	Hoorijani H, Zarghami R, Nosrati K, et al. Investigating the hydrodynamics of vibro-fluidized bed of hydrophilic titanium nanoparticles[J]. Chemical Engineering Research and Design, 2021, 174: 486-497.
6	Pan F, Du Z, Li S F, et al. Preparation of nano-sized tungsten carbide via fluidized bed[J]. Chinese Journal of Chemical Engineering, 2020, 28(3): 923-932.
7	Liu H P, Wang S W. Fluidization behaviors of nanoparticle agglomerates with high initial bed heights[J]. Powder Technology, 2021, 388: 122-128.
8	Chaouki J, Chavarie C, Klvana D, et al. Effect of interparticle forces on the hydrodynamic behaviour of fluidized aerogels[J]. Powder Technology, 1985, 43(2): 117-125.
9	Liu D Y, van Wachem B G M, Mudde R F, et al. Characterization of fluidized nanoparticle agglomerates by using adhesive CFD-DEM simulation[J]. Powder Technology, 2016, 304: 198-207.
10	Liu D Y, van Wachem B G M, Mudde R F, et al. An adhesive CFD-DEM model for simulating nanoparticle agglomerate fluidization[J]. AIChE Journal, 2016, 62(7): 2259-2270.
11	王垚, 金涌, 魏飞, 等. 原生纳米级颗粒的聚团散式流态化[J]. 化工学报, 2002, 53(4): 344-348.
	Wang Y, Jin Y, Wei F, et al. Agglomerate particulate fluidization of primary nano-particles[J]. Journal of Chemical Industry and Engineering (China), 2002, 53(4): 344-348.
12	Vimal T, Pandey S, Gupta S K, et al. Manifestation of strong magneto-electric dipolar coupling in ferromagnetic nanoparticles-FLC composite: evaluation of time-dependent memory effect[J]. Liquid Crystals, 2018, 45(5): 687-697.
13	Maniotis N, Nazlidis A, Myrovali E, et al. Estimating the effective anisotropy of ferromagnetic nanoparticles through magnetic and calorimetric simulations[J]. Journal of Applied Physics, 2019, 125(10): 103903.
14	Ganzha V L, Saxena S C. Hydrodynamic behavior of magnetically stabilized fluidized beds of magnetic particles[J]. Powder Technology, 2000, 107(1/2): 31-35.
15	Jovanovic G N, Sornchamni T, Atwater J E, et al. Magnetically assisted liquid-solid fluidization in normal and microgravity conditions: experiment and theory[J]. Powder Technology, 2004, 148(2/3): 80-91.
16	Espin M J, Quintanilla M A S, Valverde J M. Magnetic stabilization of fluidized beds: effect of magnetic field orientation[J]. Chemical Engineering Journal, 2017, 313: 1335-1345.
17	Zhu Q H, Li H Z, Zhu Q S, et al. Hydrodynamic study on magnetized fluidized beds with Geldart-B magnetizable particles[J]. Powder Technology, 2014, 268: 48-58.
18	Ishii T, Yamakawa H, Kanaki T, et al. Large terahertz magnetization response in ferromagnetic nanoparticles[J]. Applied Physics Letters, 2019, 114(6): 062402.
19	Prischepa S, Danilyuk A. Anisotropic temperature-dependent interaction of ferromagnetic nanoparticles embedded inside CNT[J]. International Journal of Nanoscience, 2019, 18(3/4): 1940015.
20	Abu-Bakr A F, Zubarev A Y. Effect of ferromagnetic nanoparticles aggregation on magnetic hyperthermia[J]. The European Physical Journal Special Topics, 2020, 229(2): 323-329.
21	Ku J G, Xia J, Li J Z, et al. Accurate calculation of major forces acting on magnetic particles in a high-gradient magnetic field: a 3D finite element analysis[J]. Powder Technology, 2021, 394: 767-774.
22	Vogel F, Pelteret J P, Kaessmair S, et al. Magnetic force and torque on particles subject to a magnetic field[J]. European Journal of Mechanics-A/Solids, 2014, 48: 23-37.
23	Pinto-Espinoza J. Dynamic behavior of ferromagnetic particles in a liquid-solid magnetically assisted fluidized bed (MAFB): theory, experiment, and CFD-DPM simulation[D]. Corvallis: Oregon State University, 2002.
24	Hao Z H, Li X, Lu H L, et al. Numerical simulation of particle motion in a gradient magnetically assisted fluidized bed[J]. Powder Technology, 2010, 203(3): 555-564.
25	陈巨辉, 安然, 舒崚峰, 等. 修正磁化模型的多组分铁磁性颗粒运动研究[J]. 力学学报, 2024, 56(3): 740-750.
	Chen J H, An R, Shu L F, et al. Study on motion of multi-component ferromagnetic particles with modified magnetization model[J]. Chinese Journal of Theoretical and Applied Mechanics, 2024, 56(3): 740-750.
26	Rosensweig R E. Magnetic stabilization of the state of uniform fluidization[J]. Industrial & Engineering Chemistry Fundamentals, 1979, 18(3): 260-269.
27	Chen J H, An R, Li D, et al. A modified Pinto-Espinoza magnetization model for studying on motion characteristics of ferromagnetic particles[J]. Journal of Magnetism and Magnetic Materials, 2024, 589: 171539.
28	Greenwood J A. Adhesion of elastic spheres[J]. Proceedings of the Royal Society of London A, 1997, 453: 1277-1297.
29	Krupp H. Particle adhesion theory and experiment[J]. Advances in Colloid and Interface Science, 1967, 1(2): 111-239.
30	He Y, Muller F, Hassanpour A, et al. A CPU-GPU cross-platform coupled CFD-DEM approach for complex particle-fluid flows[J]. Chemical Engineering Science, 2020, 223: 115712.
31	Zhu Q H, Li H Z, Zhu Q S, et al. Hydrodynamic behavior of magnetized fluidized beds with admixtures of Geldart-B magnetizable and nonmagnetizable particles[J]. Particuology, 2016, 29: 86-94.
32	Karimi F, Haghshenasfard M, Sotudeh-Gharebagh R, et al. Multiscale characterization of nanoparticles in a magnetically assisted fluidized bed[J]. Particuology, 2020, 51: 64-71.
