Spray flash evaporation preparation of micro/nanoparticles

doi:10.11949/0438-1157.20240811

Abstract

Abstract:

This study presents the design and construction of an experimental device for the preparation of micro/nanoparticles through a spray flash evaporation. Solutions containing organic solutes are sprayed into a vacuum flash evaporation chamber to obtain the organic micro/nanoparticles. The experiment included an initial pressure of 3.0—4.5 MPa, an initial temperature of 130—200℃, three sets of nozzles with different diameters, and four sets of organic solutes. Using the 0.10 mm nozzle, the particle size distribution of p-toluene sulfonamide ranges from 0 to 30 μm. When the initial conditions are increased to 4.5 MPa and 170℃, the proportion of particles smaller than 6 μm can be increased to 62% and 75%, respectively. This indicates that increasing the initial conditions has a significant refinement effect on the particles. In addition, increasing the nozzle size will further increase the particle size and non-uniformity due to the suppression of flash evaporation caused by the deterioration of atomization effect. Therefore, the small diameter nozzle can produce smaller, more concentrated, and uniformly distributed micro/nanoparticles. The particle morphology and size of different organic solutes are different, but the particle size is distributed within 40 μm, indicating that this experimental device has a certain universality.

Key words: spray flash evaporation, organic solutes, preparation, micro/nanoparticles, particle formation, particle size distribution

摘要：

设计并搭建了一套通过喷雾闪蒸方法制备微纳米颗粒的实验装置，将含有有机溶质的溶液喷入真空腔室内进行闪蒸，以得到相应的微纳米有机颗粒。实验涵盖了3.0~4.5 MPa的初始压力、130~200℃的初始温度以及三组不同直径的喷嘴和四种有机物溶质。使用0.10 mm的喷嘴，制得的对甲苯磺酰胺颗粒尺寸分布在0~30 μm。提高喷雾初始温度与压力可使小尺寸颗粒占比提高，平均直径减小，这对颗粒的细化作用十分明显。当增大喷嘴直径时，雾化效果变差对闪蒸的抑制将会增大颗粒的尺寸和不均匀性，因此使用小口径喷嘴能够获得更小、分布更集中的颗粒。而不同有机溶质制得的颗粒形态与大小均有不同，但颗粒尺寸都分布在40 μm以内，表明本实验装置具有一定的普适性。

关键词: 喷雾闪蒸, 有机溶质, 制备, 微纳米颗粒, 粒子形成, 粒度分布

CLC Number:

TK 124

Ben’an CAI, Jianxin ZHANG, Chengjun LONG, Qiaochen DU, Xunjian CHE, Yiying ZHANG, Weihua CAI. Spray flash evaporation preparation of micro/nanoparticles[J]. CIESC Journal, 2025, 76(3): 1334-1345.

蔡本安, 张建新, 龙城君, 杜乔琛, 车勋建, 张义迎, 蔡伟华. 喷雾闪蒸制备微纳米颗粒[J]. 化工学报, 2025, 76(3): 1334-1345.

Figures/Tables 16

Table 1 Experimental reagents

药品名称	化学式	纯度	厂家
乙醇	C₂H₆O	>99%	三合酒精
对甲苯磺酰胺	C₇H₉NO₂S	GR，>99%	麦克林
丁二酸	C₄H₆O₄	AR，>99%	科密欧
苹果酸	C₂H₆O₅	AR，>99%	福晨
葡萄糖	C₆H₁₂O₆	GR，>99%	科密欧

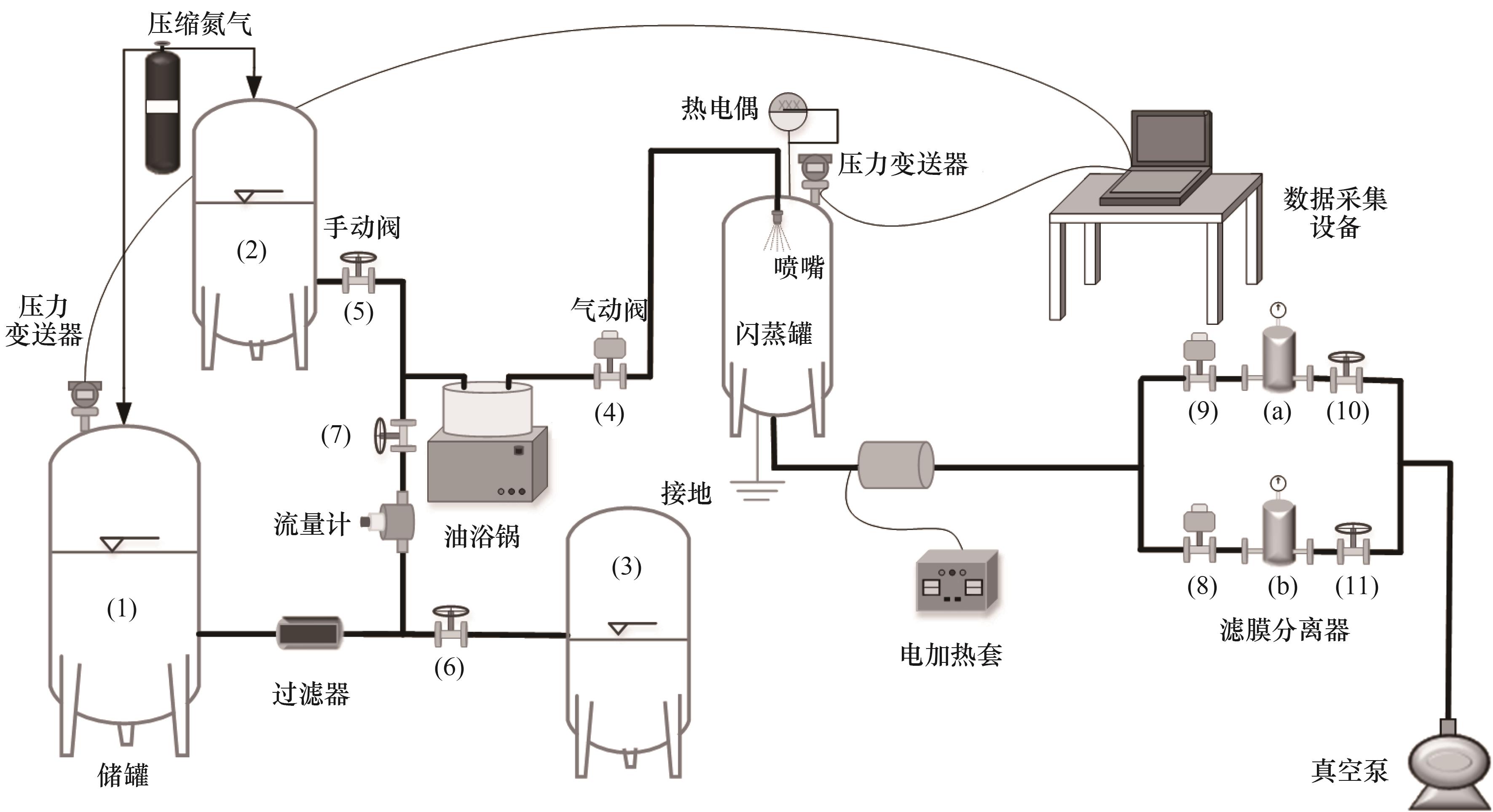

Fig.1 Schematic diagram of experimental system

Table 2 Selection of experimental parameters

参数	选取范围
初始温度/℃	130~200
初始压力/MPa	3.0~4.5
喷嘴尺寸/mm	0.10、0.15、0.20
闪蒸罐真空压力/Pa	2000~3000
喷射方向	竖直向下

Table 3 Uncertainty of experimental instruments

实验仪器	精确性	测试范围	不确定度
压力变送器	±0.5%	0~5000 Pa	±1.52%
压力变送器	±0.5%	0~8 MPa	±1.36%
流量计	±0.5%	1~18 L/h	±1.3%
热电偶	±1%	0~600℃	±1%

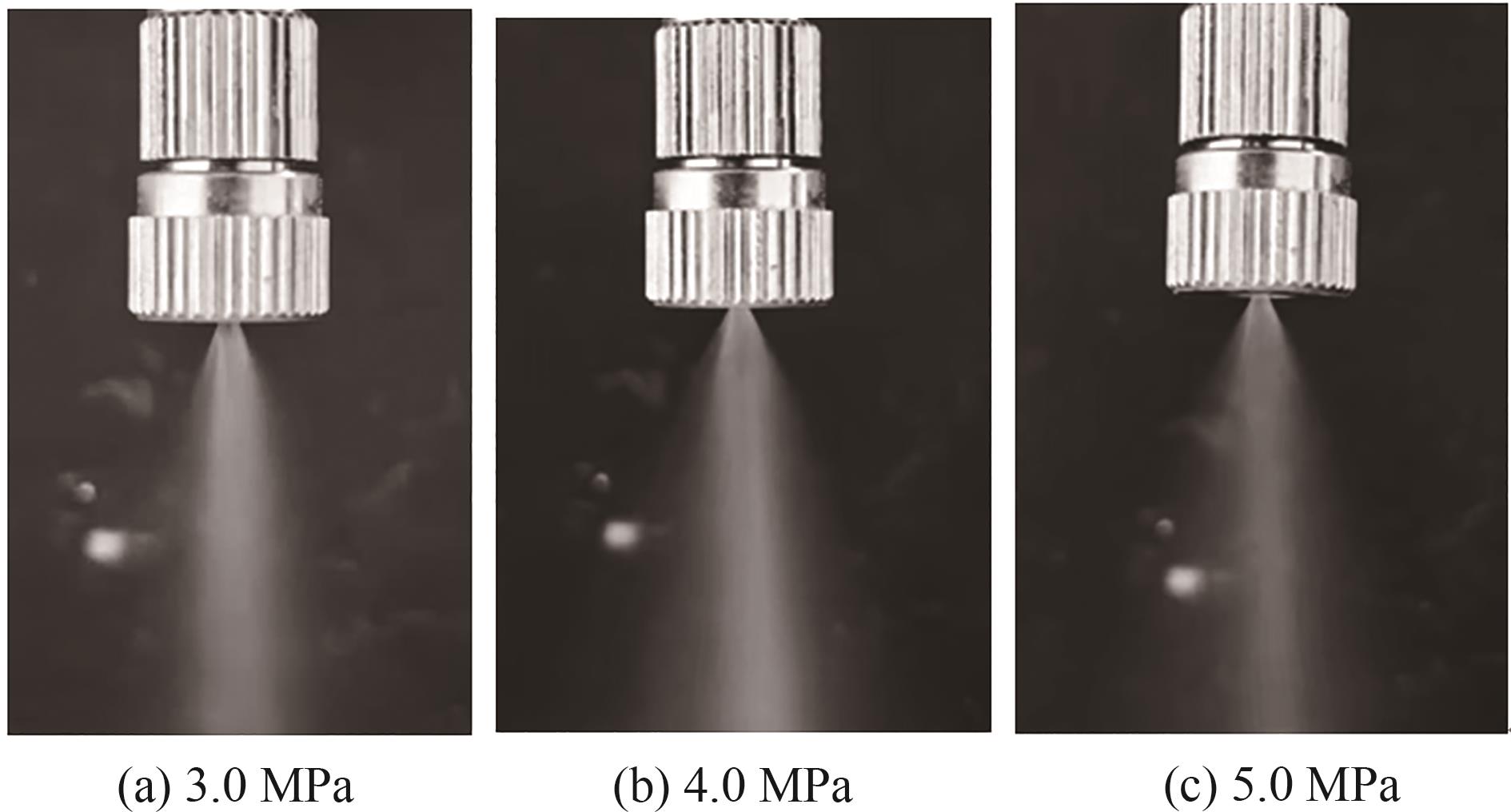

Fig.2 The shape of the spray under different initial pressures

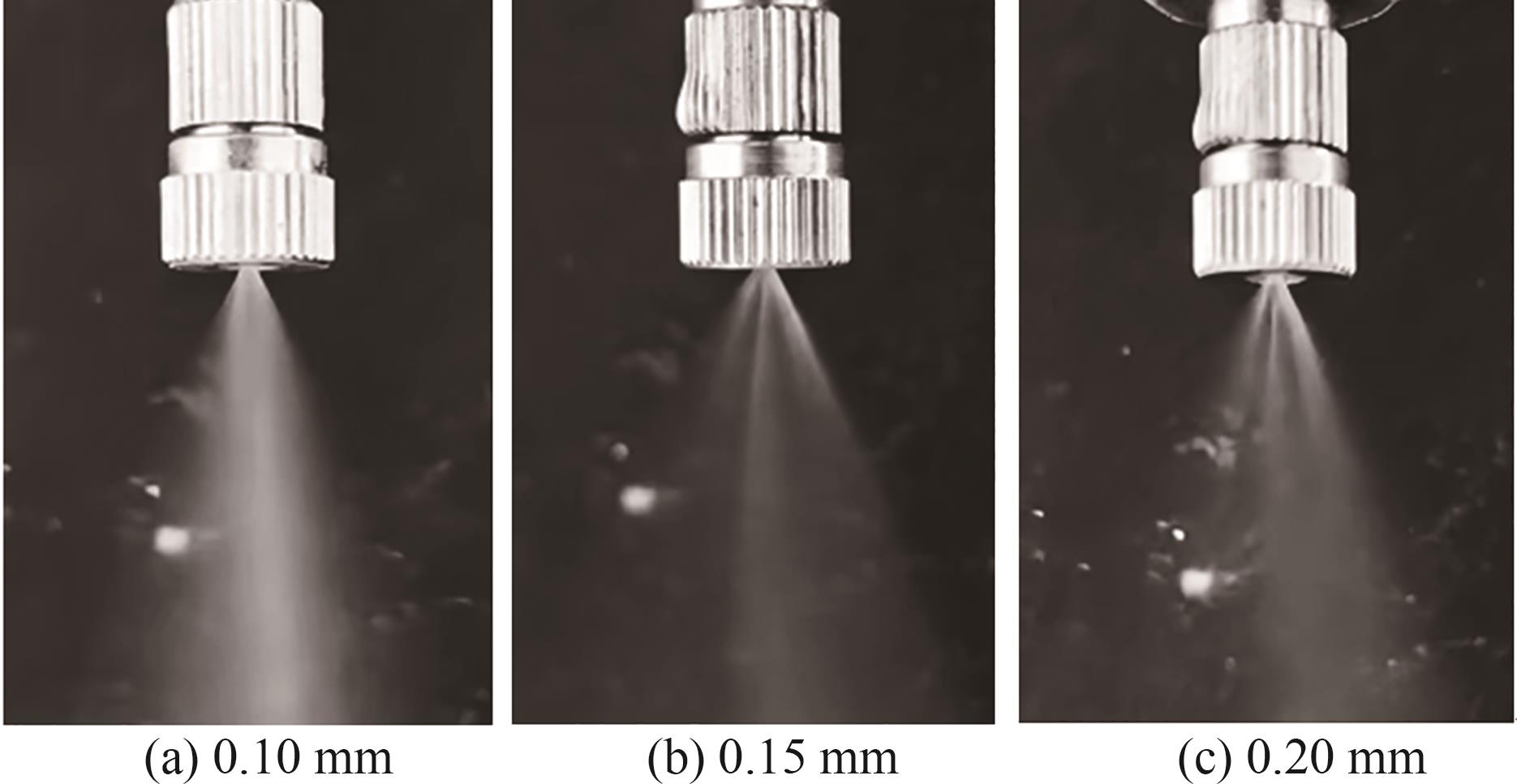

Fig.3 The shape of the spray under different nozzle sizes

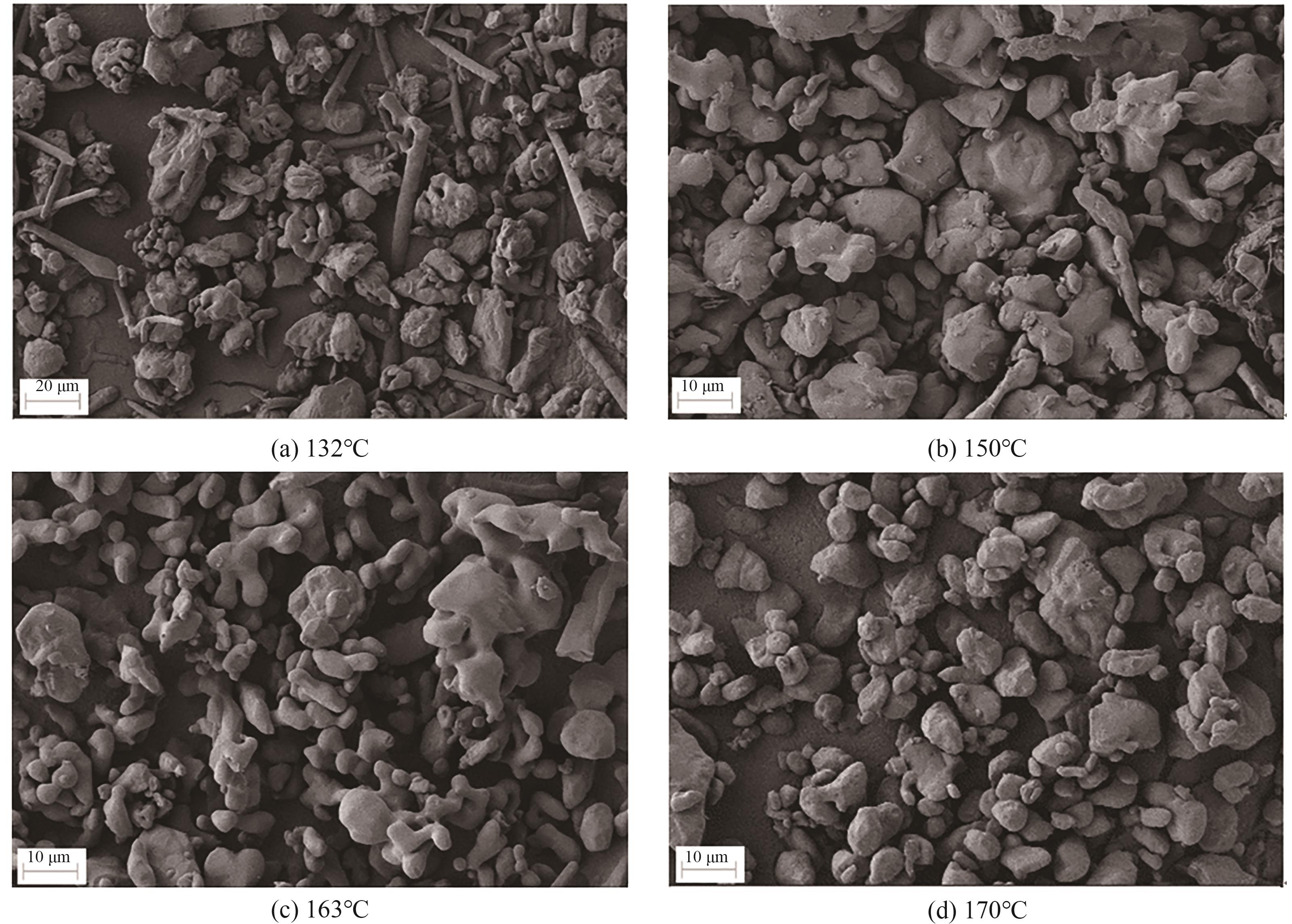

Fig.4 The SEM images of p-toluene sulfonamide at different initial temperatures

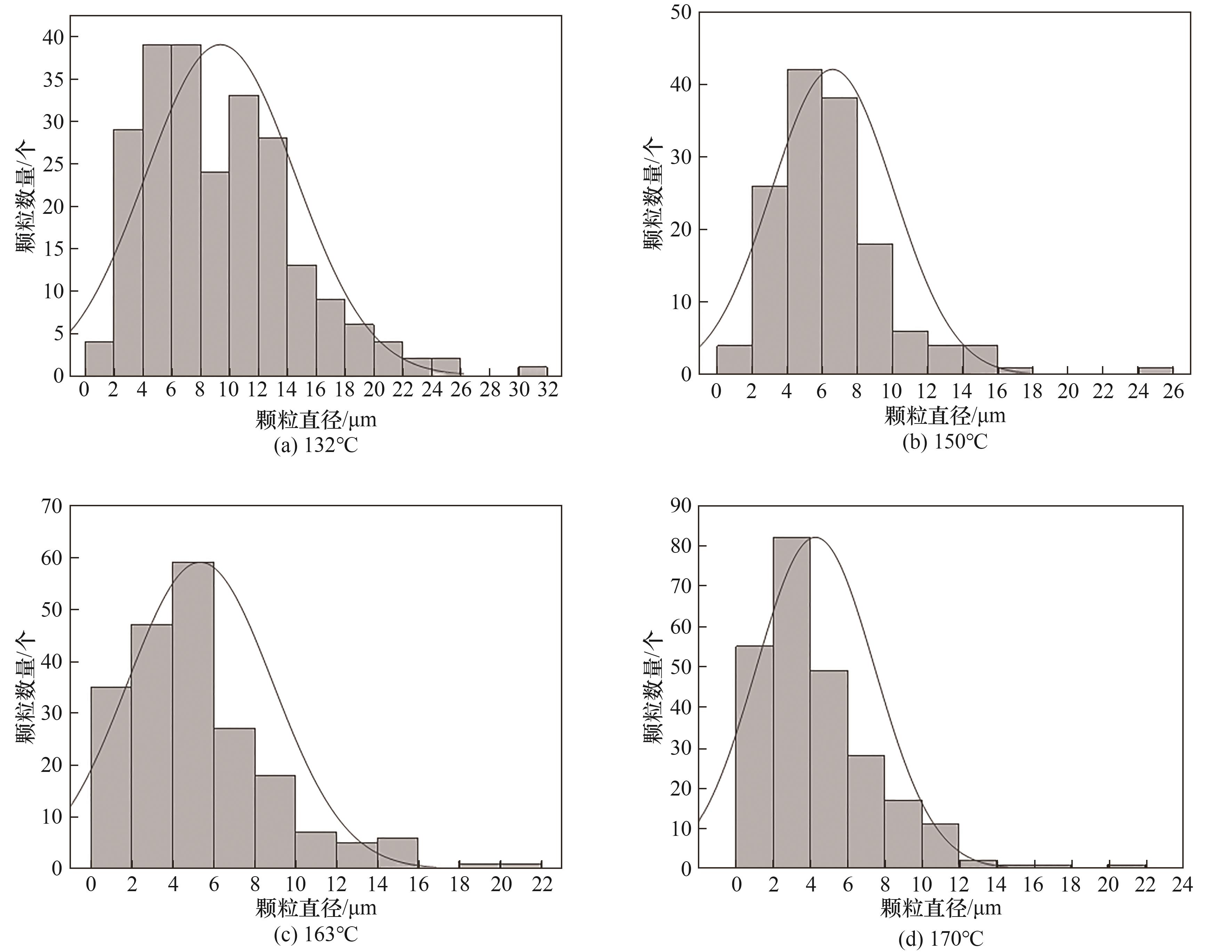

Fig.5 Particle size distribution at different initial temperatures

Fig.6 The variation of particle diameter with initial temperature and Ja

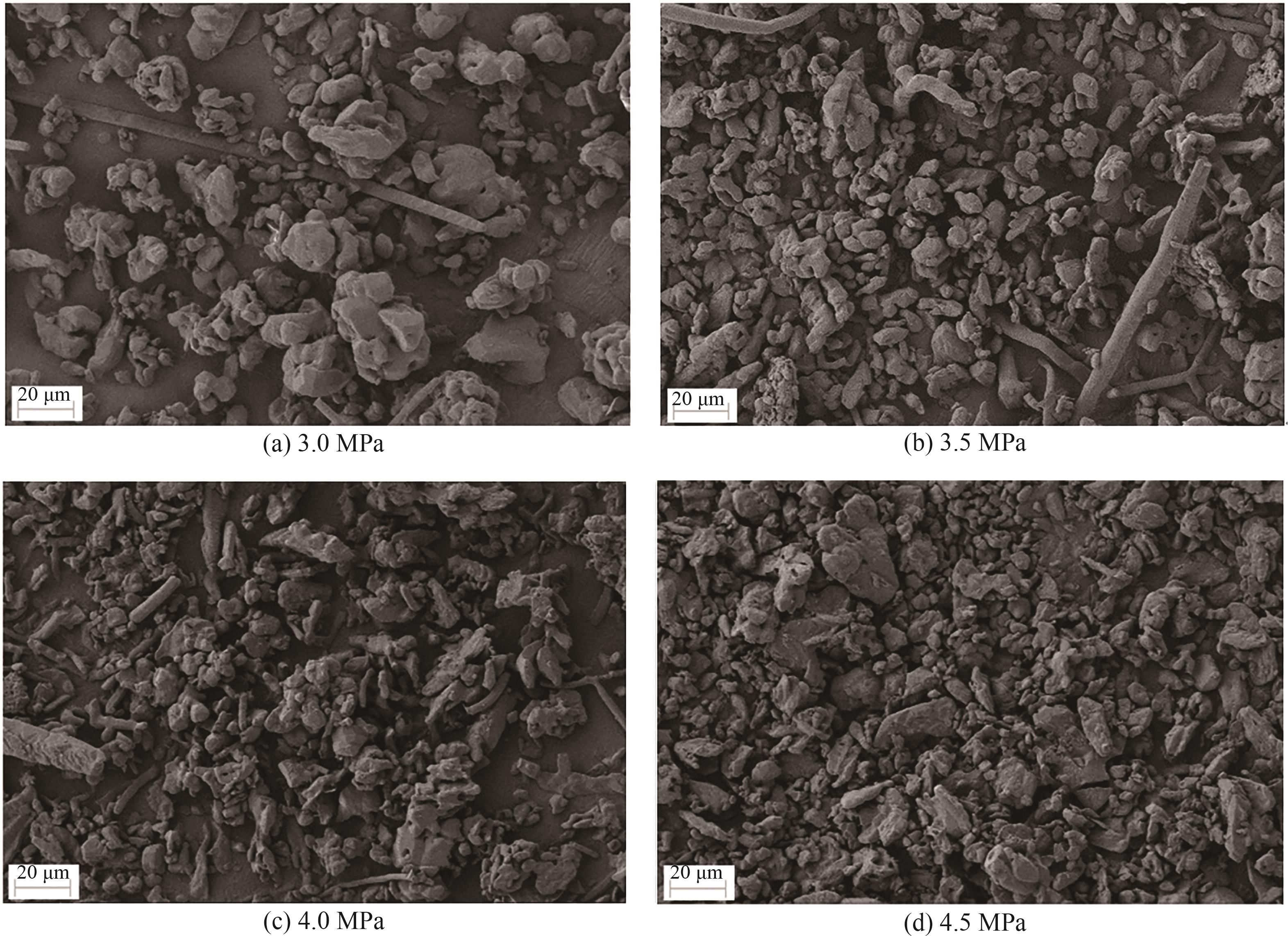

Fig.7 SEM images of p-toluene sulfonamide at different initial pressures

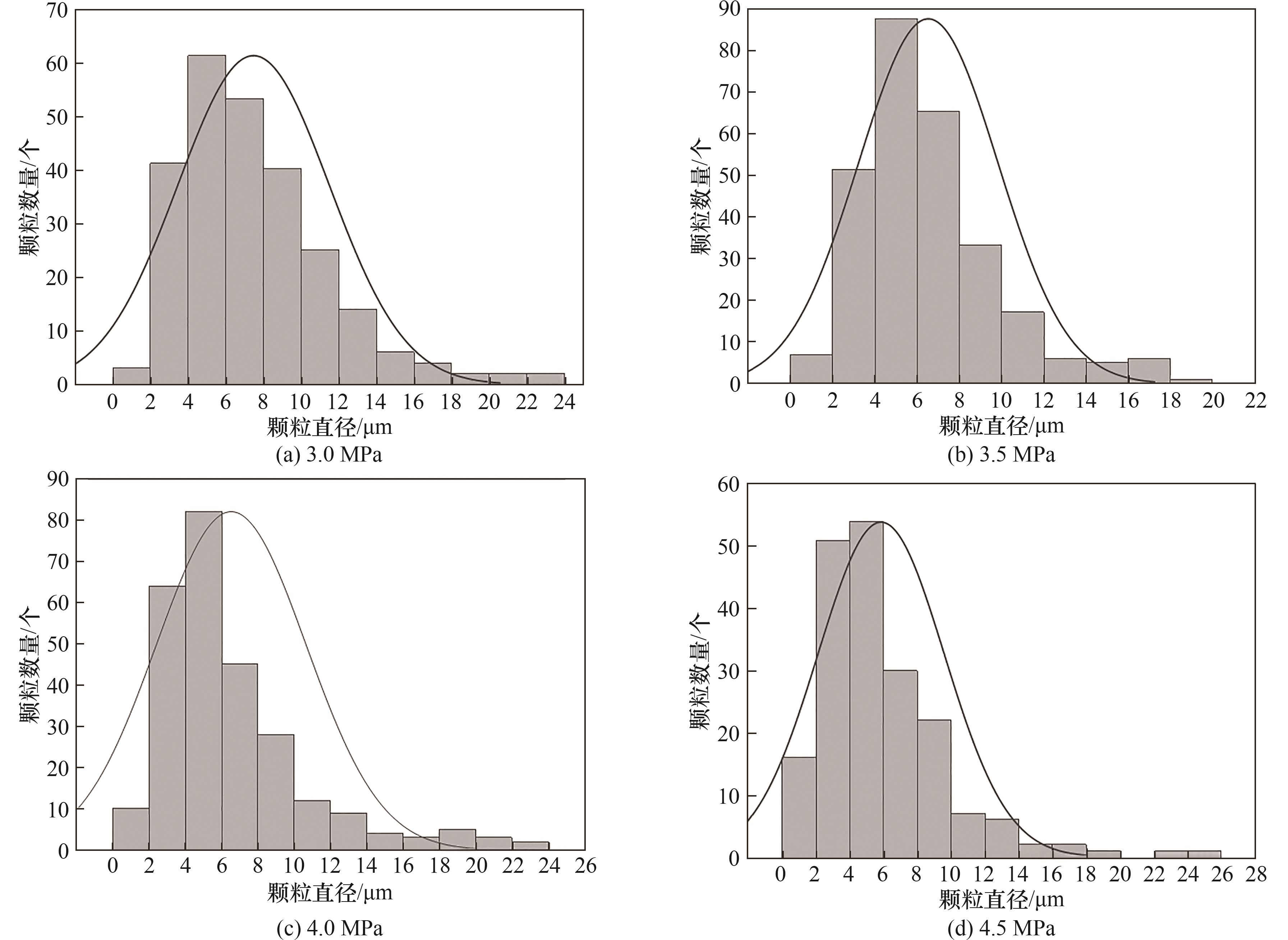

Fig.8 Particle size distribution at different initial pressures

Fig.9 Average particle size varies with the initial pressure

Fig.10 SEM images of p-toluene sulfonamide at different nozzle diameters

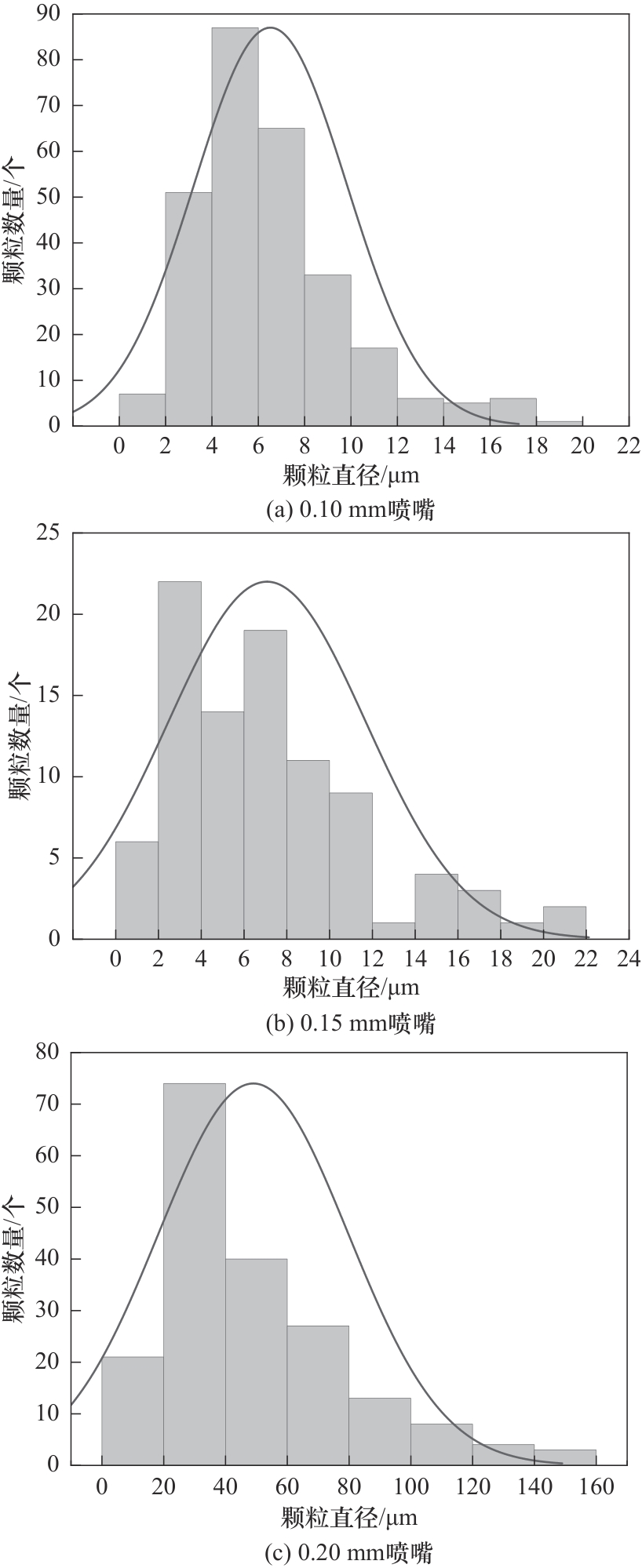

Fig.11 Particle size distribution under different nozzle diameters

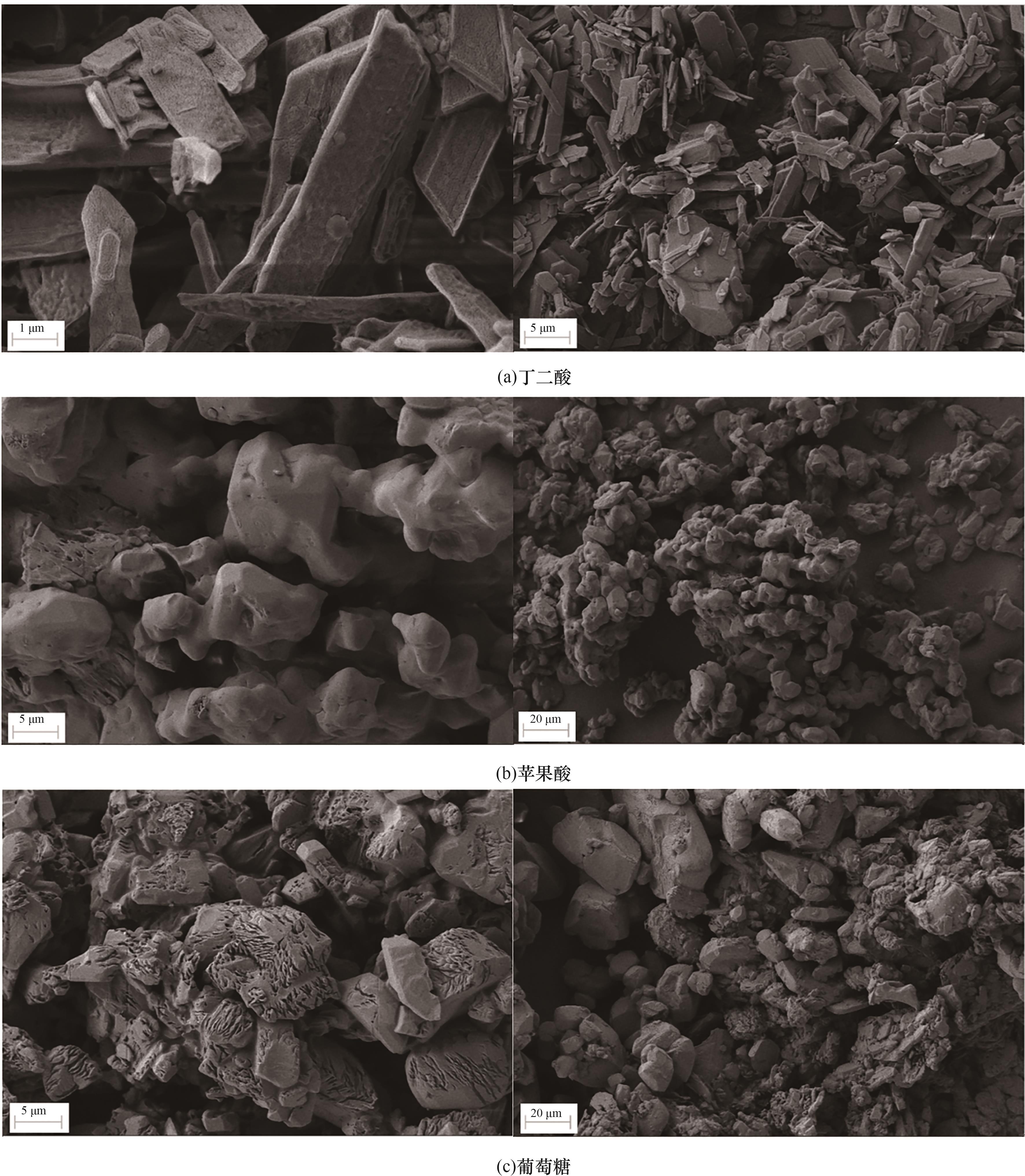

Fig.12 SEM images of particles obtained from different organic solutes

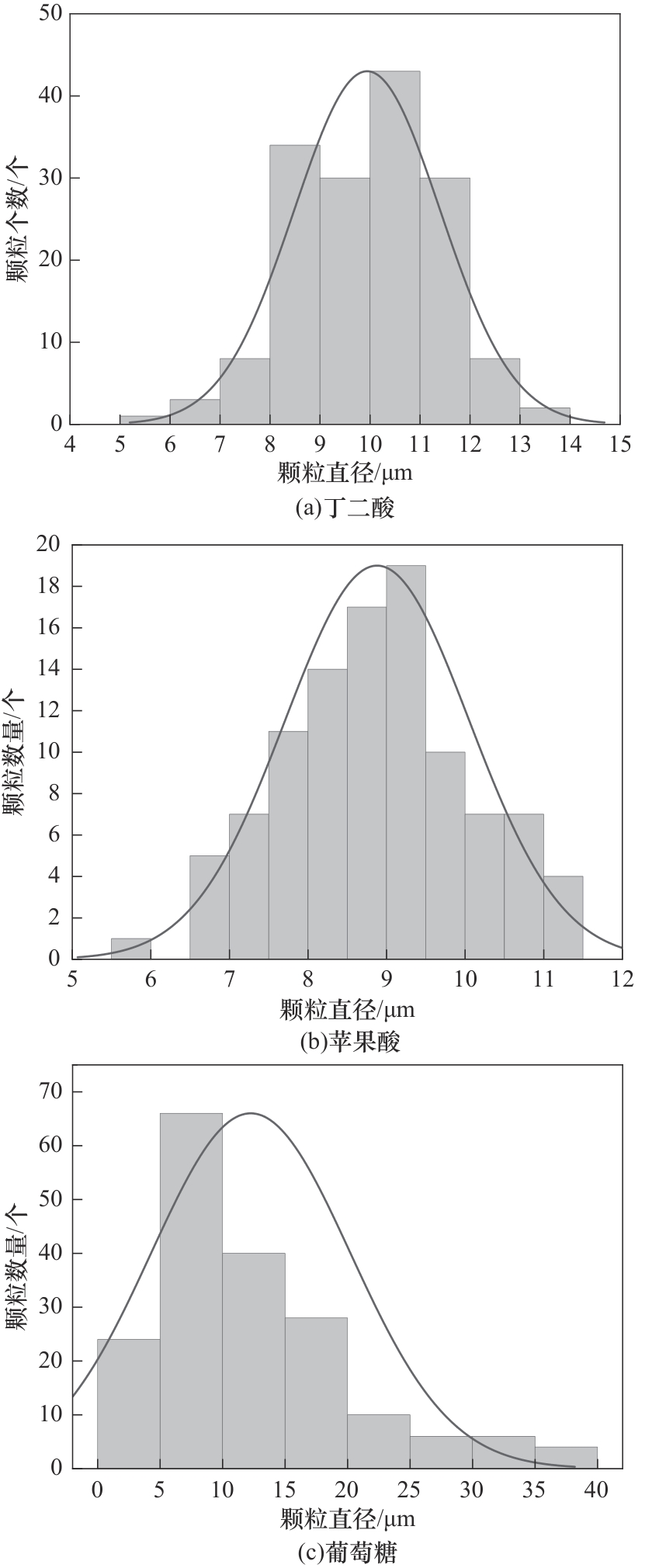

Fig.13 Particle size distribution obtained from different organic solutes
