Efficient generation of droplets through three-dimensional fractal integrated coaxial flow channels

doi:10.11949/0438-1157.20240652

Abstract

Abstract:

Monodisperse droplets are widely used in food, chemical, energy, medicine and materials, but the current methods and devices are difficult to balance high monodispersity and high efficiency preparation. Therefore, a three-dimensional fractal approach is proposed to achieve equal and high-density integration of coaxial flow microchannels. And experimental research is conducted on the droplet generation characteristics and size distribution patterns. The experimental results show that under the condition of the stable mode, the coefficient of variation (CV) of droplets prepared by single channel, single stage 4-channel, and single stage 8-channel are 1.5%, 1.9%, and 1.9%, respectively. The monodispersity of droplets is high. Under the condition of the transition mode, the monodispersity of droplets is relatively poor, with CV of 6.9%, 6.7%, and 6.6%, respectively. Regardless of the stable mode or the transition interval of droplet generations, both the 4-channel and 8-channel channels maintain the characteristics of single channel droplet generation, and the generation efficiency is increased to nearly 4 and 8 times that of single channel, respectively. The droplets prepared with double-stage 16 channels at 4 flow rates exhibit good monodispersity, with CV all within 3.5%. But the generation efficiency has increased to nearly 16 times that of a single channel. The three-dimensional fractal integrated coaxial flow channel structure proposed in this article can improve the preparation efficiency while maintaining the monodispersity of droplets in single channel preparation.

Key words: droplet generation, microfluidics, integration, fractal, high throughput preparation, multiphase flow

摘要：

单分散性液滴在食品、化工、能源、医药和材料等领域均有广泛的应用，而现行方法及装置难以兼顾高单分散性和高效率制备。为此，提出了三维分形流道集成方法实现共轴流通道对等高密度集成，并采用简易方法构建了单级和双级三维分形共轴流通道集成装置；在此基础上实验研究其液滴生成特性及尺寸分布规律。无论稳定模式还是过渡模式的液滴生成，单级4通道与8通道均保持了单通道生成的液滴特性，而生成效率分别提高至单通道的近4倍与8倍。双级16通道在4组流量下制备的液滴单分散性好，变异系数均在3.5%以内；但生成效率提高到单通道的近16倍。可见三维分形集成共轴流通道结构能够在保持制备液滴单分散性的同时提升制备效率。

关键词: 液滴生成, 微流控, 集成, 分形, 高通量制备, 多相流

CLC Number:

TQ 050

Zhanzhu CHEN, Jinhua YE, Zhibin WANG, Zhi YANG, Lisi JIA, Ying CHEN. Efficient generation of droplets through three-dimensional fractal integrated coaxial flow channels[J]. CIESC Journal, 2024, 75(12): 4442-4452.

陈展珠, 叶锦华, 王智彬, 杨智, 贾莉斯, 陈颖. 三维分形集成共轴流通道实现液滴高效生成[J]. 化工学报, 2024, 75(12): 4442-4452.

Figures/Tables 10

References 38

1	Elvira K S, Gielen F, Tsai S S H, et al. Materials and methods for droplet microfluidic device fabrication[J]. Lab on a Chip, 2022, 22(5): 859-875.
2	de Oliveira Bianchi J R, de la Torre L G, Costa A L R. Droplet-based microfluidics as a platform to design food-grade delivery systems based on the entrapped compound type[J]. Foods, 2023, 12(18): 3385.
3	Yeh S I, Fu C Y, Sung C Y, et al. Microfluidic fabrication of porous PLGA microspheres without pre-emulsification step[J]. Microfluidics and Nanofluidics, 2023, 27(7): 47.
4	Xu W, Li X H, Brugger J, et al. Study of the enhanced electricity output of a sliding droplet-based triboelectric nanogenerator for droplet sensor design[J]. Nano Energy, 2022, 98: 107166.
5	Cheong D Y, Lee W, Park I, et al. Amyloid formation in nanoliter droplets[J]. International Journal of Molecular Sciences, 2022, 23(10): 5480.
6	吉笑盈, 郑园, 李晓鹏, 等. 微流控可控制备液滴、颗粒和胶囊及其应用[J]. 化工学报, 2024, 75(4): 1455-1468.
	Ji X Y, Zheng Y, Li X P, et al. Controlled preparation of droplets, particles and capsules by microfluidics and their applications[J]. CIESC Journal, 2024, 75(4): 1455-1468.
7	Orbay S, Sanyal A. Molecularly imprinted polymeric particles created using droplet-based microfluidics: preparation and applications[J]. Micromachines, 2023, 14(4): 763.
8	黄心童, 耿宇昊, 刘恒源, 等. 微流控制备新型功能纳米粒子研究进展[J]. 化工学报, 2023, 74(1): 355-364.
	Huang X T, Geng Y H, Liu H Y, et al. Research progress on new functional nanoparticles prepared by microfluidic technology[J]. CIESC Journal, 2023, 74(1): 355-364.
9	Amirifar L, Besanjideh M, Nasiri R, et al. Droplet-based microfluidics in biomedical applications[J]. Biofabrication, 2022, 14(2): 022001.
10	Li B X, Ma X, Cheng J H, et al. Droplets microfluidics platform—a tool for single cell research[J]. Frontiers in Bioengineering and Biotechnology, 2023, 11: 1121870.
11	Sumitomo S, Ueta M, Uddin M A, et al. Comparison of oil-in-water emulsion between ultrasonic irradiation and mechanical stirring[J]. Chemical Engineering & Technology, 2019, 42(2): 381-387.
12	Hoesli C A, Kiang R L J, Raghuram K, et al. Mammalian cell encapsulation in alginate beads using a simple stirred vessel[J]. Journal of Visualized Experiments, 2017(124): 55280.
13	Yanagishita T, Inoue T, Kondo T, et al. Preparation of monodisperse LiCoO₂ hollow particles by membrane emulsification using anodic porous alumina[J]. Chemistry Letters, 2018, 47(4): 551-554.
14	Zanatta V, Rezzadori K, Penha F M, et al. Stability of oil-in-water emulsions produced by membrane emulsification with microporous ceramic membranes[J]. Journal of Food Engineering, 2017, 195: 73-84.
15	Ding Y, Howes P D, DeMello A J. Recent advances in droplet microfluidics[J]. Analytical Chemistry, 2020, 92(1): 132-149.
16	Hu C X, Jin K, Ma H B. A universal model for continuous “one-to-two” high-efficient droplet generation in digital microfluidics[J]. Applied Physics Letters, 2023, 122(18): 181601.
17	Ofner A, Mattich I, Hagander M, et al. Controlled massive encapsulation via tandem step emulsification in glass[J]. Advanced Functional Materials, 2019, 29(4): 1806821.
18	Opalski A S, Makuch K, Lai Y K, et al. Grooved step emulsification systems optimize the throughput of passive generation of monodisperse emulsions[J]. Lab on a Chip, 2019, 19(7): 1183-1192.
19	Vladisavljević G T, Ekanem E E, Zhang Z L, et al. Long-term stability of droplet production by microchannel (step) emulsification in microfluidic silicon chips with large number of terraced microchannels[J]. Chemical Engineering Journal, 2018, 333: 380-391.
20	Han T T, Zhang L, Xu H, et al. Factory-on-chip: modularised microfluidic reactors for continuous mass production of functional materials[J]. Chemical Engineering Journal, 2017, 326: 765-773.
21	Yadavali S, Jeong H H, Lee D, et al. Silicon and glass very large scale microfluidic droplet integration for terascale generation of polymer microparticles[J]. Nature Communications, 2018, 9(1): 1222.
22	Cui Y J, Li Y K, Wang K, et al. High-throughput preparation of uniform tiny droplets in multiple capillaries embedded stepwise microchannels[J]. Journal of Flow Chemistry, 2020, 10(1): 271-282.
23	Zhang J, Xu W H, Xu F Y, et al. Microfluidic droplet formation in co-flow devices fabricated by micro 3D printing[J]. Journal of Food Engineering, 2021, 290: 110212.
24	Jeong H H, Chen Z, Yadavali S, et al. Large-scale production of compound bubbles using parallelized microfluidics for efficient extraction of metal ions[J]. Lab on a Chip, 2019, 19(4): 665-673.
25	Ribeiro de Souza L, Al-Tabbaa A. High throughput production of microcapsules using microfluidics for self-healing of cementitious materials[J]. Lab on a Chip, 2021, 21(23): 4652-4659.
26	Kim J H, Ryu C H, Chon C H, et al. Three months extended-release microspheres prepared by multi-microchannel microfluidics in beagle dog models[J]. International Journal of Pharmaceutics, 2021, 608: 121039.
27	Deng C F, Yang S H, Xie R, et al. Flexible fractal integration of microfluidic modules for controllable mass production of monodisperse microdroplets[J]. Industrial & Engineering Chemistry Research, 2023, 62(32): 12690-12702.
28	石盼, 颜肖潇, 王行政, 等. 一步法制备生物相容油核微胶囊及其可控释放[J]. 化工学报, 2021, 72(1): 619-627.
	Shi P, Yan X X, Wang X Z, et al. One-step fabrication of biocompatible oil-core microcapsules with controlled release[J]. CIESC Journal, 2021, 72(1): 619-627.
29	翟小威, 潘湄蝶, 石盼, 等. 一步法高通量可控制备生物相容水/水微囊及其响应释放[J]. 高等学校化学学报, 2022, 43(12): 335-344.
	Zhai X W, Pan M D, Shi P, et al. One-step high-throughput controlled preparation of biocompatible water/water microcapsules with triggered release[J]. Chemical Journal of Chinese Universities, 2022, 43(12): 335-344.
30	朱佐银, 彭湉, 周新丽. 高通量微流控阵列芯片设计及制备植物乳杆菌微胶囊的研究[J]. 食品与发酵工业, 2023, 49(3): 125-130.
	Zhu Z Y, Peng T, Zhou X L. High-throughput microfluidic array chip design and study on preparation of Lactobacillus plantarum microcapsules[J]. Food and Fermentation Industries, 2023, 49(3): 125-130.
31	Nawar S, Stolaroff J K, Ye C W, et al. Parallelizable microfluidic dropmakers with multilayer geometry for the generation of double emulsions[J]. Lab on a Chip, 2020, 20(1): 147-154.
32	Senn S M, Poulikakos D. Tree network channels as fluid distributors constructing double-staircase polymer electrolyte fuel cells[J]. Journal of Applied Physics, 2004, 96(1): 842-852.
33	Wang Y, Zhou X Y, Yang Z H, et al. An integrated and multi-functional droplet-based microfluidic platform for digital DNA amplification[J]. Biosensors and Bioelectronics, 2024, 246: 115831.
34	Nisisako T, Torii T. Microfluidic large-scale integration on a chip for mass production of monodisperse droplets and particles[J]. Lab on a Chip, 2008, 8(2): 287-293.
35	Nisisako T, Ando T, Hatsuzawa T. High-volume production of single and compound emulsions in a microfluidic parallelization arrangement coupled with coaxial annular world-to-chip interfaces[J]. Lab on a Chip, 2012, 12(18): 3426-3435.
36	Anshori I, Sarwono F Z, Fa'iq M A, et al. From design to performance: 3-D printing-enabled optimization of low-cost droplet microfluidics[J]. IEEE Sensors Journal, 2024, 24(1): 63-70.
37	Utada A S, Fernandez-Nieves A, Gordillo J M, et al. Absolute instability of a liquid jet in a coflowing stream[J]. Physical Review Letters, 2008, 100(1): 014502.
38	Wang Z B, Chen Z Z, Wen Y F, et al. Highly efficient droplet generation device based on a three-dimensional fractal structure[J]. Chemical Engineering Science, 2023, 282: 119227.

流体	密度/(kg/m³)	黏度/(Pa·s)	界面张力/(mN/m)
2%PVA溶液	1013.683	0.001498	5.08
97%HDDA溶液	1027.73	0.004482	5.08	1.54
0.7%洗涤剂溶液	1010.16	0.000579		1.54

流体	密度/(kg/m³)	黏度/(Pa·s)	界面张力/(mN/m)
2%PVA溶液	1013.683	0.001498	5.08
97%HDDA溶液	1027.73	0.004482	5.08	1.54
0.7%洗涤剂溶液	1010.16	0.000579		1.54

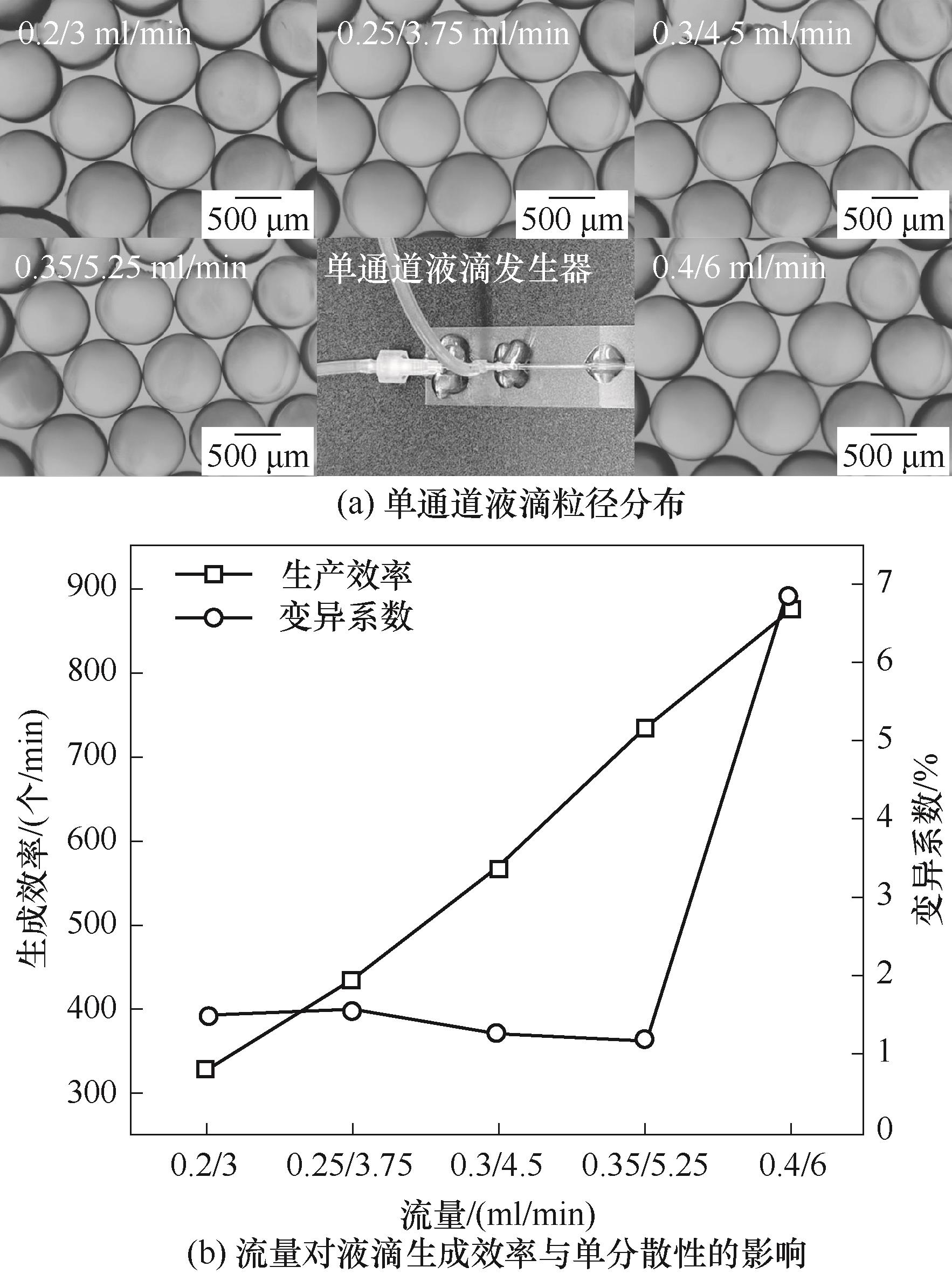

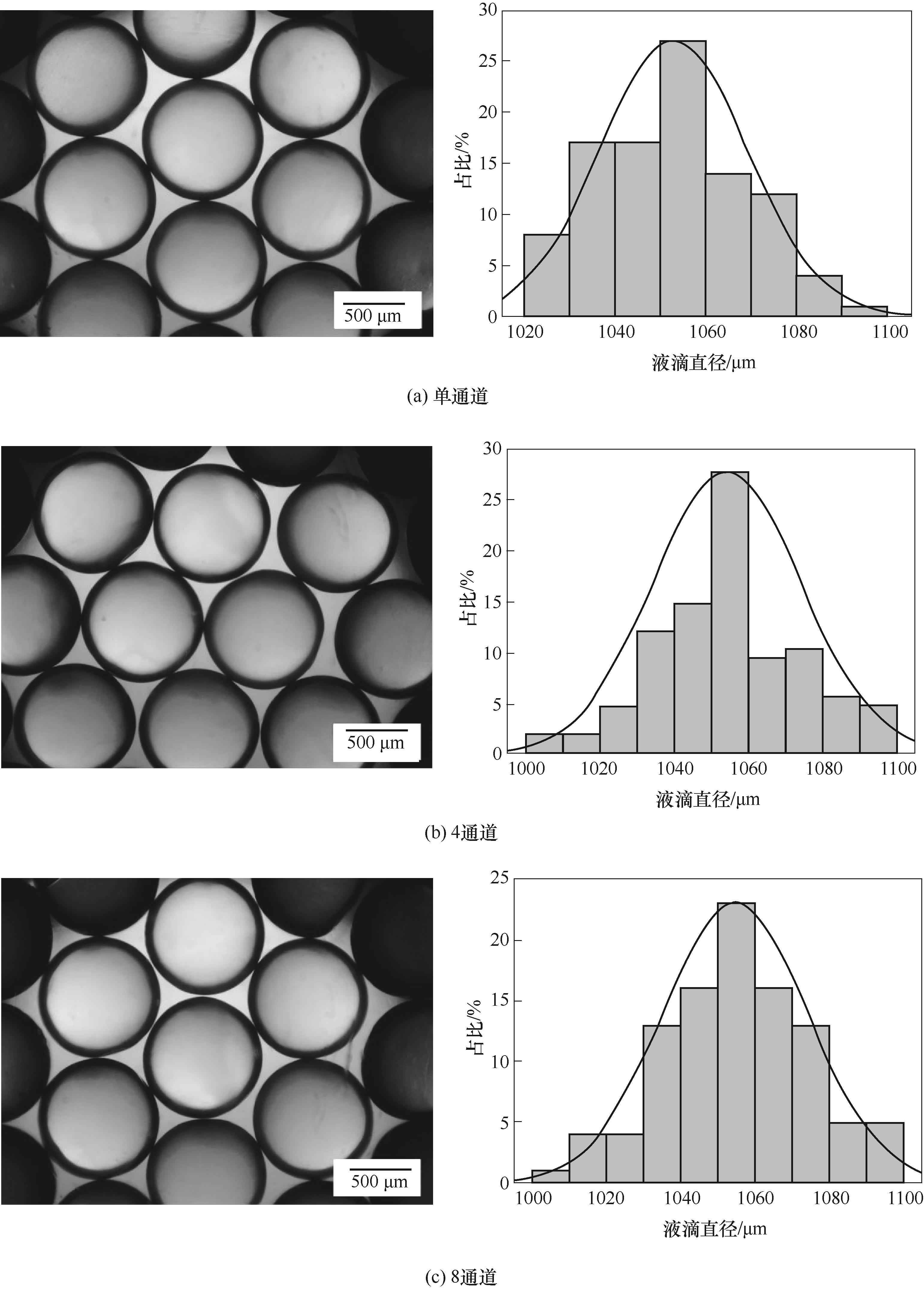

通道数	平均粒径/µm	生成效率/(个/min)	变异系数/%
单通道	1052	326	1.5
单级4通道	1054	1301	1.9
单级8通道	1055	2598	1.9

通道数	平均粒径/µm	生成效率/(个/min)	变异系数/%
单通道	1052	326	1.5
单级4通道	1054	1301	1.9
单级8通道	1055	2598	1.9

通道数	平均粒径/µm	生成效率/(个/min)	变异系数/%
单通道	956	873	6.9
单级4通道	957	3475	6.7
单级8通道	958	6944	6.6
