基于2，5-呋喃二甲酸的三元无规共聚酯PBSF的制备与性能

doi:10.11949/0438-1157.20240603

摘要/Abstract

摘要：

利用可再生资源制备新型生物基聚合物可减少对化石资源的依赖，是缓解能源与环境危机的有效手段。以2，5-呋喃二甲酸（FDCA）、丁二酸（SA）和1，4-丁二醇为共聚单体，钛酸四丁酯为催化剂，通过一锅法熔融缩聚制备了不同FDCA和SA比例的系列全生物基聚2， 5-呋喃二甲酸-丁二酸-丁二醇酯（PBSF），探究了PBSF共聚酯的化学结构与组成对其热行为、结晶行为、热机械性能、热稳定性、力学性能、气体阻隔性能和亲水性等影响。结果表明，随FDCA含量的增加，共聚酯的玻璃化转变温度从-23.6 ℃升高至38.6 ℃，杨氏模量先减小后增加，断裂伸长率先增加后减小，氧气阻隔性能先降低再升高，亲水性先增加后降低。当FDCA和SA比例接近时（44：56），共聚酯表现出典型的热塑性弹性体特征。

关键词: 生物质, 2，5-呋喃二甲酸, 聚合物, 共聚酯, 机械性能, 阻隔性能, 构效关系

Abstract:

The sustainable biomass for polymer production has received much attention due to the consumption of fossil resources and the environmental issues associated with the use of petroleum-based polymer materials. Bio-based chemicals can be prepared using biomass and further converted into functional monomers to synthesize high performance polymers, which is an effective way to alleviate the energy and environmental crisis. This work reported a series of fully bio-based poly(butylene succinate/2,5-furandicarboxylate) (PBSF) synthesized by one-pot melt polycondensation using 2, 5-furandicarboxylic acid (FDCA), succinic acid (SA) and 1,4-butanediol (1,4-BD) as the comonomers and titanate titanium(IV) butoxide as the catalyst. The effects of the chemical structures and compositions of the PBSF copolyesters on their thermal behavior, crystalline behavior, thermo-mechanical properties, thermal stability, mechanical properties, gas barrier properties and hydrophilicity were systematically investigated. The results showed that as the FDCA molar content increased from 25 % to 100 %, the glass transition temperature (T_g)of the copolyester increased from -23.6 ℃ to 38.6 ℃; the Young's modulus decreased and then increased; the elongation at break increased and then decreased; the oxygen barrier property decreased and then increased, and the hydrophilicity increased and then decreased. When the molar ratio of FDCA and SA was 44:56, the copolyester shows typical thermoplastic elastomer characteristics with low T_g value, high elongation at break and without yield point. It is expected that the results can provide valuable guide for the development of high-performance furan-based polyester.

Key words: biomass, 2,5-furandicarboxylic acid, polymers, copolyesters, mechanical properties, barrier properties, structure-property relationship

中图分类号:

TQ 324.1

翟紫航, 蒋杰, 李锦锦, 赵玲, 奚桢浩. 基于2，5-呋喃二甲酸的三元无规共聚酯PBSF的制备与性能[J]. 化工学报, DOI: 10.11949/0438-1157.20240603.

Zihang ZHAI, Jie JIANG, Jinjin LI, Ling ZHAO, Zhenhao XI. Synthesis and properties of ternary random copolyester based on 2,5-furandicarboxylic acid[J]. CIESC Journal, DOI: 10.11949/0438-1157.20240603.

图/表 16

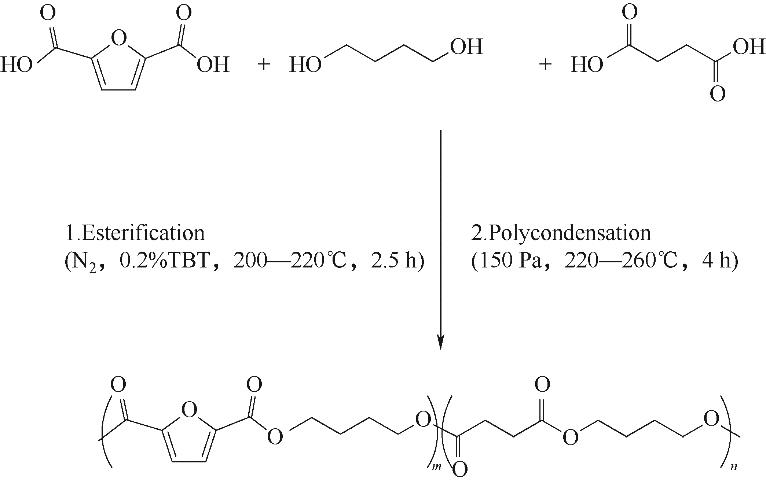

图1 PBSF共聚酯的合成路线图

Fig. 1 The synthetic route of PBSF copolyester

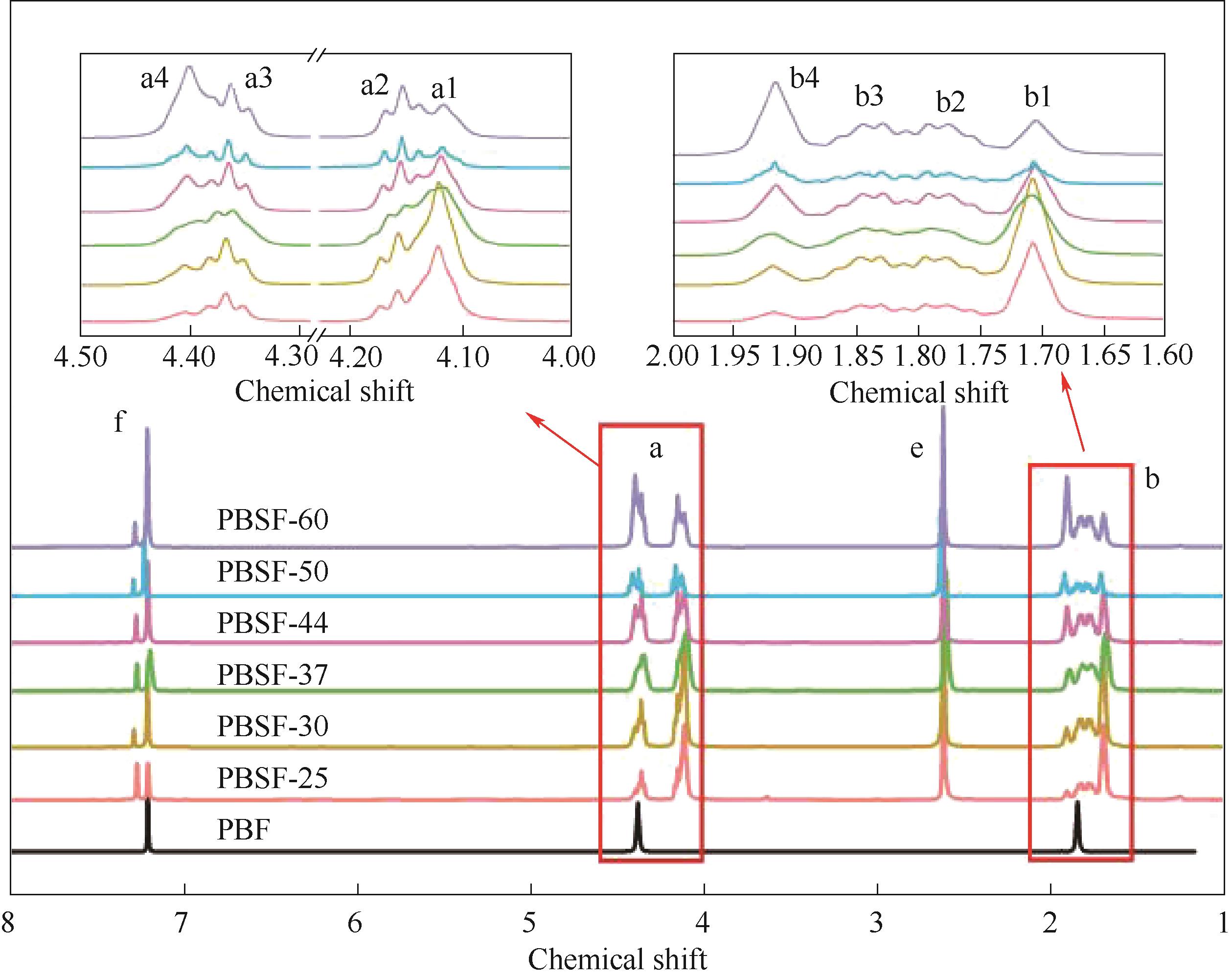

图2 PBF和PBSF-x的1H NMR谱图

Fig. 2 1H NMR spectra of PBF and PBSF-x

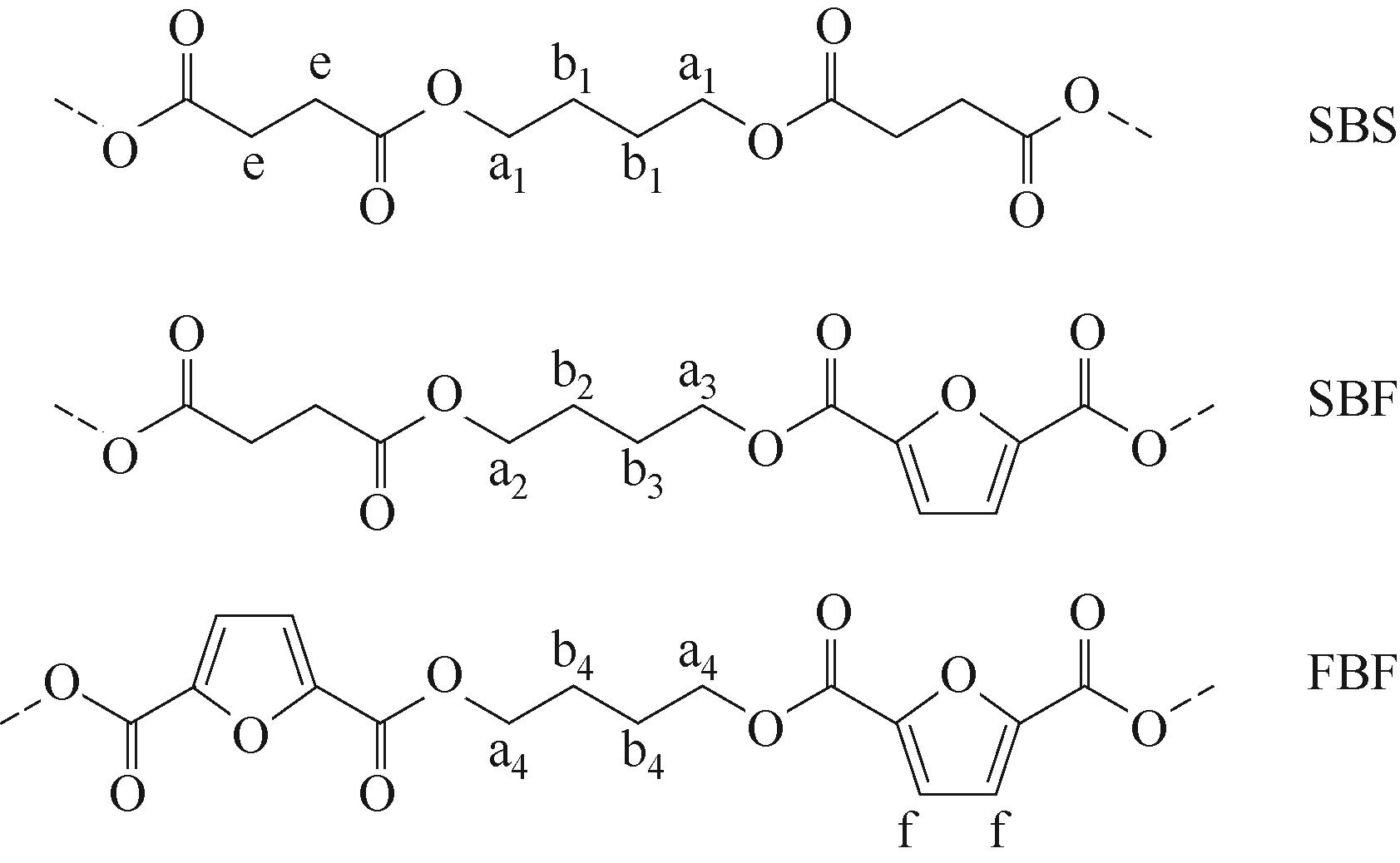

图3 PBSF的SBS，SBF和FBF链段化学结构

Fig. 3 Chemical structure of SBS, SBF and FBF chain segments

表1 PBF和PBSF-x化学组成、序列结构与特性黏度

Table 1 Composition， sequence and intrinsic viscosity of PBF and PBSF-x

Samples	FDCA/(FDCA+SA) in feed/ %(mol)	FDCA/(FDCA+SA) by NMR (φ_BF) /%(mol)	L_n,BF	L_n,BS	R	[η] /(dL/g)
PBSF-25	25.0	24.8	1.38	3.89	0.98	1.31
PBSF-30	30.0	29.6	1.47	3.27	0.99	0.91
PBSF-37	37.5	37.4	1.61	2.65	1.00	1.15
PBSF-44	45.0	44.0	1.81	2.23	1.00	1.12
PBSF-50	50.0	50.0	1.95	1.95	1.02	1.02
PBSF-60	60.0	60.0	2.43	1.75	0.98	0.70
PBF	—	—	—	—	—	0.96

图4 PBF和PBSF-x的红外光谱图

Fig. 4 FT-IR spectra of PBF and PBSF-x

表2 PBF和PBSF-x的热性能表

Table 2 Thermal properties of PBF and PBSF-x

Samples	T_gby DSC/°C	T_gby DMA/°C	T_m/°C
PBSF-25	-23.6	7.6	-
PBSF-30	-21.7	11.6	-
PBSF-37	-15.8	10.7	-
PBSF-44	-10.3	2.2	-
PBSF-50	-4.9	8.9	-
PBSF-60	2.4	21.9
PBF	38.6	-	169.7

图5 PBF和PBSF-x的DSC曲线

Fig.5 DSC curves of PBF and PBSF-x: (a) 1st cooling; (b) 2nd heating

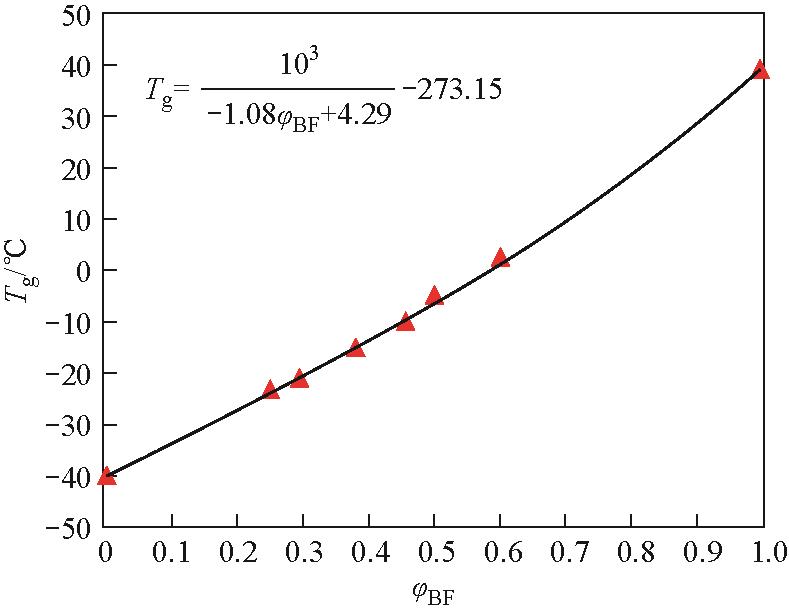

图6 PBSF-x的Tg与组成的关系

Fig. 6 Relationship of the Tg and composition of PBSF-x

图7 PBSF-x的DMA曲线

Fig. 7 The DMA curves of PBSF-x: (a) storage modulus; (b) loss factor

图8 PBSF-x的XRD衍射曲线

Fig. 8 X-ray diffraction curves of PBSF-x

表3 PBF和PBSF-x的热分解数据

Table 3 Thermal decomposition data of PBF and PBSF-x

Samples	T_5%/°C	T_max/°C
PBSF-25	340.1	393.9
PBSF-30	340.4	391.4
PBSF-37	343.7	393.6
PBSF-44	343.1	390.7
PBSF-50	346.0	392.0
PBSF-60	343.6	387.9
PBF	348.8	376.6

图9 PBF和PBSF-x的热失重曲线:

Fig. 9 Thermal gravimetric curves of PBF and PBSF-x: (a) TGA; (b) DTG

图10 PBF和PBSF-x的拉伸应力-应变曲线

Fig. 10 Tensile strain-stress curves of PBF and PBSF-x

表4 PBF和PBSF-x的力学性能

Table 4 The mechanical properties of PBF and PBSF-x

Samples	杨氏模量/MPa	拉伸强度/MPa	断裂伸长率/%
PBSF-25	175.5 ± 17.1	42.1±3.3	1094.2 ± 37.4
PBSF-30	200.4 ± 9.2	22.7 ±2.3	898.9 ± 128.6
PBSF-37	95.5 ± 13.9	23.0 ± 1.2	1144.7 ± 37.2
PBSF-44	28.0 ± 6.1	25. 2 ± 0.9	1180.5 ± 152.3
PBSF-50	48.2 ± 4.7	22.6 ± 1.5	1069.3 ± 100.4
PBSF-60	143.8 ± 9.9	25.6 ± 1.7	712.5 ± 63.6
PBF	1173.9 ± 86.1	48.8 ± 2.5	504.4 ± 32.2

表5 PBSF-x共聚酯的气体阻隔性能

Table 5 Gas barrier properties of PBSF-x copolyesters

Samples	O₂/barrer	BIFp
PBAT^[34]	0.76	1
PBSF-25	0.32	2.34
PBSF-30	0.36	2.14
PBSF-37	0.42	1.79
PBSF-44	0.62	1.23
PBSF-50	0.57	1.33
PBSF-60	0.33	2.31

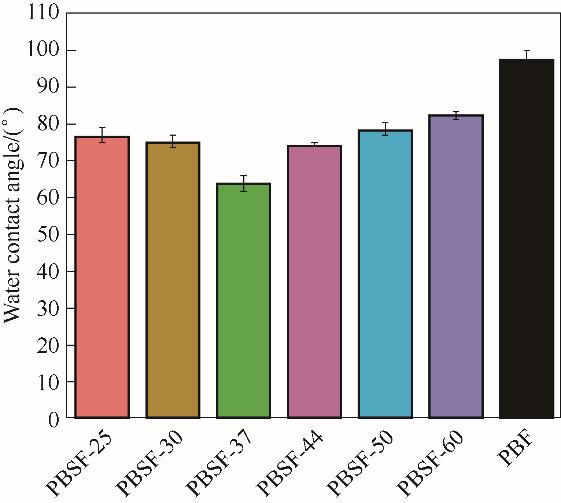

图11 PBF和PBSF-x的水接触角

Fig. 11 Water contact angles of PBF and PBSF-x

参考文献 34

1	Muñoz-Guerra S, Lavilla C, Japu C, et al. Renewable terephthalate polyesters from carbohydrate-based bicyclic monomers[J]. Green Chemistry, 2014, 16(4): 1716-1739.
2	Ten E, Vermerris W. Functionalized polymers from lignocellulosic biomass: state of the art[J]. Polymers, 2013, 5(2): 600-642.
3	Zheng Y, Pan P J. Crystallization of biodegradable and biobased polyesters: polymorphism, cocrystallization, and structure-property relationship[J]. Progress in Polymer Science, 2020, 109: 101291.
4	邹文奇, 陈通, 叶海木, 等. 可生物降解聚酯的制备及性能研究进展[J]. 化工学报, 2021, 72(12): 6216-6231.
	Zou W Q, Chen T, Ye H M, et al. Research progress on the preparation and properties of biodegradable polyester[J]. CIESC Journal, 2021, 72(12): 6216-6231.
5	陈咏, 叶梦婷, 王朝生, 等. 聚丁二酸丁二醇酯性能调控策略及应用[J]. 纺织学报, 2024, 45(1): 220-229.
	Chen Y, Ye M T, Wang C S, et al. Research progress in performance regulation strategies of polybutylene succinate[J]. Journal of Textile Research, 2024, 45(1): 220-229.
6	吕学东, 罗发亮, 林海涛, 等. 聚丁二酸丁二醇酯的合成工艺及气体阻隔性最新进展[J]. 化工进展, 2023, 42(5): 2546-2554.
	Lyu X D, Luo F L, Lin H T, et al. Recent progress of synthesis technology and gas barrier research of poly(butylene succinate)[J]. Chemical Industry and Engineering Progress, 2023, 42(5): 2546-2554.
7	Werpy T, Petersen G, Aden A, et al. Top value added chemicals from biomass. volume 1 - results of screening for potential candidates from sugars and synthesis gas[R]. Richland, WA, United States: Pacific Northwest National Laboratory, 2004.
8	徐海峰, 郑丽萍, 王洪营, 等. 半乳糖二酸催化脱水环合制备2, 5-呋喃二甲酸工艺及动力学[J]. 化工学报, 2020, 71(5): 2240-2247.
	Xu H F, Zheng L P, Wang H Y, et al. Process and kinetics studies of catalytic cyclodehydration of galactaric acid to 2, 5-furandicarboxylic acid[J]. CIESC Journal, 2020, 71(5): 2240-2247.[知网中文][知网英文]
	徐海峰, 郑丽萍, 王洪营, 等. 半乳糖二酸催化脱水环合制备2, 5-呋喃二甲酸工艺及动力学[J]. 化工学报, 2020, 71(5): 2240-2247.
	Xu H F, Zheng L P, Wang H Y, et al. Process and kinetics studies of catalytic cyclodehydration of galactaric acid to 2, 5-furandicarboxylic acid[J]. CIESC Journal, 2020, 71(5): 2240-2247.
9	Gomes M, Gandini A, Silvestre A J D, et al. Synthesis and characterization of poly(2, 5-furan dicarboxylate)s based on a variety of diols[J]. Journal of Polymer Science Part A: Polymer Chemistry, 2011, 49(17): 3759-3768.
10	Papageorgiou G Z, Papageorgiou D G, Tsanaktsis V, et al. Synthesis of the bio-based polyester poly(propylene 2, 5-furan dicarboxylate). Comparison of thermal behavior and solid state structure with its terephthalate and naphthalate homologues[J]. Polymer, 2015, 62: 28-38.
11	Ma J P, Yu X F, Xu J, et al. Synthesis and crystallinity of poly(butylene 2, 5-furandicarboxylate)[J]. Polymer, 2012, 53(19): 4145-4151.
12	Tsanaktsis V, Terzopoulou Z, Exarhopoulos S, et al. Sustainable, eco-friendly polyesters synthesized from renewable resources: preparation and thermal characteristics of poly(dimethyl-propylene furanoate)[J]. Polymer Chemistry, 2015, 6(48): 8284-8296.
13	Kwiatkowska M, Kowalczyk I, Kwiatkowski K, et al. Fully biobased multiblock copolymers of furan-aromatic polyester and dimerized fatty acid: Synthesis and characterization[J]. Polymer, 2016, 99: 503-512.
14	Hu H, Zhang R Y, Sousa A, et al. Bio-based poly(butylene 2, 5-furandicarboxylate)-b-poly(ethylene glycol) copolymers with adjustable degradation rate and mechanical properties: Synthesis and characterization[J]. European Polymer Journal, 2018, 106: 42-52.
15	Zhu J H, Cai J L, Xie W C, et al. Poly(butylene 2, 5-furan dicarboxylate), a Biobased Alternative to PBT: Synthesis, Physical Properties, and Crystal Structure[J]. Macromolecules, 2013, 46(3): 796-804.
16	Miah M R, Dong Y X, Wang J G, et al. Recent progress on sustainable 2, 5-furandicarboxylate-based polyesters: properties and applications[J]. ACS Sustainable Chemistry & Engineering, 2024, 12(8): 2927-2961.
17	Diao L C, Su K M, Li Z H, et al. Furan-based co-polyesters with enhanced thermal properties: poly(1, 4-butylene-co-1, 4-cyclohexanedimethylene-2, 5-furandicarboxylic acid)[J]. RSC Advances, 2016, 6(33): 27632-27639.
18	Wu L B, Mincheva R, Xu Y T, et al. High molecular weight poly(butylene succinate-co-butylene furandicarboxylate) copolyesters: from catalyzed polycondensation reaction to thermomechanical properties[J]. Biomacromolecules, 2012, 13(9): 2973-2981.
19	Peng S B, Wu B S, Wu L B, et al. Hydrolytic degradation of biobased poly(butylene succinate-co-furandicarboxylate) and poly(butylene adipate-co-furandicarboxylate) copolyesters under mild conditions[J]. Journal of Applied Polymer Science, 2017, 134(15): e44674.
20	Peng S B, Wu L B, Li B G, et al. Hydrolytic and compost degradation of biobased PBSF and PBAF copolyesters with 40–60 mol% BF unit[J]. Polymer Degradation and Stability, 2017, 146: 223-228.
21	Zhou W D, Wang X W, Yang B, et al. Synthesis, physical properties and enzymatic degradation of bio-based poly(butylene adipate-co-butylene furandicarboxylate) copolyesters[J]. Polymer Degradation and Stability, 2013, 98(11): 2177-2183.
22	Lv X D, Luo F L, Zheng L C, et al. Biodegradable poly(butylene succinate-co-butylene furandicarboxylate): Effect of butylene furandicarboxylate unit on thermal, mechanical, and ultraviolet shielding properties, and biodegradability[J]. Journal of Applied Polymer Science, 2022, 139(45): e53122.
23	Ding Y, Huang D, Ai T H, et al. Bio-based poly(butylene furandicarboxylate-co-glycolate) copolyesters: synthesis, properties, and hydrolysis in different aquatic environments for water degradation application[J]. ACS Sustainable Chemistry & Engineering, 2021, 9(3): 1254-1263.
24	Zheng M Y, Zang X L, Wang G X, et al. Poly(butylene 2, 5-furandicarboxylate-ε-caprolactone): a new bio-based elastomer with high strength and biodegradability[J]. Express Polymer Letters, 2017, 11(8): 611-621.
25	张成龙. 生物基聚酯的合成及PBS共混体系的性能研究[D]. 长春: 长春工业大学, 2019.
	Zhang C L. Synthesis of bio-based polyesters and properties of PBS blends[D]. Changchun: Changchun University of Technology, 2019.
26	Dong Y X, Wang J G, Yang Y, et al. Bio-based poly(butylene diglycolate-co-furandicarboxylate) copolyesters with balanced mechanical, barrier and biodegradable properties: a prospective substitute for PBAT[J]. Polymer Degradation and Stability, 2022, 202: 110010.
27	Wu B S, Xu Y T, Bu Z Y, et al. Biobased poly(butylene 2, 5-furandicarboxylate) and poly(butylene adipate-co-butylene 2, 5-furandicarboxylate)s: From synthesis using highly purified 2, 5-furandicarboxylic acid to thermo-mechanical properties[J]. Polymer, 2014, 55(16): 3648-3655.
28	Hu H, Zhang R Y, Wang J G, et al. Synthesis and Structure–Property relationship of biobased biodegradable Poly(butylene carbonate-co-furandicarboxylate)[J]. ACS Sustainable Chemistry & Engineering, 2018, 6(6): 7488-7498.
29	Jiang J, Tang Q Y, Pan X, et al. Facile synthesis of thermoplastic polyamide elastomers based on amorphous polyetheramine with damping performance[J]. Polymers, 2021, 13(16): 2645.
30	Zhao X Y, Shou T, Liang R R, et al. Bio-based thermoplastic polyurethane derived from polylactic acid with high-damping performance[J]. Industrial Crops and Products, 2020, 154: 112619.
31	杨召杰, 徐进, 陈彦霏, 等. 1-丁基-3-甲基咪唑四氟硼酸盐改性淀粉/聚丁二酸丁二醇酯共混材料的结构与性能[J]. 高分子材料科学与工程, 2021, 37(1): 134-140.
	Yang Z J, Xu J, Chen Y F, et al. Structure and properties of starch/polybutylene succinate blends modified by 1-butyl-3-methylimidazole tetrafluoroborate[J]. Polymer Materials Science & Engineering, 2021, 37(1): 134-140.
32	Wang G Q, Jiang M, Zhang Q, et al. Biobased copolyesters: Synthesis, sequence distribution, crystal structure, thermal and mechanical properties of poly(butylene sebacate-co-butylene furandicarboxylate)[J]. Polymer Degradation and Stability, 2017, 143: 1-8.
33	Bi T Z, Qiu Z B. Synthesis, thermal and mechanical properties of fully biobased poly(butylene-co-propylene 2, 5-furandicarboxylate) copolyesters with low contents of propylene 2, 5-furandicarboxylate units[J]. Polymer, 2020, 186: 122053.
34	胡晗. 基于呋喃二甲酸的生物降解聚酯的合成、高性能化与降解研究[D]. 宁波: 中国科学院大学(中国科学院宁波材料技术与工程研究所), 2020.
	Hu H. Synthesis, High performance and degradation studies on 2, 5-furandicarboxylic acid based biodegradable polyesters[D]. Ningbo: Ningbo Institute of Material Technology, Chinese Academy of Sciences, 2020.
