超临界CO2发泡PBAT/PLA复合材料及其形状记忆性能

doi:10.11949/0438-1157.20241003

摘要/Abstract

摘要：

采用超临界CO₂辅助制备生物可降解聚己二酸对苯二甲酸丁二醇酯（PBAT）/聚乳酸（PLA）形状记忆发泡材料，研究了PLA含量对PBAT/PLA复合材料中CO₂溶解扩散行为、熔融结晶、流变行为及发泡行为的影响，考察了PLA含量对PBAT/PLA发泡材料的形状记忆性能和力学性能的影响。结果表明，PBAT有利于PLA分子链段局部运动，促进了PLA的冷结晶过程；在低频剪切作用下，随着PLA含量的增加，PBAT/PLA的复数黏度增加；PLA降低了CO₂在PBAT/PLA复合材料中的解吸扩散系数，提高了发泡材料的刚性，起到稳定泡孔形貌和抗收缩的作用；PLA质量分数20%时，复合材料获得最大稳定发泡倍率20.5倍，PBAT/PLA发泡材料（发泡倍率7.5）形状固定率为86.8%，形状恢复率为94.3%，综合性能最佳。PLA有利于提高PBAT/PLA发泡材料的形状固定率，但不利于其形状恢复率。同时，PLA质量分数低于20%时，PLA的引入提高了PBAT/PLA发泡材料的拉伸/压缩模量和强度。

关键词: 超临界二氧化碳, 聚合物加工, 泡沫, 生物可降解, 形状记忆性能

Abstract:

Supercritical CO₂was used to assist the preparation of biodegradable poly (butylene adipate terephthalate) (PBAT)/polylactic acid (PLA) shape memory foaming materials. The impacts of PLA content on CO₂ solubility and desorption behavior, melting and crystallization, rheological behavior, and foaming behavior of PBAT/PLA composites were studied. The impacts of PLA content on shape memory properties and mechanical properties of PBAT/PLA foams were also studied. The results show that PBAT is conducive to the local movement of PLA molecular segments and promotes the cold crystallization process of PLA. Under low-frequency shear, as PLA content increased, the complex viscosity of PBAT/PLA increased. The diffusion coefficient of CO₂ was fitted from Fick diffusion law. PLA reduced the diffusion coefficient of CO₂ in PBAT/PLA composites during the desorption process, improved the rigidity of the foams and played an anti-shrinkage role. At the PLA content of 20% (mass), PBAT/PLA composite obtained a maximum stabilized expansion ratio of 20.5. PLA was crucial for enhancing the shape fixing ratio of PBAT/PLA foams, while it was unfavorable to the shape recovery ratio. When PLA content was 20% (mass), PBAT/PLA foam had the great comprehensive performance with an expansion ratio of 7.5, a shape fixing ratio of 86.8% and a shape recovery ratio of 94.3%. Additionally, when PLA content was below 20% (mass), the tensile/compressive modulus and strength of PBAT/PLA foams increased with the increase of PLA content.

Key words: supercritical carbon dioxide, polymer processing, foam, biodegradability, shape memory properties

中图分类号:

TQ 317.9

宫政, 高秀鲁, 赵玲, 胡冬冬. 超临界CO₂发泡PBAT/PLA复合材料及其形状记忆性能[J]. 化工学报, 2025, 76(2): 888-896.

Zheng GONG, Xiulu GAO, Ling ZHAO, Dongdong HU. Preparation and shape memory properties of PBAT/PLA foams by supercritical CO₂[J]. CIESC Journal, 2025, 76(2): 888-896.

图/表 12

表1 PBAT/PLA共混配方

Table 1 PBAT/PLA blending formulations

样品	PBAT/%	PLA/%	抗氧剂1010/%
PBAT	99.8	0	0.2
PBAT/PLA10	89.8	10	0.2
PBAT/PLA20	79.8	20	0.2
PBAT/PLA30	69.8	30	0.2

图1 PBAT/PLA复合材料的熔融结晶曲线

Fig.1 Melt crystallization curves of PBAT/PLA composites

表2 PBAT/PLA复合材料的DSC数据

Table 2 DSC data of PBAT/PLA composites

样品	T_{g, PLA}/℃	T_{c, PBAT}/℃	T_{cc, PLA}/℃	T_{m, PBAT}/℃	T_{m, PLA}/℃
PBAT	—	71.7	—	120.7	—
PLA	62.2	—	136.0	—	167.1
PBAT/PLA10	61.5	71.9	103.6	122.4	168.6
PBAT/PLA20	61.3	72.1	105.6	123.6	169.2
PBAT/PLA30	61.2	73.1	106.8	125.0	169.5

图2 PBAT/PLA复合材料的剪切流变行为

Fig.2 Shear rheological properties of PBAT/PLA composites

图3 PBAT/PLA复合材料的解吸曲线

Fig.3 Desorption curves of PBAT/PLA composites

表3 CO2在PBAT/PLA复合材料中的溶解度和解吸扩散系数

Table 3 Solubility and desorption coefficients of CO2 in PBAT/PLA composites

样品	M₀/g	D_d/(10^-11 m²·s^-1)
PBAT	17.1	6.5
PBAT/PLA10	14.7	6.3
PBAT/PLA20	13.4	5.7
PBAT/PLA30	12.1	5.1

图4 PBAT/PLA发泡材料的泡孔形貌

Fig.4 Cell morphologies of PBAT/PLA foams

图5 PBAT/PLA发泡材料的泡孔结构参数

Fig.5 Quantitative cell structure information of PBAT/PLA foams

图6 PBAT/PLA发泡材料的初始发泡倍率、平衡发泡倍率及收缩率

Fig.6 Initial expansion ratio, balanced expansion ratio and shrinkage ratio of PBAT/PLA foams

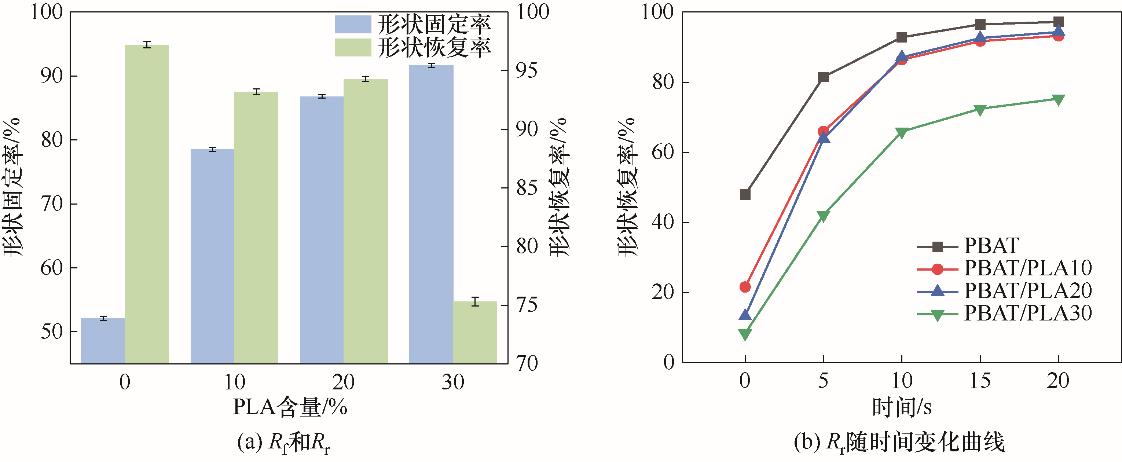

图7 具有相同发泡倍率的PBAT/PLA发泡材料的形状记忆性能

Fig.7 Shape memory properties of PBAT/PLA foams with similar expansion ratios

图8 具有不同发泡倍率的PBAT/PLA20发泡材料的形状记忆性能

Fig.8 Shape memory properties of PBAT/PLA20 foams with different expansion ratios

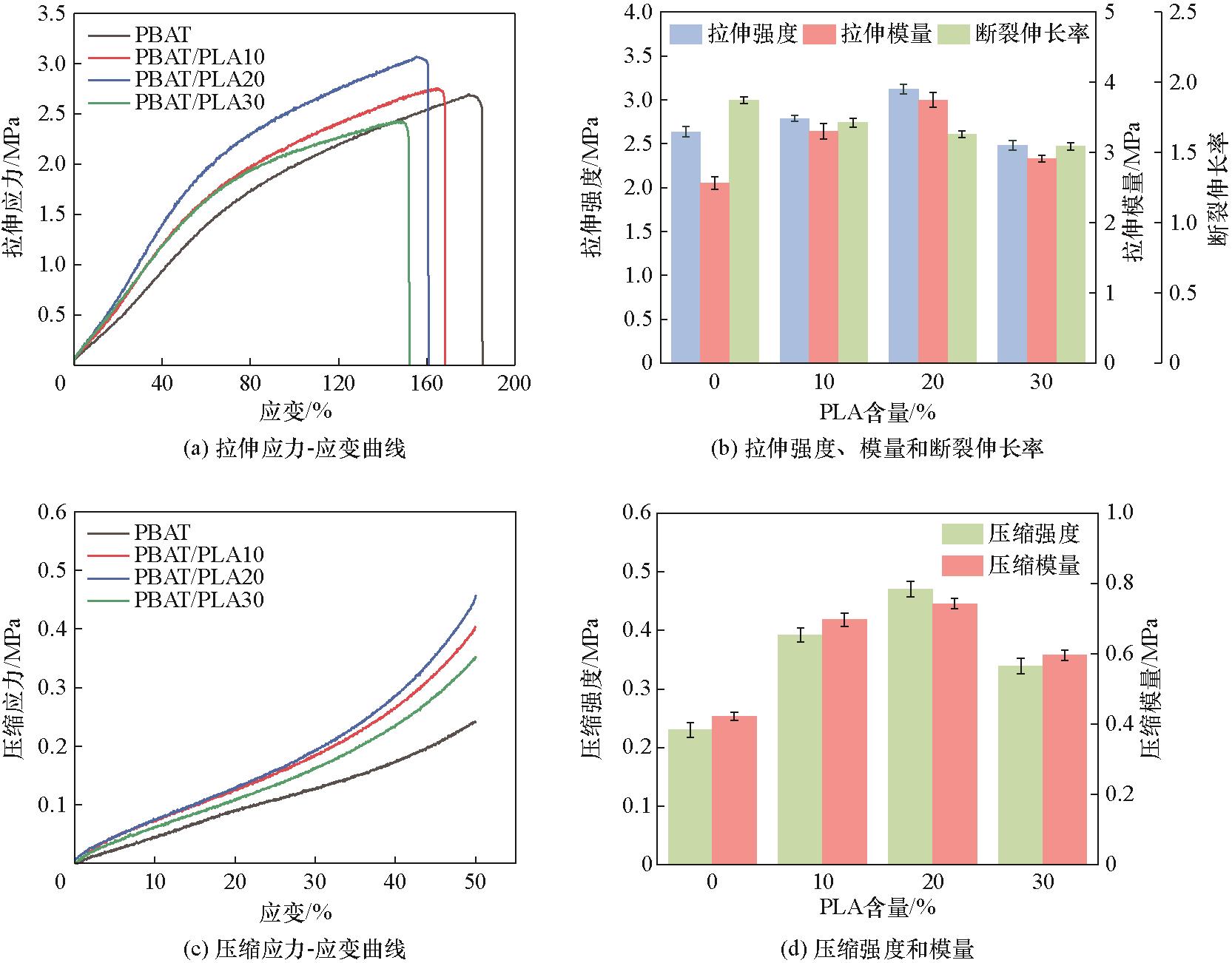

图9 具有相同发泡倍率的PBAT/PLA发泡材料的力学性能

Fig.9 Mechanical properties of PBAT/PLA foams at similar expansion ratios

参考文献 31

1	张润, 薛平, 王苏炜, 等. 形状记忆聚合物制备与应用研究进展[J]. 中国塑料, 2020, 34(6): 100-109.
	Zhang R, Xue P, Wang S W, et al. Research progress in preparation and applications of shape memory polymers[J]. China Plastics, 2020, 34(6): 100-109.
2	Hu J L, Kumar B, Narayana H. Stress memory polymers[J]. Journal of Polymer Science Part B: Polymer Physics, 2015, 53(13): 893-898.
3	Schulz M. Speeding up artificial muscles[J]. Science, 2012, 338(6109): 893-894.
4	Razzaq M Y, Behl M, Lendlein A. Memory-effects of magnetic nanocomposites[J]. Nanoscale, 2012, 4(20): 6181-6195.
5	Feng Y Y, Qin M M, Guo H Q, et al. Infrared-actuated recovery of polyurethane filled by reduced graphene oxide/carbon nanotube hybrids with high energy density[J]. ACS Applied Materials & Interfaces, 2013, 5(21): 10882-10888.
6	Kong D Y, Li J, Guo A R, et al. Self-healing high temperature shape memory polymer[J]. European Polymer Journal, 2019, 120: 109279.
7	Kong D Y, Xiao X L. High cycle-life shape memory polymer at high temperature[J]. Scientific Reports, 2016, 6: 33610.
8	Kuang X, Chen K J, Dunn C K, et al. 3D printing of highly stretchable, shape-memory, and self-healing elastomer toward novel 4D printing[J]. ACS Applied Materials & Interfaces, 2018, 10(8): 7381-7388.
9	Samuel C, Barrau S, Lefebvre J M, et al. Designing multiple-shape memory polymers with miscible polymer blends: evidence and origins of a triple-shape memory effect for miscible PLLA/PMMA blends[J]. Macromolecules, 2014, 47(19): 6791-6803.
10	Jing X, Mi H Y, Huang H X, et al. Shape memory thermoplastic polyurethane (TPU)/poly(ε-caprolactone) (PCL) blends as self-knotting sutures[J]. Journal of the Mechanical Behavior of Biomedical Materials, 2016, 64: 94-103.
11	Hearon K, Singhal P, Horn J, et al. Porous shape-memory polymers[J]. Polymer Reviews, 2013, 53(1): 41-75.
12	Wang H M, You J G, Tian M, et al. Preparing flame-retardant poly(phenylene oxide)/polyurea nanocomposite foam with excellent heat-resistance and shape memory performance[J]. Composites Communications, 2023, 40: 101589.
13	Gong Z, Li W J, Chen Y C, et al. Effect of long-chain branching structures on supercritical CO₂ foaming behavior of iPB-1 with different crystalline form ratios[J]. Journal of Applied Polymer Science, 2024, 141(25): e55525.
14	宫政, 李为杰, 赵玲, 等. 等规聚丁烯-1扩链改性及其超临界CO₂发泡行为研究[J]. 中国塑料, 2023, 37(12): 1-6.
	Gong Z, Li W J, Zhao L, et al. Chain-extended modification of isotactic polybutene-1 and its supercritical CO₂ foaming behavior[J]. China Plastics, 2023, 37(12): 1-6.
15	赵玲, 刘涛. 超临界CO₂辅助聚合物加工[J]. 化工学报, 2013, 64(2): 436-442.
	Zhao L, Liu T. Supercritical CO₂ assisted polymer processing[J]. CIESC Journal, 2013, 64(2): 436-442.
16	Wei S L, Xie J H, Zhang J M, et al. Green preparation of poly (butylene succinate-co-butylene terephthalate) foam with tunable degradability and mechanical properties by supercritical CO₂ [J]. Polymer Degradation and Stability, 2024, 223: 110732.
17	Zhong W Y, Hu D D, Chen Y C, et al. Second cell growth optimized by heating mode during two-step supercritical CO₂ foaming polymer process[J]. Chemical Engineering Science, 2023, 281: 119110.
18	蒋瑞, 胡冬冬, 刘涛, 等. 热塑性聚醚酯弹性体硬段含量对其超临界CO₂发泡行为的影响[J]. 化工学报, 2020, 71(2): 871-878.
	Jiang R, Hu D D, Liu T, et al. Effect of hard segment content on microcellular foaming process of thermoplastic polyether ester elastomer using supercritical CO₂ as blowing agent[J]. CIESC Journal, 2020, 71(2): 871-878.
19	Zhang Z X, Wang S, Yu L L, et al. Shape memory function of trans-1, 4-polyisoprene prepared by radiation crosslinking with a supercritical CO₂ foaming[J]. Radiation Physics and Chemistry, 2021, 189: 109707.
20	Gong Z, Yue P Y, Chen Y C, et al. Structure-tunable polyether block amide/polylactic acid foams with shape memory performance using supercritical CO₂ foaming[J]. The Journal of Supercritical Fluids, 2023, 203: 106090.
21	Zheng J W, Lu J W, Yang Z X, et al. Fabrication of recyclable and biodegradable PBAT vitrimer via construction of highly dynamic cross-linked network[J]. Polymer Degradation and Stability, 2024, 219: 110602.
22	焦洋, 王龙震, 蔡卓瑞, 等. 高发泡倍率PBAT泡沫的制备及回弹性能的探究[J]. 中国塑料, 2023, 37(9): 19-27.
	Jiao Y, Wang L Z, Cai Z R, et al. Study on preparation and resilience of PBAT foams with high volume expansion ratio[J]. China Plastics, 2023, 37(9): 19-27.
23	Meng Q H, Hu J L. A review of shape memory polymer composites and blends[J]. Composites Part A: Applied Science and Manufacturing, 2009, 40(11): 1661-1672.
24	赵萌萌, 杨红娟, 沈思宇, 等. 聚乙二醇二缩水甘油醚对PLA/PBAT共混材料相容性及性能的影响[J]. 中国塑料, 2023, 37(8): 20-27.
	Zhao M M, Yang H J, Shen S Y, et al. Effect of poly(ethylene glycol diglycidyl ether) on compatibility and properties of PLA/PBAT blends[J]. China Plastics, 2023, 37(8): 20-27.
25	Wang W, Liao X, Guo F M, et al. Facile fabrication of lightweight shape memory thermoplastic polyurethane/polylactide foams by supercritical carbon dioxide foaming[J]. Industrial & Engineering Chemistry Research, 2020, 59(16): 7611-7623.
26	Boyacioglu S, Kodal M, Ozkoc G. A comprehensive study on shape memory behavior of PEG plasticized PLA/TPU bio-blends[J]. European Polymer Journal, 2020, 122: 109372.
27	顾勇, 刘涛, 许志美, 等. 聚苯砜微孔材料的制备及其力学性能[J]. 塑料, 2018, 47(1): 18-21.
	Gu Y, Liu T, Xu Z M, et al. Preparation and mechanical properties of polyphenylene sulfone foams[J]. Plastics, 2018, 47(1): 18-21.
28	Chen P, Gao X L, Zhao L, et al. Preparation of biodegradable PBST/PLA microcellular foams under supercritical CO₂: heterogeneous nucleation and anti-shrinkage effect of PLA[J]. Polymer Degradation and Stability, 2022, 197: 109844.
29	Yu P, Mi H Y, Huang A, et al. Effect of poly(butylenes succinate) on poly(lactic acid) foaming behavior: formation of open cell structure[J]. Industrial & Engineering Chemistry Research, 2015, 54(23): 6199-6207.
30	Peón J, Vega J F, Del Amo B, et al. Phase morphology and melt viscoelastic properties in blends of ethylene/vinyl acetate copolymer and metallocene-catalysed linear polyethylene[J]. Polymer, 2003, 44(10): 2911-2918.
31	Shi X T, Wang L, Kang Y, et al. Effect of poly(butylenes succinate) on the microcellular foaming of polylactide using supercritical carbon dioxide[J]. Journal of Polymer Research, 2018, 25(11): 229.
