气相沉积硅碳中硅结晶度对电化学性能的影响

doi:10.11949/0438-1157.20250494

摘要/Abstract

摘要：

硅作为高能量密度锂离子电池的新一代负极材料，其商业化应用的关键技术路径之一是与碳材料复合构建核壳结构的硅碳材料。如何实现硅晶粒形态的精确控制是当前硅碳材料产业化量产过程中的难题之一。采用化学气相沉积法将纳米/亚纳米尺寸硅均匀沉积在多孔碳基体中制备气相沉积硅碳复合材料，通过调控最终碳层封装温度实现了硅结晶度的可控调节。结果表明，拉曼光谱技术较X射线衍射方法在硅结晶度表征方面具有更高的灵敏度与准确率优势；碳层封装温度影响硅碳中硅的结晶度水平，硅结晶度升高会对材料的整体电化学性能有负面影响。碳层封装温度在550℃时制备的硅碳表现出1599 mAh·g^-1的首圈放电容量和91.62%的首次库仑效率，升高到800℃时降低到了709 mAh·g^-1和80.97%。研究结果为气相沉积硅碳材料量产过程实现硅结晶度的准确控制提供了可靠方法，可实现高性能低结晶度硅碳负极量产过程中的高精度一致性管控。

关键词: 电化学, 复合材料, 粉体, 硅负极, 气相沉积硅碳, 拉曼光谱, 锂离子电池

Abstract:

Silicon, as a new generation anode material for high-energy-density lithium-ion batteries, is a key technological path for its commercial application by combining it with carbon materials to construct core-shell silicon-carbon materials. Achieving precise control over the morphology of silicon grains is one of the challenges in the current industrial-scale mass production of silicon-carbon materials. Silicon was uniformly deposited into a porous carbon matrix via chemical vapor deposition (CVD), followed by modulating the crystallinity of silicon through controlled carbon encapsulation temperatures. Systematic characterization revealed that Raman spectroscopy exhibits superior sensitivity and accuracy over X-ray diffraction in quantifying silicon crystallinity. The carbon encapsulation temperature was found to exert a significant influence on the crystallinity of silicon, with elevated crystallinity levels markedly degrading the overall electrochemical performance. Specifically, elevation of carbon encapsulation temperature from 550℃ to 800℃ induced a 55.7% capacity loss (1599→709 mAh·g^-1) and 10.65% efficiency decay (91.62%→80.97%) in initial cycling, quantitatively demonstrating the crystallinity-dependent degradation mechanism in silicon-carbon anodes. These findings confirm that Raman spectroscopy serves as a precise diagnostic tool for optimizing CVD process parameters, enabling high-precision consistency control in the mass production of high-performance, low-crystallinity silicon-carbon anodes.

Key words: electrochemistry, composite materials, powders, silicon anode, CVD silicon-carbon, Raman spectroscopy, lithium-ion batteries

中图分类号:

TB 34

袁新烨, 邢显博, 刘登华, 丁伟涛, 范博瑞, 钟华, 韩凯. 气相沉积硅碳中硅结晶度对电化学性能的影响[J]. 化工学报, 2025, 76(12): 6708-6717.

Xinye YUAN, Xianbo XING, Denghua LIU, Weitao DING, Borui FAN, Hua ZHONG, Kai HAN. Effect of silicon crystallinity on electrochemical performance for chemical vapor deposited silicon-carbon composites[J]. CIESC Journal, 2025, 76(12): 6708-6717.

图/表 8

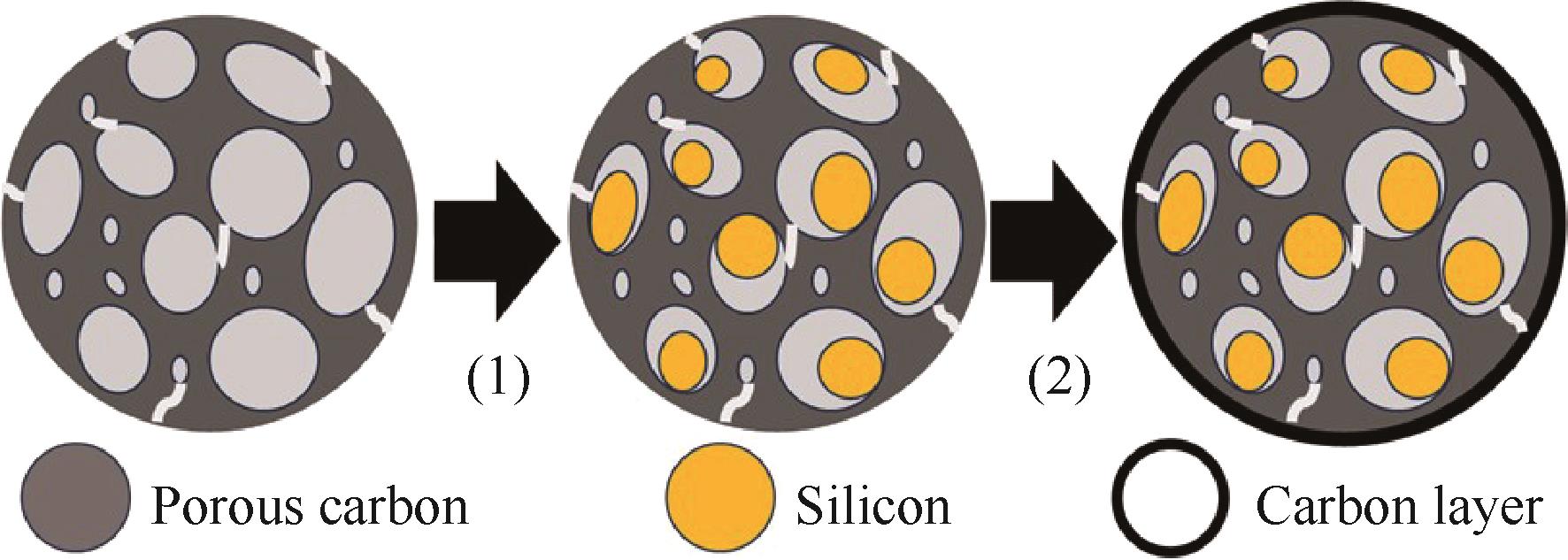

图1 气相沉积硅碳复合材料制备示意图：(1)多孔碳沉积硅；(2)对硅碳进行碳层包覆

Fig.1 Schematic diagram of the preparation of silicon-carbon composite materials via CVD: (1) The process involves flowing silane gas, thermally decomposing it, and depositing silicon into the porous carbon structure; (2) Thermally driven carbon deposition from a gaseous precursor to form an encapsulating layer

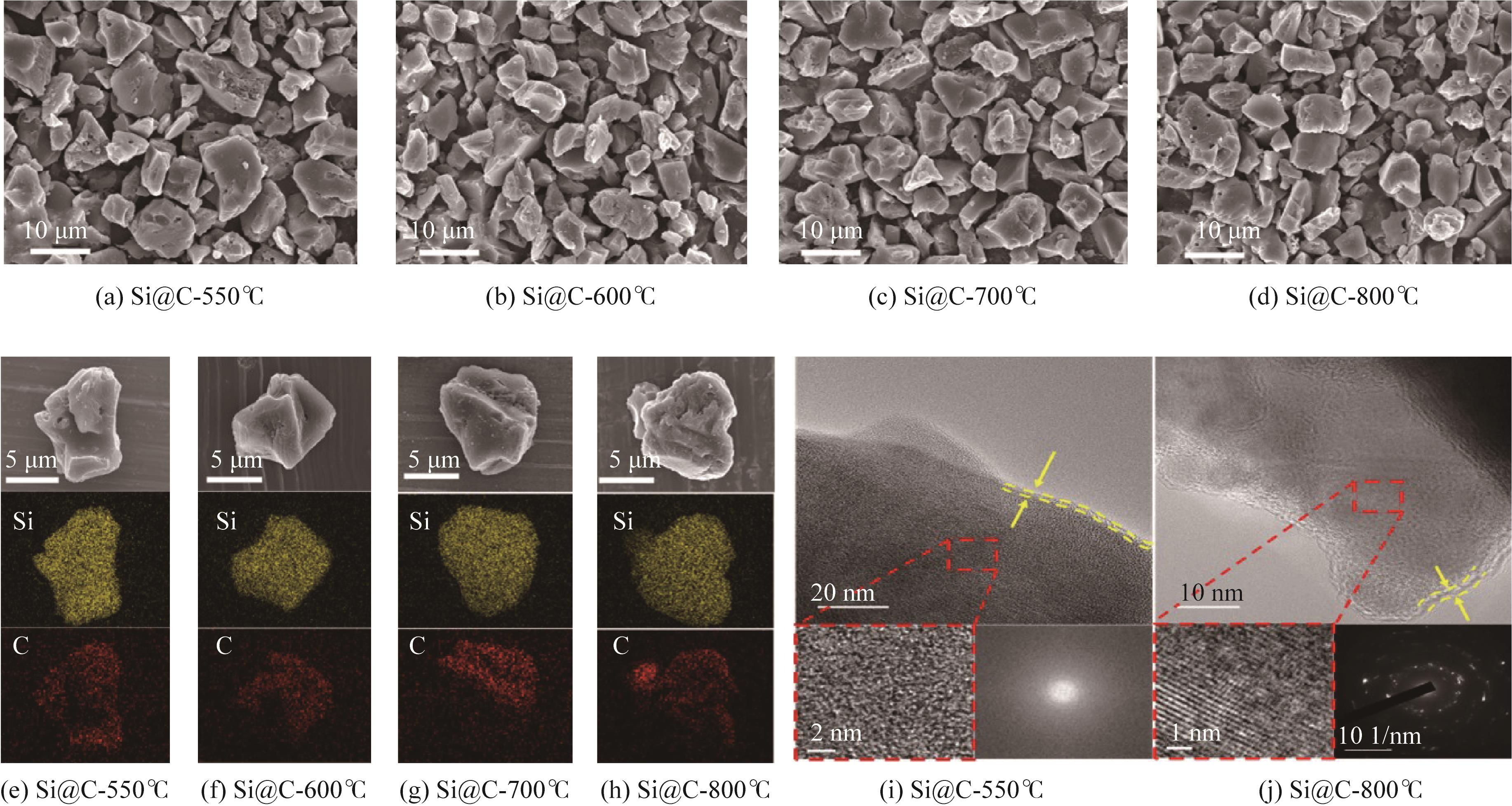

图2 硅碳材料的SEM图和EDS元素分布以及TEM表征分析

Fig.2 SEM images, EDS elemental mapping, and TEM characterization analysis of silicon-carbon materials

表1 硅碳的粒度

Table 1 Particle size of silicon-carbon

样品	粒度/μm
样品	D₁₀	D₅₀	D₉₀
Si@C-550℃	4.1	7.8	13.4
Si@C-600℃	4.1	7.7	13.5
Si@C-700℃	4.0	7.9	14.0
Si@C-800℃	3.8	7.7	13.8

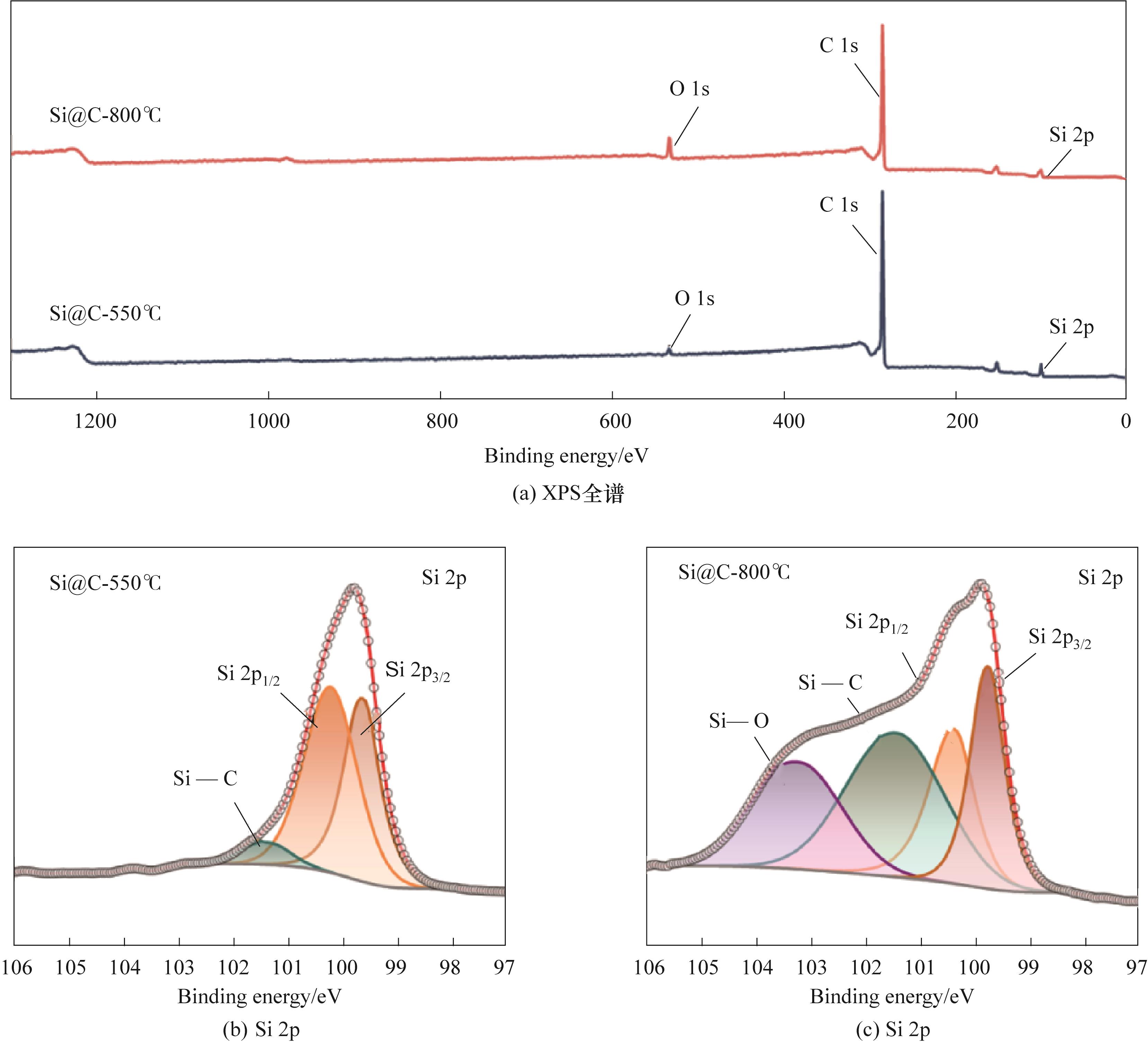

图3 Si@C-550℃和Si@C-800℃的XPS谱图

Fig.3 XPS spectra of Si@C-550℃ and Si@C-800℃

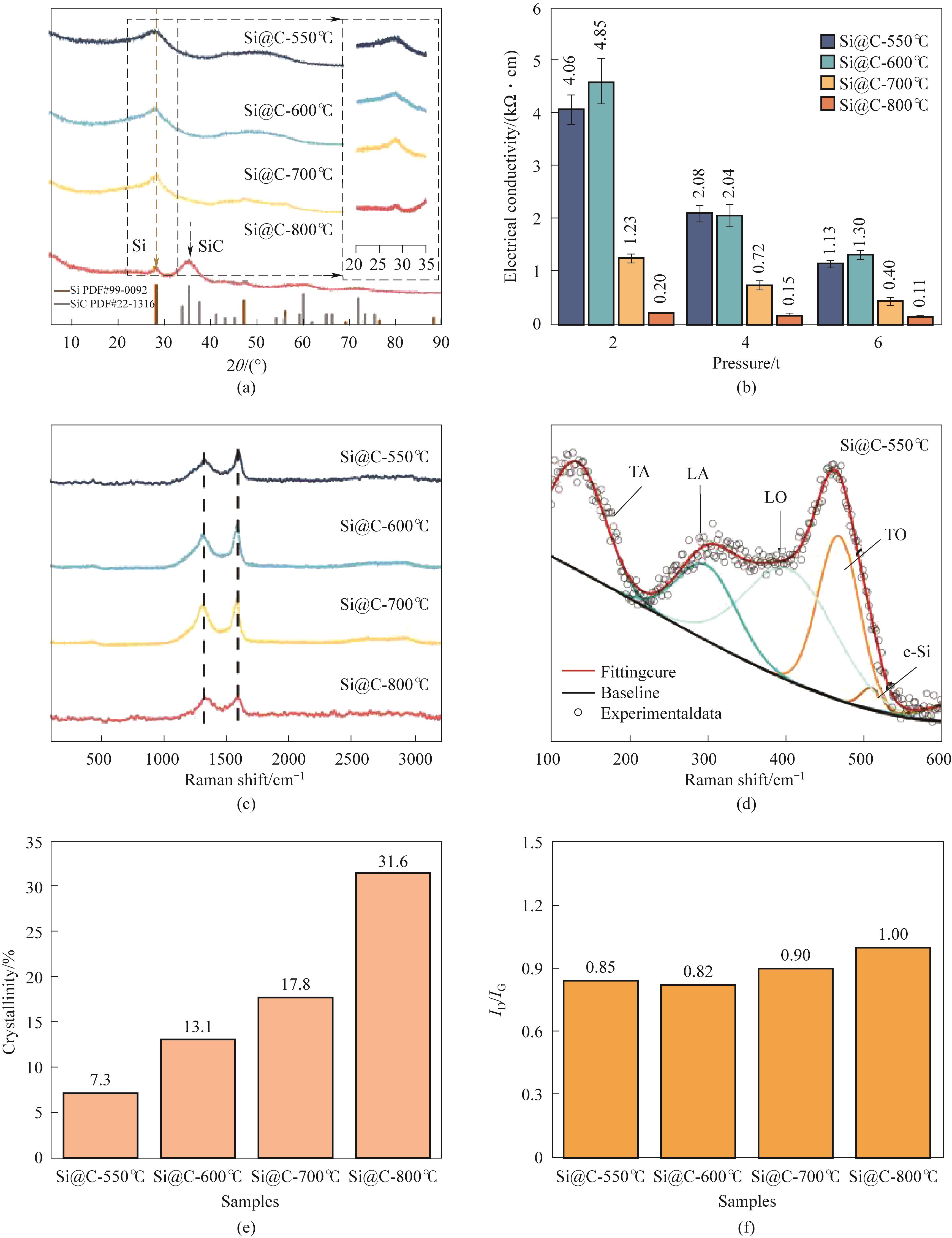

图4 (a)硅碳的XRD谱图；(b)硅碳的粉末电阻；(c)硅碳的拉曼光谱；(d)硅特征峰拟合谱；(e)计算得硅碳中硅结晶度；(f)硅碳中碳拉曼ID/IG值

Fig.4 (a) The XRD patterns of Si@C; (b) Powder electrical resistivity; (c) Raman spectroscopy; (d) Deconvolution and fitting of the first-order Raman characteristic peak of silicon; (e) The crystallization rate of silicon; (f) The ID/IG ratio of carbon in silicon-carbon

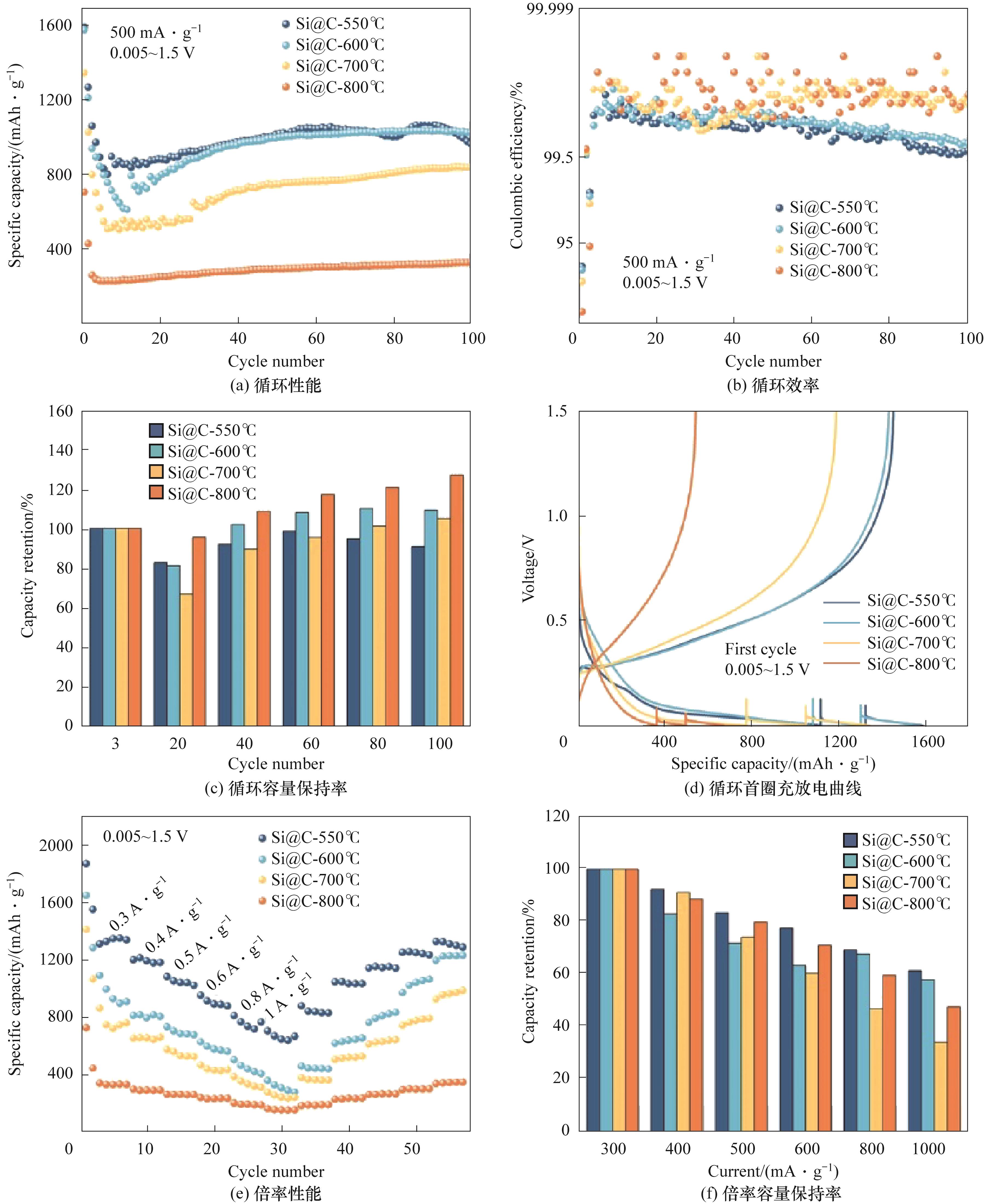

图5 硅碳的电化学性能

Fig.5 Electrochemical performance of Si@C

表2 不同充电电压下的库仑效率

Table 2 Coulomb efficiency of silicon-carbon at different charging voltages

样品	首圈放电比容量/(mAh·g^-1)	库仑效率
样品	首圈放电比容量/(mAh·g^-1)	0.8 V	1.0 V	1.5 V
Si@C-550℃	1599	79.98%	86.96%	91.62%
Si@C-600℃	1586	79.02%	85.83%	91.04%
Si@C-700℃	1354	75.34%	82.98%	88.68%
Si@C-800℃	709	64.77%	73.94%	80.97%

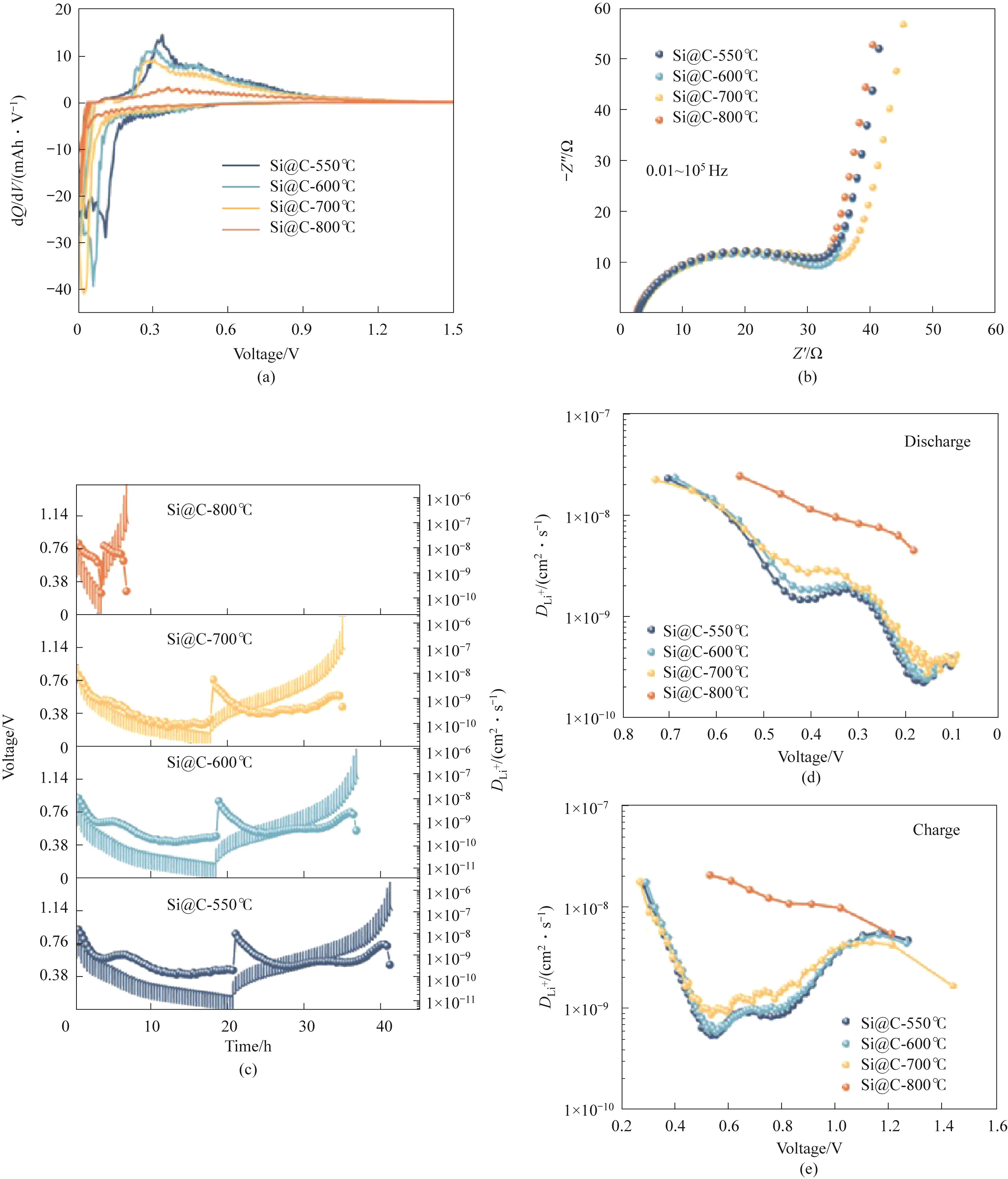

图6 (a)首圈充放电dQ/dV曲线；(b) EIS阻抗谱图；(c) GITT测试和DLi+；(d)和(e)分别为DLi+随放电和充电电压变化的曲线

Fig.6 (a) dQ/dV curve of the first charge-discharge cycle; (b) EIS Nyquist plot; (c) GITT curves and DLi+; (d) and (e) the DLi+vs voltage profiles during discharge and charge, respectively
