轴向涡流分离器内分散相油滴的破碎机制研究

doi:10.11949/0438-1157.20251272

化工学报

• •

轴向涡流分离器内分散相油滴的破碎机制研究

陈家庆¹^,⁴(), 王春尧¹^,³, 傅剑峰², 姬宜朋¹^,³(), 李贵旺⁵, 张蕾¹^,³, 阚滨滨², 司政⁶, 张超¹^,³

^1.北京石油化工学院机械工程学院，北京 102617
^2.中海石油（中国）有限公司湛江分公司，广东湛江 524057
^3.深水油气管线关键技术与装备北京市重点实验室，北京 102617
^4.北方工业大学机械与材料工程学院，北京 100144
^5.中海石油（中国）有限公司天津分公司，天津 300450
^6.中化化肥控股有限公司，北京 100031

收稿日期:2025-11-17 修回日期:2025-12-29 出版日期:2026-02-02
通讯作者: 姬宜朋
作者简介:陈家庆（1970-），男，博士研究生，教授，jiaging@ncut.edu.cn
基金资助:
国家自然科学基金面上项目(52274059)

Study on the breakup mechanism of dispersed phase oil droplets in axial vortex separator

Jiaqing CHEN¹^,⁴(), Chunyao WANG¹^,³, Jianfeng FU², Yipeng JI¹^,³(), Guiwang LI⁵, Lei ZHANG¹^,³, Binbin KAN², Zheng SI⁶, Chao ZHANG¹^,³

^1.School of Mechanical Engineering, Beijing Institute of Petrochemical Technology, Beijing 102617, China
^2.China National Offshore Oil Corporation Limited (China) Zhanjiang Branch, Zhanjiang 524057, Guangdong，China
^3.Beijing Key Laboratory of Key Technologies and Equipment for Deepwater Oil and Gas Pipelines, Beijing 102617, China
^4.School of Mechanical and Materials Engineering, North China University of Technology, Beijing 100144, China
^5.China National Offshore Oil Corporation Limited (China) Tianjin Branch, Tianjin 300450, China
^6.Sinofert Holdings Limited, Beijing 100031, China

Received:2025-11-17 Revised:2025-12-29 Online:2026-02-02
Contact: Yipeng JI

摘要/Abstract

摘要：

动态旋流分离技术广泛应用于油田采出水处理，明确强旋流场内油滴破碎机制，对低剪切起旋元件结构优化设计及工艺参数确定具有重要意义。借助高速摄像机和Image J软件，观测含油污水中油滴在轴向涡流分离器内变形和破碎过程；耦合实验与计算流体动力学（CFD）软件模拟结果，分析不同湍动能耗散率下油滴破碎临界粒径d_cri，修正强旋流场中Hinze公式常数C，修正后公式决定系数R²为0.82。在此基础上计算油滴破碎时临界Weber数We_cri与毛细管数Ca_cri，探究叶栅入口、迎水面和背水面三处油滴形态和破碎规律与所受应力分量的关系。结果表明，We_cri和Ca_cri随油滴粒径增加而增加；剪切应力分量τ_rθ、τ_θz使油滴发生不规则变形并破碎，拉伸应力分量τ_θθ、τ_rr使油滴变形为均匀线形并破碎。

关键词: 油滴破碎, 剪切应力, 轴向涡流分离器, 强旋流流场, 计算流体力学, 湍动, 两相流

Abstract:

Dynamic hydrocyclone technology is widely applied in the field of produced water treatment in oilfields. Clarifying the breakup mechanism of dispersed oil droplets in the strong oil-water swirl field is of great significance for optimizing the structure of low-shear swirler and determining the operational process parameter boundaries. In this study, with the help of a high-speed camera and Image J graphic processing software, the deformation and breakup process of dispersed oil droplets in oily wastewater within a Axial Vortex Separator were observed and analyzed. Meanwhile, the computational fluid dynamics (CFD) software was employed to calculate the flow field parameters at the locations where oil droplet deformation and breakup occur. Combining the experimental and simulation results, the critical diameter d_cri of droplet breakup were analyzed under different turbulent kinetic energy dissipation rate conditions, the calculation constant C in the Hinze equation during the formation of the strong swirling flow field was modified. After modification, the coefficient of determination R^² of the calculation formula reached 0.82. And the critical Weber number and Capillary number during oil droplet breakup were calculated. Furthermore the corresponding relationships between the deformation and breakup laws of oil droplets and the stress components were investigated at three locations—namely the cascade inlet, cascade pressure surface, and cascade suction surface. The results show that, both the critical Weber number and capillary number during oil droplet breakup increase with the increase in oil droplet diameter, with the average critical Weber number being 12.67, which is consistent with Hinze's research results. Under the action of the shear stress components τ_rθ and τ_θz, oil droplets undergo irregular deformation followed by multiple breakup into several sub-droplets with different diameters. Under the action of the tensile stress components τ_θθ and τ_rr, oil droplets deform into a uniform linear shape and undergo binary breakup. The research results can provide a theoretical basis for the design of low-shear swirler and the improvement of the separation performance of Axial Vortex Separator.

Key words: drop breakage, shear stress, axial vortex separator, swirling intensity, CFD, turbulence, two-phase flow

中图分类号:

TQ 051.8

陈家庆, 王春尧, 傅剑峰, 姬宜朋, 李贵旺, 张蕾, 阚滨滨, 司政, 张超. 轴向涡流分离器内分散相油滴的破碎机制研究[J]. 化工学报, DOI: 10.11949/0438-1157.20251272.

Jiaqing CHEN, Chunyao WANG, Jianfeng FU, Yipeng JI, Guiwang LI, Lei ZHANG, Binbin KAN, Zheng SI, Chao ZHANG. Study on the breakup mechanism of dispersed phase oil droplets in axial vortex separator[J]. CIESC Journal, DOI: 10.11949/0438-1157.20251272.

图/表 15

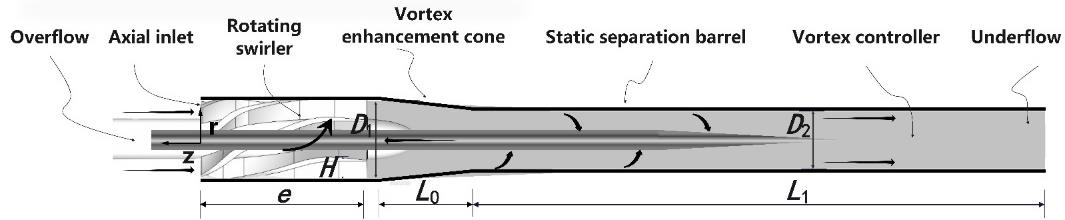

图1 轴向涡流分离器结构示意图

Fig.1 Schematic diagram of the Axial Vortex Separator structure

表1 轴向涡流分离器主要结构尺寸

Table 1 The main structural dimensions of the Axial Vortex Separator

起旋叶栅直径D₁/mm	叶片长度e/mm	叶栅高度H/mm	过渡段圆锥长度L₀/mm	分离机筒直径D₂/mm	分离机筒长度L₁/mm
25.00	50.00	6.00	13.00	22.00	190.00

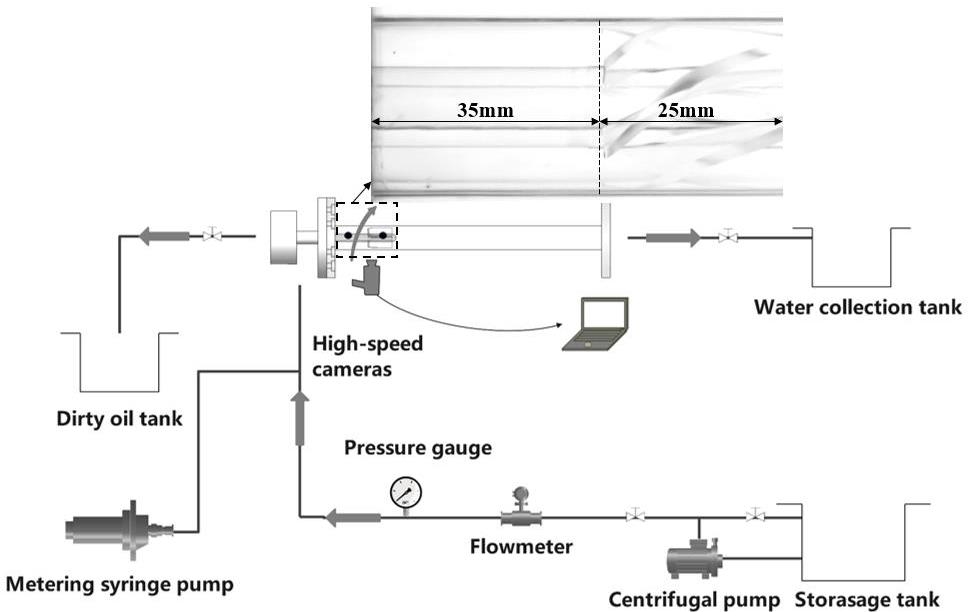

图2 实验工艺流程图

Fig.2 Experimental process flow chart

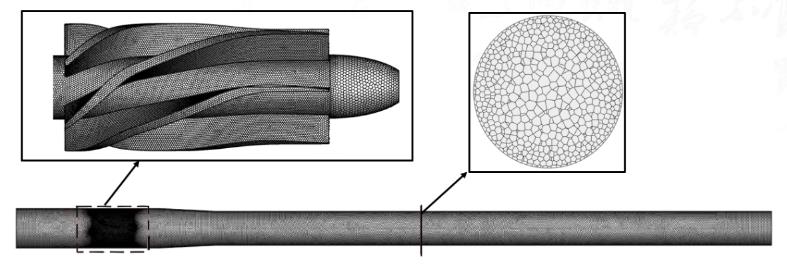

图3 轴向涡流分离器的网格示意图

Fig.3 Schematic diagram of the Axial Vortex Separator mesh

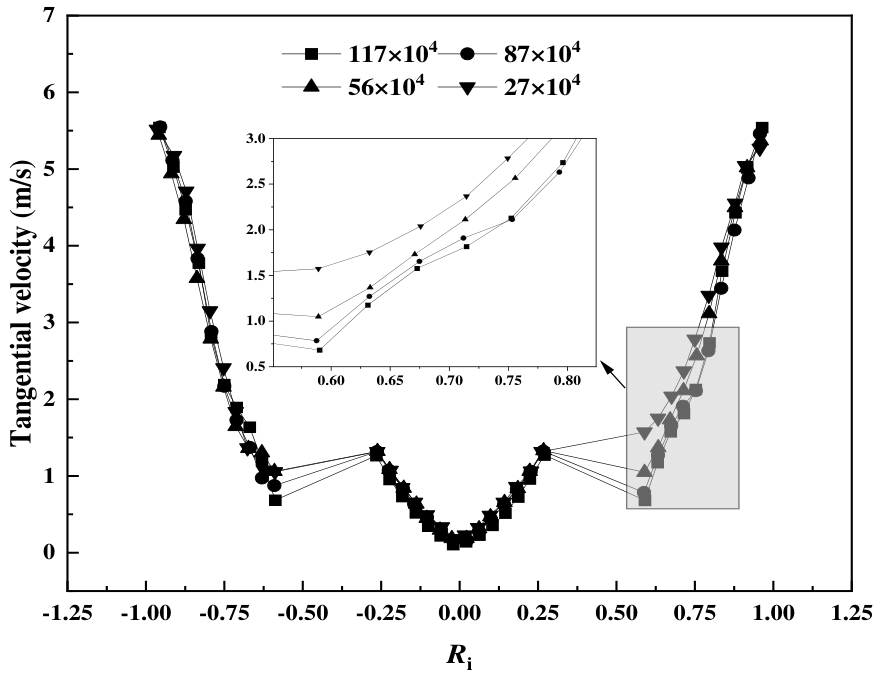

图4 网格独立性验证

Fig.4 Grid independence verification

表2 油滴尺寸范围和破碎观测次数

Table 2 Droplet size range and number of fragmentation observations

油滴尺寸范围/mm	[0.60-0.90)	[0.90-1.20)	[1.20-1.50]
破碎次数	22	27	38

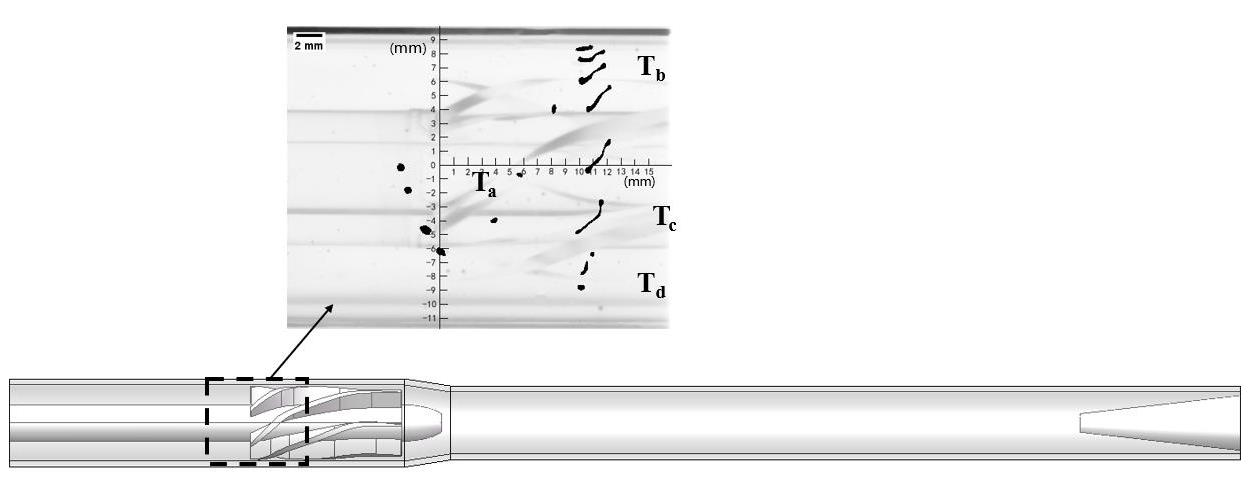

图5 油滴在叶栅中的破碎情况

Fig. 5 The breakup of oil droplets in the swirler

图6 不同湍动能耗散率下dcri与实际值的对比

Fig. 6 Comparison of dcri and actual values under different turbulent kinetic energy dissipation rates

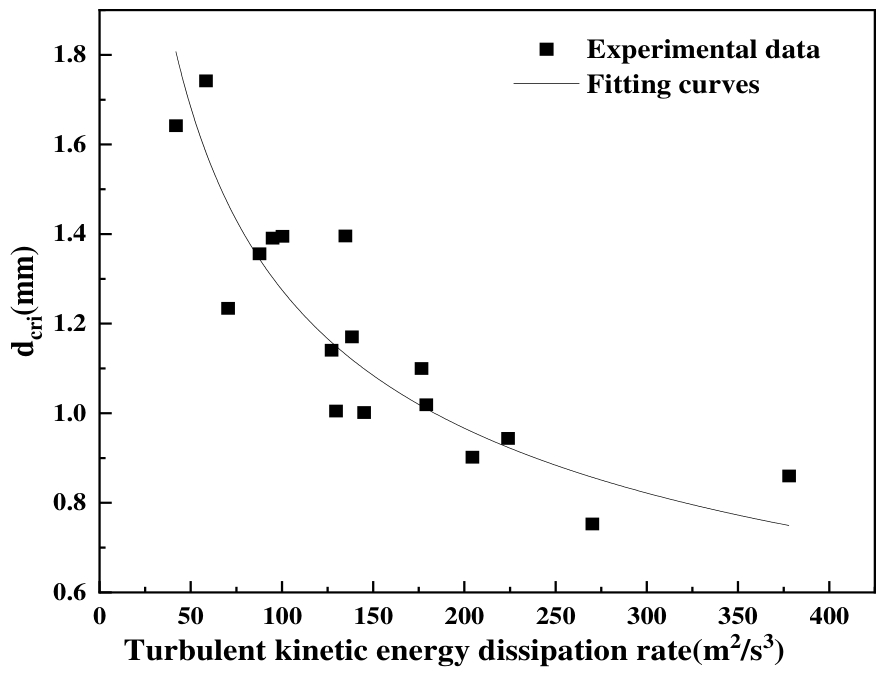

图7 油滴临界破碎直径拟合曲线

Fig. 7 Fitted Curve of Critical Breakup Diameter of Oil Droplets

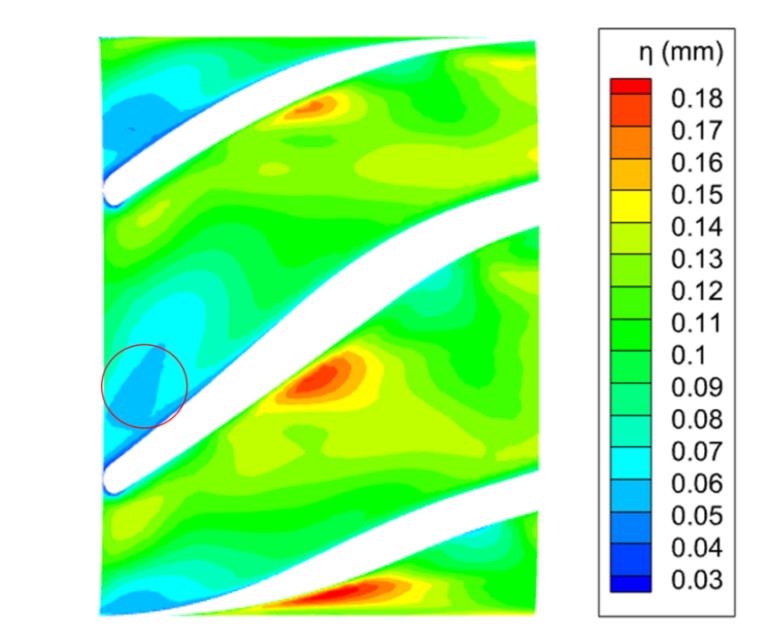

图8 湍流微尺度分布

Fig. 8 Turbulent microscale distribution

表3 不同油滴破碎Weber数和毛细管数对比

Table 3 Comparison of We and Ca number for oil droplets of different sizes

序号	粒径/mm	湍动能耗散率/m²/s³	临界Weber数	水力旋流器Weber数	毛细管数
1	0.75	270.08	11.18	0.42	0.94
2	0.94	223.85	12.73	0.23	1.08
3	1.02	179.43	12.31	1.27	1.06
4	1.39	134.04	14.47	0.65	1.24
平均值			12.67	0.64	1.08

图9 剪切应力张量的模分布

Fig. 9 Distribution of the shear stress tensor magnitude

图10 油滴A破碎情况及剪切应力分量对比

Fig.10 Comparison of oil droplet A broken situation and shear stress components

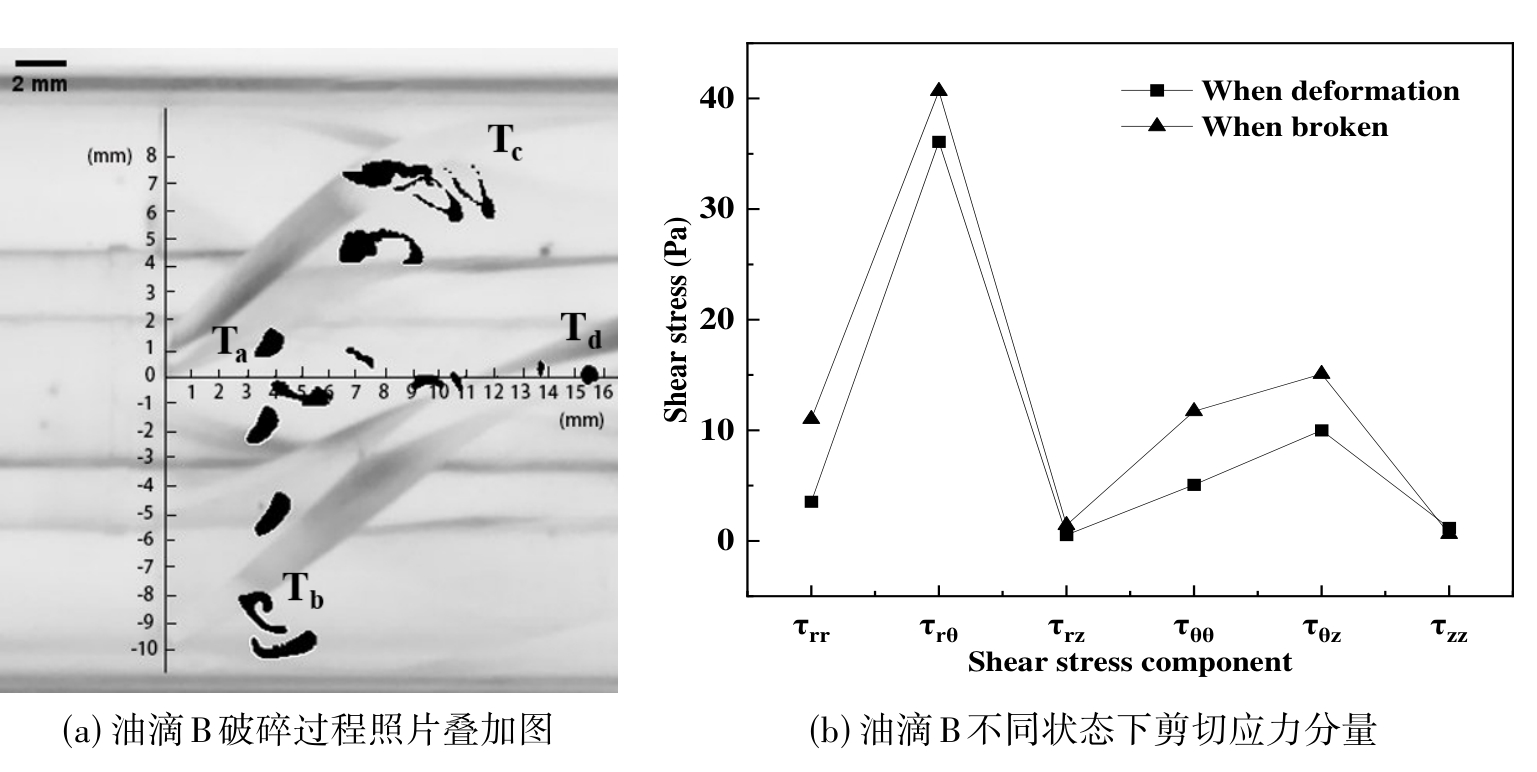

图11 油滴B破碎情况及剪切应力分量对比

Fig.11 Comparison of oil droplet B broken situation and shear stress components

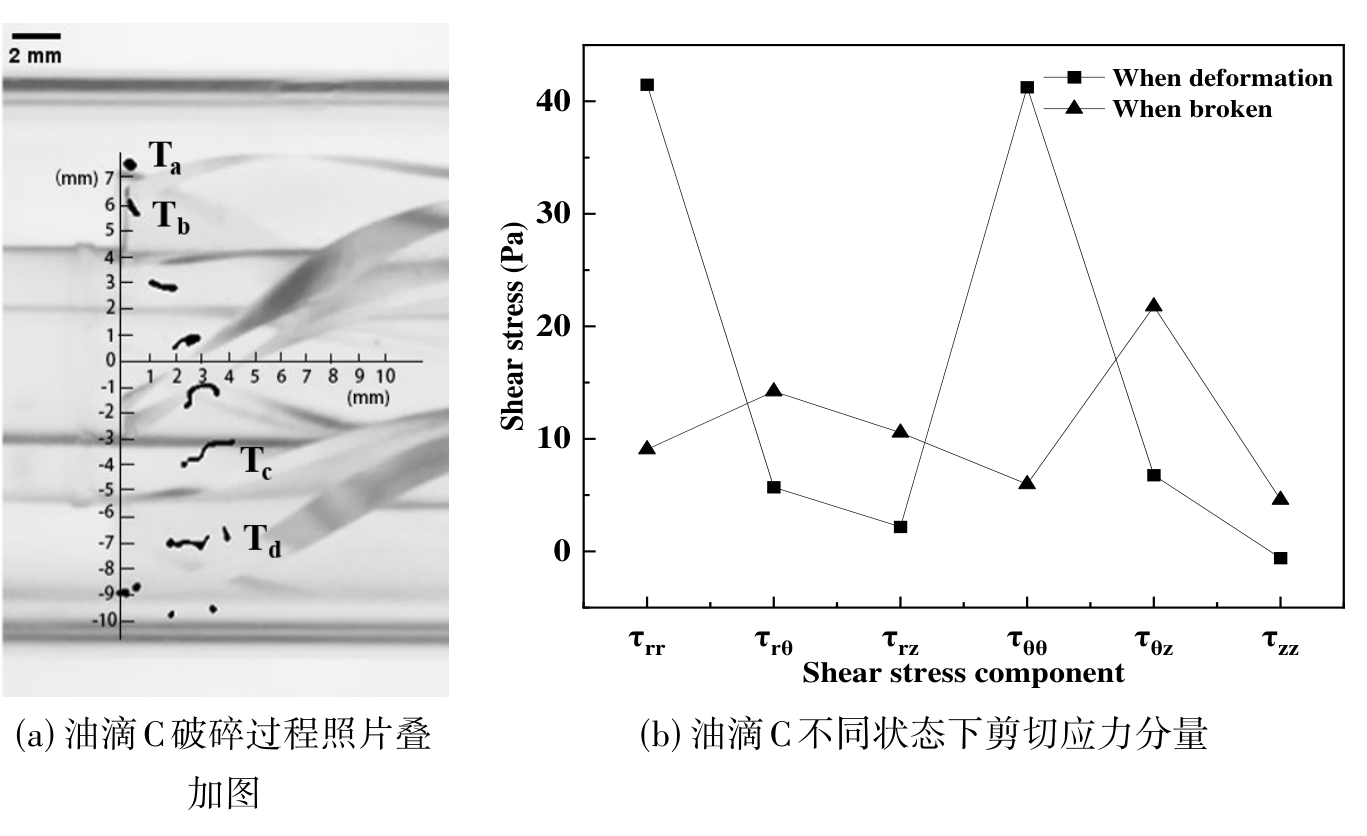

图12 油滴C破碎情况及剪切应力分量对比

Fig.12 Comparison of oil droplet C broken situation and shear stress components

参考文献 32

[1]	杨拓. 油水分离旋流器油滴运动及其破碎数值模拟[D]. 武汉: 华中科技大学, 2015.
	Yang T. Study on numerical simulation of oil droplets movement and breakage in oil-water hydrocyclones[D]. Wuhan: Huazhong University of Science and Technology, 2015.
[2]	王振波, 马艺, 金有海. 导叶式旋流器内油滴的聚结破碎及影响因素[J]. 化工学报, 2011, 62(2): 399-406.
	Wang Z B, Ma Y, Jin Y H. Droplet coalescence and breakup and its influence factors in vane-guided hydrocyclone[J]. CIESC Journal, 2011, 62(2): 399-406.
[3]	Kolmogorov A N. On the breakage of drops in a turbulent flow[C]//Tikhomirov V M, ed. Selected Works of A. N. Kolmogorov. Dordrecht: Kluwer Academic Publishers, 1991: 339-343.
[4]	Gay J C, Triponey G, Bezard C, et al. Rotary cyclone will improve oily water treatment and reduce space requirement/weight on offshore platforms[C]//SPE Offshore Europe. Richardson: Society of Petroleum Engineers, 1987: SPE 16571-MS.
[5]	Comert S, Khan R, King C, et al. Get inline: continuous, instant, concurrent three-phase separation[C]//Abu Dhabi International Petroleum Exhibition & Conference. Richardson: Society of Petroleum Engineers, 2019: SPE 197566-MS.
[6]	蒋明虎, 王尊策, 刘晓敏, 等. 油水分离用复合式水力旋流器结构设计[J]. 流体机械, 2002, 30(6): 17-19.
	Jiang M H, Wang Z C, Liu X M, et al. Structural design of compound hydrocyclones for oil/water separation[J]. Fluid Machinery, 2002, 30(6): 17-19.
[7]	刘培启, 周运志, 任帅, 等. 一种双叶轮动态旋流分离器的分离性能[J]. 石油学报(石油加工), 2018, 34(2): 299-306.
	Liu P Q, Zhou Y Z, Ren S, et al. Separating Performance of Double-Impeller Dynamic Hydrocyclone[J]. Acta Petrolei Sinica (Petroleum Processing Section), 2018, 34(2): 299-306.
[8]	Vatin N, Nemova D, Kharkov N. Method of numerical simulation of a centrifugal separator for cleaning petroleum products[J]. Applied Mechanics and Materials, 2014, 680: 354-358.
[9]	Guo G D, Deng S S. Research on dispersed oil droplets breakage and emulsification in the dynamic oil and water hydrocyclone[J]. Advance Journal of Food Science and Technology, 2013, 5(8): 1110-1116.
[10]	Morales R, Pereyra E, Wang S B, et al. Droplet formation through centrifugal pumps for oil-in-water dispersions[J]. SPE Journal, 2013, 18(1): 172-178.
[11]	Perissinotto R M, Monte Verde W, de Castro M S, et al. Experimental investigation of oil drops behavior in dispersed oil-water two-phase flow within a centrifugal pump impeller[J]. Experimental Thermal and Fluid Science, 2019, 105: 11-26.
[12]	Perissinotto R M, Monte Verde W, Gallassi M, et al. Experimental and numerical study of oil drop motion within an ESP impeller[J]. Journal of Petroleum Science and Engineering, 2019, 175: 881-895.
[13]	Perissinotto R M, Monte Verde W, Perles C E, et al. Experimental analysis on the behavior of water drops dispersed in oil within a centrifugal pump impeller[J]. Experimental Thermal and Fluid Science, 2020, 112: 109969.
[14]	Perissinotto R M, Monte Verde W, Biazussi J L, et al. Flow visualization in centrifugal pumps: a review of methods and experimental studies[J]. Journal of Petroleum Science and Engineering, 2021, 203: 108582.
[15]	Leuchtenberger R F, Biazussi J L, Bannwart A C. Experimental and theoretical modeling of droplet break-up of W/O emulsion flow in ESPs[J]. Chemical Engineering Research and Design, 2024, 210: 724-734.
[16]	Kim J, Ahn D, Park S, et al. Table-top numbering-up 3D-printed miniaturized hydrocyclone for high-efficiency and high-throughput separation of oil-in-water emulsions[J]. Separation and Purification Technology, 2024, 336: 126165.
[17]	Hinze J O. Fundamentals of the hydrodynamic mechanism of splitting in dispersion processes[J]. AIChE Journal, 1955, 1(3): 289-295.
[18]	Pereyra E, Shoham O. Unified maximum particle size prediction for turbulent dilute dispersions[J]. Journal of Petroleum Science and Engineering, 2015, 127: 190-195.
[19]	Lemenand T, Della Valle D, Dupont P, et al. Turbulent spectrum model for drop-breakup mechanisms in an inhomogeneous turbulent flow[J]. Chemical Engineering Science, 2017, 158: 41-49.
[20]	Weber M. Das allgemeine Ähnlichkeitsprinzip der Physik und sein Zusammenhang mit der Dimensionslehre und der Modellwissenschaft[M]//STG. Jahrbuch der Schiffbautechnischen Gesellschaft (31. Band). Berlin, Heidelberg: Springer Berlin Heidelberg, 1930: 274-354.
[21]	田洋阳. 预分水力旋流器导叶结构设计与性能研究[D]. 东营: 中国石油大学(华东), 2019.
	Tian Y Y. Study on the guide vane structure design and performance of pre-separate hydrocyclone[D]. Dongying: China University of Petroleum (Huadong), 2019.
[22]	张鹏举. 液液分散体系中液滴破碎机理的实验研究[D]. 北京: 北京化工大学, 2016.
	Zhang P J. Experimental study of drop breakup mechanisim in liquid-liquid dispersion system[D]. Beijing: Beijing University of Chemical Technology, 2016.
[23]	易磊. 液液两相剪切湍流中液滴统计特性与湍流输运的研究[D]. 北京: 清华大学, 2023.
	Yi L. Investigation of droplet statistics and momentum transport of emulsions in a turbulent shear flow[D]. Beijing: Tsinghua University, 2023.
[24]	杨琳, 梁政. 液-液水力旋流器油水乳化机理研究[J]. 石油机械, 2007, 35(12): 8-11.
	Yang L, Liang Z. Study of oil-water emulsion mechanism in hydrocyclone for oil-water separation[J]. China Petroleum Machinery, 2007, 35(12): 8-11.
[25]	Herø E H, La Forgia N, Solsvik J, et al. Single drop breakage in turbulent flow: Statistical data analysis[J]. Chemical Engineering Science: X, 2020, 8: 100082.
[26]	舒朝晖, 刘根凡, 陈文梅, 等. 用于油水分离的水力旋流器中液滴破碎研究进展[J]. 流体机械, 2002, 30(7): 29-32.
	Shu Z H, Liu G F, Chen W M, et al. Review on the study for the breakage of drops in hydrocyclones for oil-water separation[J]. Fluid Machinery, 2002, 30(7): 29-32.
[27]	Achour L, Specklin M, Asuaje M, et al. A review of emulsion flows, their characterization and their modeling in pumps[J]. Chemical Engineering Research and Design, 2024, 205: 538-555.
[28]	常珊珊. 油水混合器湍流场中油滴变形与破碎特性研究[D]. 西安: 西安石油大学, 2025.
	Chang S S. Study on the deformation and breakup characteristics of oil droplets in the turbulent flow field of an oil-water mixer[D]. Xi'an: Xi'an Shiyou University, 2025.
[29]	Walter J F, Blanch H W. Bubble break-up in gas: liquid bioreactors: Break-up in turbulent flows[J]. The Chemical Engineering Journal, 1986, 32(1): B7-B17.
[30]	Li X J, Chen B, Luo X W, et al. Effects of flow pattern on hydraulic performance and energy conversion characterisation in a centrifugal pump[J]. Renewable Energy, 2020, 151: 475-487.
[31]	Zeng X B, Zhao L, Zhao W G, et al. Experimental study on a novel axial separator for oil–water separation[J]. Industrial & Engineering Chemistry Research, 2020, 59(48): 21177-21186.
[32]	曹仲文, 袁惠新. 用量纲方法分析旋流场中的应力[J]. 流体机械, 2005, 33(7): 30-32, 51.
	Cao Z W, Yuan H X. Investigation of stress in a hydrocyclone field with dimension[J]. Fluid Machinery, 2005, 33(7): 30-32, 51.
