疏水改性羰基铁负载TiO2光催化降解石油烃污染物

doi:10.11949/0438-1157.20240461

摘要/Abstract

摘要：

采用磁性羰基铁颗粒作为载体，负载纳米TiO₂制成复合光催化剂，并对复合催化剂表面进行疏水亲油改性，制备得到具有疏水亲油特性的负载型纳米TiO₂复合光催化剂。采用X射线衍射仪（XRD）、扫描电子显微镜（SEM）、红外光谱仪（FTIR）和紫外-可见光谱仪（UV）等，表征了复合催化材料的晶相组成和微观形貌，评价了催化材料的疏水亲油性能、磁回收性能，对比研究了普通沸石负载型TiO₂催化剂和疏水改性羰基铁负载型TiO₂催化剂对三种石油烃污染物降解效果，并进一步考察了催化剂加载量和循环使用对石油烃降解效率的影响。结果表明，疏水改性羰基铁负载型TiO₂催化剂具有疏水亲油特性，可使得非极性石油烃类污染物能更好地与催化材料的活性位点接触，且由于催化材料颗粒具有磁性，在磁场作用下易于回收；新型催化材料对水中的石油烃类污染物具有更好的降解效率，常规TiO₂/沸石催化剂的光解效果对污染物的最大去除率为75%左右，而TiO₂/改性羰基铁的最大去除率可以达到95%，且降解速率更快，随着催化剂浓度的增加，降解效果提高，但当浓度进一步增加至4 g·L^-1时，降解效果下降；在重复使用过程中，复合光催化材料活性降低不明显，说明复合催化材料的稳定性较好。

关键词: 表面, 载体, 催化剂, 光催化降解, 石油烃

Abstract:

The magnetic carbonyl iron particles were used as the carrier and loaded with nano TiO₂ to prepare composite photocatalysts, and the surface of the composite catalysts was hydrophobically and lipophilically modified to prepare the loaded nano TiO₂ composite photocatalysts with hydrophobicity and lipophilicity characteristics, and the crystalline phase composition and microscopic morphology of the composite photocatalysts were characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM), infrared spectroscopy (FTIR), and ultraviolet-visible spectroscopy (UV). The hydrophobic and lipophilic properties of the catalytic materials were evaluated, the magnetic recycling properties were evaluated. The degradation effects of the common zeolite-loaded TiO₂ catalysts and the hydrophobically modified carbonyl iron loaded TiO₂ catalysts were comparatively investigated on the three petroleum hydrocarbon pollutants, and the influences of the loading amount of the catalysts and recycling on the degradation efficiencies of the petroleum hydrocarbons were further examined. The results showed that the hydrophobically modified carbonyl iron loaded TiO₂ catalyst has hydrophobic and lipophilic properties, which can make the non-polar petroleum hydrocarbon pollutants contact with the active sites of the catalytic material in a better way, and it is easy to be recycled under the magnetic field due to the magnetic nature of the catalytic material particles; the novel catalytic material has a better degradation efficiency of petroleum hydrocarbon pollutants in water, the maximum removal rate of the conventional TiO₂/zeolite catalysts for the pollutants was about 75%, while the maximum removal rate of TiO₂/modified carbonyl iron could reach 95%, and the degradation rate was faster. Degradation effect was improved with the increase of the catalyst concentration, but the degradation effect was decreased when the concentration was further increased to 4 g·L^-1, During repeated use, the activity of the composite photocatalytic material does not decrease significantly, indicating that the composite catalytic material has good stability.

Key words: surface, support, catalyst, photocatalytic degradation, petroleum hydrocarbons

中图分类号:

X 701

吴云, 龚海峰. 疏水改性羰基铁负载TiO₂光催化降解石油烃污染物[J]. 化工学报, 2024, 75(12): 4555-4562.

Yun WU, Haifeng GONG. Carbonyl iron loaded TiO₂ photocatalyst by hydrophobic modification for degradation of petroleum hydrocarbon pollutants in water[J]. CIESC Journal, 2024, 75(12): 4555-4562.

图/表 8

图1 光催化降解实验装置

Fig.1 Schematic representation and photograph of the immersion-well photoreactor setup

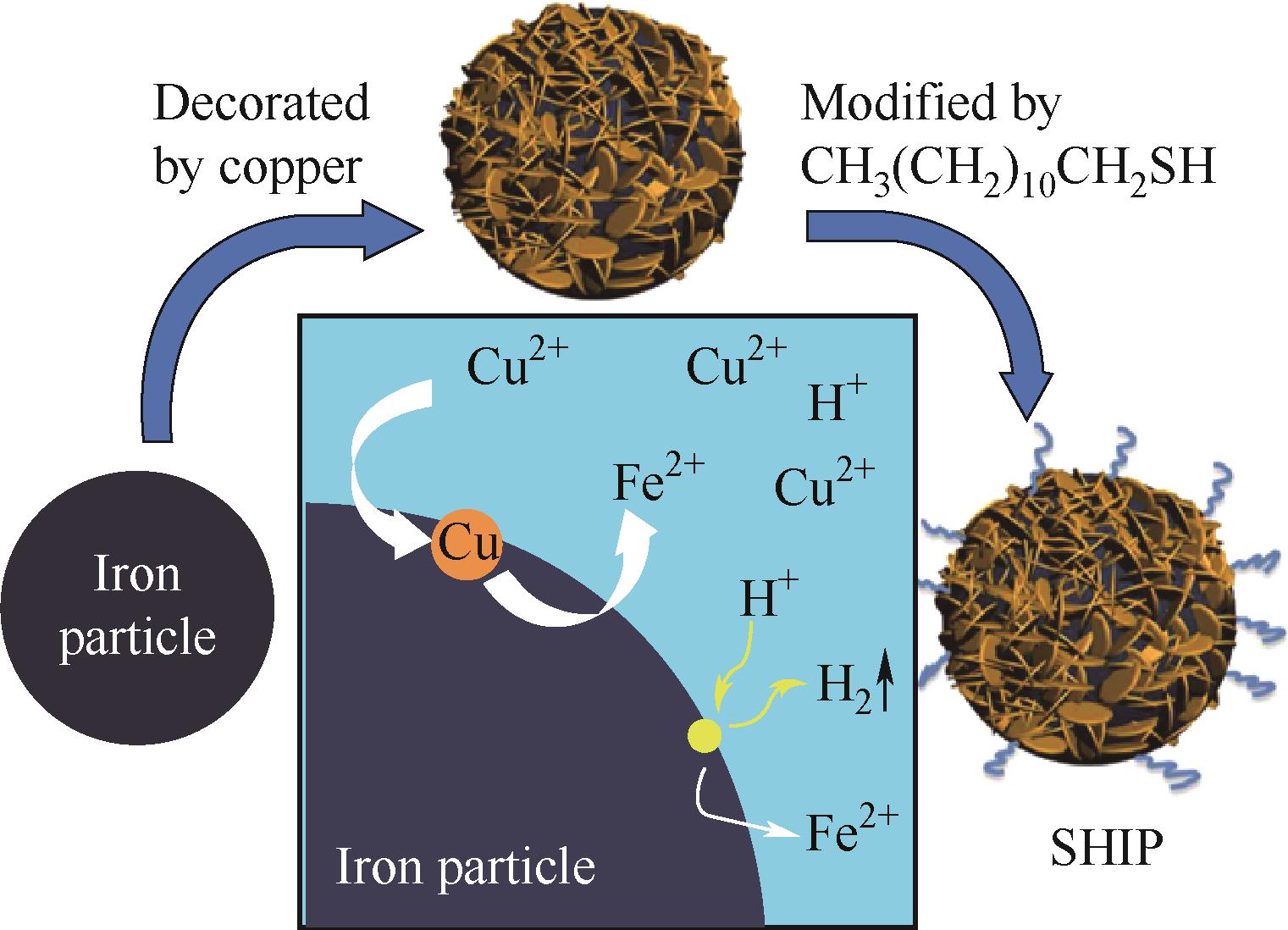

图2 疏水复合催化材料的表面改性机理示意图

Fig.2 Surface modification mechanism schematic diagram of hydrophobic composite catalytic materials

图3 羰基铁颗粒改性前后扫描电镜图像及磁性(a),(b) SEM images of iron powders before the modification; (c),(d) SEM images of iron powders after the modification, insets in panels (a) and (c) are the EDX results; (e),(f) Digital photos showing the pristine iron particles and the SHIPs in water and oil, insets are the respective profiles of water and toluene on the surfaces of the powders; (g),(h) Magnetism of before and after the superhydrophobic modification

Fig.3 SEM images and magnetism of iron powders before and after the superhydrophobic modification

图4 疏水改性羰基铁颗粒对油水乳化液的分离和分离机理(a)—(d) Photographs showing the separation of the surfactant free emulsion of oil-in-water [panels (c) and (d) reflect the incomplete and complete separation, respectively, depending on the amount of SHIPs used]; Fluorescence microscope images of the emulsion before (e) and after (f) the separation (red droplets in panel (e) are silicone oil dyed by fluorescent dye); (g) FTIR spectra of the emulsion and the clean water left after the separation; (h) Schematic illustration of the separation of the silicone oil-in-water emulsion

Fig.4 Separation of hydrophobic modified carbonyl iron particles for oil-in-water emulsion and separation mechanism

图5 TiO2/超疏水/超亲油羰基铁复合材料的扫描电镜照片和XRD谱图

Fig.5 SEM image and XRD pattern of hydrophobic modified carbonyl iron composite material

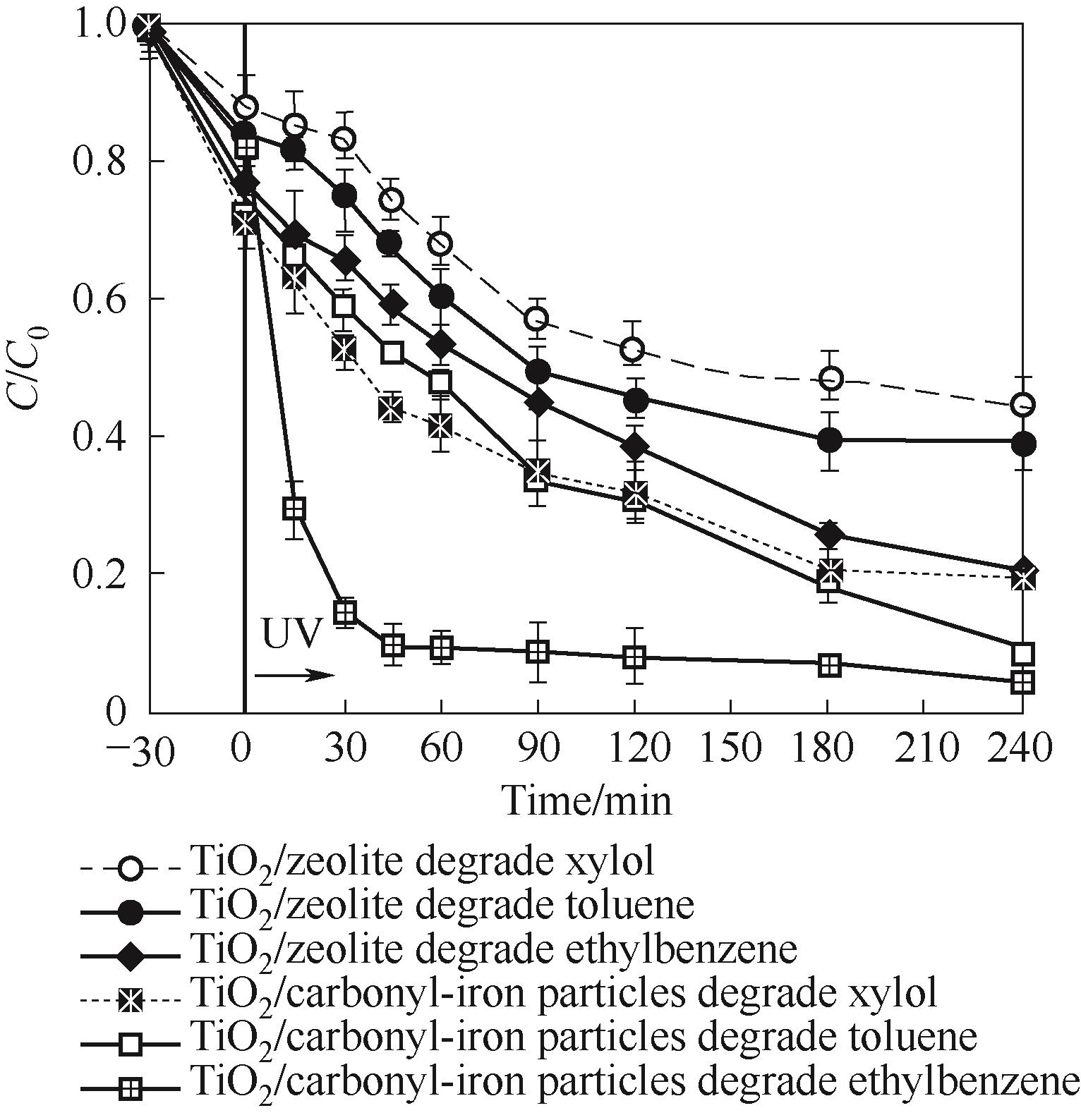

图6 两种催化剂对不同石油烃的降解效果

Fig.6 Degradation effect of two catalysts for different hydrocarbons (C0 = 3 g·L-1; catalyst concentration: 0.3 g·L-1)

图7 不同复合催化剂浓度对乙苯的降解效果

Fig.7 Effect of catalyst concentration on the degradation of 0.3 g·L-1 ethylbenzene

图8 复合催化剂重复使用性能

Fig.8 Performance of recycled TiO2/carbonyl-iron particles

参考文献 30

1	Husseini M, Makkouk R, Rabaa A, et al. Determination of polycyclic aromatic hydrocarbons (PAH4) in the traditional Lebanese grilled chicken: implementation of new, rapid and economic analysis method[J]. Food Analytical Methods, 2018, 11(1): 201-214.
2	Roya K, Payam S, Parinaz P, et al. Is there any association between urinary metabolites of polycyclic aromatic hydrocarbons combined with hydrothermal treatment[J]. Processing and Application of Ceramics, 2018, 10(4): 249-256.
3	杨楠柠, 潘玉英, 童森炜, 等. 地下水位波动及降水对原油在非均质土层中重分布的影响[J]. 环境科学研究, 2019, 32(3): 475-484.
	Yang N N, Pan Y Y, Tong S W, et al. The influence of water table fluctuation and rainfall on redistribution of crude oil in heterogeneous soil[J]. Research of Environmental Sciences, 2019, 32(3): 475-484.
4	Li S J, Chen Y N, Zhang J Q, et al. The relationship of chromophoric dissolved organic matter parallel factor analysis fluorescence and polycyclic aromatic hydrocarbons in natural surface waters[J]. Environmental Science and Pollution Research International, 2018, 25(2): 1428-1438.
5	Greish S, Rinnan Å, Marcussen H, et al. Interaction mechanisms between polycyclic aromatic hydrocarbons (PAHs) and organic soil washing agents[J]. Environmental Science and Pollution Research International, 2018, 25(1): 299-311.
6	Phelps C D, Young L Y. Anaerobic biodegradation of BTEX and gasoline in various aquatic sediments[J]. Biodegradation, 1999, 10(1): 15-25.
7	Yan S, Zhou Q X. Toxic effects of Hydrilla verticillata exposed to toluene, ethylbenzene and xylene and safety assessment for protecting aquatic macrophytes[J]. Chemosphere, 2011, 85(6): 1088-1094.
8	Gödeke S, Richnow H H, Weiβ H, et al. Multi tracer test for the implementation of enhanced in situ bioremediation at a BTEX-contaminated megasite[J]. Journal of Contaminant Hydrology, 2006, 87(3/4): 211-236.
9	Zou X J, Dong Y Y, Ke J, et al. Cobalt monoxide/tungsten trioxide p-n heterojunction boosting charge separation for efficient visible-light-driven gaseous toluene degradation[J]. Chemical Engineering Journal, 2020, 400: 125919-125930.
10	Yilmaz N, Davis S M. Polycyclic aromatic hydrocarbon (PAH) formation in a diesel engine fueled with diesel, biodiesel and biodiesel/n-butanol blends[J]. Fuel, 2016, 181: 729-740.
11	Kim J, Lee A H, Chang W. Manipulation of unfrozen water retention for enhancing petroleum hydrocarbon biodegradation in seasonally freezing and frozen soil[J]. Environmental Science & Technology, 2021, 55(13): 9172-9180.
12	Tan P Q, Zhong Y M, Hu Z Y, et al. Size distributions, PAHs and inorganic ions of exhaust particles from a heavy duty diesel engine using B20 biodiesel with different exhaust aftertreatments[J]. Energy, 2017, 141: 898-906.
13	Gao J B, Ma C C, Xing S K, et al. Particle- and gas-phase PAHs toxicity equivalency quantity emitted by a non-road diesel engine with non-thermal plasma technology[J]. Environmental Science and Pollution Research International, 2016, 23(19): 20017-20026.
14	Adesina O A, Sonibare J A, Diagboya P N, et al. Spatiotemporal distributions of polycyclic aromatic hydrocarbons close to a typical medical waste incinerator[J]. Environmental Science and Pollution Research, 2018, 25(1): 274-282.
15	Kanakaraju D, Kockler J, Motti C A, et al. Titanium dioxide/zeolite integrated photocatalytic adsorbents for the degradation of amoxicillin[J]. Applied Catalysis B: Environmental, 2015, 166: 45-55.
16	Barkouch H, Bessbousse H, Amar M, et al. Bismuth-doped TiO₂enable solar photocatalytic water treatment[J]. Optical Materials, 2023, 146: 114507.
17	Jia Z M, Zhao Y R, Shi J N, et al. Adsorption kinetics of the photocatalytic reaction of nano-TiO₂cement-based materials: a review[J]. Construction and Building Materials, 2023, 370: 130462-130477.
18	Zhang H, Bian H, Wang F, et al. Enhanced photocatalytic reduction of CO₂ over pg-C₃N₄-supported TiO₂ nanoparticles with Ag modification[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2023, 674: 131989-131999.
19	Zou H J, Feng Y J, Ma J P, et al. Relationship between defect and strain in oxygen vacancy-engineered TiO₂towards photocatalytic H₂ generation[J]. Ceramics International, 2023, 49(22, Part B): 36244-36250.
20	Macchi M, Martinez M, Tauil R M N, et al. Insights into the genome and proteome of Sphingomonas paucimobilis strain 20006FA involved in the regulation of polycyclic aromatic hydrocarbon degradation[J]. World Journal of Microbiology & Biotechnology, 2017, 34(1): 7.
21	Üzer E, Kumar P, Kisslinger R, et al. Vapor deposition of semiconducting phosphorus allotropes into TiO₂nanotube arrays for photoelectrocatalytic water splitting[J]. ACS Applied Nano Materials, 2019, 2(6): 3358-3367.
22	Zhang J, Zhang X Y, Dong S S, et al. N-doped carbon quantum dots/TiO₂ hybrid composites with enhanced visible light driven photocatalytic activity toward dye wastewater degradation and mechanism insight[J]. Journal of Photochemistry and Photobiology A: Chemistry, 2016, 325: 104-110.
23	Zheng F Y, Wang Z H, Chen J, et al. Synthesis of carbon quantum dot-surface modified P25 nanocomposites for photocatalytic degradation of p-nitrophenol and acid violet 43[J]. RSC Advances, 2014, 4(58): 30605-30609.
24	Hoque M, Guzman M. Photocatalytic activity: experimental features to report in heterogeneous photocatalysis[J]. Materials, 2018, 11(10): 1990-2001.
25	Huang H L, Huang H B, Zhan Y J, et al. Efficient degradation of gaseous benzene by VUV photolysis combined with ozone-assisted catalytic oxidation: performance and mechanism[J]. Applied Catalysis B: Environmental, 2016, 186: 62-68.
26	Filippatos P P, Kelaidis N, Vasilopoulou M, et al. Defect processes in F and Cl doped anatase TiO₂ [J]. Scientific Reports, 2019, 9: 19970.
27	Kim J H, Nishimura F, Yonezawa S, et al. Enhanced dispersion stability and photocatalytic activity of TiO₂ particles fluorinated by fluorine gas[J]. Journal of Fluorine Chemistry, 2012, 144: 165-170.
28	Lee K, Yoon H, Ahn C, et al. Strategies to improve the photocatalytic activity of TiO₂: 3D nanostructuring and heterostructuring with graphitic carbon nanomaterials[J]. Nanoscale, 2019, 11(15): 7025-7040.
29	Wang Q, Huang J Y, Sun H T, et al. Uniform carbon dots@TiO₂ nanotube arrays with full spectrum wavelength light activation for efficient dye degradation and overall water splitting[J]. Nanoscale, 2017, 9(41): 16046-16058.
30	Shafique M, Mahr M S, Yaseen M, et al. CQD/TiO₂ nanocomposite photocatalyst for efficient visible light-driven purification of wastewater containing methyl orange dye[J]. Materials Chemistry and Physics, 2022, 278: 125583.
