包含偏硅酸影响的3D NAND磷酸湿法刻蚀动力学

doi:10.11949/0438-1157.20240709

摘要/Abstract

摘要：

以磷酸为刻蚀剂选择性刻蚀Si₃N₄和SiO₂堆叠结构中的Si₃N₄，是3D NAND闪存芯片制造过程中最关键的步骤之一。随着3D NAND存储单元堆叠层数的不断升高，扩散限制越来越严重，刻蚀产物偏硅酸浓度梯度不断加大，致使刻蚀工艺面临刻蚀选择性低、氧化物回沾等问题。针对上述3D NAND湿法刻蚀问题，结合表征和动力学实验，获得了有无偏硅酸影响的磷酸刻蚀Si₃N₄和SiO₂动力学模型。结果显示Si₃N₄刻蚀过程是水和磷酸等含氧亲核试剂对Si原子的亲核攻击过程，磷酸刻蚀Si₃N₄和SiO₂的反应活化能分别为60.71 kJ·mol^-1和66.90 kJ·mol^-1，亲核试剂破坏Si—O键所需能量高于Si—N键。包含偏硅酸影响的Si₃N₄和SiO₂刻蚀动力学显示偏硅酸浓度越高Si₃N₄和SiO₂的刻蚀速率越小，并且SiO₂刻蚀速率对偏硅酸浓度的变化更敏感。本工作的研究结果可为3D NAND磷酸湿法刻蚀工艺的设计优化提供一定的基础数据和理论认识。

关键词: 3D NAND闪存, 湿法刻蚀, 氮化硅, 氧化硅, 偏硅酸, 化学反应, 动力学, 动力学模型

Abstract:

Selective etching of Si₃N₄ in a stacked structure of Si₃N₄ and SiO₂ using phosphoric acid as an etchant is one of the most critical steps in the manufacturing process of 3D NAND flash memory chips. With the increasing number of stacked layers, diffusion limitation becomes important and the concentration gradient of the etching product H₂SiO₃ becomes large, which brings the problems of low etching selectivity and serious oxide regrowth in this etching process. Facing these above-mentioned problems, this work combines characterizations and kinetics experiments to obtain the kinetics models of Si₃N₄ and SiO₂ etched by phosphoric acid with or without the influence of H₂SiO₃. The results show the etch of Si₃N₄ is the nucleophilic attack of Si by the nucleophilic reagents, like water and phosphoric acid. The activation energies for etching Si₃N₄ and SiO₂ by phosphoric acid are 60.71 kJ·mol^-1 and 66.90 kJ·mol^-1, indicating the energy required to break Si—O bond is larger than that to break Si—N bond under the attack of nucleophilic reagents. The etching kinetics of Si₃N₄ and SiO₂ with the influence of H₂SiO₃concentration show that the etching rates of Si₃N₄ and SiO₂decrease with the increase of H₂SiO₃concentration, and the etching rate of SiO₂ is more sensitive to the change of H₂SiO₃concentration. The results in this work should provide some fundamental data and theoretical understanding for the optimal design of phosphate wet etching process for manufacturing 3D NAND.

Key words: 3D NAND flash, wet etching, silicon nitride, silicon oxide, H₂SiO₃, chemical reaction, kinetics, kinetic modeling

中图分类号:

TQ 031

彭子林, 周蕾, 邓庆航, 叶光华, 周兴贵. 包含偏硅酸影响的3D NAND磷酸湿法刻蚀动力学[J]. 化工学报, 2025, 76(2): 645-653.

Zilin PENG, Lei ZHOU, Qinghang DENG, Guanghua YE, Xinggui ZHOU. Kinetics of 3D NAND flash wet etching with phosphoric acid under the influence of H₂SiO₃[J]. CIESC Journal, 2025, 76(2): 645-653.

图/表 9

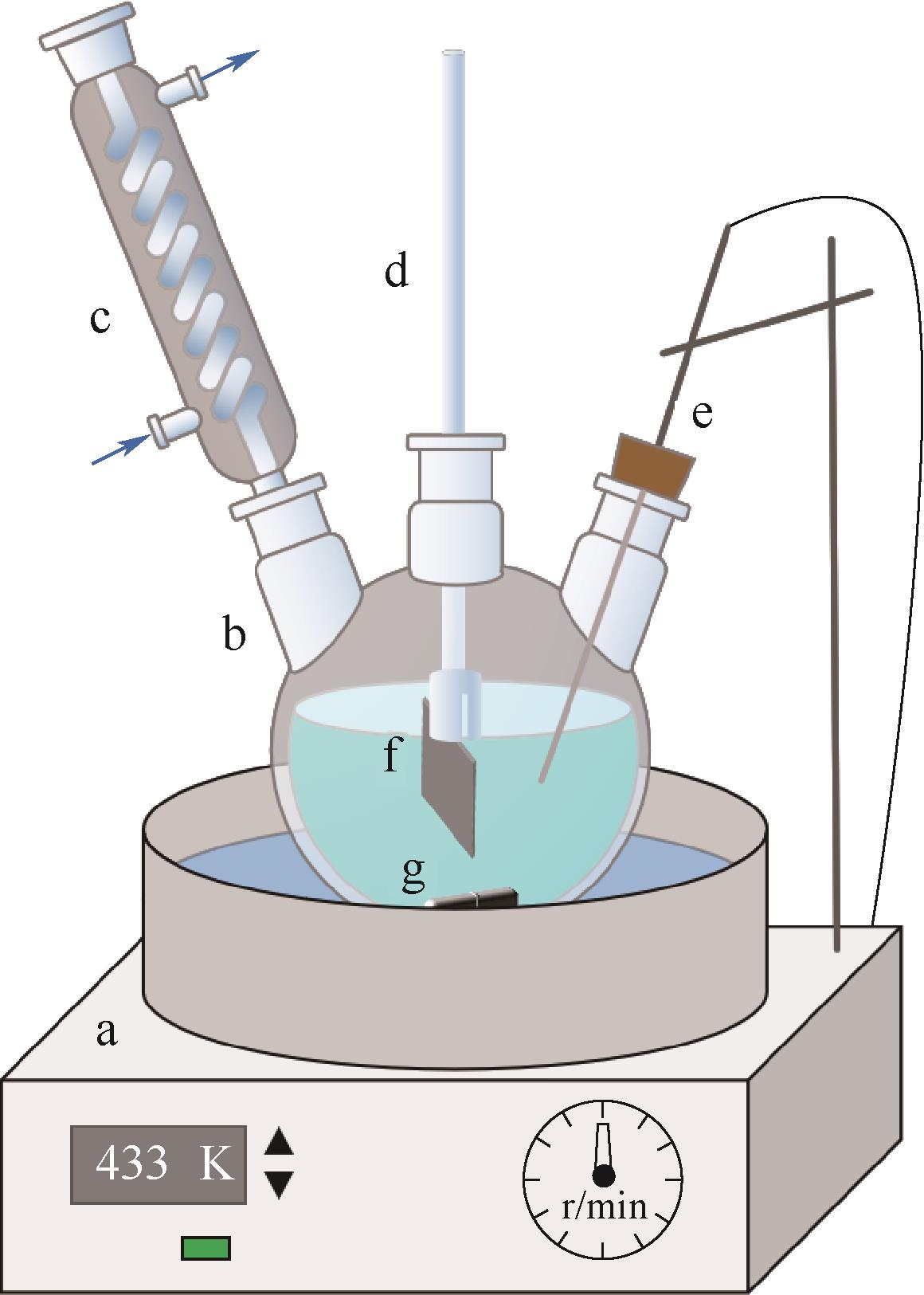

图1 磷酸湿法刻蚀实验装置a—恒温磁力搅拌油浴锅;b—石英三口烧瓶;c—冷凝管;d—硅片夹;e—热电偶;f—硅片;g—搅拌子

Fig.1 Apparatus of etching experiments with phosphoric acid as etchanta—magnetic stirring oil bath; b—quartz three-mouth flask; c—condenser; d—wafer clamp; e—thermoelectric couple; f—wafer; g—stirrer

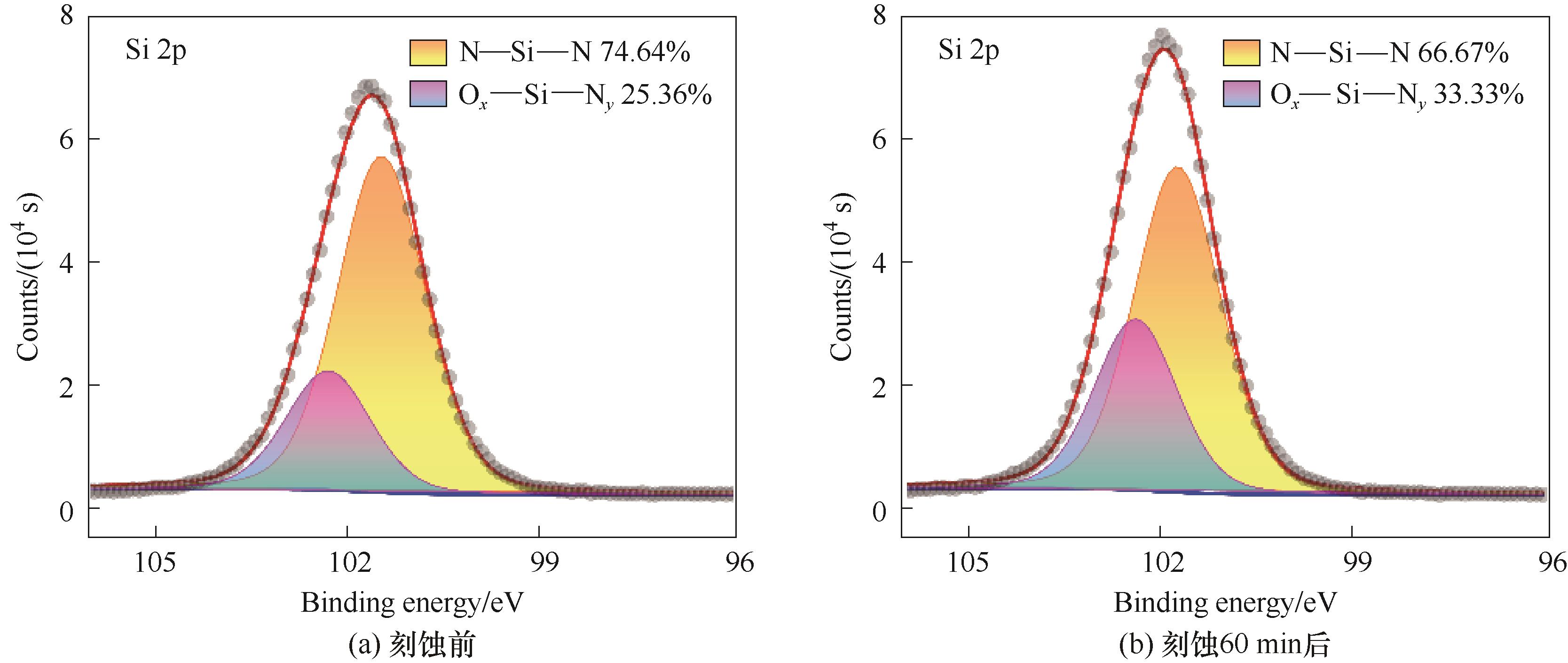

图2 氮化硅的高分辨率Si 2p XPS光谱

Fig.2 High resolution Si 2p XPS spectra of Si3N4

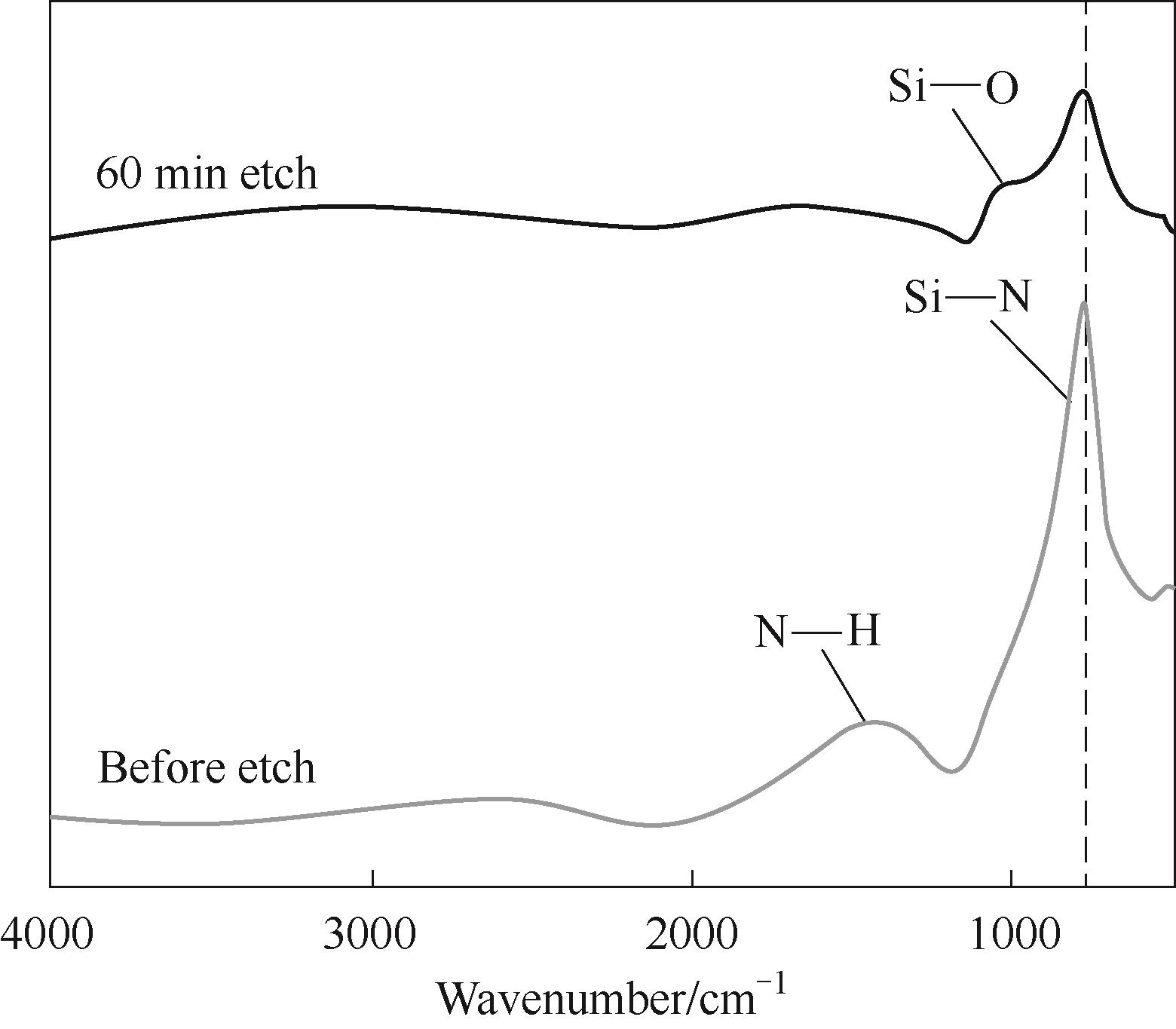

图3 氮化硅刻蚀前和刻蚀60 min后的傅里叶变换红外光谱图

Fig.3 FTIR spectra of Si3N4 before etch and after 60 min etch

图4 298 K和433 K下85%磷酸溶液的31P核磁共振磷谱

Fig.4 31P NMR spectra of 85% H3PO4 solutions under 298 and 433 K

图5 磷酸溶液浓度对氮化硅、氧化硅刻蚀速率的影响

Fig.5 The influence of H3PO4 concentration on the etching rates of Si3N4 and SiO2

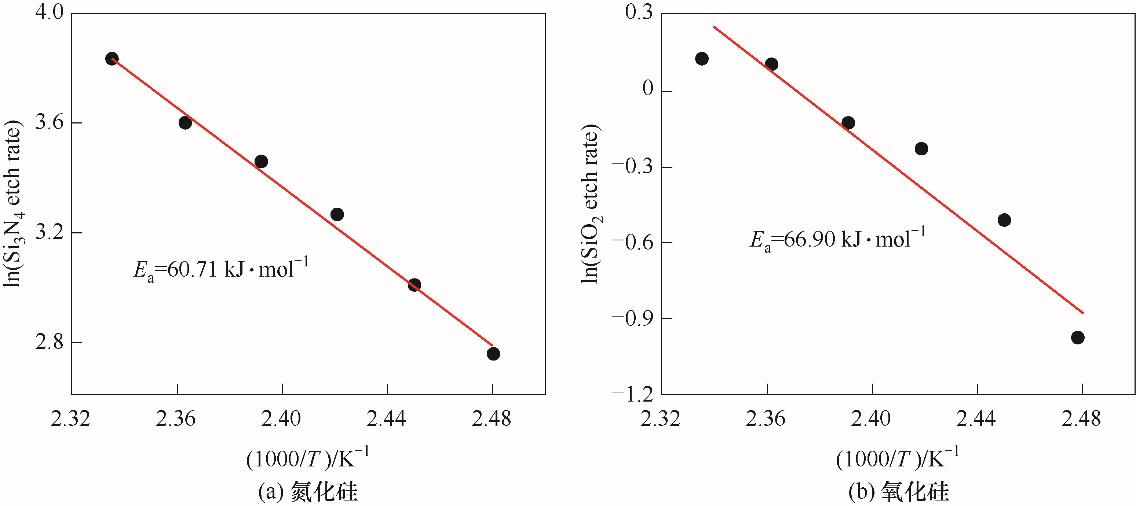

图6 Arrhenius方程求取反应活化能

Fig.6 Ea calculation based on Arrhenius equation

图7 无偏硅酸影响下刻蚀速率的动力学模型计算值与实验值比较

Fig.7 Comparison of the calculated and experimental etch rates without the influence of H2SiO3

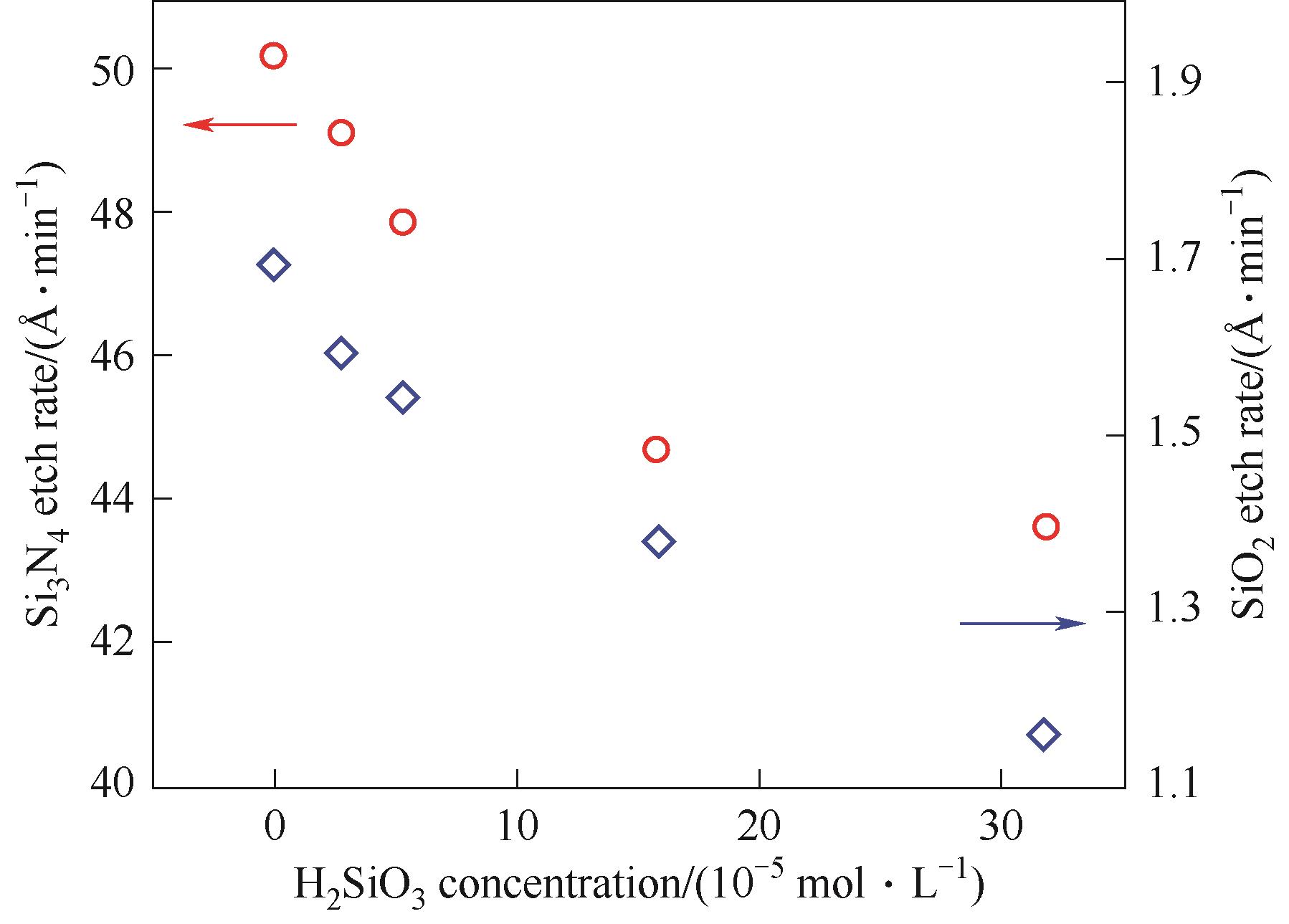

图8 偏硅酸浓度对氮化硅、氧化硅刻蚀速率的影响

Fig.8 The influence of H2SiO3 concentration on the etching rates of Si3N4 and SiO2

图9 有偏硅酸影响下刻蚀速率的动力学模型计算值与实验值比较

Fig.9 Comparison of the calculated and experimental etch rates under the influence of H2SiO3

参考文献 33

1	Luo Y X, Ghose S, Cai Y, et al. Improving 3D NAND flash memory lifetime by tolerating early retention loss and process variation[J]. Proceedings of the ACM on Measurement and Analysis of Computing Systems, 2018, 2(3): 1-48.
2	Goda A. 3-D NAND technology achievements and future scaling perspectives[J]. IEEE Transactions on Electron Devices, 2020, 67(4): 1373-1381.
3	Takeuchi K. Novel co-design of NAND flash memory and NAND flash controller circuits for sub-30 nm low-power high-speed solid-state drives (SSD)[J]. IEEE Journal of Solid-State Circuits, 2009, 44(4): 1227-1234.
4	Shibata N, Maejima H, Isobe K, et al. A 70 nm 16 Gb 16-level-cell NAND flash memory[J]. IEEE Journal of Solid-State Circuits, 2008, 43(4): 929-937.
5	Reiter T, Klemenschits X, Filipovic L. Impact of plasma induced damage on the fabrication of 3D NAND flash memory[J]. Solid-State Electronics, 2022, 192: 108261.
6	Zhou Z H, Wu Y W, Han S L, et al. Unveiling polycrystalline silicon channel dissolution mechanism in wet etching process of 3D NAND fabrication[J]. Surfaces and Interfaces, 2024, 50: 104515.
7	Goda A. Recent progress on 3D NAND flash technologies[J]. Electronics, 2021, 10(24): 3156.
8	Han C, Wu Z P, Yang C, et al. Influence of accumulated charges on deep trench etch process in 3D NAND memory[J]. Semiconductor Science and Technology, 2020, 35(4): 045003.
9	Gale G W. Industry context for semiconductor wet etch and surface preparation[J]. Solid State Phenomena, 2018, 282: 3-9.
10	Kim M K, Kim I J, Lee J S. CMOS-compatible ferroelectric NAND flash memory for high-density, low-power, and high-speed three-dimensional memory[J]. Science Advances, 2021, 7(3): eabe1341.
11	Liao Y M, Tai H, Liu W T, et al. Novel poly gate shaping by wet etch process in 2xnm NAND flash device and beyond[J]. ECS Transactions, 2014, 61: 63-65.
12	Luo L Y, Lu Z Y, Zou X Q, et al. An effective process to remove etch damage prior to selective epitaxial growth in 3D NAND flash memory[J]. Semiconductor Science Technology, 2019, 34(9): 095004.
13	Park T, Kim T, Son C, et al. Kinetic effect of additives in high temperature phosphoric acid on the etching of Si₃N₄/SiO₂ [J]. ECS Transactions, 2019, 92(2): 149-154.
14	Kim T, Son C, Park T, et al. Effect of SiO₂ etching inhibitor to H₃PO₄ for the selective Si₃N₄ wet etching of 3D NAND[J]. ECS Transactions, 2019, 92(2): 137-142.
15	Liu L, Kashkoush I, Chen G, et al. Maintaining a stable etch selectivity between silicon nitride and silicon dioxide in a hot phosphoric acid bath[J]. ECS Transactions, 2007, 11(2): 63-70.
16	Son C, Lim S. Editors' choice—control of Si₃N₄ etching kinetics and selectivity to SiO₂ by the additives in superheated water[J]. ECS Journal of Solid State Science and Technology, 2019, 8(4): N85-N91.
17	Seo D, Bae J S, Oh E, et al. Selective wet etching of Si₃N₄/SiO₂ in phosphoric acid with the addition of fluoride and silicic compounds[J]. Microelectronic Engineering, 2014, 118: 66-71.
18	Teng K W, Tu S H, Hu S W, et al. Abnormal redeposition of silicate from Si₃N₄ etching onto SiO₂ surfaces in flash memory manufacturing[J]. Journal of Materials Science, 2020, 55(3): 1126-1135.
19	Zhou Z H, Wu Y W, Ling H Q, et al. Redeposition mechanism on silicon oxide layers during selective etching process in 3D NAND manufacture[J]. Journal of Industrial and Engineering Chemistry, 2023, 119: 218-225.
20	Kim T, Son C, Park T, et al. Oxide regrowth mechanism during silicon nitride etching in vertical 3D NAND structures[J]. Microelectronic Engineering, 2020, 221: 111191.
21	Knotter D M. The Chemistry of Wet Etching[M]. Hoboken: John Wiley & Sons, Inc., 2011.
22	Bassett D, Printz W, Furukawa T. Etching of silicon nitride in 3D NAND structures[C]// International Symposium on Semiconductor Cleaning Science and Technology, Meetings of the Electrochemical Society. 2015.
23	Park S, Jung H, Min K A, et al. Unraveling the selective etching mechanism of silicon nitride over silicon dioxide by phosphoric acid: first-principles study[J]. Applied Surface Science, 2021, 551: 149376.
24	Park T, Son C, Kim T, et al. Understanding of Si₃N₄-H₃PO₄ reaction chemistry for the control of Si₃N₄ dissolution kinetics[J]. Journal of Industrial and Engineering Chemistry, 2021, 102: 146-154.
25	Joseph T, White D. Understanding the role of concentrated phosphoric acid solutions as high-temperature silicon nitride etchants[J]. Journal of Solid State Science and Technology, 2021, 10(2): 024006.
26	Yang C, Pham J. Characteristic study of silicon nitride films deposited by LPCVD and PECVD[J]. Silicon, 2018, 10(6): 2561-2567.
27	Yin L, Farimani A B, Min K, et al. Mechanisms for hydrolysis of silicon nanomembranes as used in bioresorbable electronics[J]. Advanced Materials, 2015, 27(11): 1857-1864.
28	Lide D R. CRC Handbook of Chemistry and Physics[M]. Boca Raton: CRC Press, 2004.
29	Krueger R A, Vilčiauskas L, Melchior J P, et al. Mechanism of efficient proton conduction in diphosphoric acid elucidated via first-principles simulation and NMR[J]. The Journal of Physical Chemistry B, 2015, 119(52): 15866-15875.
30	Rudolph W W. Raman-spectroscopic measurements of the first dissociation constant of aqueous phosphoric acid solution from 5 to 301℃[J]. Journal of Solution Chemistry, 2012, 41(4): 630-645.
31	Melchior J P, Kreuer K D, Maier J. Proton conduction mechanisms in the phosphoric acid-water system (H₄P₂O₇-H₃PO₄·2H₂O): a ¹H, ³¹P and ¹⁷O PFG-NMR and conductivity study[J]. Physical Chemistry Chemical Physics, 2016, 19(1): 587-600.
32	Aihara Y, Sonai A, Hattori M, et al. Ion conduction mechanisms and thermal properties of hydrated and anhydrous phosphoric acids studied with ¹H, ²H, and ³¹P NMR[J]. The Journal of Physical Chemistry. B, 2006, 110(49): 24999-25006.
33	Bassett D W, Rotondaro A L P. Silica formation during etching of silicon nitride in phosphoric acid[J]. Solid State Phenomena, 2016, 255: 285-290.

[1]	黄娜, 蒋云龙, 王东涵, 吴明婷, 蒋雪莉, 钟豫. 通道振动频率对超临界正癸烷裂解流动换热影响的数值研究[J]. 化工学报, 2025, 76(1): 173-183.
[2]	贾艳萍, 马艳菊, 管文昕, 杨彬, 张健, 张兰河. 响应面法优化Fe⁰/H₂O₂体系降解染料废水的工艺条件及机理[J]. 化工学报, 2025, 76(1): 348-362.
[3]	郭珊, 田雨, 徐永滨, 王朋, 刘治明. 废旧电池再资源化制备高性能中熵合金催化剂及其性能研究[J]. 化工学报, 2025, 76(1): 231-240.
[4]	赵焕娟, 包颖昕, 于康, 刘婧, 钱新明. 多元组分爆轰不稳定性定量实验研究[J]. 化工学报, 2024, 75(S1): 339-348.
[5]	徐宏标, 杨亮, 李子栋, 刘道平. 盐水微滴/泡沫铜复合体系中甲烷水合物生成动力学研究[J]. 化工学报, 2024, 75(9): 3287-3296.
[6]	祝赫, 张仪, 齐娜娜, 张锴. 欧拉-欧拉双流体模型中颗粒黏性对液固散式流态化的影响[J]. 化工学报, 2024, 75(9): 3103-3112.
[7]	丁湧, 李文建, 陈昭宇, 曹立辉, 刘轩铭, 任强强, 胡松, 向军. 废旧晶体硅光伏组件EVA有氧热解动力学与产物特性[J]. 化工学报, 2024, 75(9): 3310-3319.
[8]	唐昊, 胡定华, 李强, 张轩畅, 韩俊杰. 抗加速度双切线弧流道内气泡动力学行为数值与可视化研究[J]. 化工学报, 2024, 75(9): 3074-3082.
[9]	曾港, 陈林, 杨董, 袁海专, 黄彦平. 矩形通道内超临界CO₂局部热流场可视化实验[J]. 化工学报, 2024, 75(8): 2831-2839.
[10]	罗莉, 陈文尧, 张晶, 钱刚, 周兴贵, 段学志. 氧化铝结构与表面性质调控及其催化甲醇脱水制二甲醚性能研究[J]. 化工学报, 2024, 75(7): 2522-2532.
[11]	吴邦汉, 林定标, 陆海峰, 郭晓镭, 刘海峰. 竖直管气动物流传输系统管道压降和传送瓶输送特性[J]. 化工学报, 2024, 75(7): 2465-2473.
[12]	马君霞, 李林涛, 熊伟丽. 基于Tri-training GPR的半监督软测量建模方法[J]. 化工学报, 2024, 75(7): 2613-2623.
[13]	陈彦伶, 袁炳志, 王丽伟, 张宸, 朱涵玉. 非平衡条件下金属氯化物-氨工质对的吸附动力学研究[J]. 化工学报, 2024, 75(6): 2252-2261.
[14]	霍宗伟, 牛亚宾, 潘艳秋. 油水膜分离中高黏度油滴行为研究和影响因素分析[J]. 化工学报, 2024, 75(6): 2262-2273.
[15]	杨艳, 郭亚丽, 于硕文, 潘泊年, 沈胜强. 液氨喷射泵热力性能的计算分析[J]. 化工学报, 2024, 75(6): 2134-2142.
