Characteristics of gas-liquid two-phase heat transfer in a confined vapor chamber

doi:10.11949/0438-1157.20240225

Abstract

Abstract:

Vapor chamber is one of the devices to satisfy the thermal management of electronics. With the development of compact electronic components, the size of the vapor chamber is limited. To investigate the heat transfer characteristics of gas-liquid two-phase in a confined vapor chamber, the visualization experimental system consisting of an evaporator plate, a condenser plate, and a square quartz glass was developed in this paper. In this paper, the effects of space height and heating power on the heat transfer characteristics of vapor chambers were investigated. The interaction regimes of boiling and condensation in chambers with different heights were revealed. The experimental results show that the bubble behavior in the vapor chamber with 50 mm height is similar to that of pool boiling, whereas there is a large difference in the vapor chamber with 10 mm height. Under the lower heating power condition, the bubble in the vapor chamber with 10 mm height grows, and contacts the condensation wall and then rebounds back. While under the higher heating power condition, it is found that a bubble film on the condensation wall is generated. Under the heating power of 65 W, the thermal resistance of the vapor chamber with 50 mm height is 3.74 times of that of the vapor chamber with 10 mm height. This result shows that the heat transfer performance of the vapor chamber with lower height is deteriorated. It is hoped that the structure of the confined vapor chamber needs to be further designed and optimized to achieve the higher demand for electronic thermal management applications.

Key words: confined vapor chamber, bubble, heat transfer, nucleation, phase change

摘要：

蒸汽腔是实现电子元件热管理的高效设备之一。随着电子元件的紧凑化发展，蒸汽腔的尺寸受到限制。为探究受限蒸汽腔内气液两相传热特性，本文设计了由蒸发板、冷凝板和方形石英玻璃组成的可视化实验系统。探究了空间高度和加热功率对蒸汽腔传热特性的影响，揭示了不同高度腔体内的沸腾和冷凝相互作用机制。结果发现：空间高度为50 mm的蒸汽腔内气泡行为与池沸腾相似，而10 mm高度蒸汽腔则存在较大差异。在较低加热功率下，10 mm高度蒸汽腔内气泡成核生长后接触冷凝壁面并反弹回落；而在较高加热功率下有气泡膜产生。当输入加热功率为65 W时，10 mm高度受限蒸汽腔的热阻为50 mm高度受限蒸汽腔的3.74倍。该结果表明，较低高度的受限蒸汽腔传热性能恶化，受限蒸汽腔结构有待进一步设计优化，以实现更高要求的电子热管理应用。

关键词: 受限蒸汽腔, 气泡, 传热, 成核, 相变

CLC Number:

TK 172.4

Siyu QIN, Yijia LIU, Jiacheng YANG, Wei TONG, Liwen JIN, Xiangzhao MENG. Characteristics of gas-liquid two-phase heat transfer in a confined vapor chamber[J]. CIESC Journal, 2024, 75(S1): 47-55.

秦思宇, 刘艺佳, 杨佳成, 佟薇, 金立文, 孟祥兆. 受限蒸汽腔内气液两相传热特性研究[J]. 化工学报, 2024, 75(S1): 47-55.

Figures/Tables 7

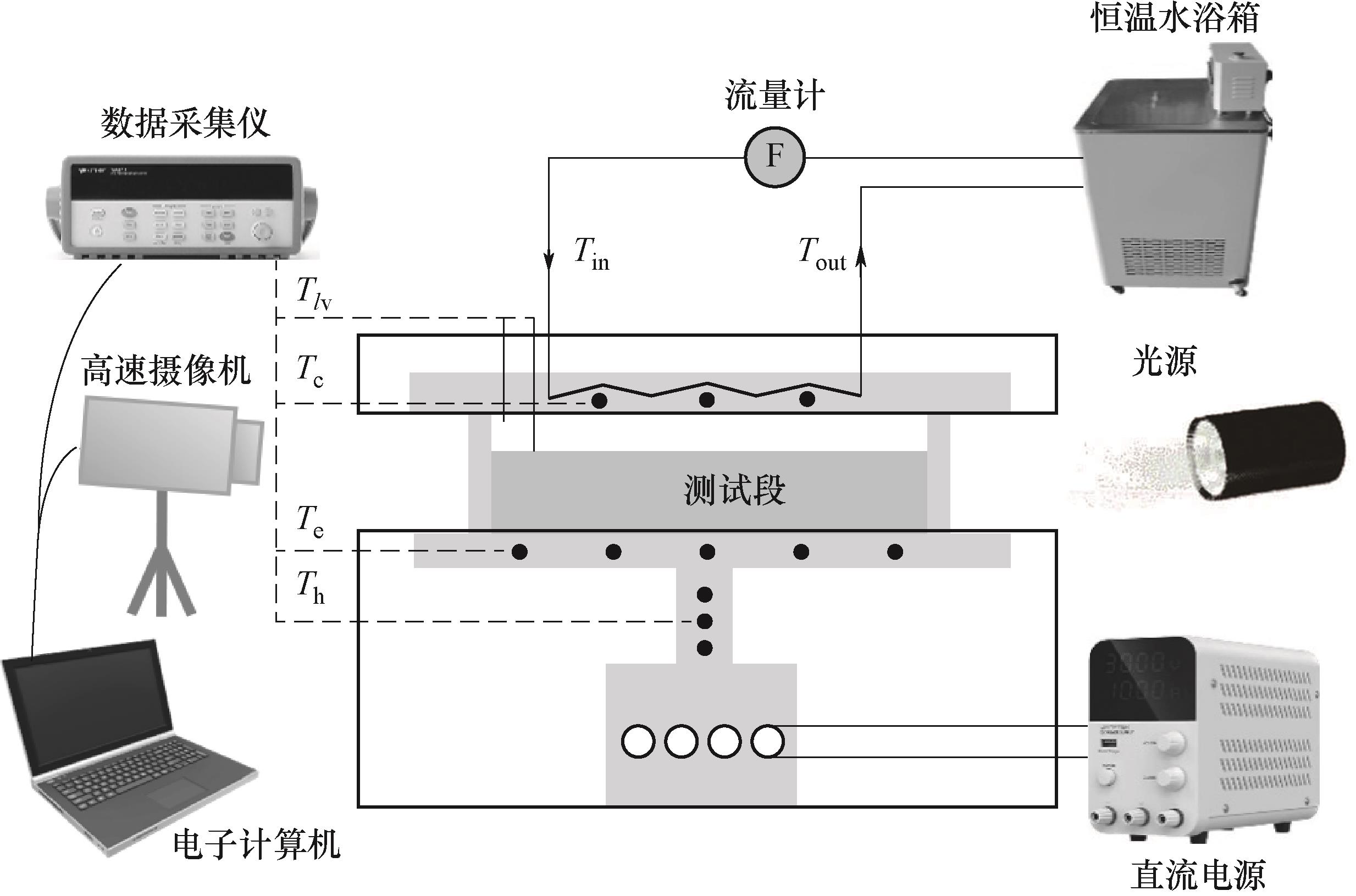

Fig.1 Schematic diagram of the experimental system

Fig.2 Bubble behavior characteristics in the confined vapor chamber with 50 mm height

Fig.3 Condensation in the confined vapor chamber with 50 mm height

Fig.4 Bubble behavior characteristics in the confined vapor chamber with 10 mm height

Fig.5 Condensation in the confined vapor chamber with 10 mm height

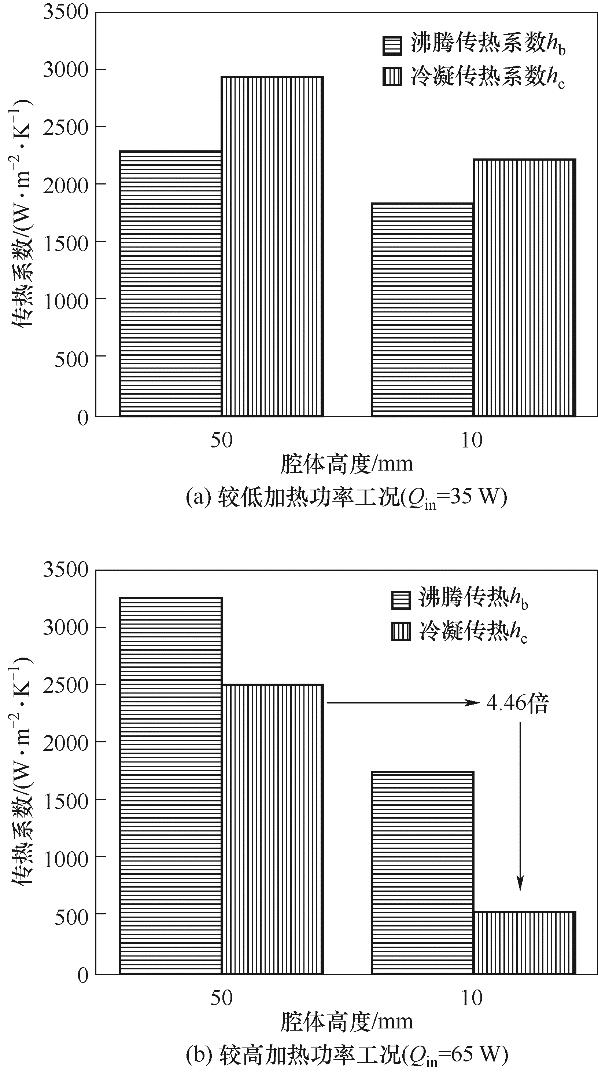

Fig.6 Effect of heating power on heat transfer coefficients of confined vapor chamber with different heights

Fig.7 Effect of heating power on thermal resistance of confined vapor chamber with different heights

References 35

1	中国通服数字基建产业研究院. 中国数据中心产业发展白皮书[R]. 2023.
	China General Services Digital Infrastructure Industry Research Institute. China data center industry development white paper[R]. 2023.
2	王飞, 王建民, 邵双全. 数据中心冷却系统多级传热温差分析[J]. 化工学报, 2021, 72(S1): 348-355.
	Wang F, Wang J M, Shao S Q. Multi-stage heat transfer temperature difference analysis of data center cooling system[J]. CIESC Journal, 2021, 72(S1): 348-355.
3	Shao S Q, Liu H C, Zhang H N, et al. Experimental investigation on a loop thermosyphon with evaporative condenser for free cooling of data centers[J]. Energy, 2019, 185: 829-836.
4	Velardo J, Date A, Singh R, et al. Experimental investigation of a vapour chamber heat spreader with hybrid wick structure[J]. International Journal of Thermal Sciences, 2019, 140: 28-35.
5	Huang G, Liu W, Luo Y, et al. Fabrication and thermal performance of mesh-type ultra-thin vapor chambers[J]. Applied Thermal Engineering, 2019, 162:114263.
6	Xu J Y, Hong F J, Zhang C Y. Experimental and parametric study in pool boiling enhancement with self-induced jet impingement on the microporous copper surface using R1336mzz(Z)[J]. International Communications in Heat and Mass Transfer, 2024, 151: 107214.
7	Meng F X, Zhang Q, Lin Y L, et al. Field study on the performance of a thermosyphon and mechanical refrigeration hybrid cooling system in a 5G telecommunication base station[J]. Energy, 2022, 252: 123744.
8	Sun Z Q, Fan R J, Zheng N B. Thermal management of a simulated battery with the compound use of phase change material and fins: experimental and numerical investigations[J]. International Journal of Thermal Sciences, 2021, 165: 106945.
9	申利梅, 胡博兴, 谢雨霏, 等. 超薄平板热管传热性能的实验研究[J]. 化工学报, 2023, 74(S1): 198-205.
	Shen L M, Hu B X, Xie Y F, et al. Experimental study on heat transfer performance of ultra-thin flat heat pipe[J]. CIESC Journal, 2023, 74(S1): 198-205.
10	杨辉著, 兰精灵, 杨月, 等. 高功率平板热管传热性能的实验研究[J]. 化工学报, 2023, 74(4): 1561-1569.
	Yang H Z, Lan J L, Yang Y, et al. Experimental study on thermal performance of high power flat heat pipe[J]. CIESC Journal, 2023, 74(4): 1561-1569.
11	Qin S Y, Liu Y J, Ji R Y, et al. Effect of compact thermosyphon height on boiling curve and thermal performance: a visualization analysis[J]. Applied Thermal Engineering, 2024, 240: 122142.
12	Qin S Y, Ji R Y, Miao C Y, et al. Review of enhancing boiling and condensation heat transfer: surface modification[J]. Renewable and Sustainable Energy Reviews, 2024, 189: 113882.
13	Zhang J, Zhu X W, Mondejar M E, et al. A review of heat transfer enhancement techniques in plate heat exchangers[J]. Renewable and Sustainable Energy Reviews, 2019, 101: 305-328.
14	Patankar G, Weibel J A, Garimella S V. On the transient thermal response of thin vapor chamber heat spreaders: governing mechanisms and performance relative to metal spreaders[J]. International Journal of Heat and Mass Transfer, 2019, 136: 995-1005.
15	Patankar G, Weibel J A, Garimella S V. Working-fluid selection for minimized thermal resistance in ultra-thin vapor chambers[J]. International Journal of Heat and Mass Transfer, 2017, 106: 648-654.
16	Zhang H N, Shao S Q, Tian C Q, et al. A review on thermosyphon and its integrated system with vapor compression for free cooling of data centers[J]. Renewable and Sustainable Energy Reviews, 2018, 81: 789-798.
17	Meng J H, Gao D Y, Liu Y, et al. Heat transfer mechanism and structure design of phase change materials to improve thermoelectric device performance[J]. Energy, 2022, 245: 123332.
18	Wang X Y, Yao H C, Li J, et al. Experimental and numerical investigation on heat transfer characteristics of ammonia thermosyhpons at shallow geothermal temperature[J]. International Journal of Heat and Mass Transfer, 2019, 136: 1147-1159.
19	Ma X J, Xu J L, Xie J. In-situ phase separation to improve phase change heat transfer performance[J]. Energy, 2021, 230: 120845.
20	Cheng C X, Lai Z X, Jin T X, et al. Rapid nucleation and growth of tetrafluoroethane hydrate in the cyclic process of boiling–condensation[J]. Energy, 2022, 256: 124647.
21	Liu H, Gan W, Yao H C, et al. Visualization and heat transfer comparative analysis of two phase closed thermosyphon[J]. Applied Thermal Engineering, 2022, 217: 119172.
22	Lu G, Wang X D, Yan W M. Nucleate boiling inside small evaporating droplets: an experimental and numerical study[J]. International Journal of Heat and Mass Transfer, 2017, 108: 2253-2261.
23	魏进家, 刘蕾, 杨小平. 面向高热流电子器件散热的环路热管研究进展[J]. 化工学报, 2023, 74(1): 60-73.
	Wei J J, Liu L, Yang X P. Research progress of loop heat pipes for heat dissipation of high-heat-flux electronic devices[J]. CIESC Journal, 2023, 74(1): 60-73.
24	Wang H W, Bai P F, Zhou H L, et al. An integrated heat pipe coupling the vapor chamber and two cylindrical heat pipes with high anti-gravity thermal performance[J]. Applied Thermal Engineering, 2019, 159: 113816.
25	Yao F, Miao S S, Zhang M C, et al. An experimental study of an anti-gravity vapor chamber with a tree-shaped evaporator[J]. Applied Thermal Engineering, 2018, 141: 1000-1008.
26	Bottini J L, Zhu L, Ooi Z J, et al. Experimental study of boiling flow in a vertical heated annulus with local two-phase measurements and visualization[J]. International Journal of Heat and Mass Transfer, 2020, 155: 119712.
27	刘腾庆, 闫文韬, 杨鑫, 等. 强化平板热管传热性能的研究进展[J]. 化工学报, 2021, 72(11): 5468-5480.
	Liu T Q, Yan W T, Yang X, et al. Research progress on enhanced thermal performance of flat plate heat pipe[J]. CIESC Journal, 2021, 72(11): 5468-5480.
28	Yao S C, Chang Y. Pool boiling heat transfer in a confined space[J]. International Journal of Heat and Mass Transfer, 1983, 26(6): 841-848.
29	Surtaev A, Serdyukov V, Zhou J J, et al. An experimental study of vapor bubbles dynamics at water and ethanol pool boiling at low and high heat fluxes[J]. International Journal of Heat and Mass Transfer, 2018, 126: 297-311.
30	Xia G D, Wang W, Cheng L X, et al. Visualization study on the instabilities of phase-change heat transfer in a flat two-phase closed thermosyphon[J]. Applied Thermal Engineering, 2017, 116: 392-405.
31	Narcy M, Lips S, Sartre V. Experimental investigation of a confined flat two-phase thermosyphon for electronics cooling[J]. Experimental Thermal and Fluid Science, 2018, 96: 516-529.
32	Wang G, Wang T, Hu T, et al. Visualization research and simulation analysis on flat plate heat pipe[J]. Heat and Mass Transfer, 2022, 58(9): 1649-1665.
33	Kumar N, Urkude N, Sonawane S S, et al. Experimental study on pool boiling and critical heat flux enhancement of metal oxides based nanofluid[J]. International Communications in Heat and Mass Transfer, 2018, 96: 37-42.
34	Wang C, Yao F, Shi J, et al. Visualization study on thermo-hydrodynamic behaviors of a flat two-phase thermosyphon[J]. Energies, 2018, 11(9): 2295.
35	Nishio S, Tanaka H. Visualization of boiling structures in high heat-flux pool-boiling[J]. International Journal of Heat and Mass Transfer, 2004, 47(21): 4559-4568.
