Simulation study on the photothermal conversion performance of water-based carbon black nanofluid under swirling flow

doi:10.11949/0438-1157.20240877

Abstract

Abstract:

Rotor swirling flow is one of the effective ways to dynamically enhance nanofluid heat collection. This study analyzed the action of swirling flow of two blade rotors in a closed solar collector tube through numerical simulation, and the effects of irradiation intensity and nanofluid concentration on the heat collection performance of water-based carbon black nanofluid under the action of swirling flow. The results show that the swirl effect can significantly improve the heat collection performance of nanofluids, and the temperature rise can be increased by 33.81% under the action of a single rotor alone. Within the range of rotor number research (0, 1, 2, 4), the disturbance flipping degree of the nanofluid increases with the increase of rotor number, and the heat collection performance and temperature uniformity are significantly improved. Under the action of swirling flow, within the range of irradiation intensity research (500—1500 W·m^-2), the temperature rise of water-based carbon black nanofluid is linearly positively correlated with irradiation intensity. For every 100 W·m^-2 increase in irradiation intensity, the temperature rise inside the collector tube can be increased by 2.7℃. Within the range of nanofluid concentration research [0%—0.010% (mass)], the amount of radiation absorbed per unit volume of nanofluid increases with increasing concentration, and the change in concentration will not affect the uniformity of the temperature distribution in the heat collector. This study simulated the photothermal conversion performance of nanofluids under the action of two blade rotors, providing a new direction for dynamic solar energy collection.

Key words: two blade rotor, swirling flow, nanofluid, photothermal conversion

摘要：

转子旋流是动态强化纳米流体集热的有效方式之一。通过数值模拟分析了在密闭太阳能集热管中，两叶片转子的旋流作用及在旋流作用下辐照强度、纳米流体浓度对水基炭黑纳米流体集热性能的影响。结果表明：旋流作用可明显提高纳米流体集热性能，仅在单个转子作用下温升能提高33.81%；在转子数量研究范围内（0、1、2、4），纳米流体随转子数量的增多扰动翻转程度增大，集热性能、温度均匀性均有明显提升；旋流作用下，在辐照强度研究的范围内（500~1500 W·m^-2），水基炭黑纳米流体温升量与辐照强度呈线性正相关，辐照强度每增加100 W·m^-2，集热管内温升可提高2.7℃；在纳米流体浓度研究的范围内[0~0.010%（质量分数）]，纳米流体单位体积吸收的辐射量随浓度增加而增加，浓度变化不会影响集热管内温度分布的均匀性。本研究模拟了纳米流体在两叶片转子作用下的光热转换性能，为太阳能动态集热提供了新的方向。

关键词: 两叶片转子, 旋流, 纳米流体, 光热转换

CLC Number:

TK 512

Fengshi XU, Lisheng CHENG, Xiahua ZUO, Xiaoyu YU, Hua YAN, Weimin YANG, Ying AN. Simulation study on the photothermal conversion performance of water-based carbon black nanofluid under swirling flow[J]. CIESC Journal, 2025, 76(4): 1523-1533.

徐逢时, 程礼盛, 左夏华, 于晓宇, 阎华, 杨卫民, 安瑛. 旋流作用下水基炭黑纳米流体光热转换性能模拟研究[J]. 化工学报, 2025, 76(4): 1523-1533.

Figures/Tables 19

Fig.1 Model of a tubular swirl enhanced collector

Fig.2 Geometric model of swirl enhanced collector

Table 1 Structural parameters of the rotor

转子类型	叶片数量m/个	外径D/mm	长度l/mm	螺距p/mm
螺旋两叶片转子	2	22	27.5	200

Fig.3 Local grid division diagram

Fig.4 Grid independence test

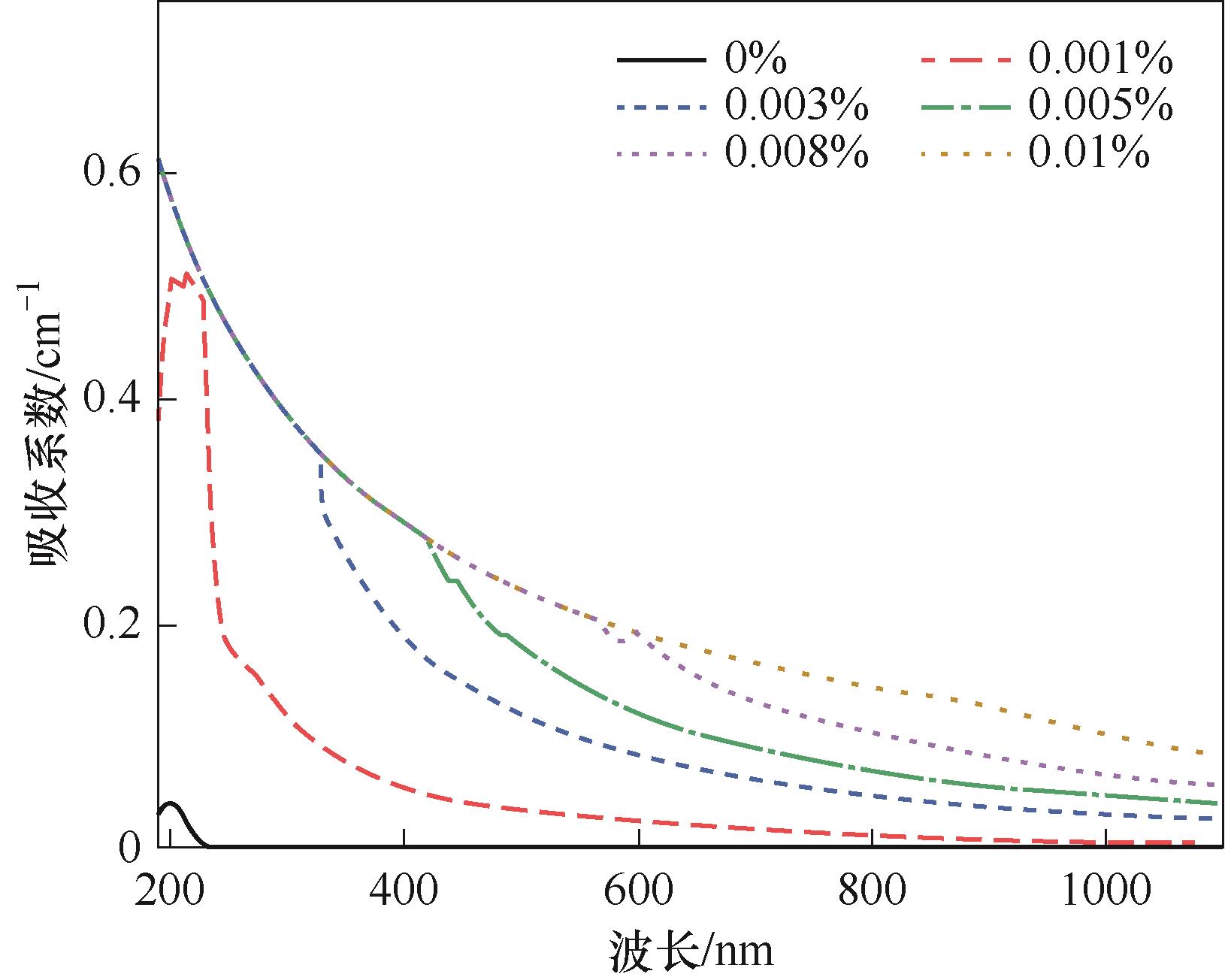

Fig.5 Absorption coefficients of different concentrations of water-based carbon black nanofluids in the wavelength range of 190—1100 nm

Table 2 Thermophysical property parameters of water-based carbon black nanofluids

质量分数ω/%	密度ρ/ (kg∙m^-3)	黏度μ/ (kg∙m^-1∙s^-1)	热导率K/ (W∙m^-1∙K^-1)	比热容c/ (J∙g^-1∙K^-1)
0.001	993.40	0.87	0.613	4.212
0.003	993.41	0.92	0.614	4.210
0.005	993.41	0.96	0.616	4.207
0.008	993.42	1.00	0.617	4.204
0.010	993.42	1.03	0.621	4.202

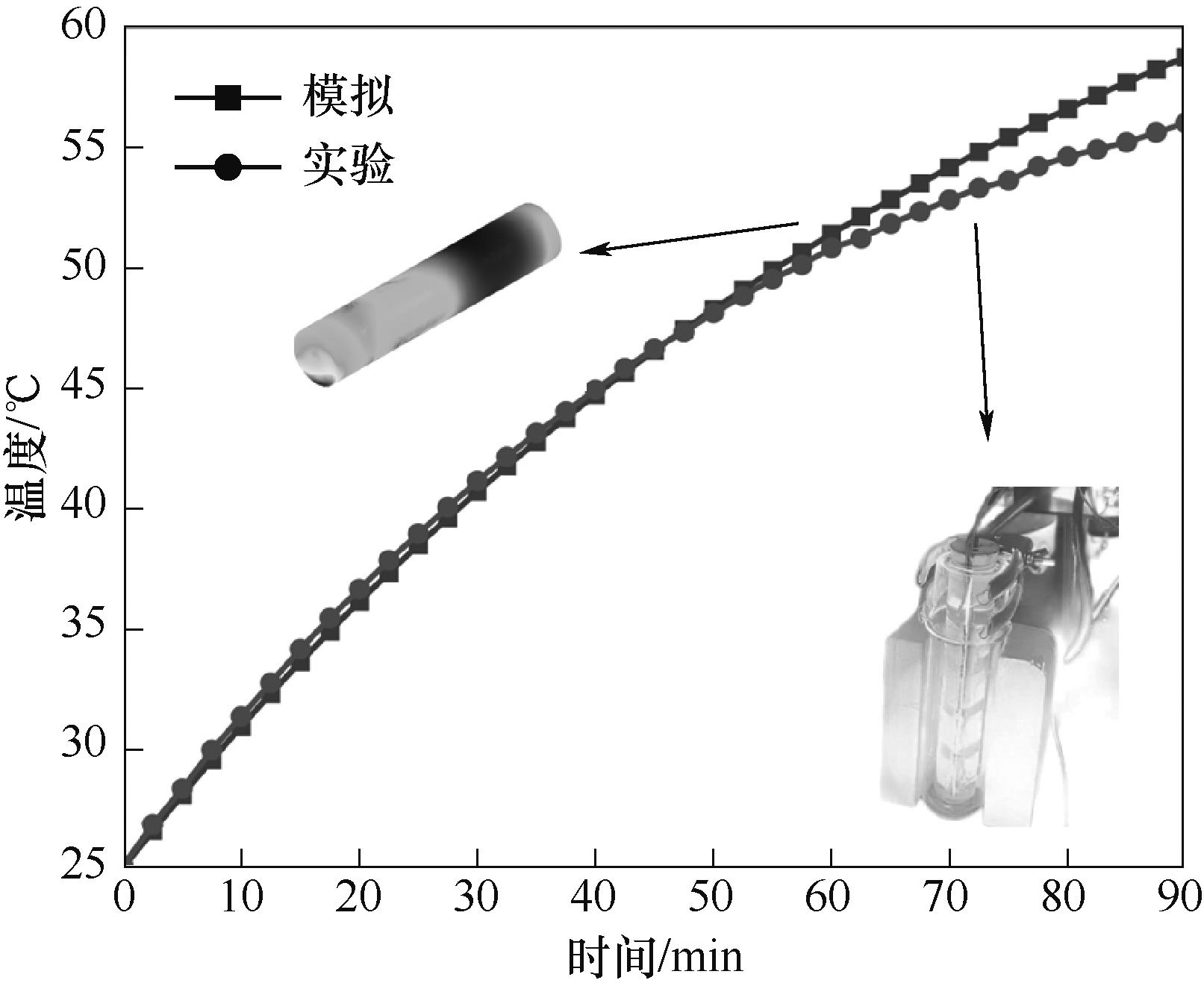

Fig.6 Comparison of simulation and experimental results

Fig.7 Simulated temperature rise of two blade rotors under different numbers of rotors

Fig.8 Temperature cloud map of X-Z cross-sectional with different numbers of rotors

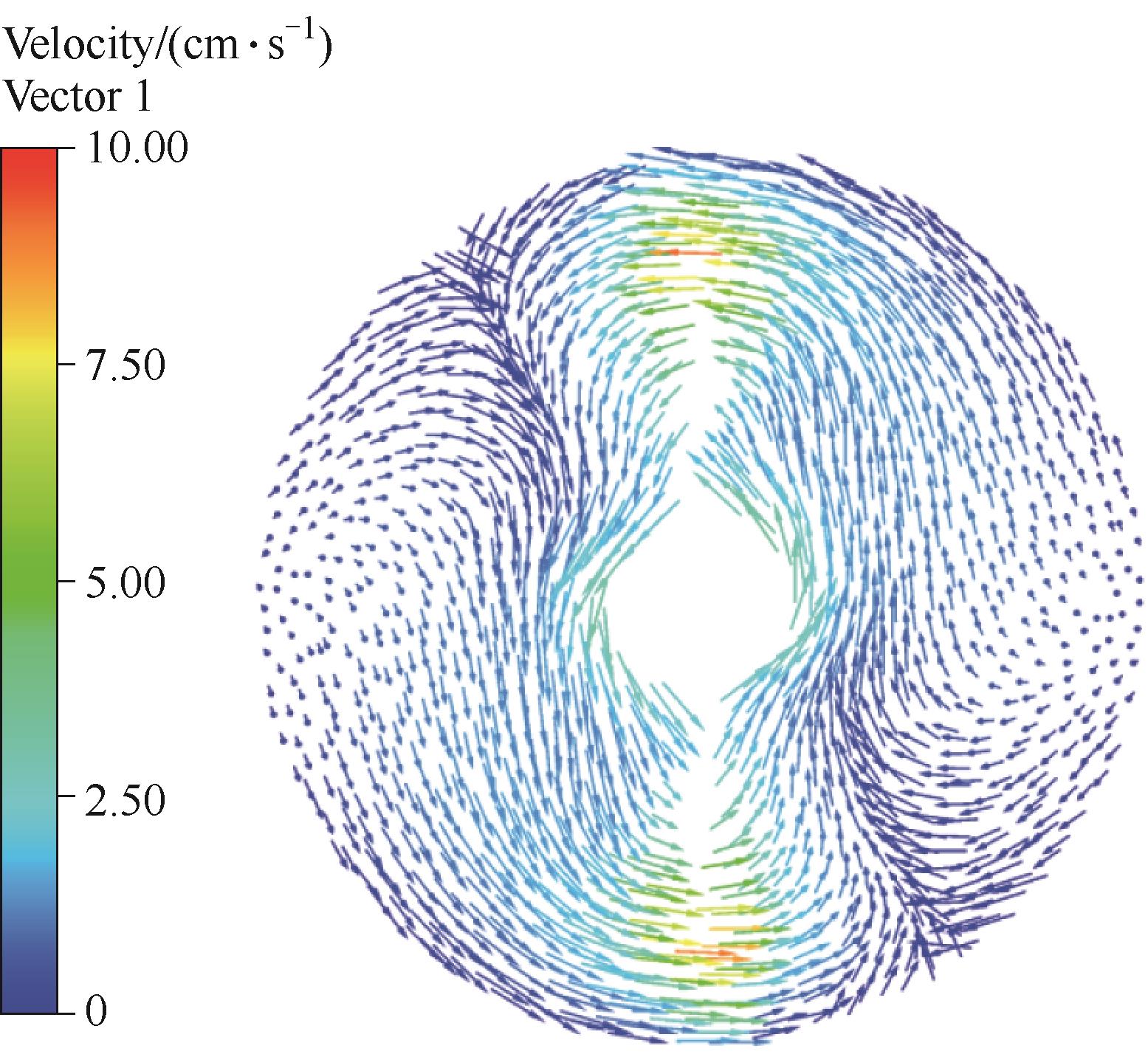

Fig.9 Velocity vector diagram of radial section of two blade rotor

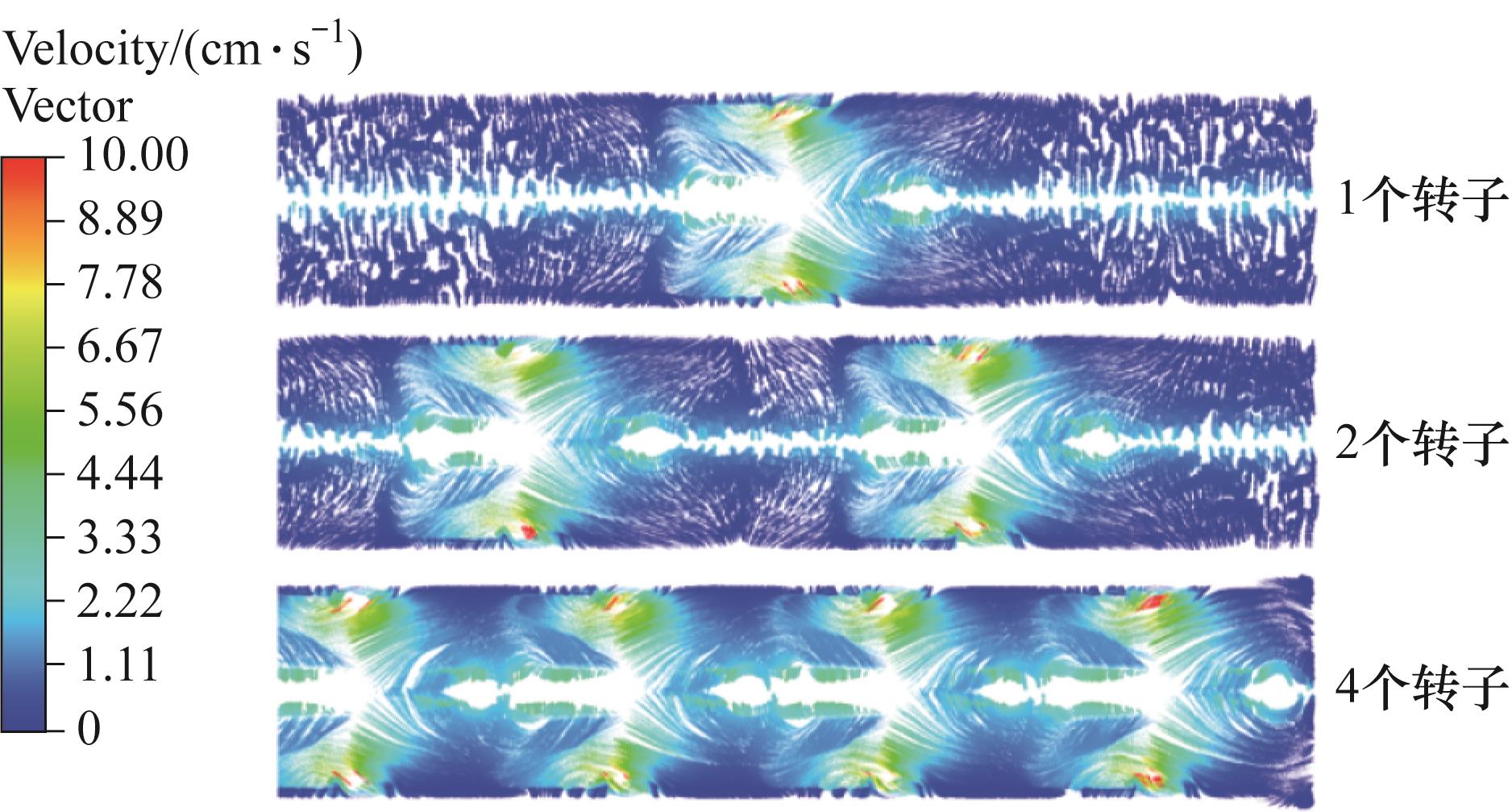

Fig.10 Velocity vector cloud map of X-Z cross-sectional with different numbers of rotors

Fig.11 Simulated temperature rise under different irradiation intensities

Fig.12 Final temperature rise under different irradiation intensities

Fig.13 Temperature cloud map of X-Z cross-sectional at t=5400 s

Fig.14 Simulated temperature rise of two bladed rotors under different nanofluid concentrations

Fig.15 Cloud map of radial section unit volume absorbed radiation at different nanofluid concentrations

Fig.16 Total absorbed energy at different nanofluid concentrations

Fig.17 Temperature cloud map of X-Z cross-sectional at t=5400 s
