Experimental study on cyclic heat storage performance of TiO2-doped calcium based materials under pressurized carbonation

doi:10.11949/0438-1157.20240922

Abstract

Abstract:

Pressurizing the heat release (carbonation) process in CaCO₃/CaO thermochemical energy storage cycle can significantly improve the cyclic heat storage performance of calcium-based materials. The carbonation cycle heat storage performance of TiO₂-doped calcium-based materials (CaCO₃-TiO₂) under pressurized conditions was studied. The influences of TiO₂ doping amount, carbonation pressure, temperature and cycle times on the heat storage performance of CaCO₃-TiO₂ were discussed. The results show that when doped with 5% (mass) TiO₂, CaCO₃-5TiO₂ is more alkaline than pure CaCO₃, the carbonation reaction proceeds more easily, and the cyclic heat storage performance is the best. The increase of carbonation pressure can enhance the heat storage performance of CaCO₃-5TiO₂, but the enhancement range decreases with the increase of pressure. Under the best working condition (0.8 MPa, 850℃), after 30 cycles, the heat storage density of CaCO₃-5TiO₂ is 1829 kJ/kg, which is 23% higher than that under normal pressure, and 2.9 times higher than that of pure CaCO₃ under normal pressure. SEM/TEM and BET characterization shows that CaTiO₃ produced by the reaction of TiO₂ with CaO effectively relieves the sintering and agglomeration of the material. After 30 cycles, the specific surface area and pore volume of calcined CaCO₃-5TiO₂ are 2 times and 1.4 times that of calcined pure CaCO₃. It has more stable pressurized carbonation cycle heat storage performance.

Key words: thermochemical energy storage, calcium-based materials, pressurized carbonation, carbon dioxide, adsorption, stability

摘要：

在CaCO₃/CaO热化学储能循环的释热（碳酸化）过程中，加压可显著提高钙基材料的循环储热性能。本文对TiO₂掺杂钙基材料（CaCO₃-TiO₂）在加压条件下的碳酸化循环储热性能展开研究，重点讨论了TiO₂掺杂量、碳酸化压力、循环次数等对CaCO₃-TiO₂储热性能的影响。结果表明：掺杂5%（质量分数）TiO₂时，CaCO₃-5TiO₂比纯CaCO₃碱性更强，碳酸化反应更易进行，循环储热性能最好。碳酸化压力升高可以增强CaCO₃-5TiO₂的储热性能，但增强幅度随着压力升高而减小。在最佳工况（0.8 MPa，850℃）下循环30次后，CaCO₃-5TiO₂储热密度是常压下纯CaCO₃的2.9倍。SEM/TEM和BET表征显示，TiO₂与CaO反应生成的CaTiO₃有效缓解了材料的烧结与团聚，循环30次后，煅烧CaCO₃-5TiO₂的比表面积和孔容是煅烧纯CaCO₃的2倍和1.4倍，具有更稳定的加压碳酸化循环储热性能。

关键词: 热化学储能, 钙基材料, 加压碳酸化, 二氧化碳, 吸附, 稳定性

CLC Number:

TK 02

Yao FU, Yingjuan SHAO, Wenqi ZHONG. Experimental study on cyclic heat storage performance of TiO₂-doped calcium based materials under pressurized carbonation[J]. CIESC Journal, 2025, 76(3): 1180-1190.

伏遥, 邵应娟, 钟文琪. TiO₂掺杂钙基材料加压碳酸化循环储热性能实验研究[J]. 化工学报, 2025, 76(3): 1180-1190.

Figures/Tables 17

Fig.1 Preparation process of TiO2-doped calcium based material

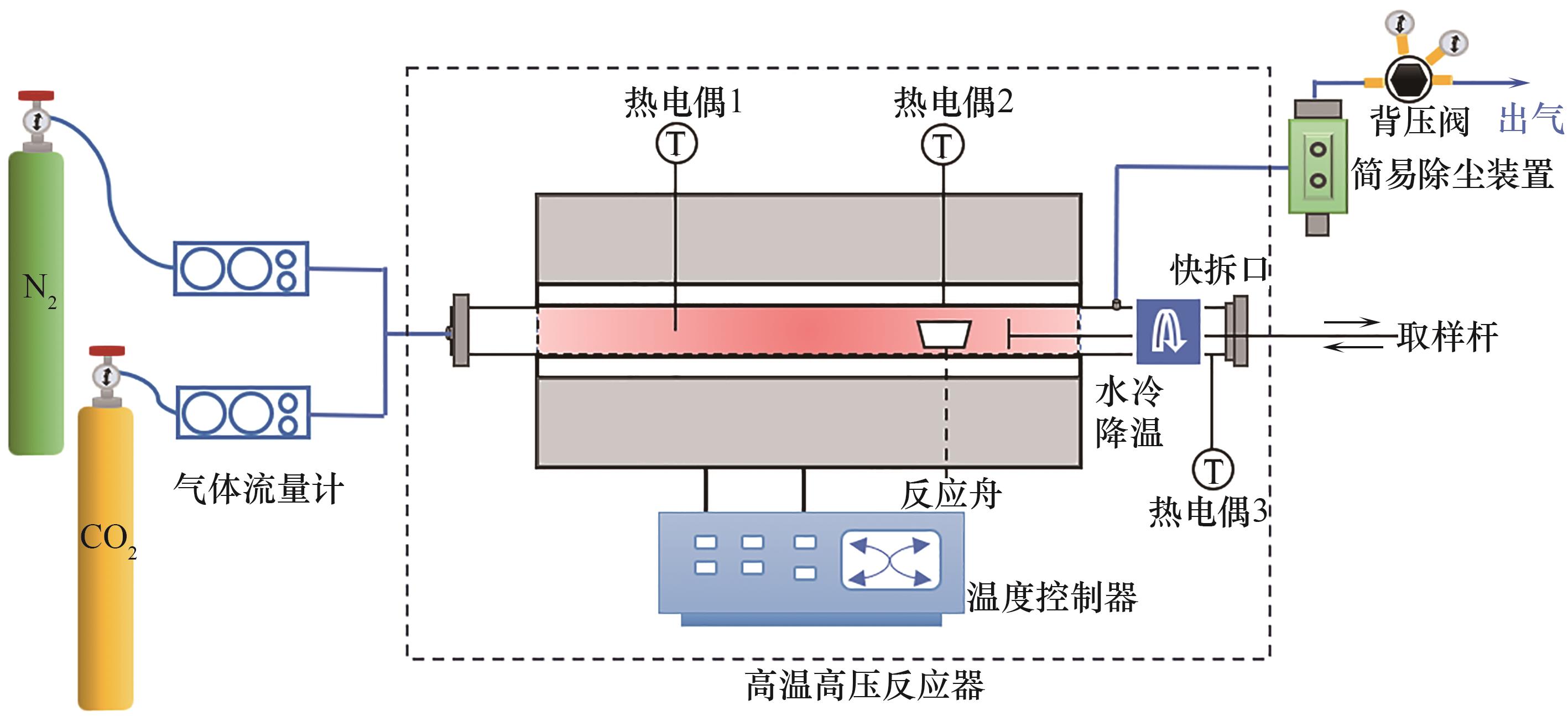

Fig.2 Schematic diagram of the pressurized fixed bed

Table 1 Experimental design scheme

实验组	TiO₂掺杂量/%	碳酸化温度/℃	碳酸化压力/MPa	循环次数
1	0	850	0.8	15
2	2	850	0.8	15
3	5	850	0.8	15
4	10	850	0.8	15
5	15	850	0.8	15
6	20	850	0.8	15
7	5	850	0.1	10
8	5	850	0.2	10
9	5	850	0.4	10
10	5	850	0.6	10
11	5	750	0.8	10
12	5	800	0.8	10
13	5	900	0.8	10
14	0	850	0.1	30
15	0	850	0.8	30
16	5	850	0.1	30
17	5	850	0.8	30

Fig.3 XRD patterns of calcined pure CaCO3 and calcined CaCO3-5TiO2

Fig.4 CO2-TPD spectra of calcined CaCO3 and calcined CaCO3-5TiO2

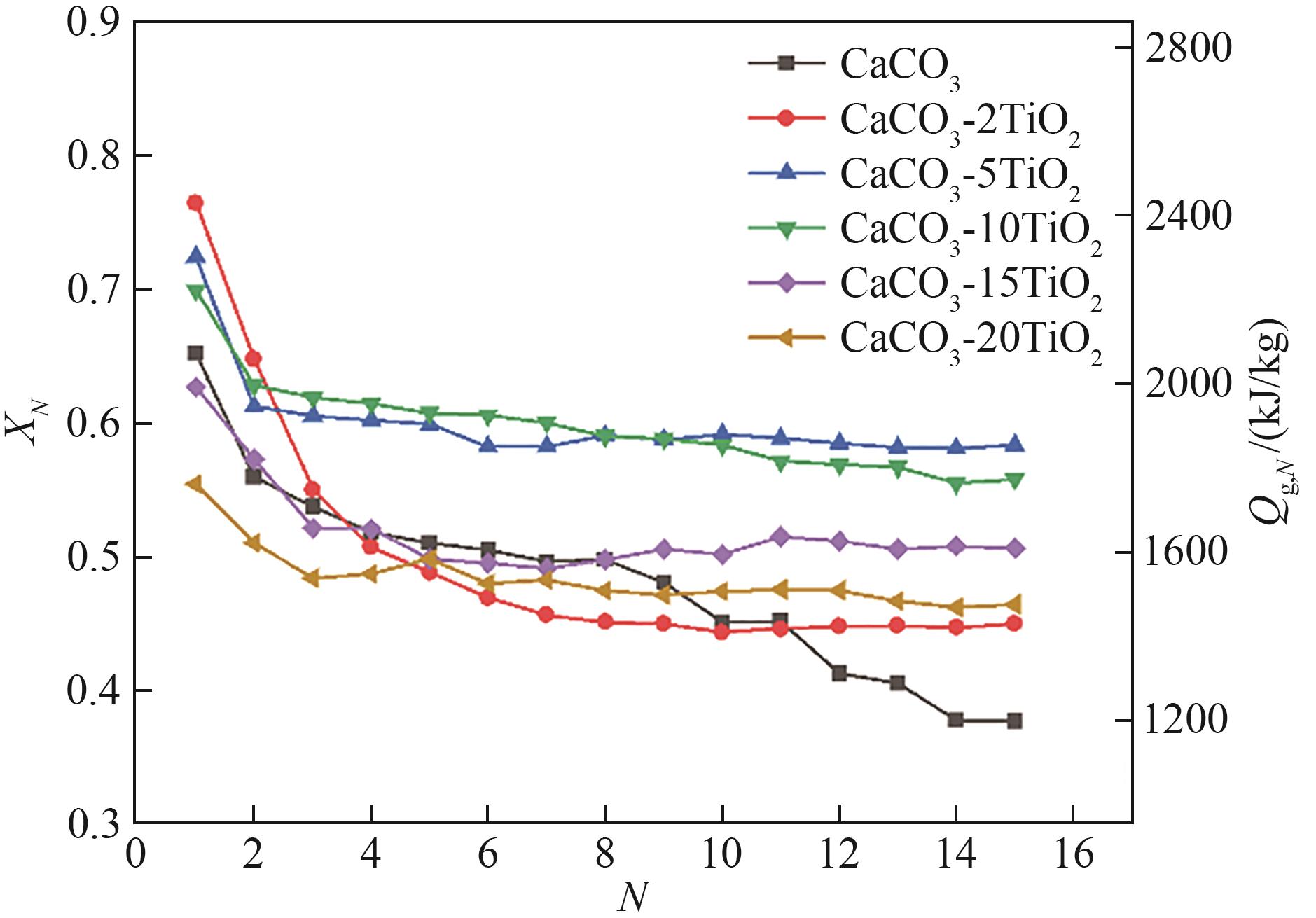

Fig.5 Effect of TiO2 doping amount on heat storage performance of doped calcium based materials

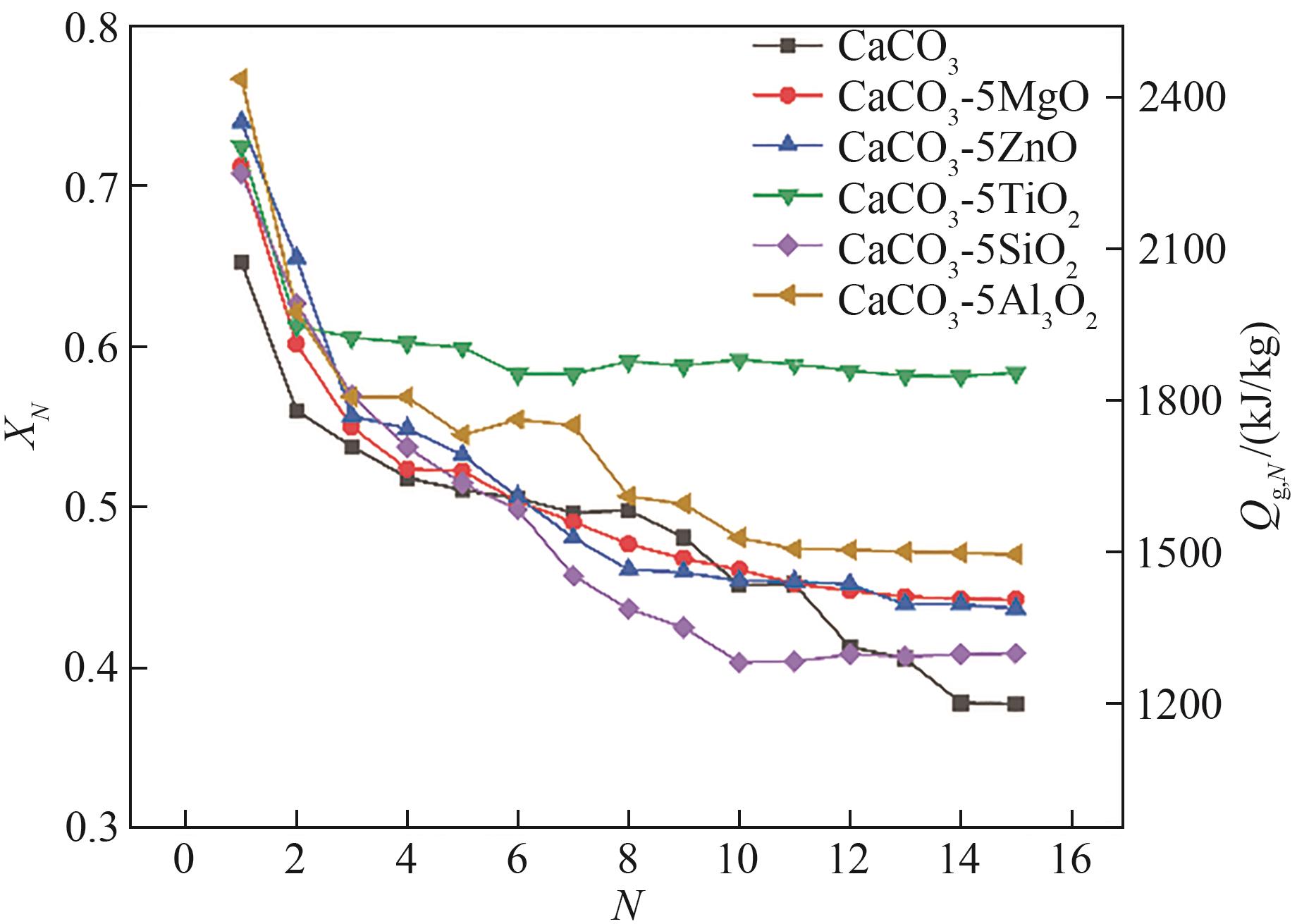

Fig.6 Heat storage performance of various doped calcium based materials

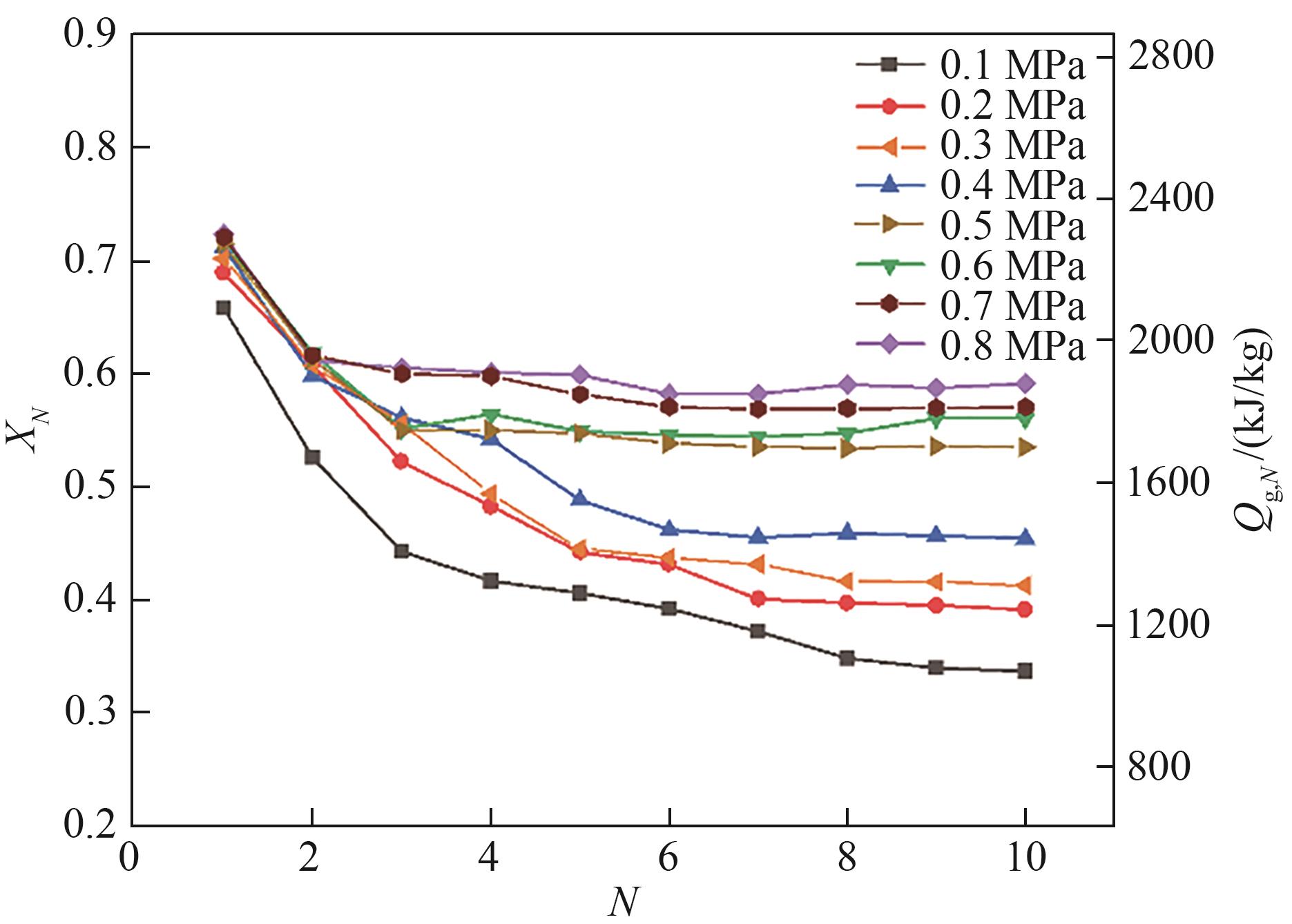

Fig.7 Effect of carbonation pressure on heat storage performance of CaCO3-5TiO2

Fig.8 Effect of carbonation temperature on heat storage performance of CaCO3-5TiO2

Fig.9 Effect of cycle times on heat storage performance of CaCO3-5TiO2

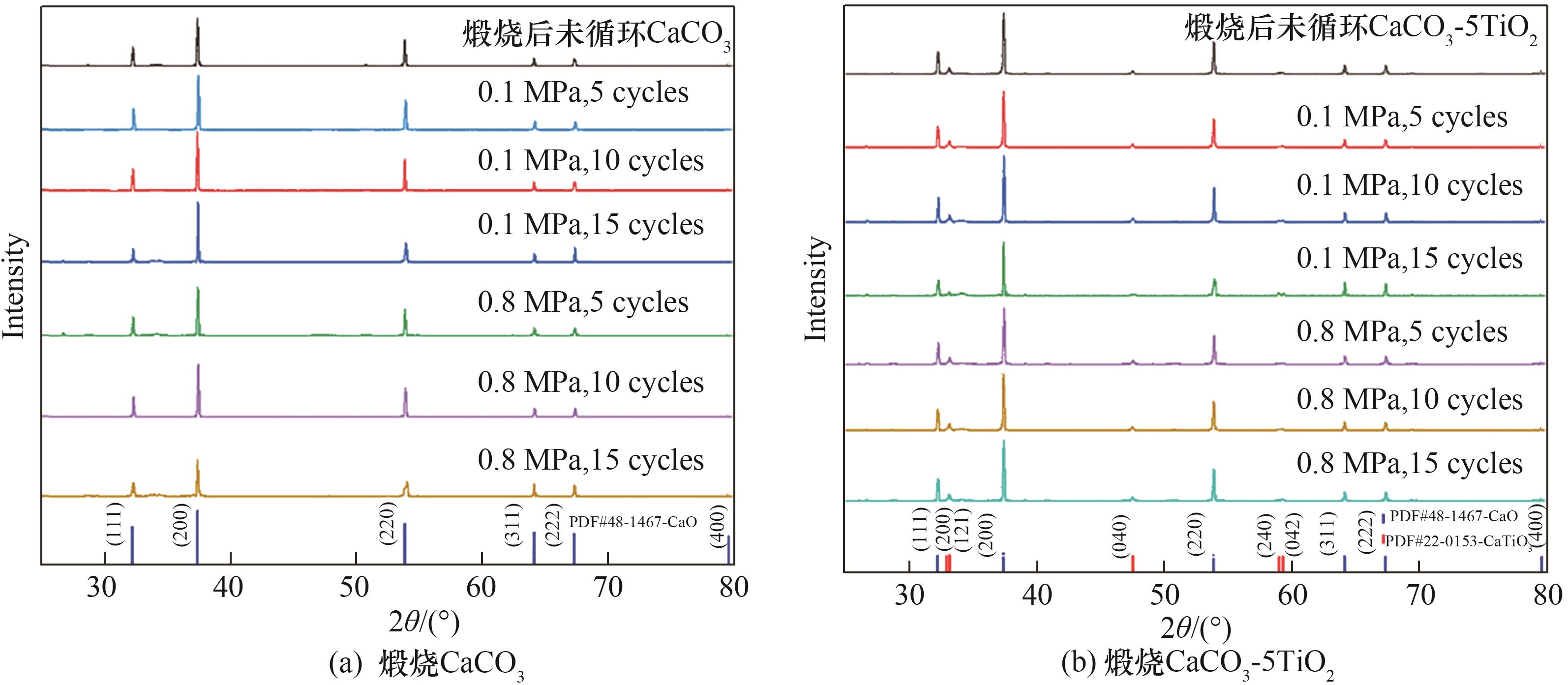

Fig.10 XRD patterns of different cycles under pressure/atmospheric carbonation

Fig.11 Variation of CaO grain size in calcined CaCO3 and calcined CaCO3-5TiO2 under pressurized/atmospheric carbonation

Fig.12 SEM images of calcined CaCO3 and calcined CaCO3-5TiO2 at different cycles under pressurized/atmospheric carbonation(a) initial calcined CaCO3; (b) calcined CaCO3 cycled 30 times at 0.1 MPa; (c) calcined CaCO3 cycled 30 times at 0.8 MPa;(d) initial calcined CaCO3-5TiO2; (e) calcined CaCO3-5TiO2 cycled 30 times at 0.1 MPa; (f) calcined CaCO3-5TiO2 cycled 30 times at 0.8 MPa

Fig.13 TEM images of calcined CaCO3 and calcined CaCO3-5TiO2 at different cycles under pressurized/atmospheric carbonation(a) initial calcined CaCO3; (b) calcined CaCO3 cycled 30 times at 0.1 MPa; (c) calcined CaCO3 cycled 30 times at 0.8 MPa;(d) initial calcined CaCO3-5TiO2; (e) calcined CaCO3-5TiO2 cycled 30 times at 0.1 MPa; (f) calcined CaCO3-5TiO2 cycled 30 times at 0.8 MPa

Table 2 Specific surface area and pore volume of calcined CaCO3 and calcined CaCO3-5TiO2

样品	循环次数	碳酸化压力/MPa	比表面积/(m²/g)	比孔容/(cm³/g)
煅烧纯CaCO₃	0	—	19.582	0.133
	30	0.1	3.248	0.028
	30	0.8	4.401	0.052
煅烧CaCO₃-5TiO₂	0	—	11.768	0.117
	30	0.1	7.414	0.069
	30	0.8	8.918	0.075

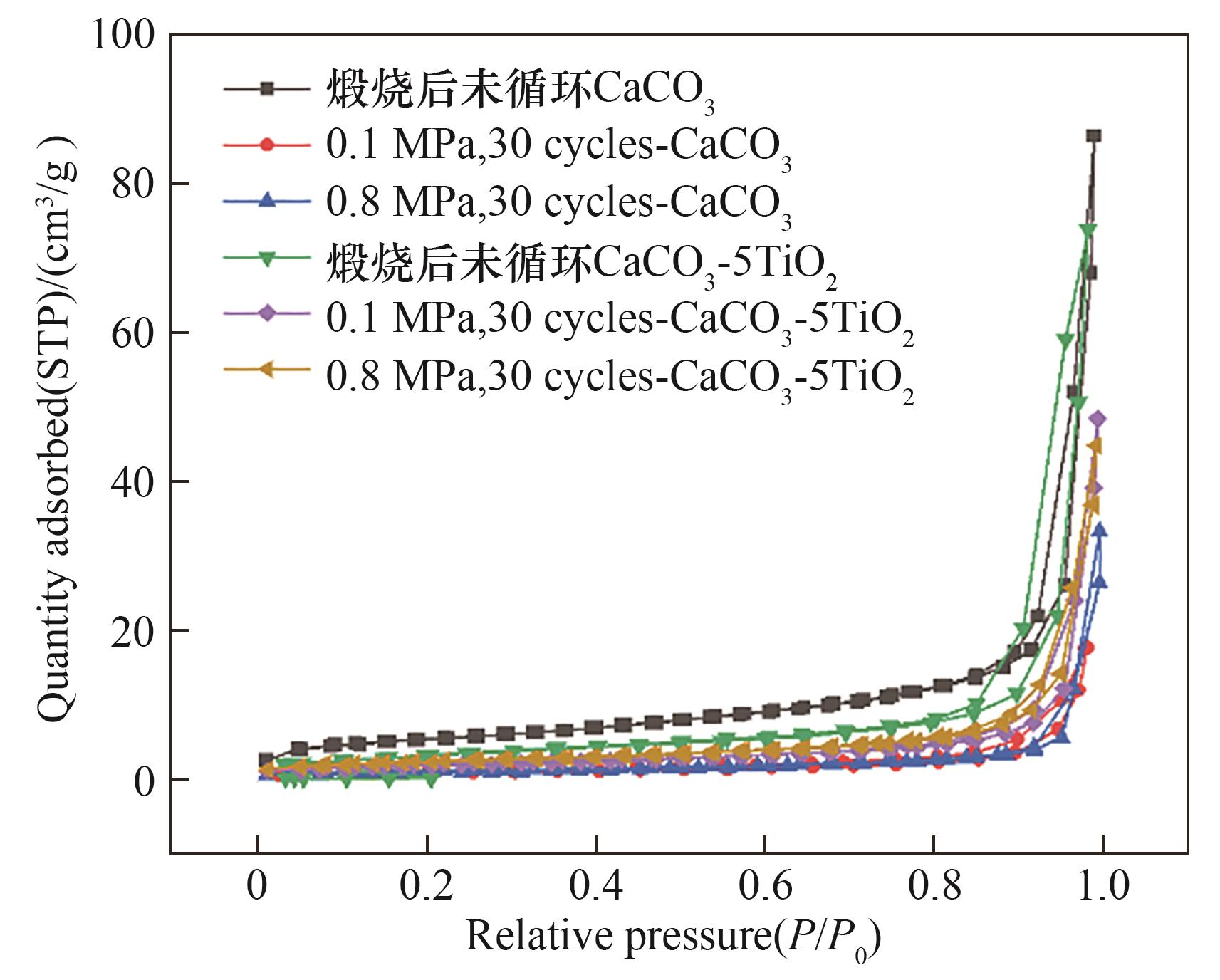

Fig.14 N2 absorption-desorption curves of calcined CaCO3 and calcined CaCO3-5TiO2 in pressurized/atmospheric carbonated heat storage cycles

Fig.15 Pore size distribution of calcined CaCO3 and calcined CaCO3-5TiO2 in pressurized/atmospheric carbonated heat storage cycles
