焚烧飞灰中六价铬化合物碳热还原脱毒实验研究

doi:10.11949/0438-1157.20240058

摘要/Abstract

摘要：

碳热还原是垃圾焚烧飞灰中六价铬化合物还原脱毒的有效手段，但碳热还原条件和飞灰的组分变化会影响铬的形态转化。使用竹炭（Bamboo Charcoal，BC）和活性炭（Powered Active Carbon，PAC）与Na₂CrO₄反应探索碳热还原对Cr（Ⅵ）形态转化的过程，并分析碳热反应中四种氧化物对Cr（Ⅵ）形态转化的影响。实验结果表明，1000 ℃以下Na₂CrO₄被还原为NaCrO₂，高于1000 ℃则转化为Cr₃C₂。氧化物存在时，高于1000 ℃后Fe₂O₃与被BC还原的铬反应生成FeCr₂O₄，在CaO含量高时转化为CaCr₂O₄；若添加过量BC则仍以Cr₃C₂为主。在喷钙的飞灰中，CaO与被还原的Cr反应生成CaCr₂O₄；若添加过量的BC，Cr（Ⅵ）则被还原为Cr₃C₂。

关键词: Cr（Ⅵ）还原, 碳热还原, 氧化物, 焚烧飞灰, 热力学

Abstract:

Carbothermal reduction is an effective means of reducing and detoxifying hexavalent chromium compounds in waste incineration fly ash, but carbothermal reduction conditions and changes in the composition of the fly ash can affect the speciation transformation of chromium. Bamboo Charcoal (BC) and Powered Active Carbon (PAC) were used to react with Na₂CrO₄ to explore the process of carbothermal reduction on the morphological transformation of Cr(Ⅵ), and the effects of four oxides on the morphological transformation of Cr(Ⅵ) in the carbothermal reaction were analyzed. The experimental results showed that Na₂CrO₄ was reduced to NaCrO₂ below 1000 °C, and Cr₃C₂ was the main reduction product when the temperature was higher than 1000 °C. In the presence of oxides, when the temperature was higher than 1000 °C, Fe₂O₃ reacted with the chromium reduced by BC to form FeCr₂O₄. When the CaO content was high, it was converted into CaCr₂O₄, if an excessive amount of BC was added, it was still dominated by Cr₃C₂.When trace amounts of BC were added to calcium-sprayed fly ash, the reduced chromium reacted with CaO to form CaCr₂O₄; when excessive amounts of BC were added, Cr(Ⅵ) was reduced to form Cr₃C₂.

Key words: Cr(Ⅵ) reduction, carbothermal reduction, oxides, fly ash, thermodynamics

中图分类号:

X 705

赵国栋, 熊卓, 赵永椿, 张军营. 焚烧飞灰中六价铬化合物碳热还原脱毒实验研究[J]. 化工学报, DOI: 10.11949/0438-1157.20240058.

Guodong ZHAO, Zhuo XIONG, Yongchun ZHAO, Junying ZHANG. Experimental study on detoxification of hexavalent chromium compounds in incineration fly ash by carbothermal reduction[J]. CIESC Journal, DOI: 10.11949/0438-1157.20240058.

图/表 21

表1 飞灰中四种氧化物的占比

Table 1 Percentage of four oxides in fly ash

飞灰	占比（wt%）
飞灰	Al₂O₃	SiO₂	CaO	Fe₂O₃
NJ	0.77	2.24	54.55	0.3
XY	0.74	0.66	3.1	0.39
JN	0.936	1.33	22.59	0.689

表2 BC和PAC的化学成分和工业分析

Table 2 Chemical compositions and industrial analysis of carbons

	化学成分（wt%）						工业分析（wt%）
	SiO₂	MgO	CaO	K₂O	Fe₂O₃	Al₂O₃	M	A	V	FC
BC	12.685	4.032	6.986	47.779	4.461	/	6.28	4.73	14.3	74.69
PAC	23.183	6.722	6.936	2.771	5.993	2.668	4.13	1.23	17.75	76.89

表3 BC和PAC的比表面积

Table 3 Specific surface area of BC and PAC

	比表面积（m²/g）
BC	106.5
PAC	1384.4

图1 实验装置连接示意图

Fig. 1 Schematic diagram of the connection of the experimental setup

表4 热力学计算参数

Table 4 Thermodynamic calculation parameters

	SiO₂	Al₂O₃	Fe₂O₃	CaO	Na₂CrO₄	C
P1	1.5	1.5	1.5	1.5	6	2/8
P2	0.9	0.6	0.6	3.9	6	2/8
P3	0.6	0.18	0.12	5.1	6	2/8

图2 方程（1）~（8）的吉布斯自由能变化

Fig. 2 Gibbs free energy change of Equations (1)~(8)

图3 Na2CrO4与C反应的热力学模拟计算

Fig. 3 Thermodynamic simulations of the reaction of Na2CrO4 with C

图4 BC/PAC+Na2CrO4在不同保温时间下的XRD图

Fig. 4 XRD patterns of BC/PAC+Na2CrO4 at different holding times

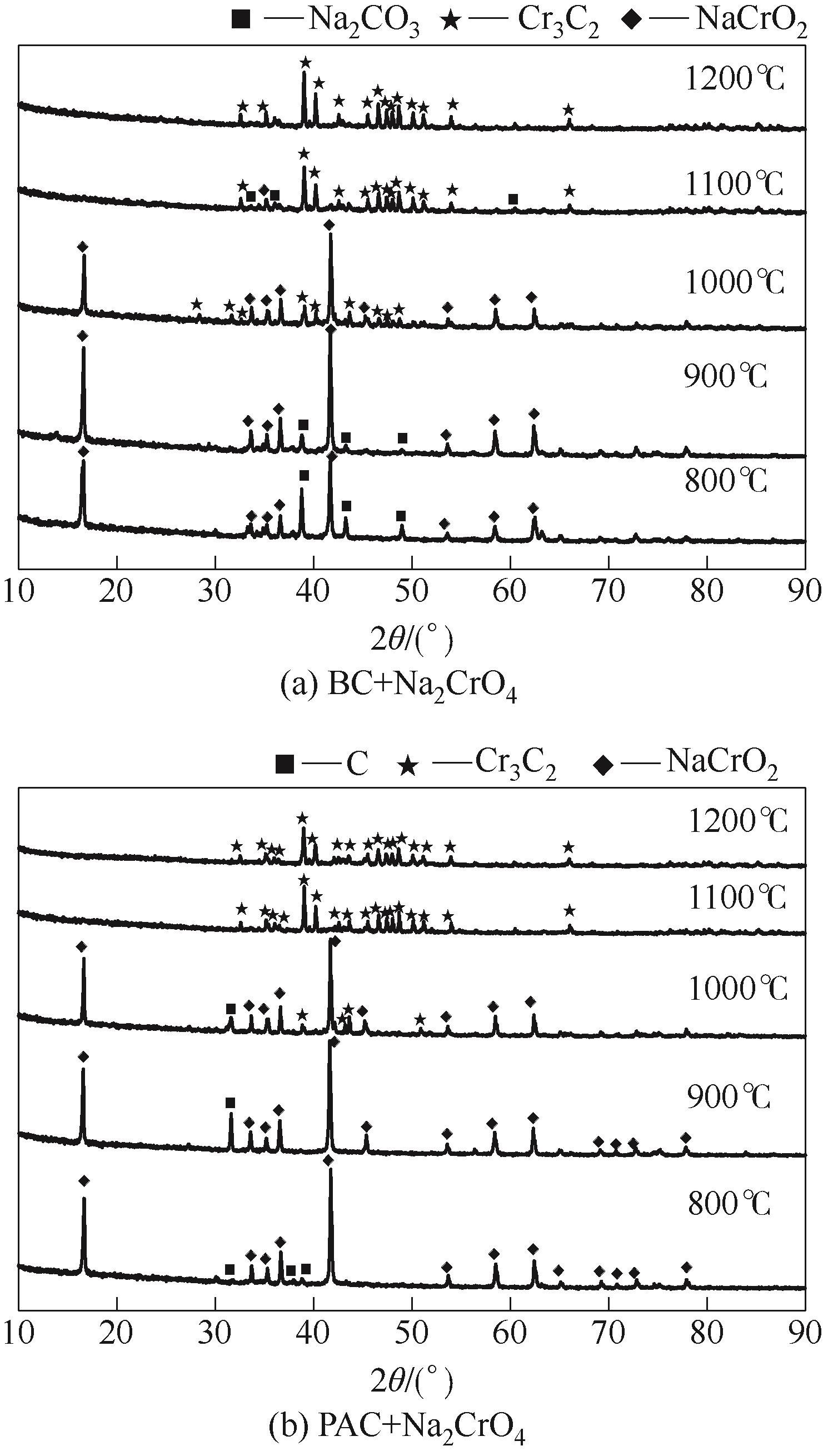

图5 BC/PAC+Na2CrO4在不同温度下的XRD图

Fig. 5 XRD patterns of BC/PAC+Na2CrO4 at different temperatures

图6 BC/PAC+Na2CrO4在保温0.5h和3h下的XPS图

Fig. 6 XPS spectra of BC/PAC+Na2CrO4 at holding times of 0.5 h and 3 h

图7 1000 ℃下BC/PAC+Na2CrO4在不同保温时间下Cr(Ⅵ)的还原率

Fig. 7 Reduction rate of Cr(Ⅵ) by BC/PAC+Na2CrO4 at 1000 ℃ with different holding times

图8 BC与Na2CrO4反应前后的SEM-EDS图像

Fig. 8 SEM-EDS images of BC before and after reaction with Na2CrO4

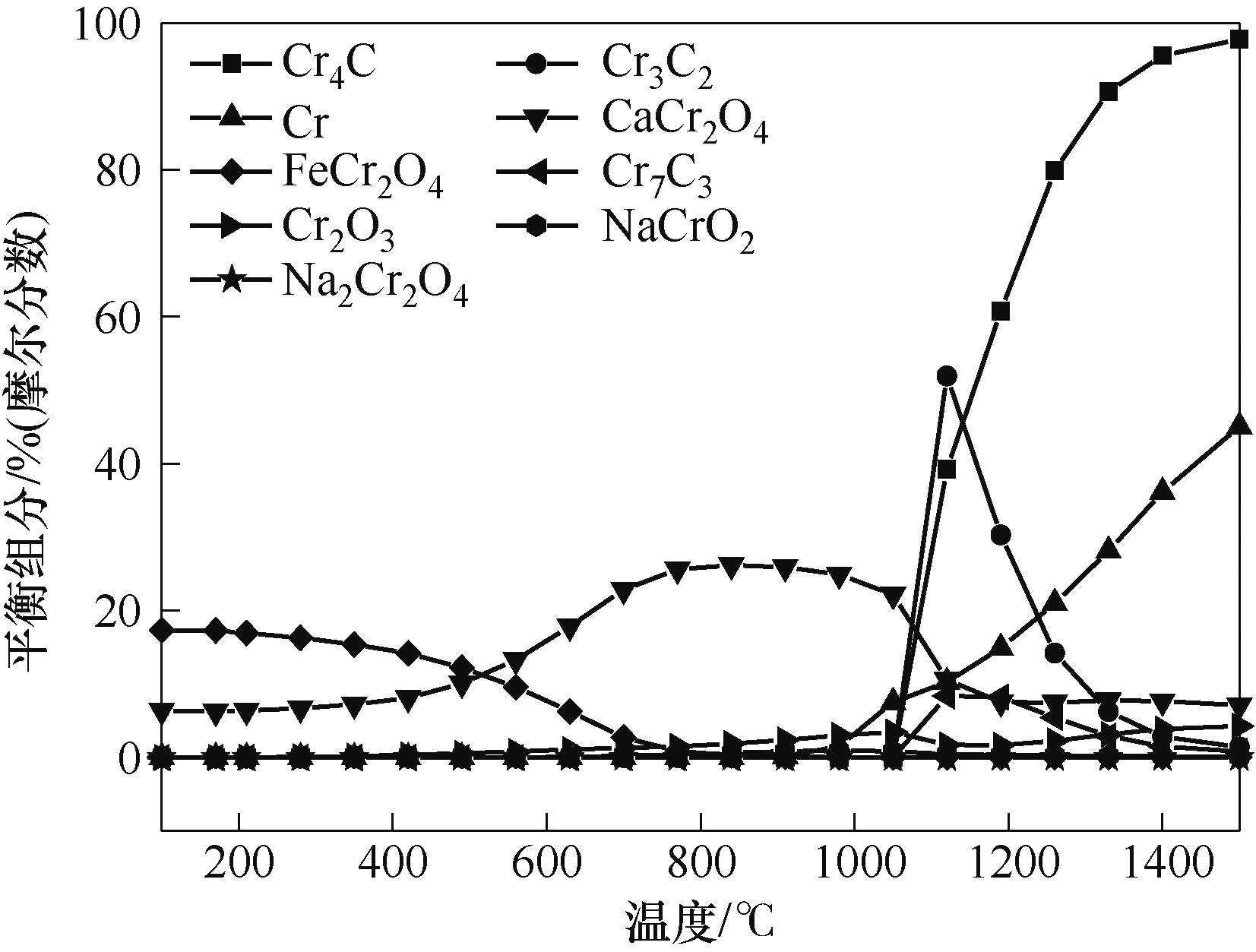

图9 热处理过程中铬的形态变化

Fig. 9 Speciation transformation of chromium during heat treatment

图10 方程（10）~（19）的吉布斯自由能变化

Fig. 10 Gibbs Free Energy Change for Equations (10) to (19)

图11 添加微量竹炭的配灰XRD图

Fig. 11 XRD pattern of simulated fly ash adding trace BC

图12 添加过量竹炭的配灰XRD图

Fig. 12 XRD pattern of simulated fly ash with excessive BC addition

图13 三种飞灰添加微量竹炭的XRD图

Fig. 13 XRD patterns of trace BC added to three types of fly ash

图14 添加微量BC后飞灰中Cr(Ⅵ)的还原率

Fig. 14 Reduction rate of Cr(Ⅵ) in fly ash after adding trace BC

图15 三种飞灰添加过量竹炭的XRD图

Fig. 15 XRD patterns of excess BC added to three types of fly ash

图16 添加过量BC后飞灰中Cr(Ⅵ)的还原率

Fig. 16 Reduction rate of Cr(Ⅵ) in fly ash after addition of excess BC

图17 碳热还原过程中铬的形态转化图

Fig. 17 Speciation transformation of chromium during carbothermal reduction

参考文献 30

1	Ma G, Garbers-Craig A M. Cr(VI) containing electric furnace dusts and filter cake from a stainless steel waste treatment plant: Part 2–Formation mechanisms and leachability[J]. Ironmaking & Steelmaking, 2006, 33(3): 238-244.
2	Mao L Q, Su P, Huang B, et al. Detoxification of solid waste containing Cr(VI) with phosphate by thermal treatment[J]. Chemical Engineering Journal, 2017, 314: 114-122.
3	Aarabi-Karasgani M, Rashchi F, Mostoufi N, et al. Leaching of vanadium from LD converter slag using sulfuric acid[J]. Hydrometallurgy, 2010, 102(1/2/3/4): 14-21.
4	Gu P, Diao J, Tan W F, et al. Investigation of the carbothermic reduction of chromium-containing vanadium extraction residue[C]//8th International Symposium on High-Temperature Metallurgical Processing. Cham: Springer, 2017: 747-755.
5	Bakhshi N, Sarrafi A, Ramezanianpour A A. Immobilization of hexavalent chromium in cement mortar: leaching properties and microstructures[J]. Environmental Science and Pollution Research, 2019, 26(20): 20829-20838.
6	Wang X, Zhang J D, Wang L L, et al. Long-term stability of FeSO₄ and H₂SO₄ treated chromite ore processing residue (COPR): Importance of H⁺ and SO₄ ^2- [J]. Journal of Hazardous Materials, 2017, 321: 720-727.
7	Yu Y H, An L L, Bae J H, et al. A novel biosorbent from hardwood cellulose nanofibrils grafted with poly(m-aminobenzene sulfonate) for adsorption of Cr(VI)[J]. Frontiers in Bioengineering and Biotechnology, 2021, 9: 682070.
8	Tang X, Huang Y, Li Y, et al. Study on detoxification and removal mechanisms of hexavalent chromium by microorganisms[J]. Ecotoxicology and Environmental Safety, 2021, 208: 111699.
9	Barakat M A. New trends in removing heavy metals from industrial wastewater[J]. Arabian Journal of Chemistry, 2011, 4(4): 361-377.
10	Wang G, Diao J, Liu L, et al. Highly efficient utilization of hazardous vanadium extraction tailings containing high chromium concentrations by carbothermic reduction[J]. Journal of Cleaner Production, 2019, 237: 117832.
11	Yoshikawa N, Mashiko K I, Sasaki Y, et al. Microwave carbo-thermal reduction for recycling of Cr from Cr-containing steel making wastes[J]. ISIJ International, 2008, 48(5): 690-695.
12	Dai L, Lu Y, Wang X Y, et al. Production of nano-sized chromium carbide powders from Cr₂O₃/C precursors by direct electrochemical reduction in molten calcium chloride[J]. International Journal of Refractory Metals and Hard Materials, 2015, 51: 153-159.
13	Zhao Z W, Zheng H J, Liu S J, et al. Low temperature synthesis of chromium carbide (Cr₃C₂) nanopowders by a novel precursor method[J]. International Journal of Refractory Metals and Hard Materials, 2015, 48: 46-50.
14	Mahajan M, Rajpoot S, Pandey O P. In-situ synthesis of chromium carbide (Cr₃C₂) nanopowders by chemical-reduction route[J]. International Journal of Refractory Metals and Hard Materials, 2015, 50: 113-119.
15	Jin K, Jia Y B, Zhao Z W, et al. Synthesis of chromium carbide nanopowders by microwave heating and their composition and microstructure change under gamma ray irradiation[J]. Molecules, 2018, 24(1): 16.
16	Orlova N, Abakumov E, Orlova E, et al. Soil organic matter alteration under biochar amendment: study in the incubation experiment on the Podzol soils of the Leningrad Region (Russia)[J]. Journal of Soils and Sediments, 2019, 19(6): 2708-2716.
17	Park J H, Choppala G K, Bolan N S, et al. Biochar reduces the bioavailability and phytotoxicity of heavy metals[J]. Plant and Soil, 2011, 348(1): 439-451.
18	Morita K, Tsukiashi K, Kimura M, et al. Activity of chromium oxide in CaO-SiO₂ based slags at 1873 K[J]. Steel Research International, 2005, 76(4): 279-283.
19	Yan B J, Li F, Wang H, et al. Study of chromium oxide activities in EAF slags[J]. Metallurgical and Materials Transactions B, 2016, 47(1): 37-46.
20	Rankin W J, Biswas A K. The behaviour of chromium in reduced slag-metal systems[J]. Archiv Für Das Eisenhüttenwesen, 1979, 50(1): 7-11.
21	Soltani Panah H. Gibbs free energy change using Ru/Al₂O₃ catalyst–An application in supercritical water gasification process[J]. International Journal of Hydrogen Energy, 2021, 46(54): 27444-27458.
22	Mori T, Yang J, Kuwabara M. Mechanism of carbothermic reduction of chromium oxide[J]. ISIJ International, 2007, 47(10): 1387-1393.
23	Berger L M, Stolle S, Gruner W, et al. Investigation of the carbothermal reduction process of chromium oxide by micro- and lab-scale methods[J]. International Journal of Refractory Metals and Hard Materials, 2001, 19(2): 109-121.
24	Wang X, Van Gerven T, Blanpain B, et al. In-situ investigation on the reduction of magnesiochromite with ferrosilicon between 1373–1573 K[J]. ISIJ International, 2015, 55(11): 2289-2296.
25	Wang S C, Lin H T, Nayak P K, et al. Carbothermal reduction process for synthesis of nanosized chromium carbide via metal-organic vapor deposition[J]. Thin Solid Films, 2010, 518(24): 7360-7365.
26	Zhang Y L, Liu Y, Wei W J. Carbothermal reduction process of the Fe-Cr-O system[J]. International Journal of Minerals, Metallurgy, and Materials, 2013, 20(10): 931-940.
27	Jobby R, Jha P, Yadav A K, et al. Biosorption and biotransformation of hexavalent chromium[Cr(VI)]: a comprehensive review[J]. Chemosphere, 2018, 207: 255-266.
28	Xie J L, Wei K, Liu X Q, et al. Effect of carbon type on the detoxification mechanism of hexavalent chromium[Cr(VI)] by carbothermal reduction[J]. Journal of Environmental Chemical Engineering, 2022, 10(4): 108091.
29	Xia X, Dahn J R. NaCrO₂ is a fundamentally safe positive electrode material for sodium-ion batteries with liquid electrolytes[J]. Electrochemical and Solid-State Letters, 2012, 15(1): A1.
30	Hu H Y, Shi M Y, Yang Y H, et al. Further insight into the formation and oxidation of CaCr₂O₄ during solid fuel combustion[J]. Environmental Science & Technology, 2018, 52(4): 2385-2391.
