聚离子液体膜的制备及其在低钠高钾健康酱油中的应用

doi:10.11949/0438-1157.20240416

摘要/Abstract

摘要：

酱油由于发酵过程以及保质期的要求，通常含有较高浓度的NaCl。而人体摄入过多的NaCl以及摄入过少的钾时，都会引发身体疾病。因此，本研究采用电渗析法，用K⁺替换掉Na⁺，实现低钠高钾健康酱油的制备。首先使用商业膜进行实验，发现Na⁺去除率为37.3%，K⁺的增加倍数为2.83倍。达不到低钠高钾健康酱油最佳标准（Na⁺含量降低一半，K⁺含量增加5倍）。因此制备了聚离子液体膜，应用到电渗析实验中，酱油中的Na⁺浓度由初始的2.6 mol/L降低至1.39 mol/L，K⁺浓度由初始的0.18 mol/L增加至0.93 mol/L，非常接近低钠高钾健康酱油的最佳标准。

关键词: 膜, 脱盐, 分离, 电渗析, 聚离子液体膜

Abstract:

Soy sauce usually contains a high concentration of NaCl due to the fermentation process as well as shelf-life requirements, while excessive NaCl intake as well as low potassium intake by the human body can cause physical diseases. Therefore, in this study, electrodialysis was used to replace Na⁺ with K⁺ to achieve the preparation of low-sodium and high-potassium healthy soy sauce. Firstly, experiments were carried out using commercial membranes and it was found that the Na⁺ removal rate was 37.3% and the K⁺ increase factor was 2.83 times. It could not reach the best standard of low-sodium and high-potassium healthy soy sauce (Na⁺ content reduced by half and K⁺ content increased by five times). Therefore, the polyionic liquid membrane was prepared and applied to the electrodialysis experiment, and the Na⁺ concentration in soy sauce was reduced from the initial 2.6 mol/L to 1.39 mol/L, and the K⁺ concentration was increased from the initial 0.18 mol/L to 0.93 mol/L, which was very close to the best standard of low-sodium and high-potassium healthy soy sauce.

Key words: membrane, desalination, separation, electrodialysis, polyionic liquid membrane

中图分类号:

X 792

邱知, 谭明. 聚离子液体膜的制备及其在低钠高钾健康酱油中的应用[J]. 化工学报, 2024, 75(S1): 244-250.

Zhi QIU, Ming TAN. Preparation of polyionic liquid membrane and its application in low-sodium and high-potassium healthy soy sauce[J]. CIESC Journal, 2024, 75(S1): 244-250.

图/表 7

表1 膜性能参数

Table 1 Membrane property parameter

膜名称	厚度/μm	pH	膜电阻/(Ω·cm²)	膜类型
SYMC-2	170	0～10	3.0	阳离子交换膜
CMX	170	0～10	3.0	阳离子交换膜
SYMA-2	170	0～10	2.75	阴离子交换膜

图1 电渗析膜堆装置示意图

Fig.1 Schematic diagram of ED apparatus

图2 SEM和X射线能谱图

Fig.2 SEM and EDS images

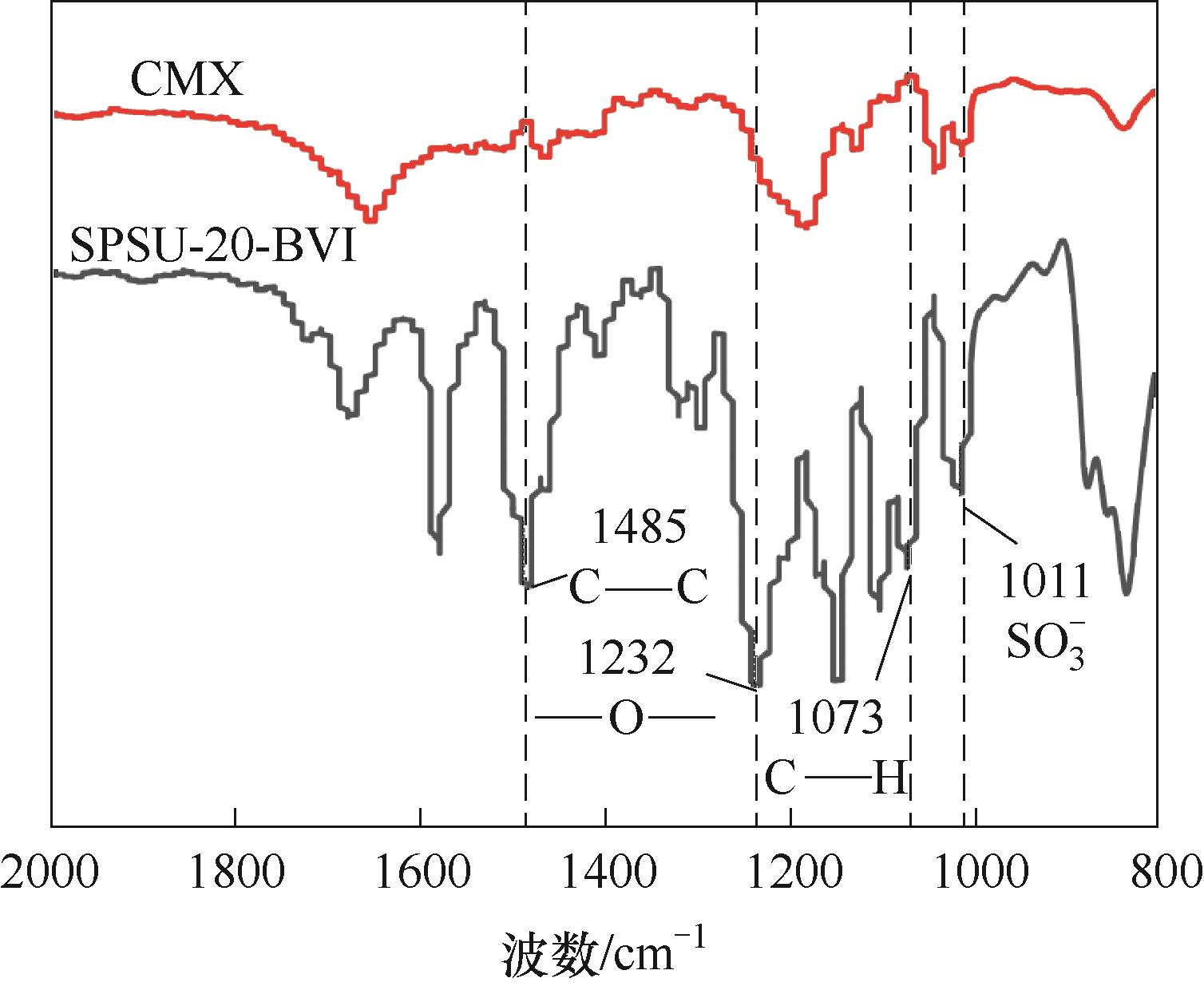

图3 膜的红外光谱表征

Fig.3 Infrared spectral characterization of membranes

表2 膜性能参数

Table 2 Membrane property parameter

膜名称

厚度/μm

吸水率/%

离子交换容量

IEC/(mmol/g)

图4 CMX的离子浓度及腔室体积变化示意图

Fig.4 Schematic diagram of ion concentration and chamber volume variation of CMX

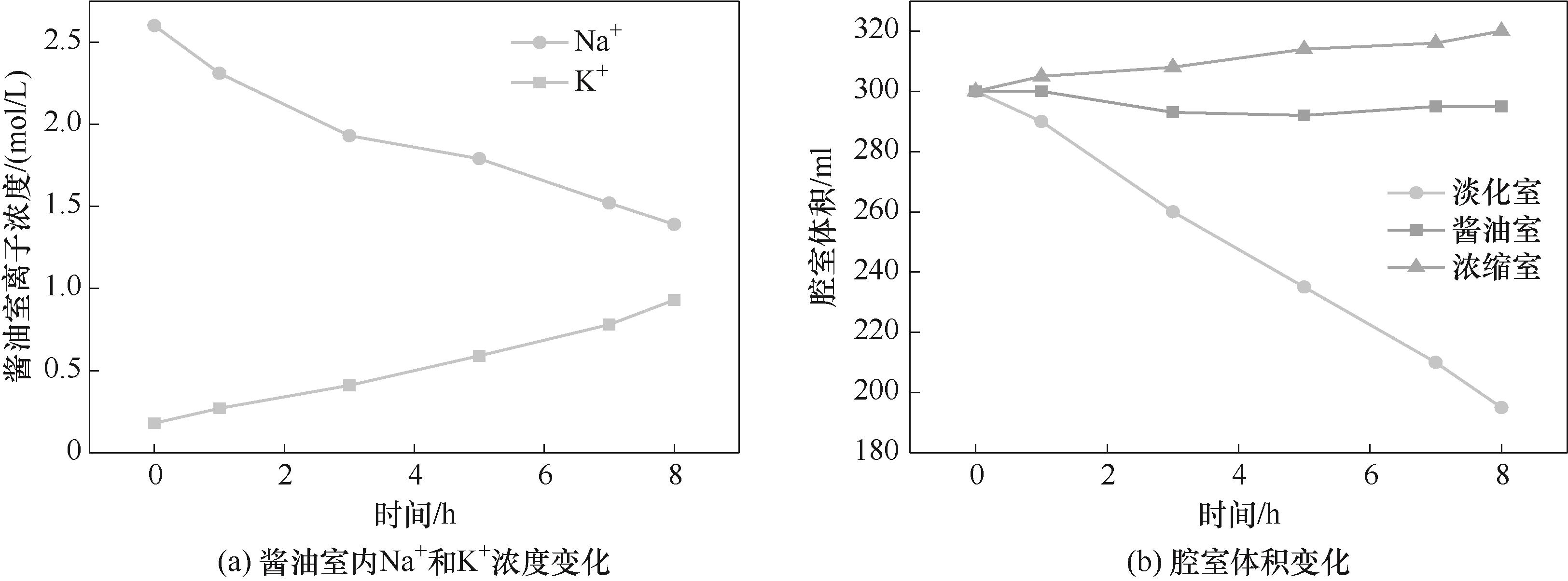

图5 SPSU-20-BVI的离子浓度及腔室体积变化示意图

Fig.5 Schematic diagram of ion concentration and chamber volume variation of SPSU-20-BVI

参考文献 32

5	Devanthi P V P, Linforth R, El Kadri H, et al. Water-in-oil-in-water double emulsion for the delivery of starter cultures in reduced-salt moromi fermentation of soy sauce[J]. Food Chemistry, 2018, 257: 243-251.
6	Diez-Simon C, Eichelsheim C, Mumm R, et al. Chemical and sensory characteristics of soy sauce: a review[J]. Journal of Agricultural and Food Chemistry, 2020, 68(42): 11612-11630.
7	Luo J Q, Ding L H, Chen X R, et al. Desalination of soy sauce by nanofiltration[J]. Separation and Purification Technology, 2009, 66(3): 429-437.
8	Fidaleo M, Moresi M, Cammaroto A, et al. Soy sauce desalting by electrodialysis[J]. Journal of Food Engineering, 2012, 110(2): 175-181.
9	陈涛, 姜钦亮, 王一雯, 等. 电渗析技术在含盐工业废水处理中的应用研究进展[J]. 能源研究与管理, 2024, 16(1): 67-75.
	Chen T, Jiang Q L, Wang Y W, et al. Progress of research on the application of electrodialysis technology in treatment of saline industrial wastewater[J]. Energy Research and Management, 2024, 16(1): 67-75.
10	Strathmann H. Electrodialysis, a mature technology with a multitude of new applications[J]. Desalination, 2010, 264(3): 268-288.
11	Alvarenga P, Mourinha C, Farto M, et al. Sewage sludge, compost and other representative organic wastes as agricultural soil amendments: benefits versus limiting factors[J]. Waste Management, 2015, 40: 44-52.
12	Albornoz L L, Marder L, Benvenuti T, et al. Electrodialysis applied to the treatment of an university sewage for water recovery[J]. Journal of Environmental Chemical Engineering, 2019, 7(2): 102982.
13	Campione A, Gurreri L, Ciofalo M, et al. Electrodialysis for water desalination: a critical assessment of recent developments on process fundamentals, models and applications[J]. Desalination, 2018, 434: 121-160.
14	Rodrigues M A S, Amado F D R, Xavier J L N, et al. Application of photoelectrochemical-electrodialysis treatment for the recovery and reuse of water from tannery effluents[J]. Journal of Cleaner Production, 2008, 16(5): 605-611.
15	Fidaleo M, Moresi M. Electrodialysis applications in the food industry[M]//Advances in Food and Nutrition Research. Amsterdam: Elsevier, 2006: 265-360.
16	van der Bruggen B. Chemical modification of polyethersulfone nanofiltration membranes: a review[J]. Journal of Applied Polymer Science, 2009, 114(1): 630-642.
17	Khulbe K C, Feng C, Matsuura T. The art of surface modification of synthetic polymeric membranes[J]. Journal of Applied Polymer Science, 2010, 115(2): 855-895.
18	Guiver M D, Robertson G P, Foley S. Chemical modification of polysulfones(Ⅱ): An efficient method for introducing primary amine groups onto the aromatic chain[J]. Macromolecules, 1995, 28(23): 7612-7621.
19	Higuchi A, Iwata N, Tsubaki M, et al. Surface modified polysulfone hollow fibers[J]. Journal of Applied Polymer Science, 1988, 36(8): 1753-1767.
20	李诗文, 柳鑫. 烷基咪唑型离子液体在食品领域的应用及安全性研究进展[J]. 食品科学, 2023, 44(7): 286-294.
	Li S W, Liu X. A review of the application and safety of alkyl imidazole ionic liquids in the food field[J]. Food Science, 2023, 44(7): 286-294.
21	Takla S S, Shawky E, Hammoda H M, et al. Green techniques in comparison to conventional ones in the extraction of Amaryllidaceae alkaloids: best solvents selection and parameters optimization[J]. Journal of Chromatography. A, 2018, 1567: 99-110.
22	Gao M R, Yuan J Y, Antonietti M. Ionic liquids and poly(ionic liquid)s for morphosynthesis of inorganic materials[J]. Chemistry, 2017, 23(23): 5391-5403.
23	郭江娜, 周莹杰, 李乐耕, 等. 聚离子液体功能材料的合成及应用[J]. 中国科学: 化学, 2021, 51(10): 1391-1405.
	Guo J N, Zhou Y J, Li G L, et al. The synthesis and application of poly(ionic liquid)s functional materials[J]. Scientia Sinica Chimica, 2021, 51(10): 1391-1405.
24	Zunita M, Hastuti R, Alamsyah A, et al. Polyionic liquid membrane: recent development and perspective[J]. Journal of Industrial and Engineering Chemistry, 2022, 113: 96-123.
25	Kwon Y, Leckie J. Hypochlorite degradation of crosslinked polyamide membranes(Ⅱ): Changes in hydrogen bonding behavior and performance[J]. Journal of Membrane Science, 2006, 282(1/2): 456-464.
1	Hunter R W, Dhaun N, Bailey M A. The impact of excessive salt intake on human health[J]. Nature Reviews. Nephrology, 2022, 18(5): 321-335.
2	Premuzic V, Milicic B, Krtalic B, et al. New onset chronic kidney disease is associated with high sodium intake in population with low potassium consumption[J]. Journal of Hypertension, 2019, 37: e249.
3	Palmer B F, Clegg D J. Physiology and pathophysiology of potassium homeostasis[J]. Advances in Physiology Education, 2016, 40(4): 480-490.
4	Alves D, Santos Z, Amado M, et al. Low potassium and high sodium intakes: a double health threat to Cape Verdeans[J]. BMC Public Health, 2018, 18(1): 995.
26	Tang C Y, Kwon Y N, Leckie J O. Effect of membrane chemistry and coating layer on physiochemical properties of thin film composite polyamide RO and NF membranes[J]. Desalination, 2009, 242(1/2/3): 149-167.
27	Al-kharabsheh S, Bernstein R. Thin-film composite polyionic liquid gel membranes and their potential for nanofiltration in organic solvents[J]. Advanced Materials Interfaces, 2018, 5(21): 1800823.
28	Heo K B, Lee H J, Kim H J, et al. Synthesis and characterization of cross-linked poly(ether sulfone) for a fuel cell membrane[J]. Journal of Power Sources, 2007, 172(1): 215-219.
29	Alam M M, Hossain M, Mei Y, et al. An alkaline stable anion exchange membrane for electro-desalination[J]. Desalination, 2021, 497: 114779.
30	Chakrabarty T, Singh A K, Shahi V K. Zwitterionic silica copolymer based crosslinked organic-inorganic hybrid polymer electrolyte membranes for fuel cell applications[J]. RSC Advances, 2012, 2(5): 1949-1961.
31	Badessa T, Shaposhnik V. The electrodialysis of electrolyte solutions of multi-charged cations[J]. Journal of Membrane Science, 2016, 498: 86-93.
32	Epsztein R, Shaulsky E, Qin M H, et al. Activation behavior for ion permeation in ion-exchange membranes: role of ion dehydration in selective transport[J]. Journal of Membrane Science, 2019, 580: 316-326.
