原油一步法催化裂解制低碳烯烃：实验和反应路径研究

doi:10.11949/0438-1157.20240947

摘要/Abstract

摘要：

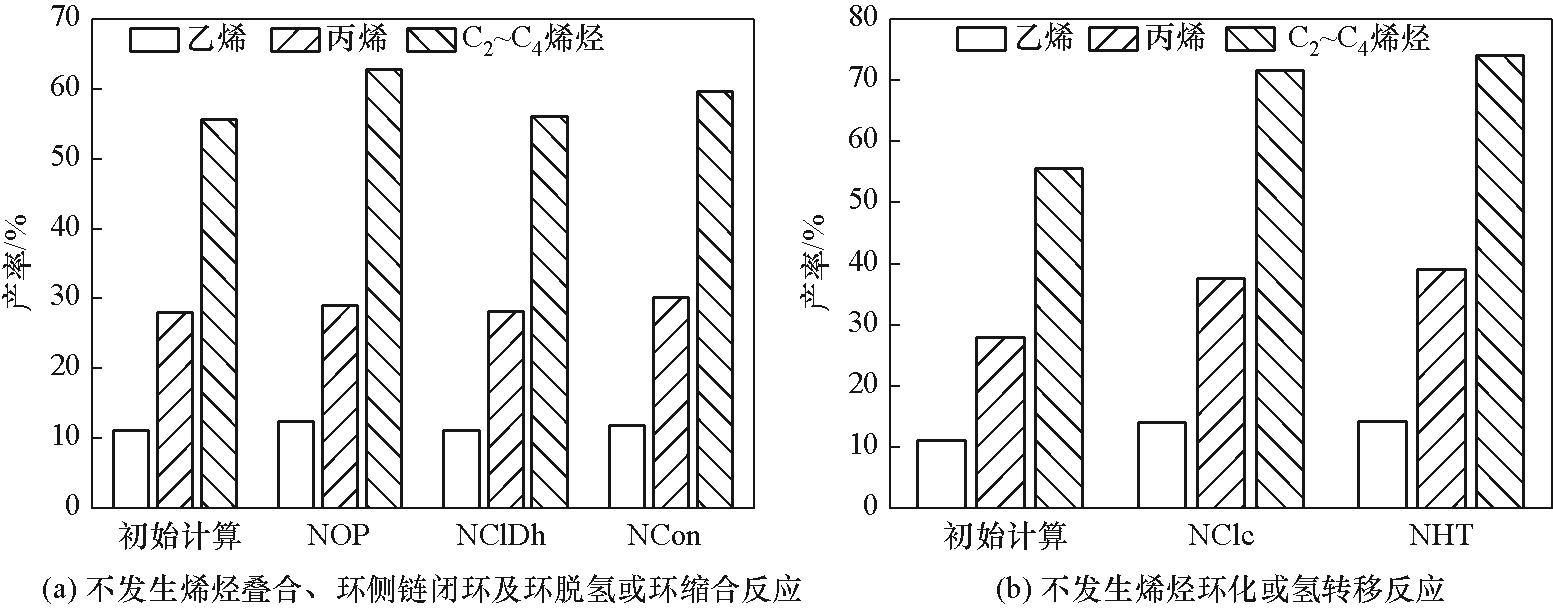

首先通过中试实验获得大庆原油制低碳烯烃的反应规律及优选反应域；然后基于智慧炼化技术进行了分子动力学建模，模型包括原料组成、反应机理制定、反应网络生成、动力学及反应器型式。通过全局优化算法训练实验数据得到动力学参数，模型在馏分产率、气体产率、液体产品烃族组成等方面的计算值和实验值基本一致。利用模型剖析了优选实验条件下原油制低碳烯烃的分子转化路径，定量对比了理论上关键裂解主反应及副反应对低碳烯烃产率的影响，探索了消除副反应后理想情况下的产物分布情况。模型计算发现影响低碳烯烃生成的三个最关键裂解主反应路径为：烯烃中间裂解、烯烃裂解生成丙烯、丁烯及烷烃中间裂解反应；三种影响低碳烯烃产率的主要副反应为：氢转移、烯烃环化及烯烃叠合反应。利用模型对最优化实验点进行计算，模拟优化在消除所有副反应后，乙烯、丙烯及丁烯产率分别提升3.91、10.88及10.51个百分点，总低碳烯烃产率相对提高约45.5%（质量分数）。

关键词: 智慧炼化, 石蜡基原油, 催化裂解, 动力学模型, 模拟, 化学反应

Abstract:

Firstly, the preferred reaction domains and reaction pattern of light olefins from Daqing crude oil were obtained through experiment evaluation. Then a molecular-level kinetic modeling has been established based on intelligent refining technology, which includes feedstock composition, reaction mechanism formulation and reaction network generation, kinetics and reactor type. The kinetic parameters were obtained by training the experimental data with a global optimization algorithm, and the model calculated values of the fraction yield, gas yield, and hydrocarbon composition of the liquid products are in agreement with the experimental data. The model was used to analyze the molecular transformation pathway of crude oil to light olefins under the optimal experimental conditions, and the effects of the theoretical key cracking main reaction and side reaction on the light olefin yield were quantitatively compared. The product distribution under ideal conditions after eliminating the side reaction was explored. Model calculations revealed that the three most critical cracking primary reaction paths affecting light olefins are: olefin middle cracking, olefin cracking to propylene or butene, and paraffin middle cracking, the three main side reactions affecting light olefins are: hydrogen transfer, olefin cyclization and olefin polymerization. Using the model to calculate the optimal experimental point, simulation optimization after elimination of all side reactions, the ethylene, propylene and butene yields were increased by 3.91, 10.88 and 10.51 percentage points, respectively, the total light olefin yield can be relatively increased by about 45.5% (mass fraction).

Key words: intelligent refining, paraffin ease crude oil, catalytic cracking, kinetic modeling, simulation, chemical reaction

中图分类号:

TE 624.4

党法璐, 孙志国, 高照, 王刚, 陈政宇, 张霖宙, 连竞存, 刘美佳, 张忠东, 刘超伟. 原油一步法催化裂解制低碳烯烃：实验和反应路径研究[J]. 化工学报, 2025, 76(2): 667-685.

Falu DANG, Zhiguo SUN, Zhao GAO, Gang WANG, Zhengyu CHEN, Linzhou ZHANG, Jingcun LIAN, Meijia LIU, Zhongdong ZHANG, Chaowei LIU. One-step catalytic cracking of crude oil to light olefins: experimental and reaction pathway studies[J]. CIESC Journal, 2025, 76(2): 667-685.

图/表 21

参考文献 59

1	Alotaibi F M, González-Cortés S, Alotibi M F, et al. Enhancing the production of light olefins from heavy crude oils: turning challenges into opportunities[J]. Catalysis Today, 2018, 317: 86-98.
2	Zhou X, Sun Z Z, Yan H, et al. Produce petrochemicals directly from crude oil catalytic cracking, a techno-economic analysis and life cycle society-environment assessment[J]. Journal of Cleaner Production, 2021, 308: 127283.
3	Zhou X, Li S F, Wang Y, et al. Crude oil hierarchical catalytic cracking for maximizing chemicals production: pilot-scale test, process optimization strategy, techno-economic-society-environment assessment[J]. Energy Conversion and Management, 2022, 253: 115149.
4	Alabdullah M A, Gomez A R, Vittenet J, et al. A viewpoint on the refinery of the future: catalyst and process challenges[J]. ACS Catalysis, 2020, 10(15): 8131-8140.
5	Amghizar I, Vandewalle L A, Van Geem K M, et al. New trends in olefin production[J]. Engineering, 2017, 3(2): 171-178.
6	Tullo A H. The future of oil is in chemicals, not fuels[J]. Chemical and Engineering News, 2019, 97(8): 26-29.
7	Al-Samhan M, Al-Fadhli J, Al-Otaibi A M, et al. Prospects of refinery switching from conventional to integrated: an opportunity for sustainable investment in the petrochemical industry[J]. Fuel, 2022, 310: 122161.
8	马文明, 朱根权, 杨超, 等. 一种将原油转化成石油化工产品的集成方法和集成装置: 112745915A[P]. 2021-05-04.
	Ma W M, Zhu G Q, Yang C, et al. An integrated method and device for converting crude oil into petrochemical products: 112745915A[P]. 2021-05-04.
9	李春义, 郭阳玲, 许乃文, 等. 一种烃类催化裂解制低碳烯烃催化剂及其制备方法: 111203225A[P]. 2020-05-29.
	Li C Y, Guo Y L, Xu N W, et al. A catalyst for catalytic cracking of hydrocarbons to produce low-carbon olefins and its preparation method: 111203225A[P]. 2020-05-29.
10	Corma A, Corresa E, Mathieu Y, et al. Crude oil to chemicals: light olefins from crude oil[J]. Catalysis Science & Technology, 2017, 7(1): 12-46.
11	Sayed E, Shafi R, Akhras A R Z, et al. Integrated slurry hydroprocessing and steam pyrolysis of crude oil to produce petrochemicals: US20170342336[P]. 2017-11-30.
12	Oprins M, Ward M, Velasco R, et al. An integrated hydrotreating and steam pyrolysis process for the direct processing of a crude oil to produce olefnic and aromatic petrochemicals: US2019352569[P]. 2018-02-02.
13	Chen J W, Xu Y H. Catalytic Cracking Process and Engineering(Version 3)[M]. Beijing: China Petrochemical Press, 2015.
14	Wang X Q, Shu X T. Heavy Oil Catalytic Cracking to Olefins[M]. Beijing: China Petrochemical Press, 2015.
15	贺安新, 侯利国, 靳凤英, 等. 原油(重油)直接制化学品(DPC)技术在惠州石化的工业应用[J]. 炼油技术与工程, 2023, 53(4): 34-38.
	He A X, Hou L G, Jin F Y, et al. Industrial application of direct petroleum to chemicals (DPC) technology in Huizhou petrochemical company[J]. Petroleum Refinery Engineering, 2023, 53(4): 34-38.
16	沙特阿美韩国原油直接制化学品项目开工[J]. 石油化工技术与经济, 2023, 39(2): 48.
	Saudi Aramco South Korea crude oil direct chemicals project started[J]. Technology & Economics in Petrochemicals, 2023, 39(2): 48.
17	吴青. 原油(重油)制化学品的技术及其进展(Ⅱ): 重油催化裂解与DPC碱催化技术[J]. 炼油技术与工程, 2022, 52(8): 1-7, 15.
	Wu Q. Technology and progress in crude oil to chemicals(Ⅱ): Catalytic cracking technology and DPC basic catalytic cutting technology[J]. Petroleum Refinery Engineering, 2022, 52(8): 1-7, 15.
18	原油催化裂解技术实现全球首次工业化应用[J]. 石油化工设计, 2021, 38(2): 12.
	Catalytic cracking technology of crude oil realizes the first industrial application in the world[J]. Petrochemical Design, 2021, 38(2): 12.
19	张伟清. S-Oil公司的Shaheen原油制化学品综合体取得突破性进展[J]. 石油炼制与化工, 2023, 54(9): 50.
	Zhang W Q. Breakthrough progress has been made in S-Oil's Shaheen crude oil chemical complex[J]. Petroleum Processing and Petrochemicals, 2023, 54(9): 50.
20	许友好, 汪燮卿, 舒兴田. 原油最大化生产化工原料的技术思考及相关技术开发[J]. 石油炼制与化工, 2019, 50(11): 1-10.
	Xu Y H, Wang X Q, Shu X T. Technical consideration and relevant technological development on maximizing chemicals from crude oil[J]. Petroleum Processing and Petrochemicals, 2019, 50(11): 1-10.
21	Zhang D, Zong P J, Wang J Y, et al. Catalytic dehydrogenation cracking of crude oil to light olefins by structure and basicity/acidity adjustment of bifunctional metal/acid catalysts[J]. Fuel, 2023, 334: 126808.
22	Zhang D, Zong P J, Li J, et al. Fundamental studies and pilot verification of an olefins/aromatics-rich chemical production from crude oil dehydrogenation catalytic pyrolysis process[J]. Fuel, 2022, 310: 122435.
23	Al-Absi A A, Al-Khattaf S S. Conversion of Arabian light crude oil to light olefins via catalytic and thermal cracking[J]. Energy & Fuels, 2018, 32(8): 8705-8714.
24	Al-Absi A A, Aitani A M, Al-Khattaf S S. Thermal and catalytic cracking of whole crude oils at high severity[J]. Journal of Analytical and Applied Pyrolysis, 2020, 145: 104705.
25	Al-Khattaf S, Saeed M R, Aitani A, et al. Catalytic cracking of light crude oil to light olefins and naphtha over E-cat and MFI: microactivity test versus advanced cracking evaluation and the effect of high reaction temperature[J]. Energy & Fuels, 2018, 32(5): 6189-6199.
26	Alabdullah M, Rodriguez-Gomez A, Shoinkhorova T, et al. One-step conversion of crude oil to light olefins using a multi-zone reactor[J]. Nature Catalysis, 2021, 4: 233-241.
27	Al-Khattaf S S, Ali S A. Catalytic cracking of Arab super light crude oil to light olefins: an experimental and kinetic study[J]. Energy & Fuels, 2018, 32(2): 2234-2244.
28	Usman A, Siddiqui M A B, Hussain A, et al. Catalytic cracking of crude oil to light olefins and naphtha: experimental and kinetic modeling[J]. Chemical Engineering Research and Design, 2017, 120: 121-137.
29	周鑫, 闫昊, 赵辉, 等. 原油直接催化裂解过程模拟与工艺参数优化[J]. 石油学报(石油加工), 2021, 37(6): 1216-1224.
	Zhou X, Yan H, Zhao H, et al. Simulation of the crude oil direct catalytic cracking process and optimization of process parameters[J]. Acta Petrolei Sinica (Petroleum Processing Section), 2021, 37(6): 1216-1224.
30	Zhou X, Yang Q C, Yang S Q, et al. One-step leap in achieving oil-to-chemicals by using a two-stage riser reactor: molecular-level process model and multi-objective optimization strategy[J]. Chemical Engineering Journal, 2022, 444: 136684.
31	Wang G, Lan X Y, Xu C M, et al. Study of optimal reaction conditions and a modified residue catalytic cracking process for maximizing liquid products[J]. Industrial & Engineering Chemistry Research, 2009, 48(7): 3308-3316.
32	Sheng Q, Wang G, Liu Y J, et al. Pilot-scale evaluation of hydrotreating inferior coker gas oil prior to its fluid catalytic cracking[J]. Fuel, 2018, 226: 27-34.
33	Jin N, Wang G, Han S, et al. Hydroconversion behavior of asphaltenes under liquid-phase hydrogenation conditions[J]. Energy & Fuels, 2016, 30(4): 2594-2603.
34	王刚. 高温短接触时间重油催化裂化反应规律研究[D]. 北京: 中国石油大学, 2006.
	Wang G. Study on reaction law of heavy oil catalytic cracking at high temperature and short contact time[D]. Beijing: China University of Petroleum, 2006.
35	马文明, 李小斐, 朱根权, 等. 重油催化裂解多产轻质芳烃工艺的研究[J]. 石油炼制与化工, 2015, 46(8): 1-6.
	Ma W M, Li X F, Zhu G Q, et al. Study on increasing light aromatics production in deep catalytic cracking of heavy oil[J]. Petroleum Processing and Petrochemicals, 2015, 46(8): 1-6.
36	Meng X H, Xu C M, Gao J S, et al. Studies on catalytic pyrolysis of heavy oils: reaction behaviors and mechanistic pathways[J]. Applied Catalysis A: General, 2005, 294(2): 168-176.
37	Feng S, Cui C, Li K Y, et al. Molecular composition modelling of petroleum fractions based on a hybrid structural unit and bond-electron matrix (SU-BEM) framework[J]. Chemical Engineering Science, 2019, 201: 145-156.
38	Chen Z Y, Feng S, Zhang L Z, et al. Molecular-level kinetic modeling of heavy oil fluid catalytic cracking process based on hybrid structural unit and bond-electron matrix[J]. AIChE Journal, 2021, 67(1): e17027.
39	张霖宙, 陈政宇, 吕文进, 等. 石油加工分子管理平台构建[J]. 中国科学: 化学, 2018, 48(4): 411-426.
	Zhang L Z, Chen Z Y, Lyu W J, et al. Development of petroleum refining molecular management modeling platform[J]. Scientia Sinica Chimica, 2018, 48(4): 411-426.
40	Chen Z Y, Wang G, Zhao S Q, et al. A molecular kinetic model for heavy gas oil catalytic pyrolysis to light olefins[J]. AIChE Journal, 2023, 69(8): e18116.
41	Chen Z Y, Sun N, Zhang L Z, et al. Molecular-level modeling for naphtha olefin reduction in FCC subsidiary riser: from laboratory reactor to pilot plant[J]. Chemical Engineering Journal, 2022, 437: 135429.
42	Cui C, Billa T, Zhang L Z, et al. Molecular representation of the petroleum gasoline fraction[J]. Energy & Fuels, 2018, 32(2): 1525-1533.
43	Cui C, Zhang L Z, Ma Y J, et al. Computer-aided gasoline compositional model development based on GC-FID analysis[J]. Energy & Fuels, 2018, 32(8): 8366-8373.
44	Corma A, Orchillés A V. Current views on the mechanism of catalytic cracking[J]. Microporous and Mesoporous Materials, 2000, 35: 21-30.
45	Ralph B. Molecular Modeling in Heavy Hydrocarbon Conversions[M]. Boca Raton, Florida, USA: CRC Press, 2005.
46	Kotrel S, Knözinger H, Gates B C. The Haag-Dessau mechanism of protolytic cracking of alkanes[J]. Microporous and Mesoporous Materials, 2000, 35: 11-20.
47	Shertukde P V, Marcelin G, Sill G A, et al. Study of the mechanism of the cracking of small alkane molecules on HY zeolites[J]. Journal of Catalysis, 1992, 136(2): 446-462.
48	许友好, 崔守业, 汪燮卿. FCC汽油烯烃双分子裂化反应及其与双分子氢转移反应之比的研究[J]. 石油炼制与化工, 2007, 38(9): 1-5.
	Xu Y H, Cui S Y, Wang X Q. Study on the bimolecular catalytic cracking reaction and its ratio to the bimolecular hydrogen transfer reaction[J]. Petroleum Processing and Petrochemicals, 2007, 38(9): 1-5.
49	Miyaji A, Iwase Y, Nishitoba T, et al. Influence of zeolite pore structure on product selectivities for protolysis and hydride transfer reactions in the cracking of n-pentane[J]. Physical Chemistry Chemical Physics, 2015, 17(7): 5014-5032.
50	Krannila H, Haag W O, Gates B C. Monomolecular and bimolecular mechanisms of paraffin cracking: n-butane cracking catalyzed by HZSM-5[J]. Journal of Catalysis, 1992, 135(1): 115-124.
51	Yang M, Zhang L Z, Wang G, et al. Fischer-Tropsch wax catalytic cracking for the production of low olefin and high octane number gasoline: experiment and molecular level kinetic modeling study[J]. Fuel, 2021, 303: 121226.
52	He S, Lucio-Vega J, Zhang L Z, et al. Integrating visualization methods with chemical kinetics model solution and editing tools[J]. Energy & Fuels, 2017, 31(9): 9881-9889.
53	Chen Z Y, Guan D, Zhang X J, et al. A mass-temperature decoupled discretization strategy for large-scale molecular-level kinetic model[J]. Chemical Engineering Science, 2022, 249: 117348.
54	Matsumoto H. Linear free energy relationships in heterogeneous catalysis(Ⅷ): Isomerization of alkylbenzenes over solid acid catalysts[J]. Journal of Catalysis, 1968, 11(3): 211-219.
55	Evans M G, Polanyi M. Some applications of the transition state method to the calculation of reaction velocities, especially in solution[J]. Transactions of the Faraday Society, 1935, 31: 875.
56	Bell R, The theory of reactions involving proton transfers[C]//Proceedings of the Royal Society of London. Series A-Mathematical and Physical Sciences, 1997, 154 (882): 414-429.
57	Jacob S M, Gross B, Voltz S E, et al. A lumping and reaction scheme for catalytic cracking[J]. AIChE Journal, 1976, 22(4): 701-713.
58	陈政宇. 分子尺度反应动力学模型构建及在重油催化转化过程中的应用[D]. 北京: 中国石油大学, 2019.
	Chen Z Y. Construction of molecular scale reaction kinetics model and its application in catalytic conversion of heavy oil[D]. Beijing: China University of Petroleum, 2019.
59	Xiong K, Lu C X, Wang Z F, et al. Kinetic study of catalytic cracking of heavy oil over an in situ crystallized FCC catalyst[J]. Fuel, 2015, 142: 65-72.

编辑推荐 0

Metrics

阅读次数

全文

HTML			PDF

最新录用	在线预览	正式出版	最新录用	在线预览	正式出版
2	0	6	27	0	28

来源	本网站	其他网站

次数	40	23
比例	63%	37%

摘要

122

最新录用	在线预览	正式出版

87	0	35

来源	本网站	其他网站

次数	28	94
比例	23%	77%

参数	数值	参数	数值
密度（20℃）/(kg/m³)	862.8	蒸馏数据
黏度（50℃）/(mm²/s)	27.2	初馏点	73.6℃
残炭/%（质量分数）	3.07	10%（质量分数）	209.2℃
蜡含量/%（质量分数）	30.2	30%（质量分数）	383.8℃
胶质含量/%（质量分数）	6.6	50%（质量分数）	448.2℃
沥青质含量/%（质量分数）	0.08	70%（质量分数）	602.2℃
镍/(mg/kg)	3.28	90%（质量分数）	707.2℃
铁/(mg/kg)	4.13	95%（质量分数）	741.2℃
钒/(mg/kg)	0.57	馏分切割
C/%（质量分数）	86.11	石脑油（C₅~200℃）	9.56%（质量分数）
H/%（质量分数）	13.55	柴油（200~350℃）	19.58%（质量分数）
S/%（质量分数）	0.12	减压馏分油（350~500℃）	26.56%（质量分数）
N/%（质量分数）	0.11	减压渣油（>500℃）	44.30%（质量分数）

参数	数值	参数	数值
密度（20℃）/(kg/m³)	862.8	蒸馏数据
黏度（50℃）/(mm²/s)	27.2	初馏点	73.6℃
残炭/%（质量分数）	3.07	10%（质量分数）	209.2℃
蜡含量/%（质量分数）	30.2	30%（质量分数）	383.8℃
胶质含量/%（质量分数）	6.6	50%（质量分数）	448.2℃
沥青质含量/%（质量分数）	0.08	70%（质量分数）	602.2℃
镍/(mg/kg)	3.28	90%（质量分数）	707.2℃
铁/(mg/kg)	4.13	95%（质量分数）	741.2℃
钒/(mg/kg)	0.57	馏分切割
C/%（质量分数）	86.11	石脑油（C₅~200℃）	9.56%（质量分数）
H/%（质量分数）	13.55	柴油（200~350℃）	19.58%（质量分数）
S/%（质量分数）	0.12	减压馏分油（350~500℃）	26.56%（质量分数）
N/%（质量分数）	0.11	减压渣油（>500℃）	44.30%（质量分数）

参数	数值	参数	数值
孔体积/(cm³/g)	0.17	粒度分布
比表面积/(m²/g)	210	20~40 μm	5.64%（质量分数）
微反活性	57	40~80 μm	19.90%（质量分数）
堆积密度/(g/cm³)	0.79	80~110 μm	48.01%（质量分数）
平均孔径/nm	6.82	>110 μm	17.58%（质量分数）

参数	数值	参数	数值
孔体积/(cm³/g)	0.17	粒度分布
比表面积/(m²/g)	210	20~40 μm	5.64%（质量分数）
微反活性	57	40~80 μm	19.90%（质量分数）
堆积密度/(g/cm³)	0.79	80~110 μm	48.01%（质量分数）
平均孔径/nm	6.82	>110 μm	17.58%（质量分数）

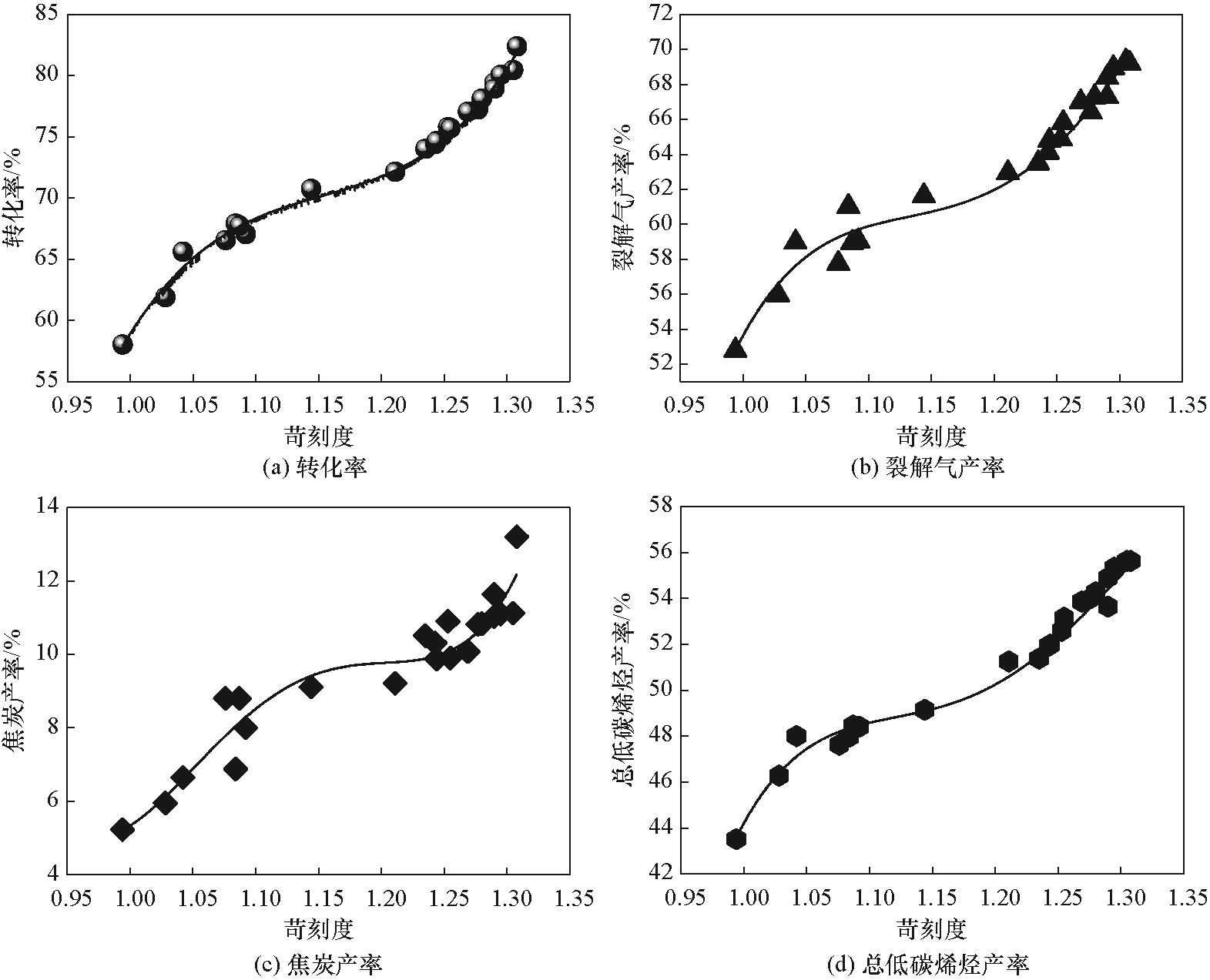

编号	提升管出口温度/℃	反应时间/s	剂油比
1	600	2.48	15.70
2	600	3.80	21.60
3	600	2.52	18.20
4	600	2.55	17.35
5	600	3.72	17.81
6	600	1.70	24.10
7	600	3.70	28.00
8	605	3.75	30.80
9	610	3.78	32.60
10	620	2.55	19.60
11	620	3.80	29.00
12	620	3.80	33.50
13	620	3.80	30.00
14	620	3.80	32.16
15	620	3.60	35.80
16	620	3.30	36.00
17	620	3.00	35.70
18	620	2.85	35.20
19	620	1.70	35.90
20	650	2.30	18.20
21	650	4.00	36.00
22	650	3.50	42.20
