Ag/SiO2催化草酸酯加氢制乙醇酸甲酯的床层-颗粒双尺度耦合模拟研究

doi:10.11949/0438-1157.20240266

摘要/Abstract

摘要：

草酸二甲酯（DMO）选择性加氢制乙醇酸甲酯（MG）过程中由于目标产物为串联加氢反应的中间产物，催化剂颗粒尺度以及床层尺度的传递过程对于催化性能具有显著影响，因此颗粒催化剂的结构设计对于其工业应用极为重要。首先通过实验获取了Ag/SiO₂催化DMO加氢制MG的动力学方程，在此基础上构建了床层-颗粒双尺度耦合的二维反应器模型，从床层尺度与颗粒尺度描述DMO加氢过程的传递与反应过程，考察了颗粒催化剂内活性组分的宏观分布对其在单管反应器内催化性能的影响。模拟计算结果表明，采用均匀型催化剂的反应器中存在着严重的MG过度加氢问题，采用蛋壳型催化剂则能够有效抑制过度加氢产物乙二醇的生成，提升MG的收率，且能够减少活性组分用量，显著提高DMO加氢制MG工艺的经济效益。研究结果可为DMO加氢制MG工业催化剂的结构设计和制备提供基础知识和指导。

关键词: 草酸二甲酯, 加氢, 动力学, 双尺度模型, 蛋壳型催化剂, 数值模拟

Abstract:

The selective hydrogenation of dimethyl oxalate (DMO) to methyl glycolate (MG) involves serial hydrogenation reactions, where transport phenomena within the catalyst pellets and throughout the catalyst bed play a pivotal role in determining catalytic performance. Hence, meticulous structural design of pellet catalysts is imperative for their industrial viability. In this study, the kinetic equations were first derived from experimental data for the DMO hydrogenation to MG using Ag/SiO₂ catalyst. Subsequently, a comprehensive two-dimensional bed-particle dual-scale model was developed to elucidate the transport and reaction dynamics of DMO hydrogenation at both scales. The impact of the active component distribution inside catalyst pellets on their catalytic performance in a single-tube reactor was investigated. Simulation results show that there is a serious problem of excessive hydrogenation of MG in reactors using uniform catalysts. Using eggshell catalysts can effectively suppress the formation of excessive hydrogenation product ethylene glycol, improve the yield of MG, and can reduce the dosage of active components and significantly improve the economic benefits of the DMO hydrogenation to MG process. These findings offer fundamental insights and practical guidance for the design and fabrication of industrial catalysts tailored for DMO hydrogenation to MG.

Key words: dimethyl oxalate, hydrogenation, kinetics, dual scale model, eggshell pellet catalyst, numerical simulation

中图分类号:

TQ 203.2

何传超, 周静红, 曹约强, 施尧, 周兴贵. Ag/SiO₂催化草酸酯加氢制乙醇酸甲酯的床层-颗粒双尺度耦合模拟研究[J]. 化工学报, 2025, 76(2): 654-666.

Chuanchao HE, Jinghong ZHOU, Yueqiang CAO, Yao SHI, Xinggui ZHOU. Bed-particle dual scale coupled simulation on Ag/SiO₂ catalyzed hydrogenation of oxalate to methyl glycolate[J]. CIESC Journal, 2025, 76(2): 654-666.

图/表 15

图1 床层-颗粒双尺度耦合模型

Fig.1 Bed-particle dual scale coupling model

表1 颗粒模型的边界条件

Table 1 Boundary conditions applied to the particle model

ζ	浓度边界条件	温度边界条件
0	$\frac{\partial c_{p e, i}}{\partial ζ} = 0$	$\frac{\partial T}{\partial ζ} = 0$
1	$\frac{1}{r_{p e}} (D_{e f f, i} \frac{\partial c_{p e, i}}{\partial ζ}) = h_{D, i} (c_{f, i} - c_{p e, i})$	$T_{p e} = T_{f}$

表1 颗粒模型的边界条件

Table 1 Boundary conditions applied to the particle model

ζ	浓度边界条件	温度边界条件
0	$\frac{\partial c_{p e, i}}{\partial ζ} = 0$	$\frac{\partial T}{\partial ζ} = 0$
1	$\frac{1}{r_{p e}} (D_{e f f, i} \frac{\partial c_{p e, i}}{\partial ζ}) = h_{D, i} (c_{f, i} - c_{p e, i})$	$T_{p e} = T_{f}$

表2 床层模型的边界条件

Table 2 Boundary conditions applied to the bed model

参数	浓度边界条件	温度边界条件	速度边界条件
z=0,∀r	c_f_,i =c_f_,i₀	T=T₀	u=u₀
z=H_t,∀r	$\frac{\partial c_{f, i}}{\partial z} = 0$	$\frac{\partial T}{\partial z} = 0$	P=P₀
r=0,∀z	$\frac{\partial c_{f, i}}{\partial r} = 0$	$\frac{\partial T}{\partial r} = 0$	$\frac{\partial u}{\partial r} = 0$
r=R,∀z	$\frac{\partial c_{f, i}}{\partial r} = 0$	T=T_w	u=0

表2 床层模型的边界条件

Table 2 Boundary conditions applied to the bed model

参数	浓度边界条件	温度边界条件	速度边界条件
z=0,∀r	c_f_,i =c_f_,i₀	T=T₀	u=u₀
z=H_t,∀r	$\frac{\partial c_{f, i}}{\partial z} = 0$	$\frac{\partial T}{\partial z} = 0$	P=P₀
r=0,∀z	$\frac{\partial c_{f, i}}{\partial r} = 0$	$\frac{\partial T}{\partial r} = 0$	$\frac{\partial u}{\partial r} = 0$
r=R,∀z	$\frac{\partial c_{f, i}}{\partial r} = 0$	T=T_w	u=0

表3 颗粒催化剂的基本性质

Table 3 Properties of the catalyst pellets

参数	数值
颗粒直径(d_pe)/mm	2
孔径(d_pore)/nm	6
孔隙率(ε_pe)	0.6
曲折因子(τ)	1.6667
密度(ρ_pe)/(kg/m³)	880
热导率(λ_pe)/(W/(m∙K))	0.574
比热容(C_p,_pe)/(J/(kg∙K))	1000

表4 床层性质与操作参数

Table 4 The bed properties and operating parameters

参数	数值
反应器内径(d_bed)/mm	32
床层高度(H_t)/m	1
床层空隙率(ε_bed)	0.45
进口温度(T₀)/K	493.15
反应器壁温(T_w)/K	493.15
进口压力(P₀)/MPa	2
DMO进口摩尔分数(y_DMO)	7.4532×10^-3
H₂进口摩尔分数( $y_{H_{2}}$ )	7.4532×10^-1
甲醇（ME）进口摩尔分数(y_ME)	2.4723×10^-1
质量空速(WHSV)/h^-1	0.5

表4 床层性质与操作参数

Table 4 The bed properties and operating parameters

参数	数值
反应器内径(d_bed)/mm	32
床层高度(H_t)/m	1
床层空隙率(ε_bed)	0.45
进口温度(T₀)/K	493.15
反应器壁温(T_w)/K	493.15
进口压力(P₀)/MPa	2
DMO进口摩尔分数(y_DMO)	7.4532×10^-3
H₂进口摩尔分数( $y_{H_{2}}$ )	7.4532×10^-1
甲醇（ME）进口摩尔分数(y_ME)	2.4723×10^-1
质量空速(WHSV)/h^-1	0.5

表5 各物质的扩散体积

Table 5 Diffusion volume of each substance

分子	扩散体积/(cm³/mol)
DMO	101.9
H₂	6.12
MG	79.89
乙二醇（EG）	57.88
甲醇（ME）	31.15

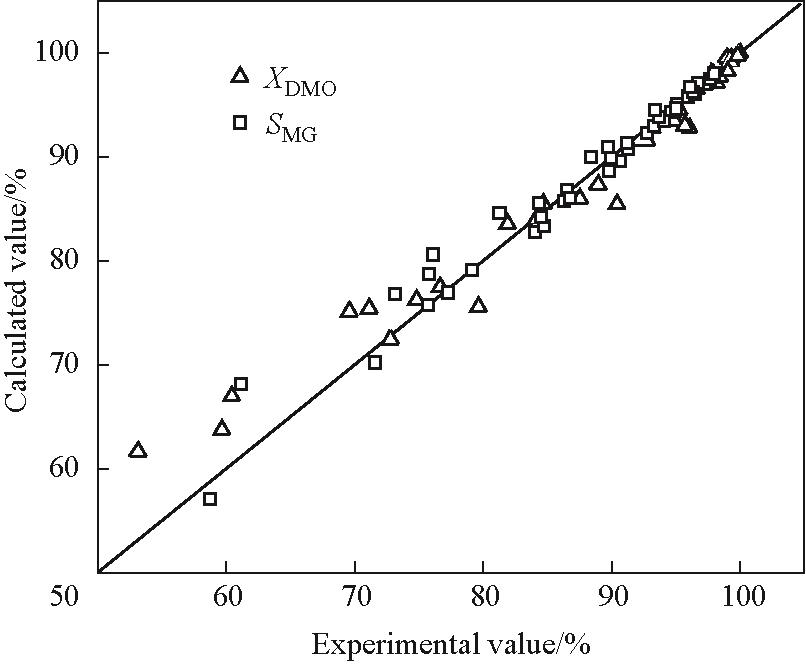

图2 动力学模型的计算值与实验值的比较

Fig.2 Comparison of the calculated and experimental data

图3 0.4及2 mm颗粒催化剂在管式反应器内DMO加氢反应双尺度模型计算值与实验值的比较

Fig.3 Comparison of experimental and simulated values of DMO conversion and MG selectivity for catalyst pellets of 0.4 and 2 mm

图4 DMO、MG及EG浓度随床层轴向高度变化的分布

Fig.4 Concentration distribution of DMO, MG, and EG along the bed height

图5 反应管中心床层轴向不同位置颗粒内部DMO消耗速率、MG生成速率及EG生成速率

Fig.5 The internal DMO consumption rate, MG generation rate, and EG generation rate of the tube-centered particles at different axial positions along the bed height

图6 相对蛋壳厚度对催化剂性能的影响

Fig.6 The effect of relative eggshell thickness on catalyst performance

图7 不同相对蛋壳厚度的催化剂对床层中MG选择性与DMO转化率的影响

Fig.7 The effect of relative eggshell thickness of pellet catalysts on MG selectivity and DMO conversion along the bed height

图8 床层z=0.4 m处不同蛋壳厚度的催化剂颗粒内部DMO、MG及EG的浓度分布

Fig.8 The concentration distribution of DMO, MG, and EG inside catalyst pellets with different relative eggshell thicknesses at z=0.4m along the catalyst bed height

图9 均匀型催化剂与蛋壳型催化剂（σ=20%）的活性组分用量和MG收率比较

Fig.9 The comparison of active component loading and MG yield between the homogeneous and the eggshell pellet catalysts

表A1 动力学实验结果

Table A1 Results of kinetic experiments

序号	T/K	WHSV/h^-1	H/D	X_DMO/%	S_MG/%	S_EG/%
1	493.45	0.5	100	99.96	58.76	41.24
2	493.45	0.75	100	99.85	71.55	28.45
3	493.25	1	40	98.18	76.12	23.88
4	493.25	1	80	99.02	75.69	24.31
5	493.25	1	100	98.99	77.29	22.71
6	493.25	1	120	99.32	75.77	24.23
7	493.15	1.25	100	97.86	84.07	15.93
8	493.15	1.5	100	96.59	86.26	13.74
9	487.85	0.5	100	99.95	61.19	38.81
10	488.25	0.75	100	99.30	79.11	20.89
11	488.45	1	40	96.01	86.55	13.45
12	488.25	1	80	97.90	84.75	15.25
13	488.25	1	100	98.20	84.53	15.47
14	488.25	1	120	98.43	84.34	15.66
15	488.15	1.25	100	94.76	89.78	10.22
16	488.25	1.5	100	92.43	91.29	8.71
17	483.05	0.5	100	99.83	73.17	26.83
18	483.25	0.75	100	97.22	86.76	13.24
19	482.55	1	40	84.12	92.76	7.24
20	482.85	1	80	93.16	90.67	9.33
21	483.15	1	100	94.90	89.97	10.03
22	482.95	1	120	95.69	89.69	10.31
23	483.05	1.25	100	88.97	93.30	6.70
24	483.15	1.5	100	84.31	94.59	5.41
25	477.85	0.5	100	99.03	81.27	18.73
26	478.05	0.75	100	92.74	91.20	8.80
27	478.15	1	40	69.59	95.05	4.95
28	478.05	1	80	84.68	94.10	5.90
29	478.05	1	100	87.53	93.67	6.33
30	477.95	1	120	90.42	93.36	6.64
31	477.95	1.25	100	76.65	95.92	4.08
32	477.95	1.5	100	72.81	96.55	3.45
33	473.05	0.5	100	95.26	88.39	11.61
34	473.25	0.75	100	81.91	95.03	4.97
35	473.15	1	40	59.68	96.70	3.30
36	473.15	1	80	71.13	96.46	3.54
37	473.25	1	100	74.83	96.31	3.69
38	473.15	1	120	79.64	96.07	3.93
39	473.35	1.25	100	60.44	97.68	2.32
40	473.35	1.5	100	53.17	97.97	2.03

参考文献 34

1	Zhou R J, Yan W Q, Cao Y Q, et al. Probing the structure sensitivity of dimethyl oxalate partial hydrogenation over Ag nanoparticles: a combined experimental and microkinetic study[J]. Chemical Engineering Science, 2022, 259: 117830.
2	Yang Q C, Fan Y J, Liu C L, et al. A promising alternative potential solution for sustainable and economical development of coal to ethylene glycol industry: dimethyl oxalate to methyl glycolate process[J]. Energy, 2023, 277: 127668.
3	Xie T H, Ai S, Huang Y C, et al. Synthesis and purification of glycolic acid from the mixture of methyl levulinate and methyl glycolate via acid-mediated hydrolysis reactions and extraction[J]. Separation and Purification Technology, 2021, 268: 118718.
4	Sun Y, Wang H, Shen J H, et al. Highly effective synthesis of methyl glycolate with heteropolyacids as catalysts[J]. Catalysis Communications, 2009, 10(5): 678-681.
5	Xu Y, Dou W J, Zhao Y J, et al. Kinetics study for ion-exchange-resin catalyzed hydrolysis of methyl glycolate[J]. Industrial & Engineering Chemistry Research, 2012, 51(36): 11653-11658.
6	袁彩彩. 乙醇酸及聚乙醇酸的合成研究[D]. 郑州: 郑州大学, 2019.
	Yuan C C. Synthesis of glycolic acid and polyglycolic acid[D]. Zhengzhou: Zhengzhou University, 2019.
7	张军伟, 陈建军, 贾彩敬. 一种多柱连续色谱除盐以纯化羟基乙酸的方法: 111635302B[P]. 2021-06-15.
	Zhang J W, Chen J J, Jia C J. Method of purifying glycolic acid through multi-column continuous chromatographic desalination: 111635302B[P]. 2021-06-15.
8	石磊, 陈飞, 姚杰. 一种制备乙醇酸甲酯并副产甲氧基乙酸甲酯的方法: 107337602A[P]. 2017-11-10.
	Shi L, Chen F, Yao J. Method for preparing methyl glycolate and by-producing methyl methoxyacetate: 107337602A[P]. 2017-11-10.
9	李锦春. 乙醇酸甲酯的合成及其开发前景[J]. 四川化工与腐蚀控制, 1998, 1(6): 24-27.
	Li J C. Synthesis and development prospect of methyl glycolate[J]. Sichuan Chemical Industry and Corrosion Control, 1998, 1(6): 24-27.
10	Dong G L, Luo Z W, Cao Y Q, et al. Understanding size-dependent hydrogenation of dimethyl oxalate to methyl glycolate over Ag catalysts[J]. Journal of Catalysis, 2021, 401: 252-261.
11	Chen H M, Tan J J, Zhu Y L, et al. An effective and stable Ni₂P/TiO₂ catalyst for the hydrogenation of dimethyl oxalate to methyl glycolate[J]. Catalysis Communications, 2016, 73: 46-49.
12	Niu J C, Ai P P, Guo Q W, et al. The effect of nitrogen doping on hydrogenation capability and stability of Cu-based catalyst in ester hydrogenation to methyl glycolate[J]. Fuel, 2023, 351: 128866.
13	Xue J, Wu M M, Song Y W, et al. Study on performance of Ag-modified layered copper silicate catalyst for hydrogenation of dimethyl oxalate to methyl glycolate[J]. Journal of Fuel Chemistry and Technology, 2022, 50(8): 1014-1022.
14	Dong G L, Cao Y Q, Zheng S N, et al. Catalyst consisting of Ag nanoparticles anchored on amine-derivatized mesoporous silica nanospheres for the selective hydrogenation of dimethyl oxalate to methyl glycolate[J]. Journal of Catalysis, 2020, 391: 155-162.
15	Hu M L, Yan Y, Duan X P, et al. Effective anchoring of silver nanoparticles onto N-doped carbon with enhanced catalytic performance for the hydrogenation of dimethyl oxalate to methyl glycolate[J]. Catalysis Communications, 2017, 100: 148-152.
16	Jurtz N, Wehinger G D, Srivastava U, et al. Validation of pressure drop prediction and bed generation of fixed‐beds with complex particle shapes using discrete element method and computational fluid dynamics[J]. AIChE Journal, 2020, 66(6): 16967.
17	胡鑫. 草酸二甲酯加氢制乙醇酸甲酯 Ag/SiO₂蛋壳型催化剂的制备及性能[D]. 上海: 华东理工大学, 2022.
	Hu X. Preparation and properties of Ag/SiO₂ eggshell catalyst for hydrogenation of dimethyl oxalate to methyl glycolate[D]. Shanghai: East China University of Science and Technology, 2022.
18	Froment G F, Bischoff K B, Wilde J D. Chemical Reactor Analysis and Design[M]. 3rd ed. New York: Wiley, 1990: 462-474.
19	Stitt H, Marigo M, Wilkinson S, et al. How good is your model?[J]. Johnson Matthey Technology Review, 2015, 59(2): 74-89.
20	Dong Y, Keil F J, Korup O, et al. Effect of the catalyst pore structure on fixed-bed reactor performance of partial oxidation of n-butane: a simulation study[J]. Chemical Engineering Science, 2016, 142: 299-309.
21	Krammer A, Peham M, Lehner M. 2D heterogeneous model of a polytropic methanation reactor[J]. Journal of CO₂ Utilization, 2022, 62: 102059.
22	Bac S, Avci A K. Ethylene oxide synthesis in a wall-coated microchannel reactor with integrated cooling[J]. Chemical Engineering Journal, 2019, 377: 120104.
23	Marín P, Díez F V, Ordóñez S. Fixed bed membrane reactors for WGSR-based hydrogen production: optimisation of modelling approaches and reactor performance[J]. International Journal of Hydrogen Energy, 2012, 37(6): 4997-5010.
24	Liu X L, Qin B, Zhang Q F, et al. Optimizing catalyst supports at single catalyst pellet and packed bed reactor levels: a comparison study[J]. AIChE Journal, 2021, 67(8): 1-13.
25	Solsvik J, Jakobsen H A. A survey of multicomponent mass diffusion flux closures for porous pellets: mass and molar forms[J]. Transport in Porous Media, 2012, 93(1): 99-126.
26	Solsvik J, Jakobsen H A. Impacts on the reactor performance of intra-particle multicomponent mass diffusion limitations: Knudsen diffusion[J]. Energy Procedia, 2012, 26: 116-124.
27	Fuller E N, Schettler P D, Giddings J C. New method for prediction of binary gas-phase diffusion coefficients[J]. Industrial & Engineering Chemistry, 2002, 58(5): 18-27.
28	Thompson C R, Marín P, Díez F V, et al. Evaluation of the use of ceramic foams as catalyst supports for reverse-flow combustors[J]. Chemical Engineering Journal, 2013, 221: 44-54.
29	Winterberg M, Tsotsas E, Krischke A, et al. A simple and coherent set of coefficients for modelling of heat and mass transport with and without chemical reaction in tubes filled with spheres[J]. Chemical Engineering Science, 2000, 55(5): 967-979.
30	Tsotsas E. Wärmeleitung und dispersion in durchströmten schüttungen[M]//Stephan P, Kabelac S, Kind M, et al, eds. Springer Reference Technik. Berlin, Heidelberg: Springer Berlin Heidelberg, 2019: 1753-1772.
31	李绍芬.反应工程[M]. 3版. 北京: 化学工业出版社, 2013: 50.
	Li S F. Reaction Engineering[M]. 3rd ed. Beijing: Chemical Industry Press, 2013: 50.
32	Luo Z W, Xu X F, Dong G L, et al. Regulating mesopore structures of support toward enhanced selective hydrogenation of dimethyl oxalate to methyl glycolate on Ag catalysts[J]. Chemical Engineering Journal, 2022, 450: 138397.
33	邬时海, 卢立义, 谢在库, 等. 非均匀分布催化剂的性能及制备[J]. 工业催化, 2002, 10(6): 48-52.
	Wu S H, Lu L Y, Xie Z K, et al. Properties and preparation of non-uniform distributed catalysts[J]. Gongye Cuihua (Industrial Catalysis), 2002, 10(6): 48-52.
34	Xu X F, Hu X, Luo Z W, et al. Engineering an egg-shell structure for the Ag/SiO₂ pellet catalyst for selective hydrogenation of dimethyl oxalate to methyl glycolate[J]. New Journal of Chemistry, 2023, 47(13): 6045-6049.
