机械应力对气体扩散层界面传输特性影响

doi:10.11949/0438-1157.20241093

摘要/Abstract

摘要：

气体扩散层（GDL）多孔介质由多孔传输层（PTL）和微孔层（MPL）两个结构差异显著的组件构成，PTL/MPL界面对电池的性能有不可忽视的影响。为了深入研究机械应力对PTL/MPL界面传输特性的影响，首先利用X射线断层扫描表征商用GDL，重构出界面三维微尺度结构。随后使用有限元方法模拟界面在不同机械压缩比下的应力、应变和微结构参数分布。最后利用孔尺度模型获得机械压缩比与各向异性有效传输特性的关系。研究表明，40%的机械压缩比导致界面上的孔隙率减小了41%，平均孔径下降了近62%。此外，平面内方向的曲度增加了61%，气体扩散率降低了57%，传导率增加了1倍；厚度方向上曲度增加了1倍，气体扩散率降低了67%，有效传导率增加了3倍。

关键词: 气体扩散层, 多孔介质, 界面, 微尺度, 机械应力, 孔尺度模型, 传输特性

Abstract:

The gas diffusion layer (GDL) porous media is composed of two components with significantly different structures: the porous transport layer (PTL) and the microporous layer (MPL). The PTL/MPL interface has a non-negligible impact on the performance of the battery. To deeply investigate the effect of mechanical stress on the transport properties at the PTL/MPL interface. This study first reconstructs the three-dimensional microscale structure of the interface by using X-ray tomography to characterize the commercial GDL. Subsequently, the finite element method is utilized to simulate the distribution of stress, strain, and microstructure parameters at the interface under different mechanical compression ratios. Finally, the relationship between the mechanical compression ratio and the anisotropic effective transport properties is obtained by using a pore scale model. It is found that a 40% mechanical compression ratio leads to a 41% reduction in porosity and nearly 62% decrease in average pore size at the interface. In addition, the tortuosity increases by 61%, the gas diffusivity decreases by 57%, and the conductivity doubles in the in-plane direction. The tortuosity increases by a factor of two, the gas diffusivity decreases by 67%, and the effective conductivity increases by a factor of three in the through-plane direction.

Key words: gas diffusion layer, porous media, interfaces, microscale, mechanical stress, pore scale model, transport properties

中图分类号:

TM 911.4

张恒, 魁殿禄, 常虹, 詹志刚. 机械应力对气体扩散层界面传输特性影响[J]. 化工学报, 2025, 76(2): 637-644.

Heng ZHANG, Dianlu KUI, Hong CHANG, Zhigang ZHAN. Effect of mechanical stress on the interfacial transport properties of gas diffusion layers[J]. CIESC Journal, 2025, 76(2): 637-644.

图/表 12

图1 PTL/MPL界面模型XCT实验表征

Fig.1 Experimental XCT characterization of the PTL/MPL interface

图2 PTL/MPL界面样本的不同深度的切面图

Fig.2 Cross-sections of PTL/MPL interface samples at different depths

图3 PTL/MPL界面模型计算域

Fig.3 Computational domain of the PTL/MPL interface model

图4 PTL/MPL计算域截面

Fig.4 Different cross-sections of the PTL/MPL computational domains

图5 机械应力压缩示意图

Fig.5 Schematic diagram of mechanical stress compression

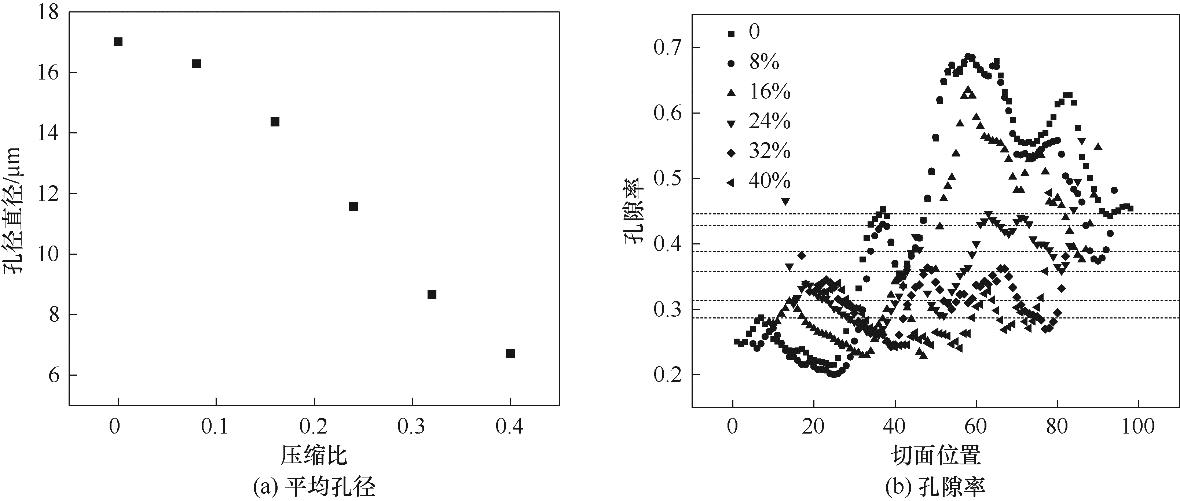

图6 不同机械压缩比下的微结构参数分布

Fig.6 Distribution of microstructural parameters at different mechanical compression ratios

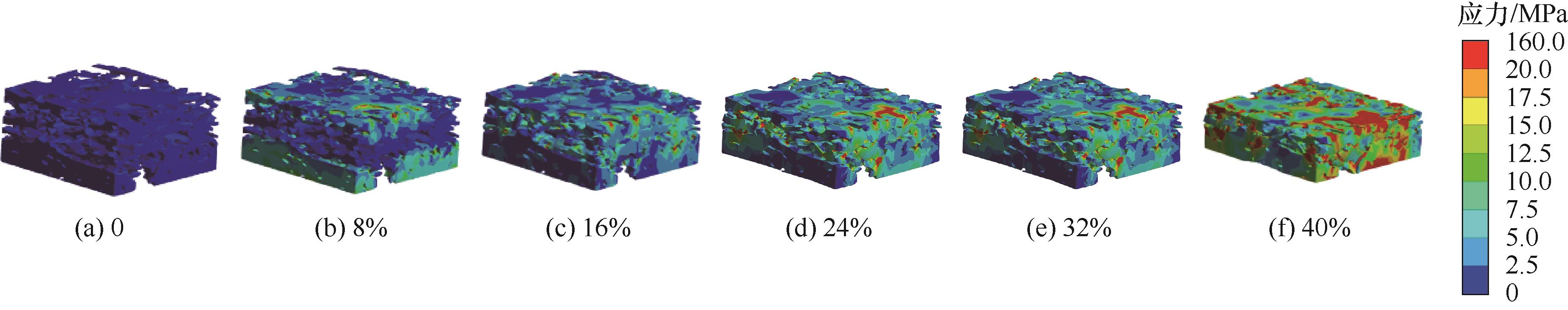

图7 在不同机械压缩比下的应力分布

Fig.7 Stress distribution at different mechanical compression ratios

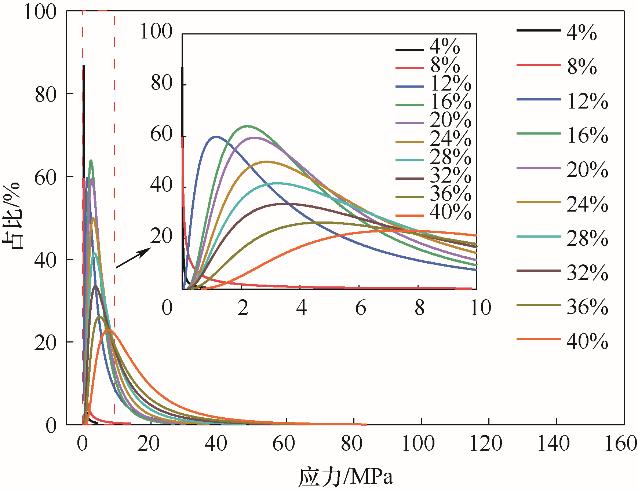

图8 不同机械压缩比下的应力分布频率

Fig.8 Frequency distribution of stress under different mechanical compression ratios

图9 在不同机械压缩比下的应变分布

Fig.9 Strain distribution at different mechanical compression ratios

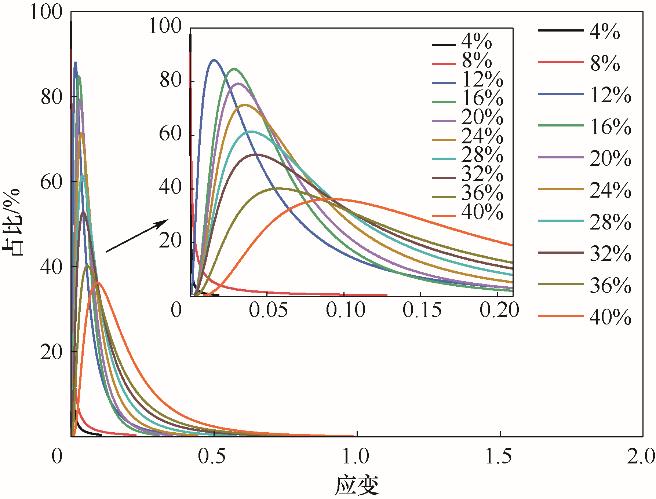

图10 不同机械压缩比下的应变分布频率

Fig.10 Frequency profile of strain distribution for different mechanical compression ratios

图11 PTL/MPL界面在平面内方向和厚度方向机械应力对气体传输的影响

Fig.11 Effect of mechanical ratios on gas transport at the PTL/MPL interface in the IP and TP directions

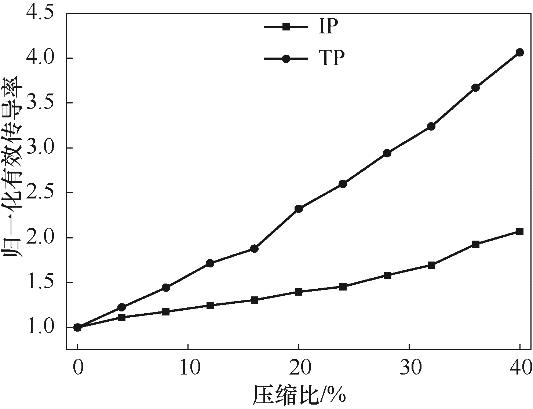

图12 PTL/MPL界面在平面内方向和厚度方向机械应力对传导性能的影响

Fig.12 Effect of mechanical stress on conductivity at the PTL/MPL interface in the IP and TP directions

参考文献 32

1	Yang G Q, Lee C, Qiao X X, et al. Advanced electrode structures for proton exchange membrane fuel cells: current status and path forward[J]. Electrochemical Energy Reviews, 2024, 7(1): 9.
2	Kahraman H, Akın Y. Recent studies on proton exchange membrane fuel cell components, review of the literature[J]. Energy Conversion and Management, 2024, 304: 118244.
3	Liu Q S, Lan F C, Chen J Q, et al. A review of proton exchange membrane fuel cell water management: membrane electrode assembly[J]. Journal of Power Sources, 2022, 517: 230723.
4	Burheim O S, Crymble G A, Bock R, et al. Thermal conductivity in the three layered regions of micro porous layer coated porous transport layers for the PEM fuel cell[J]. International Journal of Hydrogen Energy, 2015, 40(46): 16775-16785.
5	Zhang H, Shao X Y, Zhan Z G, et al. Pore-scale modeling of microporous layer for proton exchange membrane fuel cell: effective transport properties[J]. Membranes, 2023, 13(2): 219.
6	Wu N R, Liu Y, Tian X X, et al. The microporous layer in proton exchange membrane fuel cells, from transport mechanism to structural design[J]. Journal of Power Sources, 2023, 580: 233412.
7	Chen M Y, Du S J, Jung J C Y, et al. Effect of dispersion method on ink rheology and microstructure of microporous layer for PEMFCs[J]. Journal of the Electrochemical Society, 2023, 170(5): 054513.
8	Zhang H, Hu H, Shao X Y, et al. A comparative numerical investigation of effect of mechanical compression on the transport properties of gas diffusion layer fabricated by wet and dry laid methods[J]. International Journal of Heat and Mass Transfer, 2024, 234: 126064.
9	Shi Q T, Feng C, Ming P W, et al. Compressive stress and its impact on the gas diffusion layer: a review[J]. International Journal of Hydrogen Energy, 2022, 47(6): 3994-4009.
10	Guo H, Chen L B, Ismail S A, et al. Gas diffusion layer for proton exchange membrane fuel cells: a review[J]. Materials, 2022, 15(24): 8800.
11	Xia L C, Ni M, He Q J, et al. Optimization of gas diffusion layer in high temperature PEMFC with the focuses on thickness and porosity[J]. Applied Energy, 2021, 300: 117357.
12	Majlan E H, Rohendi D, Daud W R W, et al. Electrode for proton exchange membrane fuel cells: a review[J]. Renewable and Sustainable Energy Reviews, 2018, 89: 117-134.
13	Ozcan S, Vautard F, Naskar A K. Designing the structure of carbon fibers for optimal mechanical properties[M]//ACS Symposium Series. Washington, DC: American Chemical Society, 2014: 215-232.
14	Shi Y Z, Wang B. Mechanical properties of carbon fiber/cellulose composite papers modified by hot-melting fibers[J]. Progress in Natural Science: Materials International, 2014, 24(1): 56-60.
15	Kalidindi A R, Taspinar R, Litster S, et al. A two-phase model for studying the role of microporous layer and catalyst layer interface on polymer electrolyte fuel cell performance[J]. International Journal of Hydrogen Energy, 2013, 38(22): 9297-9309.
16	Hizir F E, Ural S O, Kumbur E C, et al. Characterization of interfacial morphology in polymer electrolyte fuel cells: micro-porous layer and catalyst layer surfaces[J]. Journal of Power Sources, 2010, 195(11): 3463-3471.
17	Zenyuk I V, Kumbur E C, Litster S. Deterministic contact mechanics model applied to electrode interfaces in polymer electrolyte fuel cells and interfacial water accumulation[J]. Journal of Power Sources, 2013, 241: 379-387.
18	George M, Fishman Z, Botelho S, et al. Micro-computed tomography-based profilometry for characterizing the surface roughness of microporous layer-coated polymer electrolyte membrane fuel cell gas diffusion layers[J]. Journal of the Electrochemical Society, 2016, 163(8): F832-F841.
19	Lin P Z, Sun J, Shao M H, et al. Modeling proton exchange membrane fuel cells with fiber-based microporous layers[J]. International Journal of Heat and Mass Transfer, 2022, 198: 123398.
20	Prass S, Hasanpour S, Sow P K, et al. Microscale X-ray tomographic investigation of the interfacial morphology between the catalyst and micro porous layers in proton exchange membrane fuel cells[J]. Journal of Power Sources, 2016, 319: 82-89.
21	Taspinar R, Litster S, Kumbur E C. A computational study to investigate the effects of the bipolar plate and gas diffusion layer interface in polymer electrolyte fuel cells[J]. International Journal of Hydrogen Energy, 2015, 40(22): 7124-7134.
22	Bao Y Y, Wang Z Z, Gan Y X. Numerical investigation of compressive stress and wettability effects on fluid transport in polymer electrolyte membrane fuel cell porous layers[J]. Energy Technology, 2022, 10(12): 2201028.
23	Andersen S M, Grahl-Madsen L. Interface contribution to the electrode performance of proton exchange membrane fuel cells—impact of the ionomer[J]. International Journal of Hydrogen Energy, 2016, 41(3): 1892-1901.
24	Tabe Y, Aoyama Y, Kadowaki K, et al. Impact of micro-porous layer on liquid water distribution at the catalyst layer interface and cell performance in a polymer electrolyte membrane fuel cell[J]. Journal of Power Sources, 2015, 287: 422-430.
25	Kirubakaran A, Jain S, Nema R K. A review on fuel cell technologies and power electronic interface[J]. Renewable and Sustainable Energy Reviews, 2009, 13(9): 2430-2440.
26	Omrani R, Shabani B. Gas diffusion layer modifications and treatments for improving the performance of proton exchange membrane fuel cells and electrolysers: a review[J]. International Journal of Hydrogen Energy, 2017, 42(47): 28515-28536.
27	Zhang H, Hu H, Sarker M, et al. Numerical investigation of effect of mechanical compression on the transport properties of fuel cell microporous layer using a pore-scale model[J]. International Journal of Hydrogen Energy, 2024, 62: 591-600.
28	Zhu L J, Zhang H, Xiao L S, et al. Pore-scale modeling of gas diffusion layers: effects of compression on transport properties[J]. Journal of Power Sources, 2021, 496: 229822.
29	Zhang H, Zhu L J, Harandi H B, et al. Microstructure reconstruction of the gas diffusion layer and analyses of the anisotropic transport properties[J]. Energy Conversion and Management, 2021, 241: 114293.
30	Shangguan Z X, Li B, Ming P W, et al. Understanding the functions and modifications of interfaces in membrane electrode assemblies of proton exchange membrane fuel cells[J]. Journal of Materials Chemistry A, 2021, 9(27): 15111-15139.
31	Xu J, Zhu L J, Xiao L S, et al. A multiscale study on the effect of compression on lithium-ion battery separators[J]. Journal of Energy Storage, 2022, 54: 105255.
32	Holzer L, Pecho O, Schumacher J, et al. Microstructure-property relationships in a gas diffusion layer (GDL) for polymer electrolyte fuel cells(part Ⅰ): Effect of compression and anisotropy of dry GDL[J]. Electrochimica Acta, 2017, 227: 419-434.
