催化甲烷重整工艺的研究进展

doi:10.11949/0438-1157.20240625

摘要/Abstract

摘要：

天然气储量丰富，是优质的清洁能源，甲烷作为其主要成分，通常经由重整工艺来制备。而重整过程中由积炭烧结等引起的催化剂失活问题是阻碍该工艺大规模工业化发展的关键因素。基于铁基催化剂，从催化剂活性组分、载体、助剂以及制备方法等角度综述了甲烷裂解重整催化剂性能的研究进展。基于Ni-Fe双金属催化剂综述了甲烷蒸汽重整及二氧化碳重整催化剂性能的研究进展。阐述了催化剂的失活原因以及提高重整催化剂性能的方法。为了促进重整工艺的工业应用，未来应深度探讨铁基催化剂的积炭机理，选取合适的载体及助剂来优化铁基催化剂的性能。

关键词: 甲烷重整, 催化剂, 铁基催化, 活性, 失活

Abstract:

Natural gas is abundant, and methane is the main ingredient, which is usually used through reforming to produce high-quality clean energy. However, the catalyst deactivation caused by carbon deposition and sintering in the reforming process is a key factor hindering the large-scale industrial development of this process. Based on iron-based catalysts, the research progress on the performance of methane cracking reforming catalysts was reviewed from the perspectives of catalyst active components, supports, additives and preparation methods. Based on Ni-Fe bimetallic catalysts, the research progress on the performance of methane steam reforming and carbon dioxide reforming catalysts was reviewed. The causes of catalyst deactivation and the methods to improve the performance of reforming catalysts are described. In order to promote the industrial application of the reforming process, the carbon deposition mechanism of iron-based catalysts should be deeply explored in the future, and appropriate carriers and additives should be selected to optimize the performance of iron-based catalysts.

Key words: methane reforming, catalyst, iron-based catalysis, activity, deactivation

中图分类号:

TF 554

石美琳, 赵连达, 邓行健, 王静松, 左海滨, 薛庆国. 催化甲烷重整工艺的研究进展[J]. 化工学报, 2024, 75(S1): 25-39.

Meilin SHI, Lianda ZHAO, Xingjian DENG, Jingsong WANG, Haibin ZUO, Qingguo XUE. Research progress on catalytic methane reforming process[J]. CIESC Journal, 2024, 75(S1): 25-39.

图/表 16

图1 甲烷的转化方式及用途

Fig.1 Conversion mode and use of methane

表1 甲烷重整工艺

Table 1 Methane reforming process

甲烷重整工艺	反应方程式	H₂/CO	优点	缺点
裂解重整	CH₄ $\overset{}{̿}$ C+2H₂	—	不产生污染气体CO₂的同时产生高附加值的碳产品，绿色经济	碳的形成和沉积造成催化剂失活
蒸汽重整	CH₄+H₂O $\overset{}{̿}$ 3H₂+CO	3∶1	可以产生更高浓度的氢，运行效率高，产业成熟度高	外部热交换装置的额外费用高
干重整	CH₄+CO₂ $\overset{}{̿}$ 2CO+2H₂	1∶1	同时使用了两种温室气体	高温条件下催化剂易积炭烧结
部分氧化重整	CH₄+1/2O₂ $\overset{}{̿}$ CO+2H₂	2∶1	对硫杂质有更高的耐受性，能耗少，经济	纯氧成本高，气体混合物可能会发生爆炸

表1 甲烷重整工艺

Table 1 Methane reforming process

甲烷重整工艺	反应方程式	H₂/CO	优点	缺点
裂解重整	CH₄ $\overset{}{̿}$ C+2H₂	—	不产生污染气体CO₂的同时产生高附加值的碳产品，绿色经济	碳的形成和沉积造成催化剂失活
蒸汽重整	CH₄+H₂O $\overset{}{̿}$ 3H₂+CO	3∶1	可以产生更高浓度的氢，运行效率高，产业成熟度高	外部热交换装置的额外费用高
干重整	CH₄+CO₂ $\overset{}{̿}$ 2CO+2H₂	1∶1	同时使用了两种温室气体	高温条件下催化剂易积炭烧结
部分氧化重整	CH₄+1/2O₂ $\overset{}{̿}$ CO+2H₂	2∶1	对硫杂质有更高的耐受性，能耗少，经济	纯氧成本高，气体混合物可能会发生爆炸

表2 甲烷裂解工艺催化材料分类

Table 2 Classification of catalytic materials for methane cracking process

项目	分类	作用
活性组分	贵金属类：Pt、Ru、Rh等非贵金属类：Ni、Fe、Co等碳基：石墨、活性炭、金刚石等	催化甲烷裂解，能够解离活化甲烷分子，具有活化O—O、H—O键等的能力
载体	Al₂O₃、SiO₂、MgO、CeO、ZrO₂、钙钛矿、介孔材料等	起到骨架的作用，可与活性组分相互作用，负载活性组分
助剂	MgO、CaO、CeO₂、La₂O₃等	提高催化剂活性、抗积炭抗烧结等能力
制备方法	溶胶-凝胶法、共沉淀法、浸渍法等	制备合成催化剂

表3 Ermakova等［10］的研究结果

Table 3 Research results of Ermakova et al［10］

活性组分	载体	析碳量/g	氢体积/cm³
Fe	ZrO₂	13.5	50.4
Fe	Al₂O₃	14	52.3
Fe	TiO₂	17.4	64.9
Fe	SiO₂	45	168
Fe	—	16.5	61.6

表4 催化剂制备方法对甲烷分解中测试的Fe基催化剂的催化性能的影响［18］

Table 4 Influence of catalyst preparation method on catalytic performance of Fe catalyst tested in methane decomposition［18］

催化剂	制备方法	甲烷转化率%	催化剂寿命/h	析碳量/g
Fe-Al₂O₃	浸渍法[Fe(NO₃)₃]	—	2	1.1
Fe-SiO₂	浸渍法[Fe(NO₃)₃]	—	2	0.7
Fe-Al₂O₃	共沉淀法（NH₄OH）	4	23	26.5
Fe-Al₂O₃	共沉淀法（NaOH）	6	6	3.3
Fe-Al₂O₃	共沉淀法（Na₂CO₃）	4	6	2.3

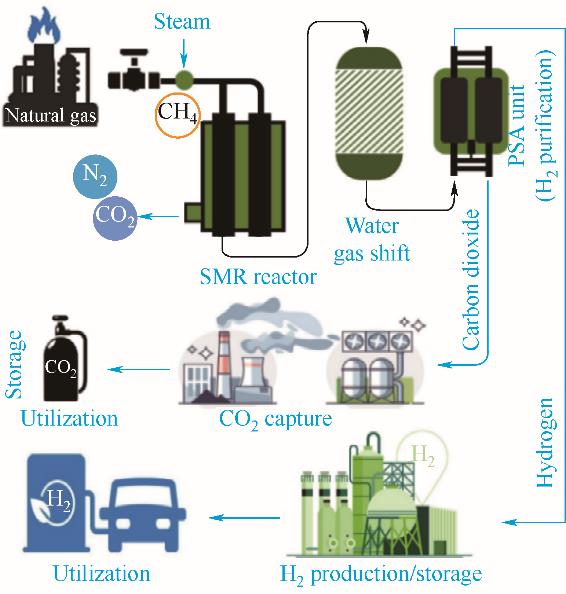

图2 蒸汽重整工艺图[20]

Fig.2 Steam reforming process diagram[20]

图3 镍铁改性方解石机理图[27]

Fig.3 Mechanism diagram of nickel-iron modified calcite[27]

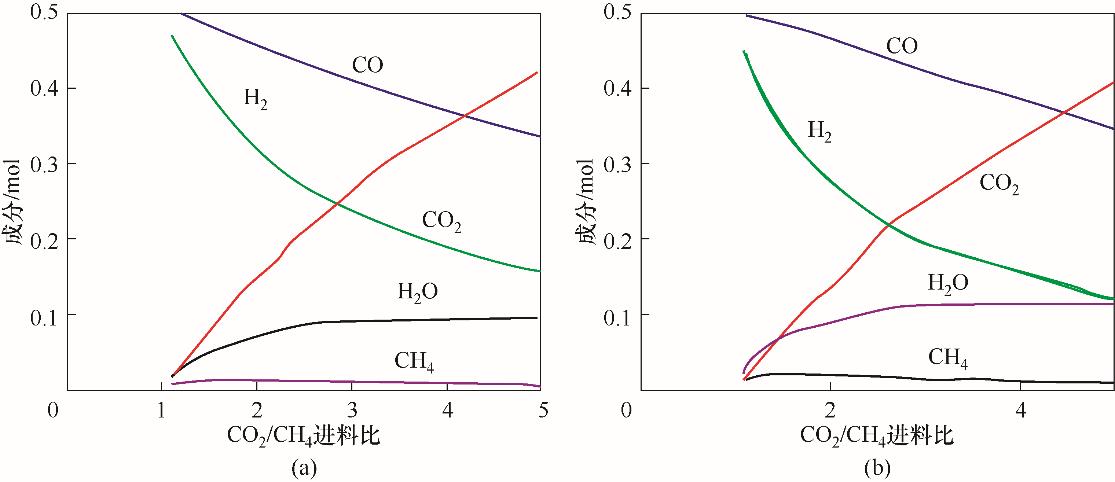

图4 CO2/CH4体系在1 atm (a)和10 atm (b)下的平衡组分[33]（1 atm=101.325 kPa）

Fig.4 Equilibrium components of the CO2/CH4 system at 1 atm (a) and 10 atm (b)[33]

图5 Fe-Ni催化剂的TEM图像[44]

Fig.5 TEM images of Fe-Ni catalyst[44]

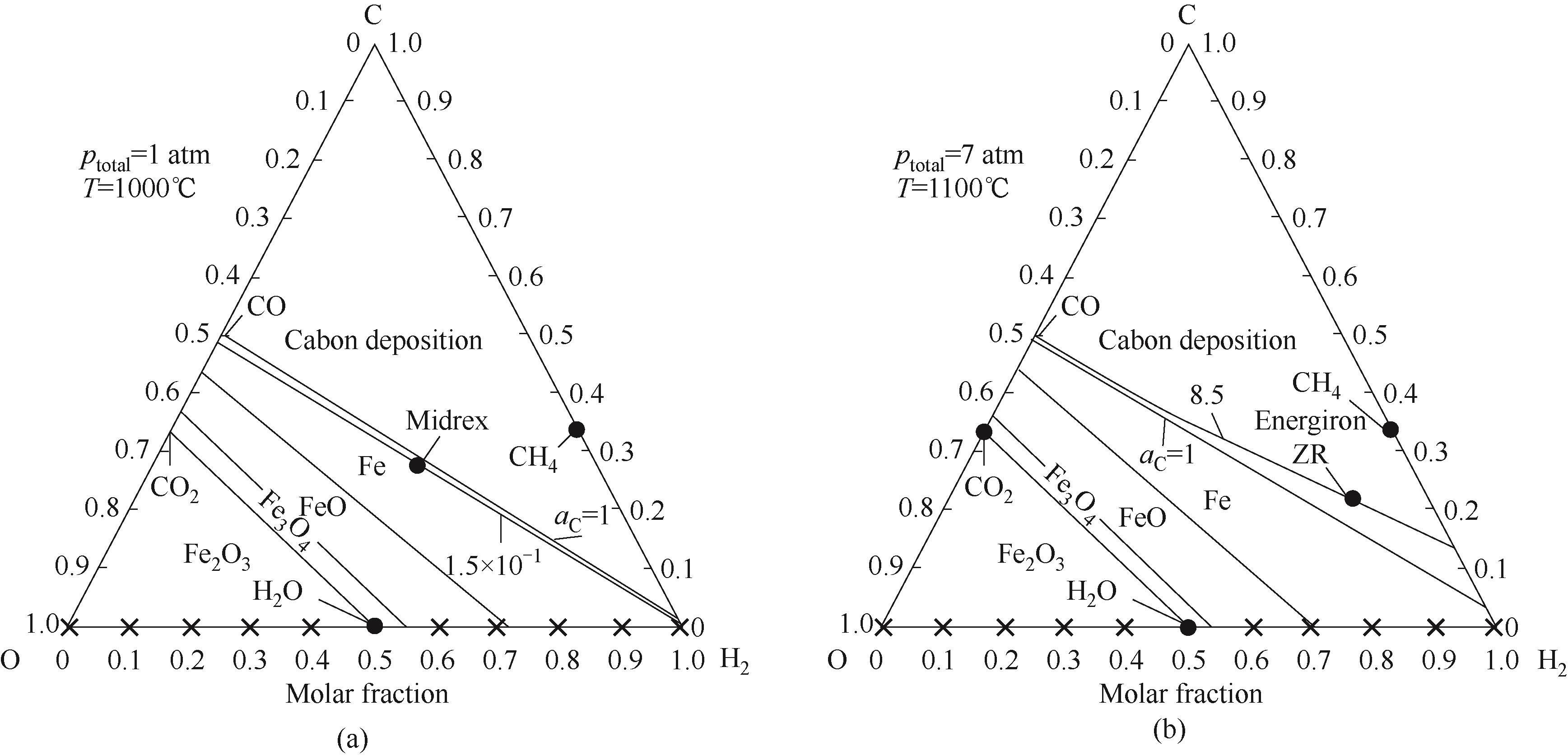

图6 C-O-H2三元相图在直接还原工艺中的应用[53]

Fig.6 Application of C-O-H2 ternary phase diagram in direct reduction process[53]

表5 催化剂失活现象部分相关研究

Table 5 Partial studies on catalyst deactivation

工艺	催化剂	失活原因	文献
催化裂解重整	Ni-SiO₂	活性中心组分Ni烧结、积炭	[54]
催化裂解重整	Fe-Al₂O₃	积炭	[18]
蒸汽重整	Fe	Fe氧化	[23]
蒸汽重整	Ni-Ce/Al	活性中心组分Ni烧结	[55]
蒸汽重整	Ni/Ni-Ru	活性中心组分Ni烧结	[56]
蒸汽重整	Ni-Ru/CeO₂-Al₂O₃	硫中毒	[57]
蒸汽重整	Pt/CeO₂-La₂O₃-Al₂O₃	活性中心组分Pt烧结	[58]
干重整	Fe-Al₂O₃	积炭	[36]
干重整	Ni-Fe	积炭	[59]
干重整	Ni-SiO₂/TiO₂/MgO	活性中心组分Ni烧结、积炭	[60]
干重整	Ni	活性中心组分Ni烧结	[37]
干重整	Ni/MgO	Ni氧化	[61]
干重整	Ni-Co/TiO₂	Co氧化	[62]
干重整	Co/γ-Al₂O₃	Co氧化	[63]

图7 ∆G⊝-T 曲线

Fig.7 ∆G⊝ -T curve

图8 C-H-O三元相图（1atm)

Fig.8 C-H-O ternary phase diagram (1atm)

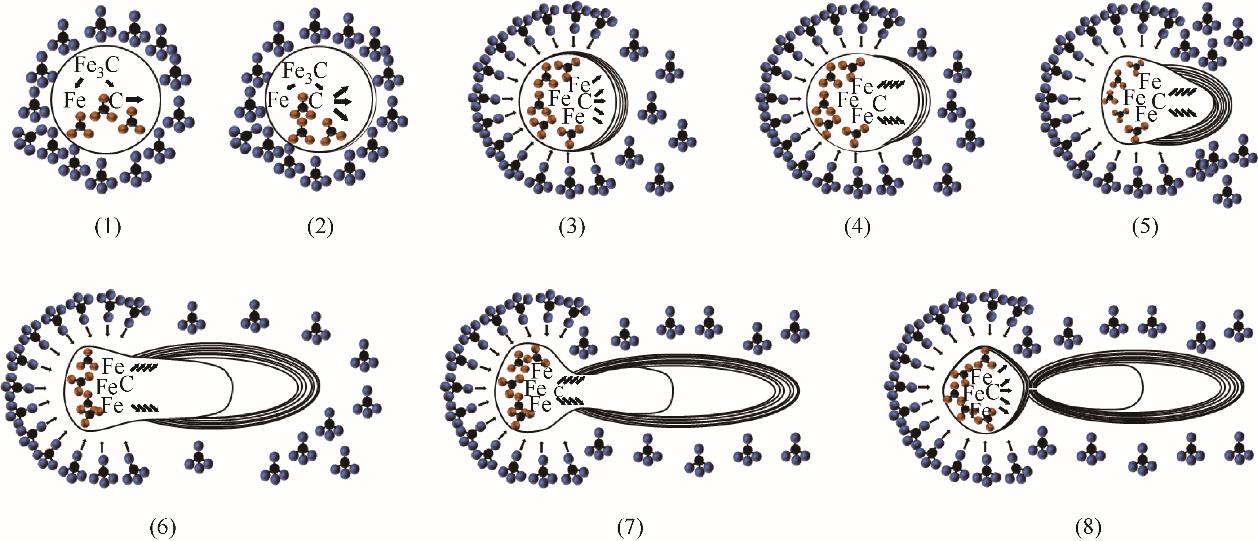

图9 碳化铁颗粒上碳丝成核和生长阶段示意图

Fig.9 Schematic diagram of nucleation and growth stages of carbon filaments on iron carbide particles

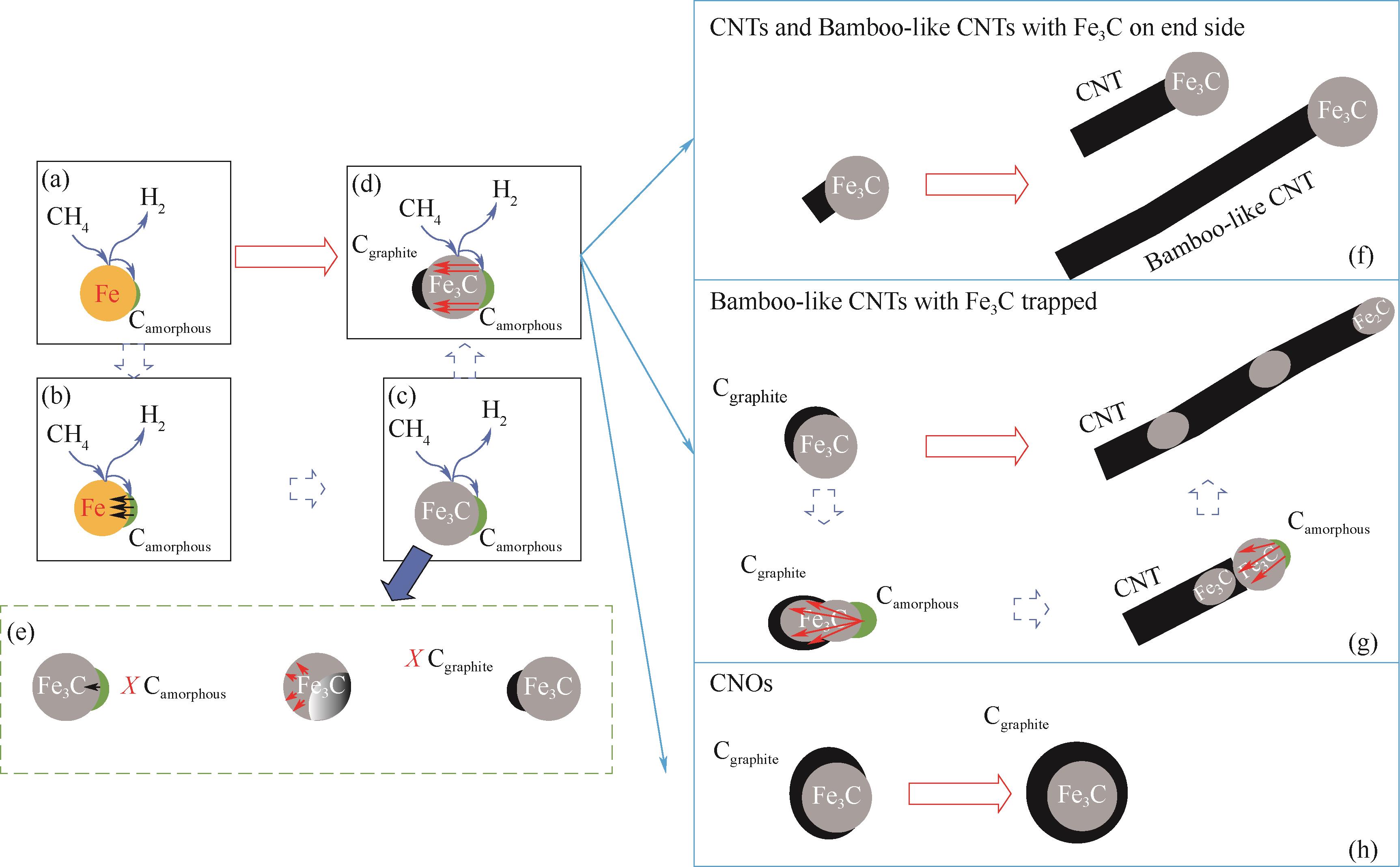

图10 铁催化剂上的甲烷裂解机理模型[67]

Fig.10 Mechanism model of methane pyrolysis on iron catalyst[67]

图11 甲烷和二氧化碳活化路径

Fig.11 Activation pathways of methane and carbon dioxide

参考文献 88

1	张云, 胡浩权, 靳立军. 镍基催化剂的制备及催化甲烷裂解制氢研究[C]//第四届能源转化化学与技术研讨会.成都, 2021.
	Zhang Y, Hu H Q, Jin L J. Study on preparation of nickel-based catalysts and catalytic pyrolysis of methane for hydrogen production[C]//4th Symposium on Energy Conversion Chemistry and Technology. Chengdu, 2021.
2	Qian J X, Chen T W, Enakonda L R, et al. Methane decomposition to produce CO _x -free hydrogen and nano-carbon over metal catalysts: a review[J]. International Journal of Hydrogen Energy, 2020, 45(15): 7981-8001.
3	Ermakova M A, Ermakov D Y. Ni/SiO₂ and Fe/SiO₂ catalysts for production of hydrogen and filamentous carbon via methane decomposition[J]. Catalysis Today, 2002, 77(3): 225-235.
4	Jang H T, Cha W S. Hydrogen production by the thermocatalytic decomposition of methane in a fluidized bed reactor[J]. Korean Journal of Chemical Engineering, 2007, 24(2): 374-377.
5	Ibrahim A A, Fakeeha A H, Al-Fatesh A S, et al. Methane decomposition over iron catalyst for hydrogen production[J]. International Journal of Hydrogen Energy, 2015, 40(24): 7593-7600.
6	Jin L J, Si H H, Zhang J B, et al. Preparation of activated carbon supported Fe-Al₂O₃ catalyst and its application for hydrogen production by catalytic methane decomposition[J]. International Journal of Hydrogen Energy, 2013, 38(25): 10373-10380.
7	Pinilla J L, Utrilla R, Lázaro M J, et al. Ni- and Fe-based catalysts for hydrogen and carbon nanofilament production by catalytic decomposition of methane in a rotary bed reactor[J]. Fuel Processing Technology, 2011, 92(8): 1480-1488.
8	Shah N, Panjala D, Huffman G P. Hydrogen production by catalytic decomposition of methane[J]. Energy & Fuels, 2001, 15(6): 1528-1534.
9	Pudukudy M, Yaakob Z, Akmal Z S. Direct decomposition of methane over SBA-15 supported Ni, Co and Fe based bimetallic catalysts[J]. Applied Surface Science, 2015, 330: 418-430.
10	Ermakova M A, Ermakov D Y, Chuvilin A L, et al. Decomposition of methane over iron catalysts at the range of moderate temperatures: the influence of structure of the catalytic systems and the reaction conditions on the yield of carbon and morphology of carbon filaments[J]. Journal of Catalysis, 2001, 201(2): 183-197.
11	Karaismailoğlu M, Figen H E, Baykara S Z. Methane decomposition over Fe-based catalysts[J]. International Journal of Hydrogen Energy, 2020, 45(60): 34773-34782.
12	Al-Fatesh A S, Kasim S O, Ibrahim A A, et al. Catalytic methane decomposition over ZrO₂supported iron catalysts: effect of WO₃ and La₂O₃ addition on catalytic activity and stability[J]. Renewable Energy, 2020, 155: 969-978.
13	Pudukudy M, Yaakob Z, Jia Q M, et al. Catalytic decomposition of methane over rare earth metal (Ce and La) oxides supported iron catalysts[J]. Applied Surface Science, 2019, 467: 236-248.
14	Liu L, Zachariah M R. Enhanced performance of alkali metal doped Fe₂O₃ and Fe₂O₃/Al₂O₃ composites As oxygen carrier material in chemical looping combustion[J]. Energy & Fuels, 2013, 27(8): 4977-4983.
15	Al-Fatesh A S, Fakeeha A H, Ibrahim A A, et al. Iron oxide supported on Al₂O₃ catalyst for methane decomposition reaction: effect of MgO additive and calcination temperature[J]. Journal of the Chinese Chemical Society, 2016, 63(2): 205-212.
16	Al-Fatesh A S, Fakeeha A H, Ibrahim A A, et al. Decomposition of methane over alumina supported Fe and Ni-Fe bimetallic catalyst: effect of preparation procedure and calcination temperature[J]. Journal of Saudi Chemical Society, 2018, 22(2): 239-247.
17	Avdeeva L B, Goncharova O V, Kochubey D I, et al. Coprecipitated Ni-alumina and Ni-Cu-alumina catalysts of methane decomposition and carbon deposition(Ⅱ): Evolution of the catalysts in reaction[J]. Applied Catalysis A: General, 1996, 141(1/2): 117-129.
18	Avdeeva L B, Reshetenko T V, Ismagilov Z R, et al. Iron-containing catalysts of methane decomposition: accumulation of filamentous carbon[J]. Applied Catalysis A: General, 2002, 228(1/2): 53-63.
19	孙杰, 孙春文, 李吉刚, 等. 甲烷水蒸气重整反应研究进展[J]. 中国工程科学, 2013, 15(2): 98-106.
	Sun J, Sun C W, Li J G, et al. Research development of steam methane reforming reactions[J]. Engineering Sciences, 2013, 15(2): 98-106.
20	Yusuf B O, Umar M, Kotob E, et al. Recent advances in bimetallic catalysts for methane steam reforming in hydrogen production: current trends, challenges, and future prospects[J]. Chemistry, an Asian Journal, 2023: e202300641.
21	陈曦. 镍基催化剂制备及在甲烷水蒸气重整反应中的应用[D]. 大连: 大连理工大学, 2014.
	Chen X. Preparation of Ni-based catalyst and application in steam reforming of methane[D]. Dalian: Dalian University of Technology, 2014.
22	Meloni E, Martino M, Palma V. A short review on Ni based catalysts and related engineering issues for methane steam reforming[J]. Catalysts, 2020, 10(3): 352.
23	Jones G, Jakobsen J G, Shim S S, et al. First principles calculations and experimental insight into methane steam reforming over transition metal catalysts[J]. Journal of Catalysis, 2008, 259(1): 147-160.
24	Sharma R, Kumar A, Upadhyay R K. Bimetallic Fe‐promoted catalyst for CO‐free hydrogen production in high‐temperature‐methanol steam reforming[J]. ChemCatChem, 2019, 11(18): 4568-4580.
25	Wei Z H, Sun J M, Li Y, et al. Bimetallic catalysts for hydrogen generation[J]. Chemical Society Reviews, 2012, 41(24): 7994-8008.
26	Garai M H S, Khosravi-Nikou M R, Shariati A. Chemical looping steam methane reforming via Ni‐ferrite supported on cerium and zirconium oxides[J]. Chemical Engineering & Technology, 2020, 43(9): 1813-1822.
27	Hu Z F, Miao Z W, Wu J W, et al. Nickel-iron modified natural ore oxygen carriers for chemical looping steam methane reforming to produce hydrogen[J]. International Journal of Hydrogen Energy, 2021, 46(80): 39700-39718.
28	Tsodikov M V, Kurdymov S S, Konstantinov G I, et al. Core-shell bifunctional catalyst for steam methane reforming resistant to H₂S: activity and structure evolution[J]. International Journal of Hydrogen Energy, 2015, 40(7): 2963-2670.
29	Konstantinov G I, Kurdyumov S S, Maksimov Y V, et al. Hydrogen sulfide-resistant bifunctional catalysts for the steam reforming of methane: activity and structural evolution[J]. Catalysis in Industry, 2018, 10(1): 1-8.
30	Djaidja A, Messaoudi H, Kaddeche D, et al. Study of Ni-M/MgO and Ni-M-Mg/Al (M=Fe or Cu) catalysts in the CH₄-CO₂ and CH₄-H₂O reforming[J]. International Journal of Hydrogen Energy, 2015, 40(14): 4989-4995.
31	Braga A, Armengol-Profitós M, Pascua-Solé L, et al. Bimetallic NiFe nanoparticles supported on CeO₂as catalysts for methane steam reforming[J]. ACS Applied Nano Materials, 2023, 6(9): 7173-7185.
32	Arandiyan H, Li J H, Ma L, et al. Methane reforming to syngas over LaNi _x Fe_1- _x O₃(0≤x≤1) mixed-oxide perovskites in the presence of CO₂ and O₂ [J]. Journal of Industrial and Engineering Chemistry, 2012, 18(6): 2103-2114.
33	Wang S B, Lu G Q, Millar G J. Carbon dioxide reforming of methane to produce synthesis gas over metal-supported catalysts: state of the art[J]. Energy & Fuels, 1996, 10(4): 896-904.
34	李肖晓. 甲烷二氧化碳重整镍基催化剂的研究[D]. 青岛:青岛科技大学, 2016.
	Li X X. Carbon dioxide reforming of methane over Ni-based catalysts[D]. Qingdao: Qingdao University of Science & Technology, 2016.
35	吴兴亮, 吕凌辉, 马清祥,等. 甲烷二氧化碳重整镍基催化剂的研究进展[J]. 洁净煤技术, 2021, 27(3): 129-137.
	Wu X L, Lyu L H, Ma Q X, et al. Research progress of nickel-based catalysts for carbon dioxide reforming of methane[J]. Clean Coal Technology, 2021, 27(3): 129-137.
36	Tokunaga O, Osada Y, Ogasawara S. Reaction of CO₂-CH₄ as a high-level heat transport system[J]. Fuel, 1989, 68(8): 990-994.
37	Gadalla A M, Bower B. The role of catalyst support on the activity of nickel for reforming methane with CO₂ [J]. Chemical Engineering Science, 1988, 43(11): 3049-3062.
38	Benrabaa R, Boukhlouf H, Bordes-Richard E, et al. Nanosized nickel ferrite catalysts for CO₂ reforming of methane at low temperature: effect of preparation method and acid-base properties[C]//Scientific Bases for the Preparation of Heterogeneous Catalysts - Proceedings of the 10th International Symposium. Amsterdam: Elsevier, 2010: 301-304.
39	郑幼松, 邹宗鹏, 吕莉, 等. 甲烷干重整抗失活镍基催化剂研究进展[J]. 天然气化工—C₁化学与化工, 2021, 46(6): 1-8, 16.
	Zheng Y S, Zou Z P, Lv L, et al. Research progress of anti-deactivation nickel based catalysts for dry reforming of methane[J]. Natural Gas Chemical Industry, 2021, 46(6): 1-8, 16.
40	Theofanidis S A, Galvita V V, Konstantopoulos C, et al. Fe-based nano-materials in catalysis[J]. Materials, 2018, 11(5): 831.
41	Buelens L C, Galvita V V, Poelman H, et al. Super-dry reforming of methane intensifies CO₂ utilization via Le Chatelier's principle[J]. Science, 2016, 354(6311): 449-452.
42	Margossian T, Larmier K, Kim S M, et al. Supported bimetallic NiFe nanoparticles through colloid synthesis for improved dry reforming performance[J]. ACS Catalysis, 2017, 7(10): 6942-6948.
43	Tomishige K, Li D L, Tamura M, et al. Nickel-iron alloy catalysts for reforming of hydrocarbons: preparation, structure, and catalytic properties[J]. Catalysis Science & Technology, 2017, 7(18): 3952-3979.
44	Theofanidis S A, Batchu R, Galvita V V, et al. Carbon gasification from Fe-Ni catalysts after methane dry reforming[J]. Applied Catalysis B: Environmental, 2016, 185: 42-55.
45	Theofanidis S A, Galvita V V, Poelman H, et al. Enhanced carbon-resistant dry reforming Fe-Ni catalyst: role of Fe[J]. ACS Catalysis, 2015, 5(5): 3028-3039.
46	Hwang S, Hong U G, Lee J, et al. Methanation of carbon dioxide over mesoporous Ni-Fe-Al₂O₃ catalysts prepared by a coprecipitation method: effect of precipitation agent[J]. Journal of Industrial and Engineering Chemistry, 2013, 19(6): 2016-2021.
47	Kim S M, Abdala P M, Margossian T, et al. Cooperativity and dynamics increase the performance of NiFe dry reforming catalysts[J]. Journal of the American Chemical Society, 2017, 139(5): 1937-1949.
48	Zhang T, Liu Z X, Zhu Y A, et al. Dry reforming of methane on Ni-Fe-MgO catalysts: influence of Fe on carbon-resistant property and kinetics[J]. Applied Catalysis B: Environmental, 2020, 264: 118497.
49	Wang H, Srinath N V, Poelman H, et al. Hierarchical Fe-modified MgAl₂O₄ as a Ni-catalyst support for methane dry reforming[J]. Catalysis Science & Technology, 2020, 10(20): 6987-7001.
50	Kim C, Kim Y. Promotional effect of iron on nickel-based catalyst for combined steam-carbon dioxide reformation of methane[J]. Journal of Nanoscience and Nanotechnology, 2020, 20(9): 5506-5509.
51	Yang E, Noh Y, Lim S, et al. The effect of Fe in perovskite catalysts for steam CO₂ reforming of methane[J]. Journal of Nanoscience and Nanotechnology, 2017, 16(2): 1938-1941.
52	Song X, Dong X L, Yin S L, et al. Effects of Fe partial substitution of La₂NiO₄/LaNiO₃catalyst precursors prepared by wet impregnation method for the dry reforming of methane[J]. Applied Catalysis A: General, 2016, 526: 132-138.
53	Ribeiro T R, Ferreira Neto J B, Takano C, et al. C-O-H₂ternary diagram for evaluation of carbon activity in CH₄-containing gas mixtures[J]. Journal of Materials Research and Technology, 2021, 13: 1576-1585.
54	Aiello R, Fiscus J E, Loye H C Z, et al. Hydrogen production via the direct cracking of methane over Ni/SiO₂: catalyst deactivation and regeneration[J]. Applied Catalysis A: General, 2000, 192(2): 227-234.
55	Yang X, Da J W, Yu H T, et al. Characterization and performance evaluation of Ni-based catalysts with Ce promoter for methane and hydrocarbons steam reforming process[J]. Fuel, 2016, 179: 353-361.
56	Luna E C, Becerra A M, Dimitrijewits M I. Methane steam reforming over rhodium promoted Ni/Al₂O₃catalysts[J]. 1999, 67(2): 247-252.
57	Xie C, Chen Y S, Li Y, et al. Sulfur poisoning of CeO₂-Al₂O₃-supported mono- and bi-metallic Ni and Rh catalysts in steam reforming of liquid hydrocarbons at low and high temperatures[J]. Applied Catalysis A: General, 2010, 390(1/2): 210-218.
58	Mortola V B, Damyanova S, Zanchet D, et al. Surface and structural features of Pt/CeO₂-La₂O₃-Al₂O₃ catalysts for partial oxidation and steam reforming of methane[J]. Applied Catalysis B: Environmental, 2011, 107(3/4): 221-236.
59	彭瑞峰. 镍铁体系构筑与促进甲烷干重整性能调控[D]. 徐州: 中国矿业大学, 2021.
	Peng R F. Construction of high-efficiency nickel-iron catalyst system and its methane dry reforming performance tailoring[D]. Xuzhou: China University of Mining and Technology, 2021.
60	Swaan H M, Kroll V C H, Martin G A, et al. Deactivation of supported nickel catalysts during the reforming of methane by carbon dioxide[J]. Catalysis Today, 1994, 21(2/3): 571-578.
61	李琳, 张露明, 张煜华, 等. 镍负载量对Ni/MgO(111)催化甲烷二氧化碳重整反应性能影响[J]. 燃料化学学报, 2015, 43(3): 315-322.
	Li Lin, Zhang L M, Zhang Y H, et al. Effect of Ni loadings on the catalytic properties of Ni/MgO(111) catalyst for the reforming of methane with carbon dioxide[J]. Journal of Fuel Chemistry and Technology, 2015, 43(3): 315-322.
62	Takanabe K, Nagaoka K, Aika K I. Improved resistance against coke deposition of titania supported cobalt and nickel bimetallic catalysts for carbon dioxide reforming of methane[J]. Catalysis Letters, 2005, 102(3): 153-157.
63	Ruckenstein E, Wang H Y. Carbon deposition and catalytic deactivation during CO₂ reforming of CH₄ over Co/γ-Al₂O₃ catalysts[J]. Journal of Catalysis, 2002, 205(2): 289-293.
64	万云云. 甲烷二氧化碳重整工艺研究[D]. 淮南: 安徽理工大学, 2016.
	Wan Y Y. Study on reforming process of methane with carbon dioxide[D]. Huainan: Anhui University of Science & Technology, 2016.
65	Sacco A, Geurts F W A H, Jablonski G A, et al. Carbon deposition and filament growth on Fe, Co, and Ni foils using CH₄-H₂-H₂O-CO-CO₂ gas mixtures[J]. Journal of Catalysis, 1989, 119(2): 322-341.
66	Tsipouriari V A, Efstathiou A M, Zhang Z L, et al. Reforming of methane with carbon dioxide to synthesis gas over supported Rh catalysts[J]. Catalysis Today, 1994, 21(2/3): 579-587.
67	Zhou L, Enakonda L R, Harb M, et al. Fe catalysts for methane decomposition to produce hydrogen and carbon nano materials[J]. Applied Catalysis B: Environmental, 2017, 208: 44-59.
68	Hasebe M, Ohtani H, Nishizawa T. Effect of magnetic transition on solubility of carbon in bcc Fe and fee Co-Ni alloys[J]. Metallurgical Transactions A, 1985, 16(5): 913-921.
69	Wirth C T, Bayer B C, Gamalski A D, et al. The phase of iron catalyst nanoparticles during carbon nanotube growth[J]. Chemistry of Materials, 2012, 24(24): 4633-4640.
70	Wrobel R J, Hełminiak A, Arabczyk W, et al. Studies on the kinetics of carbon deposit formation on nanocrystalline iron stabilized with structural promoters[J]. The Journal of Physical Chemistry C, 2014, 118(28): 15434-15439.
71	Sharma R, Moore E, Rez P, et al. Site-specific fabrication of Fe particles for carbon nanotube growth[J]. Nano Letters, 2009, 9(2): 689-694.
72	Arora S, Prasad R. An overview on dry reforming of methane: strategies to reduce carbonaceous deactivation of catalysts[J]. RSC Advances, 2016, 6(110): 108668-108688.
73	朱清江, 李德康, 班延鹏, 等. 甲烷二氧化碳联合水蒸气重整过程中镍基催化剂硫中毒与再生研究[J]. 天然气化工—C1化学与化工, 2022, 47(4): 83-91.
	Zhu Q J, Li D K, Ban Y P, et al. Sulfur poisoning and regeneration of nickel-based catalyst in process of combined steam and carbon dioxide reforming of methane[J]. Natural Gas Chemical Industry, 2022, 47(4): 83-91.
74	Olsson R G, Turkdogan E T. Catalytic effect of iron on decomposition of carbon monoxide( Ⅱ ): Effect of additions of H₂, H₂O, CO₂, SO₂ and H₂S[J]. Metallurgical Transactions, 1974, 5(1): 21-26.
75	Karcher W, Glaude P. Inhibition of carbon deposition on iron and steel surfaces[J]. Carbon, 1971, 9(5): 617-625.
76	Bartholomew C H. Carbon deposition in steam reforming and methanation[J]. Catalysis Reviews, 1982, 24(1): 67-112.
77	Lucrédio A F, Bellido J D A, Assaf E M. Effects of adding La and Ce to hydrotalcite-type Ni/Mg/Al catalyst precursors on ethanol steam reforming reactions[J]. Applied Catalysis A: General, 2010, 388(1/2): 77-85.
78	王锐, 刘雪斌, 陈燕馨, 等. 金属-载体相互作用对CH₄/CO₂重整反应中Rh基催化剂抗积炭性能的影响[J]. 催化学报, 2007, 28(10): 865-869.
	Wang R, Liu X B, Chen Y X, et al. Effect of metal-support interaction on coking resistance of Rh-based catalysts in CH₄/CO₂ reforming[J]. Chinese Journal of Catalysis, 2007, 28(10): 865-869.
79	Gallego G S, Batiot-Dupeyrat C, Barrault J, et al. Dry reforming of methane over LaNi_1- _y B _y O₃ (B = Mg, Co) perovskites used as catalyst precursor[J]. Applied Catalysis A: General, 2008, 334(1/2): 251-258.
80	Wang Z Y, Cao X M, Zhu J H, et al. Activity and coke formation of nickel and nickel carbide in dry reforming: a deactivation scheme from density functional theory[J]. Journal of Catalysis, 2014, 311: 469-480.
81	李彬. 基于提高甲烷重整活性的镍基催化剂的修饰及性能研究[D]. 广州: 华南理工大学, 2021.
	Li B. Modificationand catalytic performance study based on improving reactivity of nickel based catalysts for methane reforming[D]. Guangzhou: South China University of Technology, 2021.
82	高志博, 王晓波, 刘金明, 等. 甲烷水蒸气重整制合成气的研究进展[J]. 高师理科学刊, 2012, 32(2): 79-81, 89.
	Gao Z B, Wang X B, Liu J M, et al. The progress in study of Methane steam reforming to synthesis gas[J]. Journal of Science of Teachers' College and University, 2012, 32(2): 79-81, 89.
83	Borowiecki T, Denis A, Rawski M, et al. Studies of potassium-promoted nickel catalysts for methane steam reforming: effect of surface potassium location[J]. Applied Surface Science, 2014, 300: 191-200.
84	Parizotto N V, Rocha K O, Damyanova S, et al. Alumina-supported Ni catalysts modified with silver for the steam reforming of methane: effect of Ag on the control of coke formation[J]. Applied Catalysis A: General, 2007, 330: 12-22.
85	Wan H J, Li X J, Ji S F, et al. Effect of Ni loading and Ce _x Zr_1- _x O₂ promoter on Ni-based SBA-15 catalysts for steam reforming of methane[J]. Journal of Natural Gas Chemistry, 2007, 16(2): 139-147.
86	Shen J, Reule A A C, Semagina N. Ni/MgAl₂O₄ catalyst for low-temperature oxidative dry methane reforming with CO₂ [J]. International Journal of Hydrogen Energy, 2019, 44(10): 4616-4629.
87	Takenaka S, Ogihara H, Yamanaka I, et al. Decomposition of methane over supported-Ni catalysts: effects of the supports on the catalytic lifetime[J]. Applied Catalysis A: General, 2001, 217(1/2): 101-110.
88	Choudhary T V, Goodman D W. CO-free production of hydrogen via stepwise steam reforming of methane[J]. Journal of Catalysis, 2000, 192(2): 316-321.

编辑推荐 0

Metrics

阅读次数

全文

323

HTML			PDF

最新录用	在线预览	正式出版	最新录用	在线预览	正式出版
0	0	42	0	0	281

来源	本网站	其他网站

次数	165	158
比例	51%	49%

摘要

441

最新录用	在线预览	正式出版

0	0	441

来源	本网站	其他网站

次数	97	344
比例	22%	78%

[1]	裴蓓, 郝治斌, 徐天祥, 钟子琪, 李瑞, 贾冲, 段玉龙. 表面活性剂对含盐双流体细水雾灭火效能的影响[J]. 化工学报, 2024, 75(9): 3369-3378.
[2]	王冉, 王焕, 熊晓云, 关慧敏, 郑云锋, 陈彩琳, 秦玉才, 宋丽娟. FCC催化剂传质强化活性位利用效率的可视化分析[J]. 化工学报, 2024, 75(9): 3198-3209.
[3]	刘亚超, 谭晓杰, 李旭东, 王瑞, 王慧, 韩璇, 赵青山. DES合成高活性CoCO₃纳米片及析氧反应性能研究[J]. 化工学报, 2024, 75(9): 3320-3328.
[4]	张梦婷, 王书林, 桑熙, 元兴昊, 徐刚. 人工Cu-TM1459金属酶催化不对称迈克尔加成反应[J]. 化工学报, 2024, 75(9): 3255-3265.
[5]	王树振, 王玉婷, 马梦茜, 张巍, 向江南, 鲁海莹, 王琰, 范彬彬, 郑家军, 代卫炯, 李瑞丰. 两步晶化合成ZSM-22分子筛及其临氢异构反应性能[J]. 化工学报, 2024, 75(9): 3176-3187.
[6]	朱楼, 宋杨凡, 王猛, 施睿鹏, 厉彦民, 陈鸿伟, 刘卓, 魏翔. 中心脉冲气-液-固循环流化床微生物燃料电池产电特性[J]. 化工学报, 2024, 75(8): 2991-3001.
[7]	刘旭升, 李泽洋, 杨宇森, 卫敏. 电催化二氧化碳还原制备气态产物的研究进展[J]. 化工学报, 2024, 75(7): 2385-2408.
[8]	王寅, 初鹏飞, 刘虎, 吕静, 黄守莹, 王胜平, 马新宾. 不同pH铝溶胶对二甲醚羰基化成型丝光沸石催化剂性能的影响[J]. 化工学报, 2024, 75(7): 2533-2543.
[9]	杨露, 刘聪聪, 孟彤彤, 张博远, 杨腾飞, 邓文安, 王晓斌. 分散型催化剂在煤/重油共炼体系中的加氢抑焦作用[J]. 化工学报, 2024, 75(7): 2556-2564.
[10]	罗莉, 陈文尧, 张晶, 钱刚, 周兴贵, 段学志. 氧化铝结构与表面性质调控及其催化甲醇脱水制二甲醚性能研究[J]. 化工学报, 2024, 75(7): 2522-2532.
[11]	霍宗伟, 牛亚宾, 潘艳秋. 油水膜分离中高黏度油滴行为研究和影响因素分析[J]. 化工学报, 2024, 75(6): 2262-2273.
[12]	王天闻, 闫肃, 赵梦园, 杨天让, 刘建国. 固体氧化物电池空气电极铬中毒机理及抗铬性能研究进展[J]. 化工学报, 2024, 75(6): 2091-2108.
[13]	丁禹, 杨昌泽, 李军, 孙会东, 商辉. 原子尺度钼系加氢脱硫催化剂的研究进展与展望[J]. 化工学报, 2024, 75(5): 1735-1749.
[14]	赵亭亭, 鄢立祥, 唐福利, 肖敏之, 谭烨, 宋刘斌, 肖忠良, 李灵均. 光辅助锂-二氧化碳电池催化剂的设计策略与反应机理研究进展[J]. 化工学报, 2024, 75(5): 1750-1764.
[15]	莫锦洪, 韩雪, 朱毅翔, 李菁, 王旭裕, 纪红兵. Pt-Ga/CeO₂-ZrO₂-Al₂O₃脱氢裂解双功能催化剂用于正丁烷催化制烯烃研究[J]. 化工学报, 2024, 75(5): 1855-1869.
