分级胺改性MOF-74的CO2吸附性能及机理研究

doi:10.11949/0438-1157.20251032

摘要/Abstract

摘要：

提升金属有机框架材料（MOF-74）的CO₂吸附容量与稳定性是碳捕集领域的关键挑战。研究制备了不同金属中心（Mg、Ni）和不同配体的MOF-74，并进行胺改性，筛选短链乙醇胺（MEA）、长链四乙烯五胺（TEPA）及TEPA&Py（1：1）复合胺三类改性剂，并系统评价了CO₂吸附性能。改性后材料性能显著提升：MEA、TEPA及TEPA：Py（1：1）分别将CO₂吸附容量提升至原始MOF-74的1.4倍、1.9倍和5.0倍。五次吸附-脱附循环后，改性吸附剂保持>95%的初始容量，证实其优异的循环稳定性与空气稳定性。本研究揭示了胺改性可显著强化MOF-74的CO₂捕集性能，但需控制负载量以避免过量胺引发的强碱性环境导致的性能衰减，为设计高效胺改性MOF吸附剂提供了理论依据与优化策略。

关键词: MOF-74, 胺功能化, CO₂捕集, 吸附剂

Abstract:

Enhancing the CO₂ adsorption capacity and stability of metal-organic frameworks (MOFs) is crucial for advancing carbon capture technologies. In this study, MOF-74 with different metal centers (Mg/Ni) and organic ligands was synthesized and subsequently modified with amines. Three amine modifiers-short-chain monoethanolamine (MEA), long-chain tetraethylenepentamine (TEPA), and a composite amine system (TEPA:Py = 1:1)—were screened and systematically evaluated for their influence on CO₂ adsorption performance. The modified materials markedly improved the CO₂ uptake: MEA, TEPA, and TEPA:Py (1:1) enhanced the adsorption capacity to 1.4, 1.9, and 5.0 times that of the pristine MOF-74, respectively. Moreover, all amine-modified adsorbents retained >95% initial capacity after five adsorption-desorption cycles under ambient conditions, demonstrating excellent cyclic stability. This work confirms that amine functionalization can significantly enhance the CO₂ capture performance of MOF-74, while also highlighting the need to optimize amine loading to prevent performance degradation caused by an excessively alkaline environment. These findings provide a theoretical foundation and practical strategy for designing highly efficient amine-modified MOF adsorbents.

Key words: MOF-74, amine-functionalization, CO₂ capture, adsorbents

中图分类号:

O647.3

肖翩翩, 卓超越, 张跃飞, 李子怡, 罗潇, 梁志武. 分级胺改性MOF-74的CO₂吸附性能及机理研究[J]. 化工学报, DOI: 10.11949/0438-1157.20251032.

Pianpian XIAO, Chaoyue ZHUO, Yuefei ZHANG, Ziyi LI, Xiao LUO, Zhiwu LIANG. Research on the CO₂ Adsorption Performance and Mechanism of Hierarchically Amine-Modified MOF-74[J]. CIESC Journal, DOI: 10.11949/0438-1157.20251032.

图/表 10

图1 实验流程图

Fig.1 Experimental flowchart

图2 CO2常压吸附与循环吸附示意图

Fig.2 Schematic of CO2 adsorption at ambient pressure and cyclic adsorption

图3 胺功能化改性的红外光谱图

Fig.3 FT-IR spectras of amine-functionalized modification

图4 胺功能化XRD图谱

Fig.4 XRD spectras of amine-functionalized modification

图5 胺功能化扫描电镜照片

Fig.5 SEM photographs of amine-functionalized modification

图6 改性MOF-74的DTG曲线

Fig.6 DTG curve of amine-functionalized MOF-74

图7 CO2常压吸附平衡曲线

Fig.7 Summary of CO₂ adsorption capacity under atmospheric conditions

图8 CO2常压吸附容量汇总图

Fig.8 Summary of CO₂ adsorption capacity under atmospheric conditions

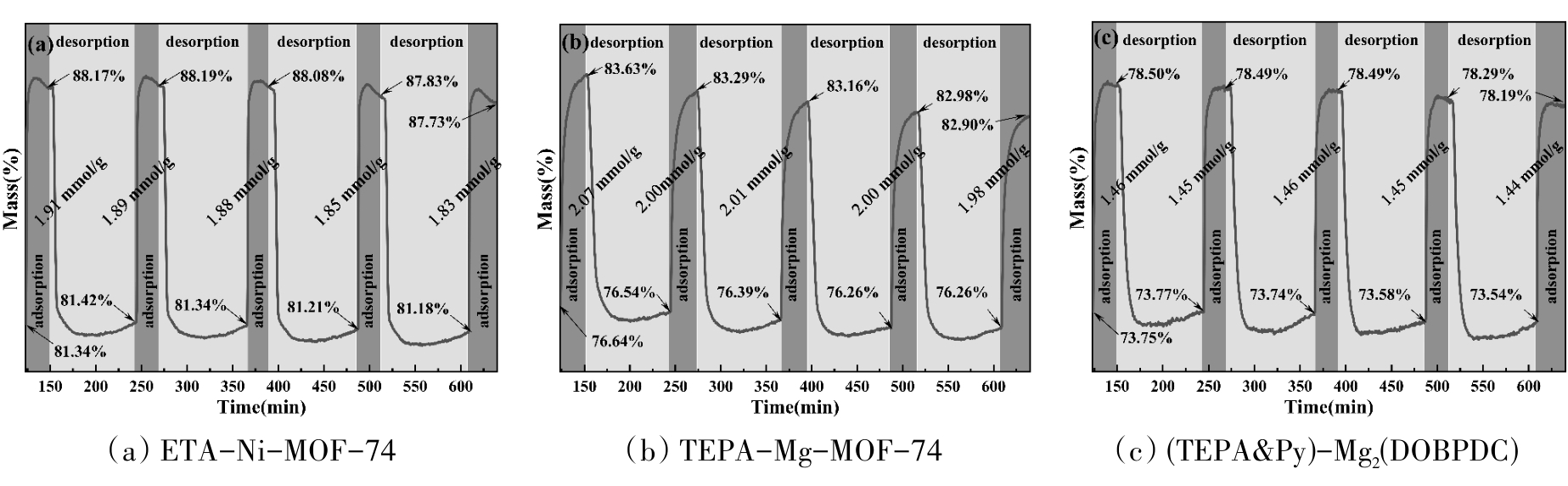

图9 循环吸附曲线

Fig.9 Cyclic adsorption performance curves

图10 胺改性前后吸附模拟图注:(d)CO₂ Uptake in MOF-74 at 298 K and 100 kPa (e)Simulated CO₂ Isosteric Heat

Fig.10 Simulation diagram of amine-modified adsorption

参考文献 39

[1]	Ghanbari T, Abnisa F, Wan Daud W M A. A review on production of metal organic frameworks (MOF) for CO₂ adsorption[J]. Science of the Total Environment, 2020, 707: 135090.
[2]	Boyd P G, Chidambaram A, García-Díez E, et al. Data-driven design of metal–organic frameworks for wet flue gas CO₂ capture[J]. Nature, 2019, 576(7786): 253-256.
[3]	Zhao B T, Tao W W, Zhong M, et al. Process, performance and modeling of CO₂ capture by chemical absorption using high gravity: a review[J]. Renewable and Sustainable Energy Reviews, 2016, 65: 44-56.
[4]	Kong M, Song L J, Liao H P, et al. A review on development of post-combustion CO₂ capture technologies: Performance of carbon-based, zeolites and MOFs adsorbents[J]. Fuel, 2024, 371: 132103.
[5]	Sai Bhargava Reddy M, Ponnamma D, Sadasivuni K K, et al. Carbon dioxide adsorption based on porous materials[J]. RSC Advances, 2021, 11(21): 12658-12681.
[6]	Brea P, Delgado J A, Águeda V I, et al. Comparison between MOF UTSA-16 and BPL activated carbon in hydrogen purification by PSA[J]. Chemical Engineering Journal, 2019, 355: 279-289.
[7]	Zuo K C, Huang X C, Liu X C, et al. A hybrid metal–organic framework–reduced graphene oxide nanomaterial for selective removal of chromate from water in an electrochemical process[J]. Environmental Science & Technology, 2020, 54(20): 13322-13332.
[8]	Radwan A, Jin H H, He D P, et al. Design engineering, synthesis protocols, and energy applications of MOF-derived electrocatalysts[J]. Nano-Micro Letters, 2021, 13(1): 132.
[9]	Guo L, Tang Y X, Wang L, et al. Synergetic antibacterial nanoparticles with broad-spectrum for wound healing and lung infection therapy[J]. Advanced Functional Materials, 2024, 34(39): 2403188.
[10]	李建惠, 兰天昊, 陈杨, 等. MOF复合材料在气体吸附分离中的研究进展[J]. 化工学报, 2021, 72(1): 167-179.
	Li J H, Lan T H, Chen Y, et al. Research progress of MOF-based composites for gas adsorption and separation[J]. CIESC Journal, 2021, 72(1): 167-179.
[11]	鲁雪婷, 蒲彦锋, 李磊, 等. 氨基修饰的金属有机框架Cu₃(BTC)₂的制备及其CO₂吸附性能研究[J]. 燃料化学学报, 2019, 47(3): 338-343.
	Lu X T, Pu Y F, Li L, et al. Preparation of metal-organic frameworks Cu₃(BTC)₂ with amino-functionalization for CO₂ adsorption[J]. Journal of Fuel Chemistry and Technology, 2019, 47(3): 338-343.
[12]	Jiang K, Yang J, Zhou Y X, et al. Synergetic enhancement of CO₂ direct air capture with monoethanolamine-impregnated MIL-101(Cr) MOFs[J]. Microporous and Mesoporous Materials, 2024, 366: 112920.
[13]	Nachimuthu S, Su M S, Wu L T, et al. Tunable CO₂ capture in N-ethylethylenediamine functionalized Mg₂-MOF-74: unraveling the role of diamine basicity in reactivity and adsorption capacity[J]. Chemical Engineering Journal, 2025, 515: 163587.
[14]	Chen X, Menon D, Wang X L, et al. Flexibility-frustrated porosity for enhanced selective CO₂ adsorption in an ultramicroporous metal-organic framework[J]. Chem, 2025, 11(7): 102382.
[15]	Choi H J, Min J G, Ahn S H, et al. Framework flexibility-driven CO₂ adsorption on a zeolite[J]. Materials Horizons, 2020, 7(6): 1528-1532.
[16]	Lim J, Lee S, Sharma A, et al. Ligand functionalization of defect-engineered Ni-MOF-74[J]. RSC Advances, 2022, 12(48): 31451-5
[17]	梁碧麟, 余倩, 贾思琦, 等. Ni-MOF-74金属有机框架膜的结构调变及气体分离性能研究[J]. 化工学报, 2025, 76(6): 2714-2721.
	Liang B L, Yu Q, Jia S Q, et al. Structural modulation and gas separation performance of Ni-MOF-74 metal-organic framework membranes[J]. CIESC Journal, 2025, 76(6): 2714-2721.
[18]	Esfahani H J, Ghaemi A, Shahhosseini S. Improving CO₂ adsorption efficiency of an amine-modified MOF-808 through the synthesis of its graphene oxide composites[J]. Scientific Reports, 2024, 14: 18871.
[19]	Ma M D, Zhou A N, Hong T, et al. Tailored porous structure and CO₂ adsorption capacity of Mg-MOF-74 via solvent polarity regulation[J]. Chemical Engineering Journal, 2023, 476: 146845.
[20]	Millward A R, Yaghi O M. Metal-Organic frameworks with exceptionally high capacity for storage of carbon dioxide at room temperature[J]. Journal of the American Chemical Society, 2005, 127(51): 17998-17999.
[21]	Darunte L A, Terada Y, Murdock C R, et al. Monolith-supported amine-functionalized Mg₂(dobpdc) adsorbents for CO₂ capture[J]. ACS Applied Materials & Interfaces, 2017, 9(20): 17042-17050.
[22]	Siegelman R L, McDonald T M, Gonzalez M I, et al. Controlling cooperative CO₂ adsorption in diamine-appended Mg₂(dobpdc) metal–organic frameworks[J]. Journal of the American Chemical Society, 2017, 139(30): 10526-10538.
[23]	Jiang X T, Bai L J, Wang S, et al. Novel amine-functionalized Mg-MOF CO₂ adsorbents with bi-functional adsorption-screening[J]. Journal of Materials Chemistry A, 2025, 13(15): 10825-10831.
[24]	Mahajan S, Elfving J, Lahtinen M. Evaluating the viability of ethylenediamine-functionalized Mg-MOF-74 in direct air capture: The challenges of stability and slow adsorption rate[J]. Journal of Environmental Chemical Engineering, 2024, 12(2): 112193.
[25]	Zhao M, Ban Y J, Chang Z, et al. Pyrazine-interior-embodied MOF-74 for selective CO₂ adsorption[J]. AIChE Journal, 2022, 68(3): e17528.
[26]	Zhang H Y, Yang C, Geng Q, et al. Adsorption of hydrogen sulfide by amine-functionalized metal organic framework (MOF-199): an experimental and simulation study[J]. Applied Surface Science, 2019, 497: 143815.
[27]	Jayasundara T, Perera I, Hettiarachchi C. Fine-tuning electronic and semiconducting properties of Co-MOF-74 upon encapsulating aniline and its derivatives[J]. Materials Chemistry and Physics, 2025, 332: 130292.
[28]	Gaikwad S, Kim Y, Gaikwad R, et al. Enhanced CO₂ capture capacity of amine-functionalized MOF-177 metal organic framework[J]. Journal of Environmental Chemical Engineering, 2021, 9(4): 105523.
[29]	Cartagenova D, Peixoto Esteves F A, Fischer N T, et al. Solvent-dependent textural properties of defective UiO-66 after acidic and basic treatment[J]. Inorganic Chemistry Frontiers, 2022, 9(1): 70-77.
[30]	Chen J X, Zhang Z X, Han J, et al. A simple one-step method to synthesize PVDF-PG/KH792 membrane for separation of oil-in-water emulsions[J]. Journal of Water Process Engineering, 2021, 41: 101996.
[31]	Wu C H, Chu X X, Wu X L, et al. Size and morphology control over MOF-74 crystals[J]. RSC Advances, 2024, 14(29): 20604-20608.
[32]	Gygi D, Bloch E D, Mason J A, et al. Hydrogen storage in the expanded pore metal–organic frameworks M₂(dobpdc) (M = Mg, Mn, Fe, Co, Ni, Zn)[J]. Chemistry of Materials, 2016, 28(4): 1128-1138.
[33]	Cao Y, Song F J, Zhao Y X, et al. Capture of carbon dioxide from flue gas on TEPA-grafted metal-organic framework Mg₂(dobdc)[J]. Journal of Environmental Sciences, 2013, 25(10): 2081-2087.
[34]	Wang J T, Long D H, Zhou H H, et al. Surfactant promoted solid amine sorbents for CO₂ capture[J]. Energy & Environmental Science, 2012, 5(2): 5742-5749.
[35]	Jun H J, Yoo D K, Jhung S H. Metal-organic framework (MOF-808) functionalized with ethyleneamines: Selective adsorbent to capture CO₂ under low pressure[J]. Journal of CO₂ Utilization, 2022, 58: 101932.
[36]	Wood O G, Hawes C S. Fused aza-heterocyclic ligands: expanding the MOF chemist's toolbox[J]. CrystEngComm, 2022, 24(47): 8197-8207.
[37]	肖翩翩, 卓超越, 钟瑾荣, 等. 用于CO₂捕获的金属有机框架材料改性研究进展[J]. 化工进展, 2024, 43(12): 6944-6956.
	Xiao P P, Zhuo C Y, Zhong J R, et al. Recent advances on modification of metal-organic frameworks for CO₂ capture[J]. Chemical Industry and Engineering Progress, 2024, 43(12): 6944-6956.
[38]	张所瀛, 刘红, 刘朋飞, 等. 金属有机骨架材料在CO₂/CH₄吸附分离中的研究进展[J]. 化工学报, 2014, 65(05): 1563-1570.
	Zhang S Y, Liu H, Liu P F, et al. Research progress of organometallic skeleton materials in adsorption and separation of CO₂/CH₄ [J]. 2014(5): 1563-1570.
[39]	Loughran R P, Hurley T, Gładysiak A, et al. CO₂ capture from wet flue gas using a water-stable and cost-effective metal-organic framework[J]. Cell Reports Physical Science, 2023, 4(7): 101470.
