基于吸附式储冷技术的深井钻探设备冷却系统

doi:10.11949/0438-1157.20241388

摘要/Abstract

摘要：

随着全球常规油气资源的日益枯竭，人类对非常规油气资源的开发日益重视。深层油气，作为一类极具潜力的非常规油气资源，展现出广阔的开发前景。然而，当前超深井钻探技术尚不成熟，钻探过程中仍面临诸多挑战，尤其是钻探设备难以承受井下高温等技术瓶颈。吸附式储冷设备，以其体积小、储冷密度高、工作温度范围宽广及耐振动等特性，成为高温乃至超高温钻探作业中制冷与温度维持系统的优选方案。为了与钻探设备相匹配，设计了一种模块化的圆柱形吸附式储冷系统，该系统采用NaY型沸石分子筛-水作为工质对，吸附床长度设定为0.87 m。该系统能够在200℃的井下环境中，连续30 h维持钻探设备内部电子元件的温度在125℃以下，充分满足单次井下作业的需求，为耐高温钻探设备的设计提供了一种全新的思路。

关键词: 多孔介质, 吸附, 吸附剂, 非常规油气资源开发, 井下作业, 耐高温

Abstract:

With the gradual depletion of conventional oil and gas resources globally, mankind has started to focus on the exploitation of unconventional oil and gas resources. As a significant unconventional resource, deep oil and gas hold immense exploitation potential. However, at present, ultra-deep well drilling technology remains imperfect, and the process encounters technical challenges, such as drilling equipment's inability to endure the high temperatures of these wells. Adsorption-type cold storage equipment, characterized by its small size, high cold storage density, wide working temperature range, and vibration resistance, stands as an ideal solution for cooling and temperature maintenance in high and ultra-high temperature drilling operations. To complement the drilling equipment, a modular cylindrical adsorption cold storage system was designed. This system employs a NaY-type zeolite molecular sieve-water pair and features an adsorption bed length of 0.87 m. In a downhole environment of 200℃, the system can maintain the temperature of electronic components in the drilling equipment at 125℃ for 30 h, meeting the demands of a single downhole operation. This innovation offers a fresh perspective for the design of high-temperature-resistant drilling equipment.

Key words: porous media, adsorption, adsorbents, exploitation of unconventional oil and gas resources, shaft operation, heat-resistant

中图分类号:

TE 242

吴梓航, 徐震原, 游锦方, 潘权稳, 王如竹. 基于吸附式储冷技术的深井钻探设备冷却系统[J]. 化工学报, 2025, 76(S1): 309-317.

Zihang WU, Zhenyuan XU, Jinfang YOU, Quanwen PAN, Ruzhu WANG. Cooling system for deep well drilling equipment based on adsorption cold storage technology[J]. CIESC Journal, 2025, 76(S1): 309-317.

图/表 12

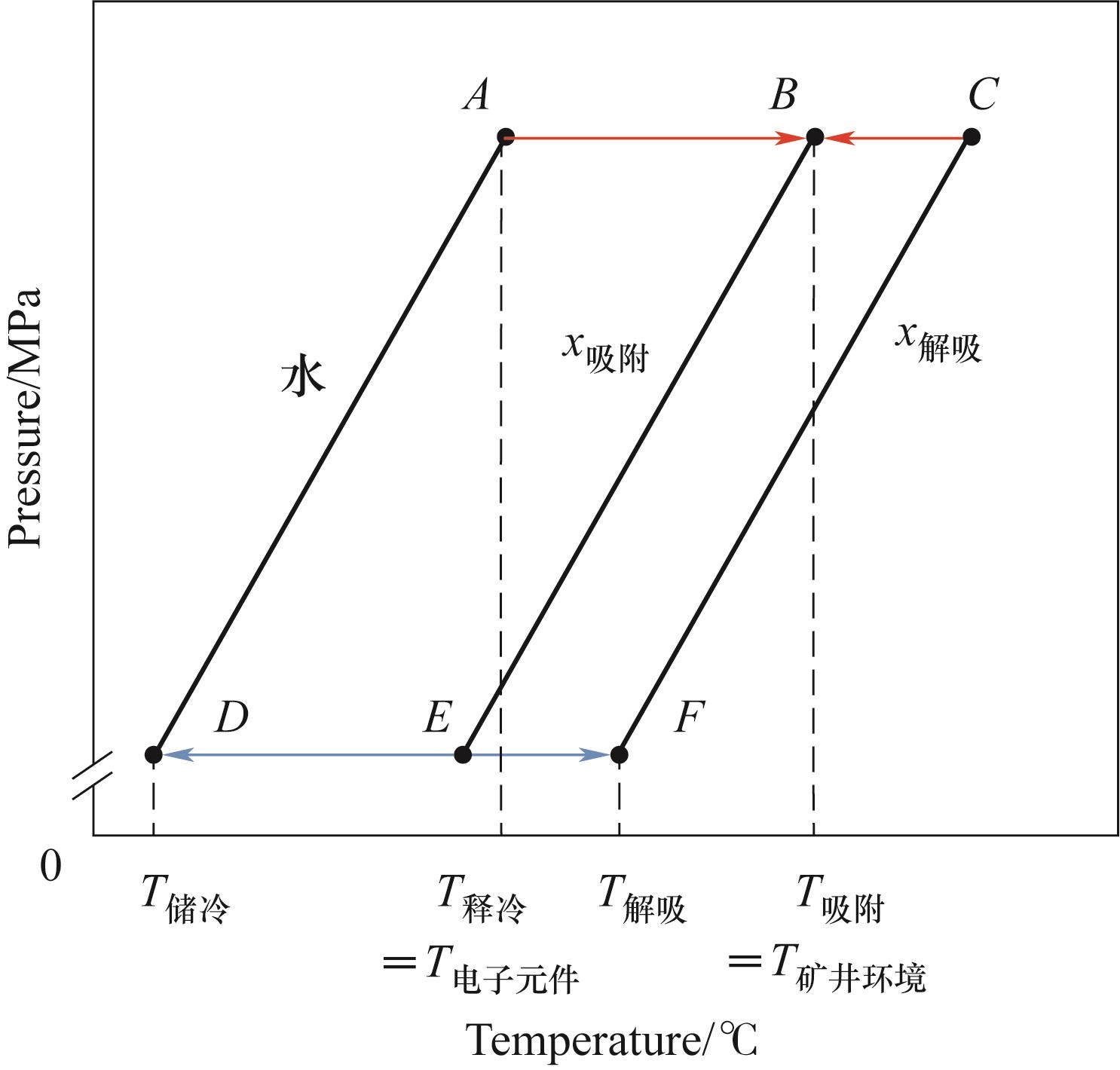

图1 系统热力学模型

Fig.1 Thermodynamic modelling of the system

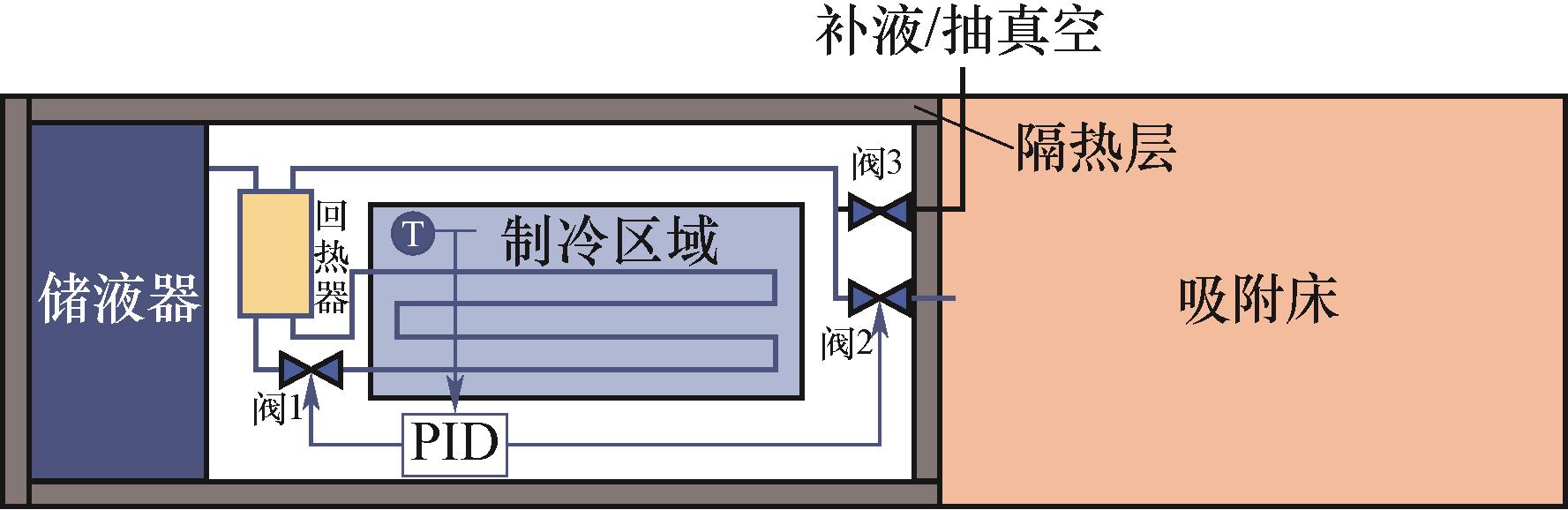

图2 制冷系统结构示意图

Fig.2 Schematic structure of the refrigeration system

图3 释冷状态示意图

Fig.3 Schematic diagram of cold release state

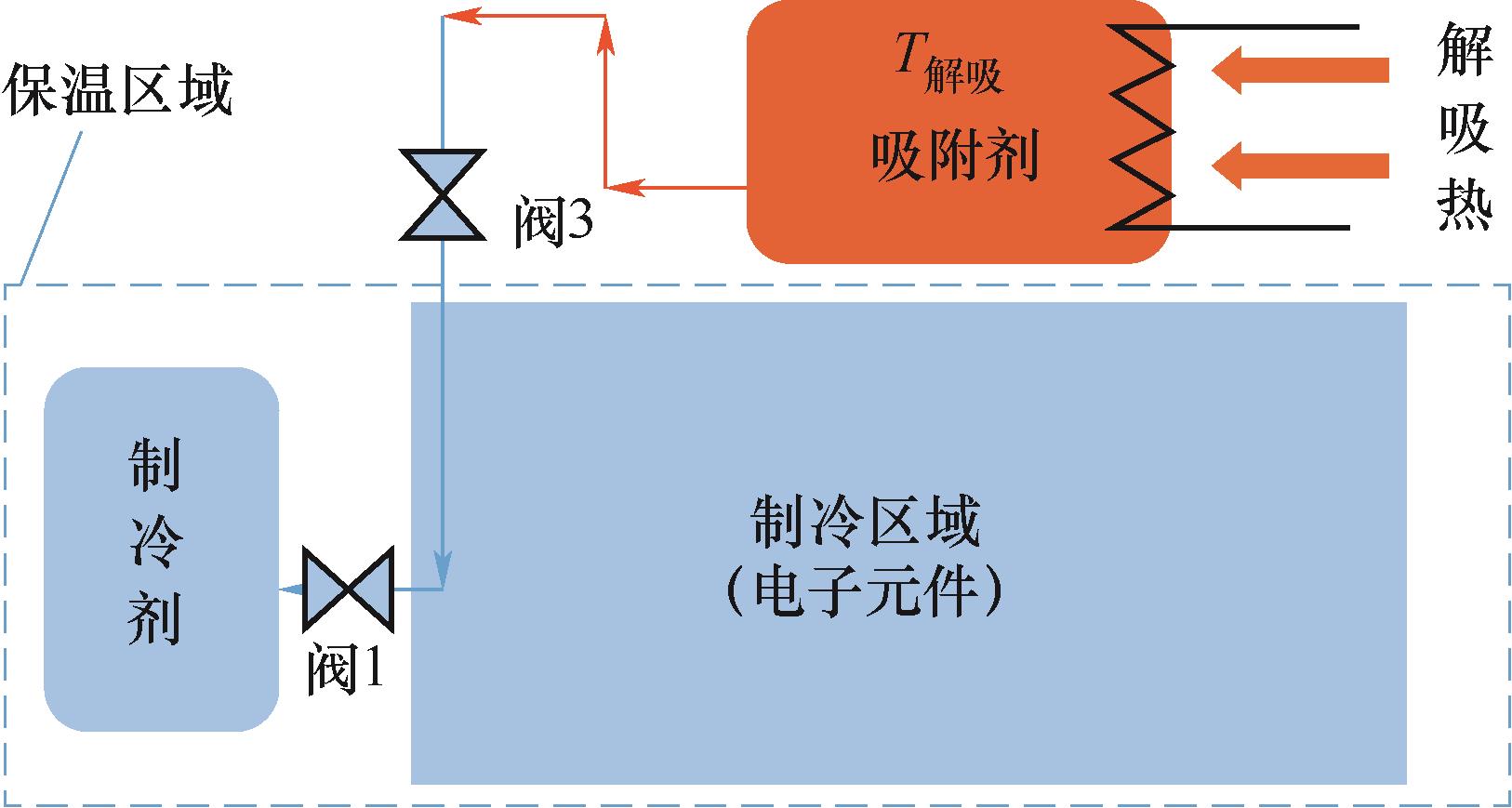

图4 储冷再生状态示意图

Fig.4 Schematic diagram of cold storage and regeneration state

表1 沸石物理性质

Table 1 Zeolite physical properties

沸石种类	BET比表面积/(m²/g)	平均孔容/(cm³/g)	平均孔径/nm
NaY粉末	951.50	0.37	1.54
NaY颗粒	673.42	0.31	1.82
13X颗粒	662.85	0.31	1.89
5A颗粒	556.95	0.24	1.70

表2 不同工质对的D-A方程系数

Table 2 D-A equation factor for different working pairs

工质对	$x_{0}$	$K$	$n$
NaY-水	0.314	5.89	2
5A-水	0.244	3.57	2
13X-水	0.331	2.99	2

表2 不同工质对的D-A方程系数

Table 2 D-A equation factor for different working pairs

工质对	$x_{0}$	$K$	$n$
NaY-水	0.314	5.89	2
5A-水	0.244	3.57	2
13X-水	0.331	2.99	2

表3 不同沸石的循环参数

Table 3 Circulation parameters for different zeolites

沸石分子筛	$x_{2}$	$x_{1}$	$Δ x$	单位质量制冷量/(J/g)
NaY	0.00836	0.255	0.246	539
5A	0.0271	0.215	0.188	411
13X	0.0525	0.298	0.245	536

表3 不同沸石的循环参数

Table 3 Circulation parameters for different zeolites

沸石分子筛	$x_{2}$	$x_{1}$	$Δ x$	单位质量制冷量/(J/g)
NaY	0.00836	0.255	0.246	539
5A	0.0271	0.215	0.188	411
13X	0.0525	0.298	0.245	536

图5 吸附床结构示意图

Fig.5 Schematic diagram of adsorption bed structure

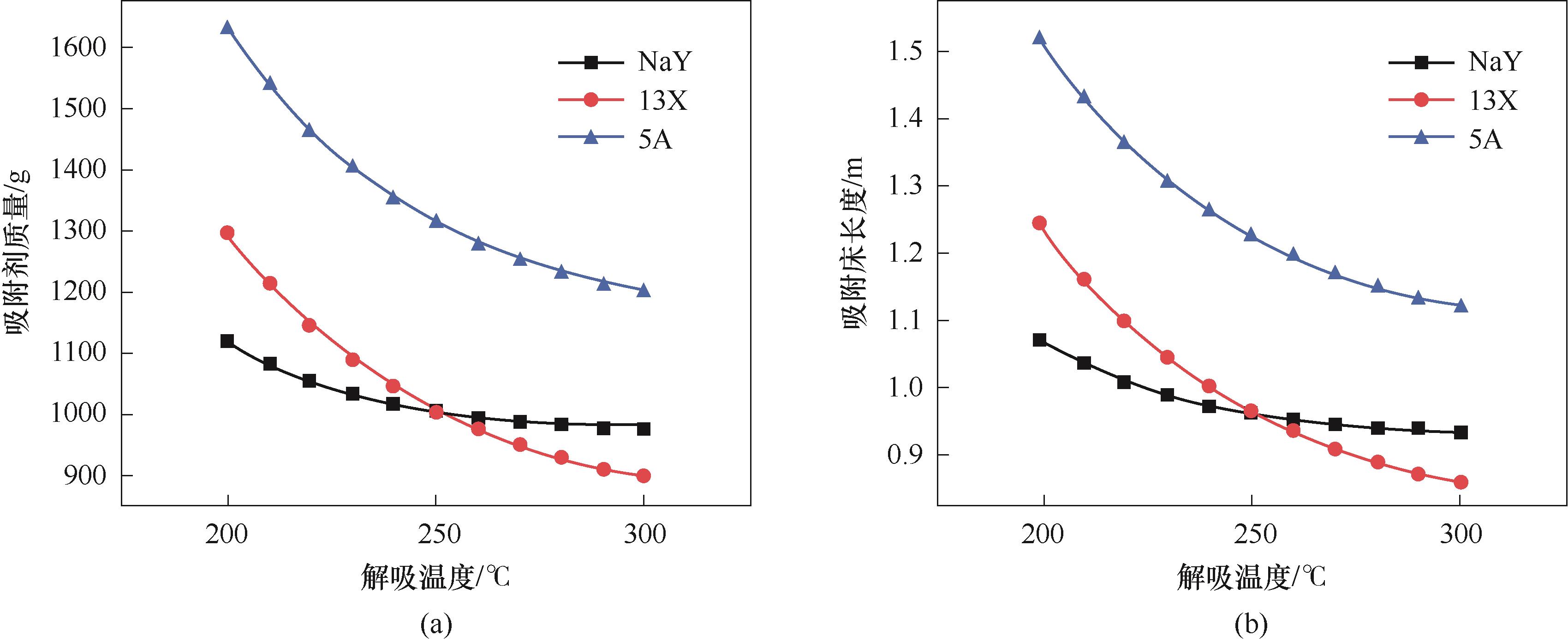

图6 吸附剂参数随解吸温度的变化趋势(P=5 W,T1 = 200℃)

Fig.6 Trend of adsorbent parameters with desorption temperature(P=5 W,T1 = 200℃)

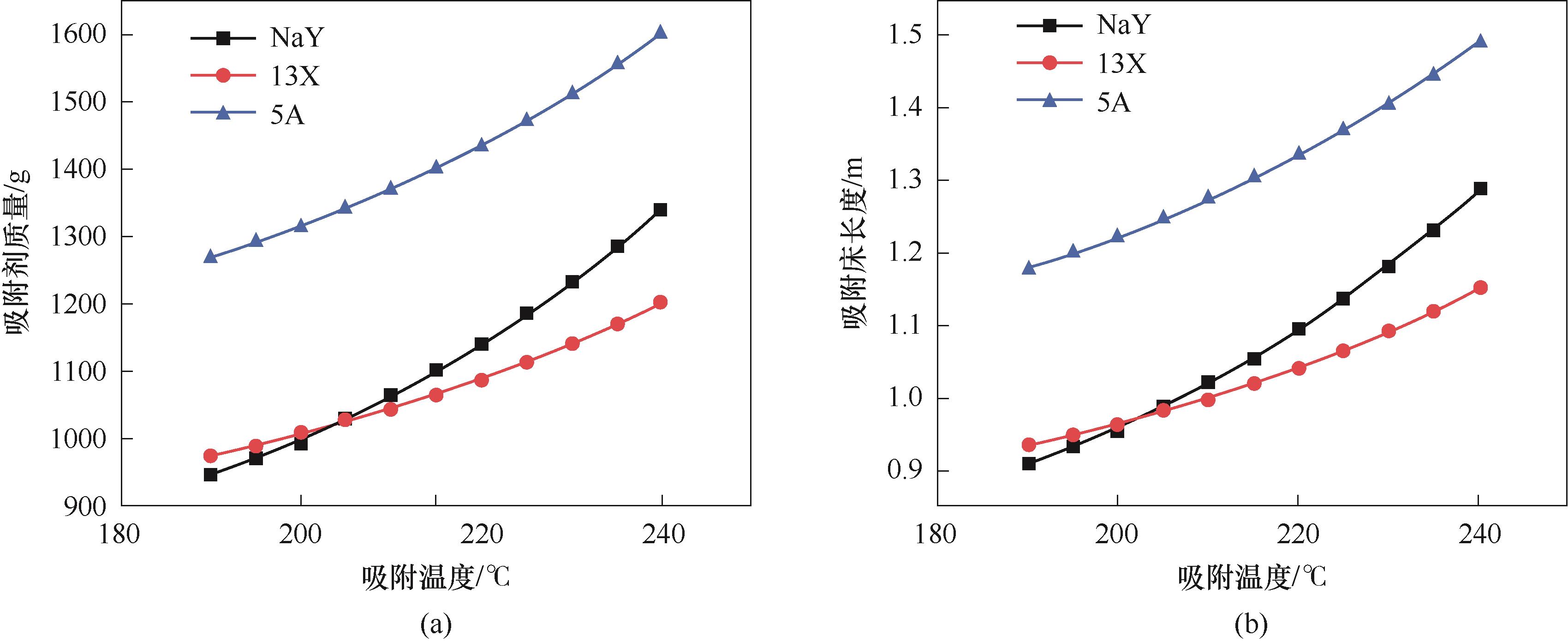

图7 吸附剂参数随吸附温度的变化趋势(P=5 W,T2 = 250℃)

Fig.7 Trend of adsorbent parameters with adsorption temperature(P=5 W,T2 = 250℃)

图8 吸附剂参数随解吸温度的变化趋势(P=3 W,T1 = 200℃)

Fig.8 Trend of adsorbent parameters with desorption temperature(P=3 W,T1 = 200℃)

图9 吸附剂参数随吸附温度的变化趋势(P=3 W,T2 = 250℃)

Fig.9 Trend of adsorbent parameters with adsorption temperature(P=3 W,T2 = 250℃)

参考文献 31

1	孙键. 超深井钻井技术进展研究[J]. 西部探矿工程, 2023, 35(7): 71-73, 76.
	Sun J. Research on progress of ultra-deep well drilling technology[J]. West-China Exploration Engineering, 2023, 35(7): 71-73, 76.
2	杨进, 李磊, 宋宇, 等. 中国海洋油气钻井技术发展现状及展望[J]. 石油学报, 2023, 44(12): 2308-2318.
	Yang J, Li L, Song Y, et al. Current status and prospects of offshore oil and gas drilling technology development in China[J]. Acta Petrolei Sinica, 2023, 44(12): 2308-2318.
3	谭宾, 张斌, 陶怀志. 深地勘探钻井技术现状及发展思考[J]. 钻采工艺, 2024, 47(2): 70-82.
	Tan B, Zhang B, Tao H Z. Current situation and development of deep exploration key drilling technology[J]. Drilling & Production Technology, 2024, 47(2): 70-82.
4	孔锦炜. 深层页岩气钻井技术难点与对策[J]. 中国石油和化工标准与质量, 2024, 44(6): 187-189.
	Kong J W. Technical difficulties and countermeasures of deep shale gas drilling[J]. China Petroleum and Chemical Standard and Quality, 2024, 44(6): 187-189.
5	仲莹. 自升式钻井平台冷却水系统设计和调试方案[J]. 中国设备工程, 2020(11): 134-135.
	Zhong Y. Design and debugging scheme of cooling water system for jack-up drilling platform[J]. China Plant Engineering, 2020(11): 134-135.
6	Stefánsson A, Duerholt R, Schroder J, et al. A 300 degree celsius directional drilling system[C]//IADC/SPE Drilling Conference and Exhibition. March 6-8, 2018. Fort Worth, Texas, USA. SPE, 2018: D011S003R003.
7	袁振, 靳从升, 孟庆树. JU2000E钻井平台主机冷却系统分析与改进[J]. 机械工程师, 2021(12): 46-48.
	Yuan Z, Jin C S, Meng Q S. Analysis and improvement of JU2000E rig main engine cooling system[J]. Mechanical Engineer, 2021(12): 46-48.
8	王如竹, 王丽伟. 低品位热能驱动的绿色制冷技术: 吸附式制冷[J]. 科学通报, 2005, 50(2): 101-111.
	Wang R Z, Wang L W. Green refrigeration technology driven by low-grade heat energy: adsorption refrigeration[J]. Chinese Science Bulletin, 2005, 50(2): 101-111.
9	张云辉, 刘悦. 吸附制冷的发展及现状[J]. 科技信息(科学教研), 2008(9): 54.
	Zhang Y H, Liu Y. Development and present situation of adsorption refrigeration[J]. Science & Technology Information, 2008(9): 54.
10	Riaz N, Sultan M, Noor S, et al. Recent developments in adsorption heat pumps for heating applications[J]. Advances in Mechanical Engineering, 2022, 14(4): 168781322210894.
11	Wang L W, Wang R Z, Oliveira R G. A review on adsorption working pairs for refrigeration[J]. Renewable and Sustainable Energy Reviews, 2009, 13(3): 518-534.
12	Ugale V D, Pitale A D. A review on working pair used in adsorption cooling system[J]. International Journal of Air-Conditioning and Refrigeration, 2015, 23(2): 1530001.
13	Boruta P, Bujok T, Mika Ł, et al. Adsorbents, working pairs and coated beds for natural refrigerants in adsorption chillers—state of the art[J]. Energies, 2021, 14(15): 4707.
14	Askalany A A, Salem M, Ismail I M, et al. A review on adsorption cooling systems with adsorbent carbon[J]. Renewable and Sustainable Energy Reviews, 2012, 16(1): 493-500.
15	Askalany A A, Salem M, Ismael I M, et al. An overview on adsorption pairs for cooling[J]. Renewable and Sustainable Energy Reviews, 2013, 19: 565-572.
16	Maeda S, Thu K, Maruyama T, et al. Critical review on the developments and future aspects of adsorption heat pumps for automobile air conditioning[J]. Applied Sciences, 2018, 8(11): 2061.
17	Goyal P, Baredar P, Mittal A, et al. Adsorption refrigeration technology-An overview of theory and its solar energy applications[J]. Renewable and Sustainable Energy Reviews, 2016, 53: 1389-1410.
18	Shmroukh A N, Ali A H H, Ookawara S. Adsorption working pairs for adsorption cooling chillers: a review based on adsorption capacity and environmental impact[J]. Renewable and Sustainable Energy Reviews, 2015, 50: 445-456.
19	李生璐, 杜涛. 太阳能吸附式制冷技术[C]//第七届全国能源与热工学术年会论文集. 中国金属学会能源与热工分会, 2013: 340-346.
	Li S L, Du T. Solar adsorption refrigeration technology [C]// Proceedings of the Seventh Annual National Energy and Thermal Engineering Symposium. Energy and Thermal Engineering Division, Chinese Society for Metals (CSM), 2013: 340-346.
20	丁曦, 刘泽勤, 王宁. 固体吸附式制冷系统性能的实验研究[J]. 低温与超导, 2020, 48(4): 96-99.
	Ding X, Liu Z Q, Wang N. Experimental study on the performance of solid adsorption refrigeration system[J]. Cryogenics & Superconductivity, 2020, 48(4): 96-99.
21	Chaudhari V H, Desai A D. Experimental study of single bed prototype adsorption refrigeration unit using waste heat energy[J]. Materials Today: Proceedings, 2022, 49: 1799-1803.
22	王丽伟, 王如竹. 吸附冷冻技术及其应用[C]//中国制冷学会2007学术年会论文集. 中国制冷学会, 2007: 7.
	Wang L W, Wang R Z. The adsorption refrigeration technology and its applicationa for freezing occasion[C]// Proceedings of the 2007 Annual Conference of the Chinese Society of Refrigeration. China Institute of Refrigeration, 2007: 7.
23	Wang R Z. Performance improvement of adsorption cooling by heat and mass recovery operation[J]. International Journal of Refrigeration, 2001, 24(7): 602-611.
24	Wang W, Qu T F, Wang R Z. Influence of degree of mass recovery and heat regeneration on adsorption refrigeration cycles[J]. Energy Conversion and Management, 2002, 43(5): 733-741.
25	彭佳杰. 硅胶-水吸附式制冷系统在工业低温余热回收利用中的理论与实验研究[D]. 上海: 上海交通大学, 2020.
	Peng J J. Theoretical and experimental study on silica gel-water adsorption refrigeration system in industrial low-temperature waste heat recovery and utilization[D]. Shanghai: Shanghai Jiao Tong University, 2020.
26	刘志强, 吴锋, 王国庆, 等. 沸石吸附式制冷技术的研究进展[J]. 材料导报, 2000, 14(4): 34-36.
	Liu Z Q, Wu F, Wang G Q, et al. Progress on zeolite adsorption refrigeration technology[J]. Materials Review, 2000, 14(4): 34-36.
27	Younes M M, El-Sharkawy I I, Kabeel A E, et al. A review on adsorbent-adsorbate pairs for cooling applications[J]. Applied Thermal Engineering, 2017, 114: 394-414.
28	Hassan H Z, Mohamad A A, Alyousef Y, et al. A review on the equations of state for the working pairs used in adsorption cooling systems[J]. Renewable and Sustainable Energy Reviews, 2015, 45: 600-609.
29	严爱珍, 鲍书林, 颜贻春, 等. 沸石分子筛吸附式制冷 Ⅰ.沸石分子筛体系的选择[J]. 制冷学报, 1982, 3(4): 24-33.
	Yan A Z, Bao S L, Yan Y C, et al. Zeolite-gas sorption refrigeration Ⅰ. The selection of liquid-zeolite molecular sieve couples[J]. Journal of Rfrigeration, 1982, 3(4): 24-33.
30	张成军. 固体吸附式制冷系统中吸附床传热性能研究[D]. 南京: 南京理工大学, 2010.
	Zhang C J. Study on heat transfer performance of adsorption bed in solid adsorption refrigeration system[D]. Nanjing: Nanjing University of Science and Technology, 2010.
31	张品, 段欢欢, 刘群生, 等. 吸附式制冷系统吸附床传热传质强化研究现状[J]. 制冷技术, 2021, 41(3): 12-17, 36.
	Zhang P, Duan H H, Liu Q S, et al. Research status of heat and mass transfer enhancement of adsorption bed in adsorption refrigeration system[J]. Chinese Journal of Refrigeration Technology, 2021, 41(3): 12-17, 36.
