合成氨反应器尾气变压吸附氨分离工艺的模拟与分析

doi:10.11949/0438-1157.20240870

摘要/Abstract

摘要：

氨的分离和回收在工业中有着广泛应用，但传统的氨分离方法往往伴随着较高的能耗。变压吸附技术作为一种低能耗、设备简单、操作灵活的气体分离方式，在气体分离领域有着广泛的应用。目前，对于变压吸附氨分离工艺缺乏详细的分析研究。基于此，以简化的合成氨反应器尾气为研究对象，以实验室自制的高硅铝比分子筛HS-1为吸附剂，测定了NH₃、N₂和H₂三种气体在该吸附剂上的吸附数据，为仿真模拟提供了相关参数。提出了一种两塔真空变压吸附工艺，采用数值模拟的方法研究了针对合成氨反应器尾气的氨分离变压吸附工艺，研究了不同操作条件下工艺分离的性能，探究了操作参数对工艺性能的影响。模拟结果表明，在吸附压力5 bar（1 bar=10⁵ Pa），吸附时间250 s，进料量1.2 mol·min^-1的条件下，该工艺分离得到的NH₃纯度可达89.30%，回收率可达94.67%，分离能耗为38.02 kJ·mol^-1。

关键词: 合成氨, 氨分离, 真空变压吸附, 吸附剂, 数值模拟

Abstract:

Ammonia separation and recovery are widely used in industry, but traditional ammonia separation methods are often accompanied by high energy consumption. Pressure swing adsorption (PSA) technology, as a gas separation method with low energy consumption, simple equipment and flexible operation, has been widely used in the field of gas separation. At present, there is a lack of extensive analysis and research on the ammonia separation process of pressure swing adsorption. Based on this, this paper takes the simplified synthetic ammonia reactor-off gas as the research object, and uses a high silica-aluminium ratio molecular sieve HS-1 made in the laboratory as the adsorbent, and determines the adsorption data of three gases, NH₃, N₂ and H₂, on this adsorbent, which provides the relevant parameters for the simulation. A two-bed vacuum pressure swing adsorption (VPSA) process was proposed, the numerical simulation method was used to study the pressure swing adsorption process for ammonia separation of the ammonia synthesis reactor tail gas. In addition, the performance of process separation under different operating conditions is studied to investigate the effect of operating parameters on process performance. The simulation results show that under the conditions of adsorption pressure of 5 bar (1 bar = 10⁵ Pa), adsorption time of 250 s, and feed amount of 1.2 mol·min^-1, the purity of NH₃ separated by this process can reach 89.30%, the recovery rate can reach 94.67%, and the separation energy consumption is 38.02 kJ·mol^-1.

Key words: synthetic ammonia, ammonia separation, vacuum pressure swing adsorption, adsorbents, numerical simulation

中图分类号:

TQ 028.1

贾晶宇, 孔德齐, 沈圆辉, 张东辉, 李文彬, 唐忠利. 合成氨反应器尾气变压吸附氨分离工艺的模拟与分析[J]. 化工学报, 2025, 76(2): 718-730.

Jingyu JIA, Deqi KONG, Yuanhui SHEN, Donghui ZHANG, Wenbin LI, Zhongli TANG. Simulation and analysis of ammonia separation process by pressure swing adsorption from synthetic ammonia reactor-off gas[J]. CIESC Journal, 2025, 76(2): 718-730.

图/表 23

图1 VPSA工艺流程示意图

Fig.1 VPSA process diagram

图2 VPSA工艺各步骤示意图

Fig.2 Schematic diagram of each step in the VPSA process

表1 VPSA工艺时序

Table 1 VPSA process cycle sequence

Step	Bed 1	Bed 2	Time/s
1	AD	VU	250
2	ED	ER	20
3	CoD	PR	30
4	VU	AD	250
5	ER	ED	20
6	PR	CoD	30

表2 吸附床数学模型

Table 2 The mathematical model of adsorption bed

方程	数学公式
质量守恒方程	$- ε_{b} D_{a x, i} \frac{\partial^{2} c_{i}}{\partial z^{2}} + \frac{\partial (v_{g} c_{i})}{\partial z} + [ε_{b} + (1 - ε_{b}) ε_{p}] \frac{\partial c_{i}}{\partial t} + ρ_{b} \frac{\partial q_{i}}{\partial t} = 0$	(1)
	$\begin{matrix} D_{a x, i} = 0.73 D_{m, i} + \frac{v_{g} r_{p}}{ε_{b} (1 + 9.49 \frac{ε_{b} D_{m, i}}{2 v_{g} r_{p}})} \end{matrix}$	(2)
	$D_{m, i} = \frac{0.0101 T^{1.75} \sqrt[]{\frac{1}{M_{A}} + \frac{1}{M_{B}}}}{P ({D_{v, A}}^{1 / 3} + {D_{v, B}}^{1 / 3})^{2}}$	(3)
能量守恒方程	$\begin{matrix} - k_{g} ε_{b} \frac{\partial^{2} T_{g}}{\partial z^{2}} + C_{v g} v_{g} ρ_{g} \frac{\partial T_{g}}{\partial z} + [ε_{b} + (1 - ε_{b}) ε_{p}] C_{v g} ρ_{g} \frac{\partial T_{g}}{\partial t} + P \frac{\partial v_{g}}{\partial z} + H T C \times a_{p} (T_{g} - T_{s}) + \frac{4 h_{w}}{D_{b}} (T_{g} - T_{w}) = 0 \end{matrix}$	(4)
	$\begin{matrix} - k_{s} \frac{\partial^{2} T_{s}}{\partial z^{2}} + ρ_{b} C_{p s} \frac{\partial T_{s}}{\partial t} + ρ_{b} \sum_{i = 1}^{n} (C_{p g, i} q_{i}) \frac{\partial T_{s}}{\partial t} + ρ_{b} \sum_{i = 1}^{n} (Δ H_{i} \frac{\partial q_{i}}{\partial t}) - H T C \times a_{p} (T_{g} - T_{s}) = 0 \end{matrix}$	(5)
	$\begin{matrix} - k_{w} \frac{\partial^{2} T_{w}}{\partial z^{2}} + C_{p w} ρ_{w} \frac{\partial T_{w}}{\partial t} - h_{w} \frac{4 D_{b}}{{(D_{b} + W_{t})}^{2} - D_{b}^{2}} (T_{g} - T_{w}) + h_{a m b} \frac{4 (D_{b} + W_{t})^{2}}{{(D_{b} + W_{t})}^{2} - D_{b}^{2}} (T_{w} - T_{a m b}) = 0 \end{matrix}$	(6)
动量守恒方程	$\begin{matrix} - \frac{\partial P}{\partial z} = \frac{1.5 \times 10^{- 3} μ (1 - ε_{b})^{2}}{{ε_{b}}^{3} (2 r_{p} {ψ)}^{2}} v_{g} + 1.75 \times 10^{- 5} M \frac{(1 - ε_{b}) ρ_{g}}{2 r_{p} ψ {ε_{b}}^{3}} \| v_{g} \| v_{g} \end{matrix}$	(7)
吸附等温线方程	$\begin{matrix} q_{i}^{*} = \frac{I P_{1 i} I P_{2 i} P_{i}^{I P_{3 i}} e^{I P_{4 i} / T}}{1 + \sum_{i = 1}^{n} (I P_{5 i} P_{i}^{I P_{3 i}} e^{I P_{6 i} / T})} \end{matrix}$	(8)
LDF方程	$\begin{matrix} \frac{\partial q_{i}}{\partial t} = k_{L D F, i} (q_{i}^{*} - q_{i}) \end{matrix}$	(9)

表2 吸附床数学模型

Table 2 The mathematical model of adsorption bed

方程	数学公式
质量守恒方程	$- ε_{b} D_{a x, i} \frac{\partial^{2} c_{i}}{\partial z^{2}} + \frac{\partial (v_{g} c_{i})}{\partial z} + [ε_{b} + (1 - ε_{b}) ε_{p}] \frac{\partial c_{i}}{\partial t} + ρ_{b} \frac{\partial q_{i}}{\partial t} = 0$	(1)
	$\begin{matrix} D_{a x, i} = 0.73 D_{m, i} + \frac{v_{g} r_{p}}{ε_{b} (1 + 9.49 \frac{ε_{b} D_{m, i}}{2 v_{g} r_{p}})} \end{matrix}$	(2)
	$D_{m, i} = \frac{0.0101 T^{1.75} \sqrt[]{\frac{1}{M_{A}} + \frac{1}{M_{B}}}}{P ({D_{v, A}}^{1 / 3} + {D_{v, B}}^{1 / 3})^{2}}$	(3)
能量守恒方程	$\begin{matrix} - k_{g} ε_{b} \frac{\partial^{2} T_{g}}{\partial z^{2}} + C_{v g} v_{g} ρ_{g} \frac{\partial T_{g}}{\partial z} + [ε_{b} + (1 - ε_{b}) ε_{p}] C_{v g} ρ_{g} \frac{\partial T_{g}}{\partial t} + P \frac{\partial v_{g}}{\partial z} + H T C \times a_{p} (T_{g} - T_{s}) + \frac{4 h_{w}}{D_{b}} (T_{g} - T_{w}) = 0 \end{matrix}$	(4)
	$\begin{matrix} - k_{s} \frac{\partial^{2} T_{s}}{\partial z^{2}} + ρ_{b} C_{p s} \frac{\partial T_{s}}{\partial t} + ρ_{b} \sum_{i = 1}^{n} (C_{p g, i} q_{i}) \frac{\partial T_{s}}{\partial t} + ρ_{b} \sum_{i = 1}^{n} (Δ H_{i} \frac{\partial q_{i}}{\partial t}) - H T C \times a_{p} (T_{g} - T_{s}) = 0 \end{matrix}$	(5)
	$\begin{matrix} - k_{w} \frac{\partial^{2} T_{w}}{\partial z^{2}} + C_{p w} ρ_{w} \frac{\partial T_{w}}{\partial t} - h_{w} \frac{4 D_{b}}{{(D_{b} + W_{t})}^{2} - D_{b}^{2}} (T_{g} - T_{w}) + h_{a m b} \frac{4 (D_{b} + W_{t})^{2}}{{(D_{b} + W_{t})}^{2} - D_{b}^{2}} (T_{w} - T_{a m b}) = 0 \end{matrix}$	(6)
动量守恒方程	$\begin{matrix} - \frac{\partial P}{\partial z} = \frac{1.5 \times 10^{- 3} μ (1 - ε_{b})^{2}}{{ε_{b}}^{3} (2 r_{p} {ψ)}^{2}} v_{g} + 1.75 \times 10^{- 5} M \frac{(1 - ε_{b}) ρ_{g}}{2 r_{p} ψ {ε_{b}}^{3}} \| v_{g} \| v_{g} \end{matrix}$	(7)
吸附等温线方程	$\begin{matrix} q_{i}^{*} = \frac{I P_{1 i} I P_{2 i} P_{i}^{I P_{3 i}} e^{I P_{4 i} / T}}{1 + \sum_{i = 1}^{n} (I P_{5 i} P_{i}^{I P_{3 i}} e^{I P_{6 i} / T})} \end{matrix}$	(8)
LDF方程	$\begin{matrix} \frac{\partial q_{i}}{\partial t} = k_{L D F, i} (q_{i}^{*} - q_{i}) \end{matrix}$	(9)

表3 辅助设备数学模型

Table 3 Mathematical model of auxiliary equipment

设备

数学模型

泵

$\begin{matrix} T_{o u t} = T_{i n} (P_{o u t} / P_{i n})^{(γ - 1) / γ} \end{matrix}$

$d W = \frac{P_{i n} V_{i n}}{η_{p}} \frac{γ}{γ - 1} [(P_{o u t} / P_{i n})^{\frac{γ - 1}{γ}} - 1]$

$W = \int_{0}^{t} d W$

(10)

缓冲罐

$\begin{matrix} \frac{\partial n_{i}}{\partial t} = \sum_{i = 1}^{n} F_{i n} y_{i, i n} - \sum_{i = 1}^{n} F_{o u t} y_{i, o u t} \end{matrix}$

$\begin{matrix} \frac{\partial T (\sum_{i = 1}^{n} n_{i} C_{p g, i})}{\partial t} = \sum_{i = 1}^{n} y_{i, i n} C_{p g, i} \sum_{j = 1}^{m} F_{i n, j} T_{i n, j} - \sum_{i = 1}^{n} y_{i, o u t} C_{p g, i} \sum_{j = 1}^{m} F_{o u t, j} T_{o u t, j} \end{matrix}$

(11)

阀门

F = C_{V} (P_{o u t} - P_{i n})

(12)

表3 辅助设备数学模型

Table 3 Mathematical model of auxiliary equipment

设备

数学模型

泵

$\begin{matrix} T_{o u t} = T_{i n} (P_{o u t} / P_{i n})^{(γ - 1) / γ} \end{matrix}$

$d W = \frac{P_{i n} V_{i n}}{η_{p}} \frac{γ}{γ - 1} [(P_{o u t} / P_{i n})^{\frac{γ - 1}{γ}} - 1]$

$W = \int_{0}^{t} d W$

(10)

缓冲罐

$\begin{matrix} \frac{\partial n_{i}}{\partial t} = \sum_{i = 1}^{n} F_{i n} y_{i, i n} - \sum_{i = 1}^{n} F_{o u t} y_{i, o u t} \end{matrix}$

(11)

阀门

F = C_{V} (P_{o u t} - P_{i n})

(12)

表4 工艺性能评价指标

Table 4 Process performance indicator

指标	计算公式
纯度	$P u r i t y_{t a r g e t} = \frac{\int_{0}^{t_{c y c l e}} F_{o u t} y_{o u t, t a r g e t} d t}{\int_{0}^{t_{c y c l e}} F_{o u t} d t}$	(13)
回收率	$R e c o v e r y_{t a r g e t} = \frac{\int_{0}^{t_{c y c l e}} F_{o u t} y_{o u t, t a r g e t} d t}{\int_{0}^{t_{c y c l e}} F_{i n} y_{i n, t a r g e t} d t}$	(14)
能耗	$E n e r g y c o n s u m p t i o n = \frac{\int_{0}^{t_{c y c l e}} \frac{V_{i n} P_{o u t} γ}{η (γ - 1)} [(P_{o u t} / P_{i n})^{1 - (1 / γ)} - 1] d t}{\int_{0}^{t_{c y c l e}} V_{p r o d u c t} y_{p r o d u c t} d t}$	(15)

表4 工艺性能评价指标

Table 4 Process performance indicator

指标	计算公式
纯度	$P u r i t y_{t a r g e t} = \frac{\int_{0}^{t_{c y c l e}} F_{o u t} y_{o u t, t a r g e t} d t}{\int_{0}^{t_{c y c l e}} F_{o u t} d t}$	(13)
回收率	$R e c o v e r y_{t a r g e t} = \frac{\int_{0}^{t_{c y c l e}} F_{o u t} y_{o u t, t a r g e t} d t}{\int_{0}^{t_{c y c l e}} F_{i n} y_{i n, t a r g e t} d t}$	(14)
能耗	$E n e r g y c o n s u m p t i o n = \frac{\int_{0}^{t_{c y c l e}} \frac{V_{i n} P_{o u t} γ}{η (γ - 1)} [(P_{o u t} / P_{i n})^{1 - (1 / γ)} - 1] d t}{\int_{0}^{t_{c y c l e}} V_{p r o d u c t} y_{p r o d u c t} d t}$	(15)

表5 吸附剂参数

Table 5 Parameters of the adsorbent

参数	数值
S_BET/(m²·g^-1)	258
V_total/(cm³·g^-1)	0.357
V_mic/(cm³·g^-1)	4.77×10^-3
d/nm	4.73
ε_b	0.4
ε_p	0.73
r_p/m	3.26×10^-3
ρ_b/(kg·m^-3)	620
C_p_s/(kJ·kg^-1·K^-1)	850
HTC/(W·m^-2·K^-1)	235
k_g/(W·m^-1·K^-1)	0.024
k_s/(W·m^-2·K^-1)	0.2
$k_{L D F, H_{2}} / s^{- 1}$	0.01
$k_{L D F, N_{2}} / s^{- 1}$	0.005
$k_{L D F, N H_{3}} / s^{- 1}$	0.012
$D_{m, H_{2}} / (m^{2} \cdot s^{- 1})$	6.41×10^-5
$D_{m, N_{2}} / (m^{2} \cdot s^{- 1})$	2.13×10^-5
$D_{m, N H_{3}} / (m^{2} \cdot s^{- 1})$	2.13×10^-5
$C_{p g, H_{2}} / (k J \cdot k g^{- 1} \cdot K^{- 1})$	20.26
$C_{p g, N_{2}} / (k J \cdot k g^{- 1} \cdot K^{- 1})$	20.86
$C_{p g, N H_{3}} / (k J \cdot k g^{- 1} \cdot K^{- 1})$	11.39

表5 吸附剂参数

Table 5 Parameters of the adsorbent

参数	数值
S_BET/(m²·g^-1)	258
V_total/(cm³·g^-1)	0.357
V_mic/(cm³·g^-1)	4.77×10^-3
d/nm	4.73
ε_b	0.4
ε_p	0.73
r_p/m	3.26×10^-3
ρ_b/(kg·m^-3)	620
C_p_s/(kJ·kg^-1·K^-1)	850
HTC/(W·m^-2·K^-1)	235
k_g/(W·m^-1·K^-1)	0.024
k_s/(W·m^-2·K^-1)	0.2
$k_{L D F, H_{2}} / s^{- 1}$	0.01
$k_{L D F, N_{2}} / s^{- 1}$	0.005
$k_{L D F, N H_{3}} / s^{- 1}$	0.012
$D_{m, H_{2}} / (m^{2} \cdot s^{- 1})$	6.41×10^-5
$D_{m, N_{2}} / (m^{2} \cdot s^{- 1})$	2.13×10^-5
$D_{m, N H_{3}} / (m^{2} \cdot s^{- 1})$	2.13×10^-5
$C_{p g, H_{2}} / (k J \cdot k g^{- 1} \cdot K^{- 1})$	20.26
$C_{p g, N_{2}} / (k J \cdot k g^{- 1} \cdot K^{- 1})$	20.86
$C_{p g, N H_{3}} / (k J \cdot k g^{- 1} \cdot K^{- 1})$	11.39

表6 吸附塔参数

Table 6 Parameters of the adsorption column

参数	数值
H_b/m	0.44
D_b/m	0.0283
W_t/m	0.00175
ρ_w/(kg·m^-3)	7800
C_p_w/(kJ·kg^-1·K^-1)	0.502
h_w/(W·m^-2·K^-1)	60
h_amb/(W·m^-2·K^-1)	60
k_w/(W·m^-1·K^-1)	0.342

图3 NH3、N2和H2的平衡吸附量和吸附等温线

Fig.3 Equilibrium adsorption capacity and adsorption isotherms of NH3， N2 and H2

表7 NH3、N2和H2的吸附等温线拟合参数

Table 7 Fitting parameters of adsorption isotherms of NH3， N2 and H2

参数	NH₃	N₂	H₂
IP₁/(mmol·g^-1)	0.5315	7.442×10^-4	3.946×10^-4
IP₂/bar^-1	0.5675	0.5784	0.6080
IP₃	0.1653	1.011	0.9033
IP₄/K	517.2	1209	1074
IP₅/bar^-1	-0.06188	2.513×10^-3	-3.893×10^-4
IP₆/K	611.3	496.8	1461
R²	0.9905	0.9989	0.9959

表8 NH3、N2和H2的吸附热计算结果

Table 8 Calculation results of adsorption heat of NH3， N2 and H2

No.	H₂		N₂		NH₃
No.	q/(mmol·g^-1)	ΔH/(kJ·mol^-1)	q/(mmol·g^-1)	ΔH/(kJ·mol^-1)	q/(mmol·g^-1)	ΔH/(kJ·mol^-1)
1	0.001	9.90	0.004	9.96	0.331	26.41
2	0.005	9.97	0.018	10.01	0.905	26.96
3	0.008	10.03	0.032	10.06	1.479	27.39
4	0.012	10.10	0.047	10.12	2.053	27.73
5	0.016	10.16	0.061	10.17	2.627	28.00
6	0.020	10.22	0.076	10.23	3.201	28.23
7	0.024	10.28	0.090	10.29	3.775	28.43
8	0.028	10.34	0.105	10.35	4.350	28.60
9	0.032	10.39	0.119	10.41	4.924	28.74
10	0.036	10.44	0.134	10.47	5.498	28.87
11	0.040	10.49	0.148	10.53	6.072	28.98
12	0.043	10.54	0.163	10.60	6.646	29.08
Average		10.24		10.27		28.12

表9 工艺操作条件参数

Table 9 Parameters of the process operation

参数	数值
T_feed/K	298.15
T_amb/K	298.15
P_feed/bar	5.0
P_AD/bar	5.0
P_VU/bar	0.1
Q_feed/(mol·min^-1)	1.2
V_Buffer/m³	1.0×10^-3

表10 吸附床数学模型的初始条件

Table 10 Initial conditions for mathematical model of adsorption bed

初始条件
$y_{i} (z) = 0$ ， $y_{i n e r t} (z) = 1$ ， $q_{i} (z) = 0$ ， $q_{i n e r t} (z) = q_{i n e r t}^{*}$ ， $P (z) = P_{f e e d}$ ， $T_{g} (z) = T_{s} (z) = T_{w} (z) = T_{f e e d}$

表10 吸附床数学模型的初始条件

Table 10 Initial conditions for mathematical model of adsorption bed

初始条件
$y_{i} (z) = 0$ ， $y_{i n e r t} (z) = 1$ ， $q_{i} (z) = 0$ ， $q_{i n e r t} (z) = q_{i n e r t}^{*}$ ， $P (z) = P_{f e e d}$ ， $T_{g} (z) = T_{s} (z) = T_{w} (z) = T_{f e e d}$

表11 不同步骤下吸附床模型的边界条件

Table 11 Boundary conditions of adsorption bed models at different steps

$\begin{matrix} u_{0, i n} c_{i n, i} |_{z = 0} = u_{0} c_{i} - ε_{b} D_{a x} c \frac{\partial y_{i}}{\partial z} \end{matrix}$

$u_{0, i n} c_{i n} |_{z = 0} = u_{0} c$

$u_{0, i n} c_{i n} C_{p} T_{i n} |_{z = 0} = u_{0} c C_{p} T_{g} - k_{g} \frac{\partial T_{g}}{\partial z}$

${\frac{\partial c_{i}}{\partial z}|}_{z = L} = 0$

$P |_{z = L} = P_{o u t}$

${\frac{\partial T_{g}}{\partial z}|}_{z = L} = 0$

Equalization depressurization（ED）

${\frac{\partial c_{i}}{\partial z}|}_{z = 0} = 0$

$u_{0} |_{z = 0} = 0$

${\frac{\partial T_{g}}{\partial z}|}_{z = 0} = 0$

${\frac{\partial c_{i}}{\partial z}|}_{z = L} = 0$

$P |_{z = L} = P_{o u t}$

${\frac{\partial T_{g}}{\partial z}|}_{z = L} = 0$

Co-current blowdown（CoD）

${\frac{\partial c_{i}}{\partial z}|}_{z = 0} = 0$

$u_{0} |_{z = 0} = 0$

${\frac{\partial T_{g}}{\partial z}|}_{z = 0} = 0$

${\frac{\partial c_{i}}{\partial z}|}_{z = L} = 0$

$P |_{z = L} = P_{o u t}$

${\frac{\partial T_{g}}{\partial z}|}_{z = L} = 0$

Vacuum（VU）

${\frac{\partial c_{i}}{\partial z}|}_{z = 0} = 0$

$P |_{z = 0} = P_{o u t}$

${\frac{\partial T_{g}}{\partial z}|}_{z = 0} = 0$

${\frac{\partial c_{i}}{\partial z}|}_{z = L} = 0$

$u_{0} |_{z = L} = 0$

${\frac{\partial T_{g}}{\partial z}|}_{z = L} = 0$

Equalization repressurization（ER）

${\frac{\partial c_{i}}{\partial z}|}_{z = 0} = 0$

$u_{0} |_{z = 0} = 0$

${\frac{\partial T_{g}}{\partial z}|}_{z = 0} = 0$

$\begin{matrix} u_{0, i n} c_{i n, i} |_{z = L} = u_{0} c_{i} - ε_{b} D_{a x} c \frac{\partial y_{i}}{\partial z} \end{matrix}$

$u_{0, i n} c_{i n} |_{z = L} = u_{0} c$

$u_{0, i n} c_{i n} C_{p} T_{i n} |_{z = L} = u_{0} c C_{p} T_{g} - k_{g} \frac{\partial T_{g}}{\partial z}$

Pressurization（PR）

${\frac{\partial c_{i}}{\partial z}|}_{z = 0} = 0$

$u_{0} |_{z = 0} = 0$

${\frac{\partial T_{g}}{\partial z}|}_{z = 0} = 0$

$\begin{matrix} u_{0, i n} c_{i n, i} |_{z = L} = u_{0} c_{i} - ε_{b} D_{a x} c \frac{\partial y_{i}}{\partial z} \end{matrix}$

$u_{0, i n} c_{i n} |_{z = L} = u_{0} c$

$u_{0, i n} c_{i n} C_{p} T_{i n} |_{z = L} = u_{0} c C_{p} T_{g} - k_{g} \frac{\partial T_{g}}{\partial z}$

表11 不同步骤下吸附床模型的边界条件

Table 11 Boundary conditions of adsorption bed models at different steps

步骤

z=0

z=L

Adsorption（AD）

$\begin{matrix} u_{0, i n} c_{i n, i} |_{z = 0} = u_{0} c_{i} - ε_{b} D_{a x} c \frac{\partial y_{i}}{\partial z} \end{matrix}$

$u_{0, i n} c_{i n} |_{z = 0} = u_{0} c$

$u_{0, i n} c_{i n} C_{p} T_{i n} |_{z = 0} = u_{0} c C_{p} T_{g} - k_{g} \frac{\partial T_{g}}{\partial z}$

${\frac{\partial c_{i}}{\partial z}|}_{z = L} = 0$

$P |_{z = L} = P_{o u t}$

${\frac{\partial T_{g}}{\partial z}|}_{z = L} = 0$

Equalization depressurization（ED）

${\frac{\partial c_{i}}{\partial z}|}_{z = 0} = 0$

$u_{0} |_{z = 0} = 0$

${\frac{\partial T_{g}}{\partial z}|}_{z = 0} = 0$

${\frac{\partial c_{i}}{\partial z}|}_{z = L} = 0$

$P |_{z = L} = P_{o u t}$

${\frac{\partial T_{g}}{\partial z}|}_{z = L} = 0$

Co-current blowdown（CoD）

${\frac{\partial c_{i}}{\partial z}|}_{z = 0} = 0$

$u_{0} |_{z = 0} = 0$

${\frac{\partial T_{g}}{\partial z}|}_{z = 0} = 0$

${\frac{\partial c_{i}}{\partial z}|}_{z = L} = 0$

$P |_{z = L} = P_{o u t}$

${\frac{\partial T_{g}}{\partial z}|}_{z = L} = 0$

Vacuum（VU）

${\frac{\partial c_{i}}{\partial z}|}_{z = 0} = 0$

$P |_{z = 0} = P_{o u t}$

${\frac{\partial T_{g}}{\partial z}|}_{z = 0} = 0$

${\frac{\partial c_{i}}{\partial z}|}_{z = L} = 0$

$u_{0} |_{z = L} = 0$

${\frac{\partial T_{g}}{\partial z}|}_{z = L} = 0$

Equalization repressurization（ER）

${\frac{\partial c_{i}}{\partial z}|}_{z = 0} = 0$

$u_{0} |_{z = 0} = 0$

${\frac{\partial T_{g}}{\partial z}|}_{z = 0} = 0$

$\begin{matrix} u_{0, i n} c_{i n, i} |_{z = L} = u_{0} c_{i} - ε_{b} D_{a x} c \frac{\partial y_{i}}{\partial z} \end{matrix}$

$u_{0, i n} c_{i n} |_{z = L} = u_{0} c$

$u_{0, i n} c_{i n} C_{p} T_{i n} |_{z = L} = u_{0} c C_{p} T_{g} - k_{g} \frac{\partial T_{g}}{\partial z}$

Pressurization（PR）

${\frac{\partial c_{i}}{\partial z}|}_{z = 0} = 0$

$u_{0} |_{z = 0} = 0$

${\frac{\partial T_{g}}{\partial z}|}_{z = 0} = 0$

$\begin{matrix} u_{0, i n} c_{i n, i} |_{z = L} = u_{0} c_{i} - ε_{b} D_{a x} c \frac{\partial y_{i}}{\partial z} \end{matrix}$

$u_{0, i n} c_{i n} |_{z = L} = u_{0} c$

$u_{0, i n} c_{i n} C_{p} T_{i n} |_{z = L} = u_{0} c C_{p} T_{g} - k_{g} \frac{\partial T_{g}}{\partial z}$

表12 不同操作条件下模拟结果汇总

Table 12 Summary of simulation results under different operating conditions

序号	进料量/ (mol·min^-1)	原料气组成 (NH₃∶H₂∶N₂)/%（体积）	吸附时长/s	吸附压力/bar	纯度/%	回收率/%	能耗/(kJ·mol^-1)
1	1.2	15∶63.75∶21.25	230	5	88.78	95.28	37.78
2	1.2	15∶63.75∶21.25	240	5	89.04	94.99	37.90
3	1.2	15∶63.75∶21.25	250	5	89.30	94.67	38.02
4	1.2	15∶63.75∶21.25	260	5	89.54	94.32	38.19
5	1.2	15∶63.75∶21.25	270	5	89.77	93.94	38.35
6	0.8	15∶63.75∶21.25	250	5	85.29	99.72	35.80
7	1.0	15∶63.75∶21.25	250	5	87.75	98.38	38.34
9	1.4	15∶63.75∶21.25	250	5	90.42	88.48	40.57
10	1.6	15∶63.75∶21.25	250	5	91.06	81.59	43.92
11	1.2	15∶63.75∶21.25	250	4	89.58	87.90	35.48
12	1.2	15∶63.75∶21.25	250	4.5	89.51	91.83	36.73
13	1.2	15∶63.75∶21.25	250	5.5	89.03	96.55	39.45
14	1.2	15∶63.75∶21.25	250	6	88.51	98.10	40.75
15	1.2	10∶22.5∶67.5	250	5	84.45	98.74	46.48
17	1.2	12.5∶21.875∶65.625	250	5	87.23	97.09	44.66
18	1.2	17.5∶20.625∶61.875	250	5	91.00	91.20	33.75
19	1.2	20∶20∶60	250	5	92.23	87.23	33.67

图4 单塔VPSA压力曲线

Fig.4 Single-bed VPSA pressure profile

图5 吸附塔不同位置的温度分布

Fig.5 Temperature distribution at various positions of adsorption column

图6 不同步骤结束后NH3、N2和H2的固相浓度分布

Fig.6 Solid phase concentration distribution of NH3, N2, and H2 after different steps

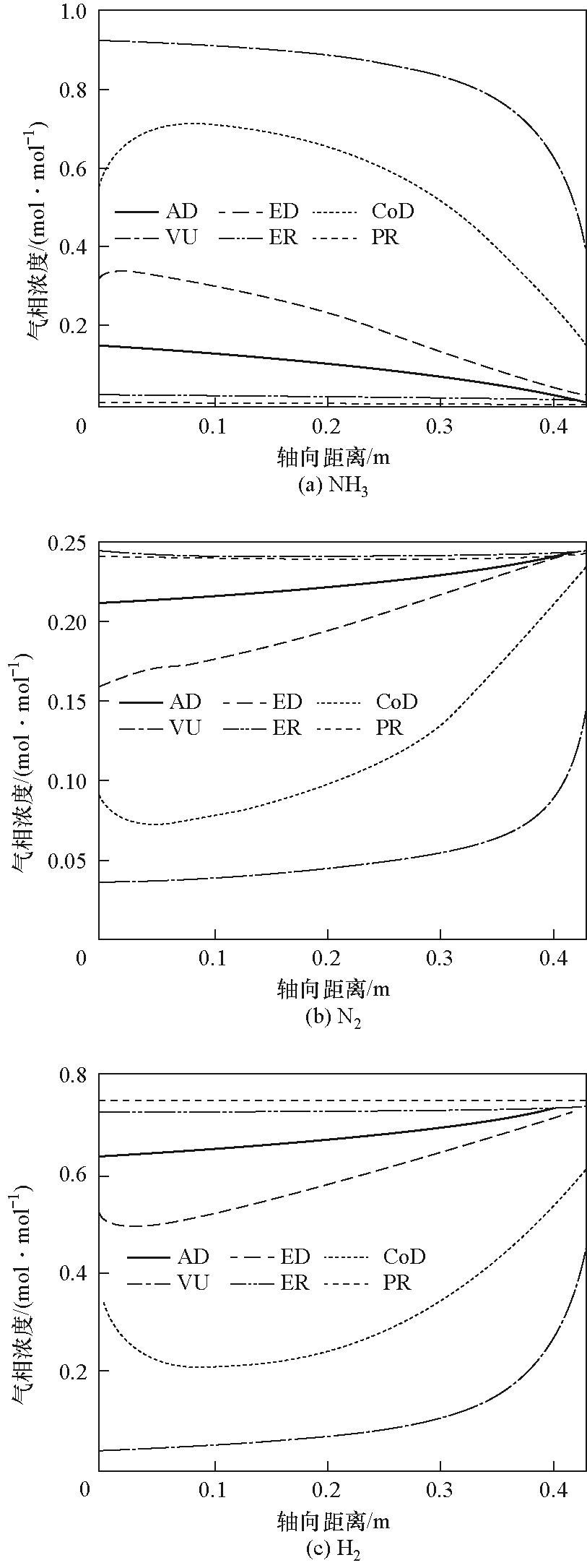

图7 不同步骤结束后NH3、N2和H2的气相浓度分布

Fig.7 Gas phase concentration distribution of NH3, N2, and H2 after different steps

图8 吸附时长对纯度、回收率和能耗的影响

Fig.8 Effect of adsorption time on purity, recovery and energy consumption

图9 吸附压力对纯度、回收率和能耗的影响

Fig.9 Effect of adsorption pressure on purity, recovery and energy consumption

图10 进料量对纯度、回收率和能耗的影响

Fig.10 Effect of feed flowrate on purity, recovery and energy consumption

图11 原料气组成对纯度、回收率和能耗的影响

Fig.11 Effect of feed gas composition on purity, recovery and energy consumption

参考文献 30

1	Amhamed A I, Shuibul Qarnain S, Hewlett S, et al. Ammonia production plants—a review[J]. Fuels, 2022, 3(3): 408-435.
2	Smil V. Nitrogen and food production: proteins for human diets[J]. Ambio, 2002, 31(2): 126-131.
3	Smil V. Enriching the Earth: Fritz Haber, Carl Bosch, and the Transformation of World Food Production[M]. Cambridge: MIT Press, 2001.
4	Cheremisinoff N P, Rosenfeld P E. Best practices in the agrochemical industry[M]//Handbook of Pollution Prevention and Cleaner Production. New York: William Andrew Publishing, 2010.
5	Pearson A. Refrigeration with ammonia[J]. International Journal of Refrigeration, 2008, 31(4): 545-551.
6	Kristiana I, Lethorn A, Joll C, et al. To add or not to add: the use of quenching agents for the analysis of disinfection by-products in water samples[J]. Water Research, 2014, 59: 90-98.
7	Selvam M, Vigneshwaran M, Irudhayaraj R, et al. Emission control diesel power plant for reducing oxides of nitrogen through selective catalytic reduction method using ammonia[J]. Indian Journal of Science and Technology, 2016, 9(1): 1-7.
8	毕马威中国. 固碳、储氢、航运燃料、掺混发电: 绿氨行业概览与展望[EB/OL]. 2022[2024-07-30]. .
	KPMG China. Carbon sequestration, hydrogen storage, shipping fuels, and blended power generation: Overview and prospects of the green ammonia industry[EB/OL]. 2022[2024-07-30]. .
9	El-Shafie M, Kambara S. Recent advances in ammonia synthesis technologies: toward future zero carbon emissions[J]. International Journal of Hydrogen Energy, 2023, 48(30): 11237-11273.
10	Ammonia Energy Association. Marine ammonia engines: working towards deployment in Japan[EB/OL]. 2024[2024-07-30]. .
11	National Aeronautics and Space Administration. X-15 hypersonic research program[EB/OL]. 2014[2024-07-30]. .
12	Guo J P, Chen P. Catalyst: NH₃ as an energy carrier[J]. Chem, 2017, 3(5): 709-712.
13	The Royal Society. Ammonia: zero-carbon fertiliser, fuel and energy store[EB/OL]. 2020[2024-07-30]. .
14	Smith C, Hill A K, Torrente-Murciano L. Current and future role of Haber–Bosch ammonia in a carbon-free energy landscape[J]. Energy & Environmental Science, 2020, 13(2): 331-344.
15	Liu H Z. Ammonia Synthesis Catalysts: Innovation and Practice[M]. Singapore: World Scientific Publishing, 2013.
16	Mario G. Process for the separation of ammonia produced in medium and low pressure synthesizing plants: US3354615[P]. 1967-11-28.
17	Wei Q S, Lucero J M, Crawford J M, et al. Ammonia separation from N₂ and H₂ over LTA zeolitic imidazolate framework membranes[J]. Journal of Membrane Science, 2021, 623: 119078.
18	Padinjarekutt S, Sengupta B, Li H Z, et al. Synthesis of Na⁺-gated nanochannel membranes for the ammonia (NH₃) separation[J]. Journal of Membrane Science, 2023, 674: 121512.
19	Skarstrom C W. Method and apparatus for fractionating gaseous mixtures by adsorption: US2944627[P]. 1960-07-12.
20	Knaebel K S, Cussler E L. A novel pressure swing adsorption system for ammonia synthesis[M]//LeVan M D. The Kluwer International Series in Engineering and Computer Science. Boston, MA: Springer US, 1996: 457-464.
21	Bhadra S J. Purification of ammonia by pressure swing adsorption[D]. South Carolina: University of South Carolina, 2012.
22	Adsim Aspen. Adsorption Reference Guide[M]. Cambridge, MA: Aspen Technology Inc., 2004.
23	Sips R. Combined form of Langmuir and Freundlich equations[J]. Journal of Physical Chemistry, 1948, 16(429): 490-495.
24	Sun W N, Shen Y H, Zhang D H, et al. A systematic simulation and proposed optimization of the pressure swing adsorption process for N₂/CH₄ separation under external disturbances[J]. Industrial & Engineering Chemistry Research, 2015, 54(30): 7489-7501.
25	Shi W R, Yang H W, Shen Y H, et al. Two-stage PSA/VSA to produce H₂ with CO₂ capture via steam methane reforming (SMR)[J]. International Journal of Hydrogen Energy, 2018, 43(41): 19057-19074.
26	Wang Y Y, An Y X, Ding Z Y, et al. Integrated VPSA processes for air separation based on dual reflux configuration[J]. Industrial & Engineering Chemistry Research, 2019, 58(16): 6562-6575.
27	Chen S R, Shen Y H, Guan Z B, et al. Adsorption properties of SF₆ on zeolite NaY, 13X, activated carbon, and silica gel[J]. Journal of Chemical & Engineering Data, 2020, 65(8): 4044-4051.
28	Wu T B, Shen Y H, Feng L, et al. Adsorption properties of N₂O on zeolite 5A, 13X, activated carbon, ZSM-5, and silica gel[J]. Journal of Chemical & Engineering Data, 2019, 64(8): 3473-3482.
29	Park D, Ju Y, Kim J H, et al. Equilibrium and kinetics of nitrous oxide, oxygen and nitrogen adsorption on activated carbon and carbon molecular sieve[J]. Separation and Purification Technology, 2019, 223: 63-80.
30	Knaebel S P, Ko D, Biegler L T. Simulation and optimization of a pressure swing adsorption system: recovering hydrogen from methane[J]. Adsorption, 2005, 11(1): 615-620.

编辑推荐

Metrics

阅读次数

全文

HTML			PDF

最新录用	在线预览	正式出版	最新录用	在线预览	正式出版
0	0	0	0	0	14

来源	本网站	其他网站

次数	11	3
比例	79%	21%

摘要

最新录用	在线预览	正式出版

0	0	28

来源	本网站	其他网站

次数	13	15
比例	46%	54%

[1]	何传超, 周静红, 曹约强, 施尧, 周兴贵. Ag/SiO₂催化草酸酯加氢制乙醇酸甲酯的床层-颗粒双尺度耦合模拟研究[J]. 化工学报, 2025, 76(2): 654-666.
[2]	张珂, 任维杰, 王梦娜, 范凯锋, 常丽萍, 李佳斌, 马涛, 田晋平. Bunsen反应产物在微通道中的液-液两相混合特性[J]. 化工学报, 2025, 76(2): 623-636.
[3]	李舒月, 王欢, 周少强, 毛志宏, 张永民, 王军武, 吴秀花. 重质颗粒流态化研究现状与展望[J]. 化工学报, 2025, 76(2): 466-483.
[4]	韩启沃, 刘永峰, 裴普成, 张璐, 姚圣卓. 工作温度对PEMFC水分布、质子传输及性能影响分析[J]. 化工学报, 2025, 76(1): 374-384.
[5]	邓志诚, 杨欢, 王斯民, 王家瑞. 微混燃烧器中微管结构对氢燃料掺混效果与燃烧性能影响[J]. 化工学报, 2025, 76(1): 335-347.
[6]	纪之骄, 张晓方, 甘汶, 薛云鹏. 载体对单原子电催化剂合成氨性能的影响与调控策略[J]. 化工学报, 2025, 76(1): 18-39.
[7]	王瀚彬, 胡帅, 毕丰雷, 李隽森, 贺来宾. 新型波纹翅片金属氢化物反应器的放氢性能有限元分析[J]. 化工学报, 2025, 76(1): 221-230.
[8]	高羡明, 杨汶轩, 卢少辉, 任晓松, 卢方财. 双槽道结构对超疏水表面液滴合并弹跳的影响[J]. 化工学报, 2025, 76(1): 208-220.
[9]	刘萍, 邱雨生, 李世婧, 孙瑞奇, 申晨. 微通道内纳米流体传热流动特性[J]. 化工学报, 2025, 76(1): 184-197.
[10]	韩志敏, 周相宇, 张宏宇, 徐志明. 不同粗糙元结构下CaCO₃污垢局部沉积特性[J]. 化工学报, 2025, 76(1): 151-160.
[11]	任冠宇, 张义飞, 李新泽, 杜文静. 翼型印刷电路板式换热器流动传热特性数值研究[J]. 化工学报, 2024, 75(S1): 108-117.
[12]	杨勇, 祖子轩, 李煜坤, 王东亮, 范宗良, 周怀荣. T型圆柱形微通道内CO₂碱液吸收数值模拟[J]. 化工学报, 2024, 75(S1): 135-142.
[13]	黄俊豪, 庞克亮, 孙方远, 刘福军, 谷致远, 韩龙, 段衍泉, 冯妍卉. 干熄炉料钟结构对焦炭布料粒径均匀度影响的模拟研究[J]. 化工学报, 2024, 75(S1): 158-169.
[14]	董新宇, 边龙飞, 杨怡怡, 张宇轩, 刘璐, 王腾. 冷却条件下倾斜上升管S-CO₂流动与传热特性研究[J]. 化工学报, 2024, 75(S1): 195-205.
[15]	郭骐瑞, 任丽媛, 陈康, 黄翔宇, 马卫华, 肖乐勤, 周伟良. 用于HTPB推进剂浆料的静态混合管数值模拟[J]. 化工学报, 2024, 75(S1): 206-216.
