Pore-scale study of effects of preferential path on multiphase reactive transport process in porous media

doi:10.11949/0438-1157.20240809

Abstract

Abstract:

The multiple coupled reactive transport process of multiphase flow-solute transport-chemical reaction-solid phase evolution in porous media is crucial for many scientific and engineering problems. In this paper, a pore-scale multiphase reactive transport model is established to study the influence of preferential path on the multiphase reactive transport process in porous media. The results show that compared with the single-phase reaction transport process, where the wormhole extends along the preferential path, the presence of two-phase flow changes the mass transfer path. When the non-reactive fluid increases, the preferential path is blocked by the non-reactive fluid and the transverse mass transfer is limited, resulting in the absence of wormhole dissolution, and the delay of solid dissolution breakthrough. In addition, the existence of the two-phase stream will reduce the length of the reaction interface, and the average reactant concentration will increase significantly after dissolving breakthroughs.

Key words: multiphase reaction, transport processes, porous media, solid dissolution, lattice Boltzmann method

摘要：

多孔介质中多相流-溶质输运-化学反应-固相演变的多场耦合反应输运过程对于许多科学和工程问题至关重要。建立孔隙尺度多相反应输运模型，研究了优势通道对多孔介质中多相反应输运过程的影响。结果表明，相比于单相反应输运过程形成沿优势通道扩展的虫洞，两相流的存在会改变传质路径，当非反应流体增多时，会封堵优势通道，抑制横向传质，导致虫洞溶解消失，固体溶解突破延后。此外，两相流的存在会使可供反应界面长度减小，平均反应物浓度在溶解突破后显著增大。

关键词: 多相反应, 传递过程, 多孔介质, 固体溶解, 格子Boltzmann方法

CLC Number:

TK 121

Chuangde ZHANG, Li CHEN. Pore-scale study of effects of preferential path on multiphase reactive transport process in porous media[J]. CIESC Journal, 2025, 76(1): 161-172.

张闯德, 陈黎. 优势通道对多孔介质中多相反应输运过程影响的孔隙尺度研究[J]. 化工学报, 2025, 76(1): 161-172.

Figures/Tables 11

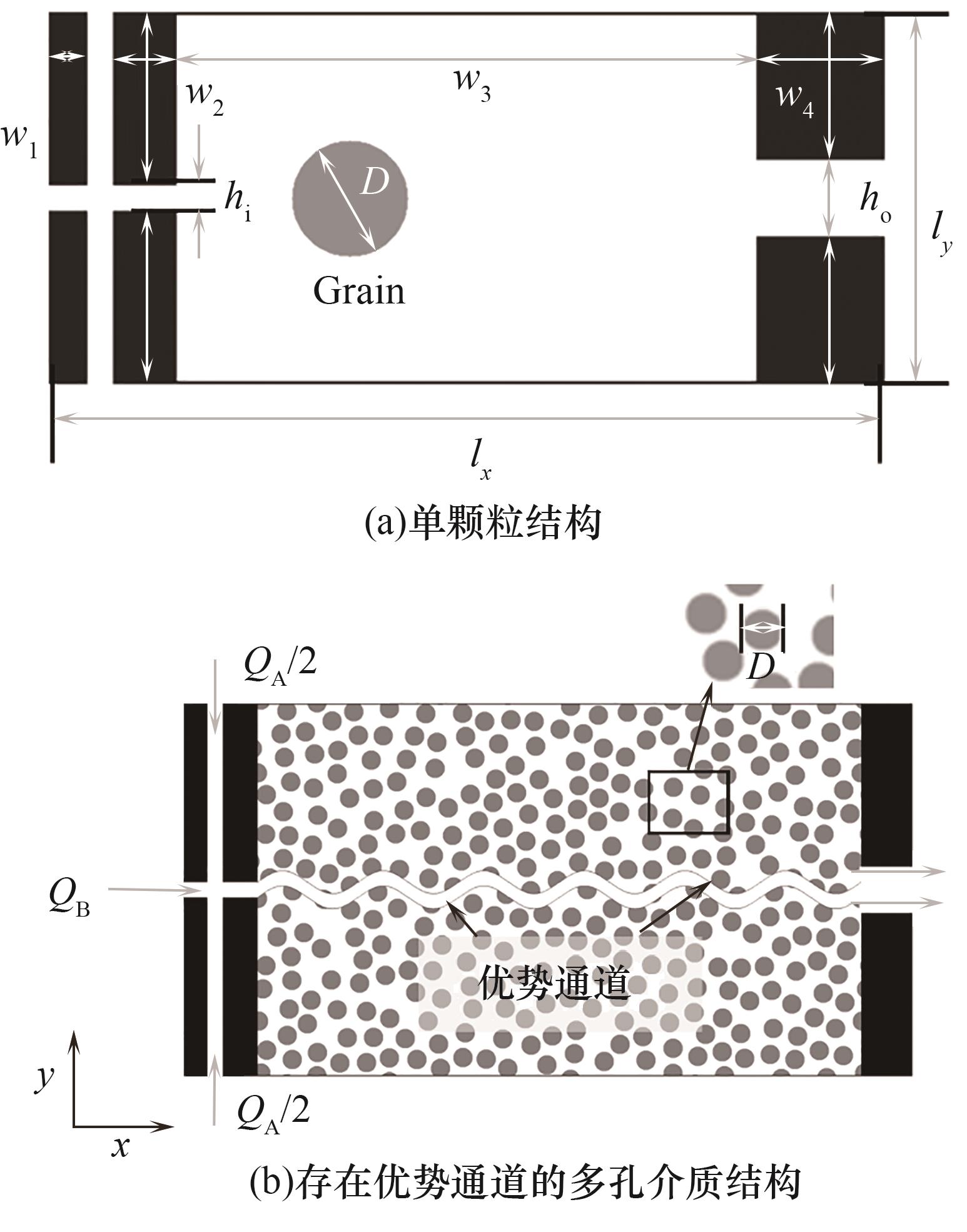

Fig.1 Schematic of multiphase reactive transport computational domain

Table 1 Physical property parameters used in the simulation

参数	符号	物理单位值	格子单位值
颗粒直径	D	500 μm	50
流体A密度	ρ_A	1000 kg·m^-3	2.0
盐水的运动黏度	μ_A	1.0×10^-6 m²·s^-1	0.167
反应物在盐水中的扩散系数	D_R	7.2×10^-7 m²·s^-1	0.12
生成物在盐水中的扩散系数	D_P	7.2×10^-7 m²·s^-1	0.12
摩尔体积	V_m	3.8×10^-5 m³·mol^-1	3.8×10^-2
平衡常数	K_eq	1×10¹⁰	1×10¹⁰
流体A中的入口反应物浓度	C_R,in	1.0 mol·L^-1	1.0
流体A和B的入口产品浓度	C_P,in	0 mol·L^-1	0
Péclet数	Pe	5	5
Damköhler数	Da	10	10

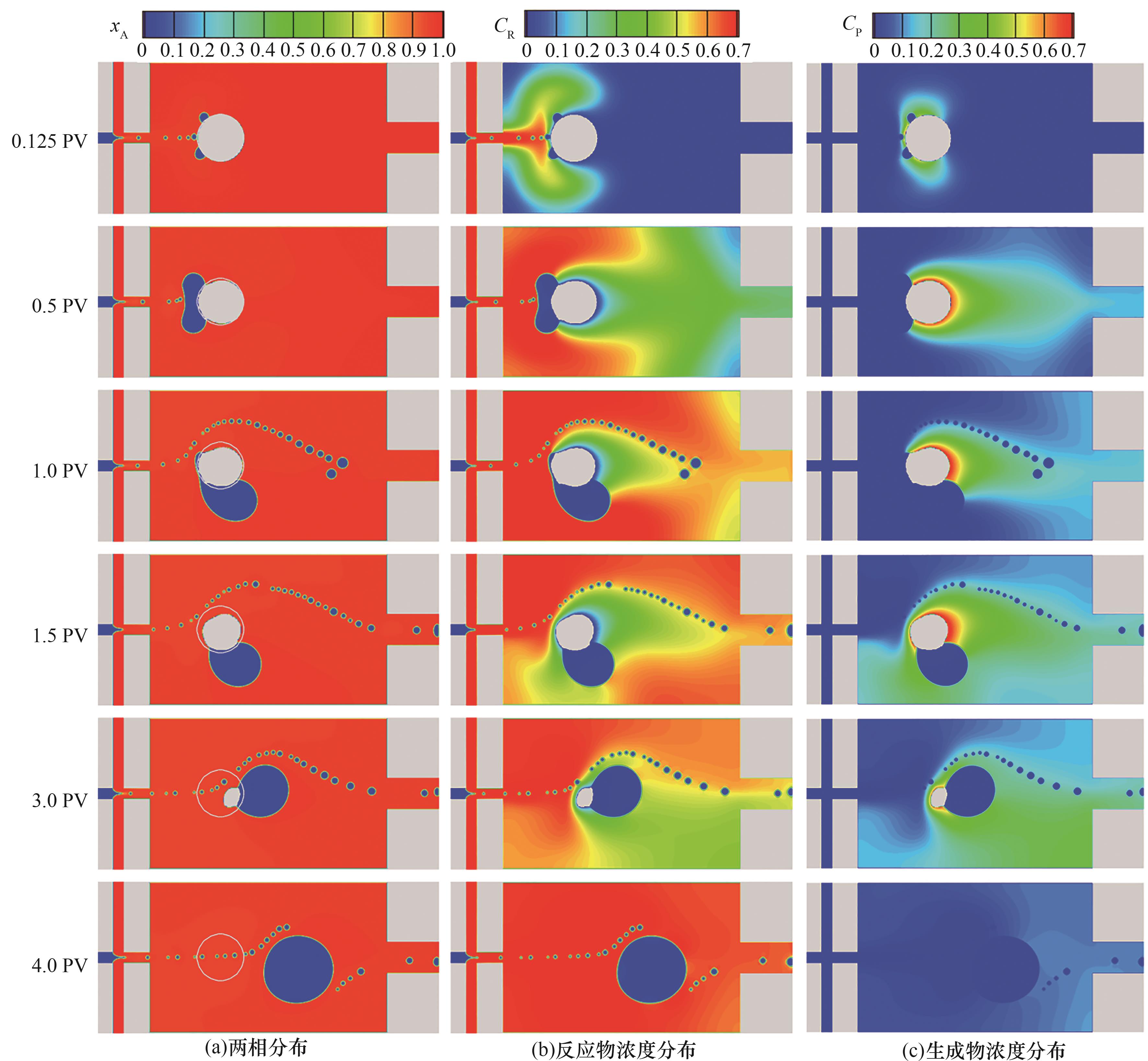

Fig.2 Multiphase reactive transport processes in single-grain structure

Fig.3 Effect of flow rate ratio on fluid distribution and pore structure evolution during reactive transport processes

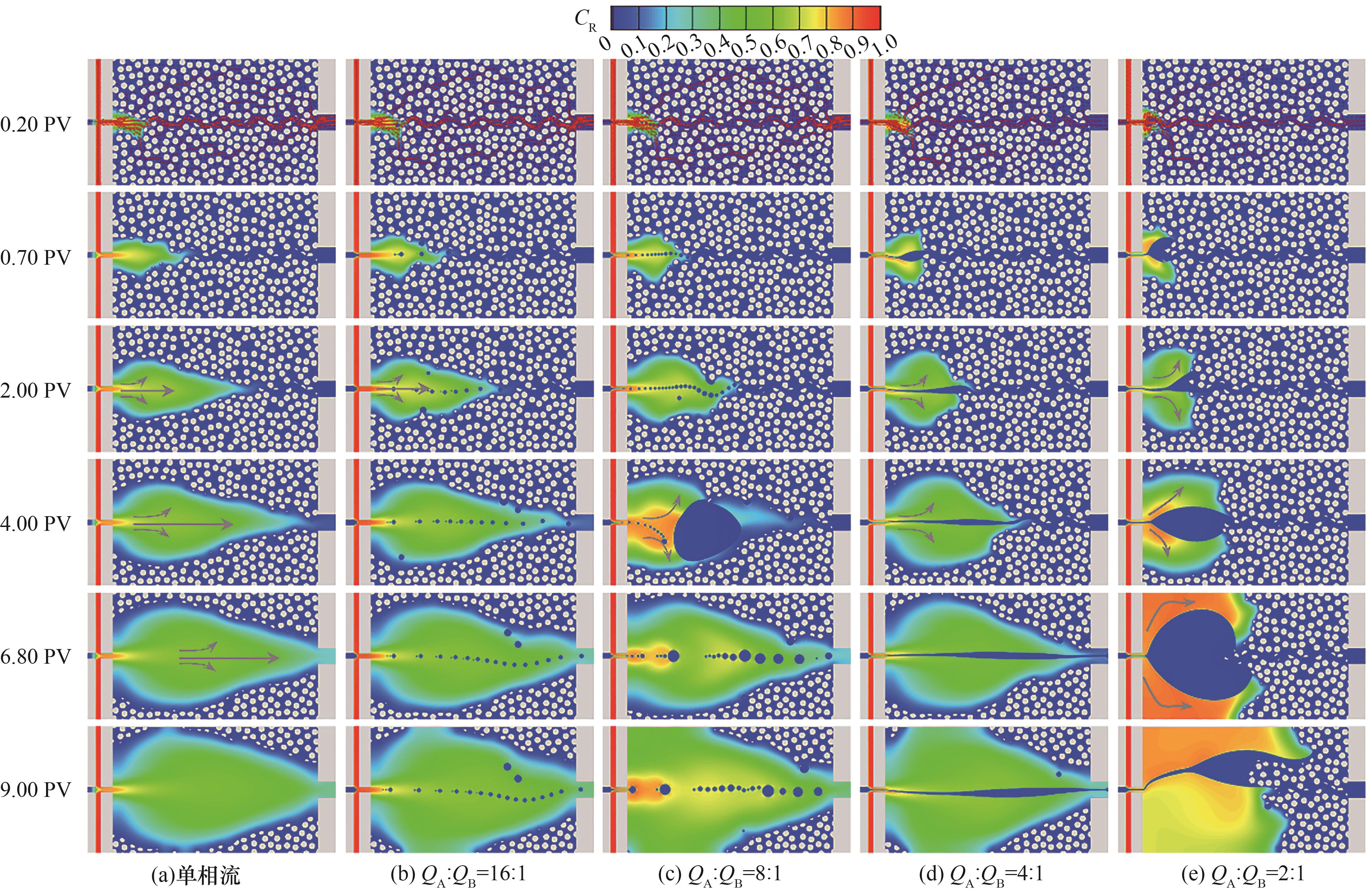

Fig.4 Effect of flow rate ratio on reactant concentration distribution during reactive transport processes

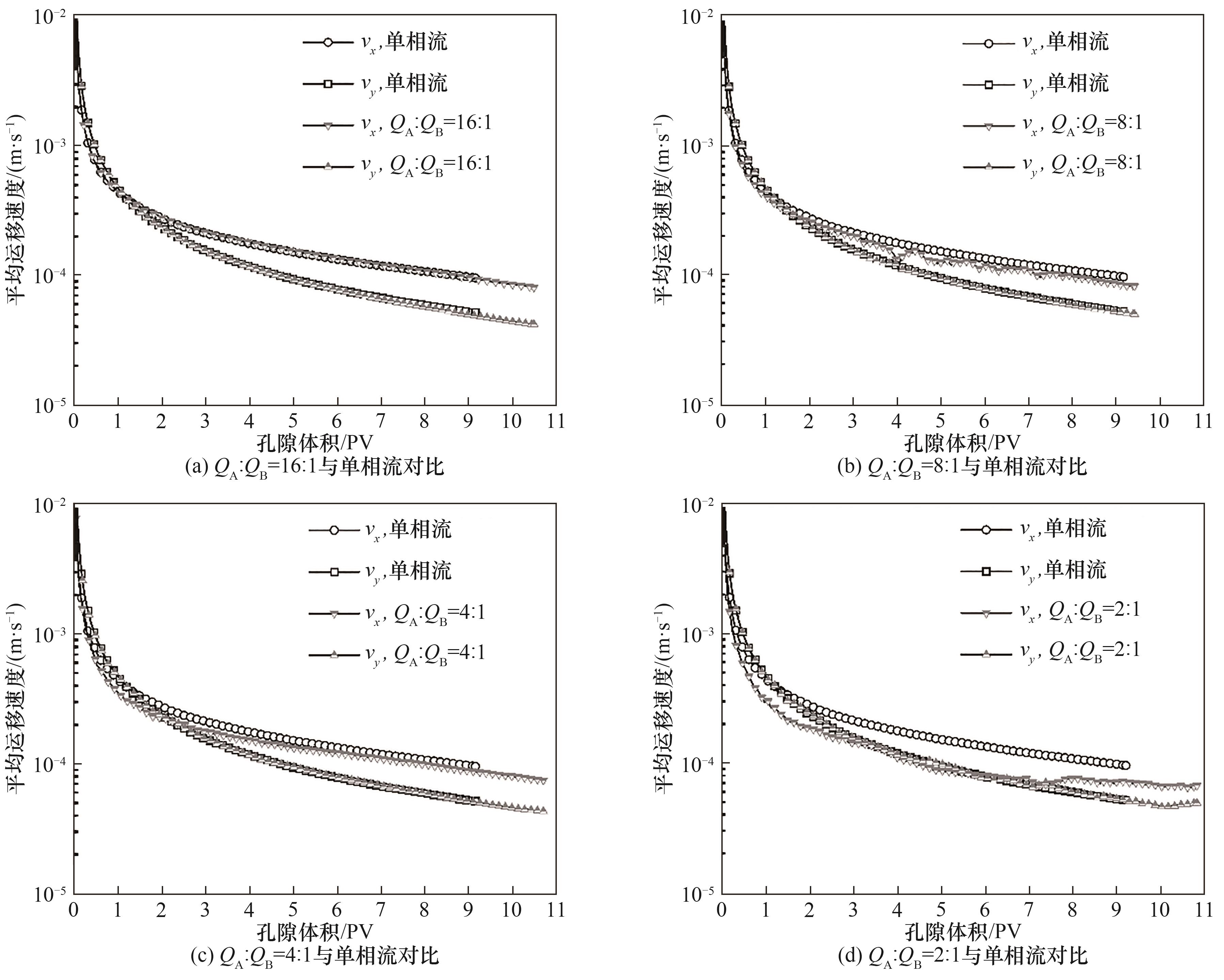

Fig.5 Comparison of mean migration velocity of concentration mass center between single-phase and multiphase reaction transport processes

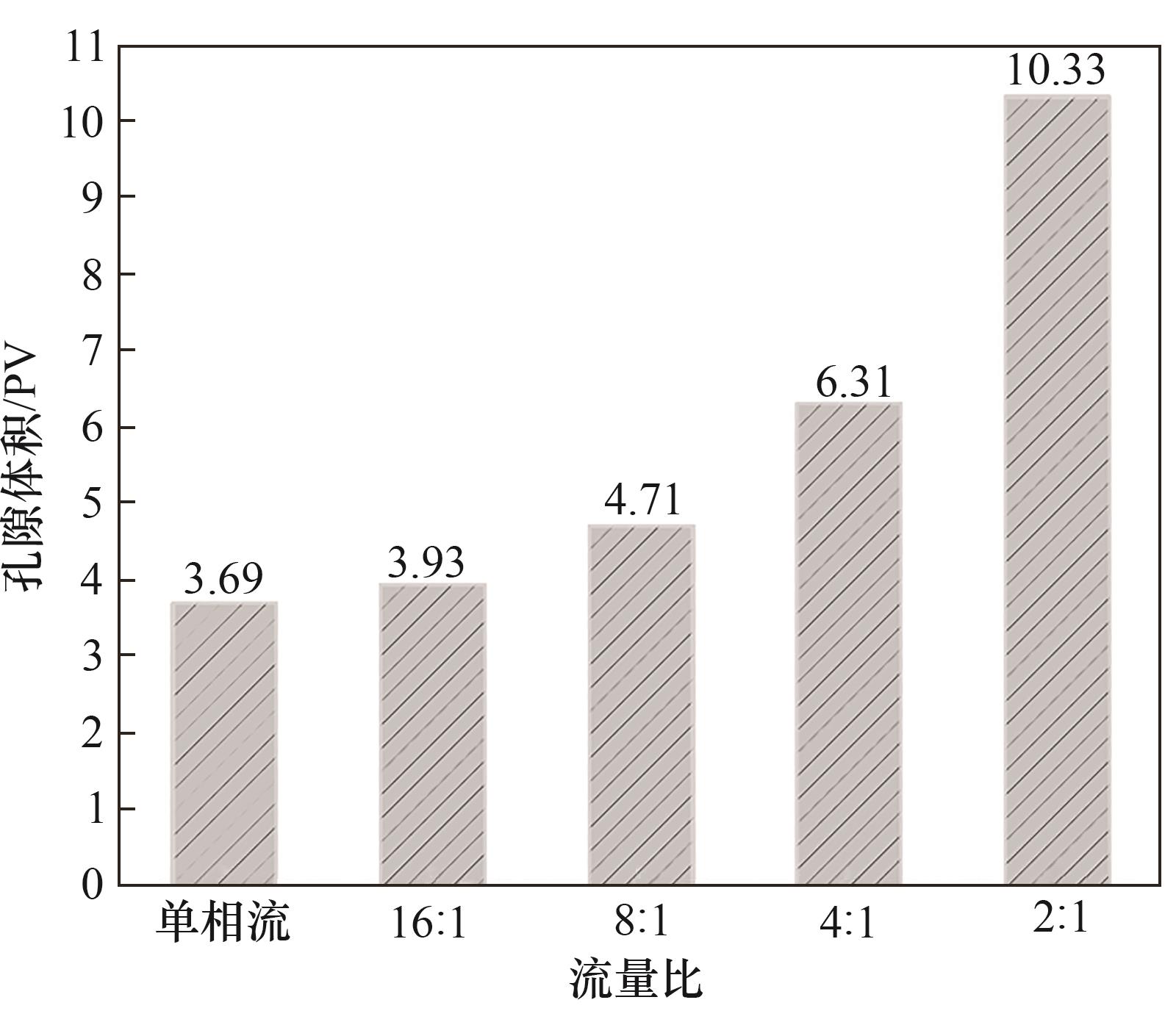

Fig.6 Effects of flow rate ratio on injected pore volumes required for breakthrough

Fig.7 Effects of flow rate ratio on evolutions of normalized porosity and reactive fluid saturation

Fig.8 Effects of flow rate ratio on interfacial length

Fig.9 Effects of flow rate ratio on evolutions of mean reactant concentration

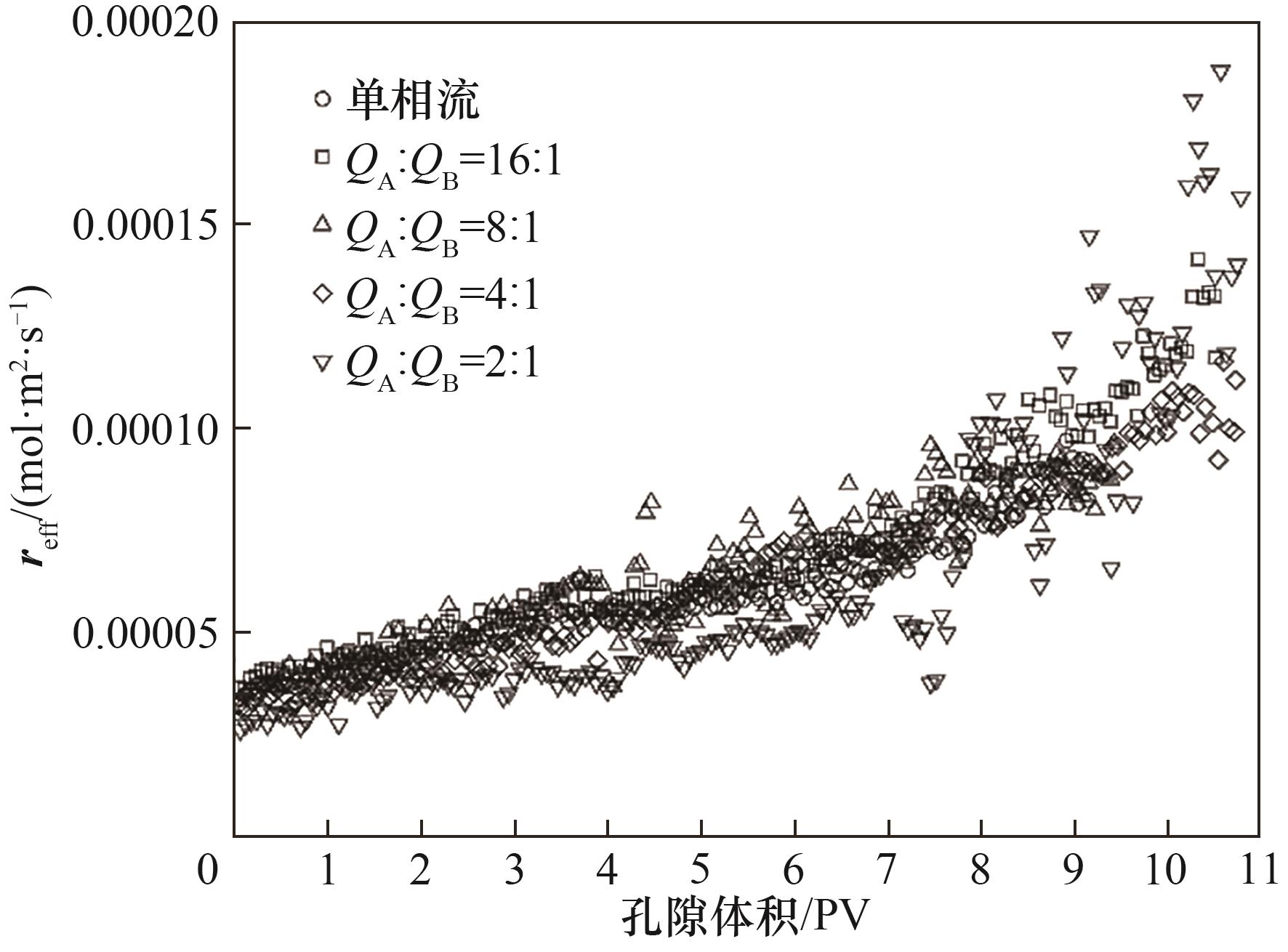

Fig. 10 Effects of flow rate ratio on evolutions of effective reaction rate

References 40

1	Snæbjörnsdóttir S Ó, Sigfússon B, Marieni C, et al. Carbon dioxide storage through mineral carbonation[J]. Nature Reviews Earth & Environment, 2020, 1: 90-102.
2	Zhang R Y, Min T, Chen L, et al. Pore-scale and multiscale study of effects of Pt degradation on reactive transport processes in proton exchange membrane fuel cells[J]. Applied Energy, 2019, 253: 113590.
3	Jew A D, Druhan J L, Ihme M, et al. Chemical and reactive transport processes associated with hydraulic fracturing of unconventional oil/gas shales[J]. Chemical Reviews, 2022, 122(9): 9198-9263.
4	薛强, 梁冰, 冯夏庭, 等. 石油污染物在地下环境系统中运移的多相流数值模型[J]. 化工学报, 2005, 56(5): 920-924.
	Xue Q, Liang B, Feng X T, et al. Numerical modeling with multiphase flow model of petroleum pollutant transport in subsurface environment[J]. Journal of Chemical Industry and Engineering (China), 2005, 56(5): 920-924.
5	Yu Y S, Zhang X W, Liu J W, et al. Natural gas hydrate resources and hydrate technologies: a review and analysis of the associated energy and global warming challenges[J]. Energy & Environmental Science, 2021, 14(11): 5611-5668.
6	张烈辉, 张涛, 赵玉龙, 等. 二氧化碳-水-岩作用机理及微观模拟方法研究进展[J]. 石油勘探与开发, 2024, 51(1): 199-211.
	Zhang L H, Zhang T, Zhao Y L, et al. A review of interaction mechanisms and microscopic simulation methods for CO₂-water-rock system[J]. Petroleum Exploration and Development, 2024, 51(1): 199-211.
7	Békri S, Thovert J, Adler P. Dissolution of porous media[J]. Chemical Engineering Science, 1995, 50: 2765-2791.
8	Fredd C N, Fogler H S. Influence of transport and reaction on wormhole formation in porous media[J]. AIChE Journal, 1998, 44(9): 1933-1949.
9	Maheshwari P, Ratnakar R R, Kalia N, et al. 3-D simulation and analysis of reactive dissolution and wormhole formation in carbonate rocks[J]. Chemical Engineering Science, 2013, 90: 258-274.
10	Wang Z, Chen L, Wei H K, et al. Pore-scale study of mineral dissolution in heterogeneous structures and deep learning prediction of permeability[J]. Physics of Fluids, 2022, 34(11): 116609.
11	Zhang Y T, Jiang F, Tsuji T. Influence of pore space heterogeneity on mineral dissolution and permeability evolution investigated using lattice Boltzmann method[J]. Chemical Engineering Science, 2022, 247: 117048.
12	Liu M, Mostaghimi P. High-resolution pore-scale simulation of dissolution in porous media[J]. Chemical Engineering Science, 2017, 161: 360-369.
13	Chen L, Kang Q J, Viswanathan H S, et al. Pore-scale study of dissolution-induced changes in hydrologic properties of rocks with binary minerals[J]. Water Resources Research, 2014, 50(12): 9343-9365.
14	Deng H, Molins S, Trebotich D, et al. Pore-scale numerical investigation of the impacts of surface roughness: upscaling of reaction rates in rough fractures[J]. Geochimica et Cosmochimica Acta, 2018, 239: 374-389.
15	You J H, Lee K J. A pore–scale investigation of surface roughness on the evolution of natural fractures during acid dissolution using DBS method[J]. Journal of Petroleum Science and Engineering, 2021, 204: 108728.
16	Zhou C X, Hu R, Li H W, et al. Pore-scale visualization and quantification of dissolution in microfluidic rough channels[J]. Water Resources Research, 2022, 58(11): e2022wr032255.
17	Chen L, He A, Zhao J L, et al. Pore-scale modeling of complex transport phenomena in porous media[J]. Progress in Energy and Combustion Science, 2022, 88: 100968.
18	陈黎. 能源与环境学科中的多尺度多物理化学耦合反应输运过程数值模拟研究[D]. 西安: 西安交通大学, 2013.
	Chen L. Numerical investigation of multiscale multiple physicochemical coupled reactive transport processes in energy and environmental discipline[D]. Xi'an: Xi'an Jiaotong University, 2013.
19	Shukla S, Zhu D, Hill A D. The effect of phase saturation conditions on wormhole propagation in carbonate acidizing[J]. SPE Journal, 2006, 11(3): 273-281.
20	Babaei M, Sedighi M. Impact of phase saturation on wormhole formation in rock matrix acidizing[J]. Chemical Engineering Science, 2018, 177: 39-52.
21	Ott H, Oedai S. Wormhole formation and compact dissolution in single-and two-phase CO₂-brine injections[J]. Geophysical Research Letters, 2015, 42(7): 2270-2276.
22	Jiménez-Martínez J, de Anna P, Tabuteau H, et al. Pore-scale mechanisms for the enhancement of mixing in unsaturated porous media and implications for chemical reactions[J]. Geophysical Research Letters, 2015, 42(13): 5316-5324.
23	Li P, Deng H, Molins S. The effect of pore-scale two-phase flow on mineral reaction rates[J]. Frontiers in Water, 2022, 3: 734518.
24	Kang Q J, Lichtner P C, Zhang D X. Lattice Boltzmann pore-scale model for multicomponent reactive transport in porous media[J]. Journal of Geophysical Research: Solid Earth, 2006, 111(B5): B05203.
25	Kang Q J, Lichtner P C, Zhang D X. An improved lattice Boltzmann model for multicomponent reactive transport in porous media at the pore scale[J]. Water Resources Research, 2007, 43(12): W12S14.
26	Lu G P, DePaolo D J, Kang Q J, et al. Lattice Boltzmann simulation of snow crystal growth in clouds[J]. Journal of Geophysical Research: Atmospheres, 2009, 114(D7): e2008jd011087.
27	Xu Q H, Long W, Jiang H, et al. Pore-scale modelling of the coupled thermal and reactive flow at the combustion front during crude oil in situ combustion[J]. Chemical Engineering Journal, 2018, 350: 776-790.
28	Wang M, Zhu W B. Pore-scale study of heterogeneous chemical reaction for ablation of carbon fibers using the lattice Boltzmann method[J]. International Journal of Heat and Mass Transfer, 2018, 126: 1222-1239.
29	Zhang L M, Zhang C D, Zhang K, et al. Pore-scale investigation of methane hydrate dissociation using the lattice Boltzmann method[J]. Water Resources Research, 2019, 55(11): 8422-8444.
30	Chen L, Kang Q J, Robinson B A, et al. Pore-scale modeling of multiphase reactive transport with phase transitions and dissolution-precipitation processes in closed systems[J]. Physical Review E, Statistical, Nonlinear, and Soft Matter Physics, 2013, 87(4): 043306.
31	Chen L, Kang Q J, Tang Q, et al. Pore-scale simulation of multicomponent multiphase reactive transport with dissolution and precipitation[J]. International Journal of Heat and Mass Transfer, 2015, 85: 935-949.
32	Chen L, Wang M Y, Kang Q J, et al. Pore scale study of multiphase multicomponent reactive transport during CO₂ dissolution trapping[J]. Advances in Water Resources, 2018, 116: 208-218.
33	Yang J Y, Dai X Y, Xu Q H, et al. Lattice Boltzmann modeling of interfacial mass transfer in a multiphase system[J]. Physical Review E, 2021, 104(1/2): 015307.
40	Zhang R D. Spatial Variation Theory and Its Application[M]. Beijing: Science Press, 2005.
41	Menke H P, Bijeljic B, Andrew M G, et al. Dynamic three-dimensional pore-scale imaging of reaction in a carbonate at reservoir conditions[J]. Environmental Science & Technology, 2015, 49(7): 4407-4414.
34	Yang J Y, Xu Q H, Liu Z Y, et al. Pore-scale study of the multiphase methane hydrate dissociation dynamics and mechanisms in the sediment[J]. Chemical Engineering Journal, 2022, 430: 132786.
35	Diao Z H, Chen Z X, Liu H H, et al. Pore-scale modeling of gravity-driven superheated vapor flooding process in porous media using the lattice Boltzmann method[J]. International Communications in Heat and Mass Transfer, 2023, 146: 106937.
36	Zhang C D, Chen L, Min T, et al. Pore-scale modeling of effects of multiphase reactive transport on solid dissolution in porous media with structural heterogeneity[J]. Chemical Engineering Science, 2024, 295: 120127.
37	付宇航, 赵述芳, 王文坦, 等. 多相/多组分LBM模型及其在微流体领域的应用[J]. 化工学报, 2014, 65(7): 2535-2543.
	Fu Y H, Zhao S F, Wang W T, et al. Application of lattice Boltzmann method for simulation of multiphase/multicomponent flow in microfluidics[J]. CIESC Journal, 2014, 65(7): 2535-2543.
38	Anna S L, Bontoux N, Stone H A. Formation of dispersions using "flow focusing" in microchannels[J]. Applied Physics Letters, 2003, 82(3): 364-366.
39	何雅玲, 王勇, 李庆. 格子Boltzmann方法的理论及应用[M]. 北京: 科学出版社, 2009.
	He Y L, Wang Y, Li Q. Lattice Boltzmann Method: Theory and Applications[M]. Beijing: Science Press, 2009.
40	张仁铎. 空间变异理论及应用[M]. 北京: 科学出版社, 2005.
